Tests for Parallelograms

Tests for Parallelograms. Parallelogram Sec : 8.3 Sol: G.8 a,b,c. Proving Parallelograms. Theorem 8.9 : If both pairs of opposite sides of a quadrilateral are congruent, then the quadrilateral is a parallelogram.

tyson
Télécharger la présentation

Tests for Parallelograms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

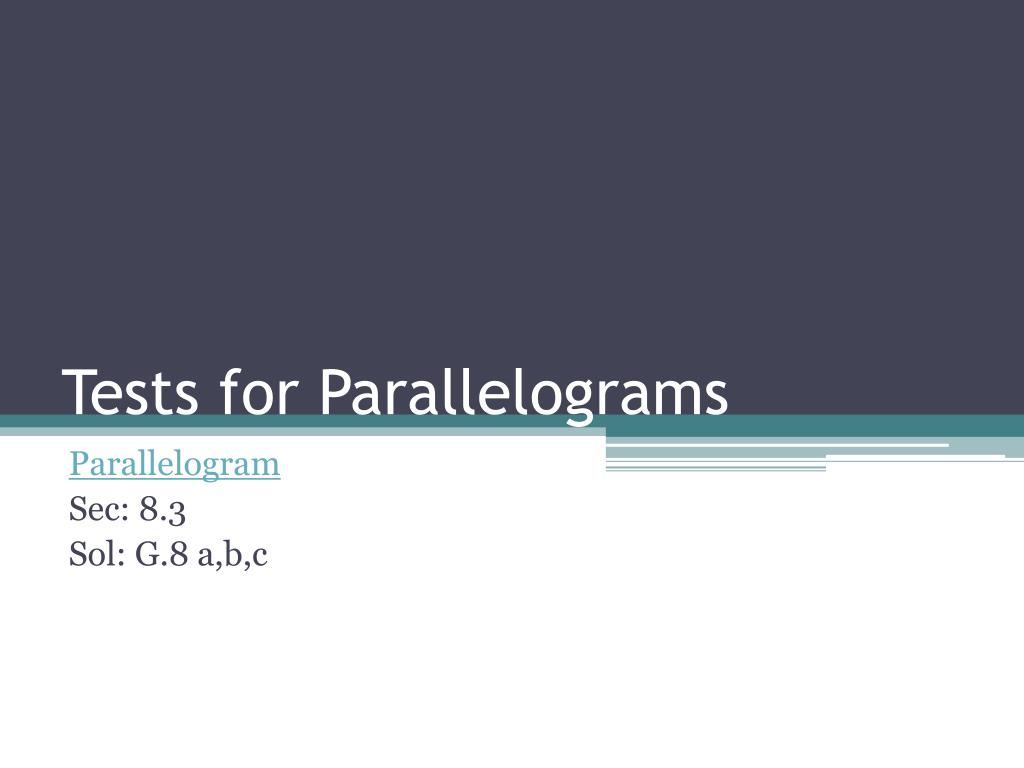

  1. Tests for Parallelograms Parallelogram Sec: 8.3 Sol: G.8 a,b,c

  2. Proving Parallelograms Theorem 8.9 : If both pairs of opposite sides of a quadrilateral are congruent, then the quadrilateral is a parallelogram. Theorem 8.10 : If both pairs of opposite angles are congruent, then the quadrilateral is a parallelogram.

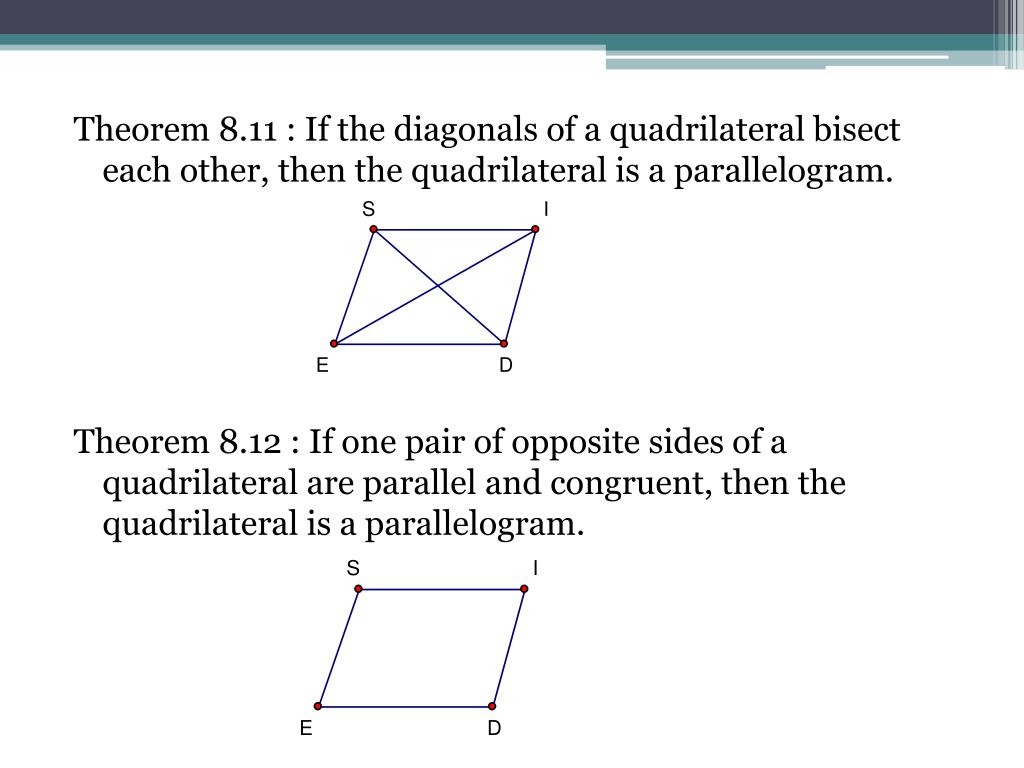

  3. Theorem 8.11 : If the diagonals of a quadrilateral bisect each other, then the quadrilateral is a parallelogram. Theorem 8.12 : If one pair of opposite sides of a quadrilateral are parallel and congruent, then the quadrilateral is a parallelogram.

  4. Summary – Tests for Parallelograms • Both pairs of opposite sides are parallel (Definition) • Both pairs of opposite sides are congruent (Thm 8.9) • Both pairs of opposite angles are congruent (Thm 8.10) • Diagonal bisect each other (Thm 8.11) • A pair of opposite sides are both parallel and congruent (thm 8.12)

  5. Find the values of x and y the ensure each quadrilateral is a parallelogram

  6. Example: Solve for x and y. 2y+12 x Y 5x - 28 5y

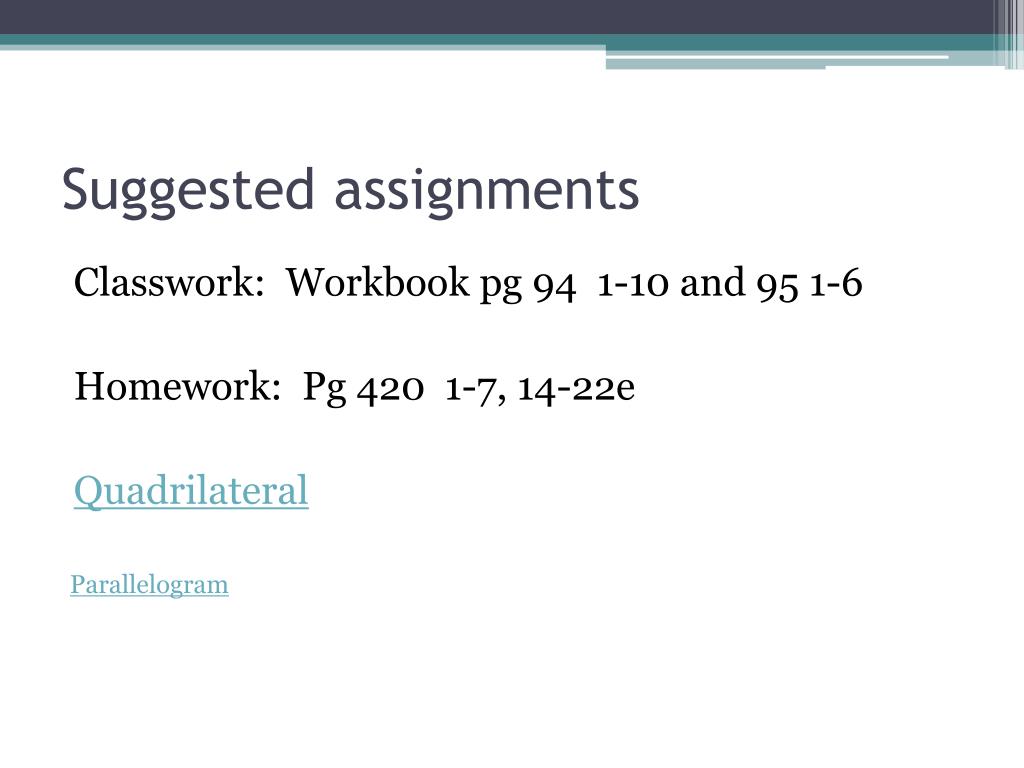

  7. Suggested assignments Classwork: Workbook pg 94 1-10 and 95 1-6 Homework: Pg 420 1-7, 14-22e Quadrilateral Parallelogram
