PARALLELOGRAMS

theiss avatar
theiss
16 diapositives · 213 Views · Jan 02, 2020

Discover the fascinating properties, theorems, and unique shapes related to parallelograms, rectangles, rhombuses, squares, trapezoids, and kites in geometry. Learn about congruent sides, angles, diagonals, and more!

#parallelograms #parallelograms ppt #powerpoint #presentation
PARALLELOGRAMS - slide 1
01 / 16PARALLELOGRAMS
1 / 17

Télécharger la présentation

PARALLELOGRAMS
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

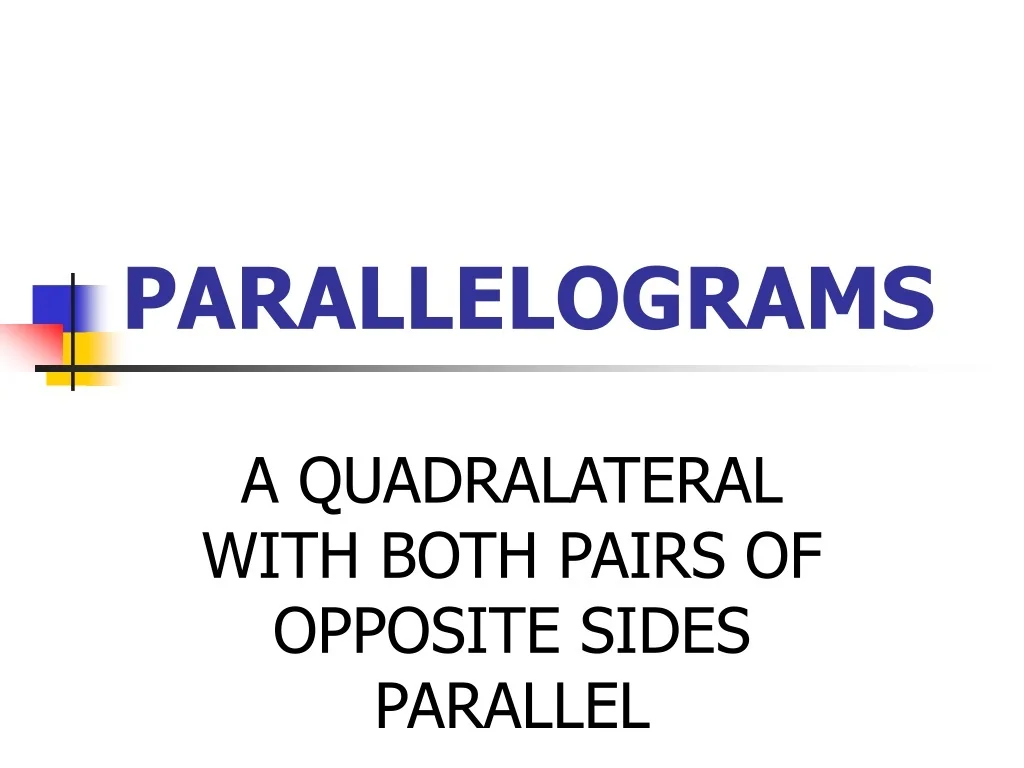

  1. PARALLELOGRAMS A QUADRALATERAL WITH BOTH PAIRS OF OPPOSITE SIDES PARALLEL

  2. PARALLELOGRAMS • Theorem 8.3 • Opposite sides of a parallelogram are CONGRUENT. • Theorem 8.4 • Opposite angles in a parallelogram are CONGRUENT

  3. PARALLELOGRAMS • Theorem 8.5 • Consecutive angles in a parallelogram are SUPPLEMENTARY. • Theorem 8.6 • If a parallelogram has one right angle, it has FOUR RIGHT ANGLES.

  4. PARALLELOGRAMS • Theorem 8.7 • The diagonals of a parallelogram BISECT each other. • Theorem 8.8 • Each diagonal of a parallelogram separates the parallelogram into TWO CONGRUENT TRIANGLES.

  5. PARALLELOGRAMS • Theorem 8.9 • If both pairs of opposite SIDES of a quadrilateral are CONGRUENT, then the quadrilateral IS a parallelogram. • Theorem 8.10 • If both pairs of opposite ANGLES of a quadrilateral are CONGRUENT, then the quadrilateral IS a parallelogram.

  6. PARALLELOGRAMS • Theorem 8.11 • If the DIAGONALS of a quadrilateral BISECT each other, then the quadrilateral IS a parallelogram. • Theorem 8.12 • If ONE pair of OPPOSITE SIDES of a quadrilateral is both PARALLEL and CONGRUENT, then the quadrilateral IS a parallelogram.

  7. TESTS FOR PARALLELOGRAM • Both pairs of opposite sides are parallel. • Both pairs of opposite sides are congruent. • Both pairs of opposite angles are congruent. • Diagonals bisect each other. • A pair of opposite sides is both parallel and congruent.

  8. PARALLELOGRAMS • A rectangle is a quadrilateral with four right angles. • Theorem 8.13 • If a parallelogram is a rectangle, then the diagonals are congruent. • Theorem 8.14 • If the diagonals of a parallelogram are congruent, then the parallelogram is a rectangle.

  9. PROPERTIES OF A RECTANGLE • Opposite sides are congruent and parallel. • Opposite angles are congruent. • Consecutive angles are supplementary. • Diagonals are congruent and bisect each other. • All four angles are right angles.

  10. PARALLELOGRAMS • A rhombus is a quadrilateral with all four sides congruent. • Theorem 8.15 • The diagonals of a rhombus are perpendicular. • Theorem 8.16 • If the diagonals of a parallelogram are perpendicular, then the parallelogram is a rhombus

  11. PARALLELOGRAMS • Theorem 8.17 • Each diagonal of a rhombus bisects a pair of opposite angles. • If a quadrilateral is both a rhombus and a rectangle, then it is a SQUARE.

  12. A rhombus has all the properties of a parallelogram. All sides are congruent. Diagonals are perpendicular. Diagonals bisect the angles of the rhombus. A square has all the properties of a parallelogram. A square has all the properties of a rectangle. A square has all the properties of a rhombus. PROPERTIES OF RHOMBI AND SQUARES

  13. PARALLELOGRAMS • A trapezoid is a quadrilateral with exactly one pair of parallel sides. The parallel sides are called bases. The base angles are formed by a base and one of the legs. The nonparallel sides are called the legs. If the legs are congruent, then the trapezoid is an isosceles trapezoid.

  14. PARALLELOGRAMS • Theorem 8.18 • Both pairs of base angles of an isosceles trapezoid are congruent. • Theorem 8.19 • The diagonals of an isosceles trapezoid are congruent.

  15. PARALLELOGRAMS • The median is the segment that joins the midpoints of the legs of a trapezoid. The median of a trapezoid can also be called a midsegment. • Theorem 8.20 • The median of a trapezoid is parallel to the bases, and its measure is one-half the sum of the measures of the bases.

  16. PARALLELOGRAMS • A kite is a quadrilateral with exactly two distinct pairs of adjacent congruent sides.
