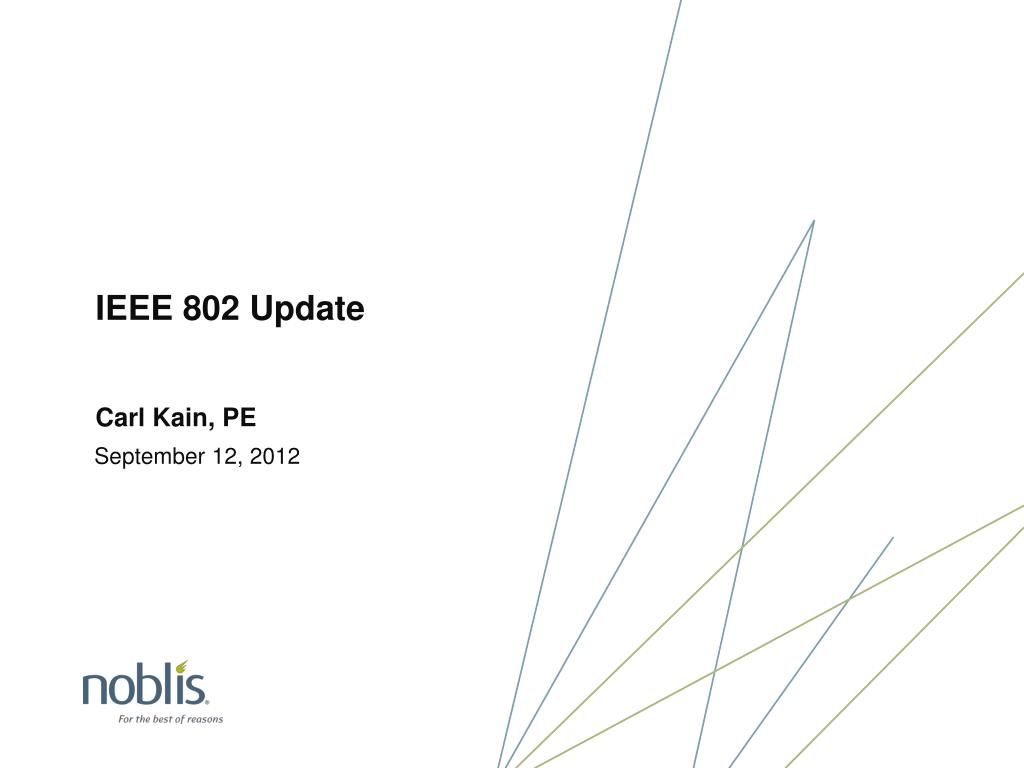

  1. IEEE 802 Update Carl Kain, PE September 12, 2012

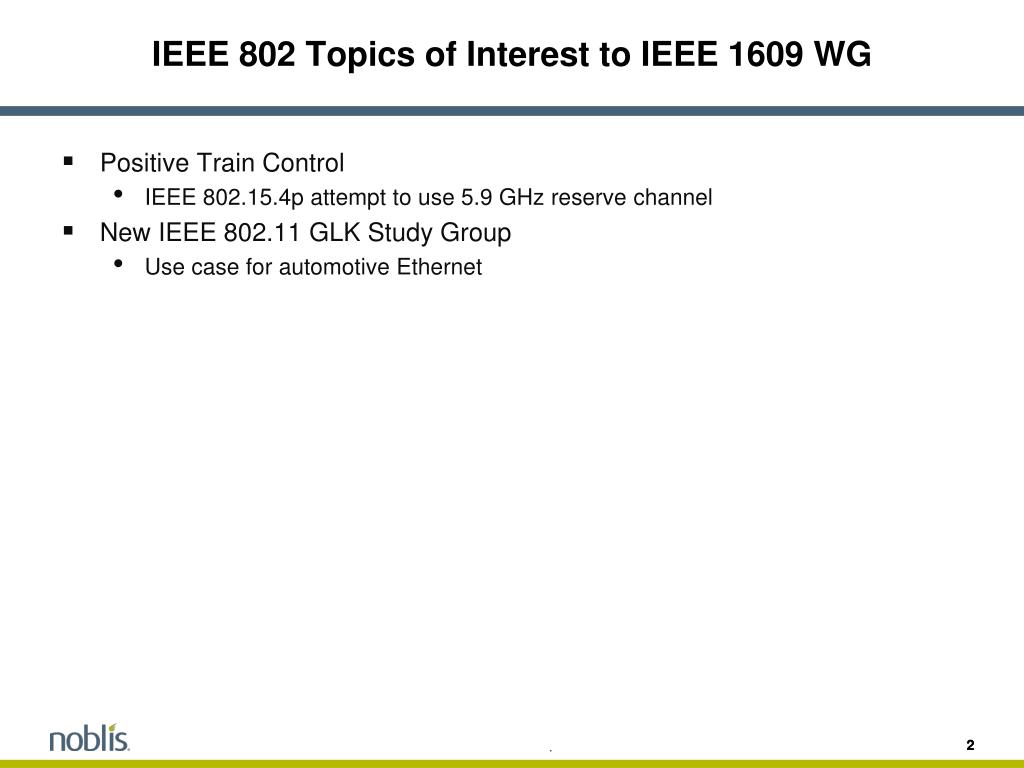

  2. IEEE 802 Topics of Interest to IEEE 1609 WG • Positive Train Control • IEEE 802.15.4p attempt to use 5.9 GHz reserve channel • New IEEE 802.11 GLK Study Group • Use case for automotive Ethernet

  3. Positive Train Control • The Rail Safety Improvement Act of 2008 (RISA08) mandates Class 1 railroads, certain classes of passenger rail, and railroads that carry Toxic Inhalation or Poison Inhalation (TIH/PIH) cargo are required to have certain categories of track instrumented with PTC by 2015 • prevent train-to-train collisions and prevent derailments due to trains exceeding speed restrictions (braking is applied automatically if the cab crew ignores warnings) • prevent trains from improperly entering established work zones (the engineer in charge of a work zone can communicate directly with both the locomotive and the dispatcher) • prevent the movement of a train through a switch left in the wrong position (switch positions are transmitted directly to the locomotive and warnings are presented to the cab crew) • Congressionally mandated schedule is prompting railroads to use a proprietary communications system at 220 MHz • Several companies think this communication system will be inadequate in the long run

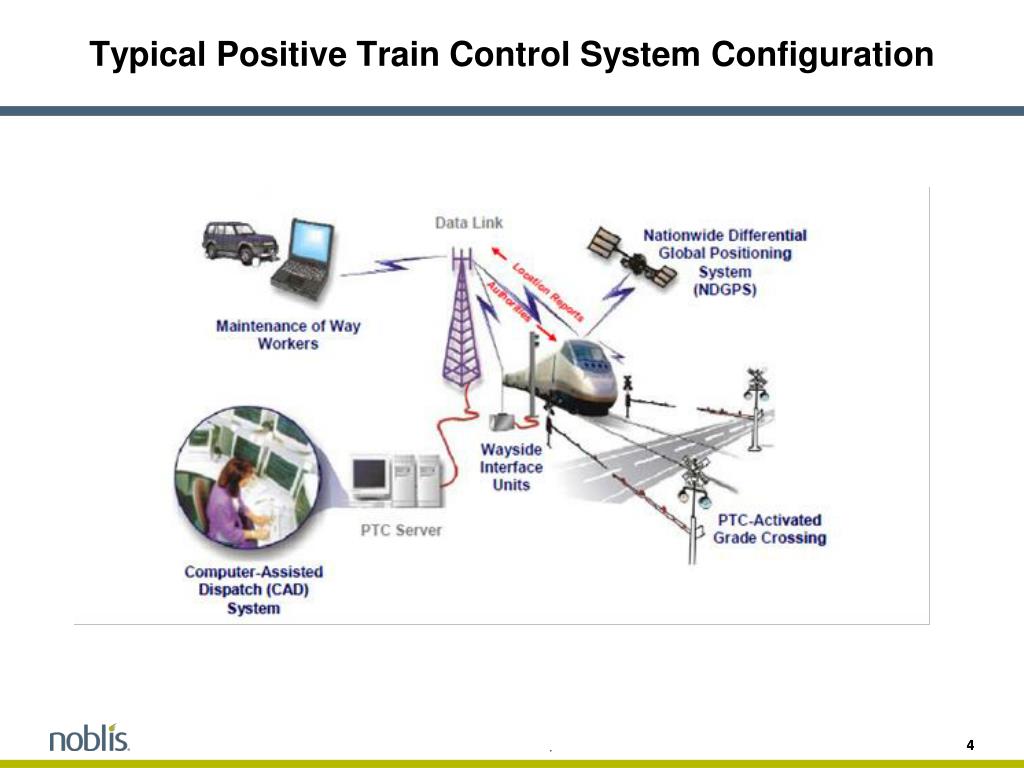

  4. Typical Positive Train Control System Configuration

  5. IEEE 802.15.4p PTC • IEEE 802.15 created a task group to develop a standard for PTC • TG decided to use existing IEEE 802.15.4, and make PTC an amendment • Requirements for amendment include: • Operation in licensed or license-free radio bands • Operation up to 6 GHz; Specific bands of interest or bands in use today for similar systems: 216 – 222 MHz, 452/457 MHz, 896 - 902 MHz, 902 – 928 MHz, 928 – 952 MHz, 5850 – 5925 MHz • Depending on frequency band and operating rules, TX output power can be >+30dBm • Meets requirements at speeds up to 600 km/h • Range up to 70 km • Allows operation in contiguous or non-contiguous channel bandwidths as narrow as 5 kHz • supports data rates up to 1 Mbps with flexible and robust quality of service

  6. IEEE 802.15.4p Interest in 5850-5925 MHz Band • Joint meeting between the PTC TG and the IEEE 802.18 Radio Regulatory TAG at IEEE 802 July Plenary • Lou Sanders of APTA was in attendance • The PTC TG made a presentation to include the use of the 5 MHz reserve frequencies in the DSRC band (channel 170) • The channel bandwidths for PTC use in this reserve band can be as small as 5 kHz • New frequency bands or modulations that are not currently in 802.15.4 (like the DSRC reserve channels) require an amendment to the IEEE 802.15.4 base standard • TG chair was told they would likely have to make a presentation to Julius Knapp and Jennifer Manner at FCC to discuss using DSRC band for PTC. • May be an impact from the NTIA study to examine unlicensed use of 5850-5925 MHz

  7. Results of the Joint Meeting • TG chair (Jon Adams) wants to pursue (through the IEEE 802.18 Radio Regulatory TAG) requesting that DSRC Channel 170 (reserved) be used for IEEE 802.15.4-based PTC • Will likely be a discussion item at September Interim • TG presentations will be available at: https://mentor.ieee.org/802.15/documents?is_group=004p • Noblis participates in TG due to TG interest in using DSRC spectrum, and implications to ITS safety applications for highway-rail intersections

  8. Background on New IEEE 802.11 GLK Study Group • IEEE 802.11 has a Wireless Next Generation Standing Committee that meets at each Plenary and Interim session • Presentations are solicited on new and emerging technologies or proposed new features • Presenters will often hold straw polls to determine if the group wants more information or additional presentations at the next meeting, or if there was sufficient interest to start a new IEEE 802.11 Study Group • Study Group status requires vote in closing plenary session • Study Groups are precursor to Task Groups • Task Groups develop new standards (amendments to IEEE 802.11) • At IEEE 802.11 WNG SC meeting at the July Plenary in San Diego, Don Eastlake gave a presentation titled “General 802.11 Links” • Don was the first of two TG Chairs of the Mesh Networking amendment

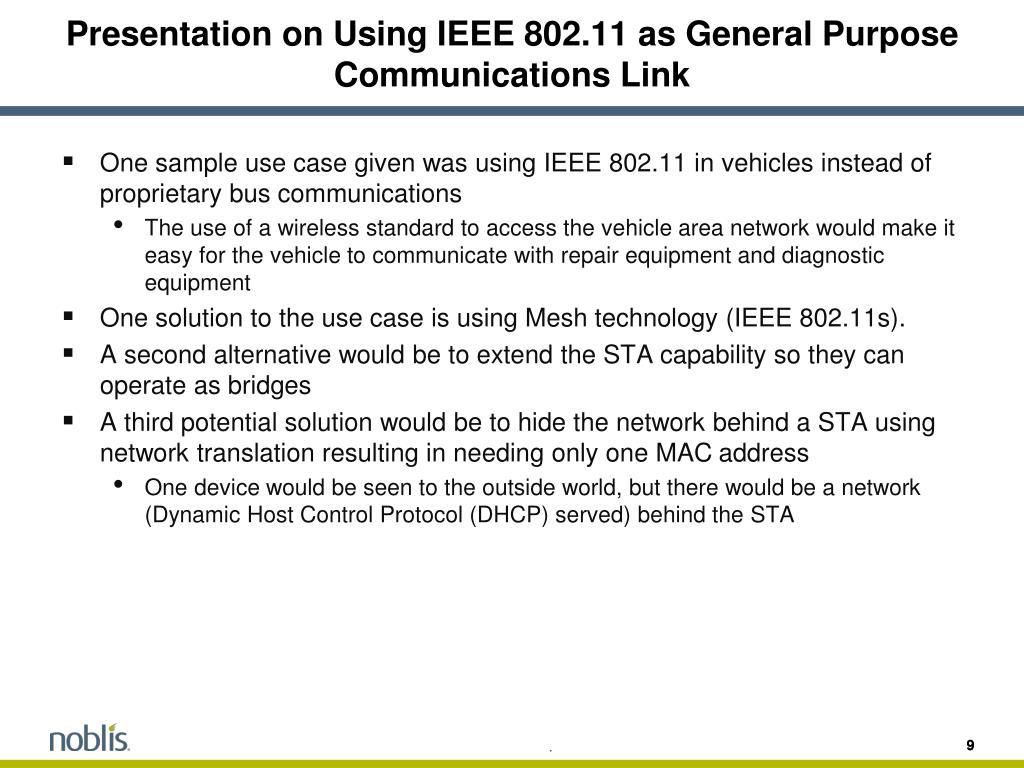

  9. Presentation on Using IEEE 802.11 as General Purpose Communications Link • One sample use case given was using IEEE 802.11 in vehicles instead of proprietary bus communications • The use of a wireless standard to access the vehicle area network would make it easy for the vehicle to communicate with repair equipment and diagnostic equipment • One solution to the use case is using Mesh technology (IEEE 802.11s). • A second alternative would be to extend the STA capability so they can operate as bridges • A third potential solution would be to hide the network behind a STA using network translation resulting in needing only one MAC address • One device would be seen to the outside world, but there would be a network (Dynamic Host Control Protocol (DHCP) served) behind the STA

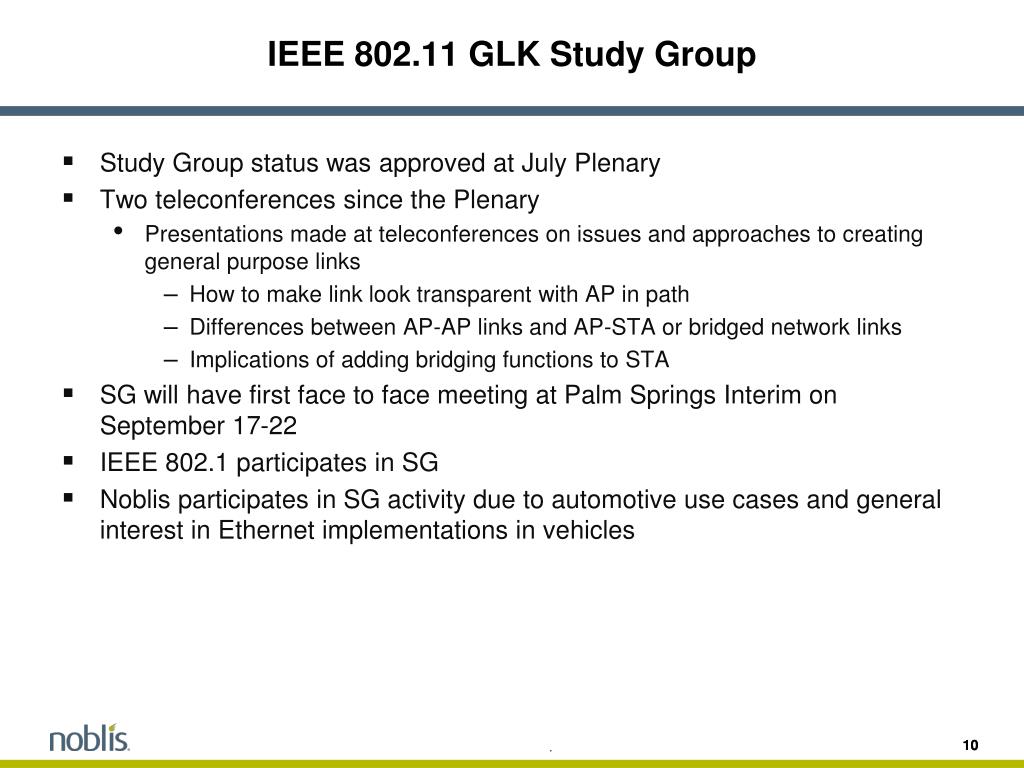

  10. IEEE 802.11 GLK Study Group • Study Group status was approved at July Plenary • Two teleconferences since the Plenary • Presentations made at teleconferences on issues and approaches to creating general purpose links • How to make link look transparent with AP in path • Differences between AP-AP links and AP-STA or bridged network links • Implications of adding bridging functions to STA • SG will have first face to face meeting at Palm Springs Interim on September 17-22 • IEEE 802.1 participates in SG • Noblis participates in SG activity due to automotive use cases and general interest in Ethernet implementations in vehicles
