  1. Ben Best, Jason Roberts, Pat Halpin Cetmap Atlantic update

  2. Nov 2011 Draft Report (550 p)

  3. Since then… • More datasets • Standardize dataset ingestion • Enhanced environmental predictors • Mix platforms • Segment transects • Spatial models for Encounters & Group Size • Subset for model validation and performance • R scripts to Python tools

  4. Added datasets Updated Atlantic datasets 2006 - 2009

  5. Static Predictors

  6. Dynamic Predictors

  7. Dynamic Predictors (cont’d) Polarity

  8. Mixing Platforms env ship Credit: NODES report illustrations aircraft

  9. Mixing Platforms

  10. Segmentation

  11. Segmentation

  12. Segmentation (cont’d) Non-spanning Spanning (10 km, 1 hr) 5 km 10 km 25 km 50 km 100 km 150 km 250 km

  13. Data Dashboard Det formulas – AIC, GoF, ChiSq N obs by platform, region Fit data specification N obsvsseg length(limited by spp, region, platform) Detprobvs distance - ESW

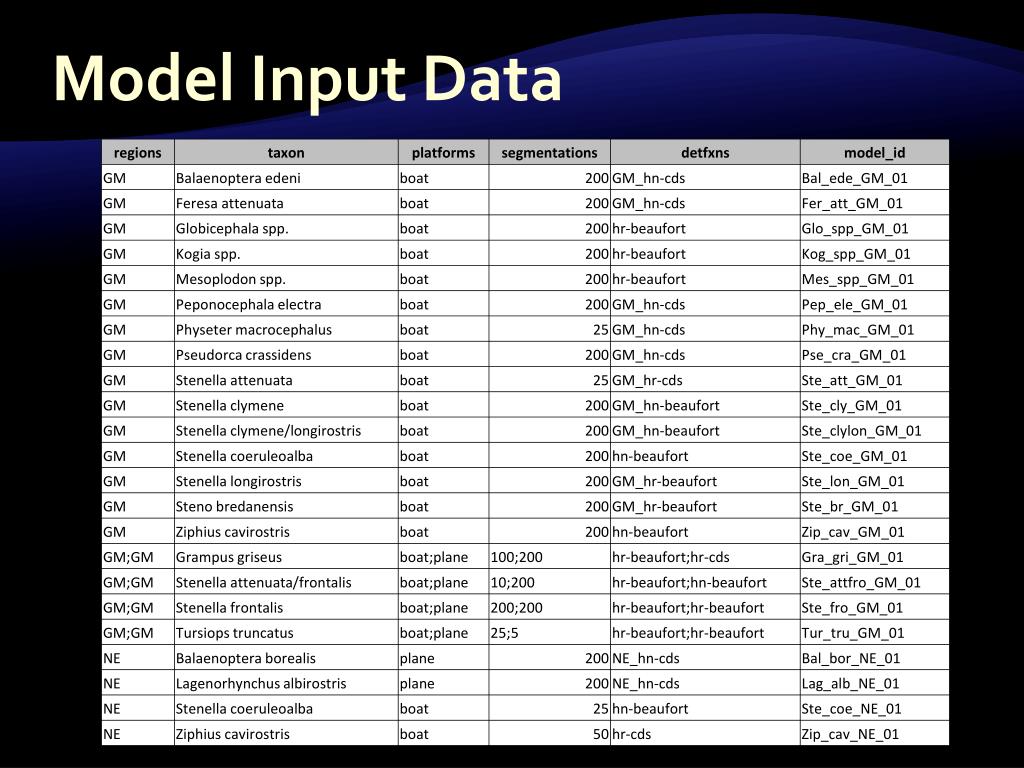

  14. Model Input Data

  15. Model Formulas – 180 variations 10000s digit - region 1000 - GM 1000s digit - season 1000 - All year 2000 - GM winter: DayOfYear >= 18 AND DayOfYear <= 73 3000 - GM spring-fall: DayOfYear >= 106 AND DayOfYear <= 275 100s digit - env/space/time combination Encounter rate: 100 - env + space + time 200 - env + te(space, time, bs='ts', k=10) 300 - env + space 400 - env + time 500 – env 10s digit - smoothing controls 10 - REML 20 - GCV.Cp, gamma=1.6 30 - GCV.Cp, gamma=1.0, k=5 per predictor 40 - GCV.Cp, gammma=1.6, bs=ts, k=3 50 - GCV.Cp, gammma=1.6, bs=ts, k=4 60 - GCV.Cp, gammma=1.6, bs=ts, k=5 70 - GCV.Cp, gammma=1.6, bs=cs, k=3 80 - GCV.Cp, gammma=1.6, bs=cs, k=4 90 - GCV.Cp, gammma=1.6, bs=cs, k=5 1s digit - customized tweak 0 - base model with no tweaks

  16. Prediction Grid

  17. Observations – Test vs Train • Sperm whale

  18. Explore Data

  19. Fit Model

  20. Predict Density: Sperm whale - Jul Encounter Rate X Group Size

  21. Sperm whale density - Apr

  22. Sperm whale density - May

  23. Sperm whale density - Jun

  24. Sperm whale density - Jul

  25. Sperm whale density - Aug

  26. Sperm whale density - Sep

  27. Tools for Workflows RobertsJJ, BD Best, DC Dunn, EA Treml, PN Halpin (2010) Marine Geospatial Ecology Tools: An integrated framework for ecological geoprocessing with ArcGIS, Python, R, MATLAB, and C++. Environmental Modelling & Software.

  28. Next Steps • Run predictions on rest of species for GoMex • Ingest 2 recent sets of data (NARWSS, UNCW) • Run predictions on Atlantic species • Variance estimation • Rare species modeling approaches (BRT, RandomForests, ZIP Bayes, Maxent…) • Generate static report • Elicit expert review • Validation and sensitivity (segmentations / platform / prediction avg) • Populate CetMap / SEAMAP / MarineCadastre

  29. Thank you Comments or questions?

  30. Maxent for Density? • Allocate density through Maxentsuitability surface (VanDerWal et al 2009; Oliver et al 2012; Jiménez-Valverde 2011) a la RES • or Maxent(occ) * f(GS) = Density • Variability through bootstrapjava -jar maxent.jar -X 25 replicates=100 • 100 runs, 75% randomly chosen presence records • mean, standard deviation and lower confidence limits per pixel

  31. Variable Importance

  32. Interrogate Pixel
