  1. Exceptions and Interrupts

  2. Exceptional Circumstances • At home - how do you know when someone wants to talk to you on the telephone? • A. Periodically pick up the phone and see if someone’s there • This is known as polling • B. Wait for the phone to ring and then answer it • This is exception- or interrupt-driven

  3. When Interrupting is Nice • Coordinating I/O operations • Notifies the CPU that an input is ready or an output can be changed • Timing • Periodic (clock-driven) interrupts remind the CPU of the passage of time • Multi-tasking • Updating counters • Timing during interactive programs • Errors • Interrupts can notify of error situations

  4. Exception Types • Hardware (called InterruptsorResets) • Reset • User-defined interrupt • Timer operations • CPU operations monitor failure • Software (not on PSoC) • Illegal instruction • Divide by zero • Overflow

  5. I’m Not listening... • Interrupts can sometimes be ignored (or masked) • Good for when the CPU is doing something more important • When the interruptmask is set, interrupts are hidden (masked) and ignored • Interrupts may be prioritized • The fire alarm is more important than the oven timer which is more important than the telephone… • Non-maskable interrupts cannot be ignored • NMI’s take precedence and interrupt any task

  6. Servicing Interrupts and Exceptions • When an exception occurs • CPU decides whether to do anything • CPU saves current state • PC, Flag Register • Global interrupts disabled • Jump to interrupt service routine (ISR) • Execute routine • RETI - return from interrupt Works like a Call, except Flag register is saved, too. • Restore state • Flag Register (re-enables global interrupts) • Return to user program (restore PC)

  7. Interrupt Vector Table • When an interrupt occurs, control of the program moves to the interrupt service routine (ISR) • Similar to a subroutine • But how do we know where the ISR is? • The address of the ISR is provided by the interrupt vector table • IVT has one entry for each type of interrupt • Each entry is indexed by interrupt type • PSoC vector table has four bytes for each entry • Usually holds a single “LJMP” instruction that passes control to the ISR

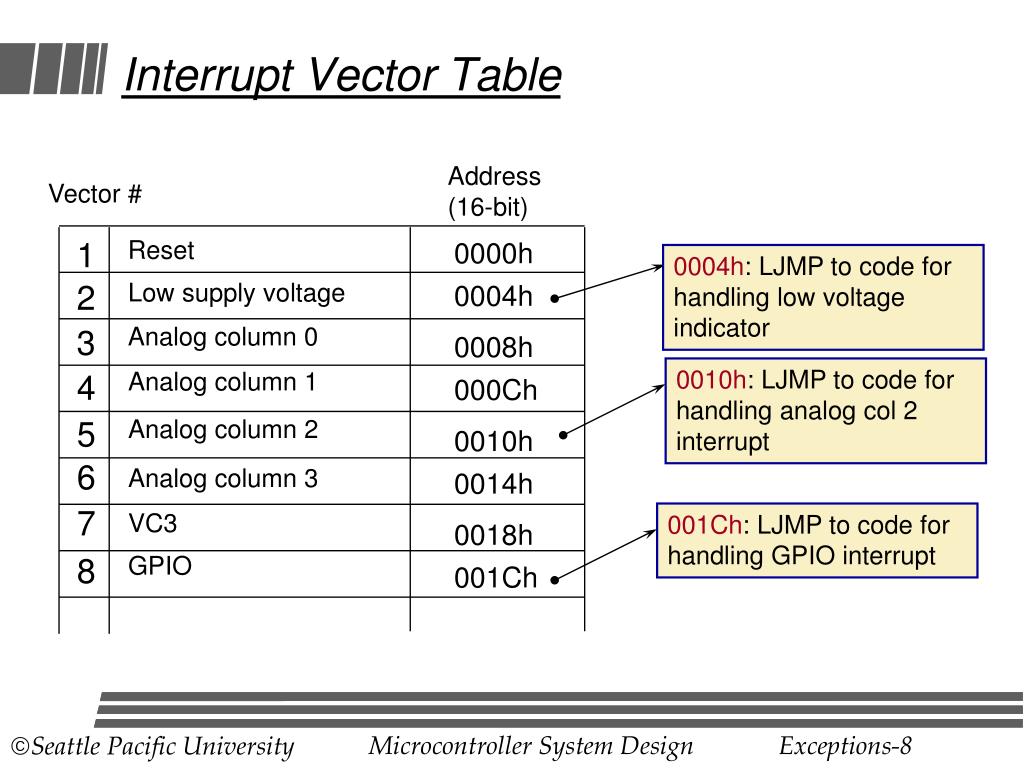

  8. Address (16-bit) Vector # 1 Reset 0000h Low supply voltage 2 0004h Analog column 0 3 0008h Analog column 1 4 000Ch 5 Analog column 2 0010h 6 Analog column 3 0014h 7 VC3 0018h 8 GPIO 001Ch Interrupt Vector Table 0004h: LJMP to code for handling low voltage indicator 0010h: LJMP to code for handling analog col 2 interrupt 001Ch: LJMP to code for handling GPIO interrupt

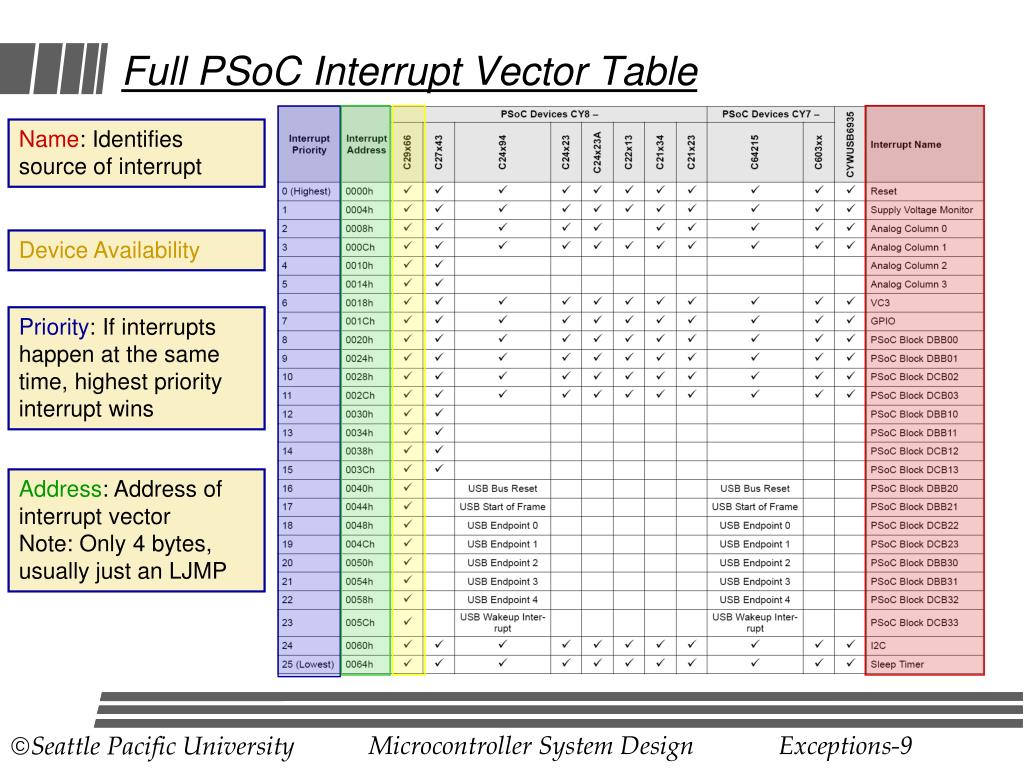

  9. Full PSoC Interrupt Vector Table Name: Identifies source of interrupt Device Availability Priority: If interrupts happen at the same time, highest priority interrupt wins Address: Address of interrupt vectorNote: Only 4 bytes, usually just an LJMP

  10. Programming With Interrupts • Write the interrupt service routine • What action is to be performed when a particular interrupt happens? • End with RETI • Link the interrupt vector to the ISR • At interrupt vector location, write “LJMP myISR” • Usually taken care of by PSoC Designer • Write the main routine • Enable the interrupt to be serviced • Int_MSKx registers control various interrupts • Write a ‘1’ into the appropriate bit to enable the interrupt • See next slide for details • Globally enable interrupts • Set ‘GIE’ bit in flag register; use“M8C_EnableGInt” • Wait. That is, do nothing…

  11. Interrupt Mask Registers • The registers INT_MSKx turn individual interrupts on or off • Write a ‘1’ to the appropriate bit to turn interrupts on • The 29466 chip we’re using has 4 analog columns and 4 digital rows (highlighted) • See useful equates in M8C.inc under “System and Global Resource Registers”

  12. Whenever GPIO pin goes high, update and display a count 1. Select interrupt on pin in Design view(Don’t forget pull-down mode!) Example - GPIOISR 2. Write the GPIOISR: //ISR for the GPIO interruptPSoC_GPIO_ISR: inc [count] // increment count mov A,0// position LCD at 0,14 mov X,14 call LCD_1_Position mov A, [count] call LCD_1_PrHexByte // print out count reti // all done - return Interrupts can’t have parameters Must use globals 3. Link ISR to GPIO vector at 001C (Usually done already in boot.asm) org 001Ch ljmp PSoC_GPIO_ISR export count: export _main: area bss count: blk 1 // define counter area text _main: M8C_EnableGint call LCD_1_Start call LCD_1_Initor REG[INT_MSK0],%00100000 //’1’ in GPIO position loop: jmp loop 4. Write the initialization and main routine Do-nothing program!
