  1. Black Hat Briefings 2000:Strategies for Defeating Distributed Attacks Simple Nomad Hacker Nomad Mobile Research Centre Occam Theorist RAZOR Security Team, BindView Corporation

  2. About Myself • http://www.nmrc.org/ • Currently Sr. Security Analyst for BindView’s RAZOR Team, http://razor.bindview.com/

  3. About This Presentation • Assume basics • Understand IP addressing • Understand basic system administration • Tools • Where to find them • Basic usage • Terminology • A “Network” point of view

  4. Background • Originally developed during 1999 • Concepts first discussed last October • Many concepts can be found in DDOS software today

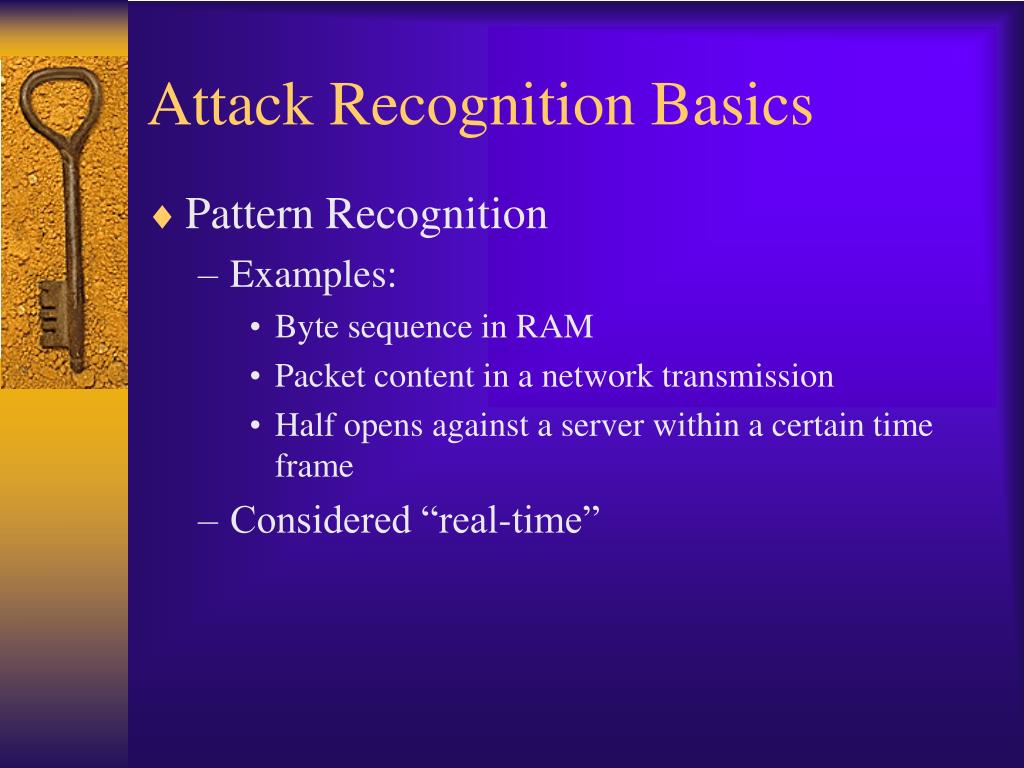

  5. Attack Recognition Basics • Pattern Recognition • Examples: • Byte sequence in RAM • Packet content in a network transmission • Half opens against a server within a certain time frame • Considered “real-time”

  6. Attack Recognition Basics Cont. • Effect Recognition • Examples • Unscheduled server restart in logs • Unexplainable CPU utilization • System binaries altered • Considered “non” real-time

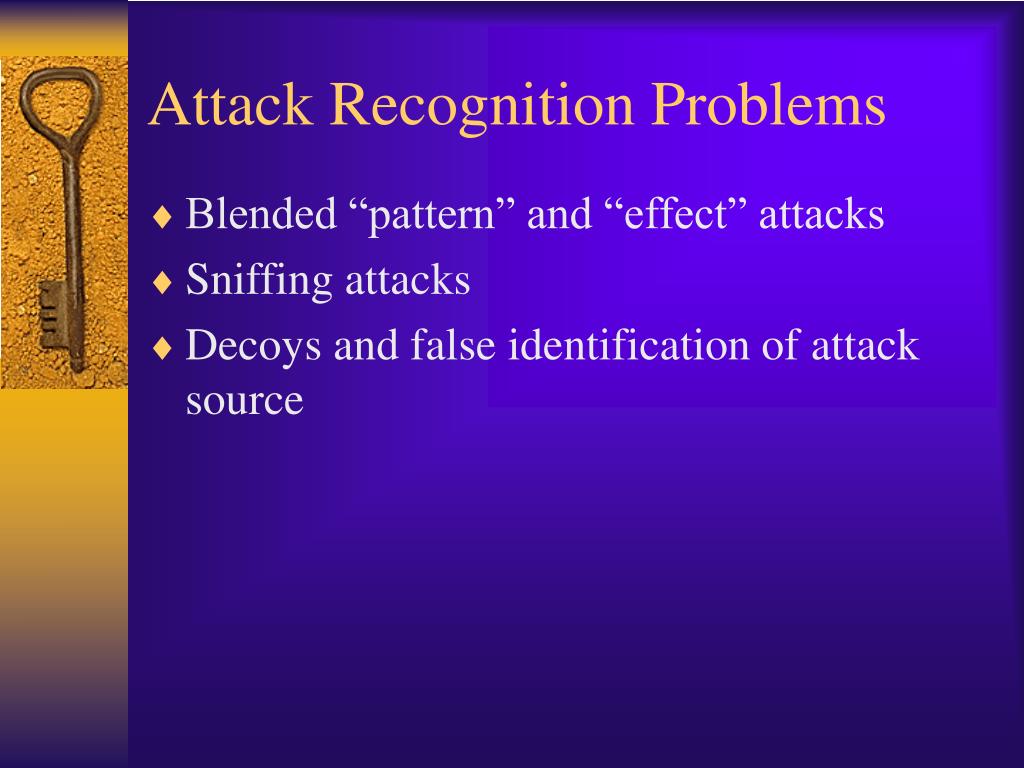

  7. Attack Recognition Problems • Blended “pattern” and “effect” attacks • Sniffing attacks • Decoys and false identification of attack source

  8. Attack Recognition Problems Cont. • Current solutions are usually “pattern” or “effect”, no real-time global solutions • Existing large scale solutions can easily be defeated

  9. Common Thwarting Techniques • Rule-based systems can be tricked • Log watchers can be deceived • Time-based rules can be bypassed

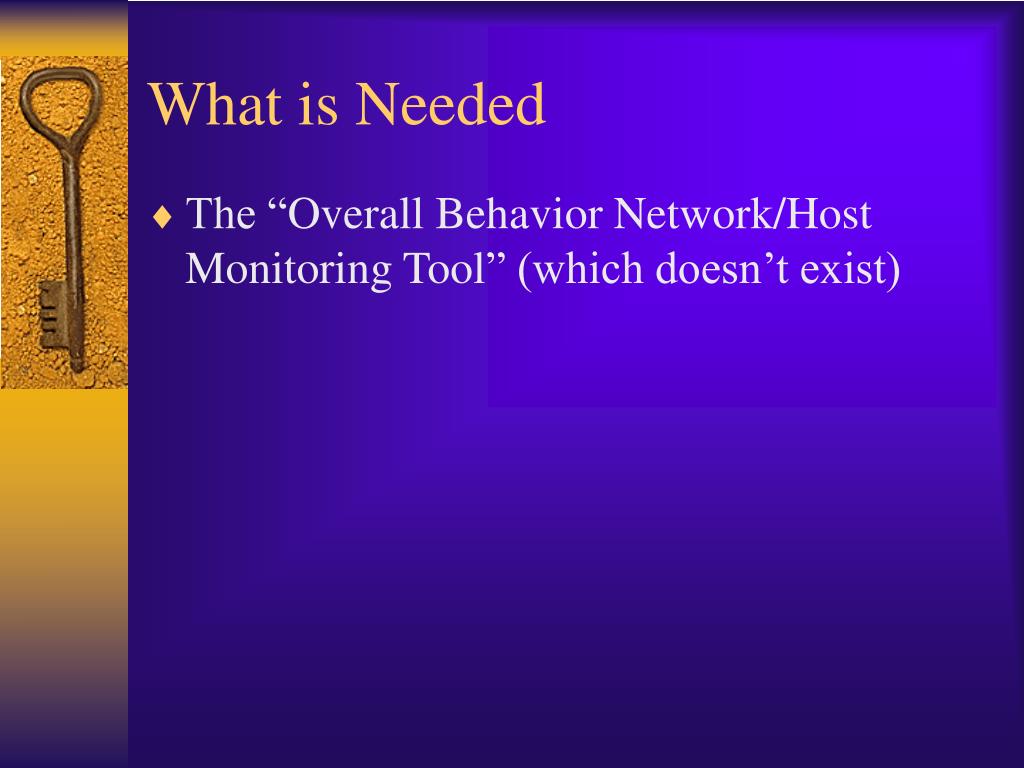

  10. What is Needed • The “Overall Behavior Network/Host Monitoring Tool” (which doesn’t exist)

  11. What Do We Do? • “Trickle Down Security” • Solutions for distributed attacks will introduce good security overall • Off-the-shelf is not enough • Learn about attack types • Defensive techniques

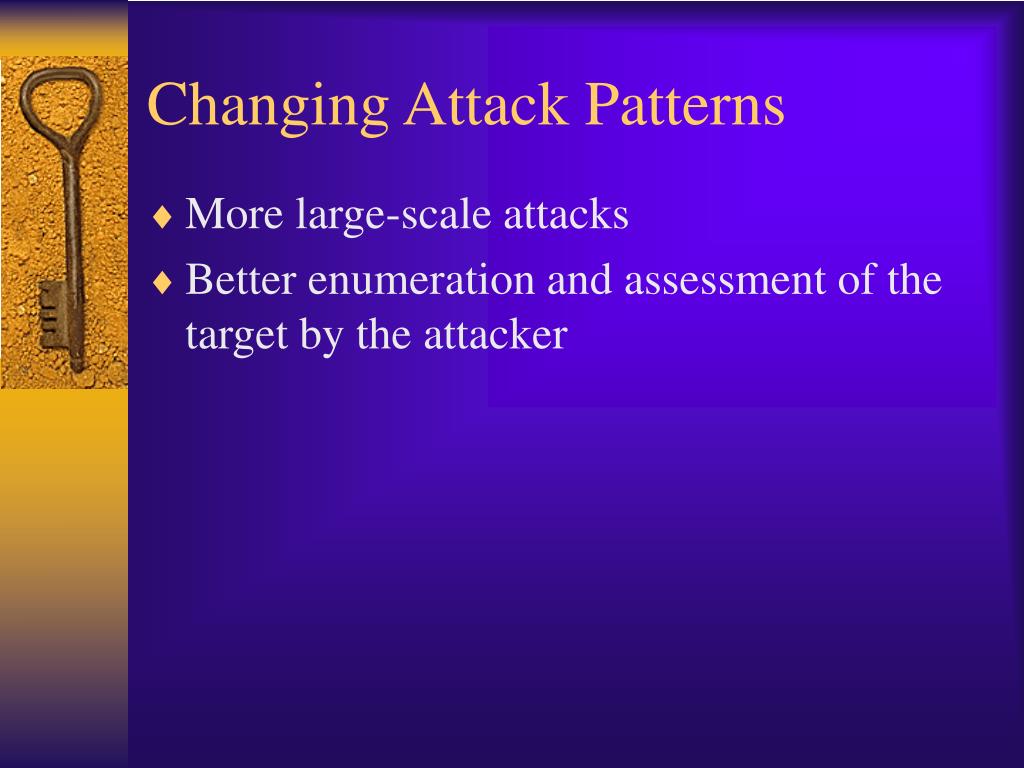

  12. Changing Attack Patterns • More large-scale attacks • Better enumeration and assessment of the target by the attacker

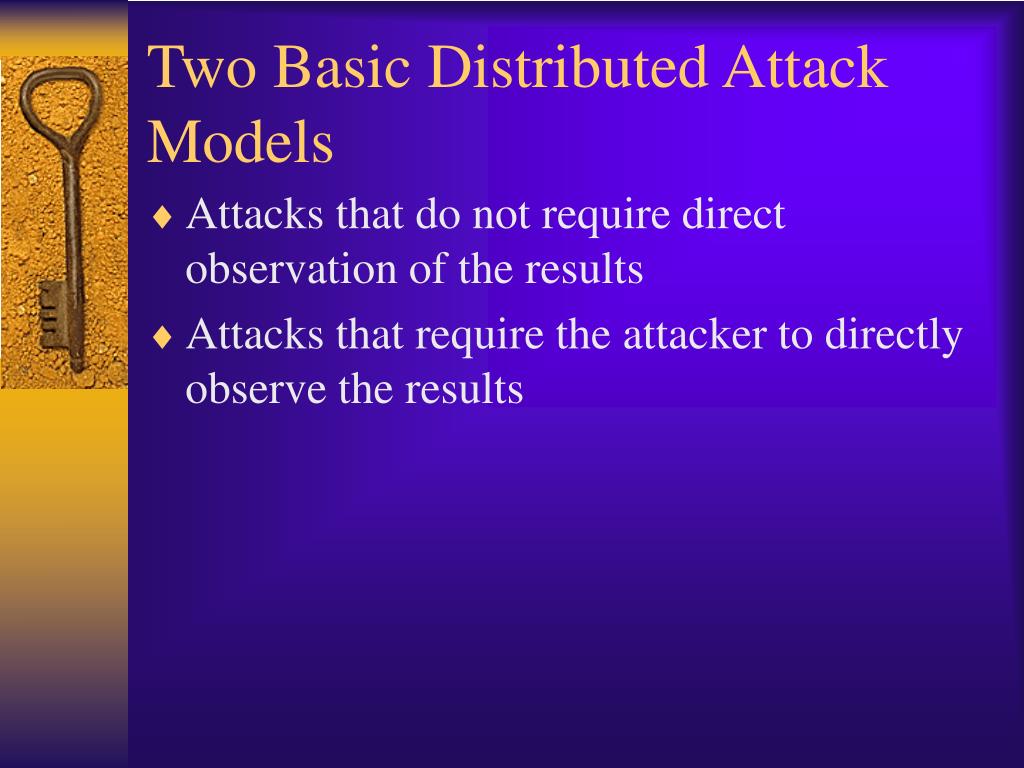

  13. Two Basic Distributed Attack Models • Attacks that do not require direct observation of the results • Attacks that require the attacker to directly observe the results

  14. Basic Model Client Server Agent Issue commands Processes commands to agents Carries out commands

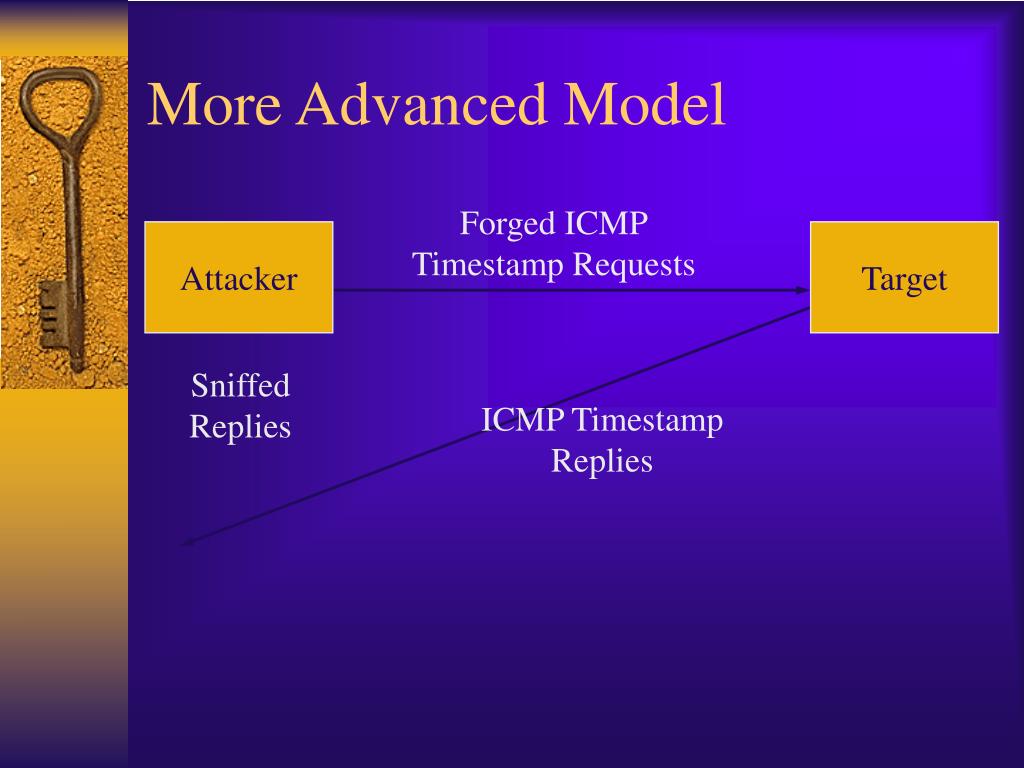

  15. More Advanced Model Forged ICMP Timestamp Requests Attacker Target Sniffed Replies ICMP Timestamp Replies

  16. Even More Advanced Model F i r e w a l l Target

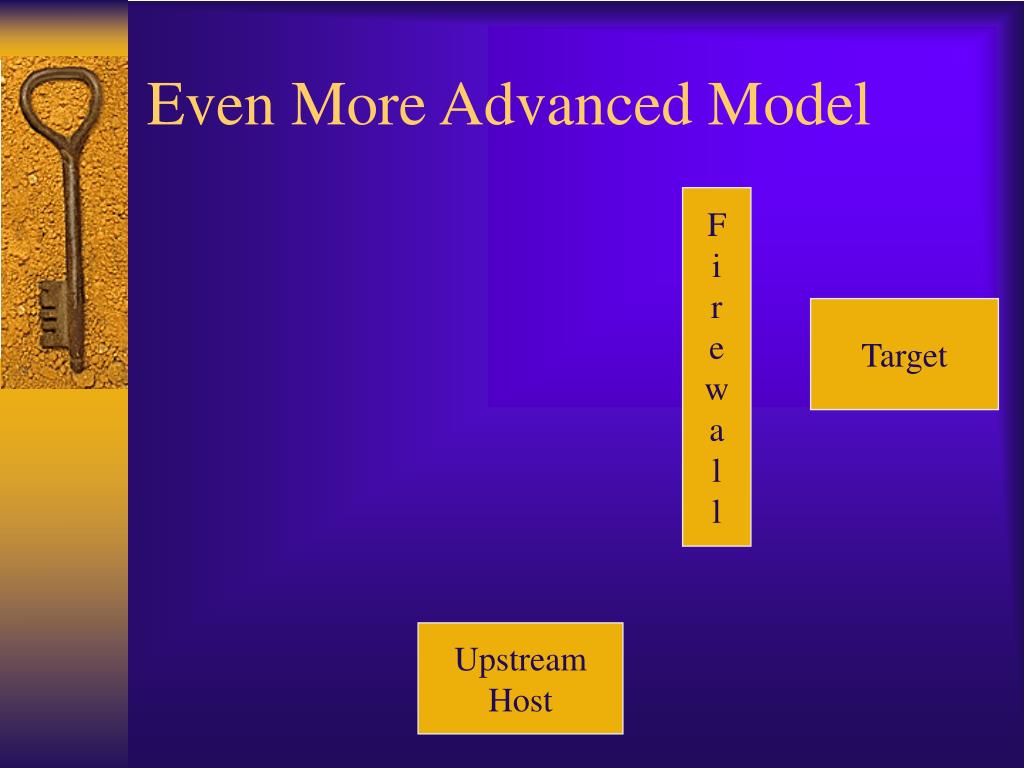

  17. Even More Advanced Model F i r e w a l l Target Upstream Host

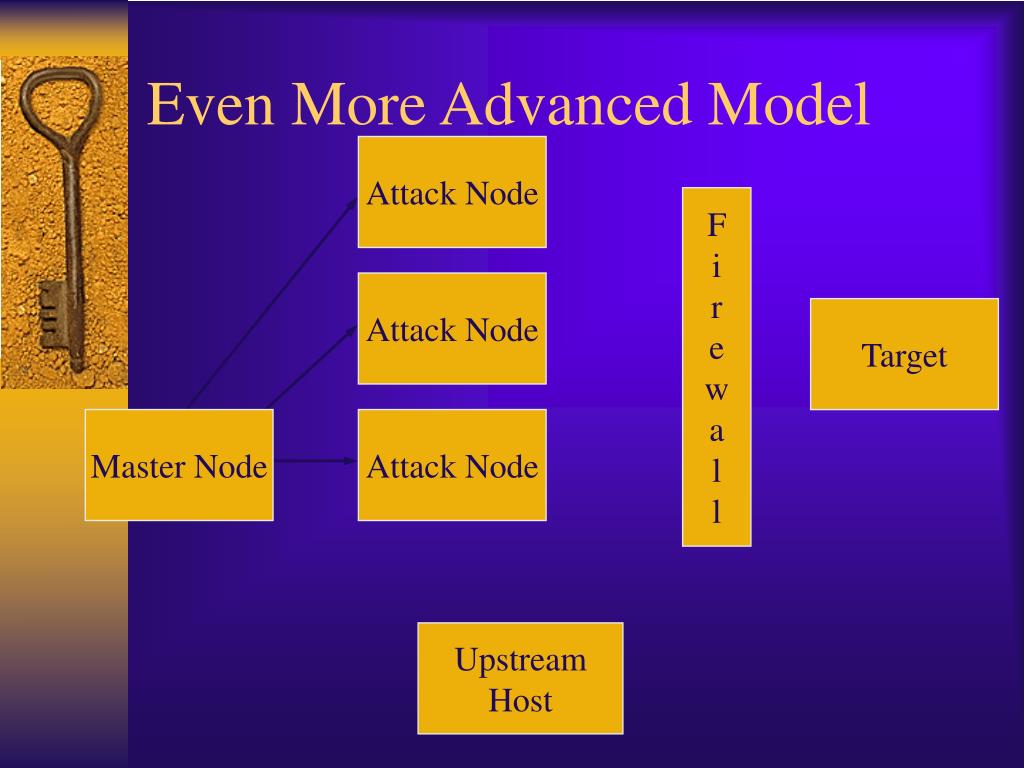

  18. Even More Advanced Model Attack Node F i r e w a l l Attack Node Target Master Node Attack Node Upstream Host

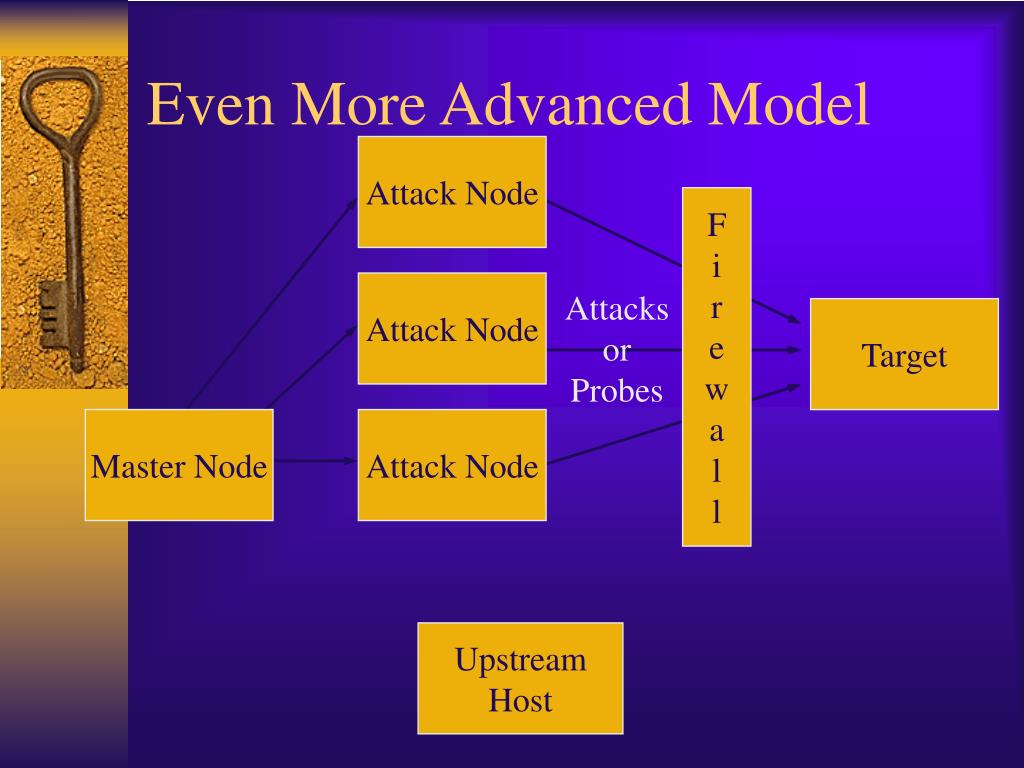

  19. Even More Advanced Model Attack Node F i r e w a l l Attack Node Attacks or Probes Target Master Node Attack Node Upstream Host

  20. Even More Advanced Model Attack Node F i r e w a l l Attack Node Attacks or Probes Target Master Node Attack Node Replies Upstream Host

  21. Even More Advanced Model Attack Node F i r e w a l l Attack Node Attacks or Probes Target Master Node Attack Node Sniffed Replies Replies Upstream Host

  22. Even More Advanced Model Attack Node F i r e w a l l Attack Node Attacks or Probes Target Master Node Attack Node Sniffed Replies Replies Upstream Host

  23. ICMP • Sweeping a network with Echo • Typical alternates to ping • Timestamp • Info Request

  24. Fun with ICMP • Advanced ICMP enumeration

  25. Host Enumeration # ./icmpenum -i 2 -c xxx.xx.218.0 xxx.xx.218.23 is up xxx.xx.218.26 is up xxx.xx.218.52 is up xxx.xx.218.53 is up xxx.xx.218.58 is up xxx.xx.218.63 is up xxx.xx.218.82 is up xxx.xx.218.90 is up xxx.xx.218.92 is up xxx.xx.218.96 is up xxx.xx.218.118 is up xxx.xx.218.123 is up xxx.xx.218.126 is up xxx.xx.218.130 is up xxx.xx.218.187 is up xxx.xx.218.189 is up xxx.xx.218.215 is up xxx.xx.218.253 is up

  26. Nmap • Ping sweeps • Port scanning • TCP fingerprinting

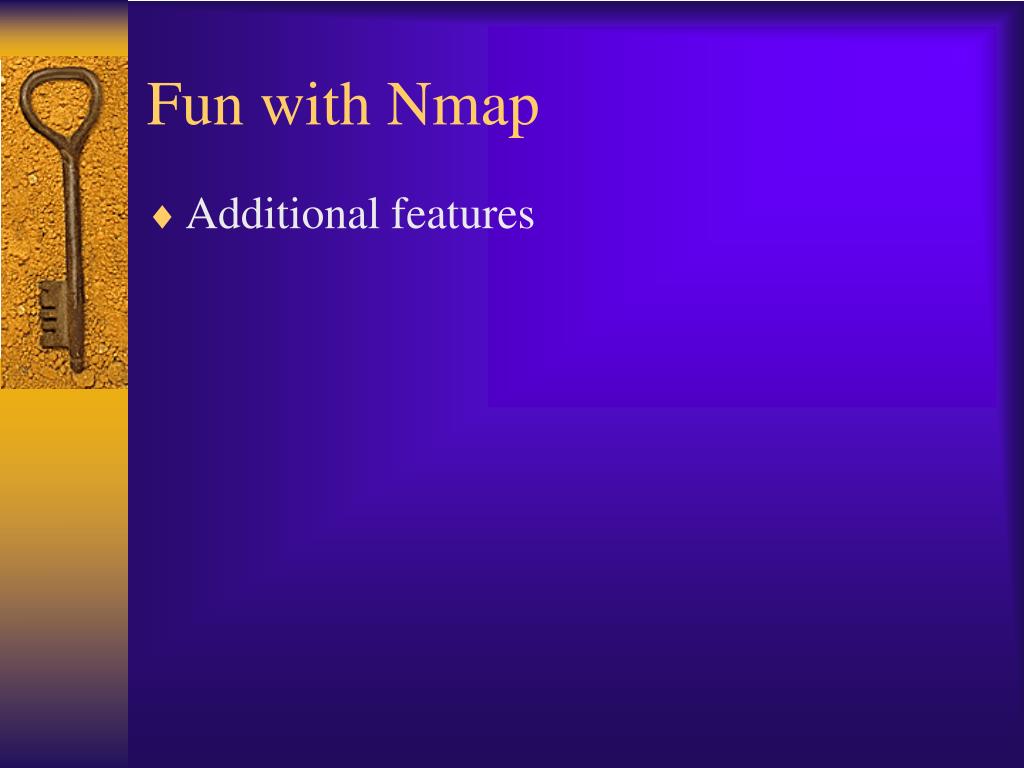

  27. Fun with Nmap • Additional features

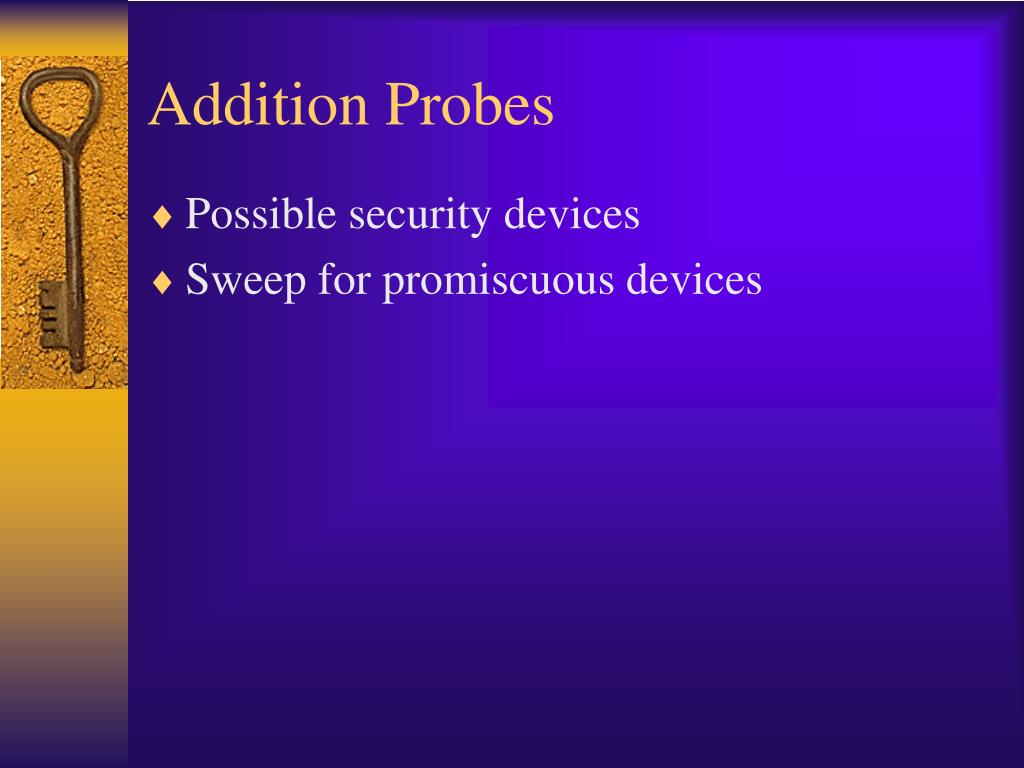

  28. Addition Probes • Possible security devices • Sweep for promiscuous devices

  29. Network Mapping • Determine network layout • Traceroute

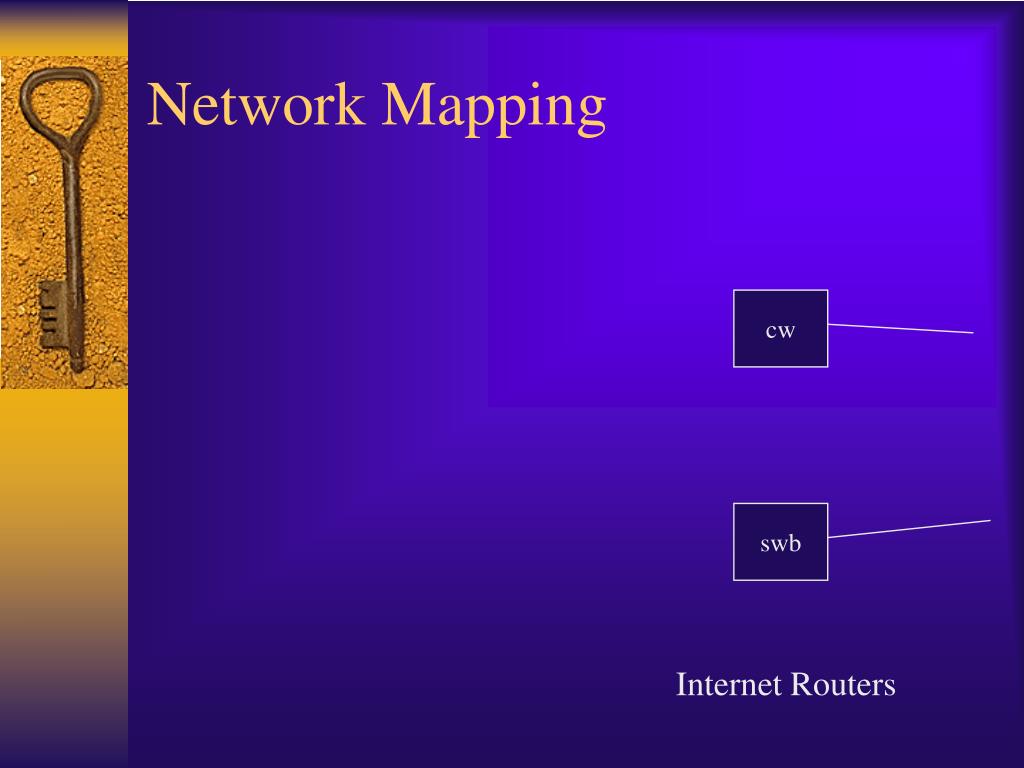

  30. Network Mapping cw swb Internet Routers

  31. Network Mapping cw swb Internet Routers

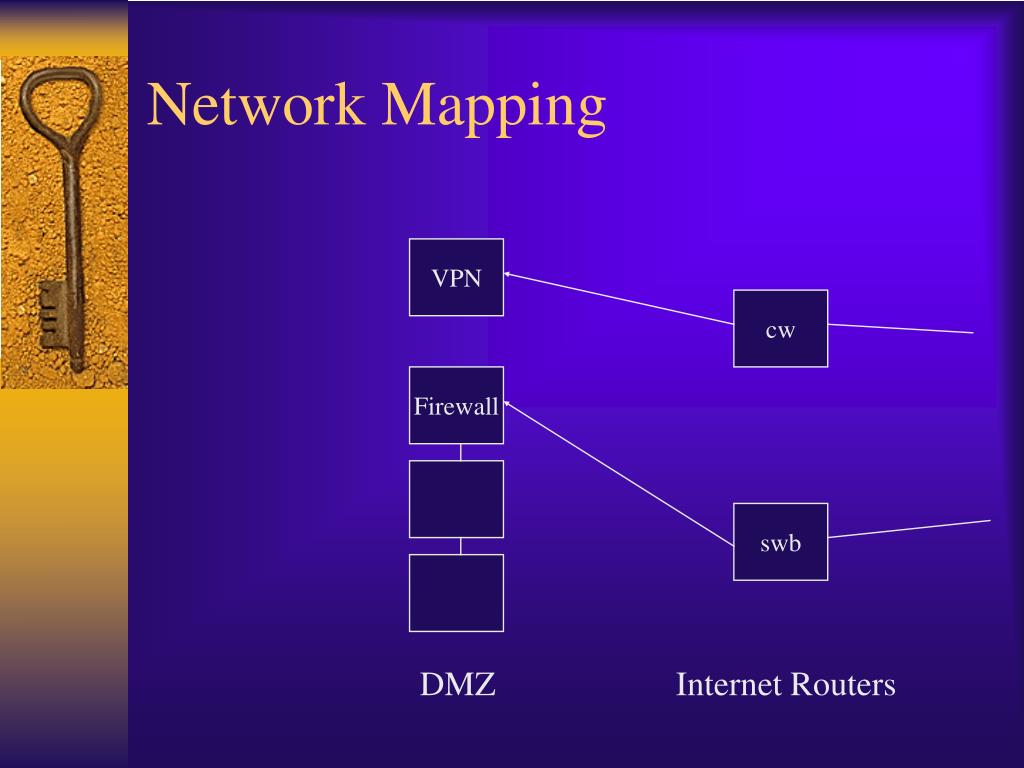

  32. Network Mapping VPN cw Firewall swb DMZ Internet Routers

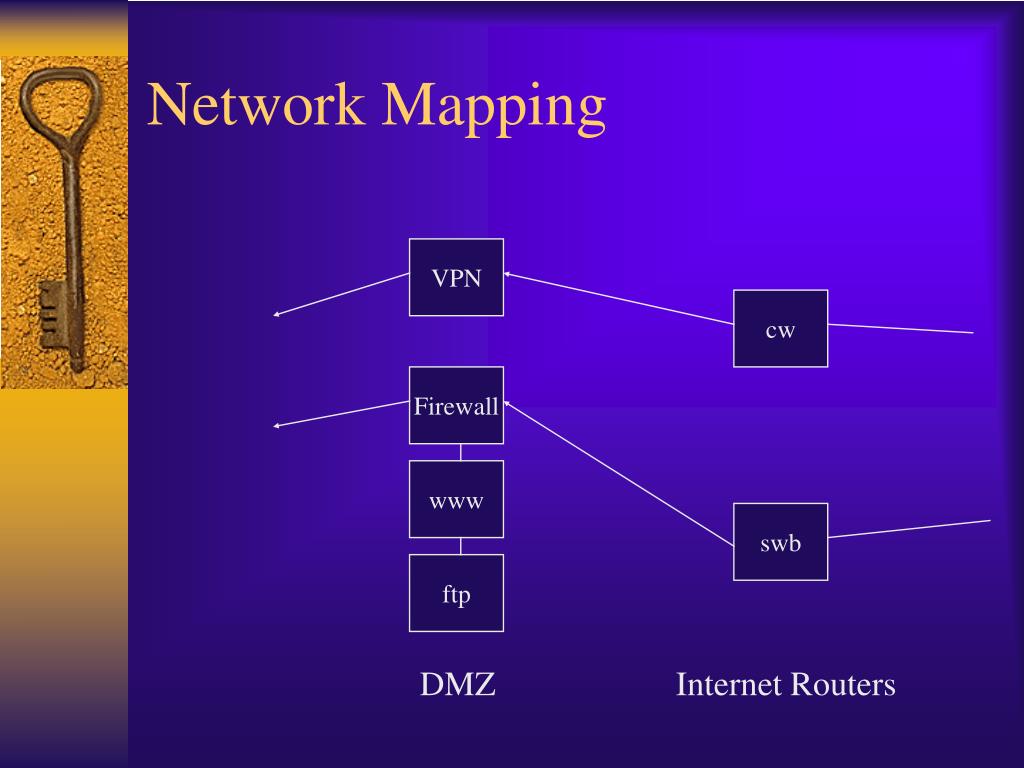

  33. Network Mapping VPN cw Firewall www swb ftp DMZ Internet Routers

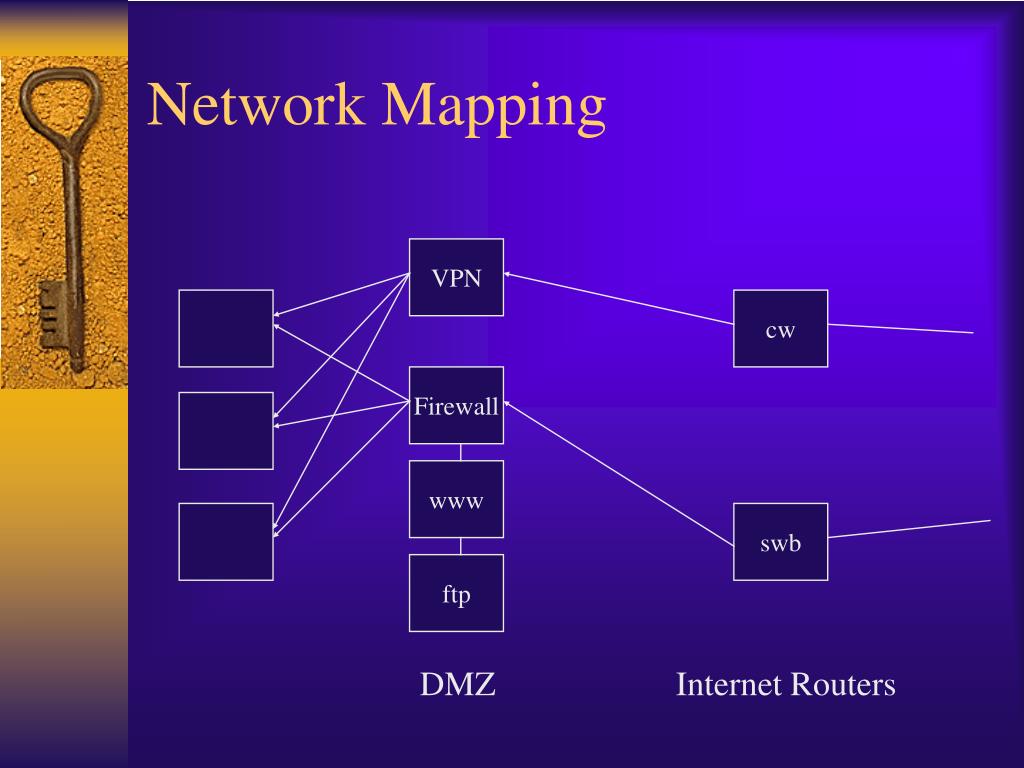

  34. Network Mapping VPN cw Firewall www swb ftp DMZ Internet Routers

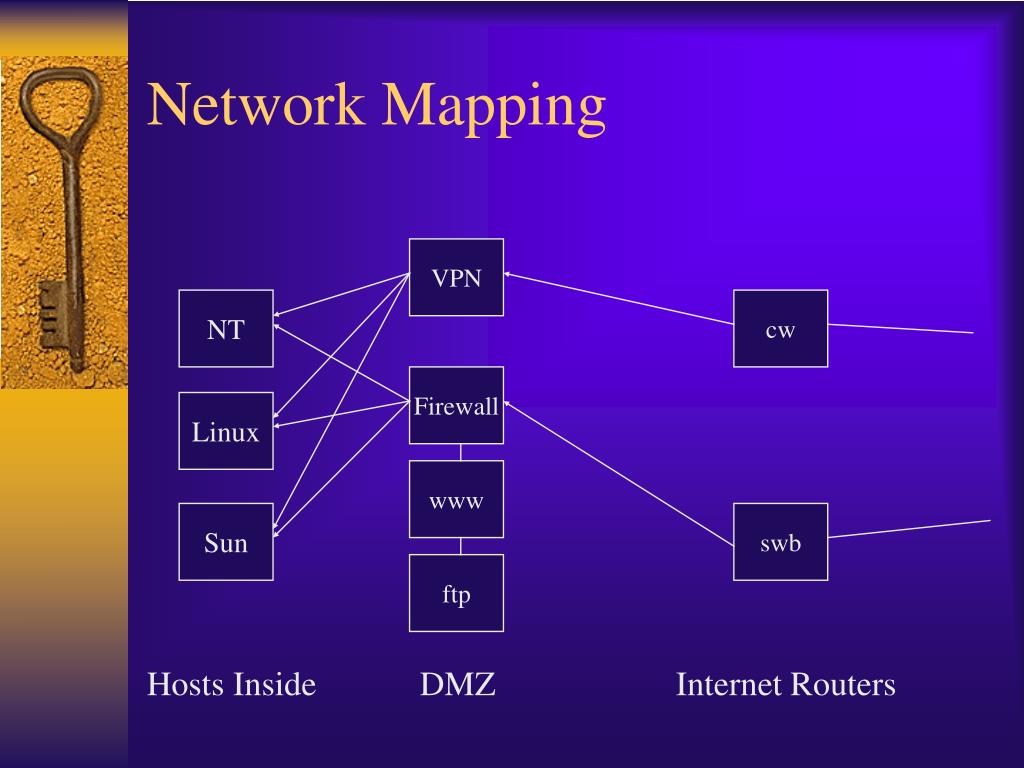

  35. Network Mapping VPN NT cw Firewall Linux www Sun swb ftp Hosts Inside DMZ Internet Routers

  36. Network Mapping Checkpoint Firewall-1 Nortel Extranet xxx.xx.22. 7 VPN NT cw Nortel CVX1800 151.164.x.xxx Firewall Linux IDS? Checkpoint Firewall-1 Solaris 2.7 xxx.xx.49.17 www AIX 4.2.1 xxx.xx.48.1 Sun swb ftp Cisco 7206 204.70.xxx.xxx Linux 2.0.38 xxx.xx.48.2 Hosts Inside DMZ Internet Routers

  37. Defensive Techniques • Good security policy • Split DNS • All public systems in one DNS server located in DMZ • All internal systems using private addresses with separate DNS server internally • Drop/reject packets with a TTL of 1 or 0

  38. Defensive Techniques Cont. • Minimal ports open • Stateful inspection firewalls • Modified kernels/IDS to look for fingerprint packets

  39. Defensive Techniques Cont. • Limit ICMP inbound to host/destination unreachable • Limit outbound ICMP

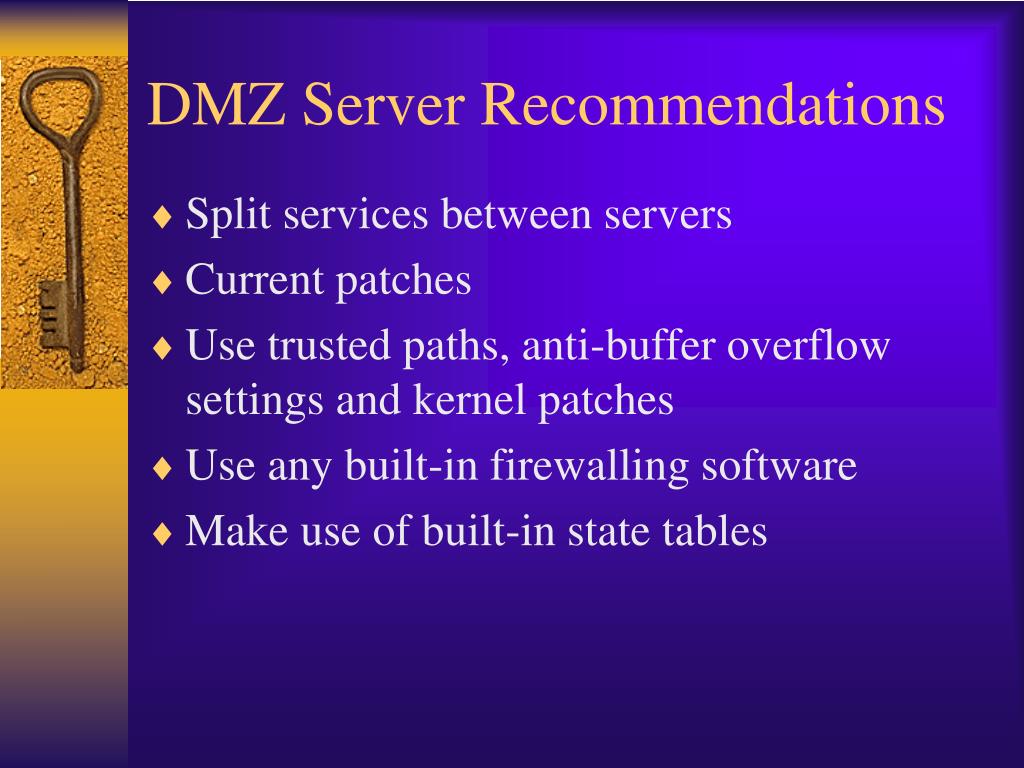

  40. DMZ Server Recommendations • Split services between servers • Current patches • Use trusted paths, anti-buffer overflow settings and kernel patches • Use any built-in firewalling software • Make use of built-in state tables

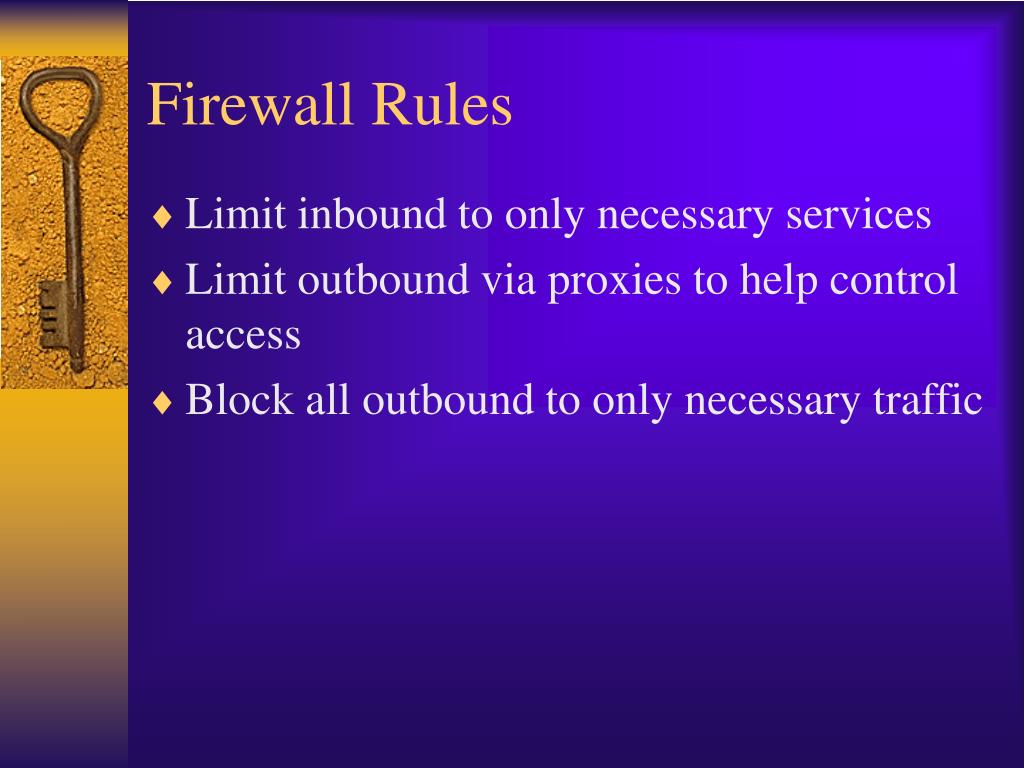

  41. Firewall Rules • Limit inbound to only necessary services • Limit outbound via proxies to help control access • Block all outbound to only necessary traffic

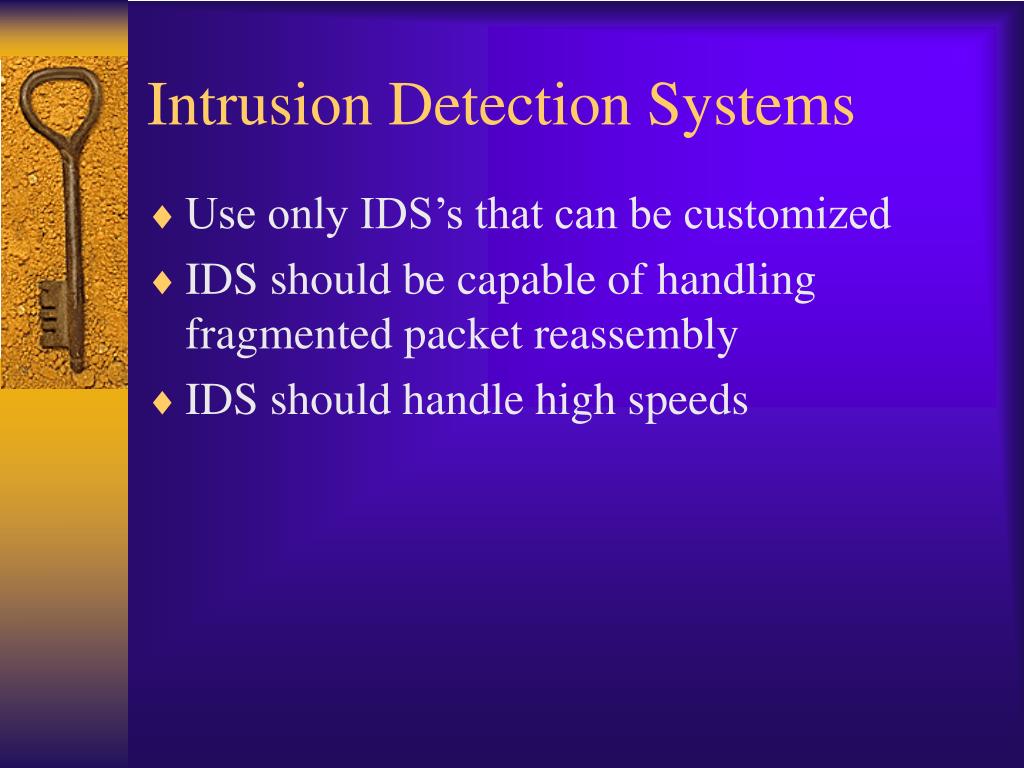

  42. Intrusion Detection Systems • Use only IDS’s that can be customized • IDS should be capable of handling fragmented packet reassembly • IDS should handle high speeds

  43. Spoofed Packet Defenses • Get TTL of suspected spoofed packet • Probe the source address in the packet • Compare the probe reply’s TTL to the suspected spoofed packet

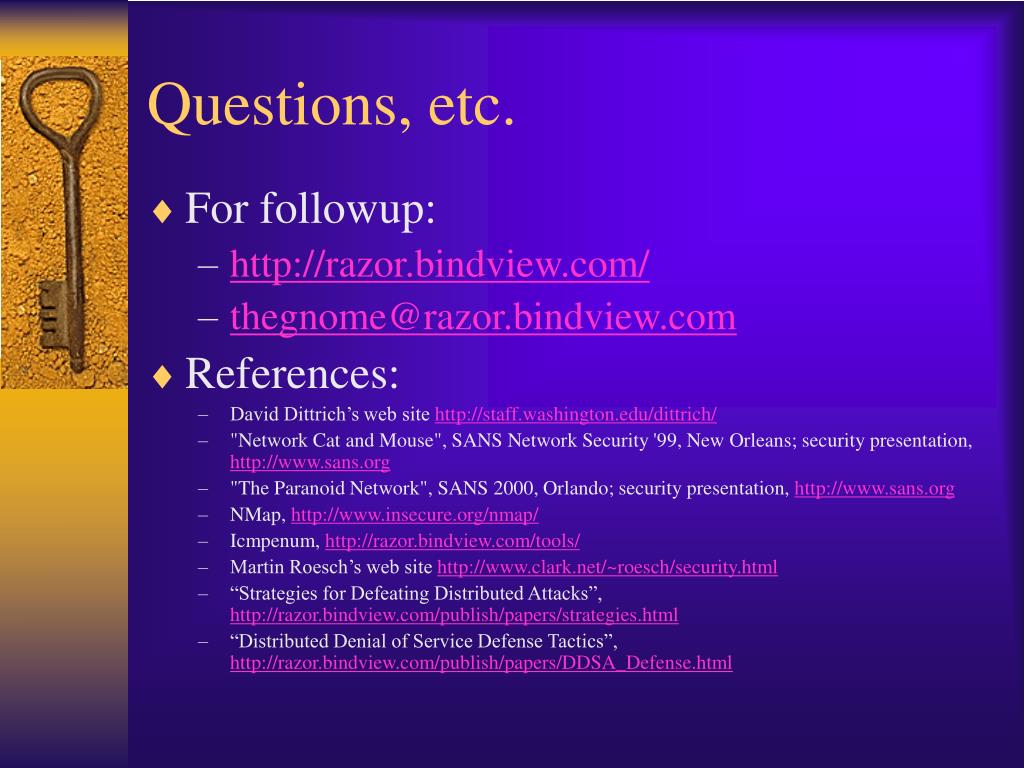

  44. Questions, etc. • For followup: • http://razor.bindview.com/ • thegnome@razor.bindview.com • References: • David Dittrich’s web site http://staff.washington.edu/dittrich/ • "Network Cat and Mouse", SANS Network Security '99, New Orleans; security presentation, http://www.sans.org • "The Paranoid Network", SANS 2000, Orlando; security presentation, http://www.sans.org • NMap, http://www.insecure.org/nmap/ • Icmpenum, http://razor.bindview.com/tools/ • Martin Roesch’s web site http://www.clark.net/~roesch/security.html • “Strategies for Defeating Distributed Attacks”, http://razor.bindview.com/publish/papers/strategies.html • “Distributed Denial of Service Defense Tactics”, http://razor.bindview.com/publish/papers/DDSA_Defense.html

  45. Late Breaking News • HackerShield RapidFire Update 208 • With SANS Top Ten checks, including comprehensive CGI scanner • http://www.bindview.com/products/hackershield/index.html • VLAD the Scanner • Freeware open-source security scanner, including same CGI checks as HackerShield • Focuses only on SANS Top Ten • http://razor.bindview.com/tools/index.shtml • Despoof • Detects possible spoofed packets through active queries against suspected spoofed IP address • http://razor.bindview.com/tools/index.shtml
