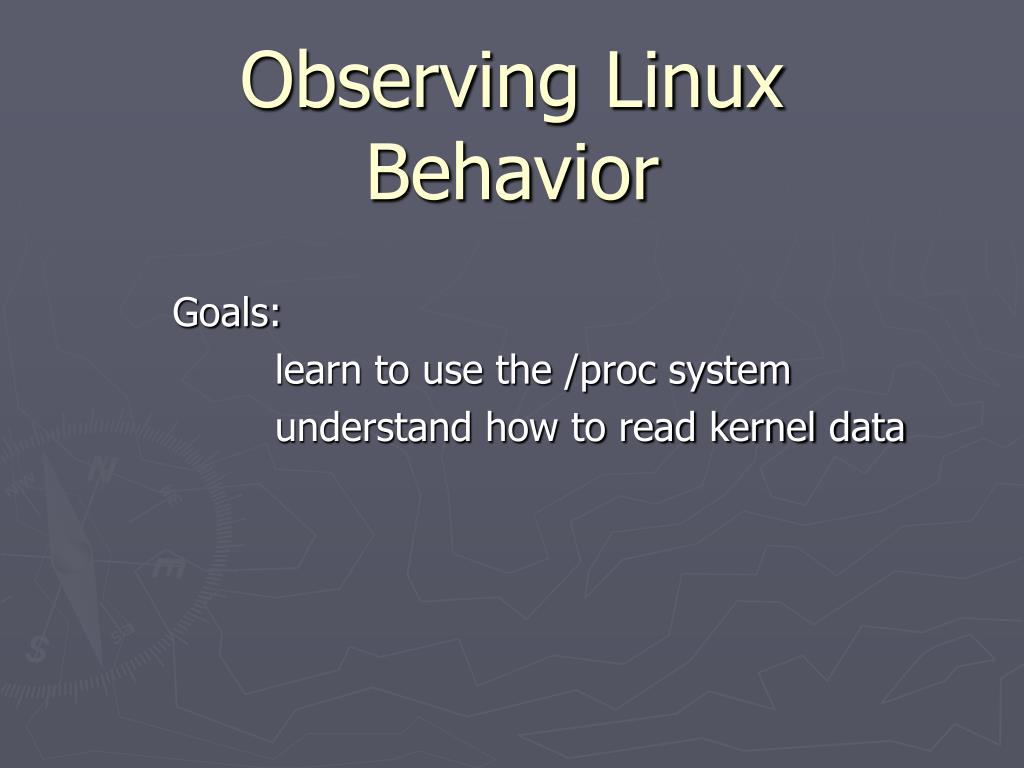

Observing LinuxBehavior Goals: learn to use the /proc system understand how to read kernel data

Kernel Data • Kernel is a collection of data structures and functions • Collective kernel variables define state of OS • Each externally invoked function (sys call) • Provides a prescribed service • Causes the system state to change (kernel variables change)

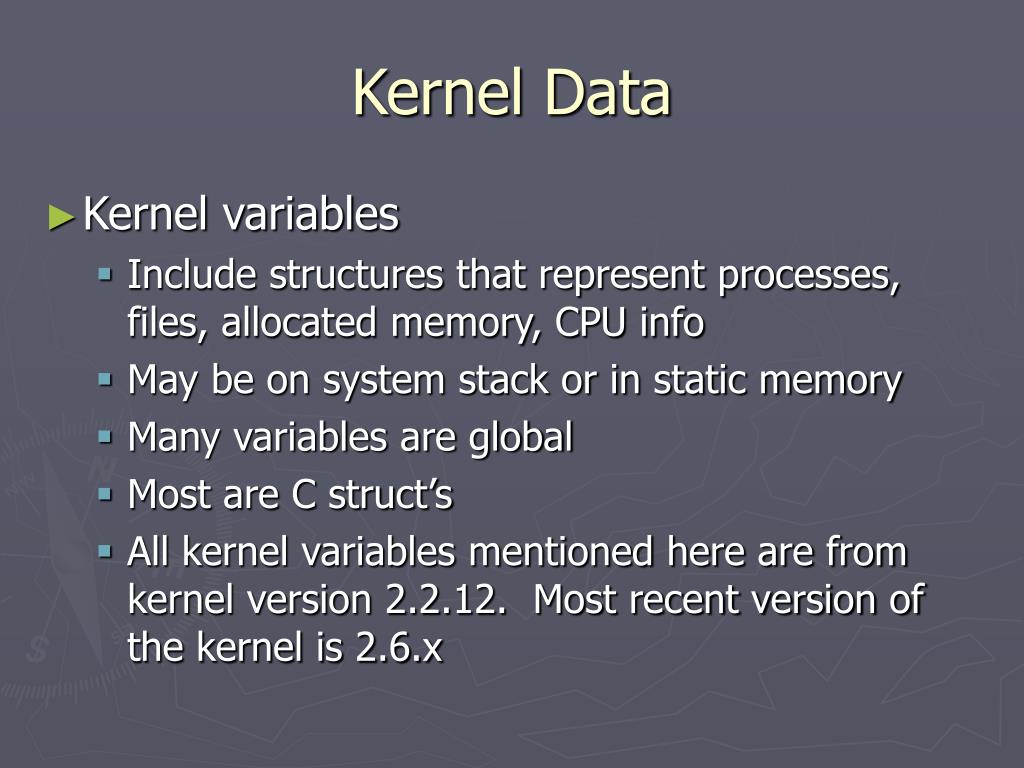

Kernel Data • Kernel variables • Include structures that represent processes, files, allocated memory, CPU info • May be on system stack or in static memory • Many variables are global • Most are C struct’s • All kernel variables mentioned here are from kernel version 2.2.12. Most recent version of the kernel is 2.6.x

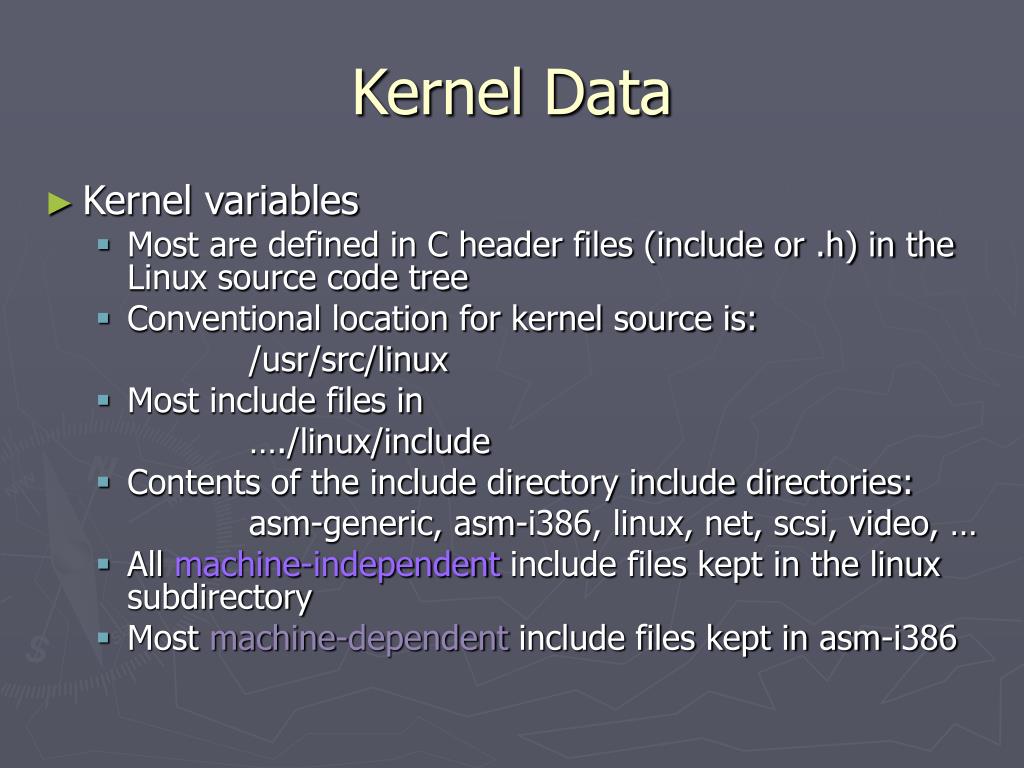

Kernel Data • Kernel variables • Most are defined in C header files (include or .h) in the Linux source code tree • Conventional location for kernel source is: /usr/src/linux • Most include files in …./linux/include • Contents of the include directory include directories: asm-generic, asm-i386, linux, net, scsi, video, … • All machine-independent include files kept in the linux subdirectory • Most machine-dependent include files kept in asm-i386

Kernel Data • Kernel variables • Data structure for process descriptor (in include/linux/sched.h): struct task_struct{ /* these are hardcoded – don’t touch */ volatile long state; /* -1 unrunnable, 0 runnable, >0 stopped */ … int pid; … uid_t uid, …; gid_t gid, …; … } Volaitile means that the variable is changed by other code; don’t optimize this variable! Uid is the id of the user that owns this process.

Kernel Data • Kernel variables • Source code file kernel/sched.c contains a declaration: struct task_struct *task[NR_TASKS] = {&init_task,}; • The task kernel array variable is the pointer to all of the process descriptors. • If you could access kernel data structures, could search for the record of process 1234 by finding task[i]->pid == 1234

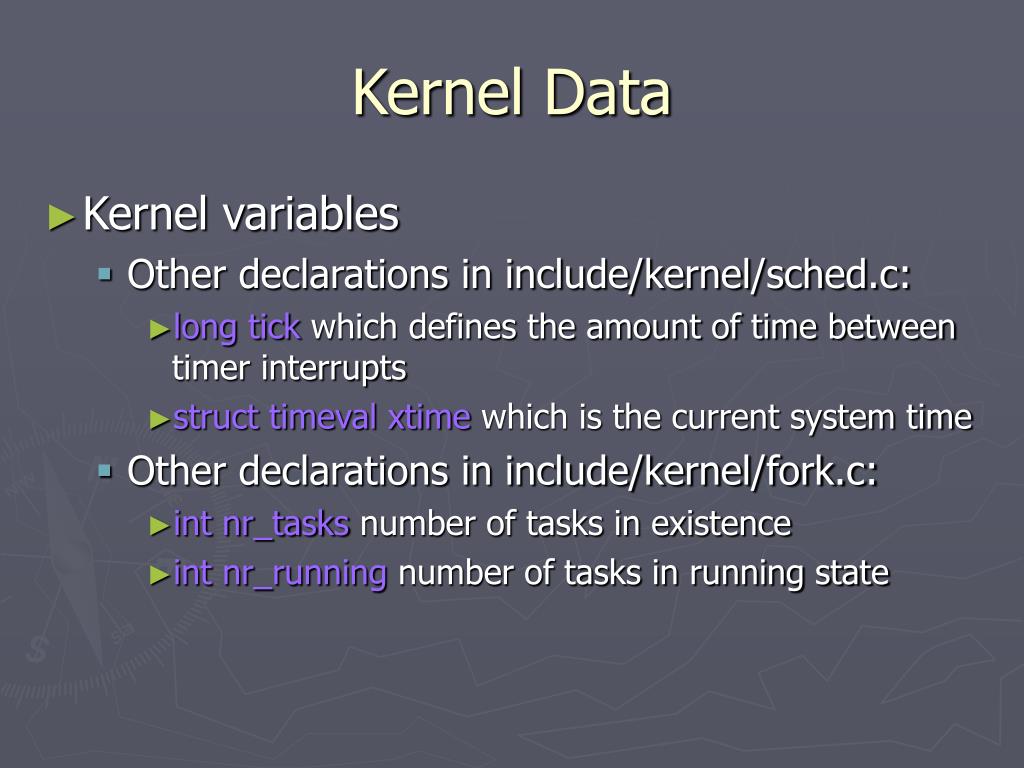

Kernel Data • Kernel variables • Other declarations in include/kernel/sched.c: • long tick which defines the amount of time between timer interrupts • struct timeval xtime which is the current system time • Other declarations in include/kernel/fork.c: • int nr_tasks number of tasks in existence • int nr_running number of tasks in running state

Last time file was accessed Last time file was modified Time file was created Kernel Data • Kernel variables • declarations in .../linux/fs/buffer.c: • hash_table keeps the file descriptors (inodes) • Each hash table entry includes a struct inode *inode field which is defined in …/linux/include/fs.h as: struct inode{ … uid_t i_uid; gid_t i_gid; … time_t i_atime; time_t i_mtime; time_t i_ctime; };

Kernel Data • Kernel variables • declarations in .../linux/fs/file_table.c: • Static struct file *inuse_filps points to a list of all file descriptors in the system. • The struct file definition appears in …/linux/include/fs.h as: struct file{ struct file *f_next, *f_prev; … mode_t f_mode; … struct dentry *f_dentry; struct file_operations *f_op; … };

Kernel Data • Kernel variables • declarations in .../linux/fs/file_table.c: • Static struct file *inuse_filps points to a list of all file descriptors in the system. • You can follow the f_next pointer and inspect each file descriptor in the system. • Each pointer keeps • the protection mode (f_mode), • A pointer to the indone (via the f_dentry pointer) • And the list of routines to operate on the file

Kernel Data • Kernel variables • declarations in .../linux/mm/…: • contain code and declarations of kernel variables used to implement the memory manager. • Declareations in …/linux/fs/… • Contain code and declarations of kernel variables used to implement the file manager.

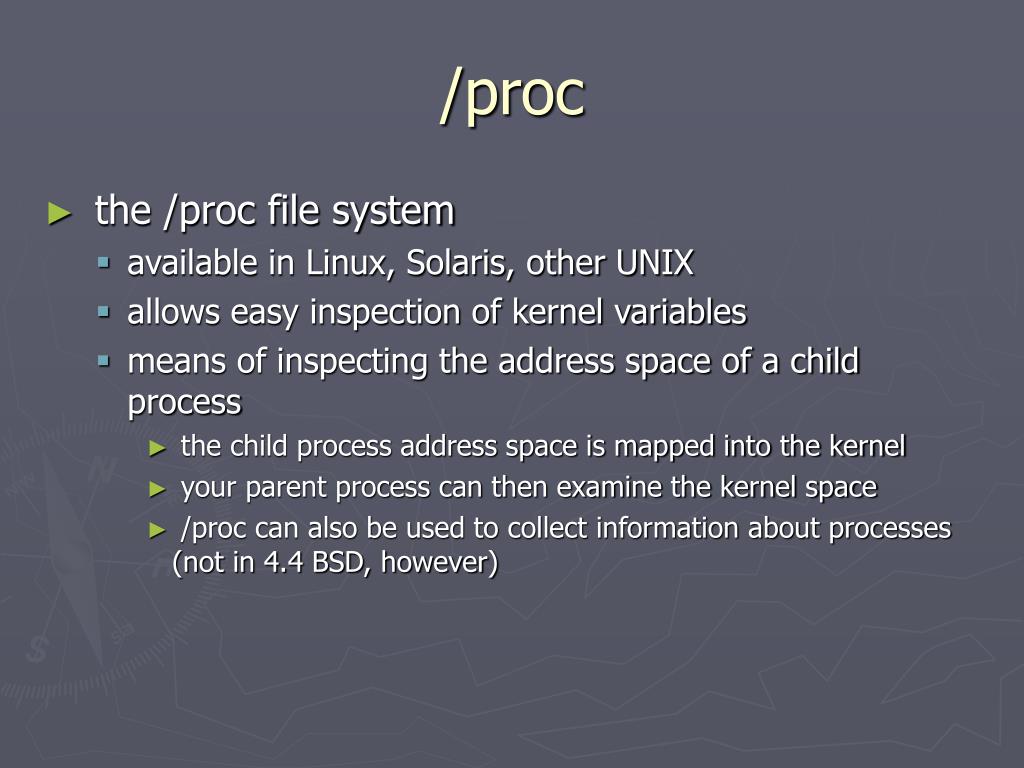

/proc • the /proc file system • available in Linux, Solaris, other UNIX • allows easy inspection of kernel variables • means of inspecting the address space of a child process • the child process address space is mapped into the kernel • your parent process can then examine the kernel space • /proc can also be used to collect information about processes (not in 4.4 BSD, however)

/proc • the /proc file system • is an OS mechanism • its interface appears as a directory in the UNIX file system (its in the / directory) • you can change to this directory using cd • can list the contents of /proc using ls • you can “read” a file using cat • you can find out what files are available by searching the man pages: man proc

/proc • the /proc file system • a file in the /proc directory is actually a program that reads kernel variables and returns them as ASCII strings • some of these routines read kernel tables only when the routine is opened • others read the tables each time the file is read

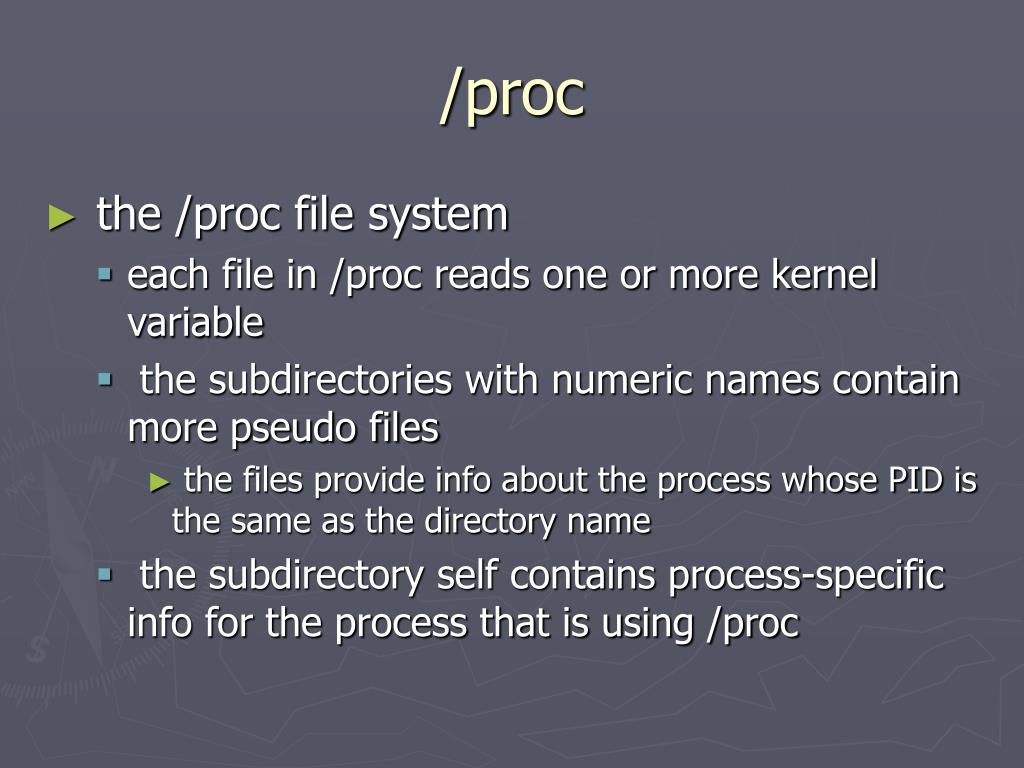

/proc • the /proc file system • each file in /proc reads one or more kernel variable • the subdirectories with numeric names contain more pseudo files • the files provide info about the process whose PID is the same as the directory name • the subdirectory self contains process-specific info for the process that is using /proc

/proc • the /proc file system • Read files in /proc just like an ordinary ASCII file • Example: bash$ cat /proc/version Linux version 2.2.12 (gcc version egcs-2.91.66 … • To read a file, open the file and then use stdio library functions like fgets( ) or fscanf( ) to read the file.

project 2 • Write a program • that receives 1, 2, or 4 command line parameters (including the program name). • your program will open and read the /proc file system and write out data • what is written depends on the command line parameters • if there are 4 command line parameters have to calculate a load average

project 2 • Organization of the solution • Read in the command line parameters and determine what information you need • Print the time of day and hostname • Read the /proc file system and obtain the necessary information • Print the information • If necessary, compute a load average

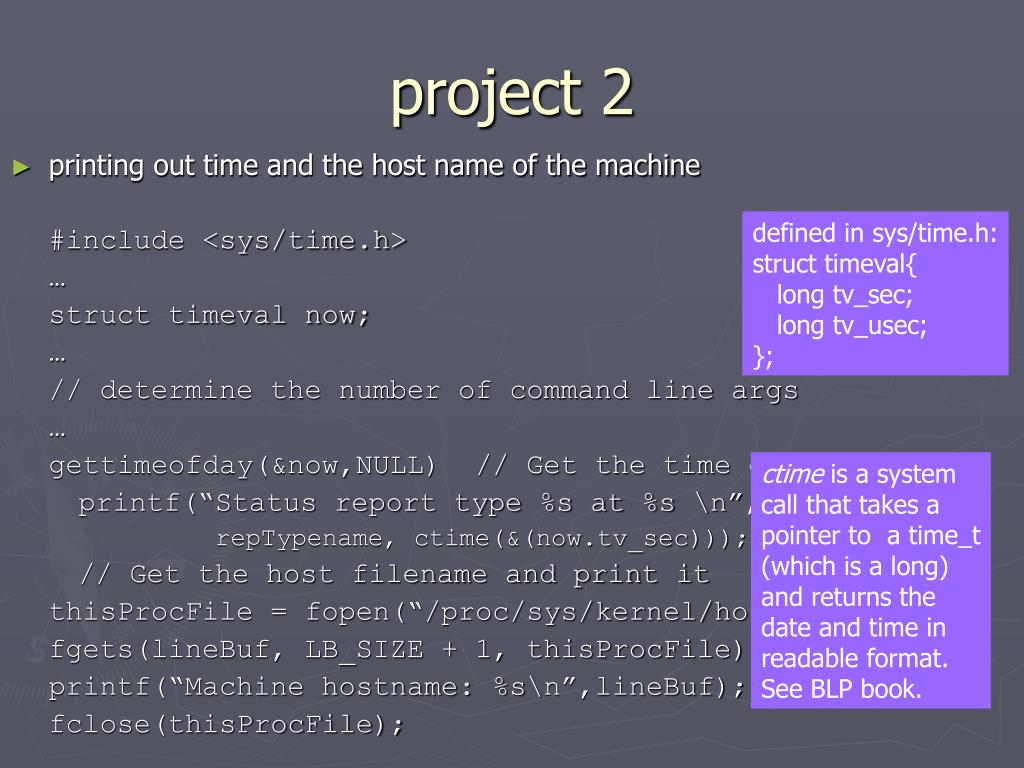

project 2 • printing out time and the host name of the machine #include <sys/time.h> … struct timeval now; … // determine the number of command line args … gettimeofday(&now,NULL) // Get the time of day printf(“Status report type %s at %s \n”, repTypename, ctime(&(now.tv_sec))); // Get the host filename and print it thisProcFile = fopen(“/proc/sys/kernel/hostname”, “r”); fgets(lineBuf, LB_SIZE + 1, thisProcFile); printf(“Machine hostname: %s\n”,lineBuf); fclose(thisProcFile); defined in sys/time.h: struct timeval{ long tv_sec; long tv_usec; }; ctime is a system call that takes a pointer to a time_t (which is a long) and returns the date and time in readable format. See BLP book.

project 2 • Next, read /proc and print out the proper information. • If necessary, compute load average • sleep for a while • wake up and sample the current load average • go back to sleep • use the command line parameters: ksamp -l 2 60 • means sample the kernel table every 2 seconds • continue this sampling for 60 seconds • the machine must be doing some work; icsun should be busy already, you’ll have to do some work while sampling on a Linux box. • print out the load
