  1. Nortel Networks InstituteUniversity of Waterloo

  2. High Performance Semiconductor Optical Amplifiers:Enabling All-optical Circuits Simarjeet Singh Saini Nanophotonics and Integrated Optoelectronics Group University of Waterloo University of Waterloo

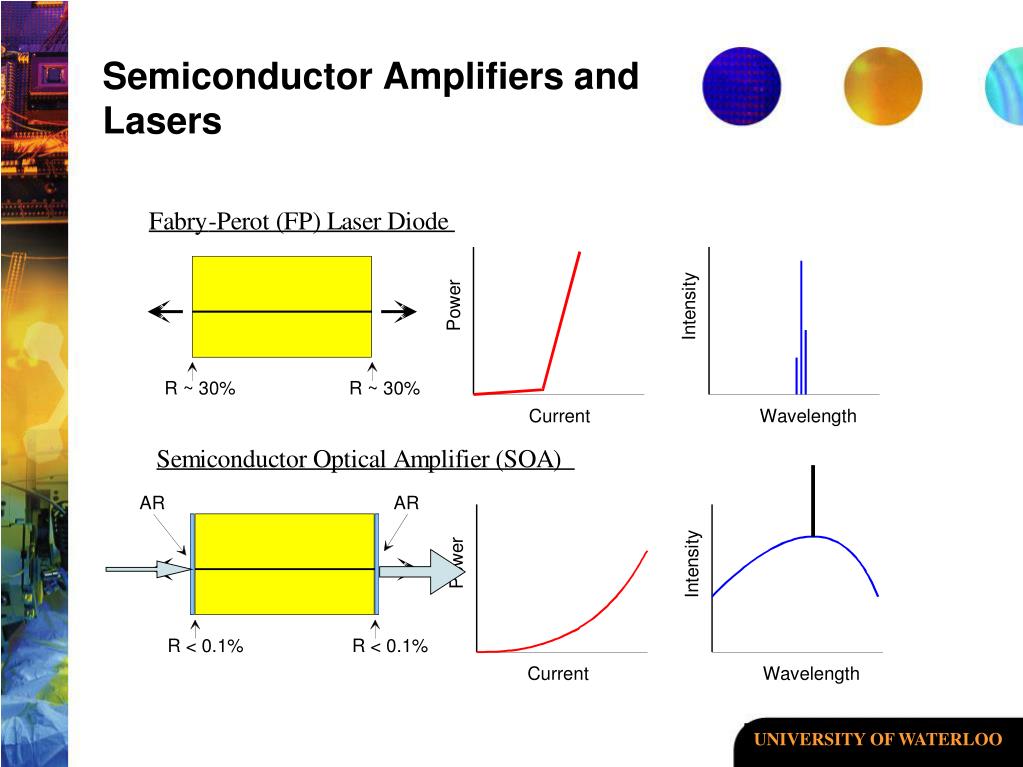

  3. Semiconductor Amplifiers and Lasers

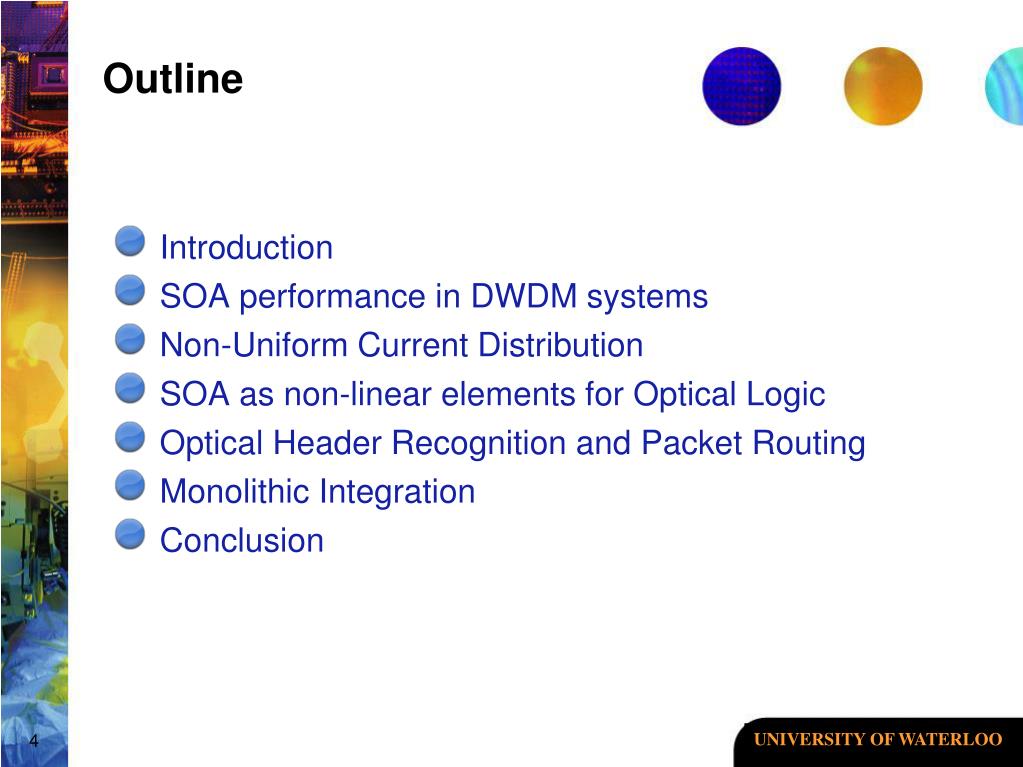

  4. Outline • Introduction • SOA performance in DWDM systems • Non-Uniform Current Distribution • SOA as non-linear elements for Optical Logic • Optical Header Recognition and Packet Routing • Monolithic Integration • Conclusion 4

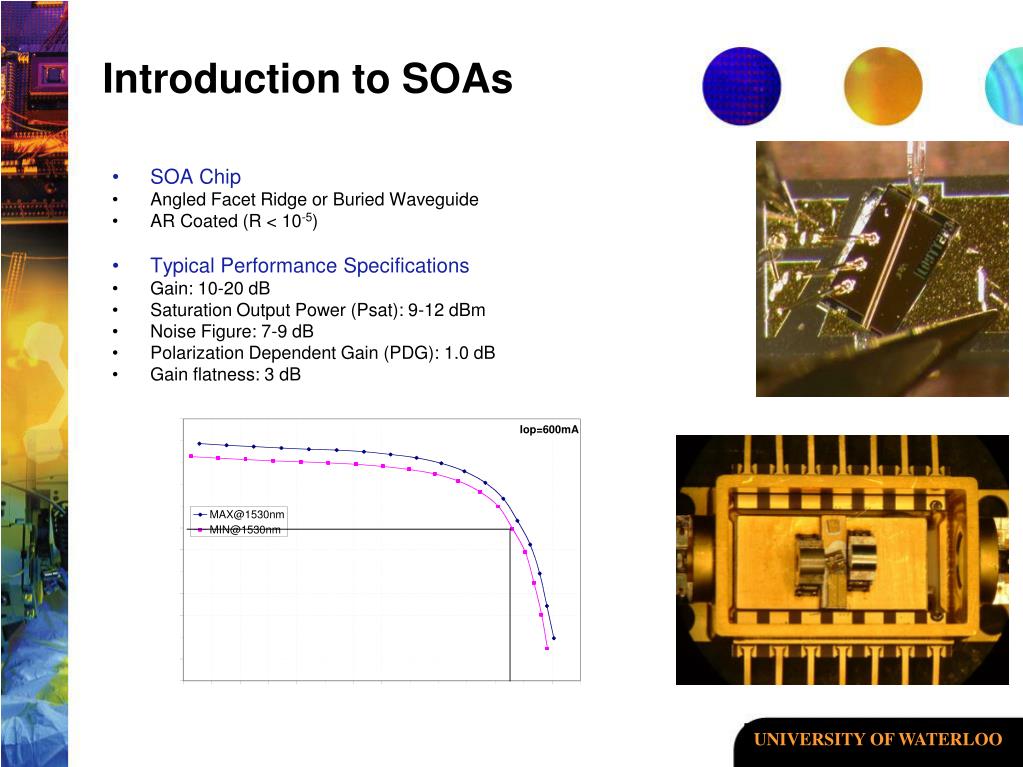

  5. Introduction to SOAs • SOA Chip • Angled Facet Ridge or Buried Waveguide • AR Coated (R < 10-5) • Typical Performance Specifications • Gain: 10-20 dB • Saturation Output Power (Psat): 9-12 dBm • Noise Figure: 7-9 dB • Polarization Dependent Gain (PDG): 1.0 dB • Gain flatness: 3 dB

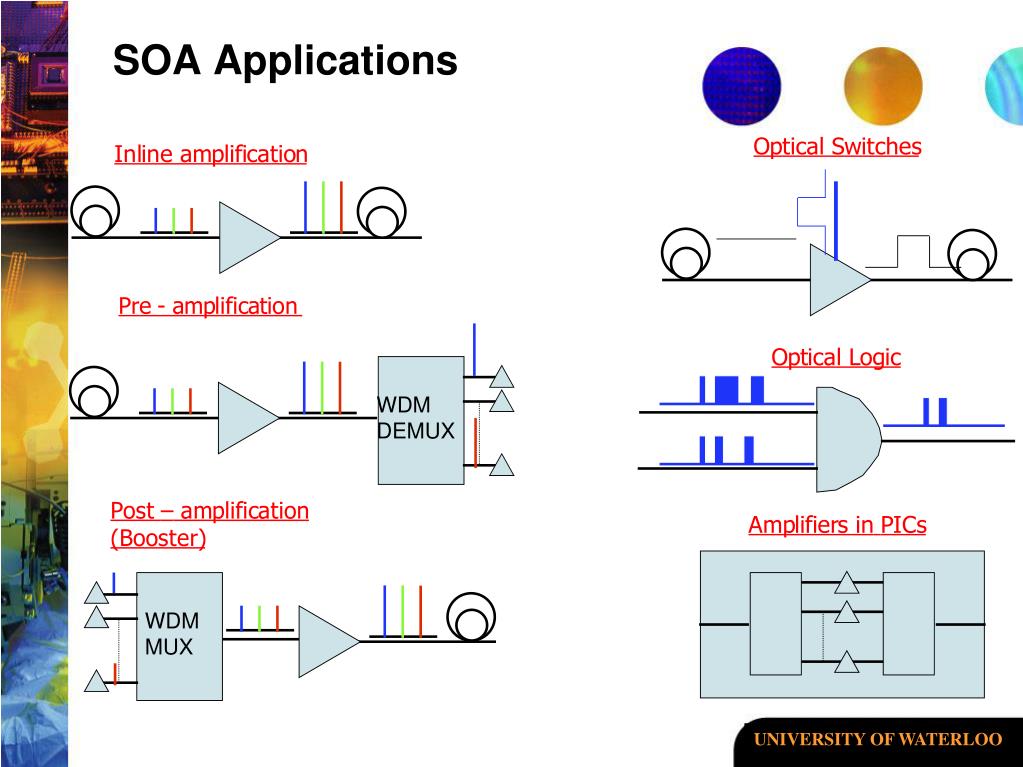

  6. WDM DEMUX SOA Applications WDM MUX

  7. SOA vs. EDFA SOA

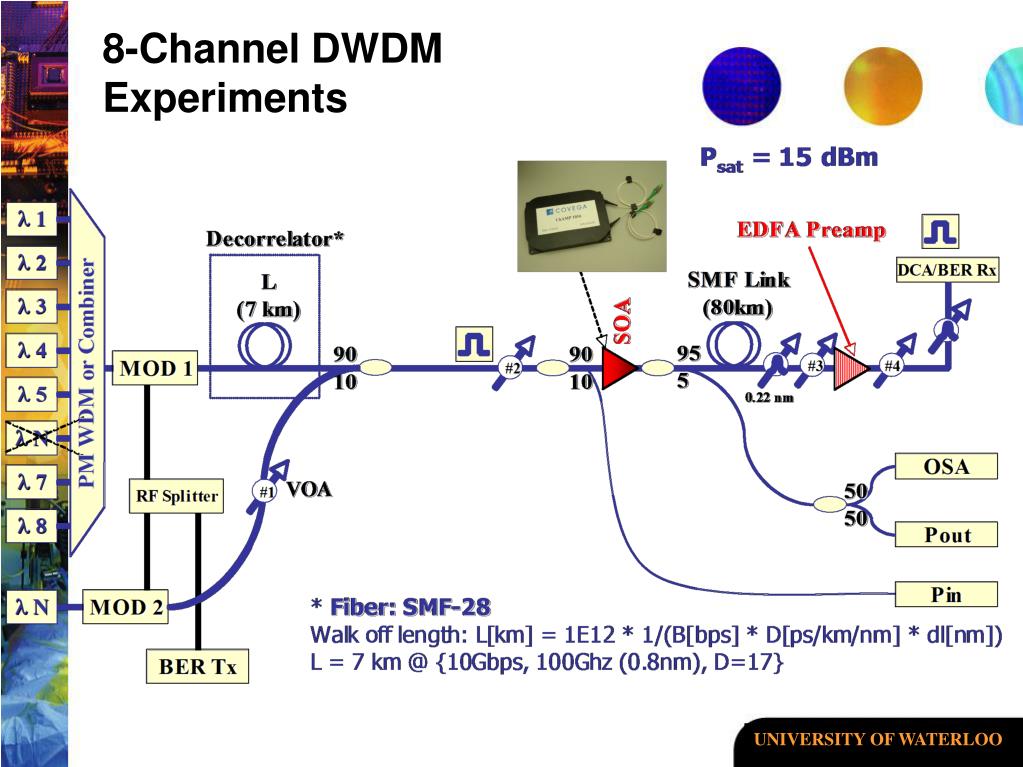

  8. 8-Channel DWDM Experiments

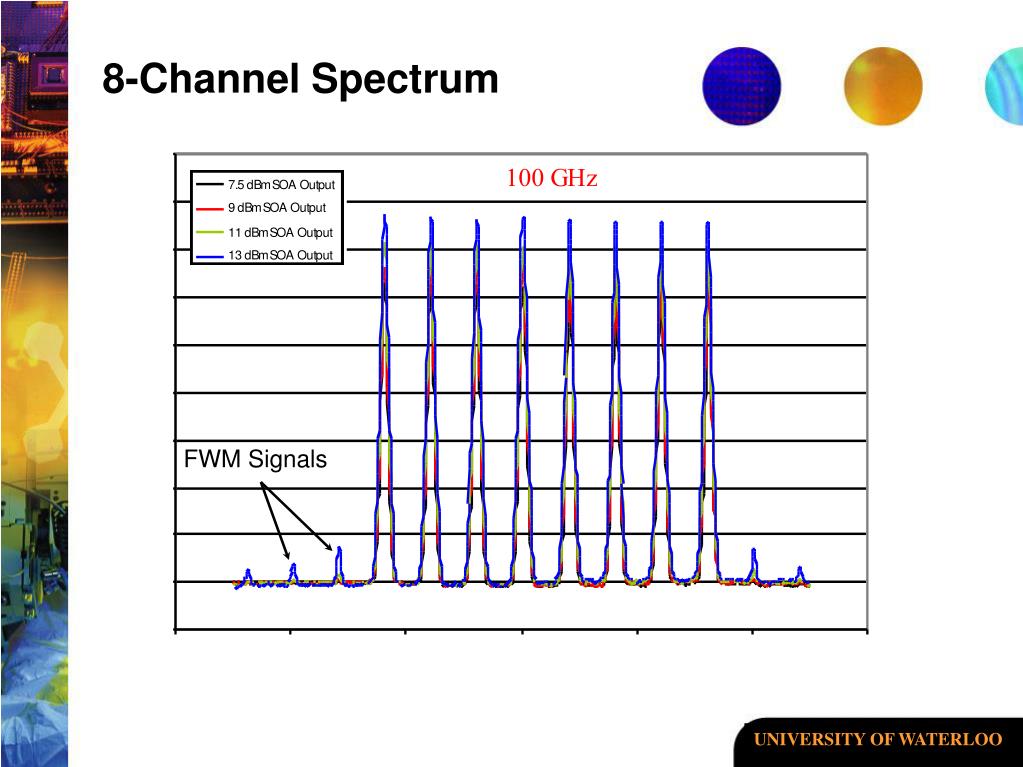

  9. FWM Signals 8-Channel Spectrum

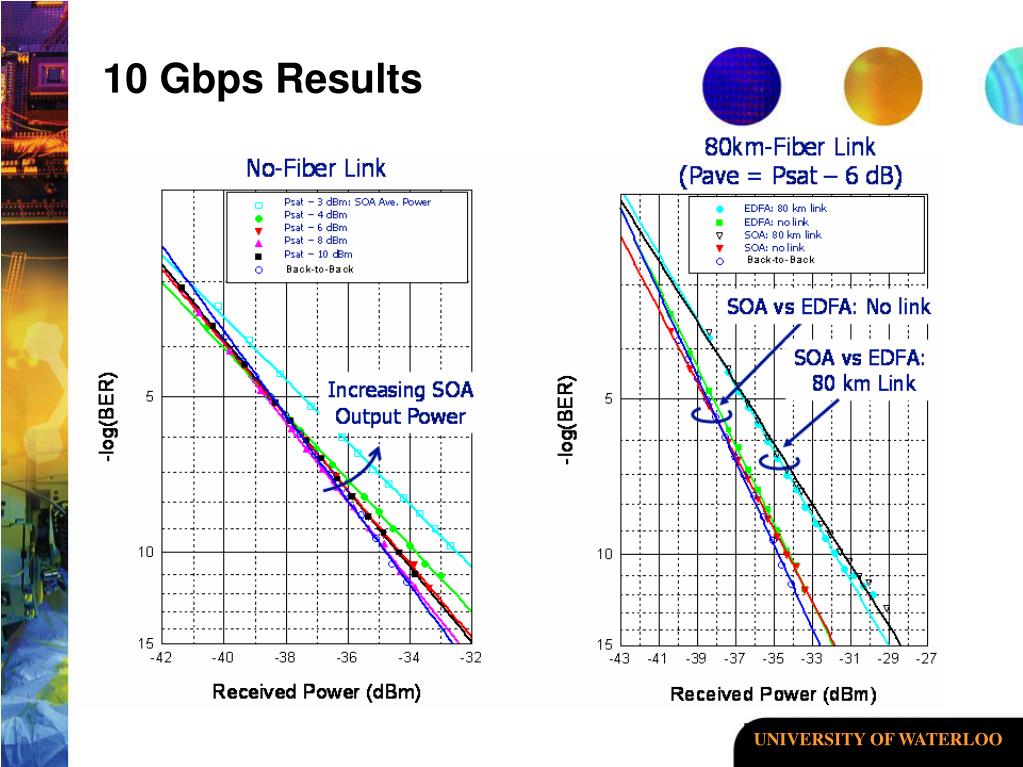

  10. 10 Gbps Results

  11. WDM Performance

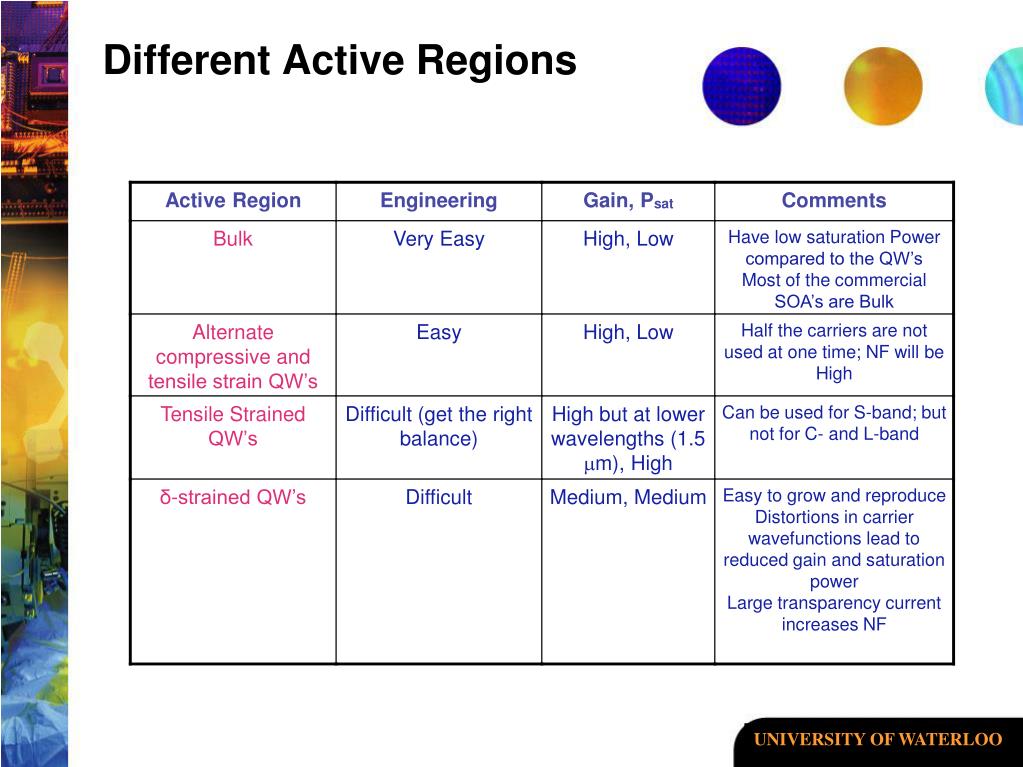

  12. Active Region Engineering Gain, Psat Comments Bulk Very Easy High, Low Have low saturation Power compared to the QW’s Most of the commercial SOA’s are Bulk Alternate compressive and tensile strain QW’s Easy High, Low Half the carriers are not used at one time; NF will be High Tensile Strained QW’s Difficult (get the right balance) High but at lower wavelengths (1.5 mm), High Can be used for S-band; but not for C- and L-band δ-strained QW’s Difficult Medium, Medium Easy to grow and reproduce Distortions in carrier wavefunctions lead to reduced gain and saturation power Large transparency current increases NF Different Active Regions

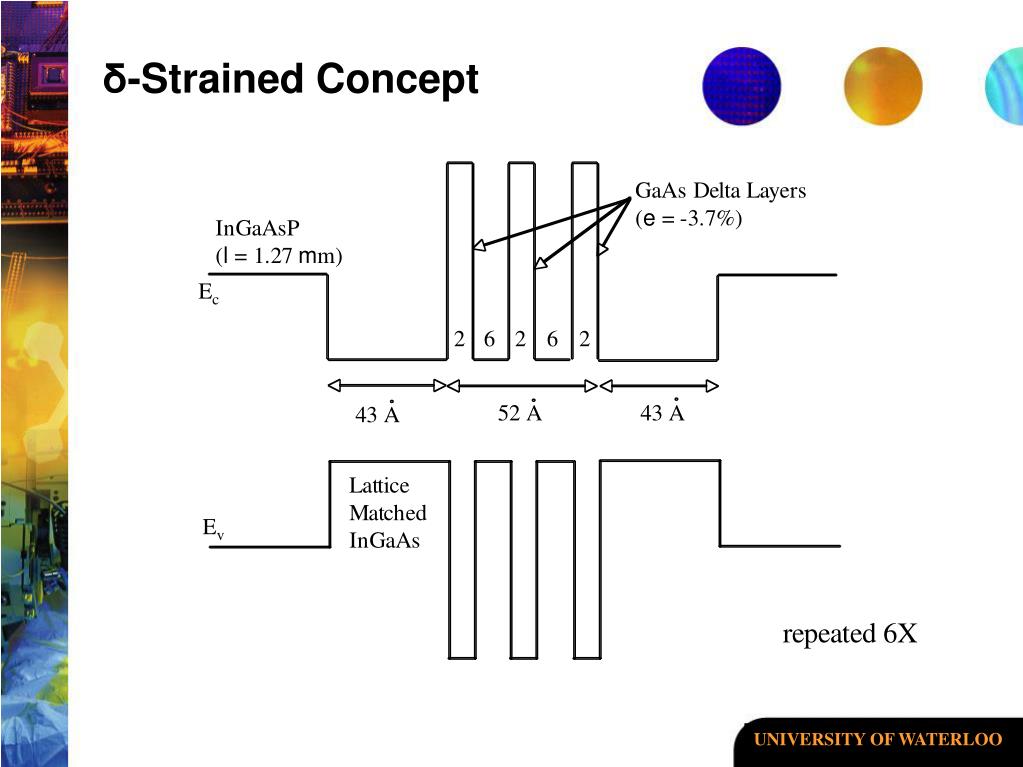

  13. δ-Strained Concept

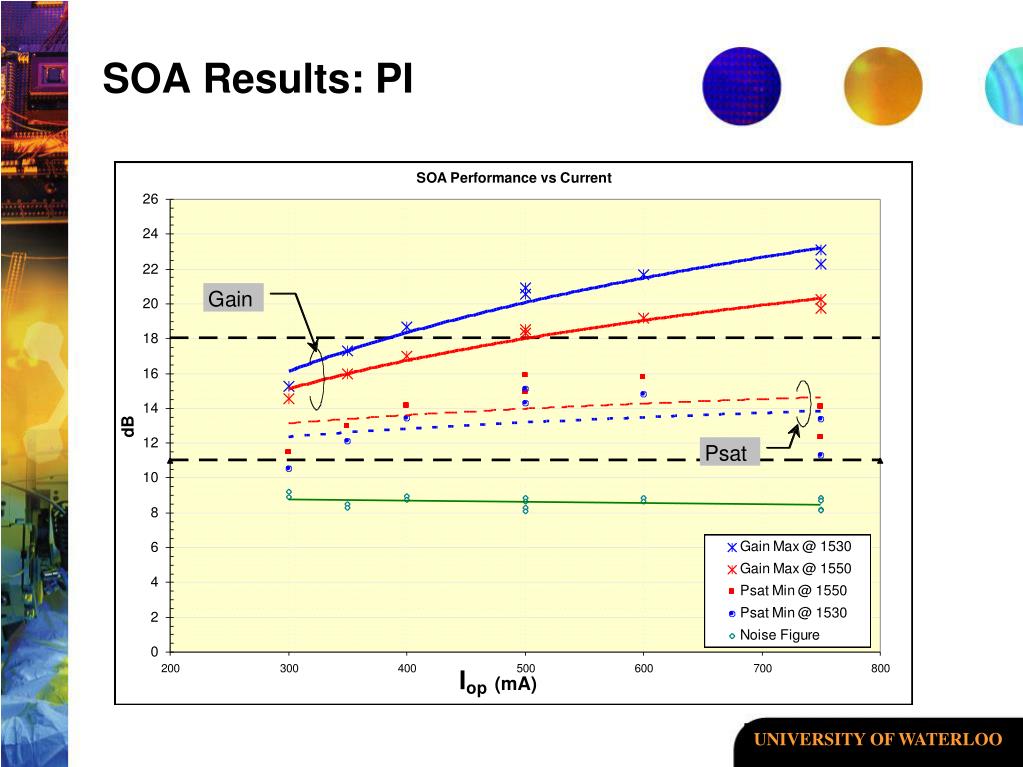

  14. SOA Results: PI

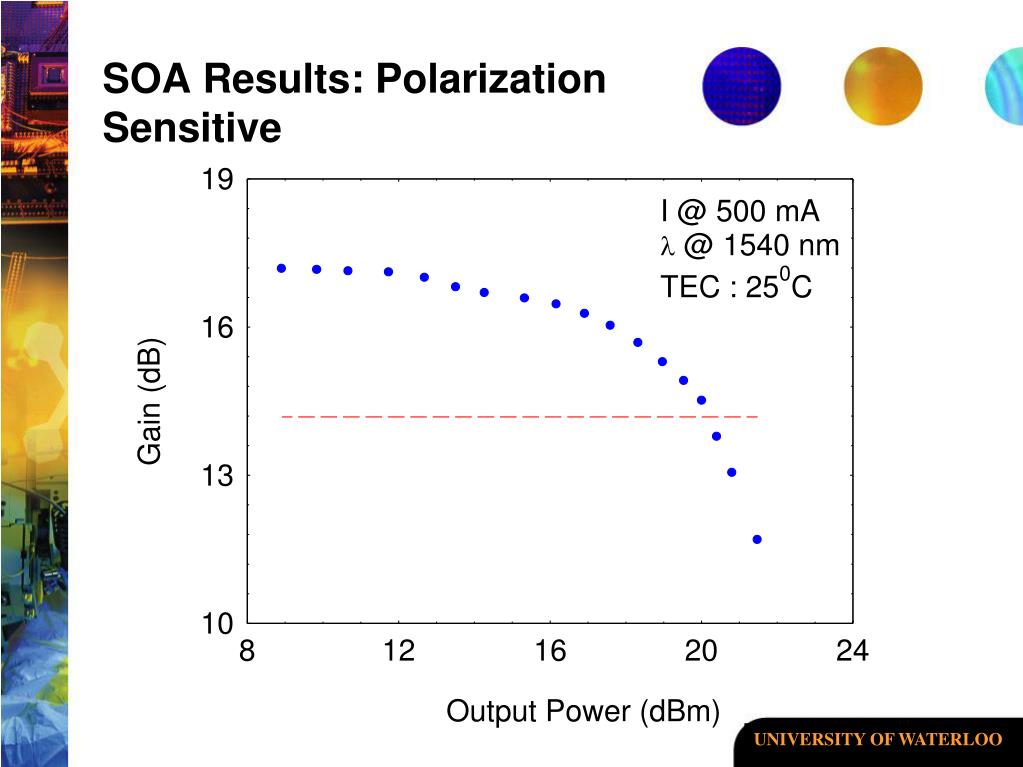

  15. SOA Results: Polarization Sensitive

  16. Non-uniform Current Distribution for Improved Device Performance

  17. Concept

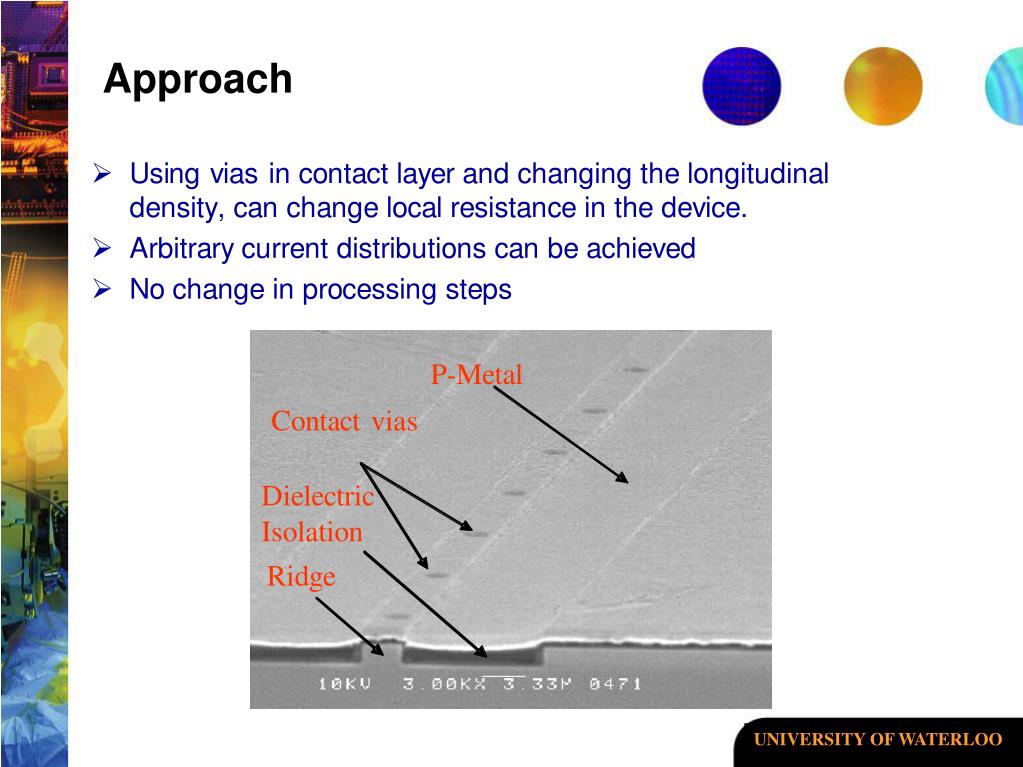

  18. Approach

  19. Resistance Measurements

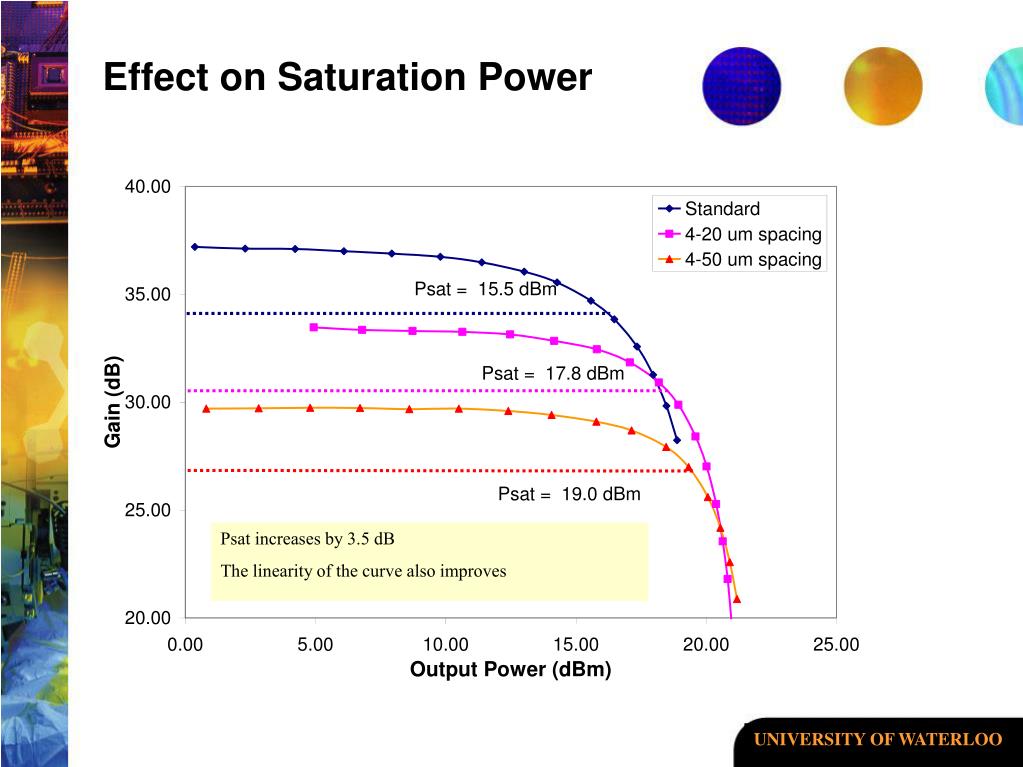

  20. Psat increases by 3.5 dB The linearity of the curve also improves Effect on Saturation Power

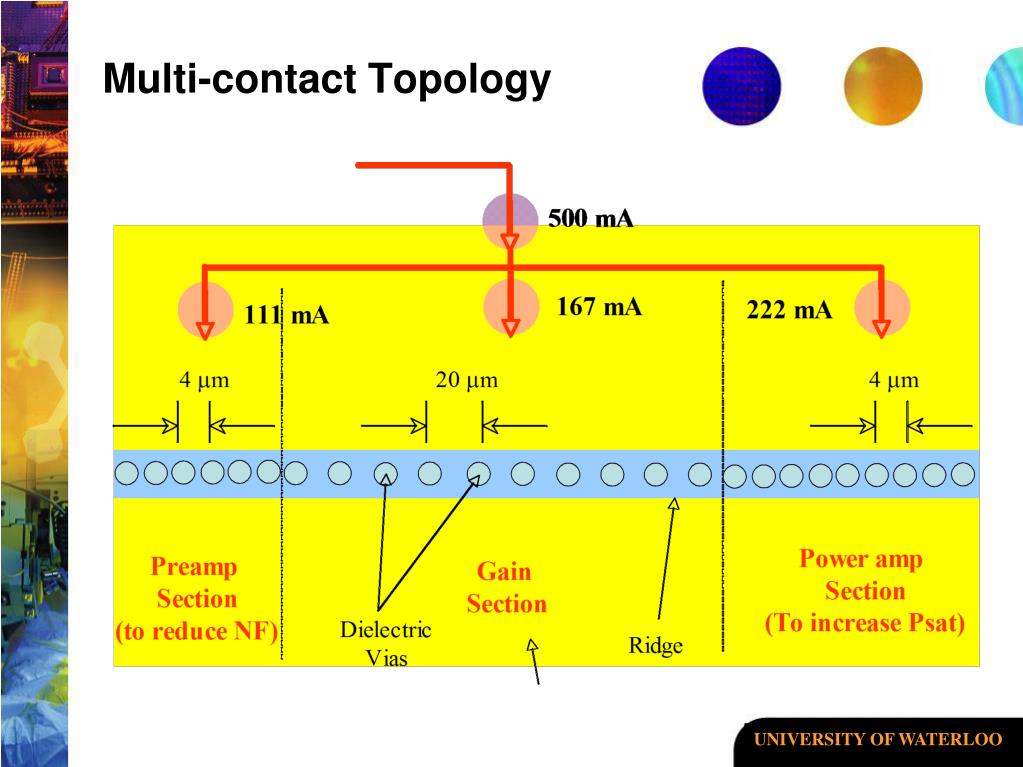

  21. Multi-contact Topology

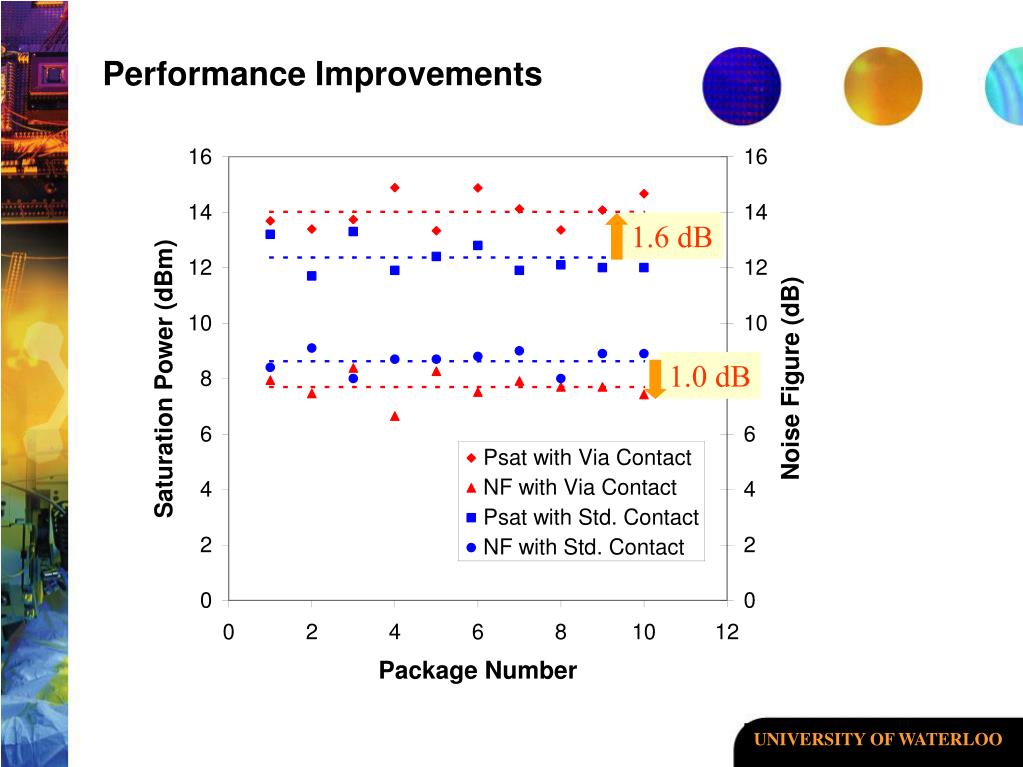

  22. Performance Improvements

  23. Noise Figure Improvement

  24. SOAs as Non-linear Elements

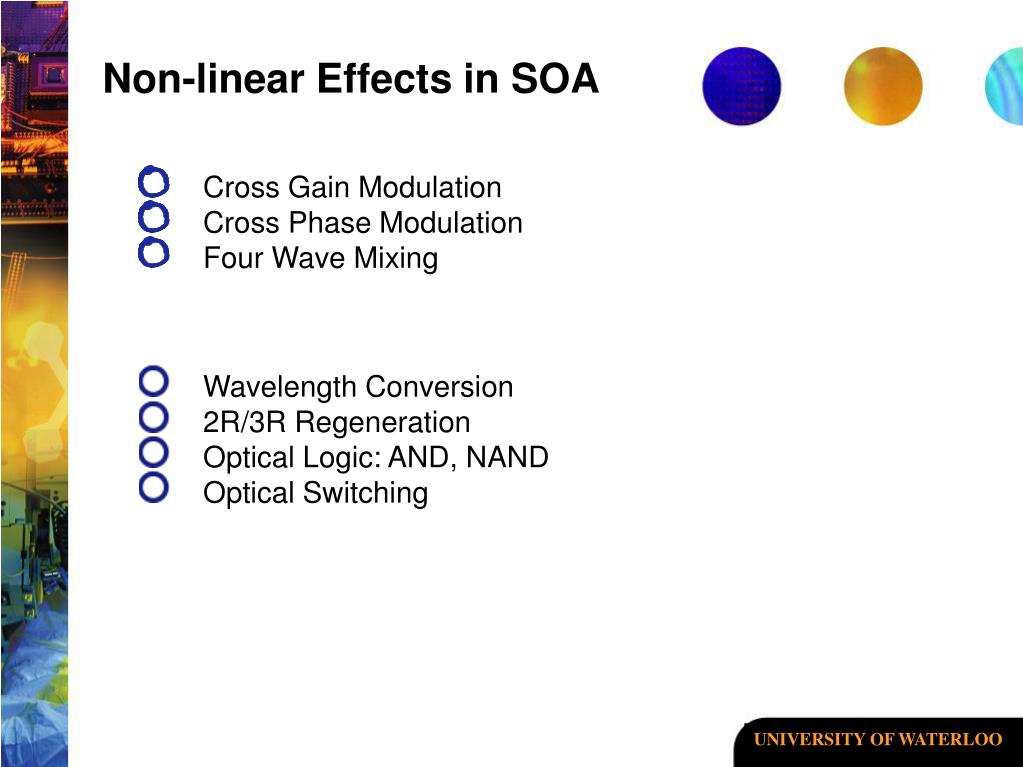

  25. Non-linear Effects in SOA • Cross Gain Modulation • Cross Phase Modulation • Four Wave Mixing • Wavelength Conversion • 2R/3R Regeneration • Optical Logic: AND, NAND • Optical Switching

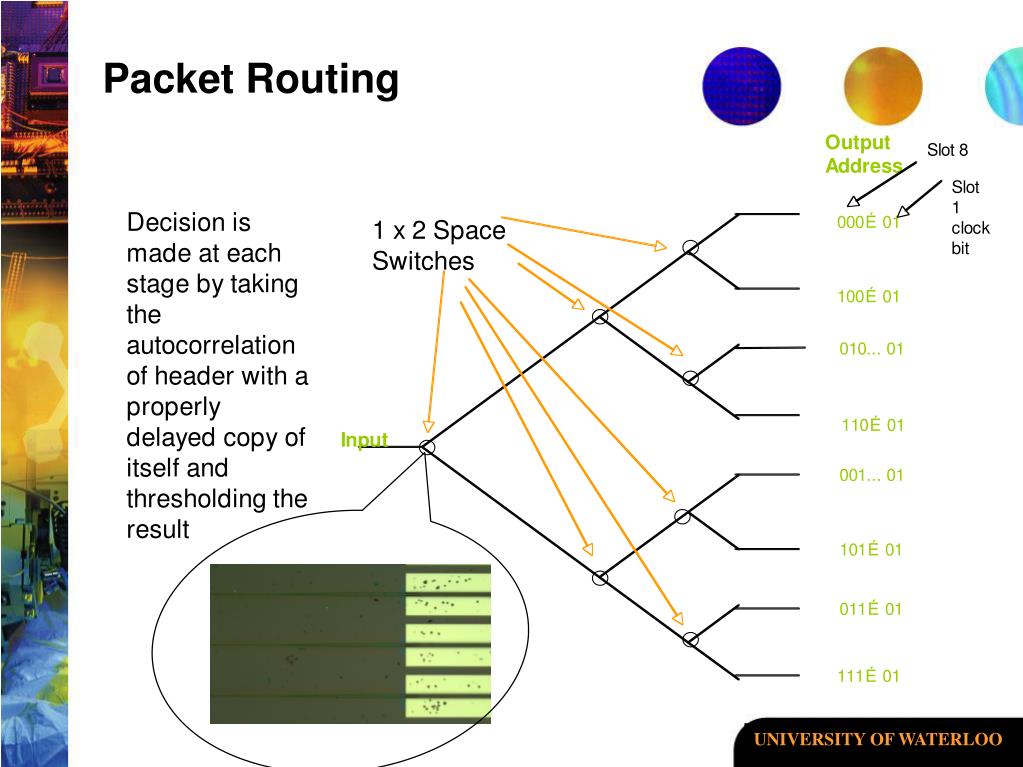

  26. Packet Routing

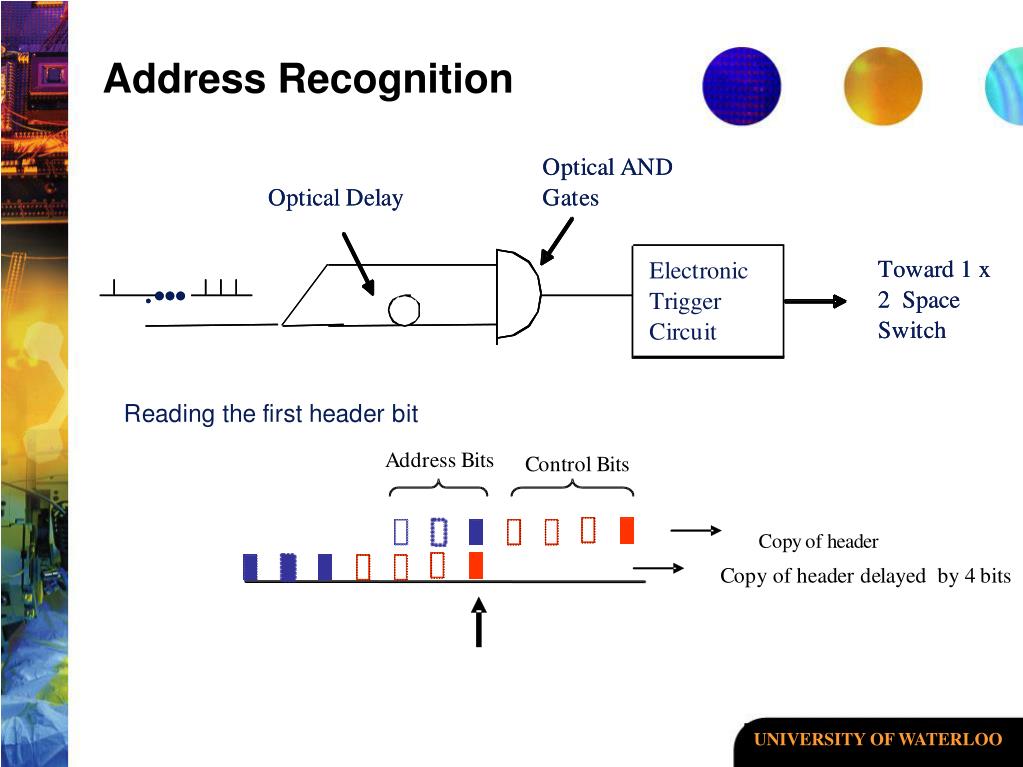

  27. Address Recognition

  28. Sagnac Gate for Optical AND SOA

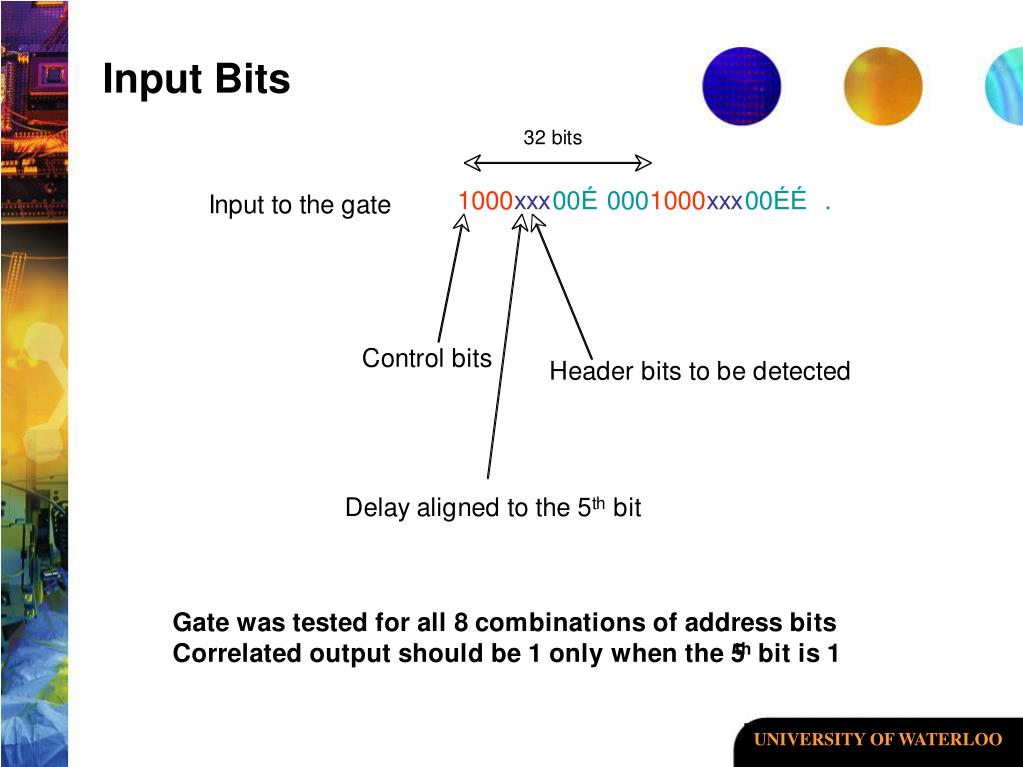

  29. Input Bits

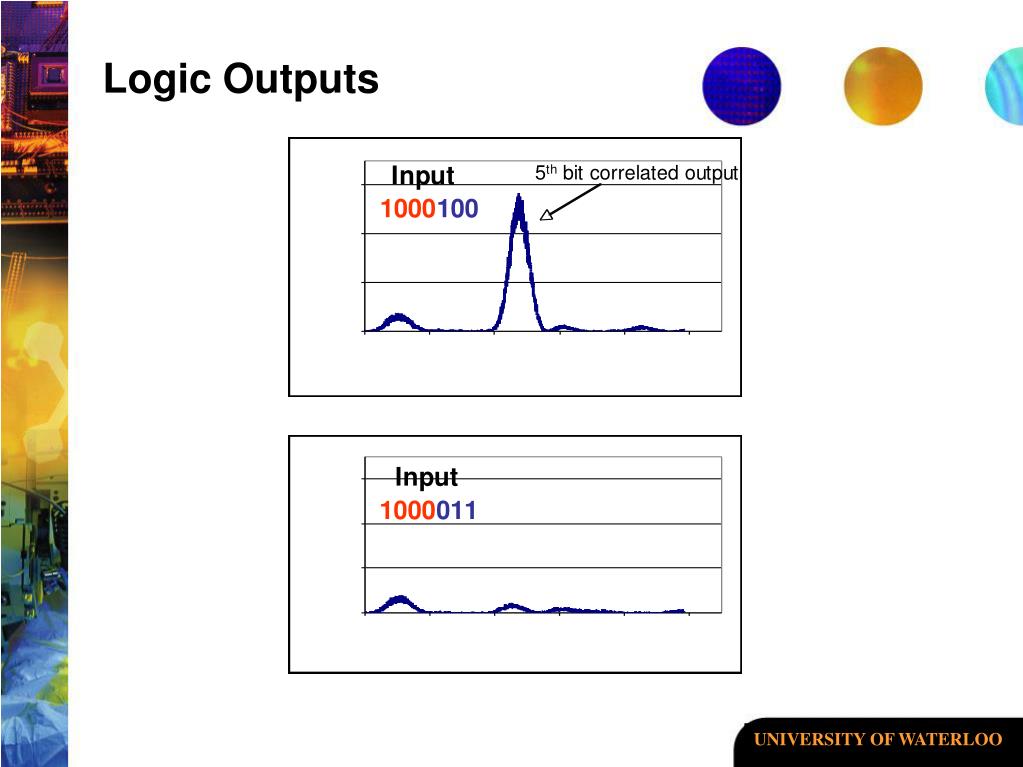

  30. Logic Outputs

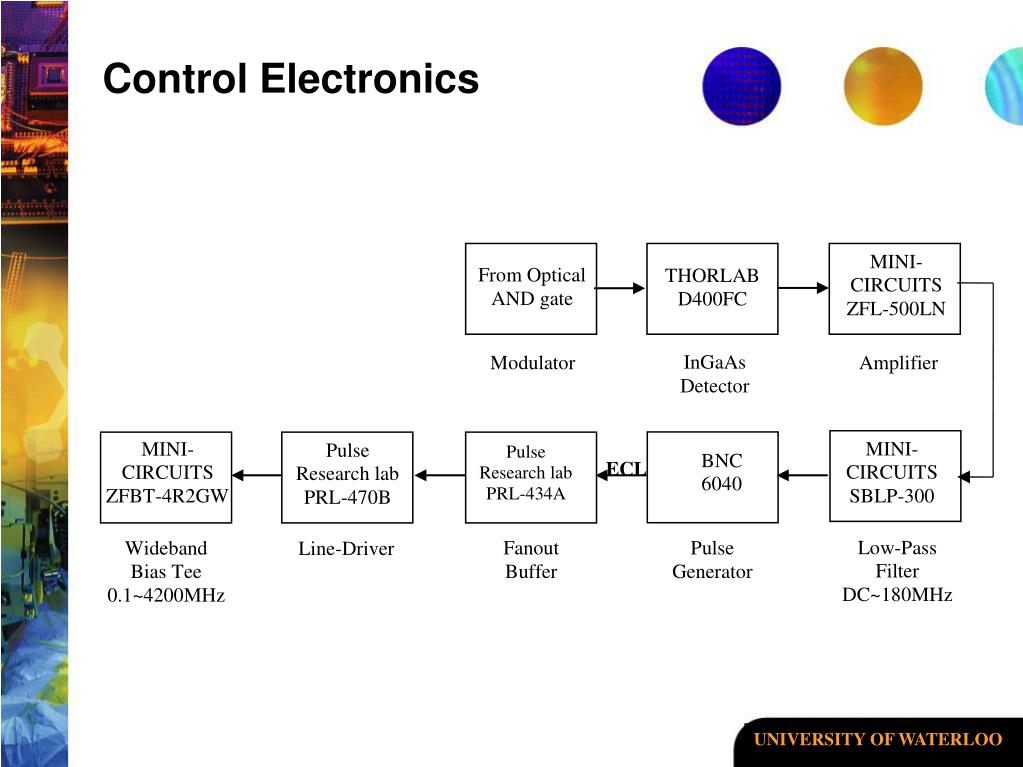

  31. Control Electronics

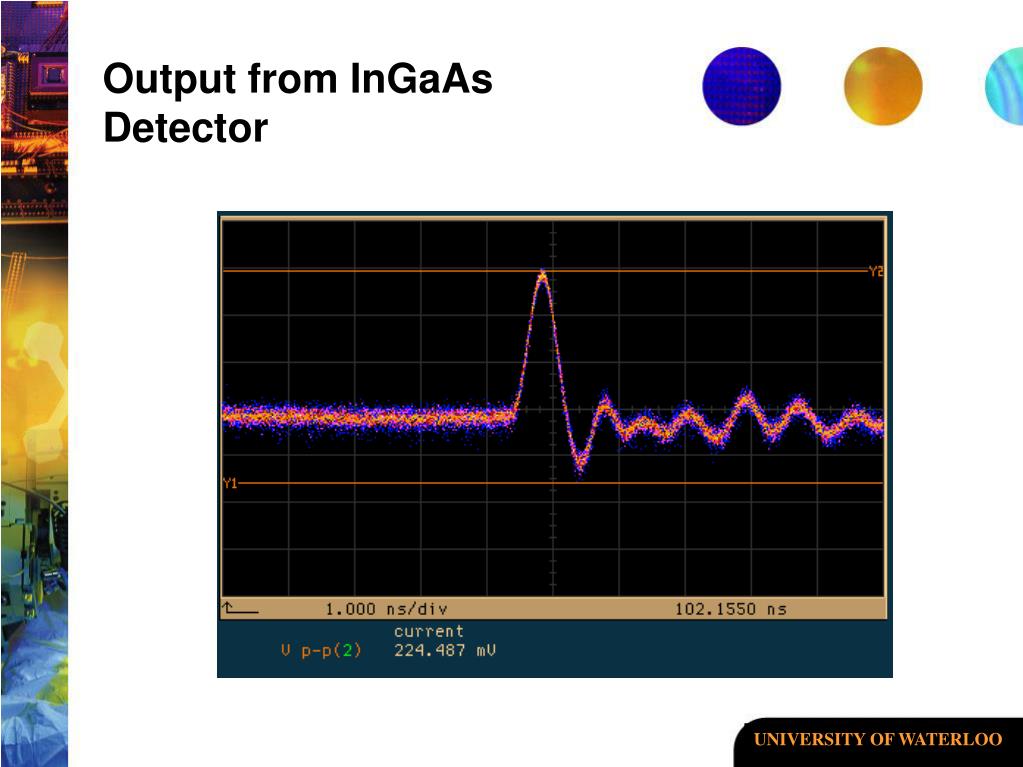

  32. Output from InGaAs Detector

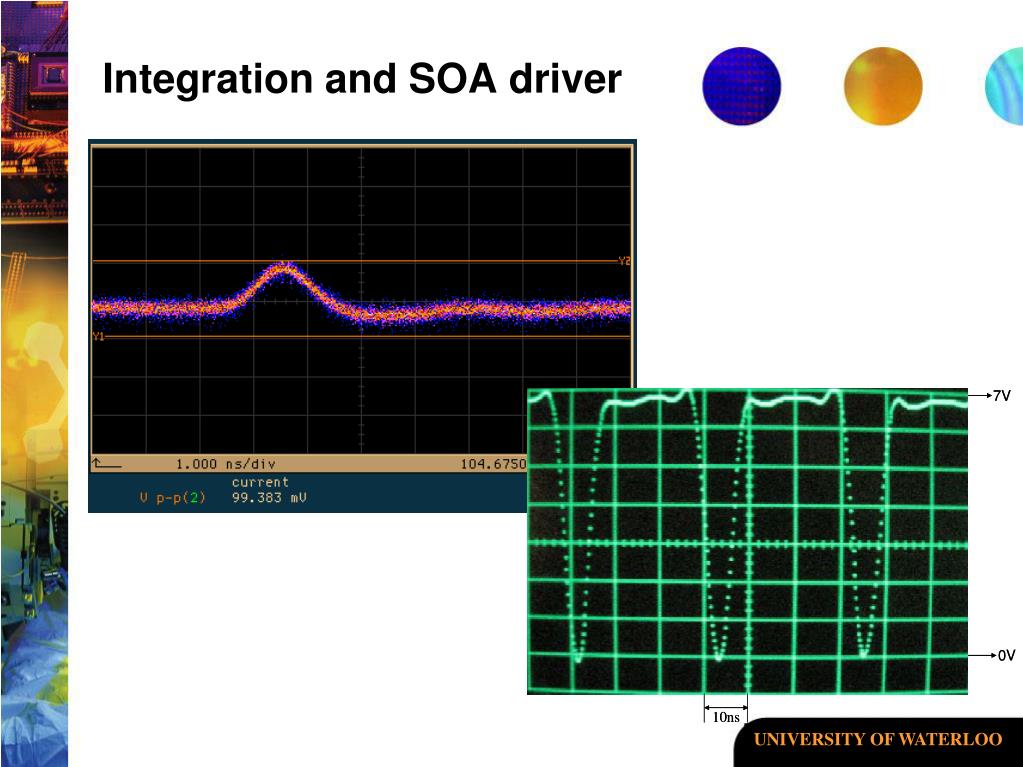

  33. Integration and SOA driver

  34. Eye diagrams for Cascaded SOAs

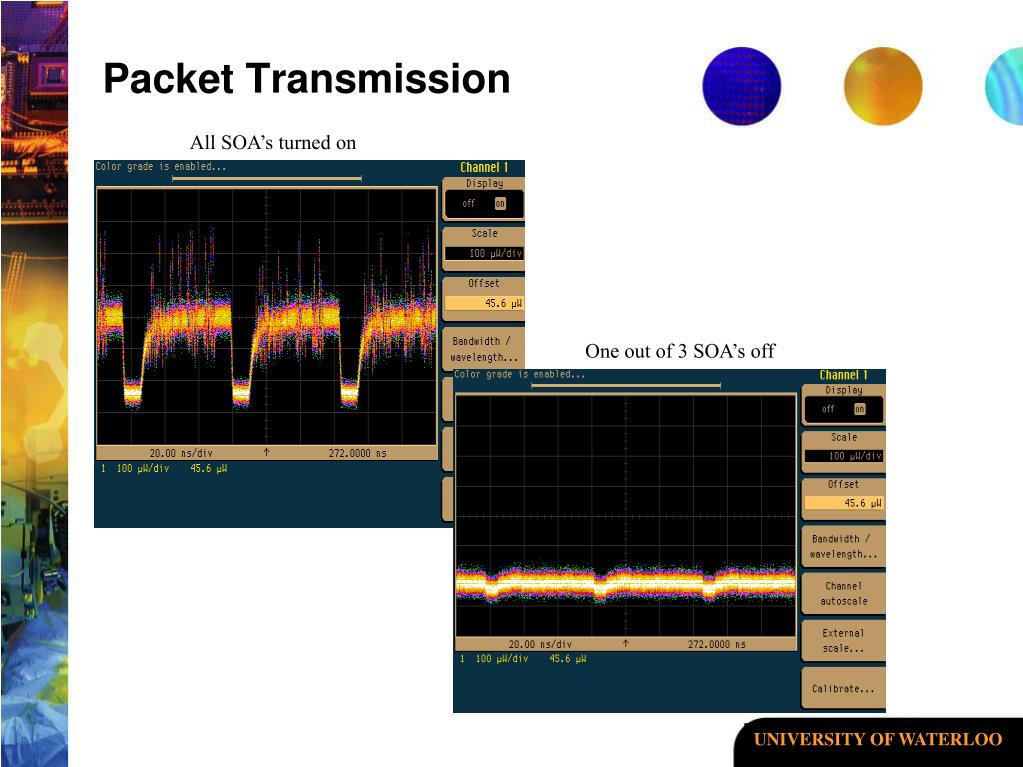

  35. Packet Transmission All SOA’s turned on One out of 3 SOA’s off

  36. PARCTM: A Platform for Monolithic Integration of Photonics Devices

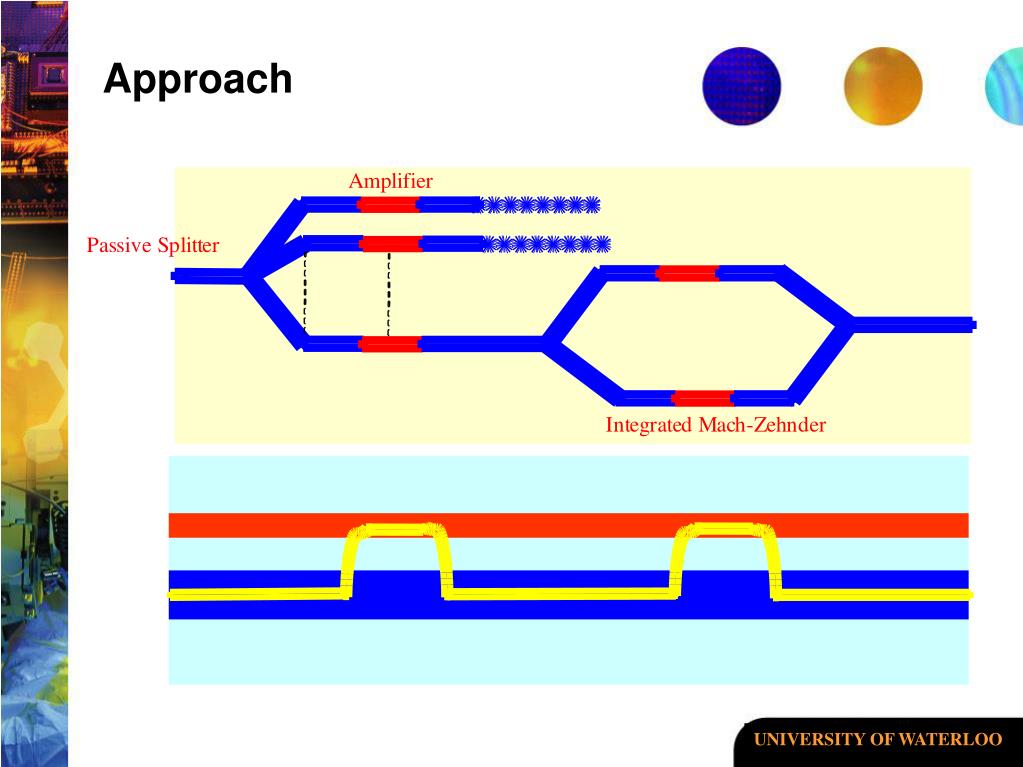

  37. Approach

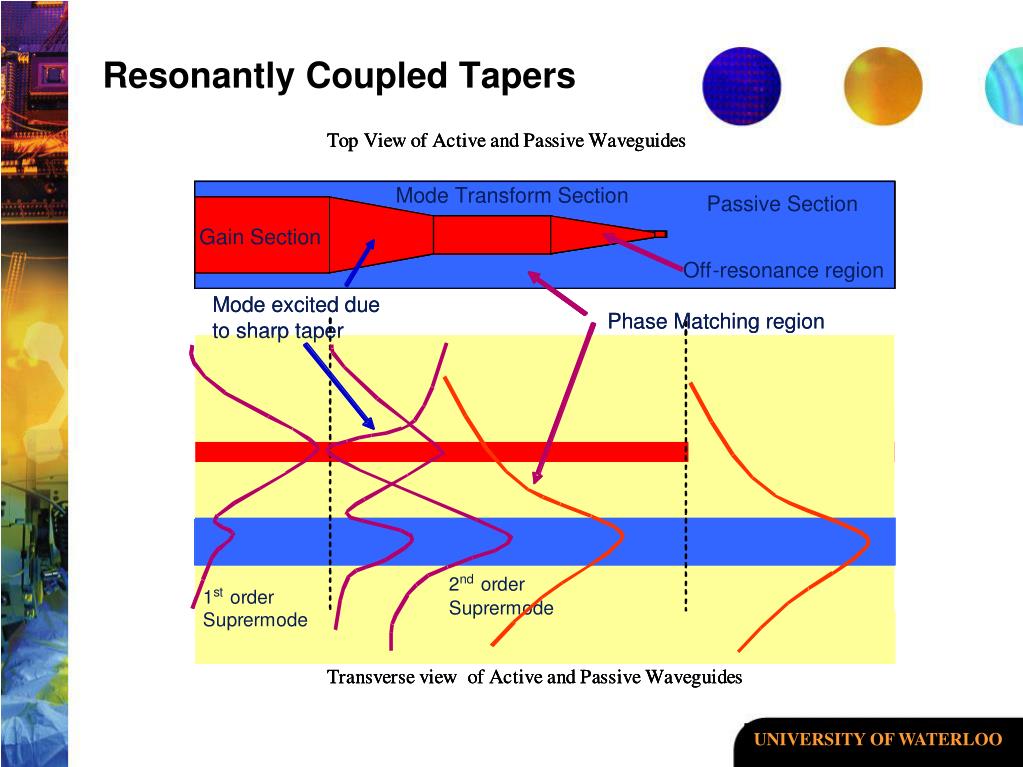

  38. Resonantly Coupled Tapers

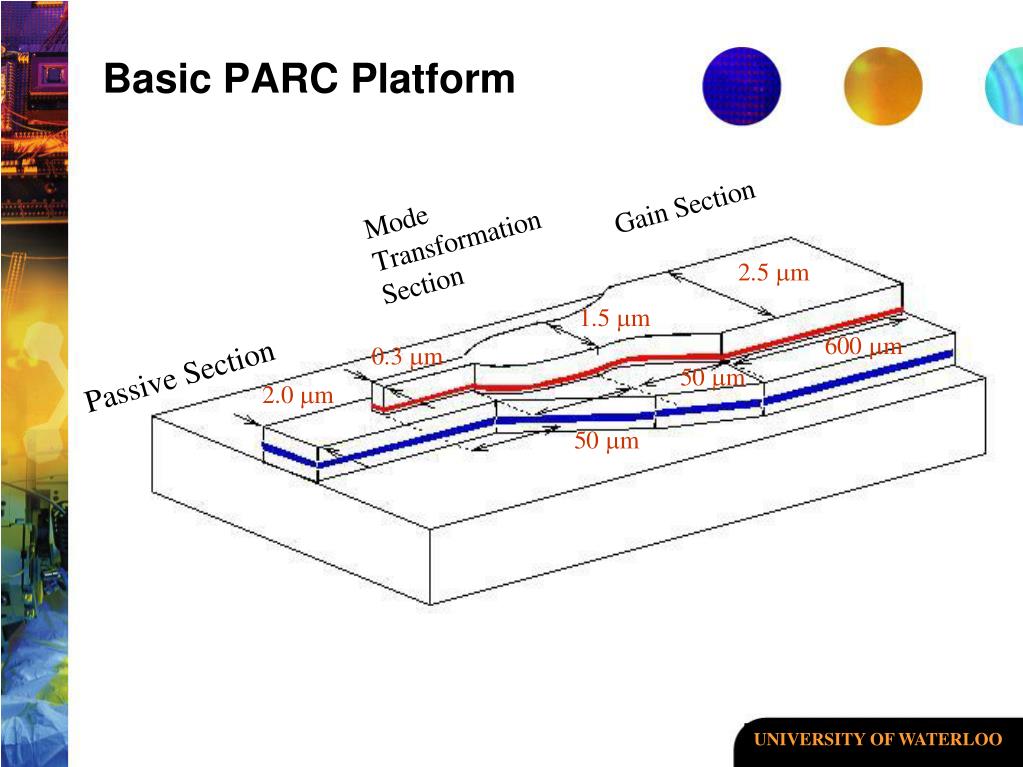

  39. Basic PARC Platform

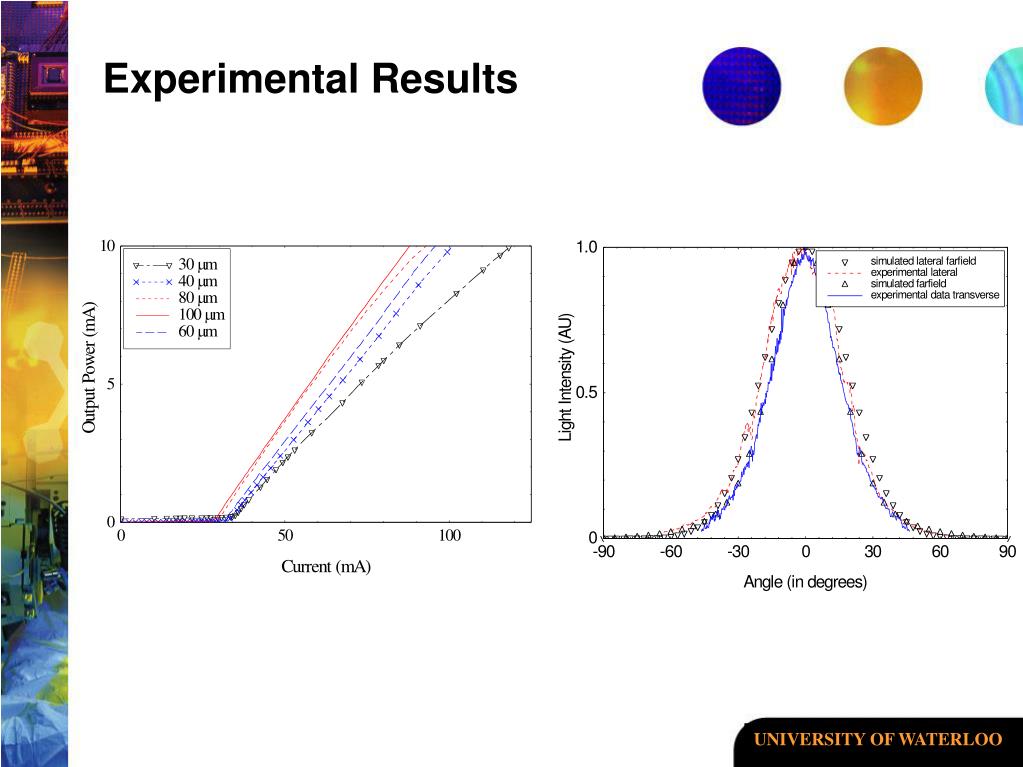

  40. Experimental Results

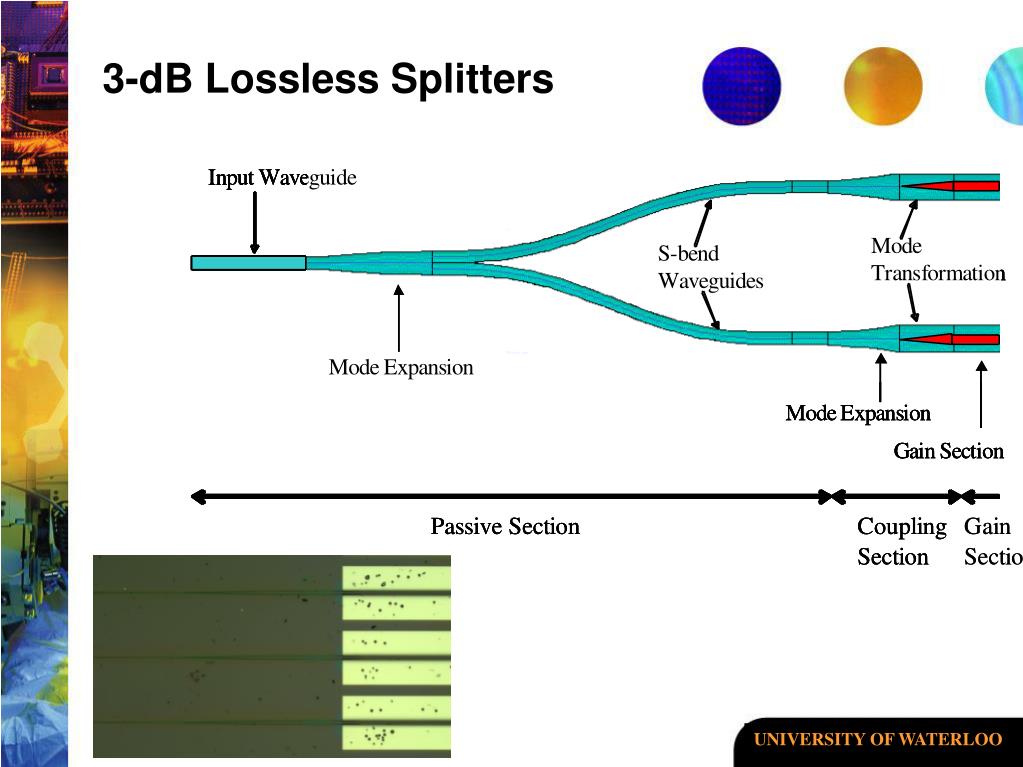

  41. 3-dB Lossless Splitters

  42. 3-dB Lossless Splitters

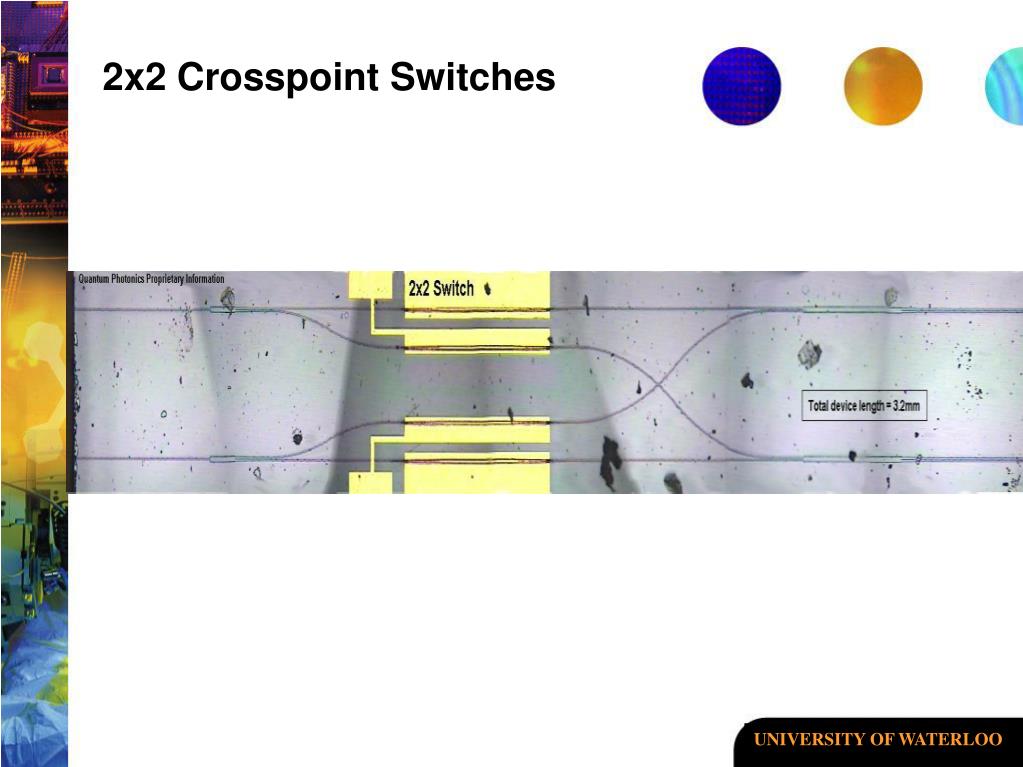

  43. 2x2 Crosspoint Switches

  44. 2x2 Crosspoint Switch

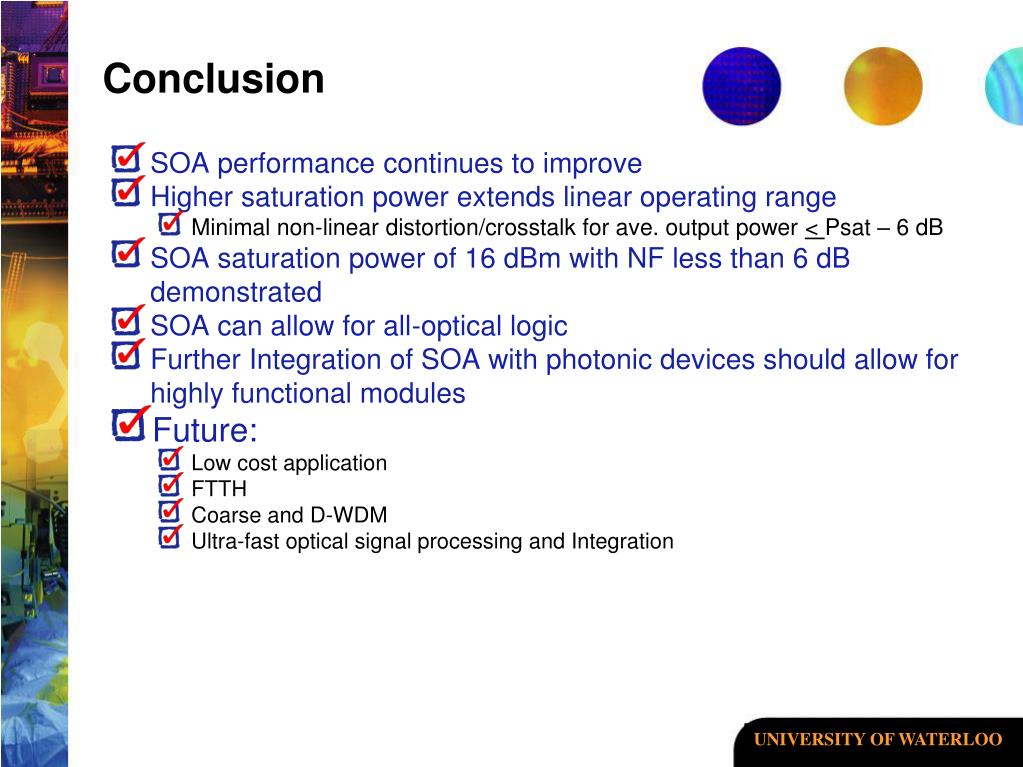

  45. Conclusion • SOA performance continues to improve • Higher saturation power extends linear operating range • Minimal non-linear distortion/crosstalk for ave. output power < Psat – 6 dB • SOA saturation power of 16 dBm with NF less than 6 dB demonstrated • SOA can allow for all-optical logic • Further Integration of SOA with photonic devices should allow for highly functional modules • Future: • Low cost application • FTTH • Coarse and D-WDM • Ultra-fast optical signal processing and Integration
