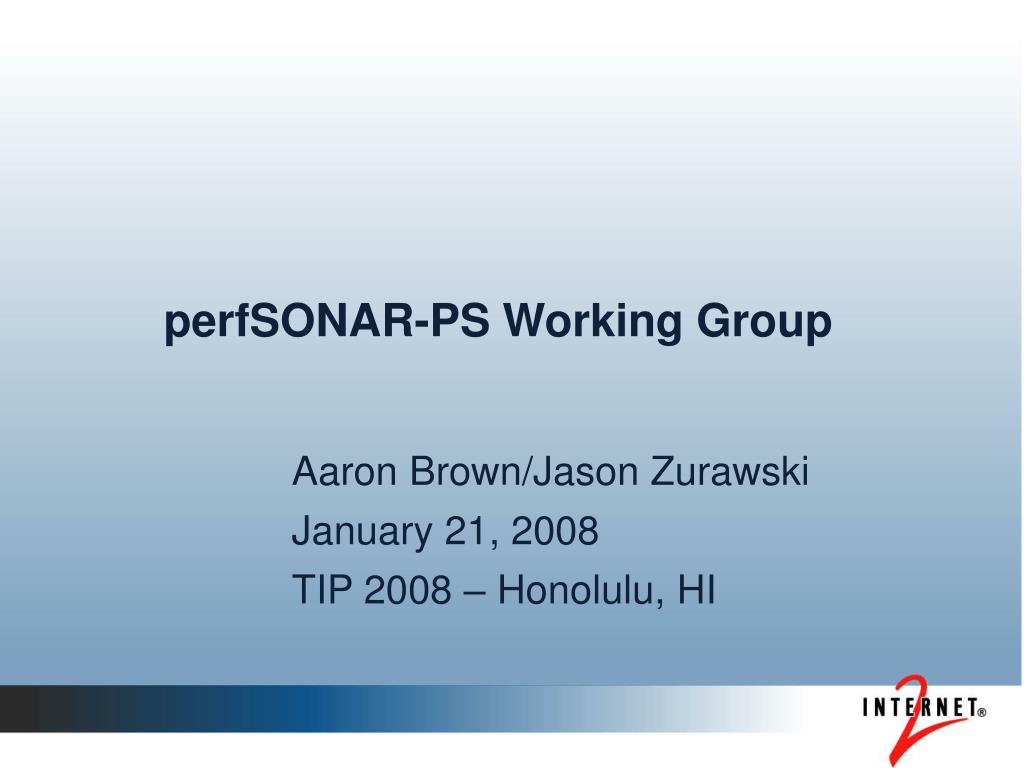

1. Aaron Brown/Jason ZurawskiJanuary 21, 2008TIP 2008 – Honolulu, HI perfSONAR-PS Working Group

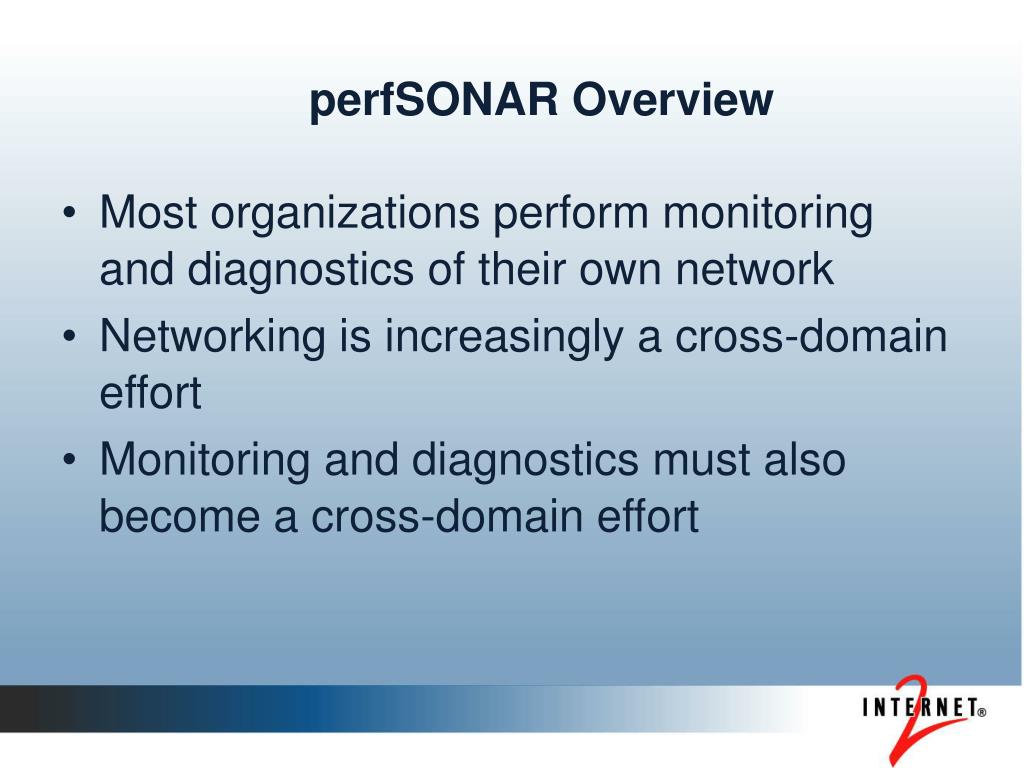

2. Most organizations perform monitoring and diagnostics of their own network • Networking is increasingly a cross-domain effort • Monitoring and diagnostics must also become a cross-domain effort perfSONAR Overview

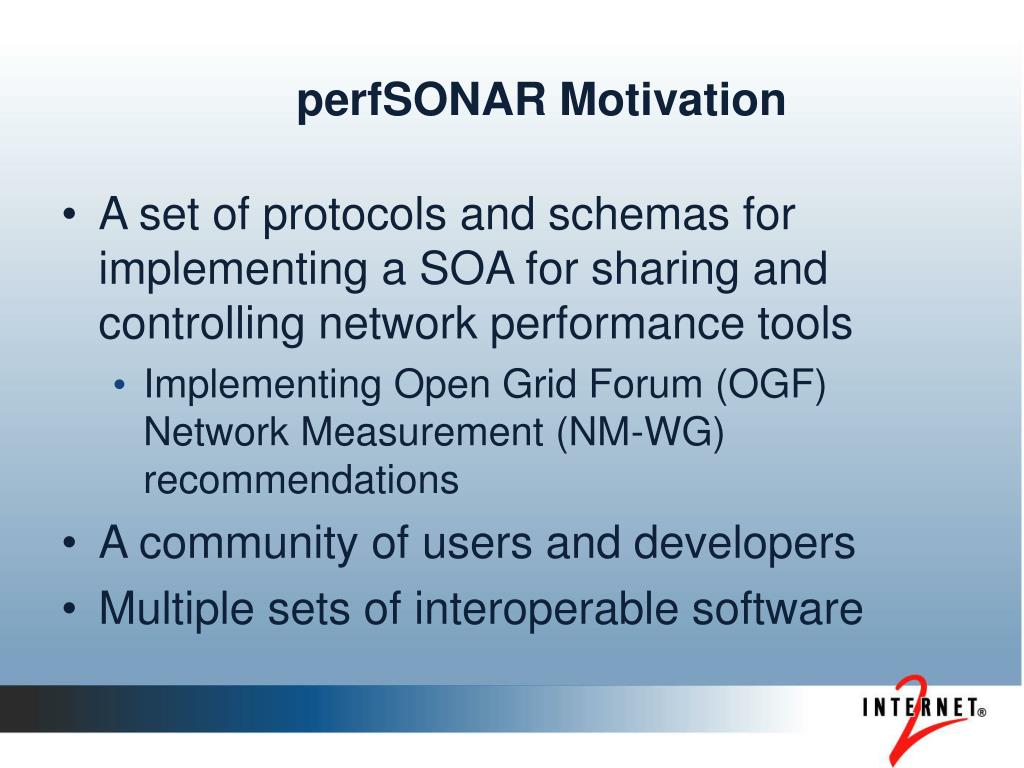

3. A set of protocols and schemas for implementing a SOA for sharing and controlling network performance tools • Implementing Open Grid Forum (OGF) Network Measurement (NM-WG) recommendations • A community of users and developers • Multiple sets of interoperable software perfSONAR Motivation

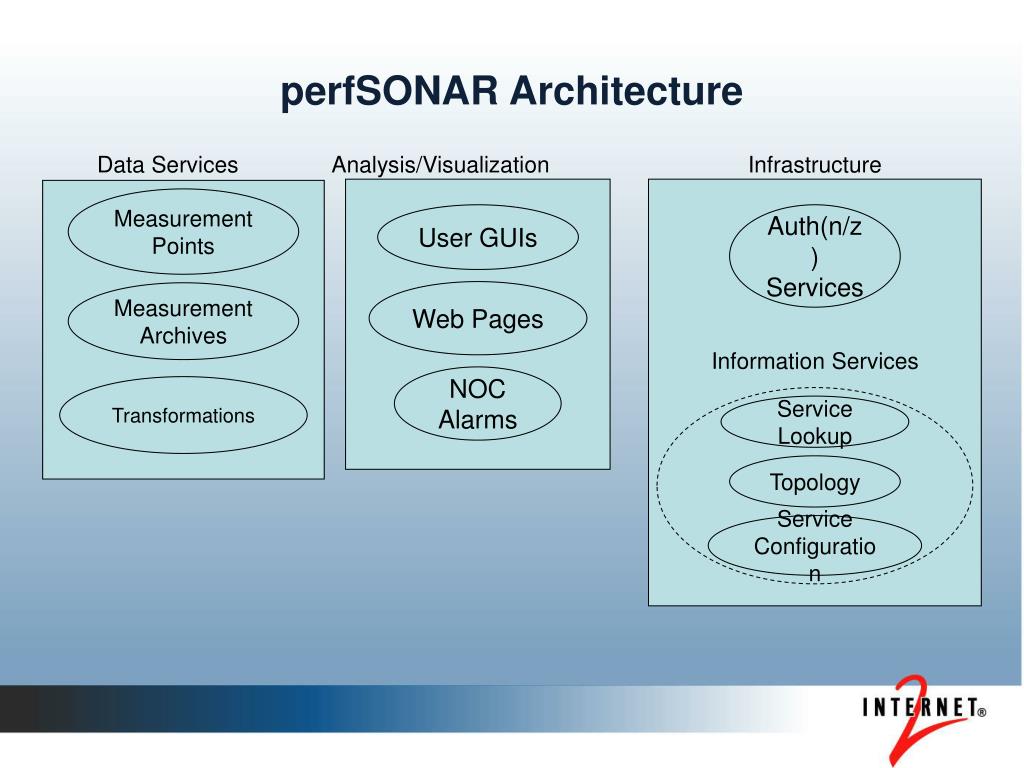

4. Data Services Analysis/Visualization Infrastructure Measurement Points User GUIs Auth(n/z)‏ Services Web Pages Measurement Archives Information Services NOC Alarms Transformations Service Lookup Topology Service Configuration perfSONAR Architecture

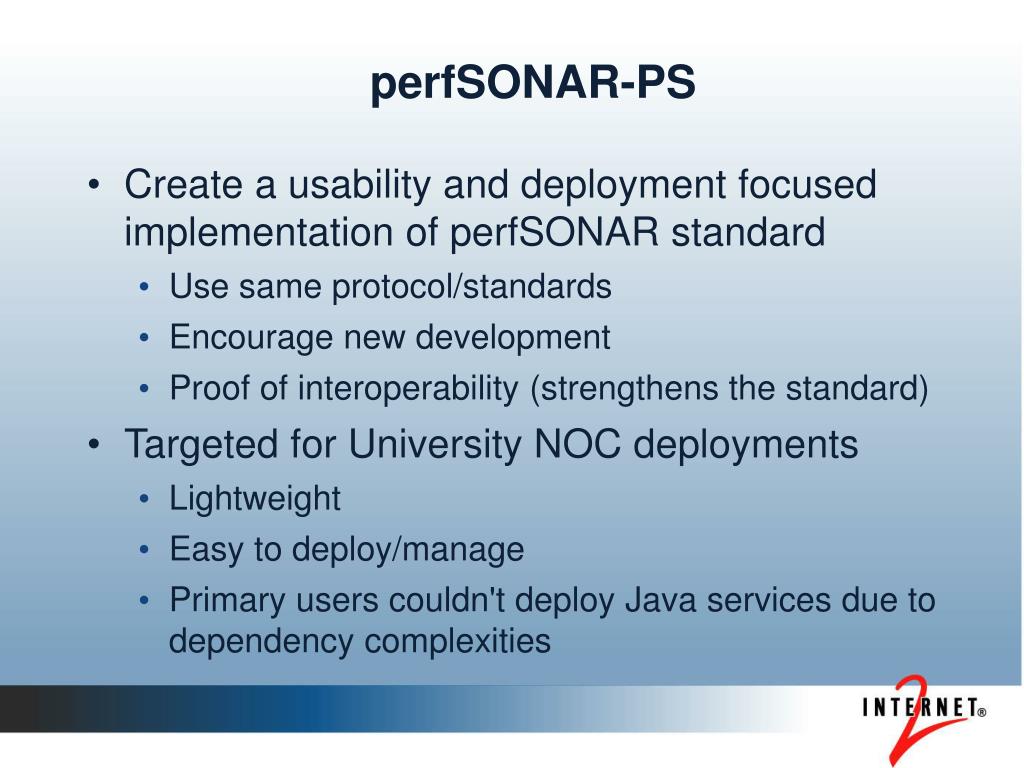

5. Create a usability and deployment focused implementation of perfSONAR standard • Use same protocol/standards • Encourage new development • Proof of interoperability (strengthens the standard)‏ • Targeted for University NOC deployments • Lightweight • Easy to deploy/manage • Primary users couldn't deploy Java services due to dependency complexities perfSONAR-PS

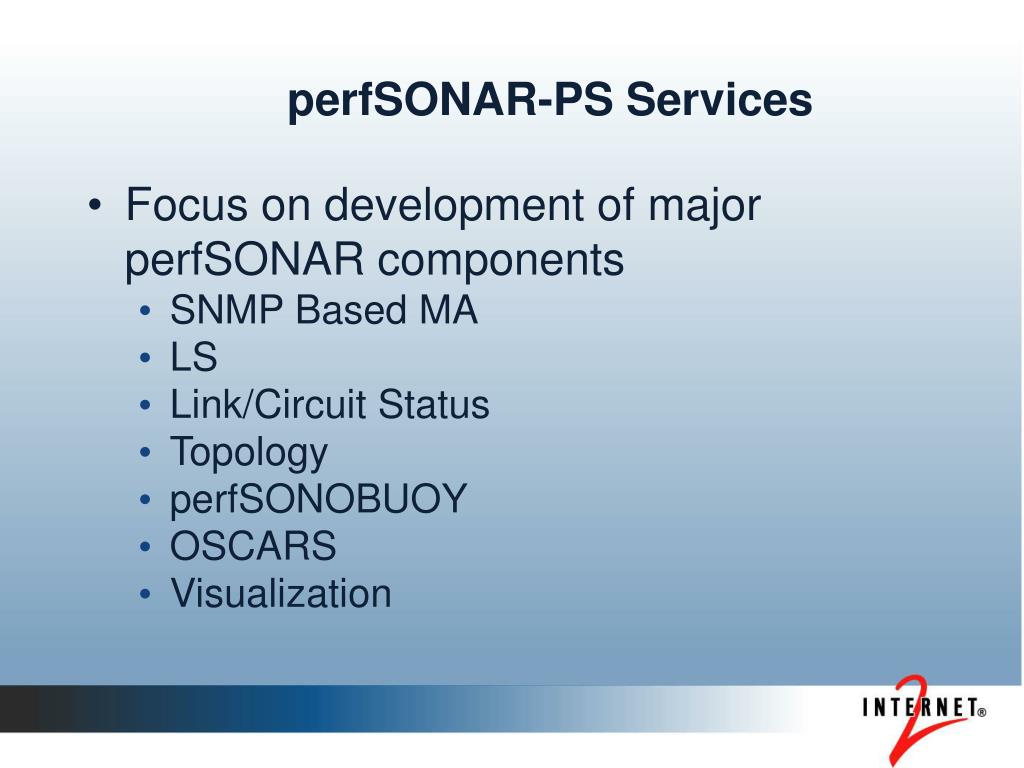

6. Focus on development of major perfSONAR components • SNMP Based MA • LS • Link/Circuit Status • Topology‏ • perfSONOBUOY • OSCARS • Visualization perfSONAR-PS Services

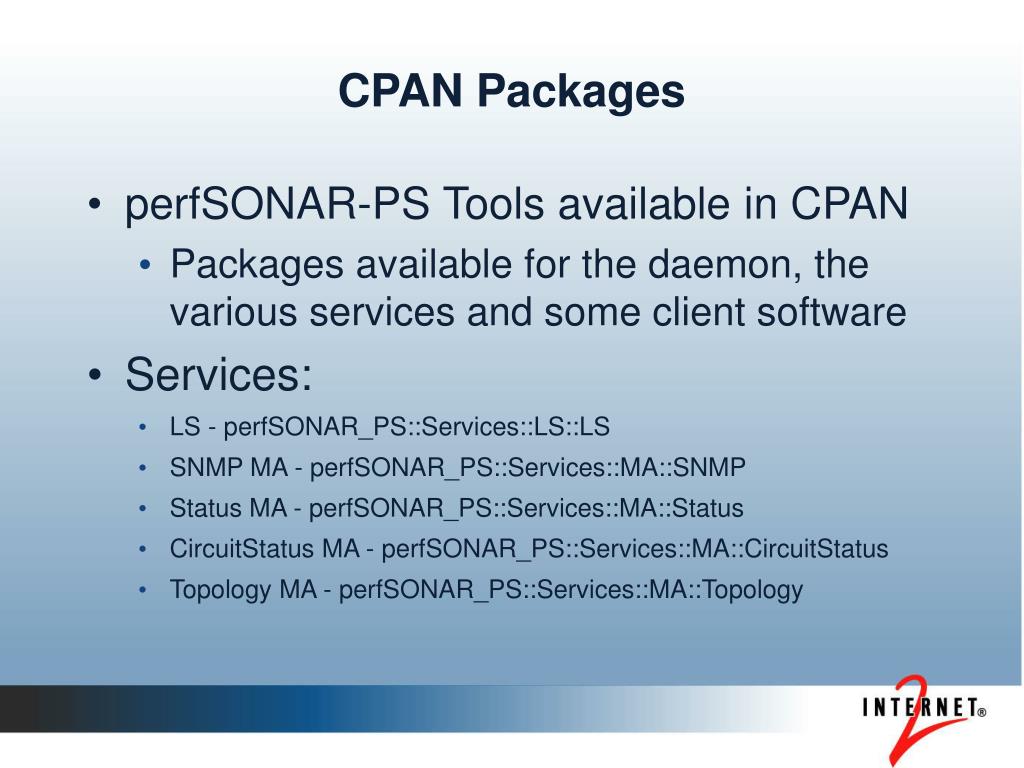

7. CPAN Packages • perfSONAR-PS Tools available in CPAN • Packages available for the daemon, the various services and some client software • Services: • LS - perfSONAR_PS::Services::LS::LS • SNMP MA - perfSONAR_PS::Services::MA::SNMP • Status MA - perfSONAR_PS::Services::MA::Status • CircuitStatus MA - perfSONAR_PS::Services::MA::CircuitStatus • Topology MA - perfSONAR_PS::Services::MA::Topology

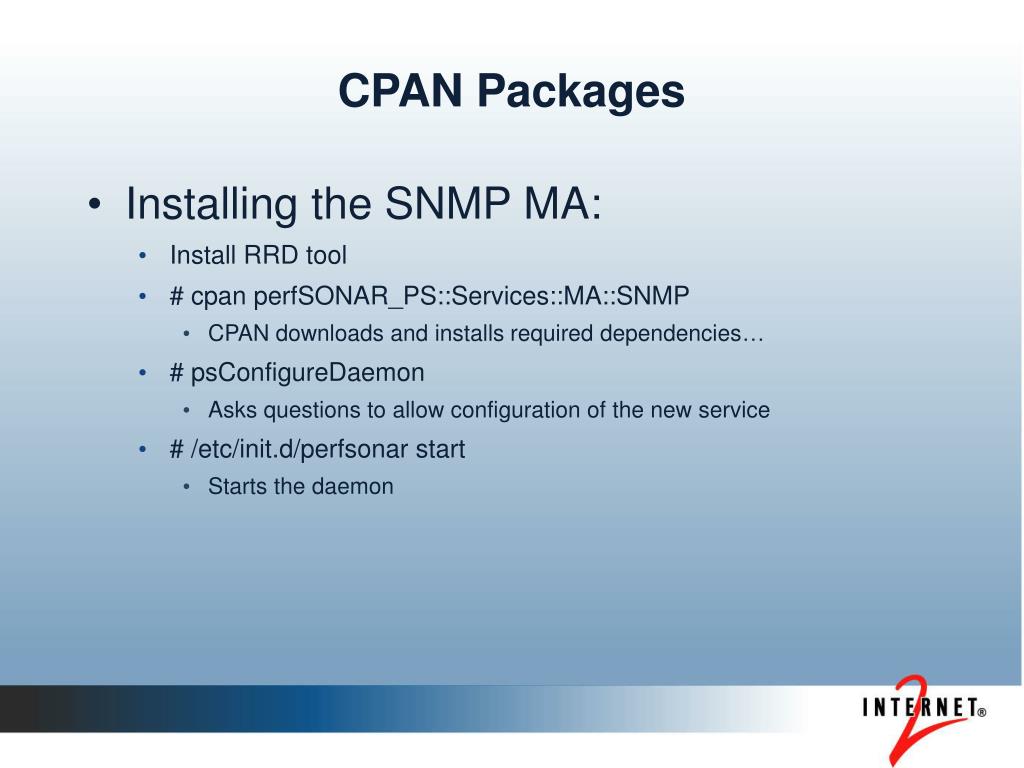

8. CPAN Packages • Installing the SNMP MA: • Install RRD tool • # cpan perfSONAR_PS::Services::MA::SNMP • CPAN downloads and installs required dependencies… • # psConfigureDaemon • Asks questions to allow configuration of the new service • # /etc/init.d/perfsonar start • Starts the daemon

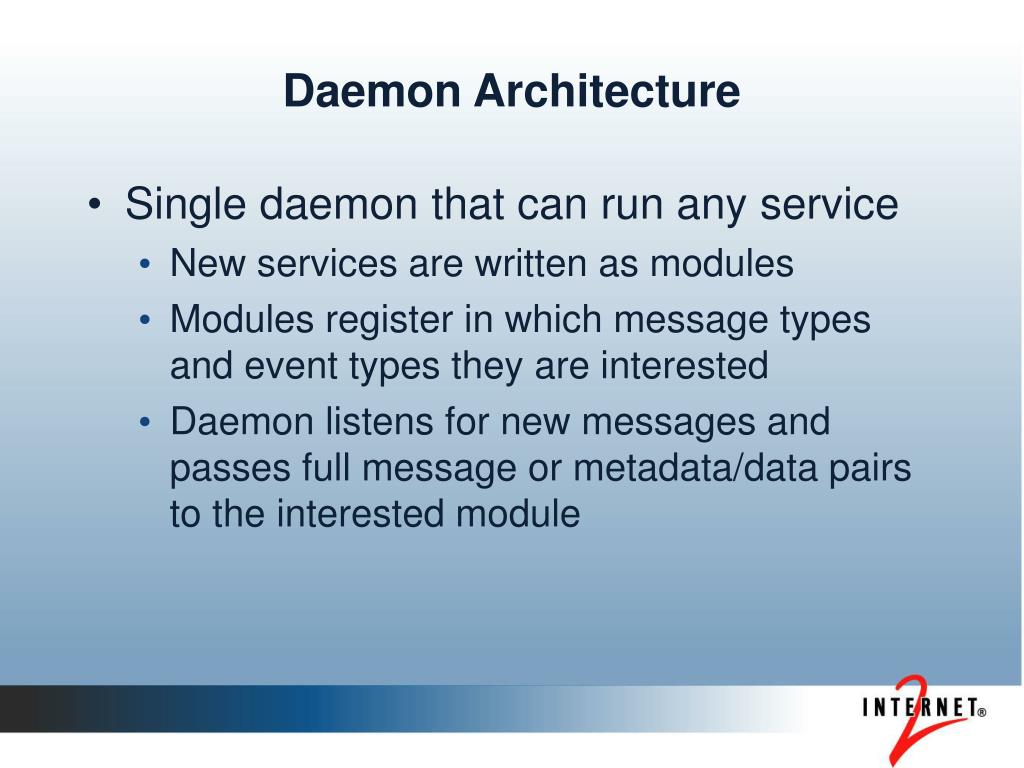

9. Daemon Architecture • Single daemon that can run any service • New services are written as modules • Modules register in which message types and event types they are interested • Daemon listens for new messages and passes full message or metadata/data pairs to the interested module

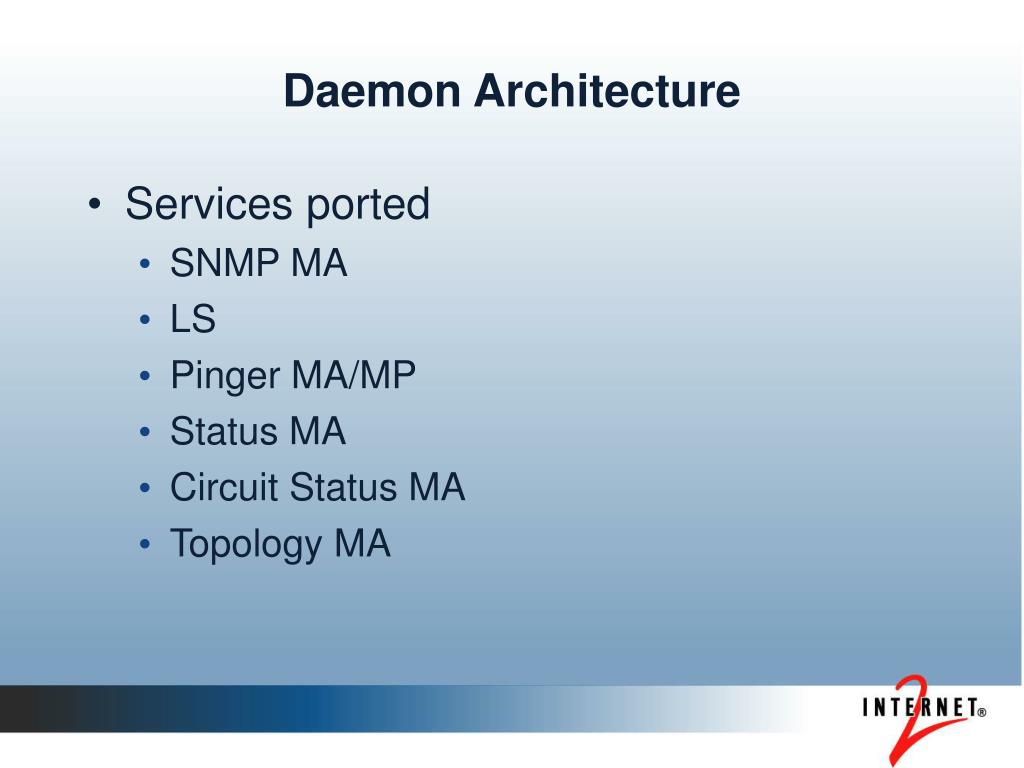

10. Daemon Architecture • Services ported • SNMP MA • LS • Pinger MA/MP • Status MA • Circuit Status MA • Topology MA

11. Link Status Measurement Archive • Provide access to up/down status information about layer2 links • Data stored in a SQL database • Database schema allows for storing time ranges during which a link had a certain status • Minimizes storage costs for rarely changing links • Communication/Configuration via XML • Target audience is network operators and users interested in obtaining the status of the links over which their data flows

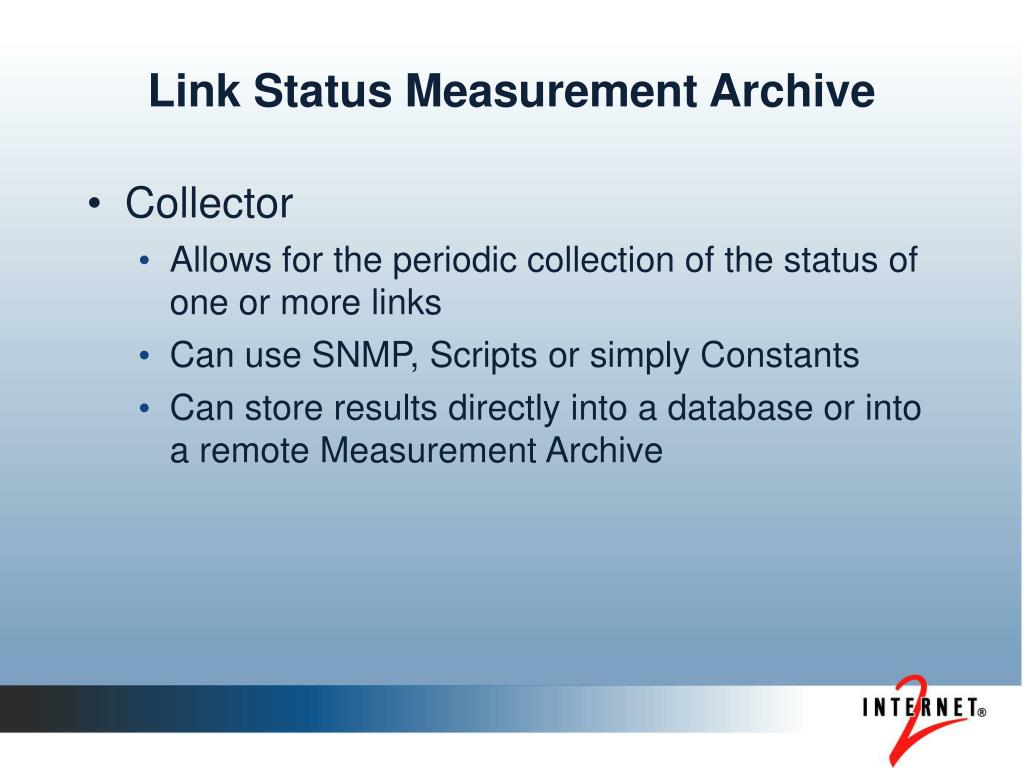

12. Link Status Measurement Archive • Collector • Allows for the periodic collection of the status of one or more links • Can use SNMP, Scripts or simply Constants • Can store results directly into a database or into a remote Measurement Archive

13. Circuit Status Measurement Archive • An e2emon-compatible service • Integrates with the Link Status MA to provide the information stored in MAs • Can work with local MAs directly or with remote MAs • Can use the Topology MA to obtain necessary information about nodes • Can use a Lookup Service to lookup the MA containing information on each link • Target audience is administrators who want to publish circuit status information to e2emon clients

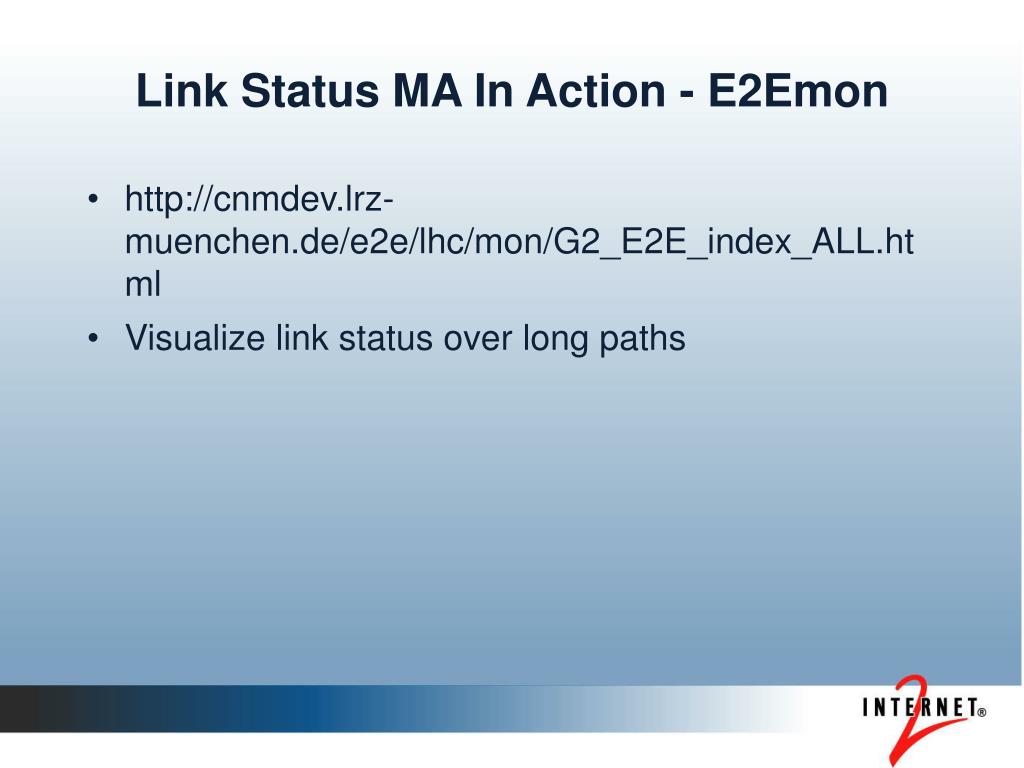

14. Link Status MA In Action - E2Emon • http://cnmdev.lrz-muenchen.de/e2e/lhc/mon/G2_E2E_index_ALL.html • Visualize link status over long paths

15. Topology Service • Provides a queryable repository for obtaining topology information about a domain • Can obtain the entire network • Xquery interface allows the construction of arbitrarily complex queries about the network • Topology is specified according to the schema in development for OGF

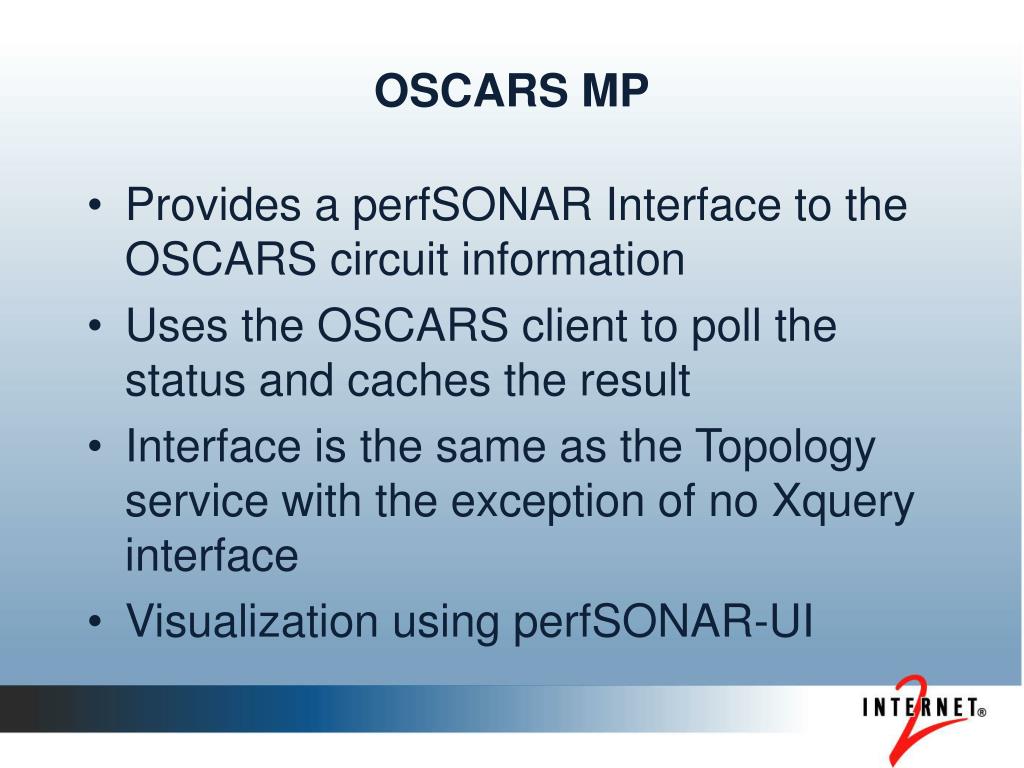

16. OSCARS MP • Provides a perfSONAR Interface to the OSCARS circuit information • Uses the OSCARS client to poll the status and caches the result • Interface is the same as the Topology service with the exception of no Xquery interface • Visualization using perfSONAR-UI

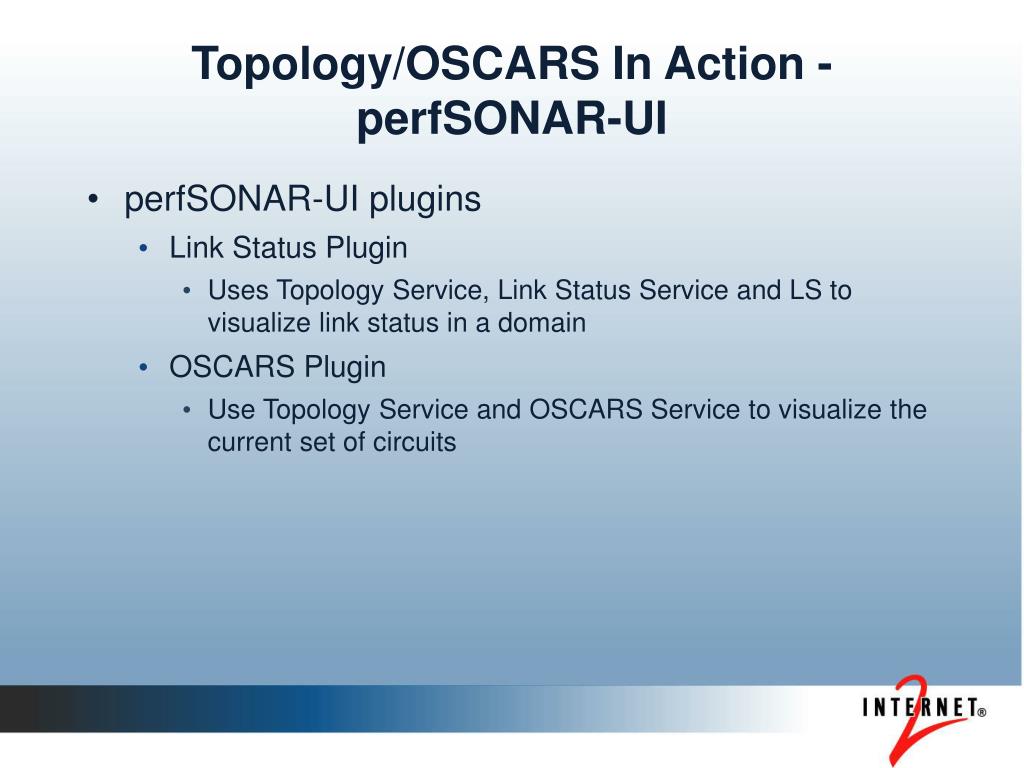

17. Topology/OSCARS In Action - perfSONAR-UI • perfSONAR-UI plugins • Link Status Plugin • Uses Topology Service, Link Status Service and LS to visualize link status in a domain • OSCARS Plugin • Use Topology Service and OSCARS Service to visualize the current set of circuits

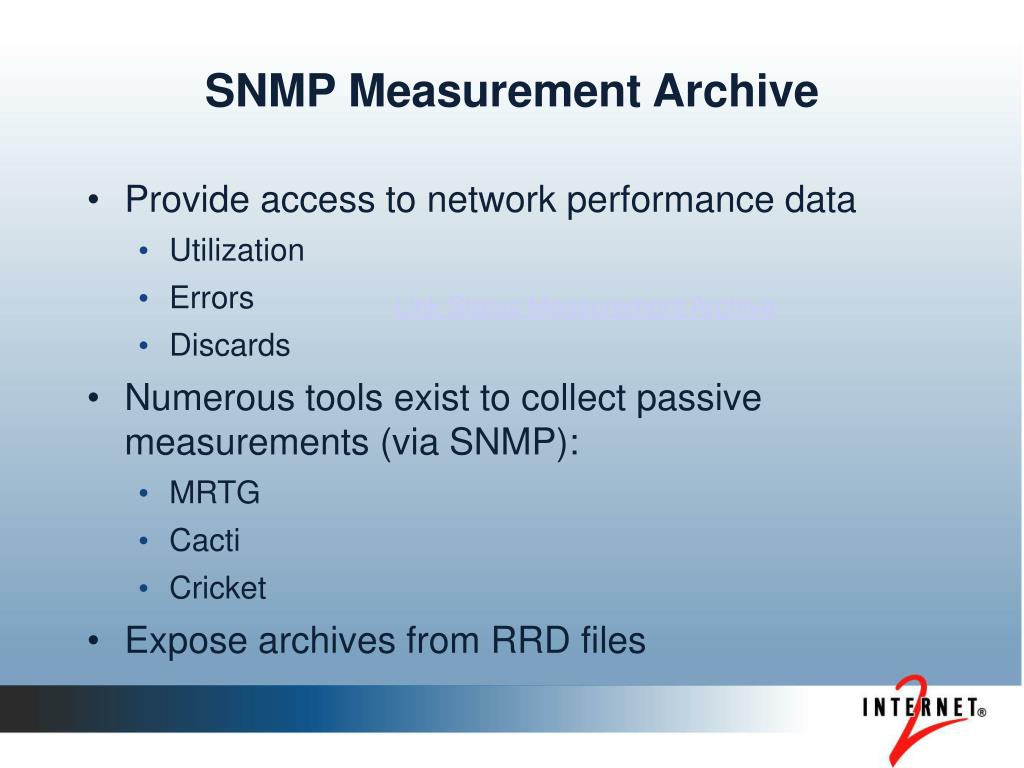

18. SNMP Measurement Archive • Provide access to network performance data • Utilization • Errors • Discards • Numerous tools exist to collect passive measurements (via SNMP): • MRTG • Cacti • Cricket • Expose archives from RRD files Link Status Measurement Archive

19. SNMP Measurement Archive • XML based configuration/protocol • Configuration file to expose the data • Message format to exchange the data • Targeted at researchers, NOC staff debugging intra/inter domain network problems • Many client applications available to graphically display the results: • GMaps • DCN Weathermap • perfOMeter‏ • Traceroute visualization

20. SNMP MA In Action - GMaps • http://packrat.internet2.edu:8008 • GMaps 'mashup' that displays locations of network elements as well as performance information • Developed by SLAC • Targeted at distributed NOC environments

21. SNMP MA In Action – DCN Weathermap • http://packrat.internet2.edu/~zurawski/TIP2008 • Similar to Abilene/SC weathermaps, using all perfSONAR enabled data. • Not released currently, API coming if demand is sufficient.

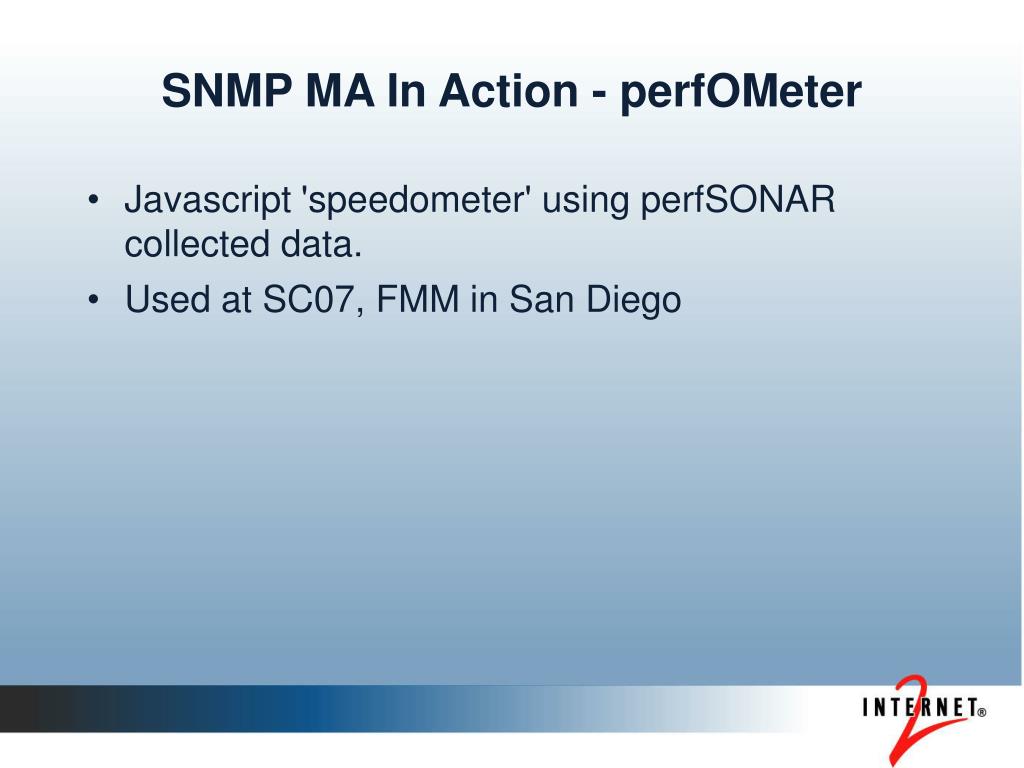

22. SNMP MA In Action - perfOMeter • Javascript 'speedometer' using perfSONAR collected data. • Used at SC07, FMM in San Diego

23. SNMP MA In Action - perfOMeter

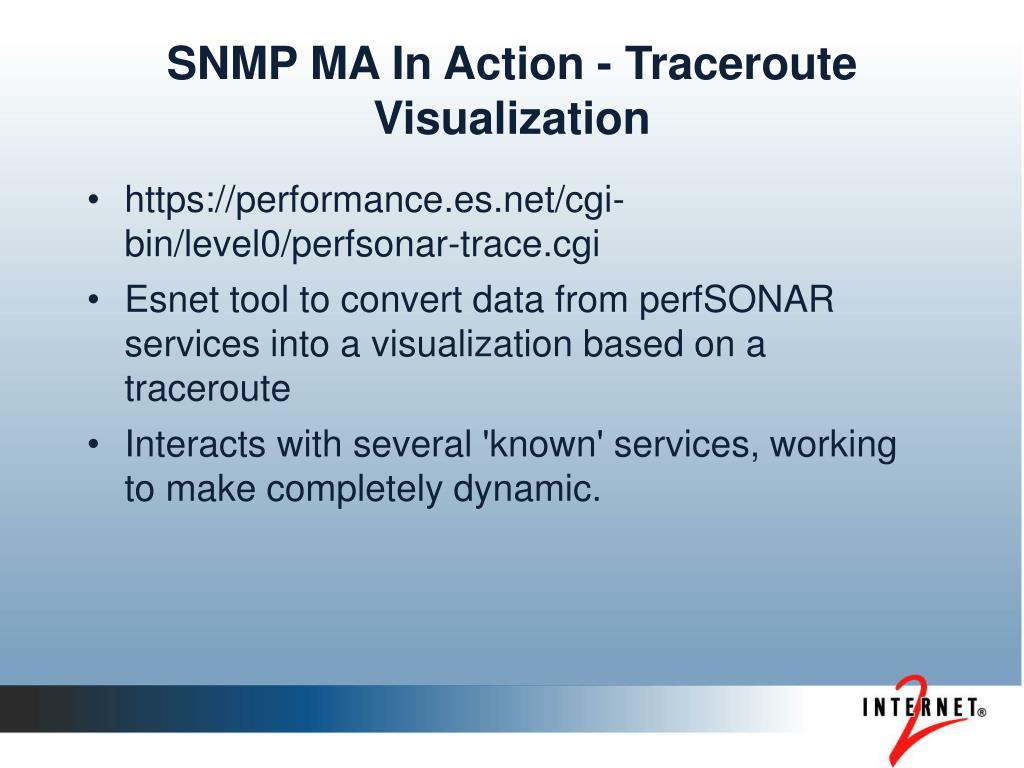

24. SNMP MA In Action - Traceroute Visualization • https://performance.es.net/cgi-bin/level0/perfsonar-trace.cgi • Esnet tool to convert data from perfSONAR services into a visualization based on a traceroute • Interacts with several 'known' services, working to make completely dynamic.

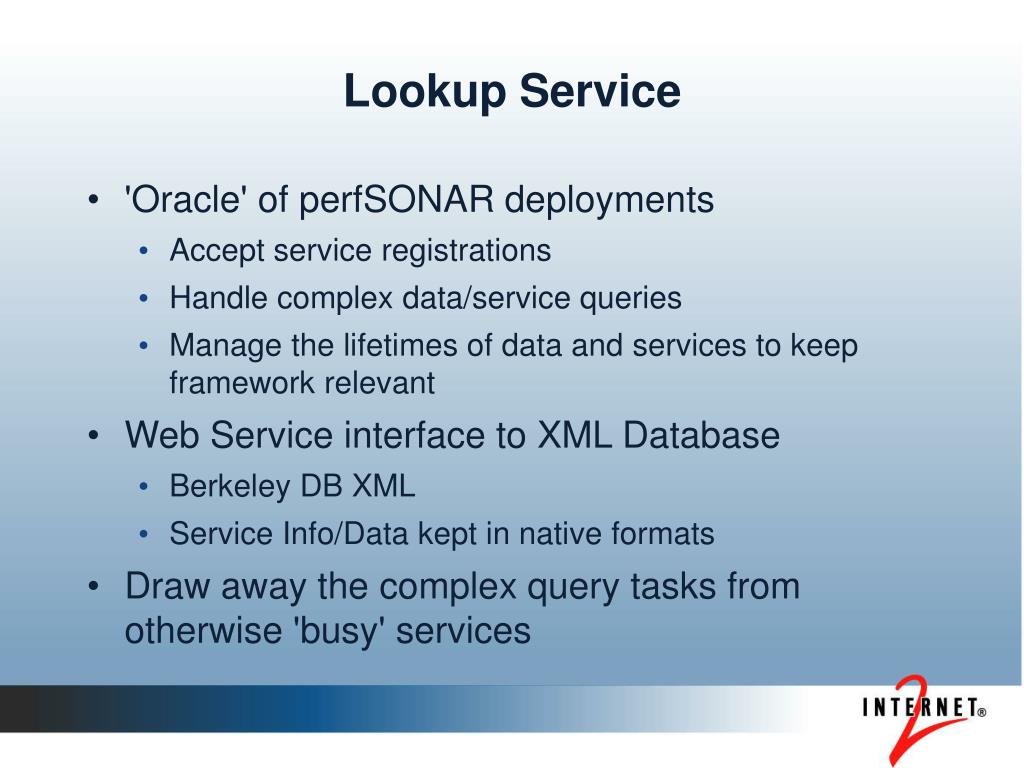

25. Lookup Service • 'Oracle' of perfSONAR deployments • Accept service registrations • Handle complex data/service queries • Manage the lifetimes of data and services to keep framework relevant • Web Service interface to XML Database • Berkeley DB XML • Service Info/Data kept in native formats • Draw away the complex query tasks from otherwise 'busy' services

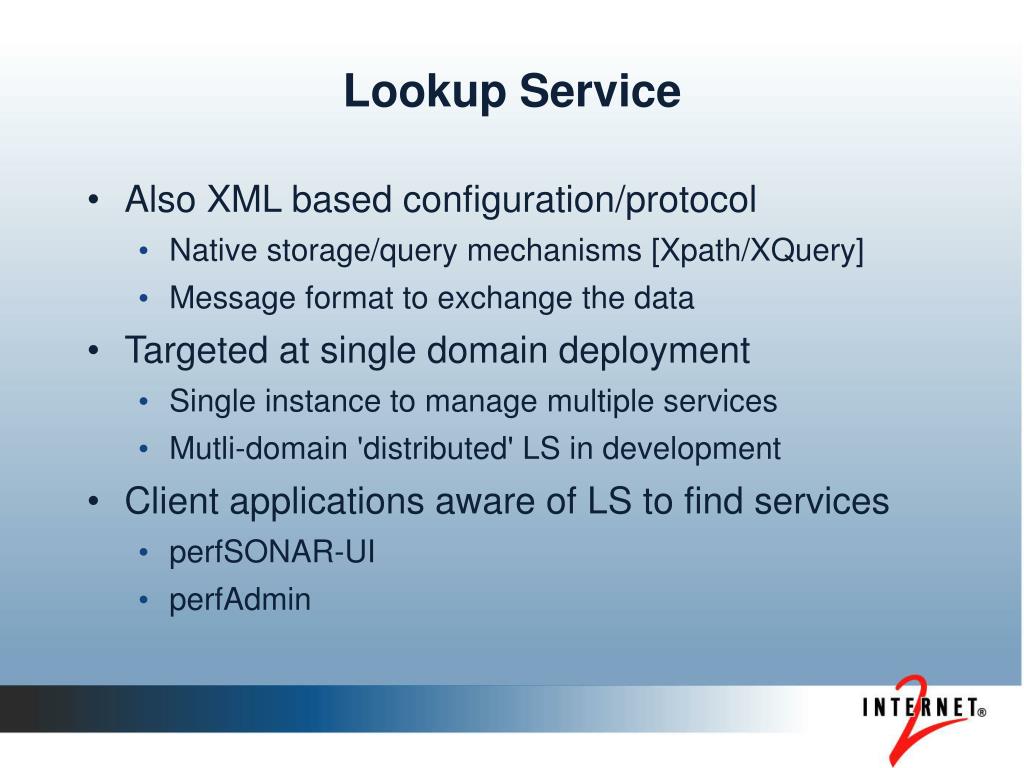

26. Lookup Service • Also XML based configuration/protocol • Native storage/query mechanisms [Xpath/XQuery] • Message format to exchange the data • Targeted at single domain deployment • Single instance to manage multiple services • Mutli-domain 'distributed' LS in development • Client applications aware of LS to find services • perfSONAR-UI • perfAdmin

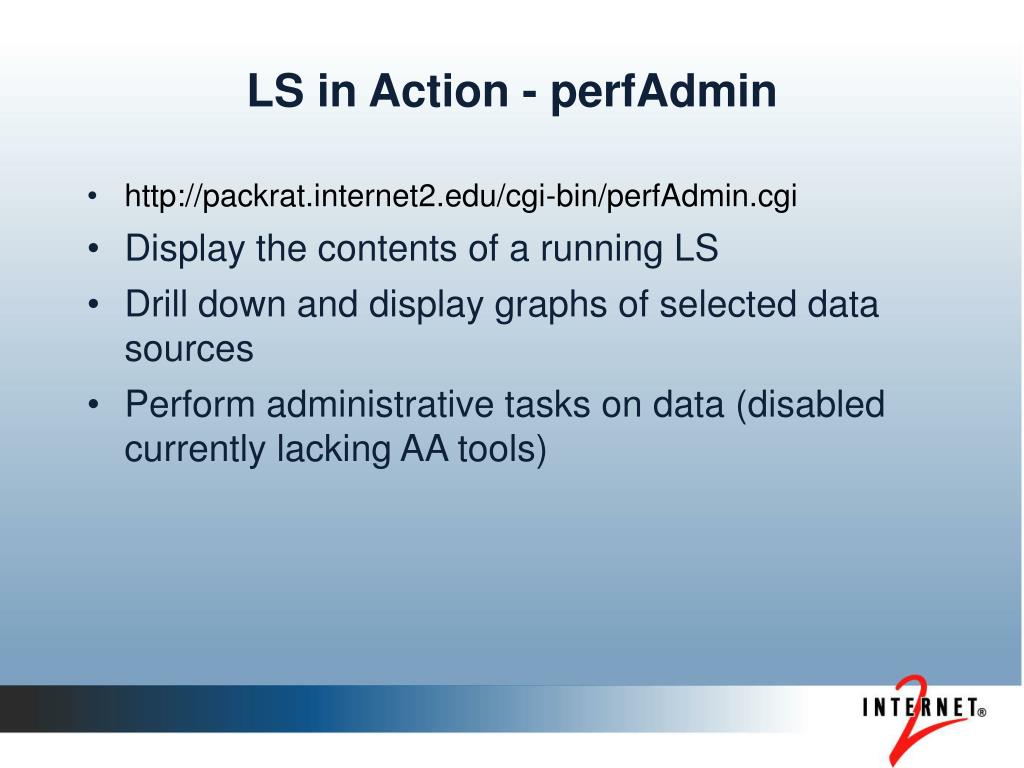

27. LS in Action - perfAdmin • http://packrat.internet2.edu/cgi-bin/perfAdmin.cgi • Display the contents of a running LS • Drill down and display graphs of selected data sources • Perform administrative tasks on data (disabled currently lacking AA tools)‏

28. Future Directions • Create "Best Practices Guide" for deploying perfSONAR-PS targeted at campuses and regionals who are participating in LHC. • We welcome input and assistance over the next 1.5 months.

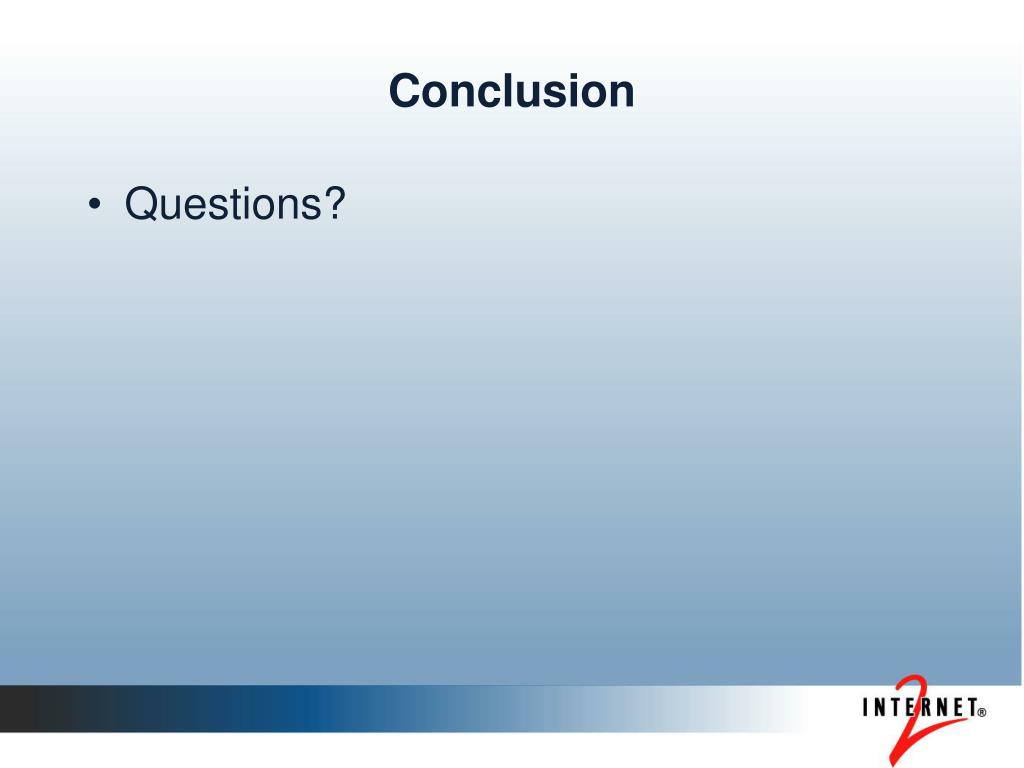

29. Conclusion • Questions?
