  1. A Case Study Stolen from Ken Lunn Ken Lunn The Odd Shoe Company Case Study from Ken Lunn’s Book - Software Development with UML

  2. The Source Case Study from Ken Lunn’s Book - Software Development with UML

  3. Beginnings of a Method Soft Systems Model

  4. Use case diagram for the Internet ordering system for the Odd Shoe Company Case Study from Ken Lunn’s Book - Software Development with UML

  5. Use case description for visiting the home page Case Study from Ken Lunn’s Book - Software Development with UML

  6. Odd Shoe Company home page Case Study from Ken Lunn’s Book - Software Development with UML

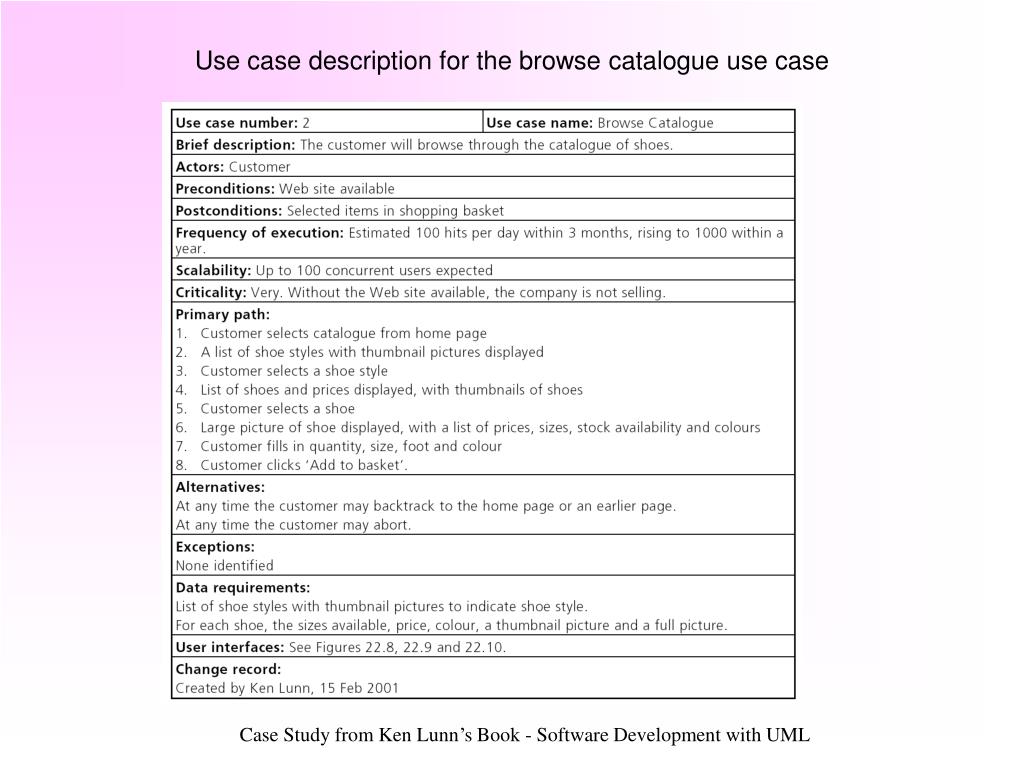

  7. Use case description for the browse catalogue use case Case Study from Ken Lunn’s Book - Software Development with UML

  8. The Odd Shoe Company top catalogue page, displaying styles Case Study from Ken Lunn’s Book - Software Development with UML

  9. The Odd Shoe Company – second level catalogue page, displaying summary for each shoe in style Case Study from Ken Lunn’s Book - Software Development with UML

  10. the Odd Shoe Company – detailed shoe page Case Study from Ken Lunn’s Book - Software Development with UML

  11. Use case description for View Shopping Basket use case Case Study from Ken Lunn’s Book - Software Development with UML

  12. Prototype screen for the Odd Shoe Company shopping basket Case Study from Ken Lunn’s Book - Software Development with UML

  13. visit home page customer browse catalogue view basket order Part of Use Case Diagram Case Study from Ken Lunn’s Book - Software Development with UML

  14. Browse Catalogue Use Case 1. Customer selects catalogue from home page 2. A list of shoe styles with thumbnail pictures displayed 3. Customer selects a shoe style 4. List of shoes and prices displayed, with thumbnails of shoes 5. Customer selects a shoe 6. Large picture of shoe displayed, with a list of prices, sizes, stock availability and colours 7. Customer fills in quantity, size, foot and colour 8. Customer clicks add to basket. Case Study from Ken Lunn’s Book - Software Development with UML

  15. Odd Shoe Company 1. Customer selects catalogue from home page : Odd Shoe : customer Home Page openCatalogue( ) Case Study from Ken Lunn’s Book - Software Development with UML

  16. : Odd Shoe : Catalogue : shoe style Home Page Odd Shoe Company 2. A list of shoe styles with thumbnail pictures displayed : customer openCatalogue( ) open( ) detDetails( ) format( ) Case Study from Ken Lunn’s Book - Software Development with UML

  17. : customer : Odd Shoe : Catalogue : shoe style Home Page openCatalogue( ) open( ) detDetails( ) format( ) selectStyle( ) Odd Shoe Company 3. Customer selects a shoe style Case Study from Ken Lunn’s Book - Software Development with UML

  18. : customer : shoe : Shoe Style openCatalogue( ) Page open( ) : Odd Shoe detDetails( ) : Catalogue : shoe style Home Page format( ) selectStyle( ) open( ) getSummary( ) format( ) Odd Shoe Company 4. List of shoes and prices displayed, with thumbnails of shoes Case Study from Ken Lunn’s Book - Software Development with UML

  19. : shoe : customer : Shoe Style Page : Odd Shoe openCatalogue( ) : Catalogue : shoe style Home Page open( ) detDetails( ) format( ) selectStyle( ) open( ) getSummary( ) format( ) selectShoe( ) Odd Shoe Company 5. Customer selects a shoe Case Study from Ken Lunn’s Book - Software Development with UML

  20. : customer : ShoePage : shoe : Shoe Style openCatalogue( ) Page open( ) : Odd Shoe detDetails( ) : Catalogue : shoe style Home Page format( ) selectStyle( ) open( ) getSummary( ) format( ) selectShoe( ) open( ) getDetails( ) format( ) Odd Shoe Company 6. Large picture of shoe displayed, with a list of prices, sizes, stock availability and colours Case Study from Ken Lunn’s Book - Software Development with UML

  21. : Odd Shoe : Catalogue : shoe style : Shoe Style : shoe : Shoe Page : customer Home Page Page openCatalogue( ) open( ) detDetails( ) format( ) selectStyle( ) open( ) getSummary( ) format( ) selectShoe( ) open( ) getDetails( ) format( ) enterDetails( ) Odd Shoe Company 7. Customer fills in quantity, size, foot and colour Case Study from Ken Lunn’s Book - Software Development with UML

  22. : Odd Shoe : shopping : Shoe Style : Catalogue : shoe style : shoe : Shoe Page : customer basket Home Page Page openCatalogue( ) open( ) detDetails( ) format( ) selectStyle( ) open( ) getSummary( ) format( ) selectShoe( ) open( ) getDetails( ) format( ) enterDetails( ) addToBasket( ) addItem( ) Odd Shoe Company 8. Customer clicks add to basket. Case Study from Ken Lunn’s Book - Software Development with UML

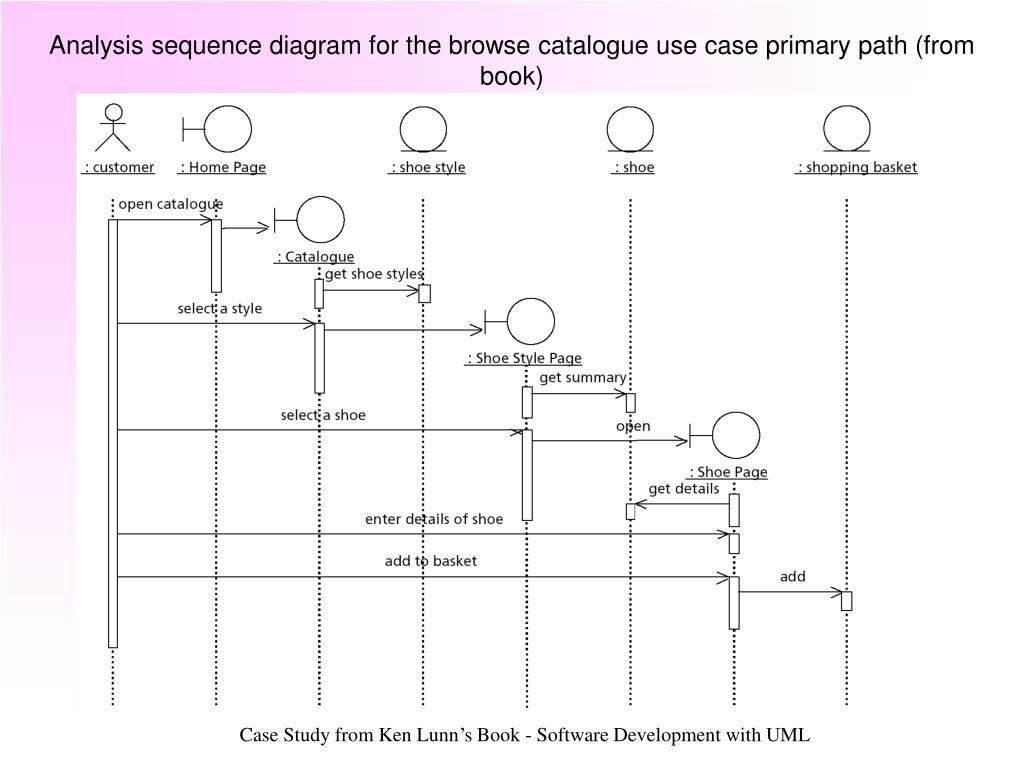

  23. Analysis sequence diagram for the browse catalogue use case primary path (from book) Case Study from Ken Lunn’s Book - Software Development with UML

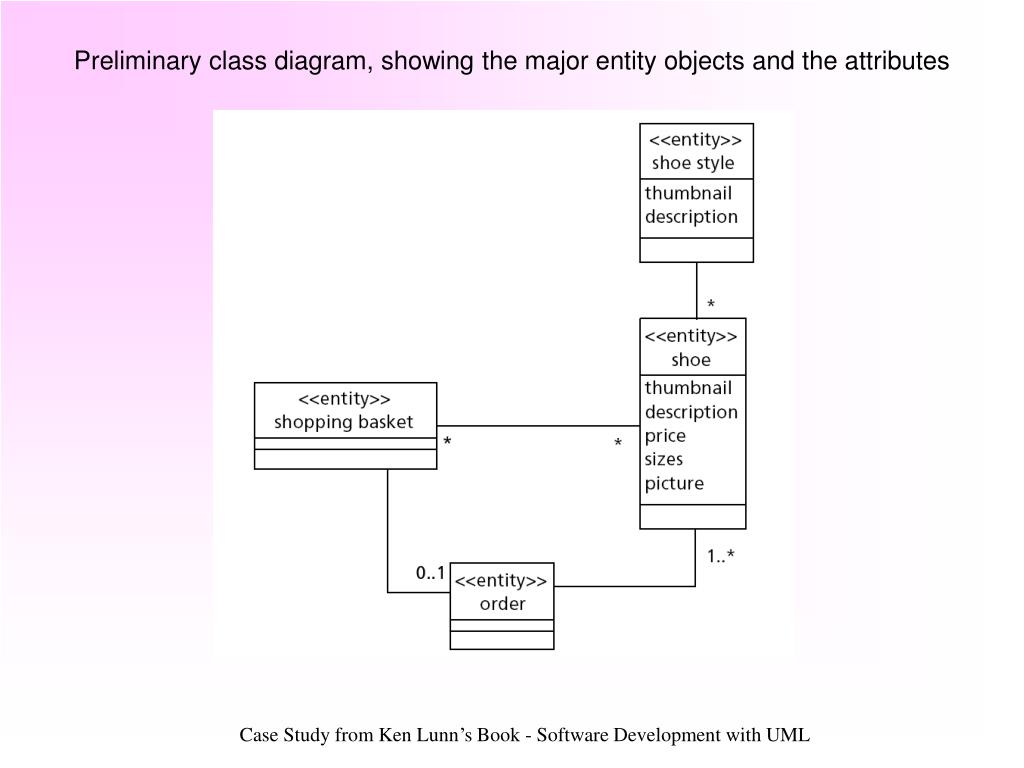

  24. Preliminary class diagram, showing the major entity objects and the attributes Case Study from Ken Lunn’s Book - Software Development with UML

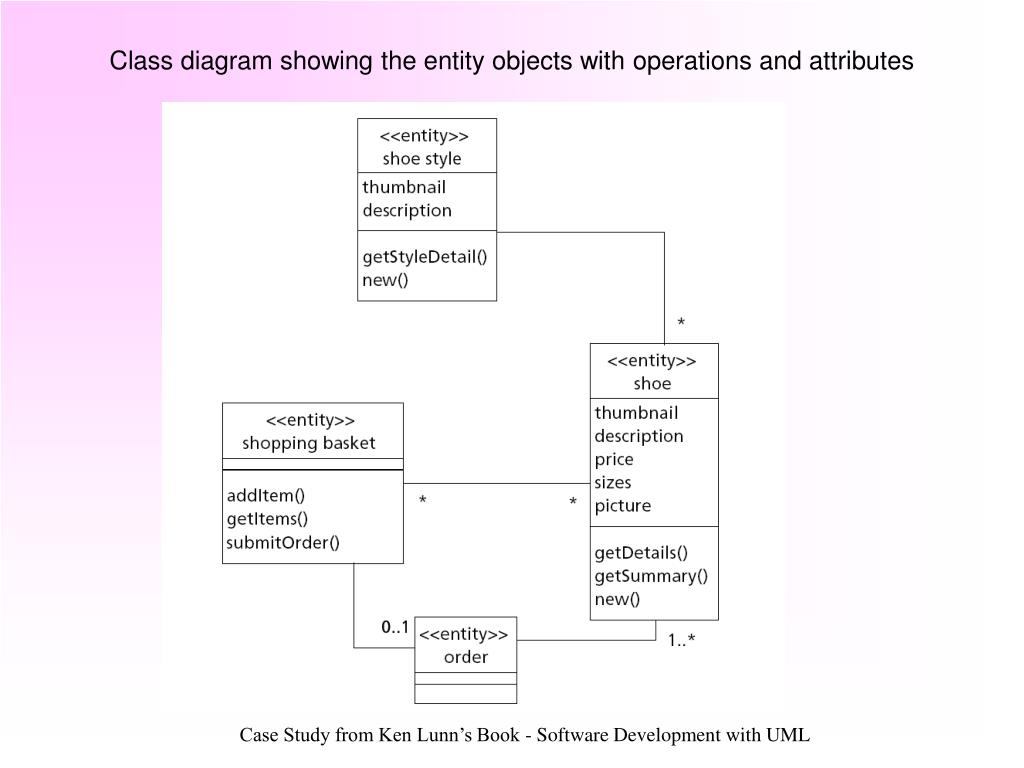

  25. Class diagram showing the entity objects with operations and attributes Case Study from Ken Lunn’s Book - Software Development with UML

  26. Organization of the screens to support the browse catalogue use case, shown as a class diagram Case Study from Ken Lunn’s Book - Software Development with UML

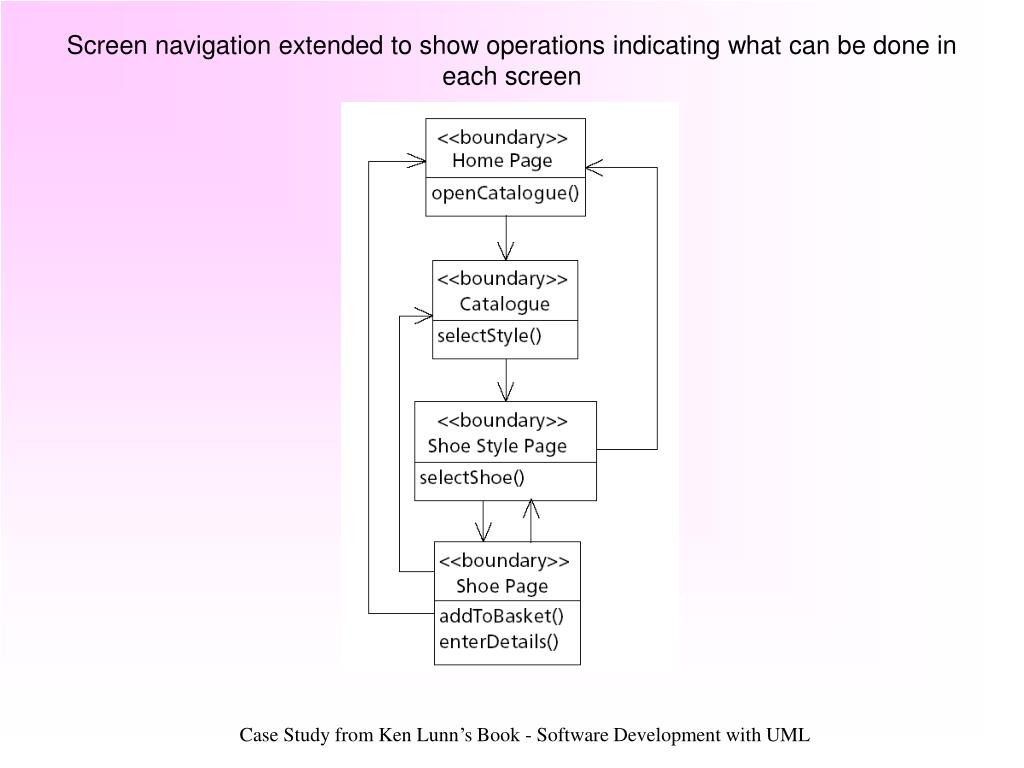

  27. Screen navigation extended to show operations indicating what can be done in each screen Case Study from Ken Lunn’s Book - Software Development with UML

  28. Test plan for the primary path of the browse catalogue use case Case Study from Ken Lunn’s Book - Software Development with UML

  29. Beginnings of a Method Soft Systems Model
