  1. Cloud-based FacileField Data Collection Kazuki KobayashiShinshu Univ. (Japan) Yasunori Saito Shinshu Univ. (Japan)

  2. Background • ICT agriculture for high quality and increase of production • Field monitoring systems for precision agriculture Garcia-Sanchez11 Lee 10 Riquelme 09 Hirafuji 05 SHINSHU UNIVERSITY

  3. Problem and Approach • Small farmers’ worries • Computer skills • Initial costs • Effort for maintenance Approach:Very easy field data collectionwith commercial items and popular Web services SHINSHU UNIVERSITY

  4. Devices and Cloud Services Devices Cloud Services DSLR Camera(EOS Kiss X4) Wi-Fi SD Card (Eye-Fi) Photo Sharing(Flickr) Micro Controller (Arduino, Ether Shield) Wi-Fi Converter Text data Sharing(Twitter) Temperature Sensor Photo MOS Relay Job Scheduler(Google Apps Script) SHINSHU UNIVERSITY

  5. Digital Single Lens Reflex Camera Canon EOS Kiss X4 with 18-55 mm lens ($540) SHINSHU UNIVERSITY

  6. SD Memory Card with Wi-Fi capabilities Eye-Fi Pro X2 8GB + Wi-Fi ($105) SHINSHU UNIVERSITY

  7. Micro Controller • Ethernet Shield($45) Arduino UNO ($29) SHINSHU UNIVERSITY

  8. Wi-Fi Converter Planex MZK-RP150N ($29) SHINSHU UNIVERSITY

  9. Photo MOS Relay and Temperature Sensor National Semiconductor LM61BIZ ($1) Panasonic Electric Works AQY214EH ($4) SHINSHU UNIVERSITY

  10. Devices SHINSHU UNIVERSITY

  11. Housing Hand made housing SHINSHU UNIVERSITY

  12. Twitter Arduino automatically posts temperature information to Twitter as text data SHINSHU UNIVERSITY

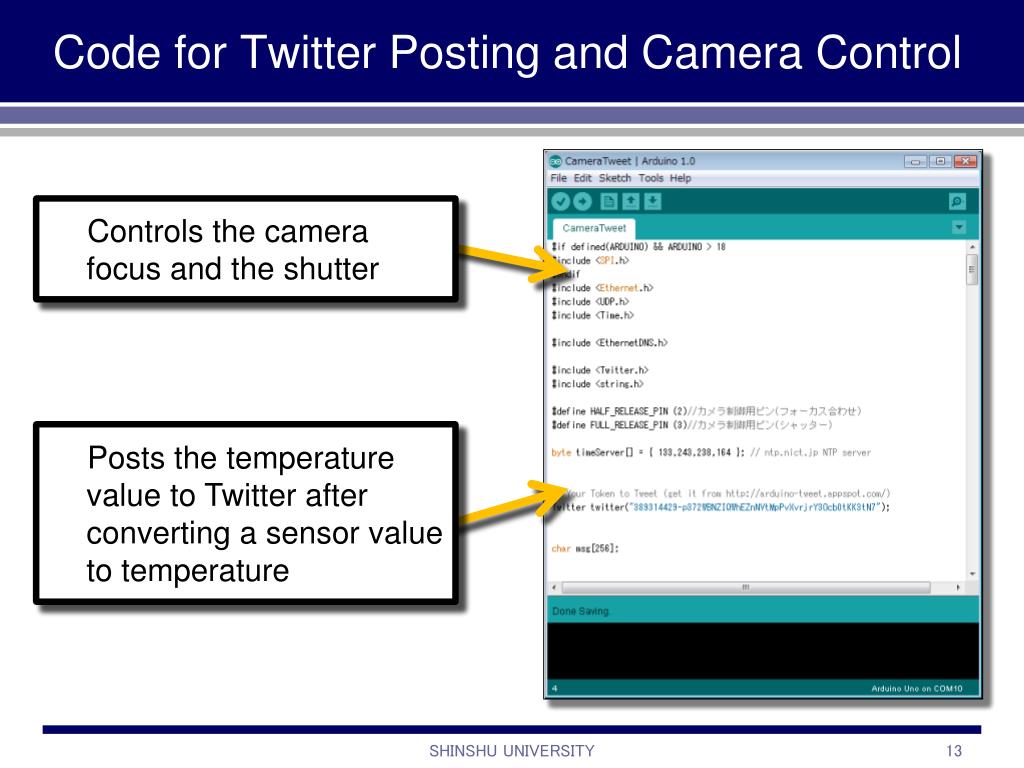

  13. Code for Twitter Posting and Camera Control Controls the camera focus and the shutter Posts the temperature value to Twitter after converting a sensor value to temperature SHINSHU UNIVERSITY

  14. Flickr • Eye-Fi sends photos to Flickr SHINSHU UNIVERSITY

  15. Google Apps Script Apps Script constantly watches Twitter (temperature) and Flickr (photos) • Captures the temperature information and posts it to the photo on Flickr as a comment • The script finds the photo which is taken at the same time as the temperature SHINSHU UNIVERSITY

  16. Data Flow DSLR Camera(EOS Kiss X4) Wi-Fi SD Card (Eye-Fi) Flickr photo control signal Wi-Fi Converter Micro Controller (Arduino, Ether Shield) Twitter temperature updateinfo. updateinfo. temperature Google Apps Script SHINSHU UNIVERSITY

  17. Flickr with Temperature data SHINSHU UNIVERSITY

  18. Graph Viewer -- Chrome Extension SHINSHU UNIVERSITY

  19. Graph Viewer -- Chrome Extension from Flickr from Twitter SHINSHU UNIVERSITY

  20. Comment Manager -- Chrome Extension SHINSHU UNIVERSITY

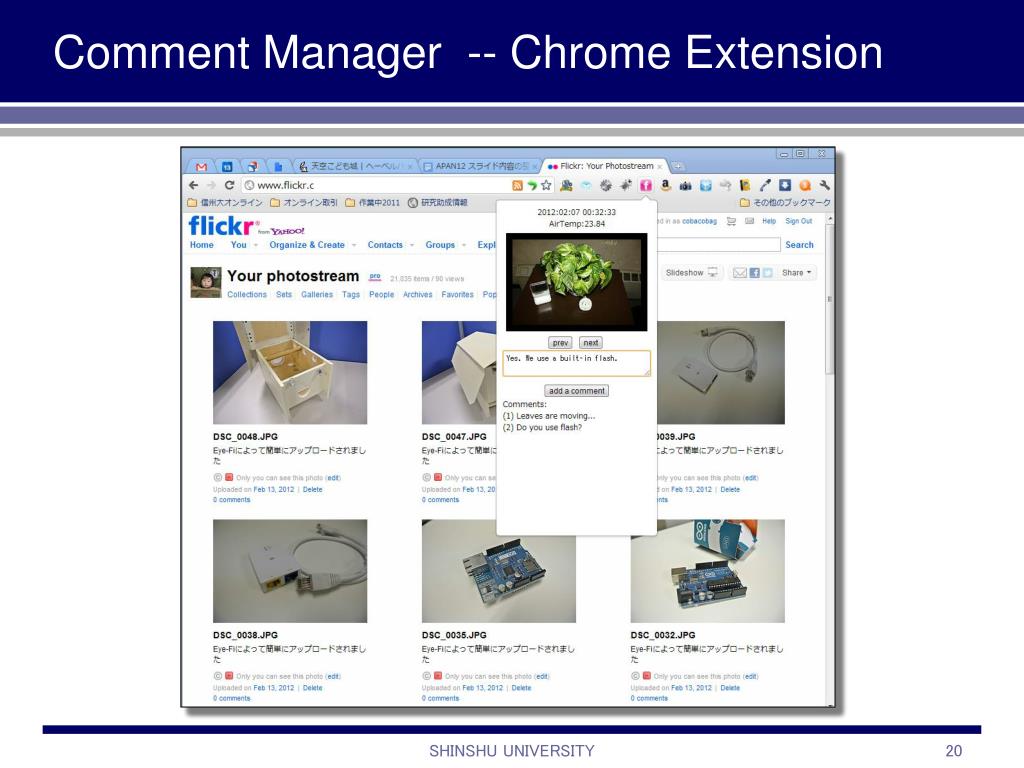

  21. Comment Manager -- Chrome Extension From Flickr comment Add to Flickr comment It behaves as Flickr wrapper SHINSHU UNIVERSITY

  22. Conclusion • Cloud service based field data collection method • Cloud cooperation anddata integration • Low initial cost • Low maintenance effort Develop a packaged device and provide it to small farmers SHINSHU UNIVERSITY
