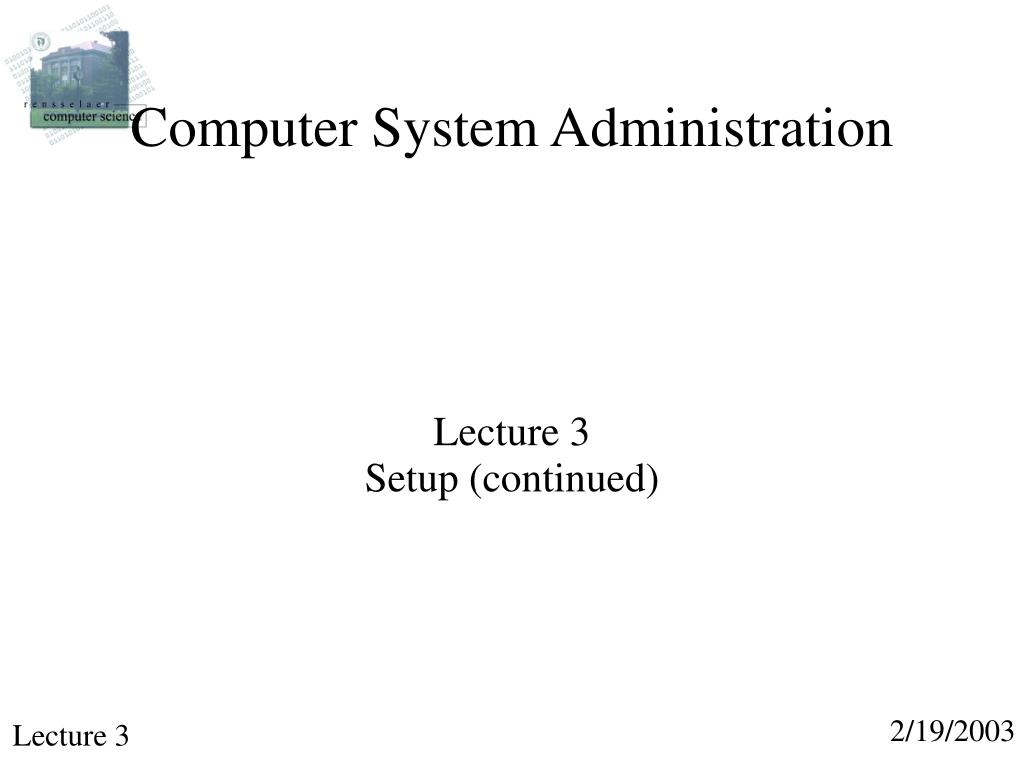

  1. Lecture 3 Setup (continued) Computer System Administration

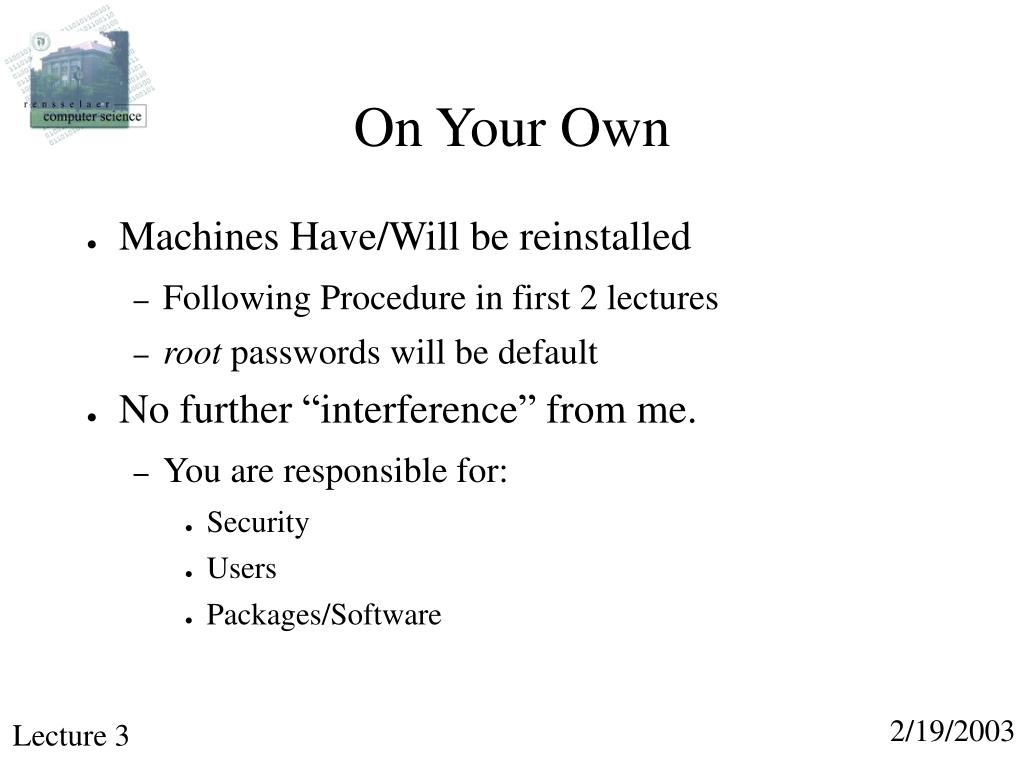

  2. On Your Own • Machines Have/Will be reinstalled • Following Procedure in first 2 lectures • root passwords will be default • No further “interference” from me. • You are responsible for: • Security • Users • Packages/Software

  3. Passwords • The passwd(1) program • Same on all 3 architectures • Change the root password!!!!! • As root can change other users passwords.

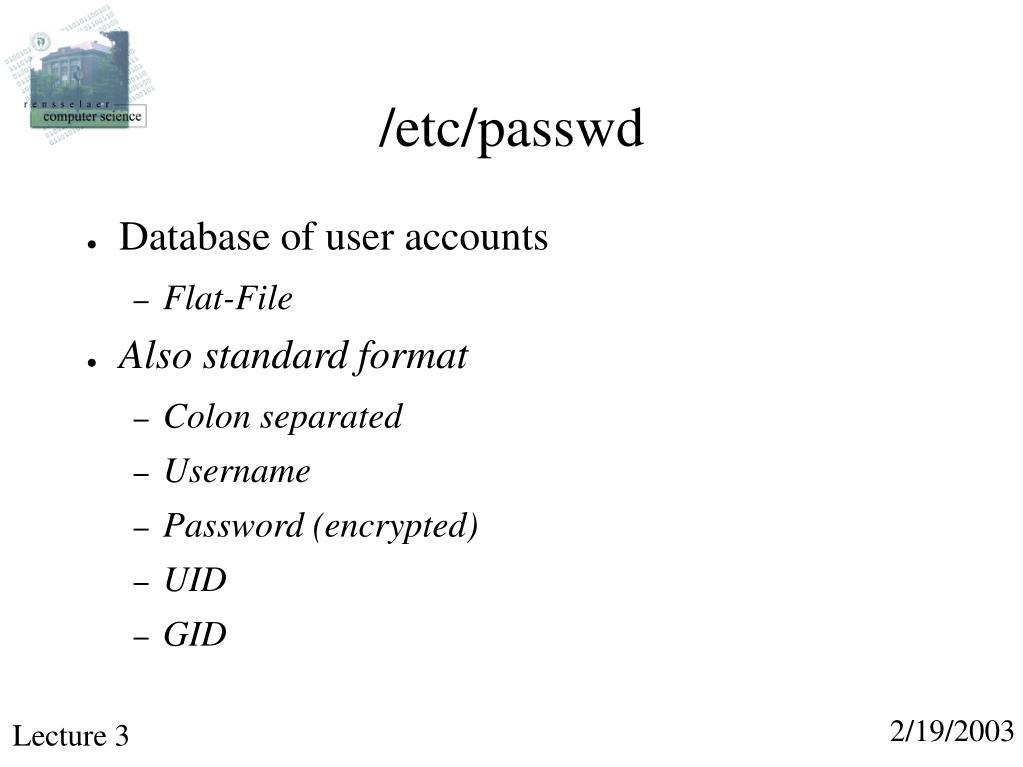

  4. /etc/passwd • Database of user accounts • Flat-File • Also standard format • Colon separated • Username • Password (encrypted) • UID • GID

  5. Passwd(5) file format (cont) • GECOS field • Comma Separated • Name • Phone number • Office • Etc... • Home Directory • Shell

  6. Shadow Passwords • Hides the encrypted form of the password. • Root-only access • Solaris • /etc/shadow • Additional information (must update both) • Last change time • Min change time • Inactive time • ...

  7. Shadow Passwords(cont) • Irix • /etc/shadow • Also additional fields (must update both) • Last change • Min change • Inactive • ...

  8. FreeBSD Shadow Passwords • /etc/master.passwd • “master” password file • /etc/passwd is generated from master.passwd • pwd_mkdb • Hashed databases generated • /etc/pwd.db (public) • /etc/spwd.db (shadow/private)

  9. man(1) pages • Unix system self documentation/reference • Sections • Solaris (/usr/share/man/...) • Section 1: User Commands • Section 2: Kernel Functions • Section 3: Library Functions • Subsections: aio, c, curses, kstat, ... • Section 4: File Formats • Section 5: Standards, Environments, Macros

  10. Solaris man(1) Sections (cont) • Section 6: Games and Demos • Section 7: Device and Network Interfaces • Section 9: Device Driver Interfaces • Requesting a specific manpage • man [-s section] page • Search path • man -s 1 passwd • man -s 4 passwd

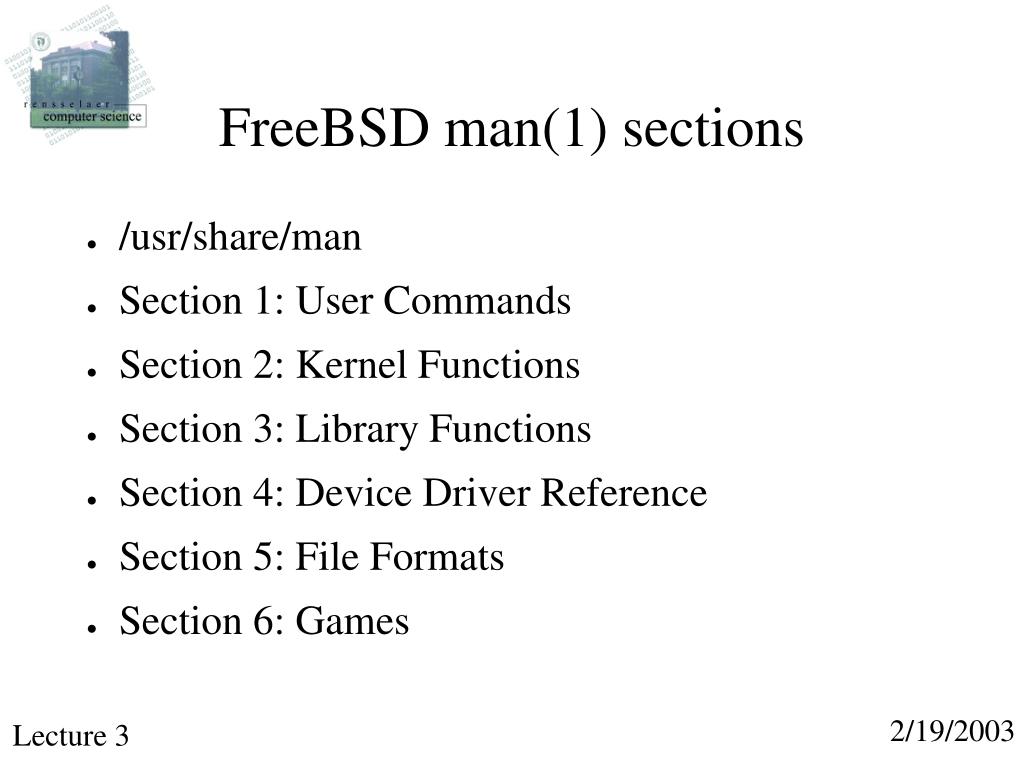

  11. FreeBSD man(1) sections • /usr/share/man • Section 1: User Commands • Section 2: Kernel Functions • Section 3: Library Functions • Section 4: Device Driver Reference • Section 5: File Formats • Section 6: Games

  12. FreeBSD man(1) sections • Section 7: Misc • Section 8: System Administration Commands • Section 9: Kernel Programming Reference • Requesting a specific section: • Man [section] page • Search path • Man 5 passwd

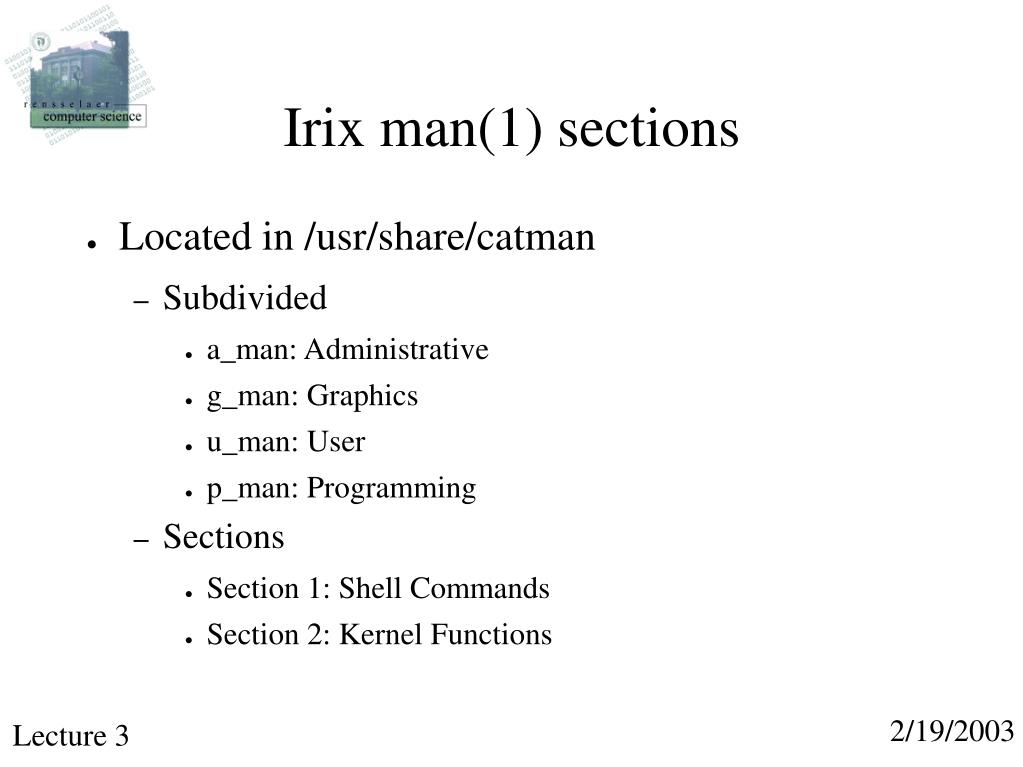

  13. Irix man(1) sections • Located in /usr/share/catman • Subdivided • a_man: Administrative • g_man: Graphics • u_man: User • p_man: Programming • Sections • Section 1: Shell Commands • Section 2: Kernel Functions

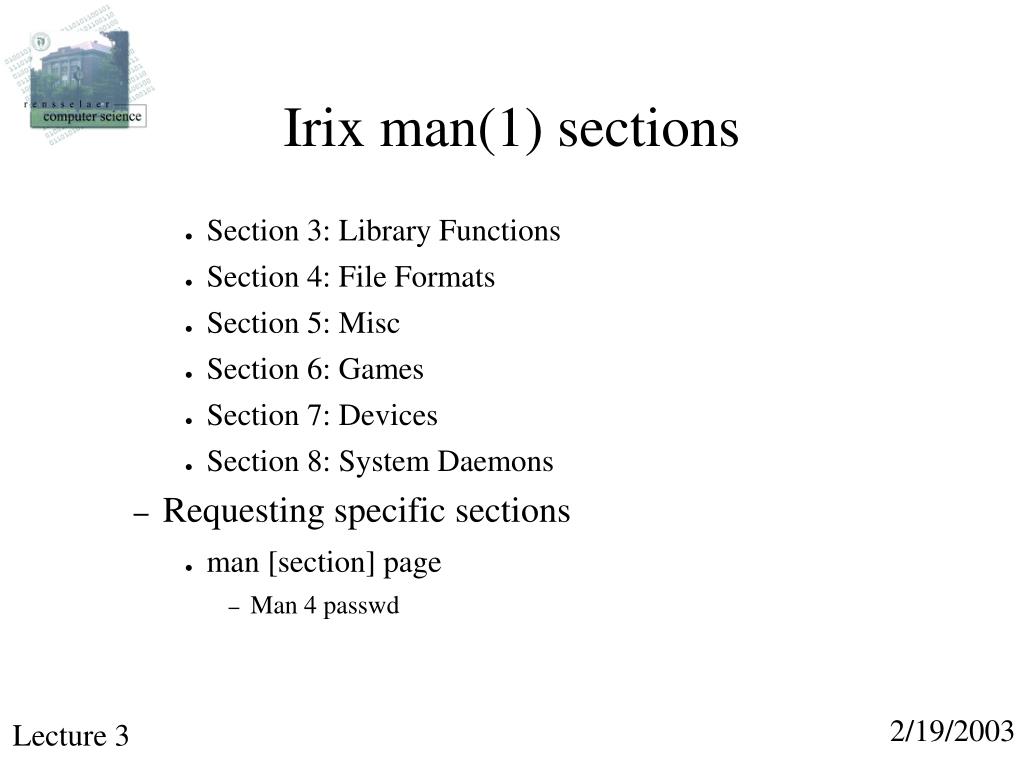

  14. Irix man(1) sections • Section 3: Library Functions • Section 4: File Formats • Section 5: Misc • Section 6: Games • Section 7: Devices • Section 8: System Daemons • Requesting specific sections • man [section] page • Man 4 passwd

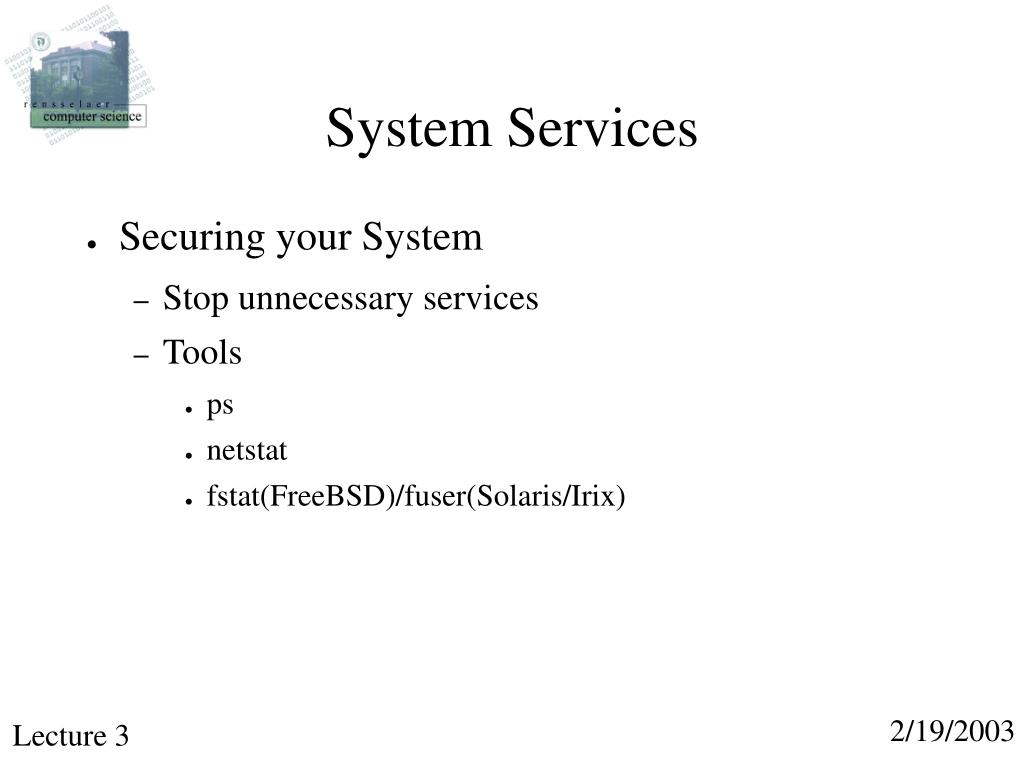

  15. System Services • Securing your System • Stop unnecessary services • Tools • ps • netstat • fstat(FreeBSD)/fuser(Solaris/Irix)

  16. Solaris System Startup • Runlevels (man init) • S/s: Single User • 0: Firmware • 1: Administrative • 2: Multi-user mode • 3: Multi-user+Network share • 4: Free • 5: power-off • 6: reboot

  17. Runlevel State Transition • Startup (initdefault 3) • Runlevel 2 • Runlevel 3

  18. Runlevel Scripts • /etc/rc? • /etc/rc?.d • /etc/rc2.d • /etc/rc3.d • Scripts typically linked to their real location in /etc/init.d • Kill Scripts • Begin with K • Executed in alphabetical order • K00foo stop

  19. Runlevel Start Scripts • Start Scripts • Begin with S • Executed in alphabetical order • S99foo start

  20. start/stop scripts • Are ONLY executed on a transition INTO a state • KILL scripts are NOT executed when you leave a state, only the kill scripts of the new state are executed • If you want to have apache only running in runlevel 3 you need to put Kill scripts in any other runlevels (typically 2 and 1)

  21. Disabling Scripts • Delete links and originals in /etc/rc?.d and /etc/init.d • BAD • No record of what was once there, no way to get it back • Delete /etc/rc?.d/[KS]##foo. • Bad • Can retrieve it, but don't know where it goes.

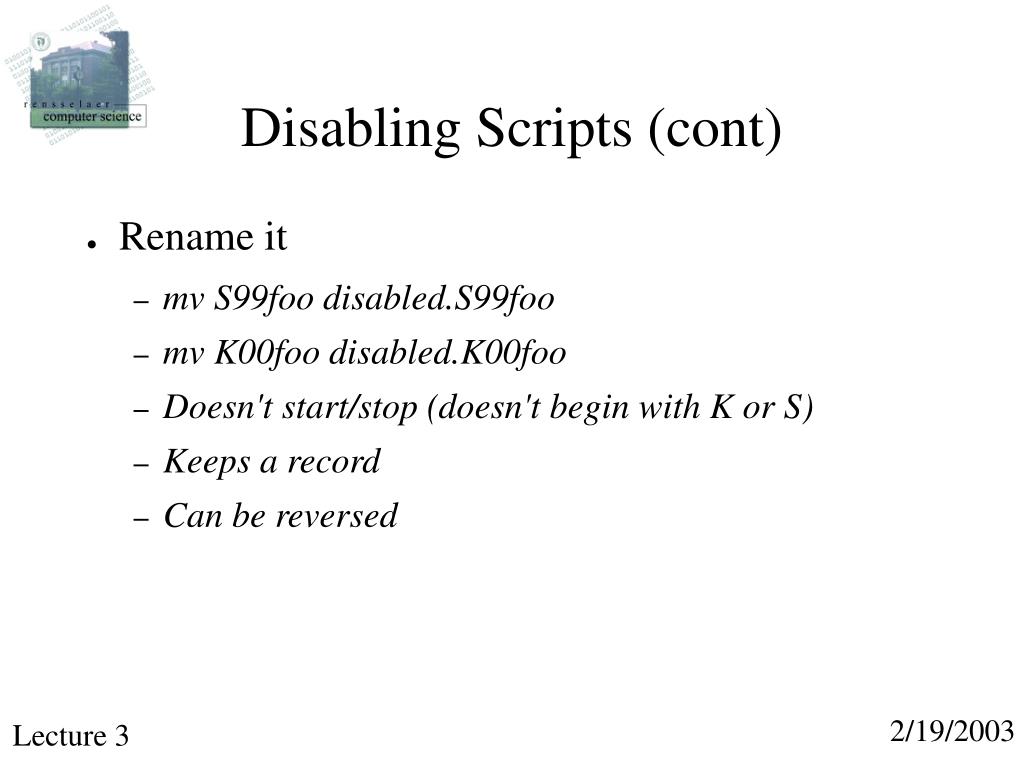

  22. Disabling Scripts (cont) • Rename it • mv S99foo disabled.S99foo • mv K00foo disabled.K00foo • Doesn't start/stop (doesn't begin with K or S) • Keeps a record • Can be reversed

  23. Irix System Startup • Also runlevel/inittab based • You can manage irix processes in the same way • Better way • chkconfig • chkconfig doesn't know about runlevels • Process typically only started/stopped once, in a specific runlevel

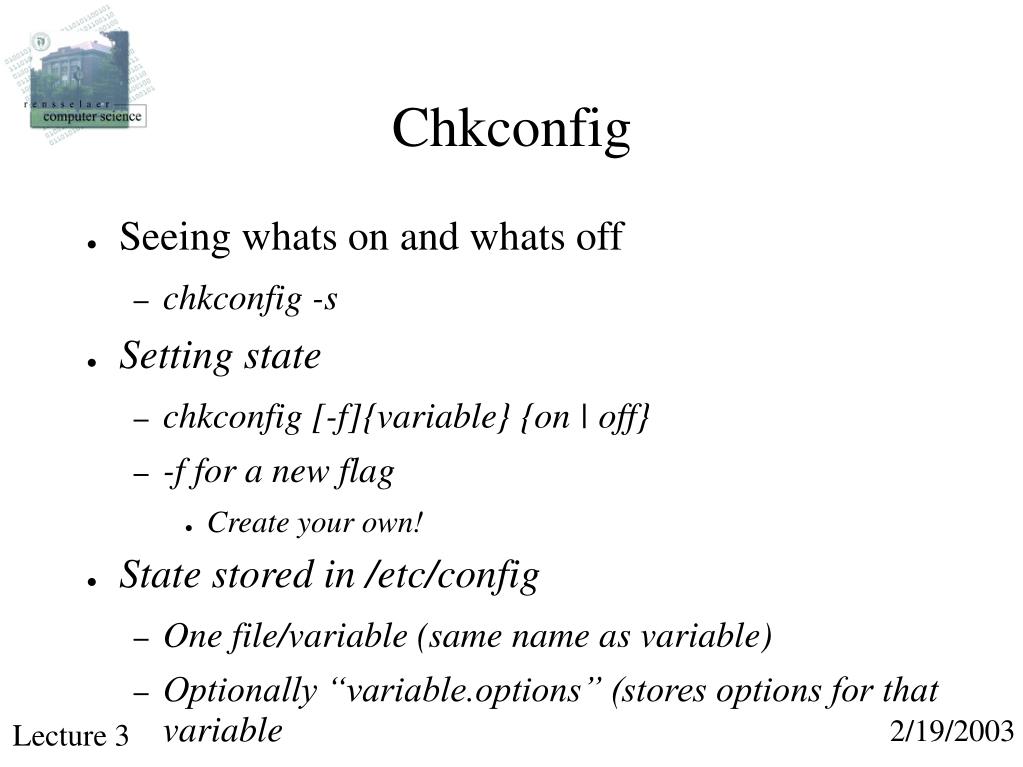

  24. Chkconfig • Seeing whats on and whats off • chkconfig -s • Setting state • chkconfig [-f]{variable} {on | off} • -f for a new flag • Create your own! • State stored in /etc/config • One file/variable (same name as variable) • Optionally “variable.options” (stores options for that variable

  25. FreeBSD System Startup • No Runlevels/inittab • Configuration provided by 'rc.conf', similar to Irix chkconfig

  26. rc.conf • rc.conf • /etc/defaults/rc.conf • Read first • information/defaults only • DO NOT EDIT • Will be overwritten by system upgrades/etc • /etc/rc.conf • Read second • Make changes here • Only need to add specific entries for items you want changed

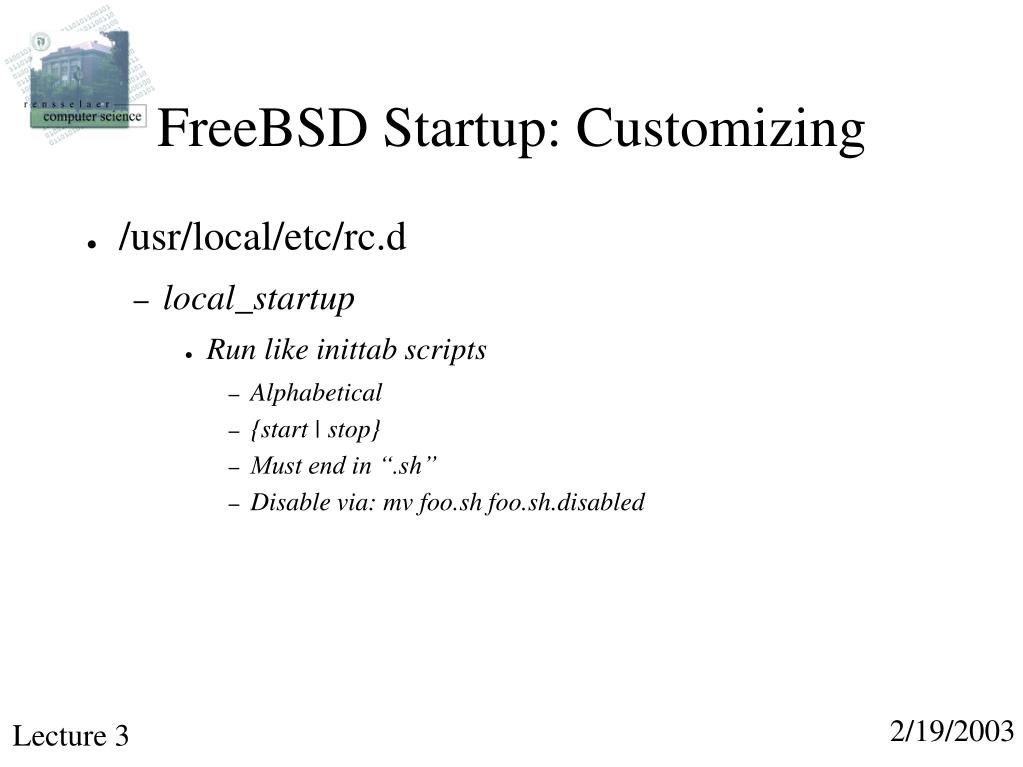

  27. FreeBSD Startup: Customizing • /usr/local/etc/rc.d • local_startup • Run like inittab scripts • Alphabetical • {start | stop} • Must end in “.sh” • Disable via: mv foo.sh foo.sh.disabled
