Hanover Management for Mobile Nodes in IPv6 Networks

Hanover Management for Mobile Nodes in IPv6 Networks. Myungchul Kim mckim@icu.ac.kr. IEEE Communications Magazine, August 2002, pp. 38 – 43. Introduction L2 handoff(or handover) vs L3 handoff Mobile IPv6: manage MNs’ movements between wireless IPv6 networks Handover delay

kenna
Télécharger la présentation

Hanover Management for Mobile Nodes in IPv6 Networks

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Hanover Management for Mobile Nodes in IPv6 Networks Myungchul Kim mckim@icu.ac.kr

  2. IEEE Communications Magazine, August 2002, pp. 38 – 43. • Introduction • L2 handoff(or handover) vs L3 handoff • Mobile IPv6: manage MNs’ movements between wireless IPv6 networks • Handover delay • New prefix discovery on the new subnet • The new care-of address establishment • The time needed to notify the correspondents and home agent the new locality of the MN • Handover delay for real-time multimedia applications • Proposals for reducing the latency and the number of lost packets due to handover • Mobile IPv6 • Hierarchical Mobile IPv6 • Fast Handover Protocol • An evaluation of Mobile IP over IEEE 802.11b wireless LAN

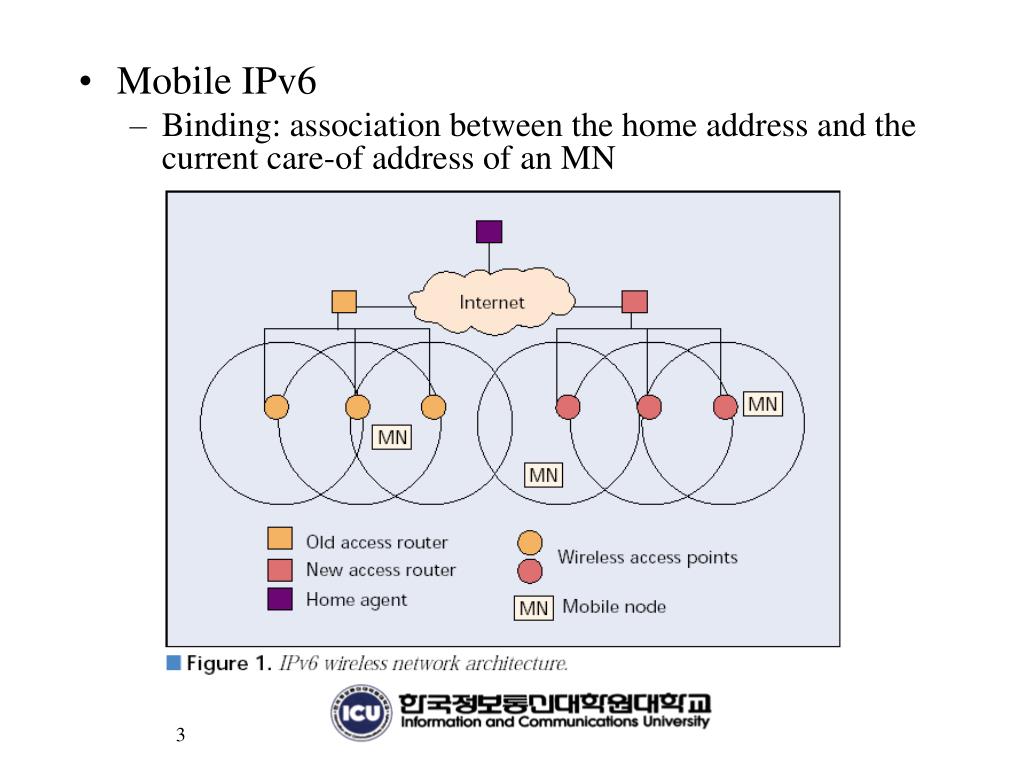

  3. Mobile IPv6 • Binding: association between the home address and the current care-of address of an MN

  4. The Handover procedure • Router advertisement by access router (AR) or router solicitation by MN • Duplication address detection (DAD): the MN first needs to verify the uniqueness of its link-local address on the new link. • Perform DAD in parallel with communications or • Choose not to perform it • Handover enhancement

  5. Hierarchical Mobile IPv6 • Mobile anchor point: domain • All MN movements within the domain are hidden from the home agent and correspondents since the global care-of address of the MN does not change.

  6. Fast handover • L2 triggers • Link up • Link down • L2 handover start • Anticipated Handover vs Tunnel Based Handover

  7. Tunnel Based Handover • The MN delays the new care-of address establishment when it moves to a new AR • It performs an L2 handover and continues to use its old care-of address in the new subnet • Mobile IPv6 Evaluation over IEEE 802.11B • The ARs are configured to send a router advertisement every second.
