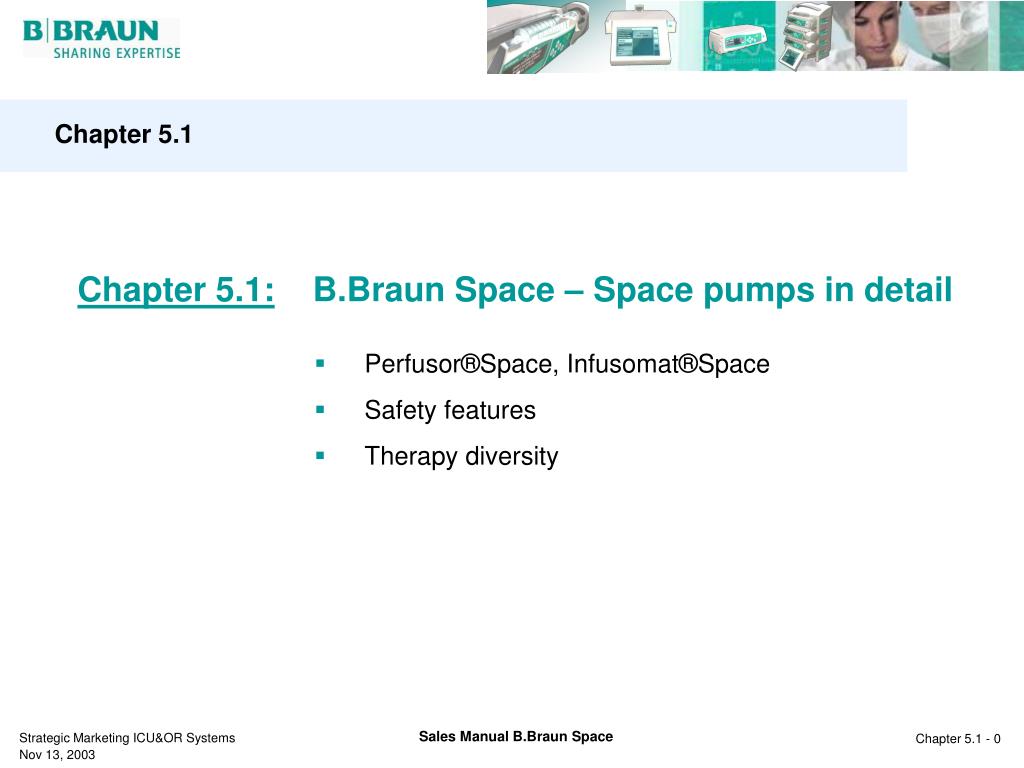

  1. Chapter 5.1 Chapter 5.1: B.Braun Space – Space pumps in detail • Perfusor®Space, Infusomat®Space • Safety features • Therapy diversity Sales Manual B.Braun Space

  2. B. Braun Space – Features & Benefits Perfusor® Space Infusomat® Space Sales Manual B.Braun Space

  3. Features & Benefits: Perfusor-/ Infusomat Space 214 mm Small dimensions save Space… 68 mm 249-373 mm 152 mm 124 mm 68 mm Sales Manual B.Braun Space

  4. Features & Benefits: Perfusor-/ Infusomat Space Break-through in the field of space saving technology ! You can see it… Sales Manual B.Braun Space

  5. Features & Benefits: Perfusor-/ Infusomat Space • Safe and easy transport because of a newly developed fixation mechanism • Up to 3 pumps can be stacked together • Easy to handle fixing levers Fixing lever Sales Manual B.Braun Space

  6. Features & Benefits: Perfusor-/ Infusomat Space • Safe and easy transport with the new SpaceClamp. • Designed for fixing stand-alone pumps to infusion poles and wall rail systems. • Up to 4 pumps can be carried with 1 clamp Optional short infusion pole Rotation mechanism for horizontal and vertical adaption of the pumps Integrated handle 12 V power supply Sales Manual B.Braun Space

  7. Features & Benefits: Perfusor-/ Infusomat Space Syringe illumination Alarm indicators Graphic display with high resolution Guide rails for stackability and sliding pumps together Syringe holder with integrated piston brake Back-lit key pad Front door with magnifying glass Drive Head made of shock resistent material Sales Manual B.Braun Space

  8. Features & Benefits: Perfusor-/ Infusomat Space Alarm indicators Front door with motor-driven lock mechanism Back-lit key pad Graphic display with high resolution Rubber feet for table usage Sales Manual B.Braun Space

  9. Features & Benefits: Perfusor-/ Infusomat Space • The rechargeable battery pack can be easily removed and exchanged on the ward. • More than 8 h operating time • Recharging when pump is connected to mains • Recharging time 2 h • NiMH technology to minimize memory effects • Cost saving because of battery maintenance mode to increase life time • Perfusor and Infusomat are using the same battery, this minimizes risk of confusion Cover of battery compartment Socket for 12 V, Interface, PCA, nurse call Socket for connection with SpaceControl Battery pack Sales Manual B.Braun Space

  10. Perfusor Space / Infusomat Space • Safety Features • Perfusor® Space • Infusomat® Space Sales Manual B.Braun Space

  11. Safety: Perfusor Space - Automatic Drive Unit With Piston Brake • Perfusor Space is equipped with a fully automatical drive mechanism. • When the pump is turned off the parking position of the drive is closed by housing. A syringe only can be inserted after the pump is switched on. • After the syringe is inserted and the syringe holder is closed the piston brake comes out of the syringe holder and blocks the plunger to prevent free-flow during syringe change. • After the syringe plunger plate is detected and grasped by the claws of the drive head the piston brake releases the plunger again and drives backwards into its parking position. Sales Manual B.Braun Space

  12. Safety: Perfusor Space - Automatic Drive Unit With Piston Brake • The User benefits are: • Optimal start-up characteristics at low infusion rates for higher therapy safety • No bolus infusion during syringe change • No free-flow during syringe change if patient connection was not interrupted • Very easy handling to insert a syringe Sales Manual B.Braun Space

  13. Safety: Infusomat Space with new Infusomat Space Line Setting a new standard in Europe New Infusomat Space Line • New Infusomat Space Line with Set-Based Anti-Free-flow Clamp in each pump set • Free-flow prevention also when the set is removed from the pump • Against over dosages to minimize medication errors. • Backwards compatible with Infusomat fm/fmS Anti free-flow clamp D.C. 2000 short pump segment new connection clips Sales Manual B.Braun Space

  14. Safety: Infusomat Space with new Infusomat Space Line Pump-based anti-free-flow clamp Upstream sensor Release mechanism of Anti-Free-flow clamp Downstream pressure sensor Air sensor Sales Manual B.Braun Space

  15. Safety: Infusomat Space with new Infusomat Space Line Downstream fixing clip of the pumping element Set-based Anti-Free-flow clamp Upstream fixing clip of the pumping element Peristaltic pump compartment, removable for cleaning Sales Manual B.Braun Space

  16. Safety: Perfusor-/Infusomat Space – Uniform User Interfaces • More than 80 % of Medication Errors (FDA) are based on handling failures because of different user interfaces between the devices in use • Perfusor- and Infusomat Space are offering exactly the same handling structure. • A nurse who is familiar with the handling of a Perfusor also will be able to handle the Infusomat Space • B. Braun Space is the new Standard in the Hospitals and there should be only one pump (or let`s say two) to work with Standardization minimizes Medication Errors Sales Manual B.Braun Space

  17. Safety: Perfusor-/Infusomat Space – Uniform User Interfaces Special bolus key for quick bolus applications • Two pumps one user interface !! • C key withdouble function: • to clear value inputs • go back into former menu ON/OFF key Door open key Start-/Stop key Communication key to SpaceControl or barcode data receipt OK key to confirm inputs Graphic display with high resolution and readability Cursor for navigation and value inputs Sales Manual B.Braun Space

  18. Standard Mode Safety: Perfusor-/Infusomat Space – Uniform User Interfaces • Start-Up Menu: • Usable as a navigation guide through the functions • Customized configuration of the menu due to the needs of the Hospital • These 6 menu steps can be disabled, then a direct input of the rate is possible after syringe change Sales Manual B.Braun Space

  19. Customized Special Functions Customized Options Standard Mode Status of Infusion Main Menu Occlusion pressure Total Volume Set Rate Drug Library Data Lock Total Time Date Dose Calculation Set Volume Limit Clock Intermediate Volume Alarm Volume Patient Data Intermediate Time Piggy back (only Infusomat) Set Time Limit Bolus Rate Macro Mode Disposable in use Help texts on Safety: Perfusor-/Infusomat Space – Uniform User Interfaces The Maim Menu ensures a clear overview about all functions Sales Manual B.Braun Space

  20. Perfusor® Space / Infusomat® Space • Therapy Diversity Sales Manual B.Braun Space

  21. Standard Mode Benefits Parameters) 0.01-99.99 ml/h 100.0-999.9 ml/h 1000-1200 ml/h (only Infusomat) 0.01-99.99 ml 100.0-999.9 ml 1000-9999 ml (only Infusomat) Set Rate Set VTBD 00 h : 01 m – 99 h : 00 m Set Time Limit Therapy Diversity: Perfusor Space / Infusomat Space • Wide range of delivery settings for a flexible therapy control • Comfortable calculation of the rate by setting volume over time • Optimal overview about the remaining infusion volumes and times • If 2 parameters are set the 3rd will be automatically calculated Sales Manual B.Braun Space

  22. Status of Infusion Benefits Parameters) Total Volume 0.01- 9999 (Perfusor) 0.01-99999 (Infusomat) 0.01- 9999 (Perfusor) 0.01-99999 (Infusomat) Total Time 1 m – 99 h 1 m – 99 h Intermediate Volume IntermediateTime Disposable in Use Display of selected syringe type or Infusomat Line Therapy Diversity: Perfusor Space / Infusomat Space • Patient- and drug related Status Information • Infusion status permanently displayed • Via interface to PDMS • Clears automatically if a new patient shall be treated or if a new drug is selected Intermediate Patient- and drug related Status Information which can be deleted during one therapy Sales Manual B.Braun Space

  23. Customized Special Functions Integrated Drug Drug Library Safe operation against wrong manual inputs of parameters. Drug Library Dose Calculation Piggy back (only Infusomat) Therapy Diversity: Perfusor Space / Infusomat Space Sales Manual B.Braun Space

  24. Therapy Diversity: Drug Library • The Drug library allows the user to select a certain drug/mode/fluid therapy fast and easily. • Each Pump contains a total memory for max. 720 drugs including all necessary infusion parameters which are defined and configured via an external Drug List Editor (DLE). • Categories: All drugs can be classified into one or up to 15 categories. Reduction of Medication Errors because of pre-set adjustments Nearly the complete range of relevant drugs can be integrated Quick access to the wanted drug by selecting a category first Sales Manual B.Braun Space

  25. Therapy Diversity: Drug Library • Independently on the 10 categories each drug is related to a therapy mode which can be selected at the pump or at the SpaceControl. • Via the user interface of the pumps only the drugs related to the “Continuous Mode” and “Piggyback (Infusomat) Mode” can be selected. • Further Therapy Modes van be selected via SpaceControl: • PCA Mode • Ramp Mode • Circadian Mode • OTCI Mode Sales Manual B.Braun Space

  26. Therapy Diversity: Drug Library Pre-set dose guards lead to s safe operation because of prevention of potential over dosages. SpaceControl screen Pump display Sales Manual B.Braun Space

  27. Customized Special Functions Drug Library Dose Calculation Piggy back (only Infusomat) Therapy Diversity: Perfusor Space / Infusomat Space Dose Calculation Comfortable calculation of the rate via the input of Sales Manual B.Braun Space

  28. Therapy Diversity: Dose Calculation • The Dose Calculation mode offers the possibility to calculate the • delivery rate on the basis of the following parameters: • Concentration value • Container size • Dosage value • Dosage unit • Optional: patient weight Sales Manual B.Braun Space

  29. Therapy Diversity: Dose Calculation • When Dose Calculation is active the display is showing the infusion rate in dosage values, as mg/kg/h. Overview about the set parameters in the main menu Display when infusion is running A bolus also can be given with dose parameters. Sales Manual B.Braun Space

  30. Customized Special Functions Drug Library Dose Calculation Piggy back (only Infusomat) Therapy Diversity: Perfusor Space / Infusomat Space Piggy back Administration of 2 infusions with only one pump. Sales Manual B.Braun Space

  31. Therapy Diversity: Piggy Back The Piggy back mode offers the possibility to switch between 2 infusions by using only one pump. A special Infusomat Space Line shall be developed to optimize the handling procedure. The history of Primary- and Secondary infusion is giving a complete overview about all therapy dosages. Each Infusomat Space will be equipped with this function which is used mainly in the OPM field for cythostatics. Sales Manual B.Braun Space

  32. Therapy Diversity: Take-Over Mode • The application of drugs with low half.life times (e. g. catecholamines) require a quick and safe change of an empty syringe into a new one. • Swaying of the blood pressure cannot be avoided by changing the syringe manually. • The new „Take-Over Mode“ offers the possibility that a second pump will be started automatically before the first pump with the same drug will go into syringe end alarm. Sales Manual B.Braun Space

  33. Therapy Diversity: Take-Over Mode • This function always is related to the drug library use and works without additional handling. • The pumps have to be used in a SpaceStation and have to be positioned on top of one other. • The 2nd pump has to be adjusted with the same drug as the 1st pump. Then the pump will show a message if it shall be used for the take-over mode. Benefit: Continuous application of catecholamines by minimization of blood pressure swaying. Sales Manual B.Braun Space

  34. Perfusor Space / Infusomat Space Special Adjustments: Options Sales Manual B.Braun Space

  35. Customized Options Occlusion pressure Data Lock Date Clock Alarm Volume Patient Data Bolus Rate Macro Mode Help texts on Perfusor Space / Infusomat Space Options Occlusion Pressure The occlusion pressure settings offer the possibility to set the optimal highest pressure to reduce bolus volumes and alarm triggering times in case of a closed infusion line. Sales Manual B.Braun Space

  36. Options Occlusion Pressure There are 4 different operating modes which can be selected: • Standard occlusion setting • Perfusor Space: 9 steps 0.1-1.2 bar • Infusomat Space: 3 steps 0.3-1.5 bar • Pressure Pre-Alarm (not at launch) • Automatic pressure setting (not at launch) • Central in-line pressure setting (not at launch) Sales Manual B.Braun Space

  37. Customized Options Occlusion pressure Data Lock Date Clock Alarm Volume Patient Data Bolus Rate Macro Mode Help texts on Perfusor Space / Infusomat Space Options Data Lock Prevention against non-authorized manipulations. Sales Manual B.Braun Space

  38. Perfusor Space / Infusomat Space Data Lock • Data Lock can be programmed in 2 levels: • Level 1: • No changes of values possible, stop, start, turning on/-off allowed • Level 2: • Same as Level 1, additionally no change of the disposable possible.  Central data lock for all pumps within a system can be activated via SpaceControl ! Sales Manual B.Braun Space

  39. Date & Clock For documentation reasons and the History Protocol. Automatic adjustment if connected to SpaceStation together with SpaceCom. Customized Options Occlusion pressure Data Lock Date Clock Alarm Volume Patient Data Bolus Rate Macro Mode Help texts on Perfusor Space / Infusomat Space Options Sales Manual B.Braun Space

  40. Customized Options Occlusion pressure Data Lock Date Clock Alarm Volume Patient Data Bolus Rate Macro Mode Help texts on Perfusor Space / Infusomat Space Options Alarm Volume The loudness of the audible alarm signal can be adjusted to the environmental conditions in the hospital Sales Manual B.Braun Space

  41. Customized Options Occlusion pressure Data Lock Date Clock Alarm Volume Patient Data Bolus Rate Macro Mode Help texts on Perfusor Space / Infusomat Space Options Patient Data are a safety feature which makes it possible to treat the right patient with the right drug Sales Manual B.Braun Space

  42. Customized Options Occlusion pressure Data Lock Date Clock Alarm Volume Patient Data Bolus Rate Macro Mode Help texts on Perfusor Space / Infusomat Space Options Bolus Rate The max.bolus rate can be limited for safety reasons If the bolus rate is set to cero the bolus function is disabled. Sales Manual B.Braun Space

  43. Customized Options Occlusion pressure Data Lock Date Clock Alarm Volume Patient Data Bolus Rate Macro Mode Help texts on Perfusor Space / Infusomat Space Options Macro Mode Individual adjustment of the display content. The user can decide if the delivery rate shall be screened in big numbers or smaller. Sales Manual B.Braun Space

  44. Customized Options Occlusion pressure Data Lock Date Clock Alarm Volume Patient Data Bolus Rate Macro Mode Help texts on Perfusor Space / Infusomat Space Options Help Texts Intuitive handling with or without help texts. Help texts make it easier for new users to handle the pump and to reduce the risk of wrong handling. Sales Manual B.Braun Space
