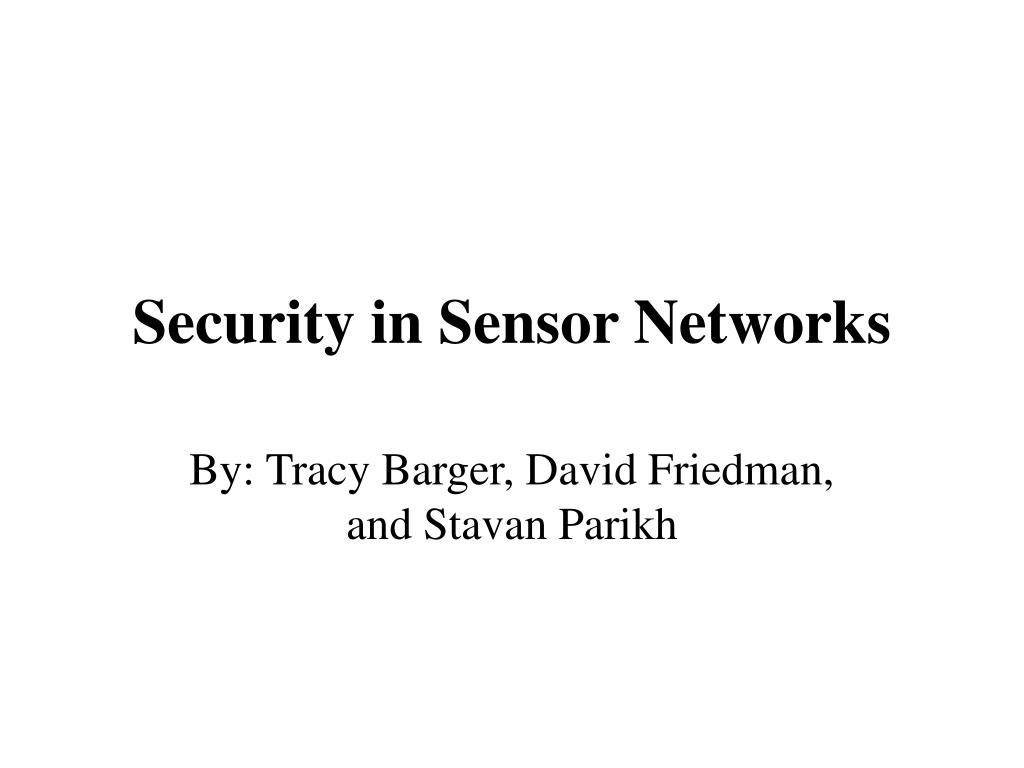

  1. Security in Sensor Networks By: Tracy Barger, David Friedman, and Stavan Parikh

  2. MEMS – Microelctromechanical Systems Swarms ?? • Group Behavior Bees ! • MEMS (Smart Dust) • Applications • Surveillance • Smart House • Grocery Shopping • FedEx tracking on Steroids

  3. Environment Constraints • Power • Processor: 8 bit • Memory: 15K • RAM: 512 bytes • Devices not individually addressable

  4. Trust Model • Base Station • Complete Trust • Requires Authentication • Motes • Trust Self • Broadcast Communication: Insecure • Need Encryption

  5. Key Distribution and Encryption • Use symmetric cipher • Keys pre-initialized in motes • Use J-secure scheme (NAI Paper) • n nodes, y groups • All nodes in a group have same key K1 K2 Note: If security is a priority, keys can be refreshed using a group key distribution scheme such as key graphs

  6. Group Size Tradeoffs 1 n s • What’s optimal group size? • s = group size • Tradeoff:security v. # communications v. memory • Small, one-hop -- Use s = 1

  7. Hash-based Authentication Generates Xn; Calculates key Chain: H(Xn) = X n-1… H(X1)= X0 M = E(Command || Xi) Mote decrypts M, Checks H(Xi) = Xi-1 Then stores Xi in place of Xi-1

  8. Conclusion • Examined current security techniques • Key Distribution • Authentication • Tradeoff between modifying existing and starting from scratch • May be more beneficial to create new protocols • Security will be defined by application
