  1. Security on Sensor Networks SPINS: Security Protocol for Sensor Networks TinySec: Security for TinyOS Presented by Min-gyu Cho

  2. General Security Requirements • Confidentiality: • The property that information is not made available or disclosed to unauthorized individuals, entities or processes • Authentication • The verification of a claimed identity • Integrity • The assurance that information can only be accessed or modified by those authorized to do so

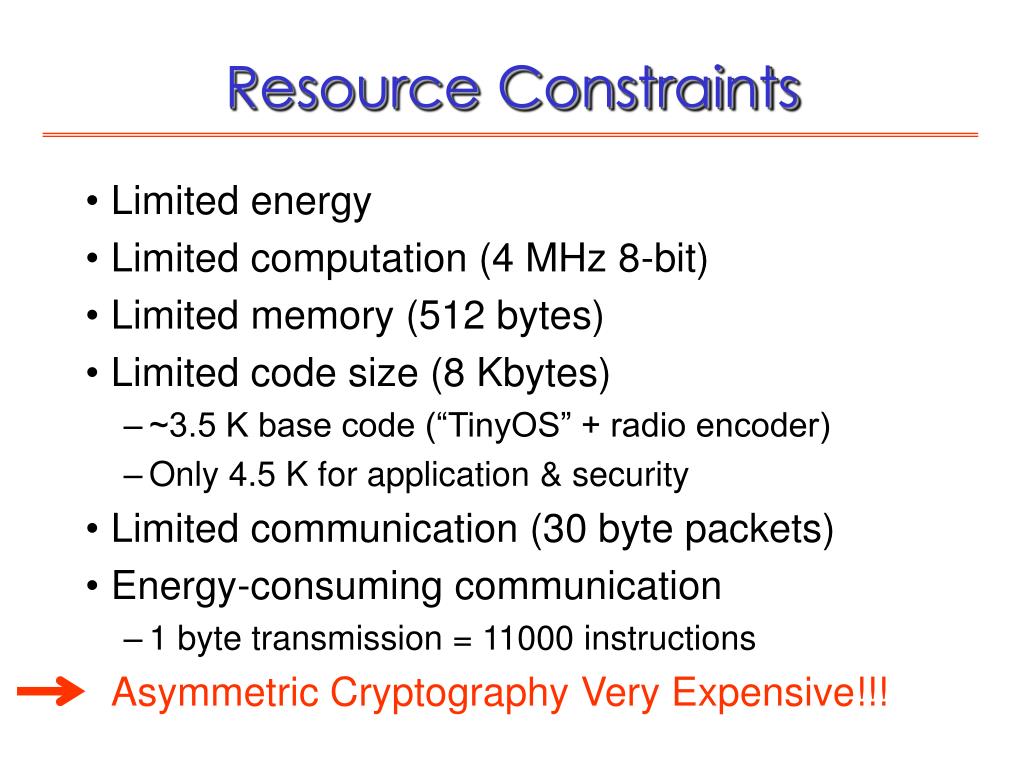

  3. Resource Constraints • Limited energy • Limited computation (4 MHz 8-bit) • Limited memory (512 bytes) • Limited code size (8 Kbytes) • ~3.5 K base code (“TinyOS” + radio encoder) • Only 4.5 K for application & security • Limited communication (30 byte packets) • Energy-consuming communication • 1 byte transmission = 11000 instructions Asymmetric Cryptography Very Expensive!!!

  4. SPINS • Adrian Perrig, Robert Szewczyk, Victor Wen, David Culler, J. D. Tygar, “SPINS: Security Protocols for Sensor Networks,” MOBICOM 2001 • Security Protocols proposed for Sensor Networks which provides • Authentication • Ensures data integrity & origin • Prevents injecting bogus messages • Confidentiality • Ensures secrecy of data • Prevents eavesdropping

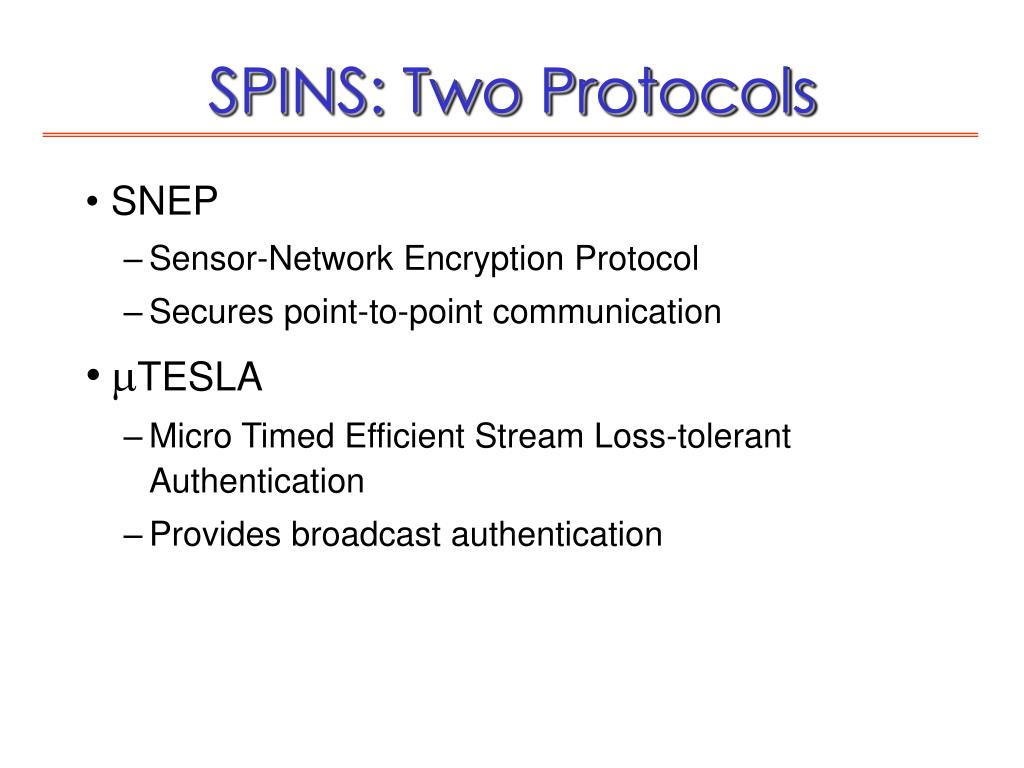

  5. SPINS: Two Protocols • SNEP • Sensor-Network Encryption Protocol • Secures point-to-point communication • TESLA • Micro Timed Efficient Stream Loss-tolerant Authentication • Provides broadcast authentication

  6. System Assumptions • Communication patterns • Frequent node-base station exchanges • Frequent network flooding from base • Node-node interactions infrequent • Base station • Sufficient memory, power • Shares secret key with each node • Node • Limited resources, limited trust

  7. SNEP Security Goals • Secure point-to-point communication • Confidentiality, secrecy • Authenticity and integrity • Message freshness to prevent replay • Why not use existing protocols? • E.g. SSL/TLS, IPSEC

  8. Basic Crypto Primitives • Code size constraints  code reuse • Only use block cipher encrypt function • Counter mode encryption • Cipher-block-chaining message authentication code (MAC) • Pseudo-Random Generator

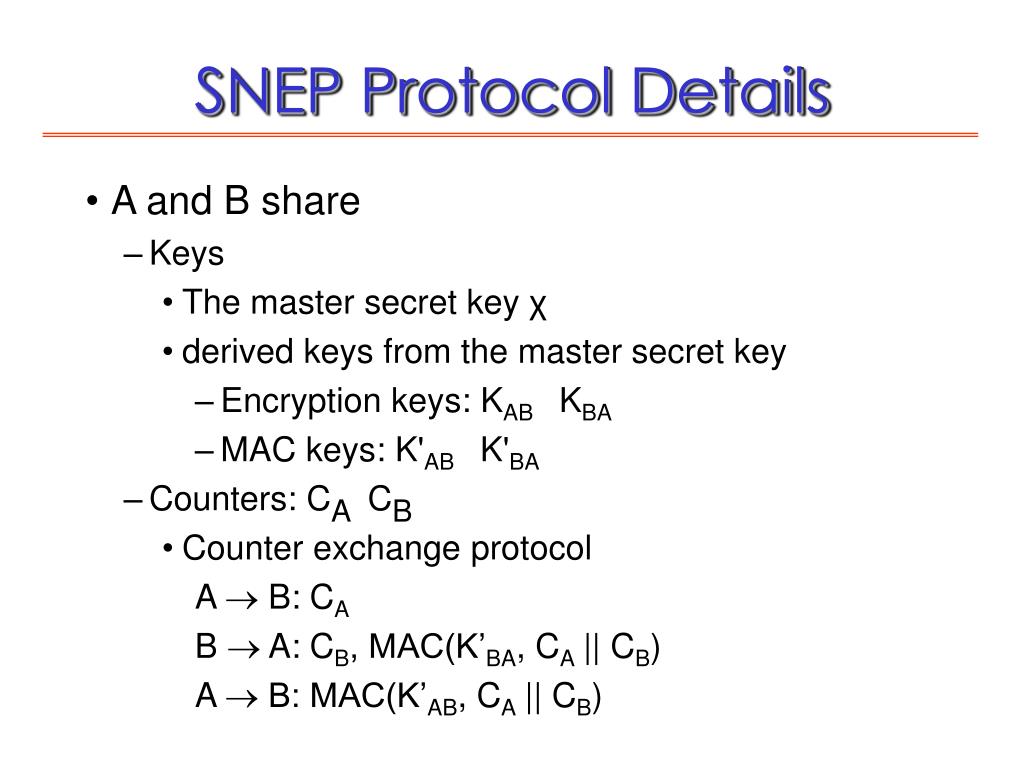

  9. SNEP Protocol Details • A and B share • Keys • The master secret key χ • derived keys from the master secret key • Encryption keys: KAB KBA • MAC keys: K'AB K'BA • Counters: CA CB • Counter exchange protocol A  B: CA B  A: CB, MAC(K’BA, CA || CB) A  B: MAC(K’AB, CA || CB)

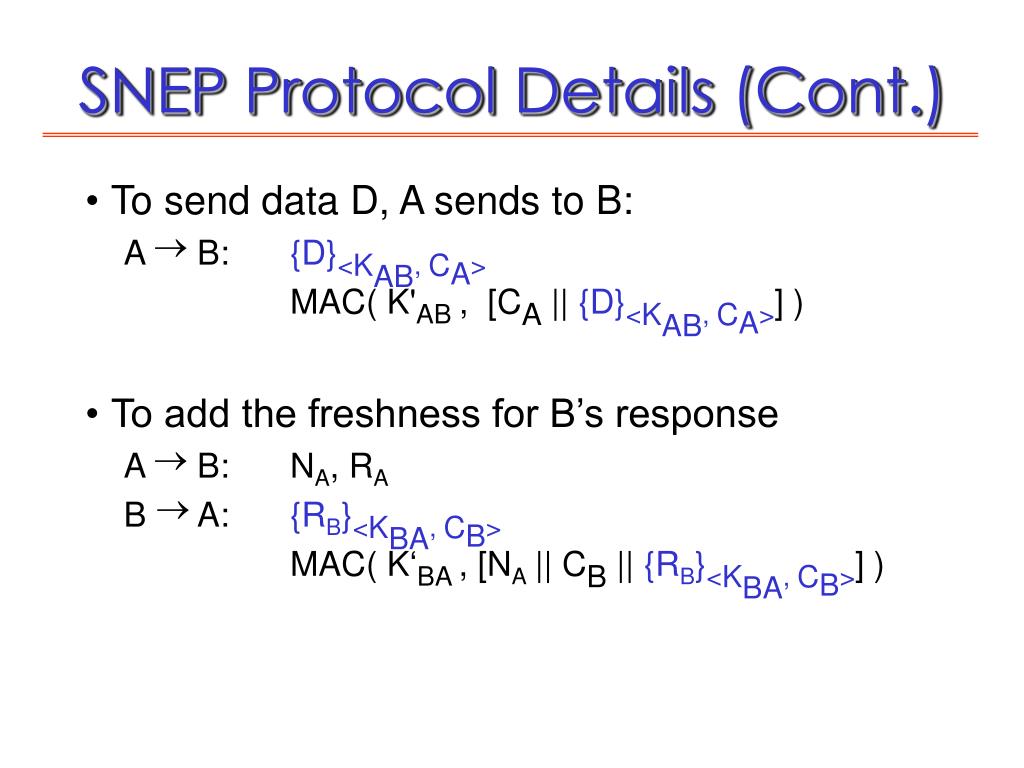

  10. SNEP Protocol Details (Cont.) • To send data D, A sends to B: A B: {D}<KAB, CA> MAC( K'AB , [CA || {D}<KAB, CA>] ) • To add the freshness for B’s response A B: NA, RA B A: {RB}<KBA, CB> MAC( K‘BA , [NA || CB || {RB}<KBA, CB>] )

  11. SNEP Properties • Secrecy & confidentiality • Semantic security against chosen ciphertext attack (strongest security notion for encryption) • Authentication • Replay protection • Code size: 1.5 Kbytes • Strong freshness protocol in paper

  12. Broadcast Authentication • Broadcast is basic communication mechanism • Sender broadcasts data • Each receiver verifies data origin Alice M Sender M Dave M M Bob Carol

  13. K Sender M, MAC(K,M) M, MAC(K,M) Bob Alice K K M', MAC(K,M') Simple MAC Insecure for Broadcast

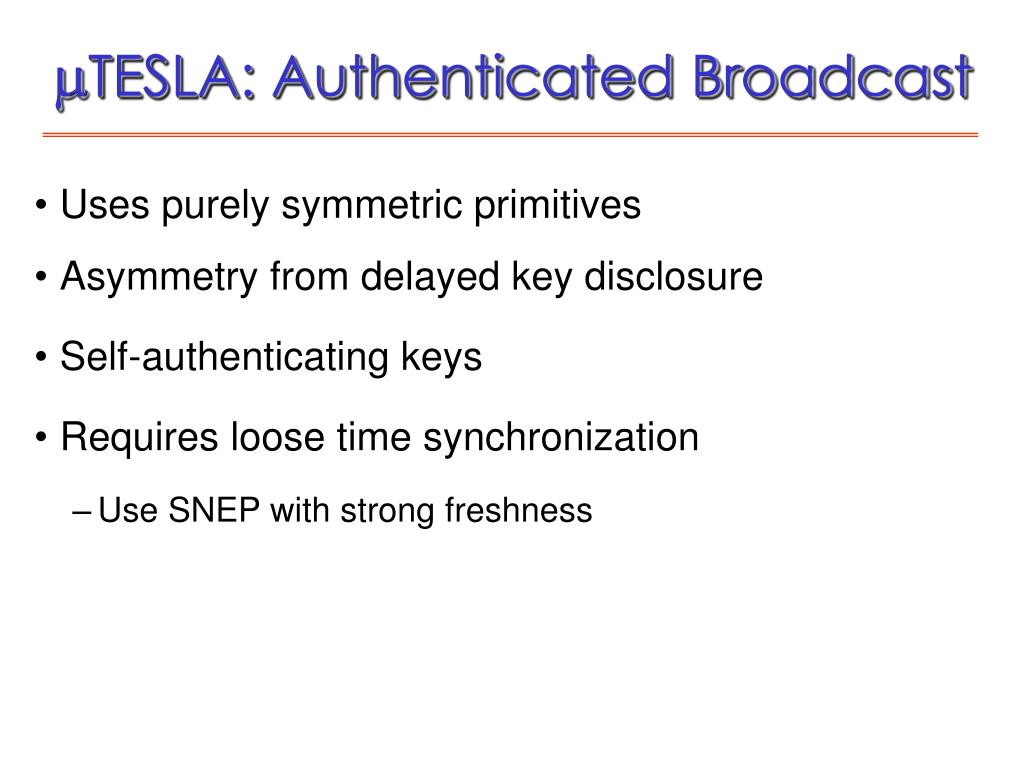

  14. TESLA: Authenticated Broadcast • Uses purely symmetric primitives • Asymmetry from delayed key disclosure • Self-authenticating keys • Requires loose time synchronization • Use SNEP with strong freshness

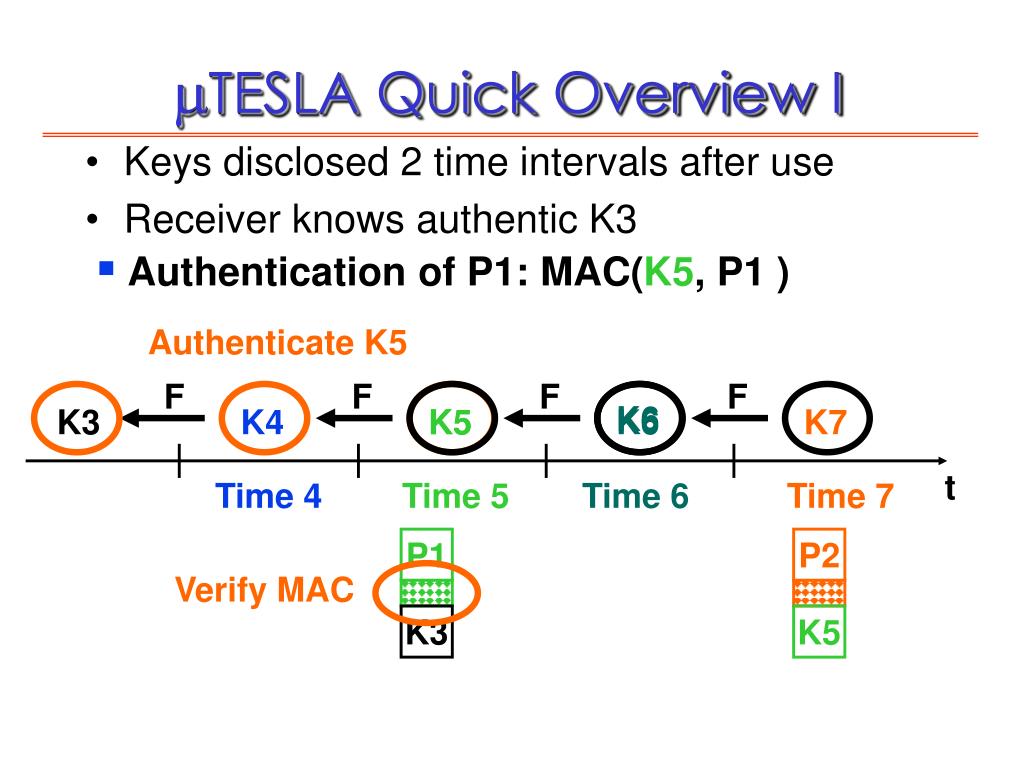

  15. F Authenticate K5 K5 F K6 F F P2 Verify MAC K5 TESLA Quick Overview I • Keys disclosed 2 time intervals after use • Receiver knows authentic K3 • Authentication of P1: MAC(K5, P1 ) K3 K4 K5 K6 K7 t Time 4 Time 5 Time 6 Time 7 P1 K3

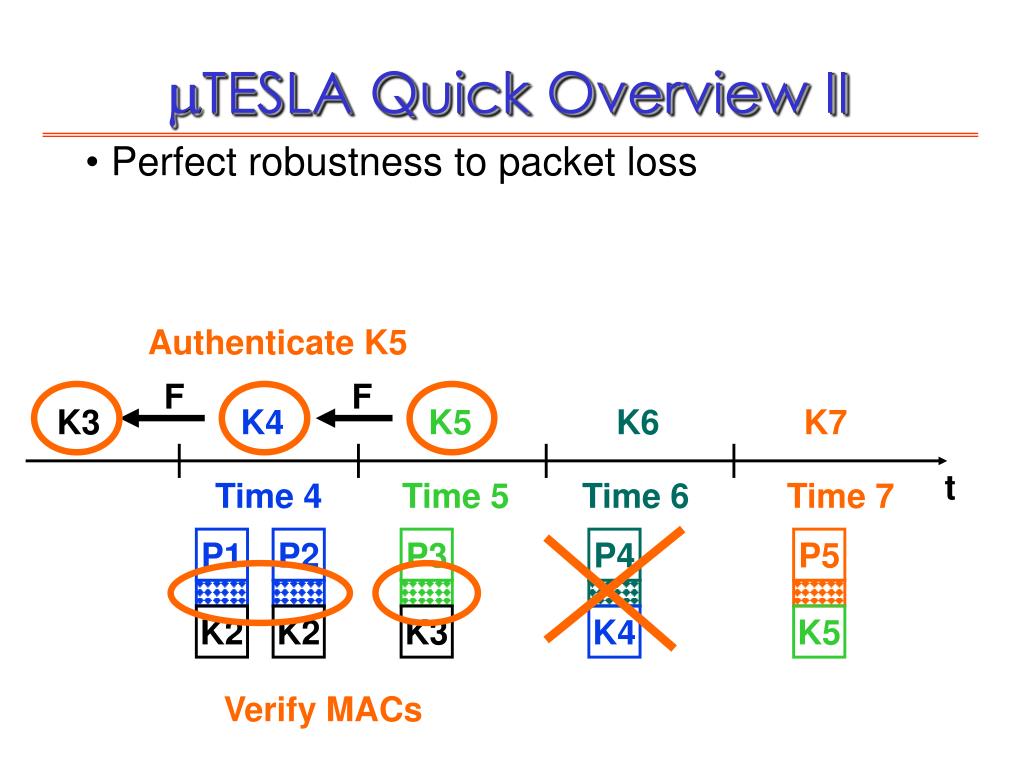

  16. Authenticate K5 F F P1 P2 P3 P4 P5 K2 K2 K3 K4 K5 Verify MACs TESLA Quick Overview II • Perfect robustness to packet loss K3 K4 K5 K6 K7 t Time 4 Time 5 Time 6 Time 7

  17. TESLA Properties • Low overhead (1 MAC) • Communication (same as SNEP) • Computation (~ 2 MAC computations) • Perfect robustness to packet loss • Independent of number of receivers

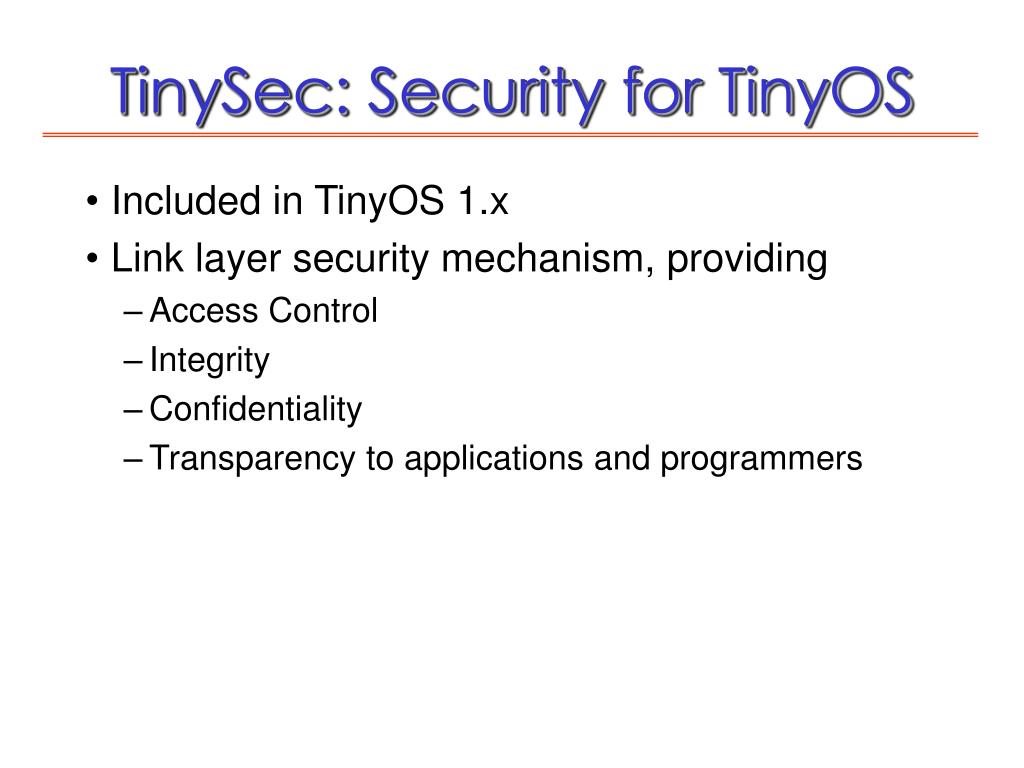

  18. TinySec: Security for TinyOS • Included in TinyOS 1.x • Link layer security mechanism, providing • Access Control • Integrity • Confidentiality • Transparency to applications and programmers

  19. Block Ciphers • Pseudorandom permutation (invertible) • DES, RC5, Skipjack, AES • Maps n bits of plaintext to n bits of ciphertext • Block size n is typically 64 or 128 bits • Key size k is typically 64 or 128 bits

  20. m1 m2 iv Ek Ek Ek c1 c2 CBC-Mode Symmetric key encryption • Confidentiality achieved by encryption • Encryption schemes (modes) can be built using block ciphers • CBC-mode: break a m bit message into 64 bit chunks (m1,m2,..) • Transmit (c1, c2, …) and iv • iv is needed to achieve semantic security • A message looks different every time it is encrypted • iv reuse may leak information

  21. MAC: Message Authentication Code • Encryption is not enough to ensure message integrity • Receiver cannot detect changes in the ciphertext • Resulting plaintext will still be valid • Integrity achieved by a message authentication code • A t bit cryptographic checksum with a k bit key from an m bit message • Can detect both malicious changes and random errors • Replaces CRC • Can be built using a block cipher • MAC key should be different than encryption key m1 m2 length Ek Ek Ek MAC CBC-MAC Mode

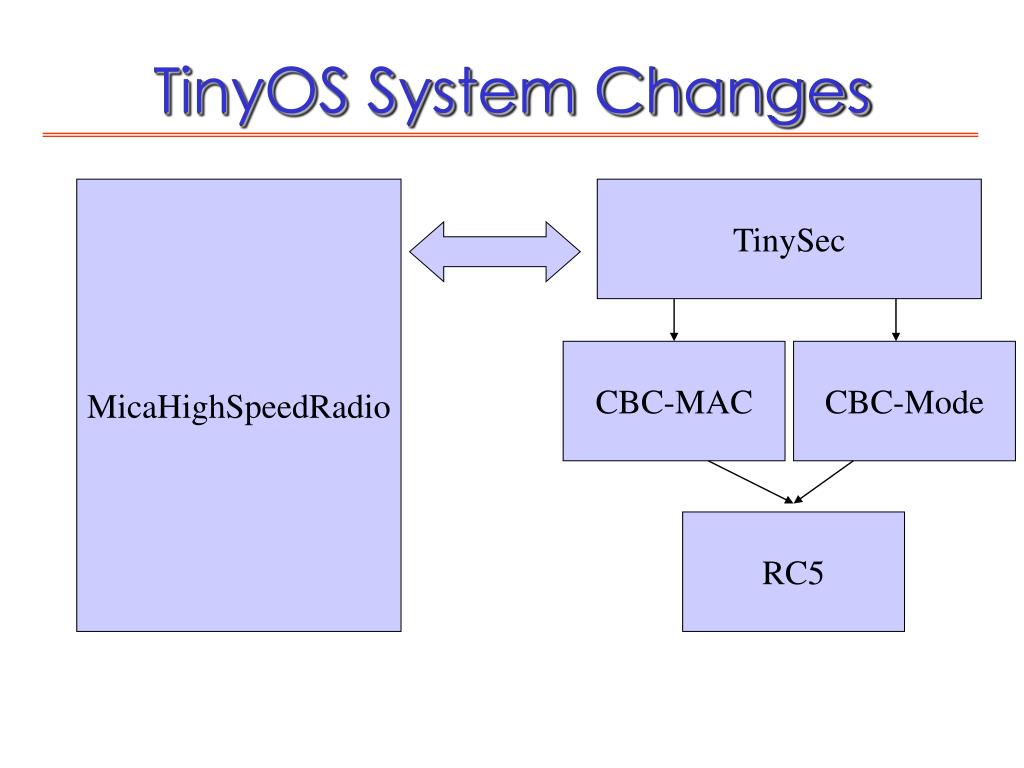

  22. TinyOS System Changes MicaHighSpeedRadio TinySec CBC-MAC CBC-Mode RC5

  23. Grp_ID dest AM length data CRC dest AM IV length data MAC 2 2 1 1 1 2 1 4 1 4 Encrypted MAC’ed Packet Format • Key Differences No CRC -2 bytes No group ID -1 bytes MAC +4 bytes IV +4 bytes • Total: +5 bytes

  24. Usage • Need to be aware of keys & keyfile • Currently, keys part of program, not intrinsic to mote (similar to moteID) • Makerules generates a keyfile if none exists and then uses it for programming all motes; • Keyfiles tied to a particular TinyOS installation. Manual transfer needed to install motes from different computers. • Only application level code change: • Just use SecureGenericComm instead of GenericComm • Works on Simulator

  25. Analysis • Access control and integrity • Probability of blind MAC forgery 1/232 • Industrial strength is usually 1/264 or less • Replay protection not provided, but can be done better at higher layers • Confidentiality • Lots of ways to structure and manage IV’s, but IV reuse will occur after ~65000 messages from each node • For CBC mode, IV reuse is not as severe has other modes • Does not necessarily leak plaintext • Common solution is to increase IV length  adds packet overhead
