Chapter 12:gawk Yes it sounds funny

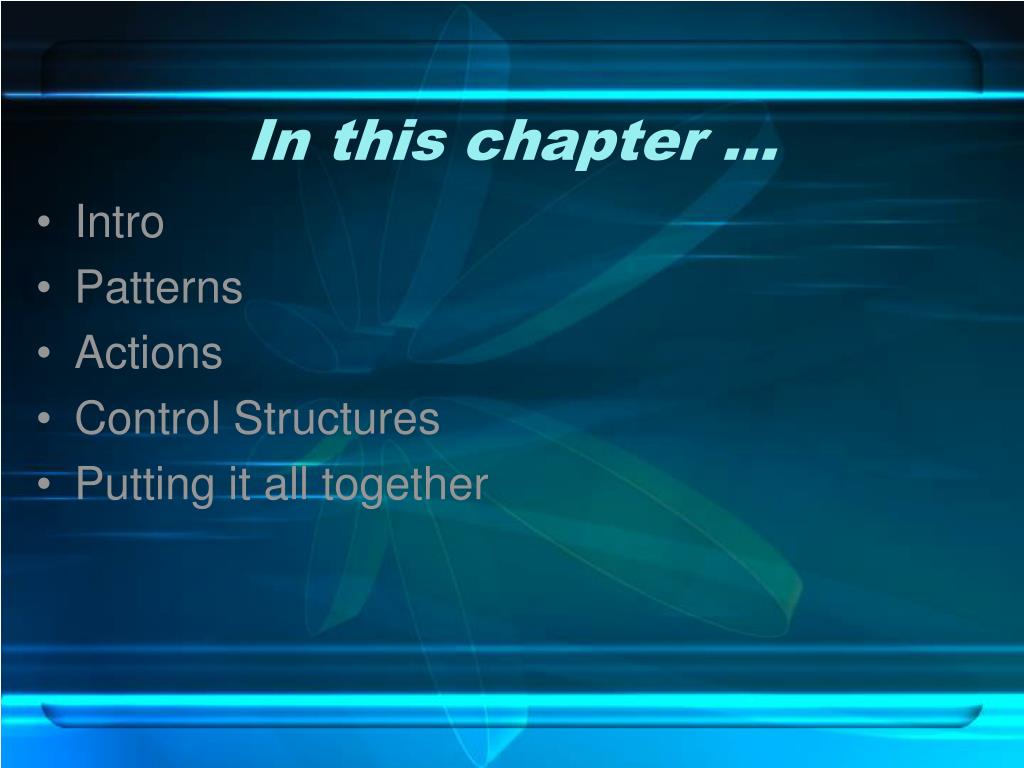

In this chapter … • Intro • Patterns • Actions • Control Structures • Putting it all together

gawk? • GNU awk • awk == Aho, Weinberger and Kernighan • Pattern processing language • Filters data and generates reports

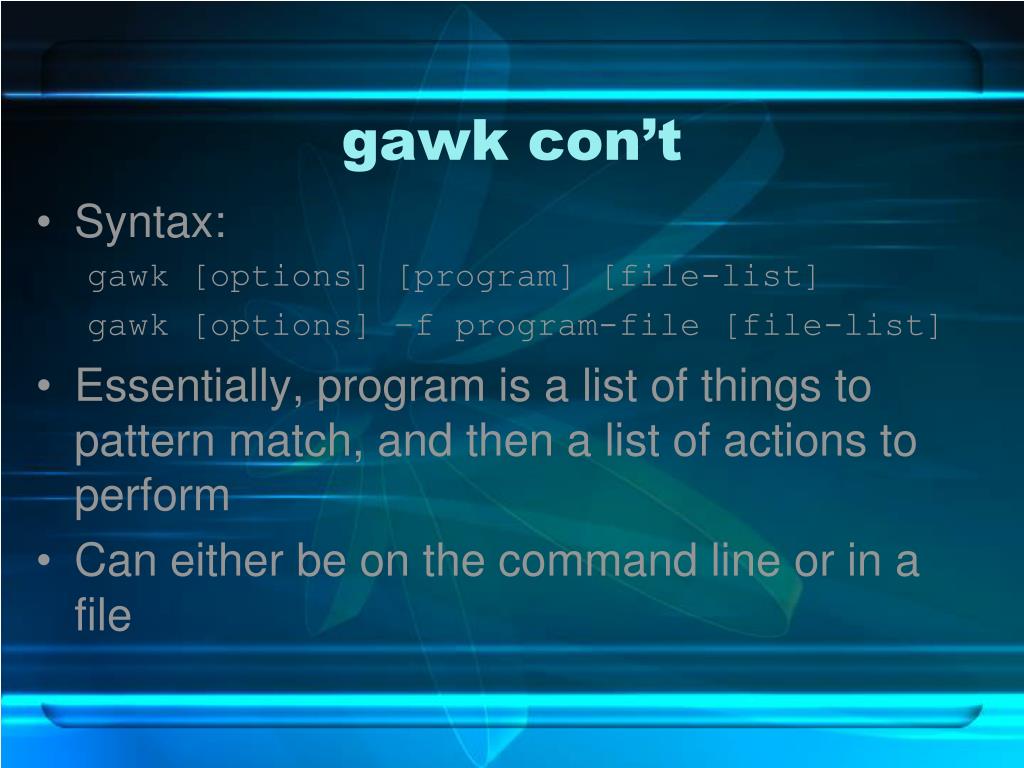

gawk con’t • Syntax: gawk [options] [program] [file-list] gawk [options] –f program-file [file-list] • Essentially, program is a list of things to pattern match, and then a list of actions to perform • Can either be on the command line or in a file

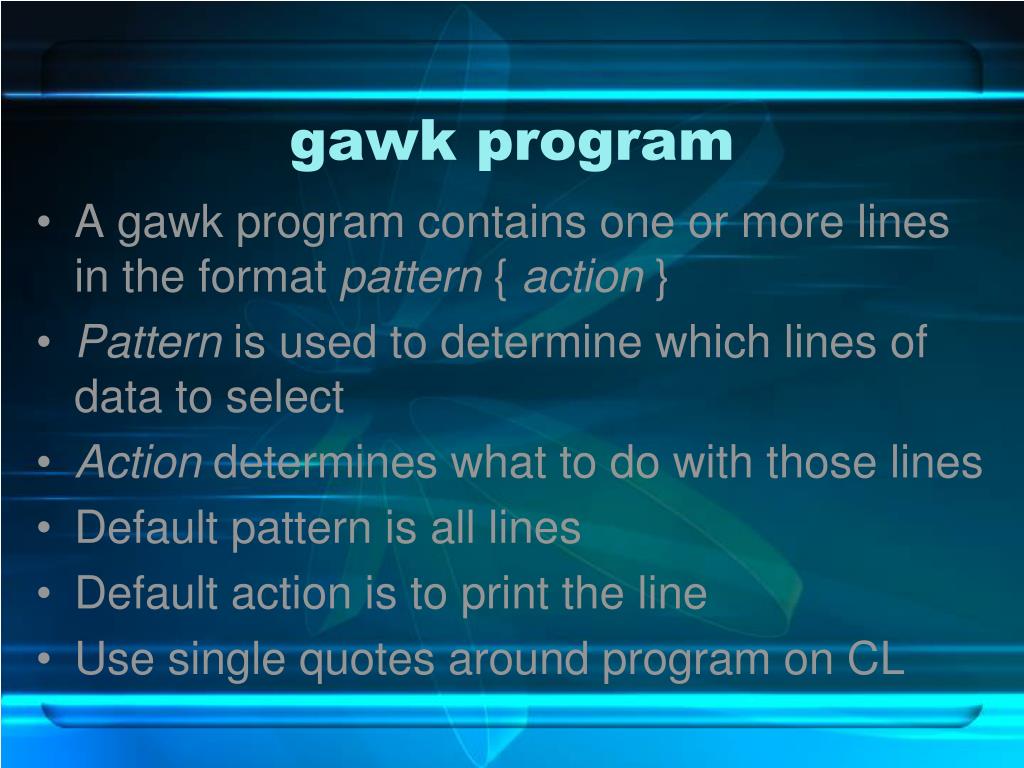

gawk program • A gawk program contains one or more lines in the format pattern { action } • Pattern is used to determine which lines of data to select • Action determines what to do with those lines • Default pattern is all lines • Default action is to print the line • Use single quotes around program on CL

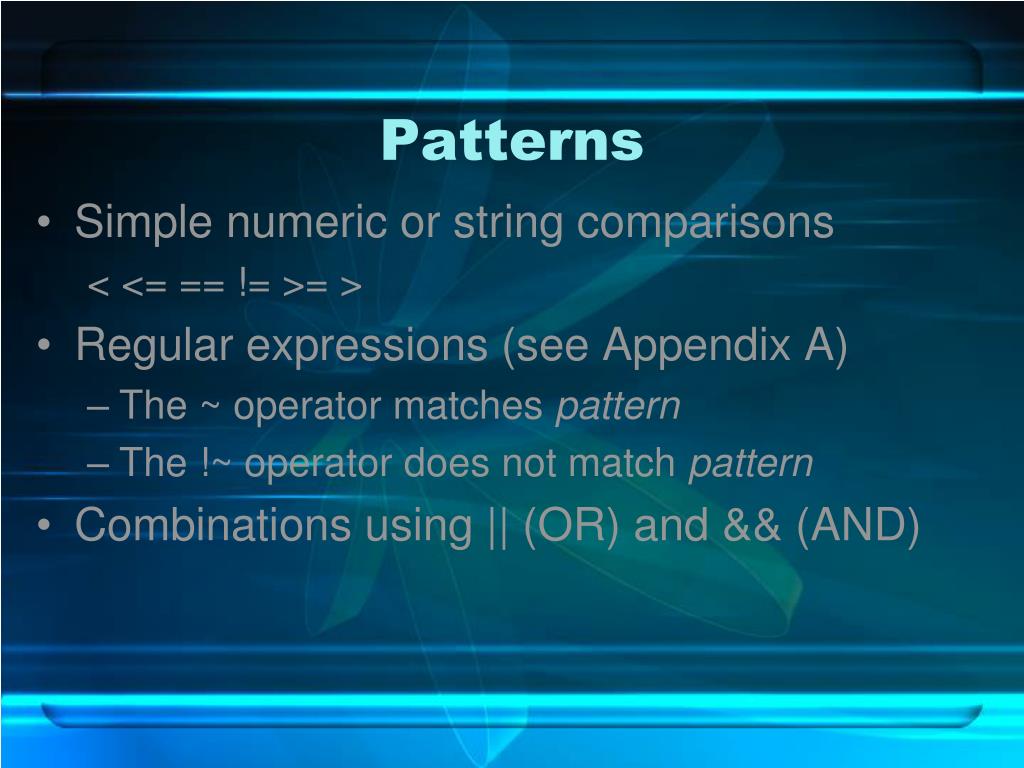

Patterns • Simple numeric or string comparisons < <= == != >= > • Regular expressions (see Appendix A) • The ~ operator matches pattern • The !~ operator does not match pattern • Combinations using || (OR) and && (AND)

Patterns, con’t • BEGIN – before any lines are processed • END – after all lines are processed • pattern1,pattern2 – a range, that starts with pattern 1, and ends with pattern2. After matching pattern2, gawk attempts to match pattern1 again

Variables • $0 – the current record (line) • $1-$n – fields in current record • FS – input field separator (default: SPACE/ TAB) • NF – number of fields in record • NR – current record number • RS – input record separator (default: NEWLINE) • OFS – output field separator • ORS – output record separator

Associative Arrays • A variable type similar to an array, but with strings as indexes (instead of integers) • Ex • myAssocArray[name] = “Bob” • myAssocArray[hometown] = “Austin” • Ex • studentGrades[123-45-6789] = 75 • studentGrades[987-65-4321] = 100

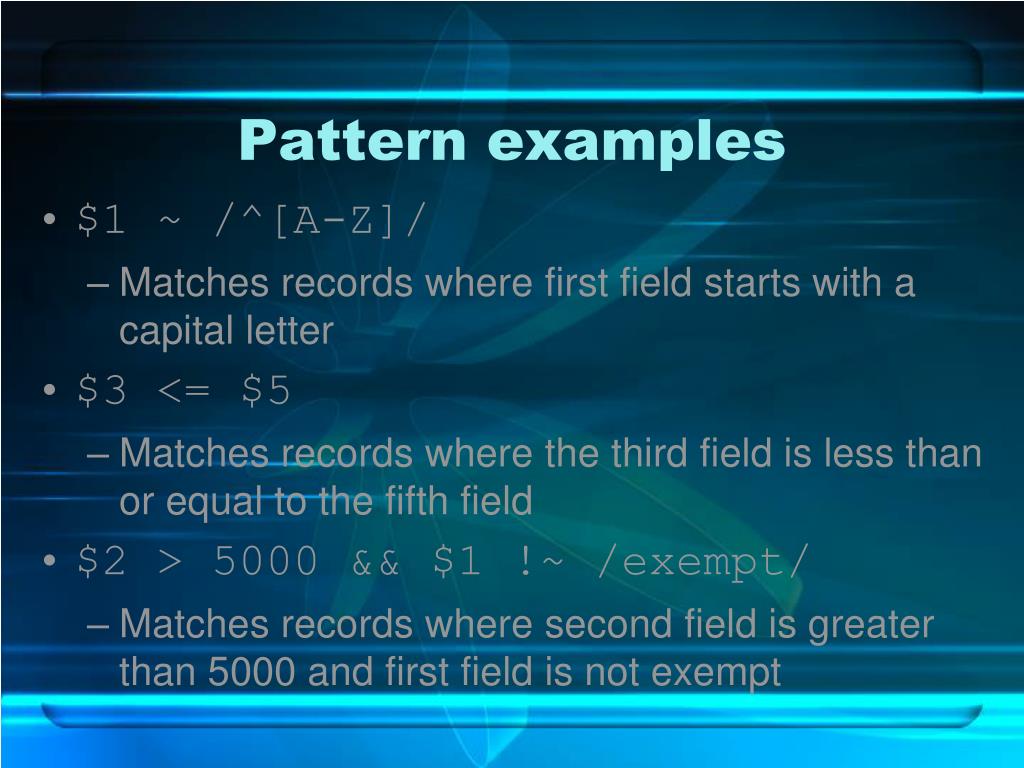

Pattern examples • $1 ~ /^[A-Z]/ • Matches records where first field starts with a capital letter • $3 <= $5 • Matches records where the third field is less than or equal to the fifth field • $2 > 5000 && $1 !~ /exempt/ • Matches records where second field is greater than 5000 and first field is not exempt

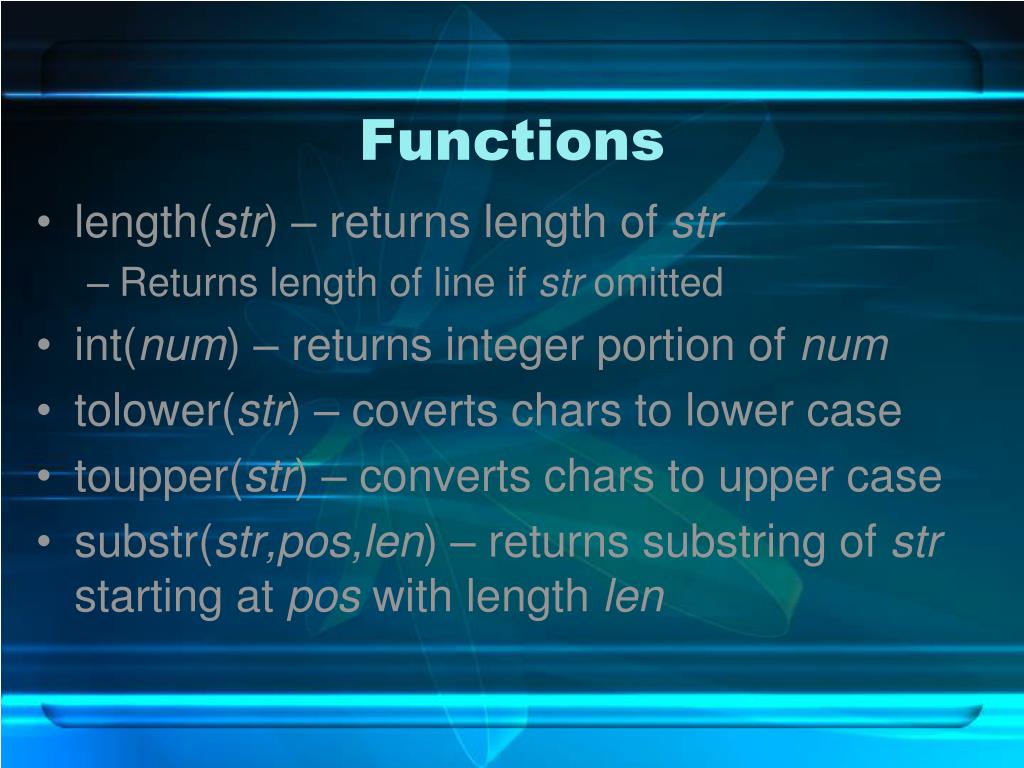

Functions • length(str) – returns length of str • Returns length of line if str omitted • int(num) – returns integer portion of num • tolower(str) – coverts chars to lower case • toupper(str) – converts chars to upper case • substr(str,pos,len) – returns substring of str starting at pos with length len

Actions • Default action is print entire record • Using print, can print out particular parts (i.e., fields) • Ex. { print $1 } • Put literal strings in single quotes • By default multiple parameters catenated • Use comma to use OFS • Ex. { print $1, $5 }

Actions, con’t • Separate multiple actions by semicolons • Other actions usually involve variables (i.e., incrementors, accumulators) • Variables need not be formally initialized • By default set to zero or null • Standard operators function normally * / % + - = ++ -- += -= *= /= %=

Actions, con’t • Instead of print you can use printf (c-style) • Syntax: • printf “control-string”, arg1, arg2 … argn • control-string contains one or more conversion • %[-][[x].[y]]conv • - –left justifyx – min field width y – decimal places • conv: d – decimalf – floatingpoints – string • Ex: %.2f – floating point with two decimal places

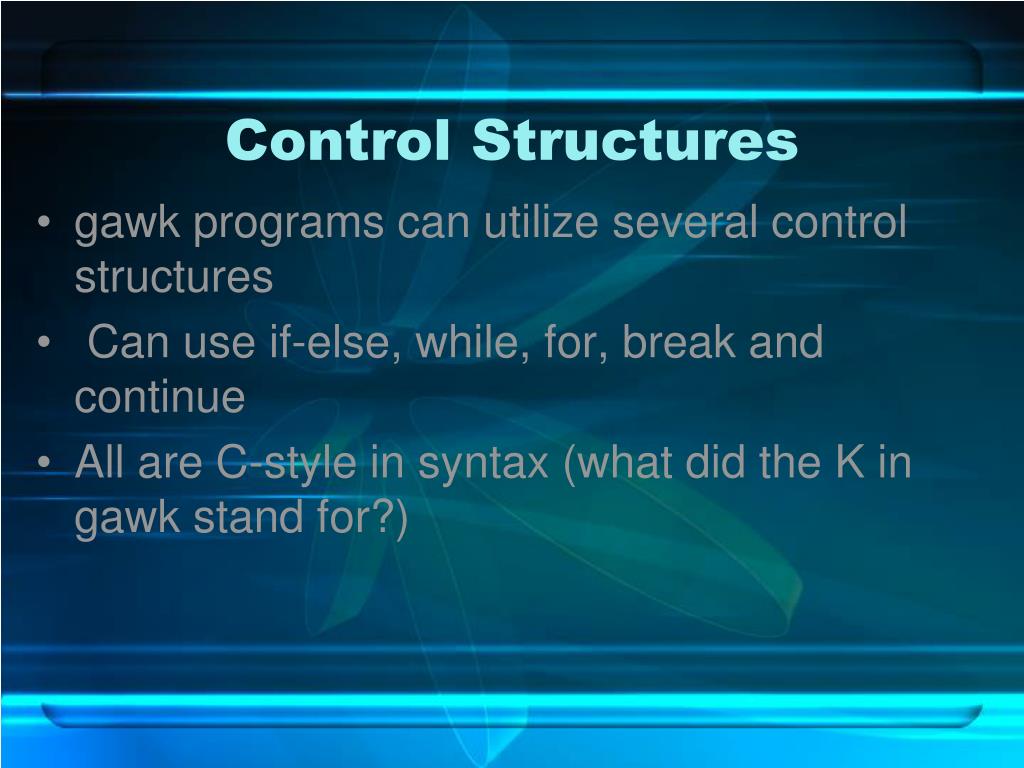

Control Structures • gawk programs can utilize several control structures • Can use if-else, while, for, break and continue • All are C-style in syntax (what did the K in gawk stand for?)

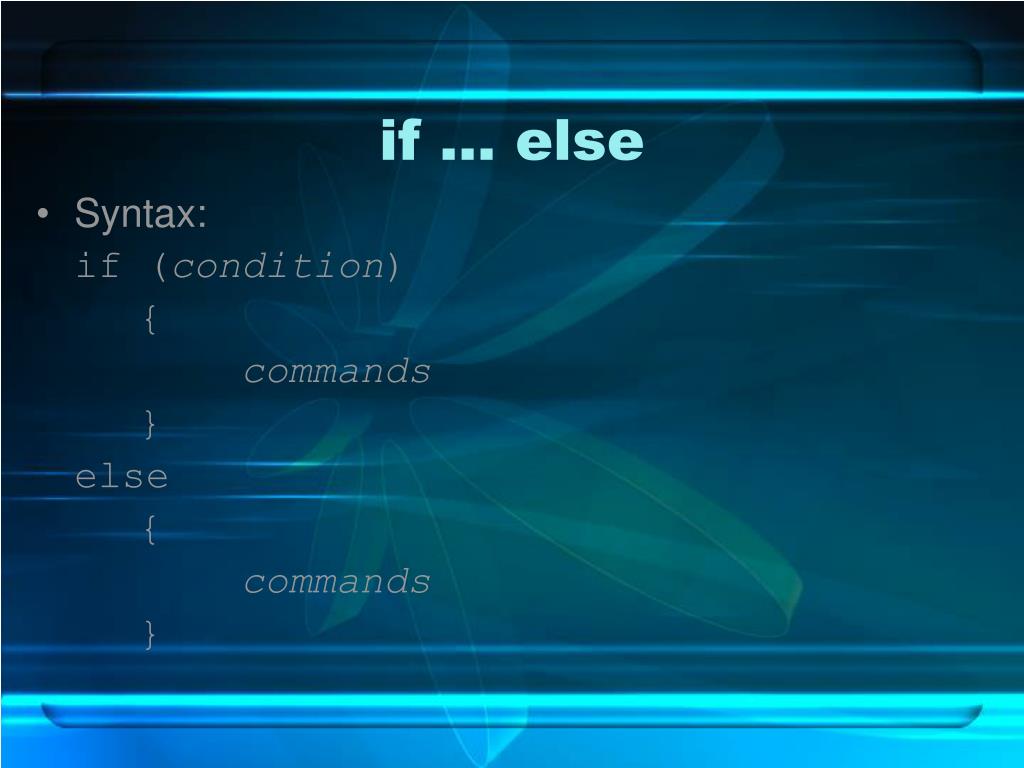

if … else • Syntax: if (condition) { commands } else { commands }

while • Syntax: while (condition) { commands }

for • Syntax: for (init; condition; increment) { commands } • You can use break and continue for both for and while loops

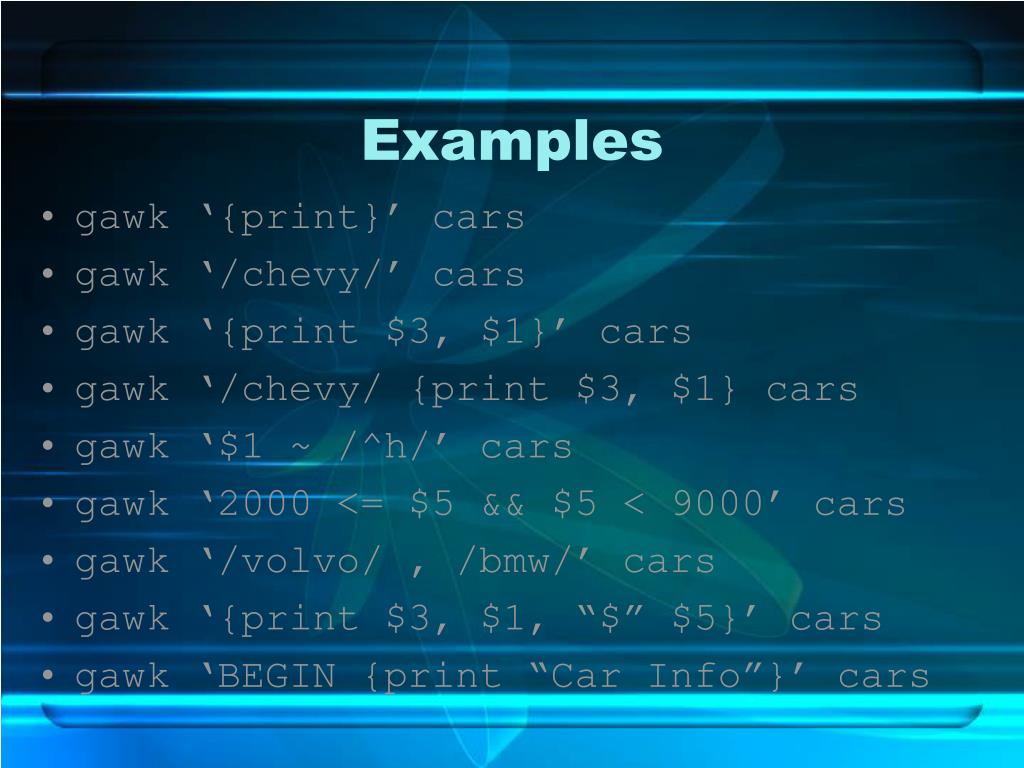

Examples • gawk ‘{print}’ cars • gawk ‘/chevy/’ cars • gawk ‘{print $3, $1}’ cars • gawk ‘/chevy/ {print $3, $1} cars • gawk ‘$1 ~ /^h/’ cars • gawk ‘2000 <= $5 && $5 < 9000’ cars • gawk ‘/volvo/ , /bmw/’ cars • gawk ‘{print $3, $1, “$” $5}’ cars • gawk ‘BEGIN {print “Car Info”}’ cars

Putting it all together BEGIN{ print " Miles" print "Make Model Year (000) Price" print \ "--------------------------------------------------" } { if ($1 ~ /ply/) $1 = "plymouth" if ($1 ~ /chev/) $1 = "chevrolet" printf "%-10s %-8s %2d %5d $ %8.2f\n",\ $1, $2, $3, $4, $5 }

Results gawk -f printf_demo cars Miles Make Model Year (000) Price -------------------------------------------------- plymouth fury 1970 73 $ 2500.00 chevrolet malibu 1999 60 $ 3000.00 ford mustang 1965 45 $ 10000.00 volvo s80 1998 102 $ 9850.00 ford thundbd 2003 15 $ 10500.00 chevrolet malibu 2000 50 $ 3500.00 bmw 325i 1985 115 $ 450.00 honda accord 2001 30 $ 6000.00 ford taurus 2004 10 $ 17000.00 toyota rav4 2002 180 $ 750.00 chevrolet impala 1985 85 $ 1550.00 ford explor 2003 25 $ 9500.00

Associative Arrays • gawk ‘ {manuf[$1]++}END {for(name in manuf) print name,\ manuf[name]}’ cars | sort • bmw 1chevy 3ford 4honda 1plym 1toyota 1volvo 1

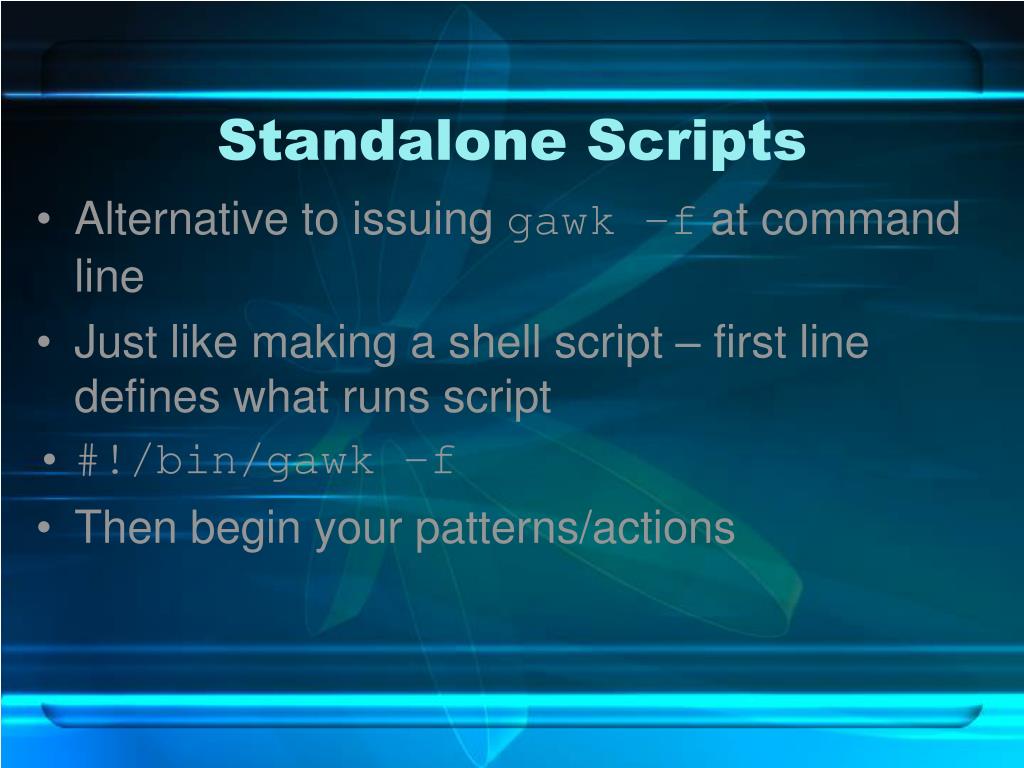

Standalone Scripts • Alternative to issuing gawk –f at command line • Just like making a shell script – first line defines what runs script • #!/bin/gawk –f • Then begin your patterns/actions

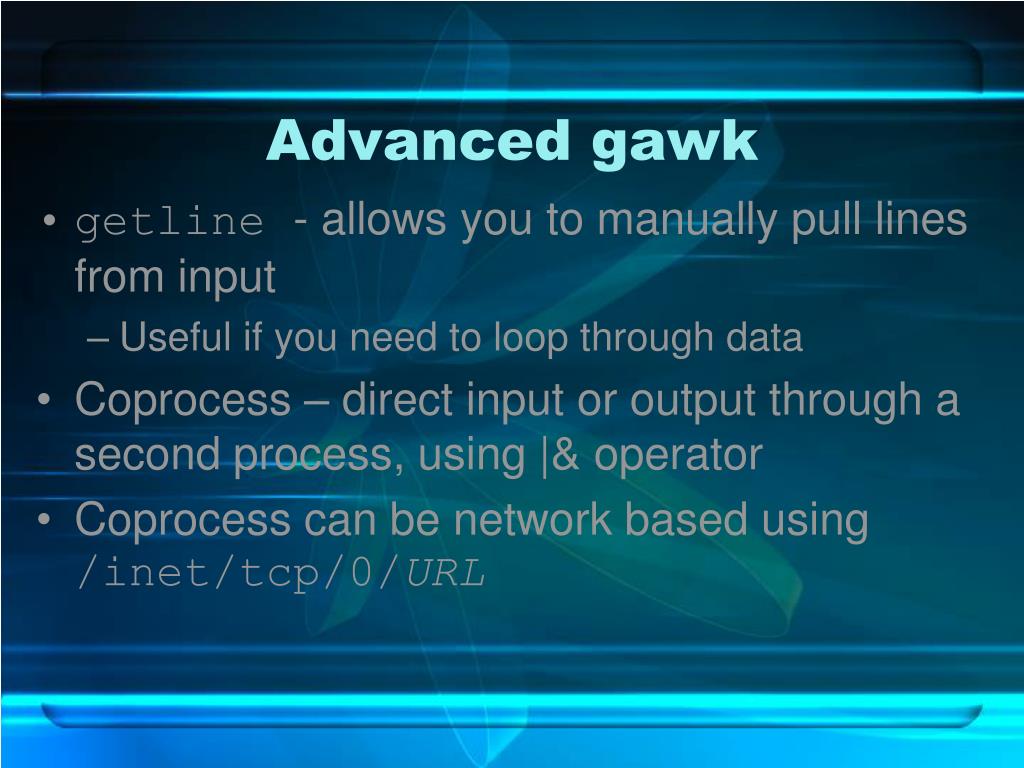

Advanced gawk • getline - allows you to manually pull lines from input • Useful if you need to loop through data • Coprocess – direct input or output through a second process, using |& operator • Coprocess can be network based using /inet/tcp/0/URL
