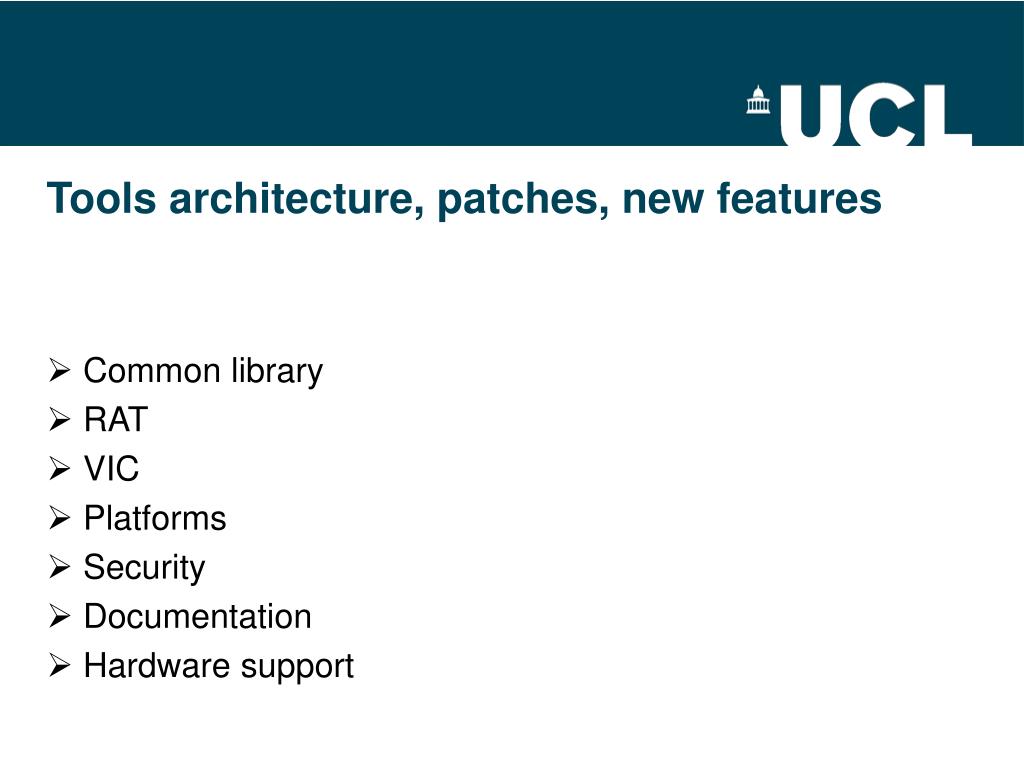

  1. Tools architecture, patches, new features Common library RAT VIC Platforms Security Documentation Hardware support

  2. Current variants • Many! • Focus on those of interest to the research community • UCL, AccessGrid, VRVS, NCHC • Other projects make use of the tools • Individual patches • Integrate or drop? • Resolve conflicting patches SUMOVER Project workshop: 28-30 November 2005, UCL.

  3. New features not in UCL CVS rat vic common UCL 4.2.26 2.8ucl-1.1.6 1.2.15 AG 4.2.22 2.8ucl-1.1.3-AG 1.2.12 VRVS 4.3.5 2.9.1 1.2.10 NCHC n/a nchc-1.3.6 ? SUMOVER Project workshop: 28-30 November 2005, UCL.

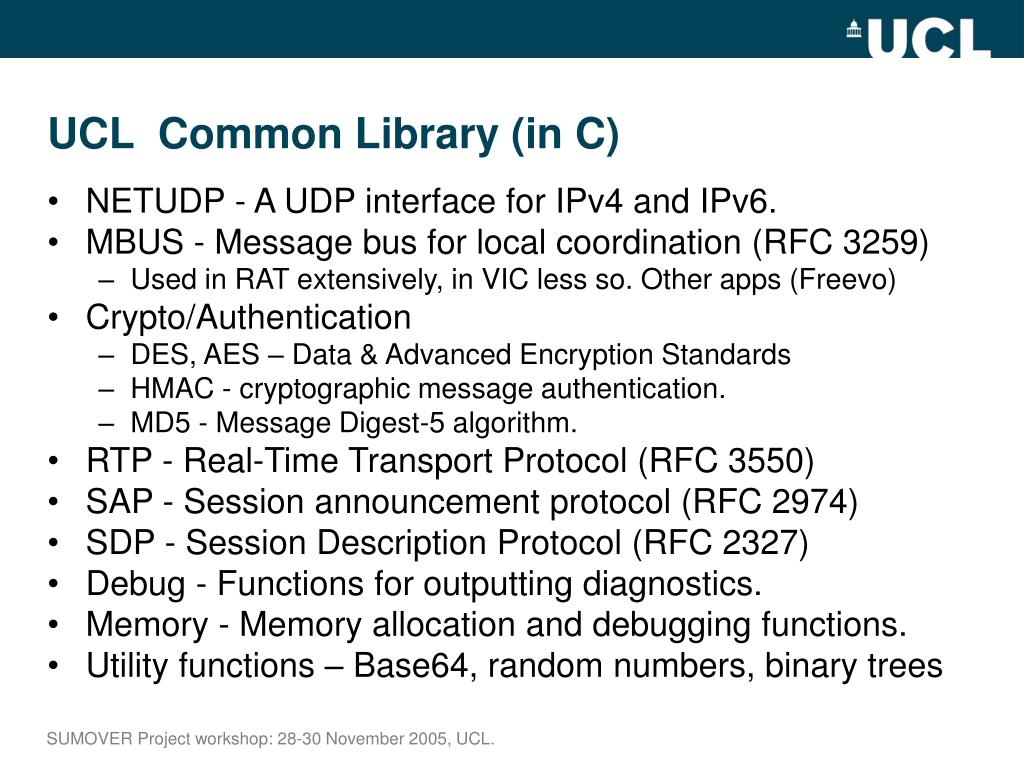

  4. UCL Common Library (in C) • NETUDP - A UDP interface for IPv4 and IPv6. • MBUS - Message bus for local coordination (RFC 3259) • Used in RAT extensively, in VIC less so. Other apps (Freevo) • Crypto/Authentication • DES, AES – Data & Advanced Encryption Standards • HMAC - cryptographic message authentication. • MD5 - Message Digest-5 algorithm. • RTP - Real-Time Transport Protocol (RFC 3550) • SAP - Session announcement protocol (RFC 2974) • SDP - Session Description Protocol (RFC 2327) • Debug - Functions for outputting diagnostics. • Memory - Memory allocation and debugging functions. • Utility functions – Base64, random numbers, binary trees SUMOVER Project workshop: 28-30 November 2005, UCL.

  5. Existing patches • IA64 support (ANU) • Thread-safe operation • Colin’s patches • Orka, Hi-speed mods, buffering • Smart Network interface selection SUMOVER Project workshop: 28-30 November 2005, UCL.

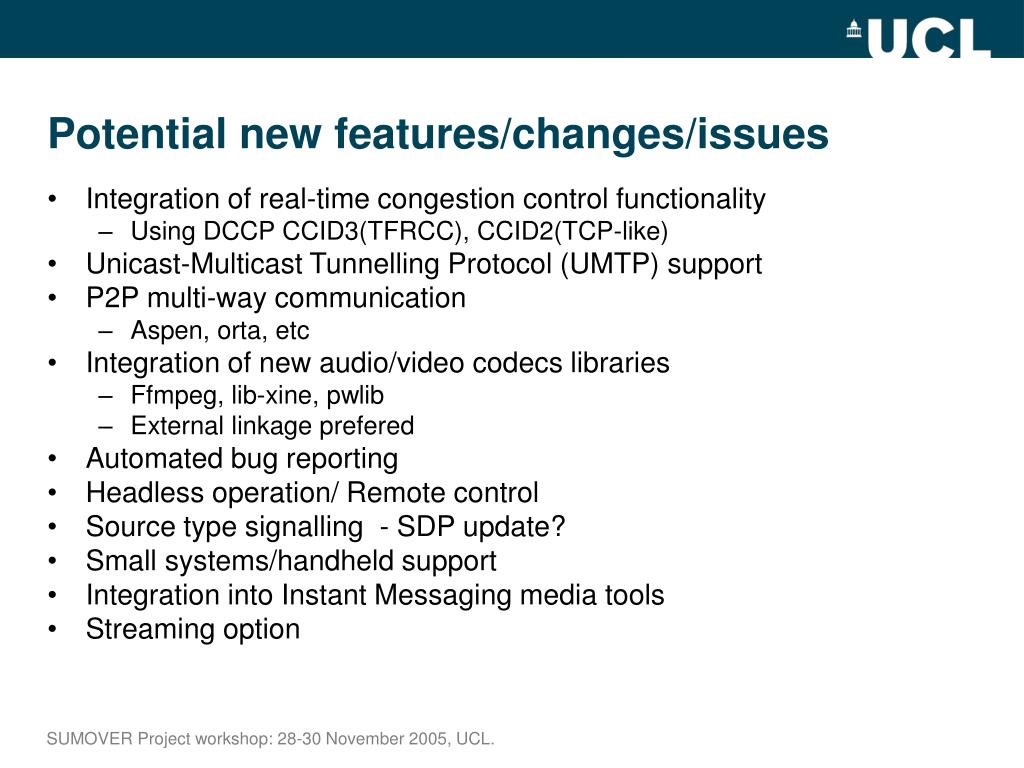

  6. Potential new features/changes/issues • Integration of real-time congestion control functionality • Using DCCP CCID3(TFRCC), CCID2(TCP-like) • Unicast-Multicast Tunnelling Protocol (UMTP) support • P2P multi-way communication • Aspen, orta, etc • Integration of new audio/video codecs libraries • Ffmpeg, lib-xine, pwlib • External linkage prefered • Automated bug reporting • Headless operation/ Remote control • Source type signalling - SDP update? • Small systems/handheld support • Integration into Instant Messaging media tools • Streaming option SUMOVER Project workshop: 28-30 November 2005, UCL.

  7. RAT • Two main processes in C with tcl/tk GUI • Controller process parses arguments and spawns 2 processes • Communication using MBUS over loopback multicast • Built on UCL common library • Media Engine • Auddev: Drivers to various audio hardware • Linux (new: ALSA1.0 & OSS), Win, OSX, Solaris, BSD • Packet reception/transmission and RTP de/packetisation • Mixing, sample rate and play-out point adaptation • Codec_: – G.711, G.726, GSM, DVI, LPC, L16.. • User interface • Tcl/tk GUI to control media engine • Others possible (Java one has been done) SUMOVER Project workshop: 28-30 November 2005, UCL.

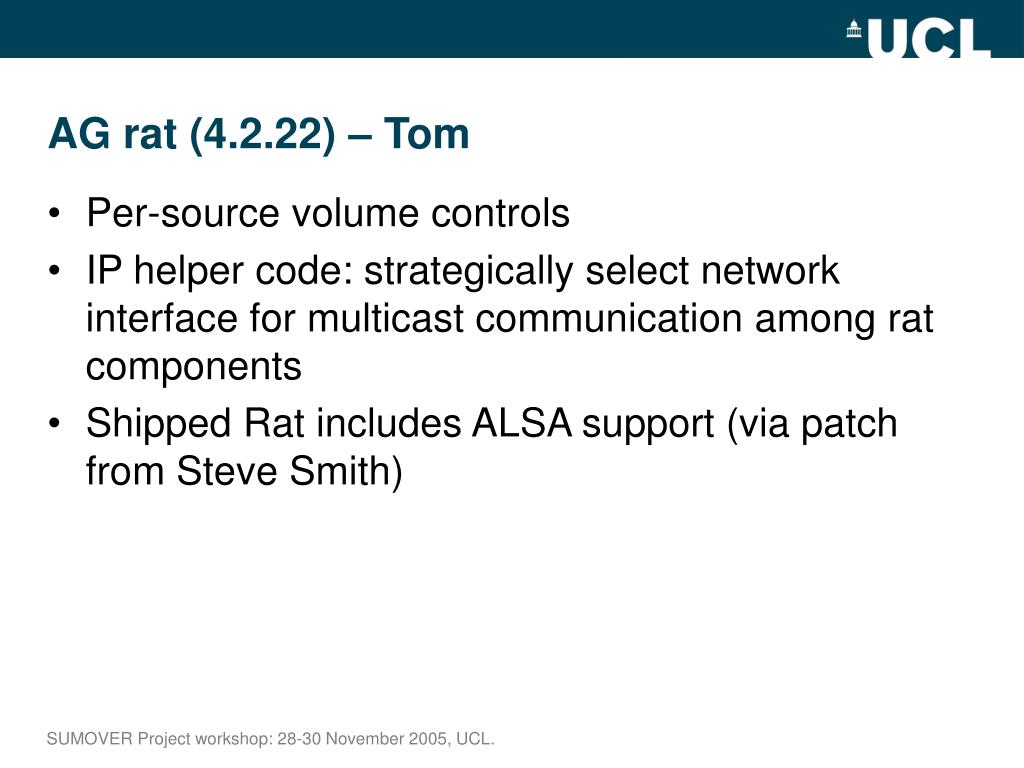

  8. AG rat (4.2.22) – Tom • Per-source volume controls • IP helper code: strategically select network interface for multicast communication among rat components • Shipped Rat includes ALSA support (via patch from Steve Smith) SUMOVER Project workshop: 28-30 November 2005, UCL.

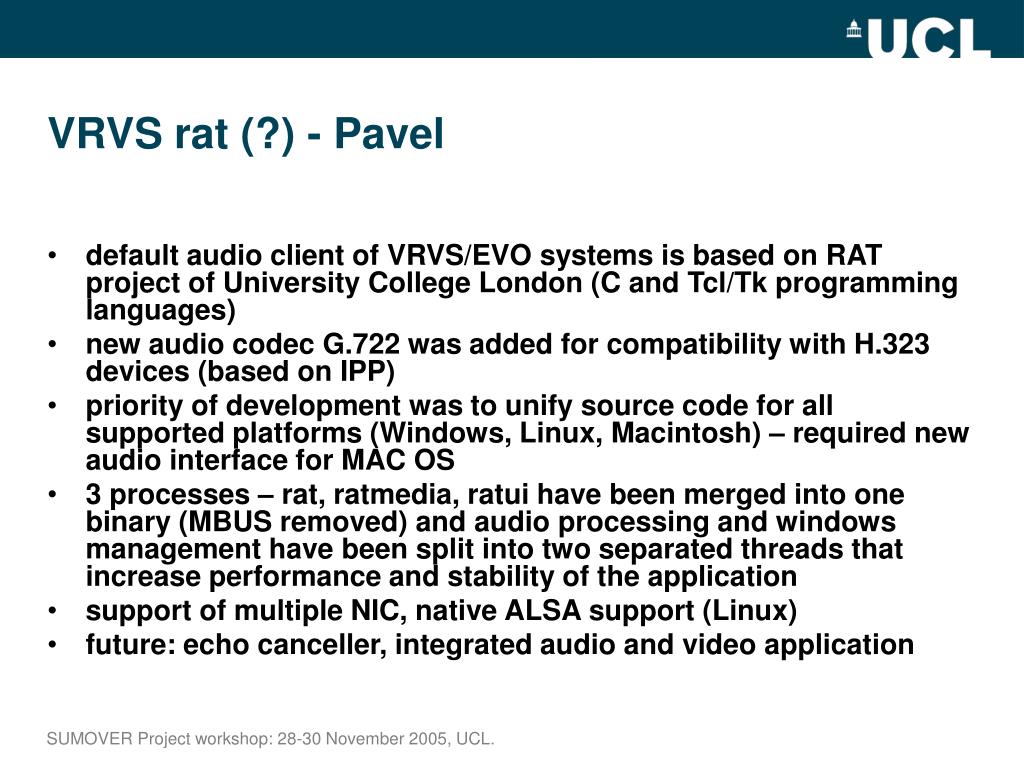

  9. VRVS rat (?) - Pavel • default audio client of VRVS/EVO systems is based on RAT project of University College London (C and Tcl/Tk programming languages) • new audio codec G.722 was added for compatibility with H.323 devices (based on IPP) • priority of development was to unify source code for all supported platforms (Windows, Linux, Macintosh) – required new audio interface for MAC OS • 3 processes – rat, ratmedia, ratui have been merged into one binary (MBUS removed) and audio processing and windows management have been split into two separated threads that increase performance and stability of the application • support of multiple NIC, native ALSA support (Linux) • future: echo canceller, integrated audio and video application SUMOVER Project workshop: 28-30 November 2005, UCL.

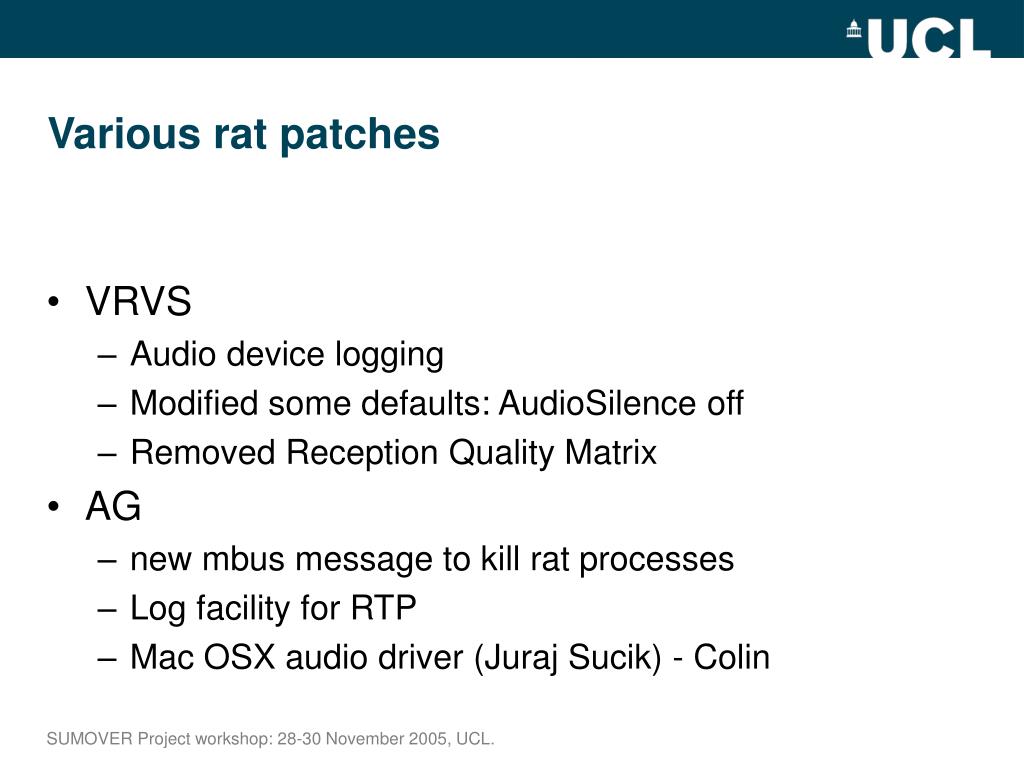

  10. Various rat patches • VRVS • Audio device logging • Modified some defaults: AudioSilence off • Removed Reception Quality Matrix • AG • new mbus message to kill rat processes • Log facility for RTP • Mac OSX audio driver (Juraj Sucik) - Colin SUMOVER Project workshop: 28-30 November 2005, UCL.

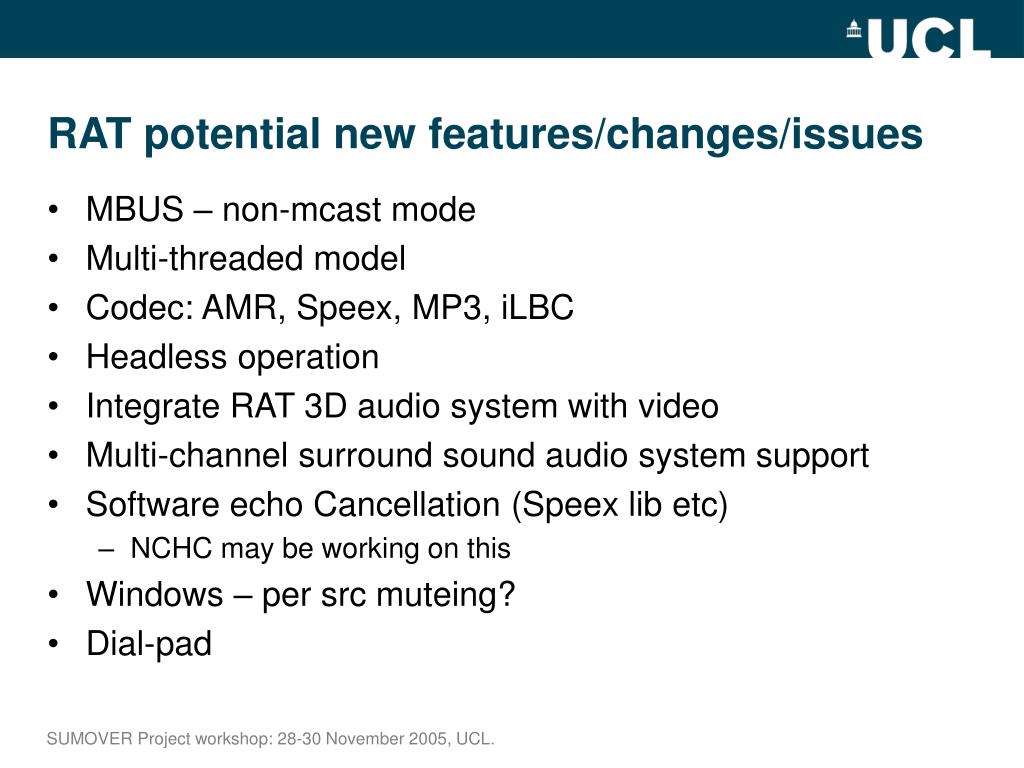

  11. RAT potential new features/changes/issues • MBUS – non-mcast mode • Multi-threaded model • Codec: AMR, Speex, MP3, iLBC • Headless operation • Integrate RAT 3D audio system with video • Multi-channel surround sound audio system support • Software echo Cancellation (Speex lib etc) • NCHC may be working on this • Windows – per src muteing? • Dial-pad SUMOVER Project workshop: 28-30 November 2005, UCL.

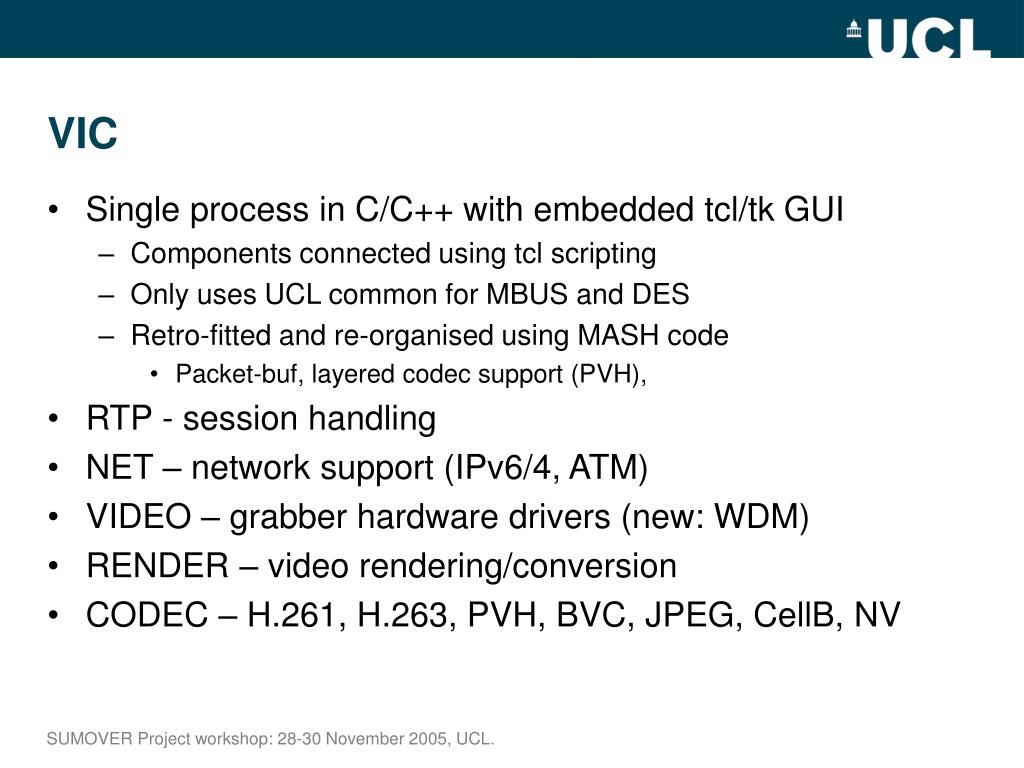

  12. VIC • Single process in C/C++ with embedded tcl/tk GUI • Components connected using tcl scripting • Only uses UCL common for MBUS and DES • Retro-fitted and re-organised using MASH code • Packet-buf, layered codec support (PVH), • RTP - session handling • NET – network support (IPv6/4, ATM) • VIDEO – grabber hardware drivers (new: WDM) • RENDER – video rendering/conversion • CODEC – H.261, H.263, PVH, BVC, JPEG, CellB, NV SUMOVER Project workshop: 28-30 November 2005, UCL.

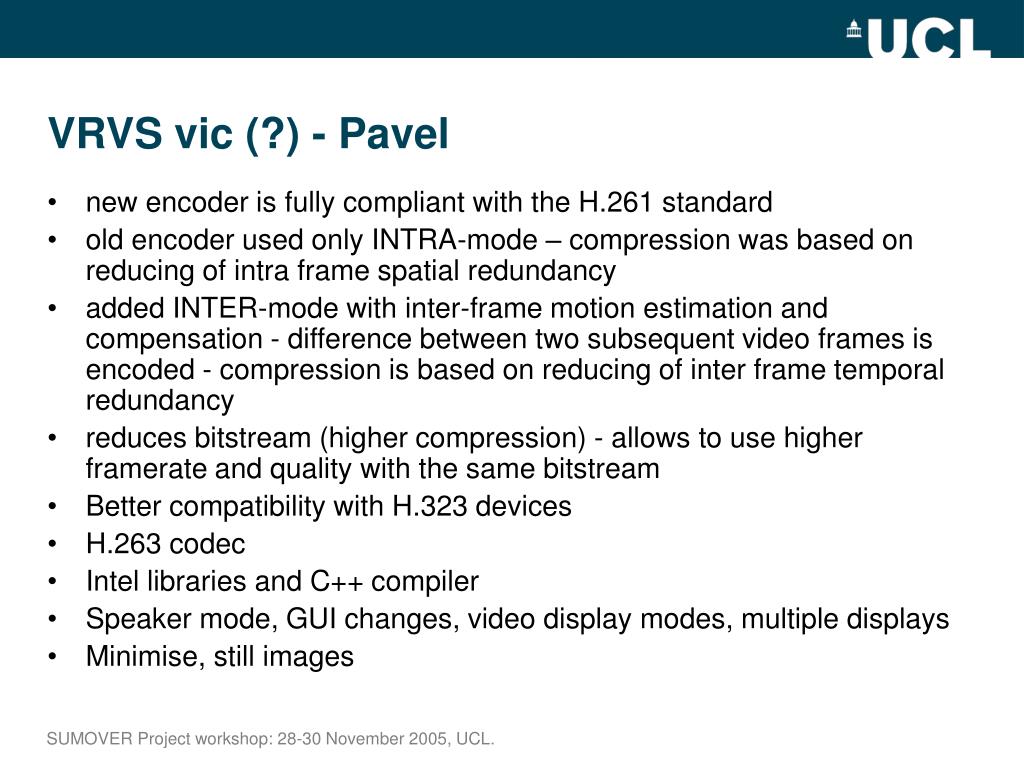

  13. VRVS vic (?) - Pavel • new encoder is fully compliant with the H.261 standard • old encoder used only INTRA-mode – compression was based on reducing of intra frame spatial redundancy • added INTER-mode with inter-frame motion estimation and compensation - difference between two subsequent video frames is encoded - compression is based on reducing of inter frame temporal redundancy • reduces bitstream (higher compression) - allows to use higher framerate and quality with the same bitstream • Better compatibility with H.323 devices • H.263 codec • Intel libraries and C++ compiler • Speaker mode, GUI changes, video display modes, multiple displays • Minimise, still images SUMOVER Project workshop: 28-30 November 2005, UCL.

  14. AG vic (2.8ucl-1.1.3-AG) – Tom • Autoplace • automatically position video windows in a region on screen • OSX support (Doug Kosovic) • support for multiple cameras • separate branch in AG CVS SUMOVER Project workshop: 28-30 November 2005, UCL.

  15. NCHC vic (1.3.6) • MPEG-4 video FGS (ffmpeg) • H.264 (ffmpeg) • Improved performance using MMX, SSE/SSE2 optimisations • Arbitrary video window resizing, full screen video, de-interlacing, h/w assisted rendering for XFree86 XVideo extension • Enabled code profiling • Other minor bug fixes SUMOVER Project workshop: 28-30 November 2005, UCL.

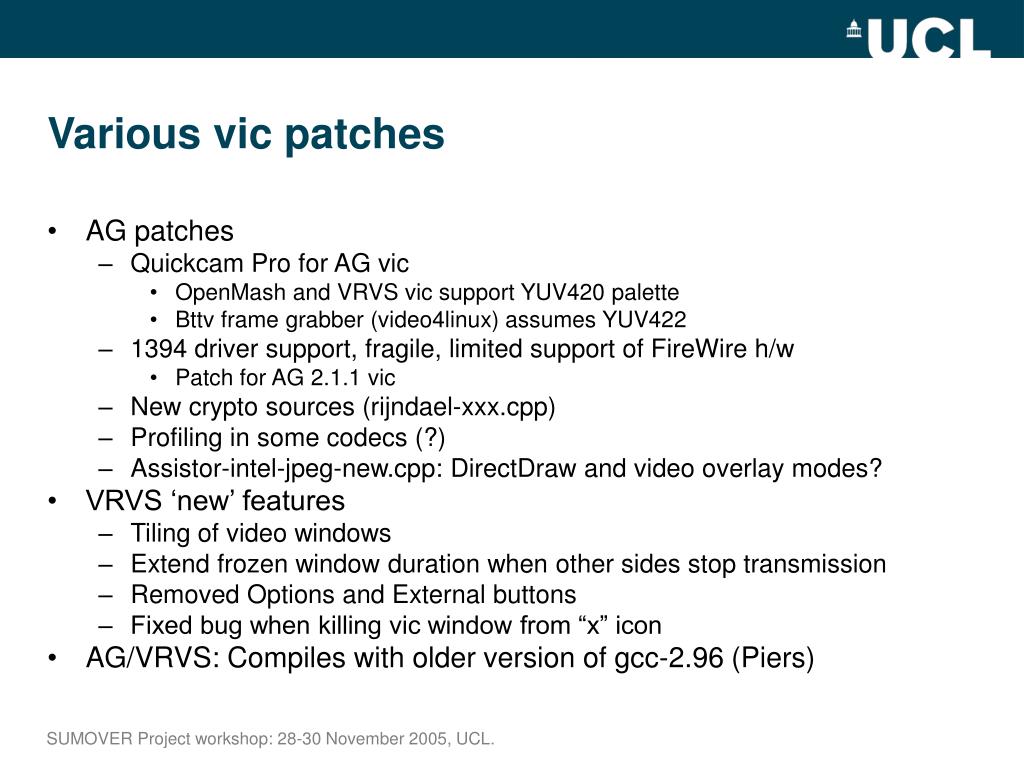

  16. Various vic patches • AG patches • Quickcam Pro for AG vic • OpenMash and VRVS vic support YUV420 palette • Bttv frame grabber (video4linux) assumes YUV422 • 1394 driver support, fragile, limited support of FireWire h/w • Patch for AG 2.1.1 vic • New crypto sources (rijndael-xxx.cpp) • Profiling in some codecs (?) • Assistor-intel-jpeg-new.cpp: DirectDraw and video overlay modes? • VRVS ‘new’ features • Tiling of video windows • Extend frozen window duration when other sides stop transmission • Removed Options and External buttons • Fixed bug when killing vic window from “x” icon • AG/VRVS: Compiles with older version of gcc-2.96 (Piers) SUMOVER Project workshop: 28-30 November 2005, UCL.

  17. VIC potential new features/changes/issues • Clean compile • Basic option panel (hide advanced) – Transmit on front panel • smart defaults • Layout control • What does it mean ..“Waiting for video”…. • New codecs: H.264, MPEG4, DV, HD • Advanced multi-display management systems • Integration of video tiling • Video subtitling/watermarking and vector graphics overlay support • Automatic Audio based active Video window highlighting • Screen scraper grabber – for presentation • VNC-like • Single UI for Video & Audio? • Done before….Relate • Still image • Full lip-synchronisation SUMOVER Project workshop: 28-30 November 2005, UCL.
