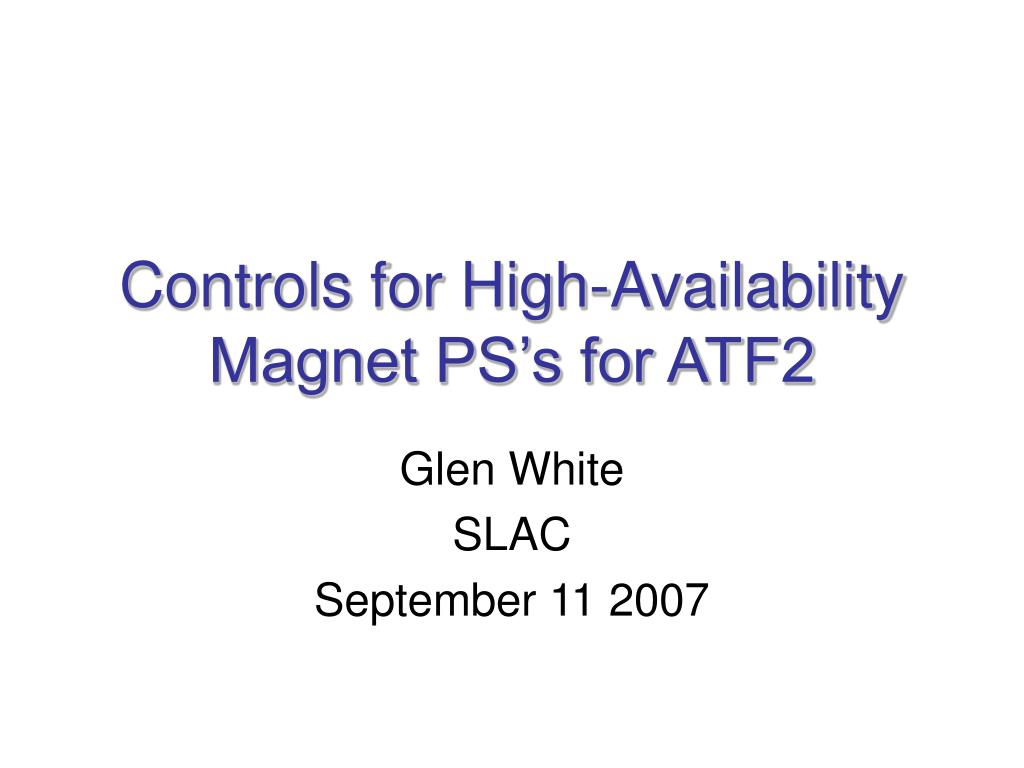

  1. Controls for High-Availability Magnet PS’s for ATF2 Glen White SLAC September 11 2007

  2. Summary of Work Done • EPICS drivers written for Ethernet power supply controllers (EPSC). • Existing EPICS drivers for ContolLogix PLC for ‘bulk’ PS’s imported into IOC. • EPICS database written for control of EPSC’s and ‘bulk’ PS’s. • Simulation mode included. • Client GUI control panels written (Matlab produced with GUIDE, but are standalone through use of compiler). • Testing underway on hardware. • Linux and Windows OS supported for both IOC and client. • Code maintained on SLAC CVS • /afs/slac.stanford.edu/g/ilc/cvs/ATF2/control-software/epics-3.14.8/ioc-ps • Documentation being written on SLAC ATF wiki • http://confluence.slac.stanford.edu/display/ATF/Home

  3. Hardware Support EPICS Drivers • IOC for PS’s is a single host-based EPICS IOC on either a windows or linux PC. • EPSC drivers purpose written using asynDriver interface. • Existing EPICS driver support for ControlLogix PLC’s for bulk PS’s from LANL used.

  4. EPICS Database • EPICS release 3.14.8 used for IOC (and all other EPICS based software tools). • Database records exist for control and readback of desired parameters from EPSC’s and bulk PS PLC’s. e.g: • PSN:pwrOn • PSN:readADC • PSN:current • PSN:status1 • BPSN:pwrOnOff • BPSN:status • Where, N is the PS/magnet (1-36). • Note many->1 mapping for BPS. • The PS status is polled every 1s and corresponding status records updated. • Selecting ‘simulation mode’ disables hardware access code and attempts to simulate normal operating behaviour for use in a Flight Simulator.

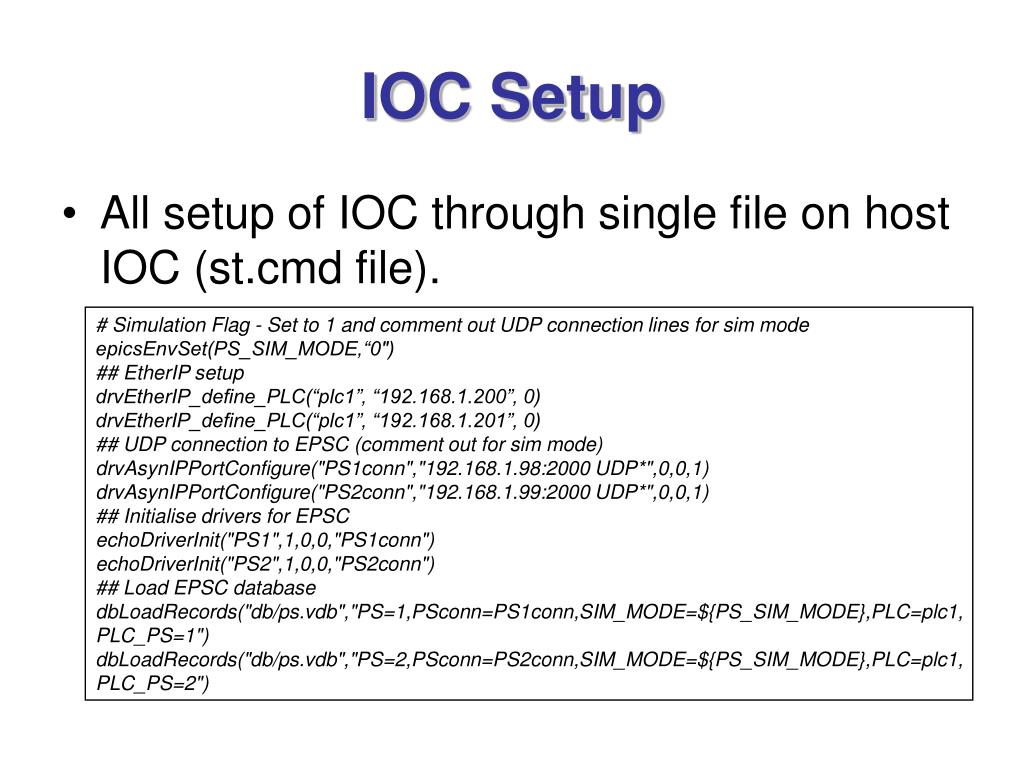

  5. IOC Setup • All setup of IOC through single file on host IOC (st.cmd file). # Simulation Flag - Set to 1 and comment out UDP connection lines for sim mode epicsEnvSet(PS_SIM_MODE,“0") ## EtherIP setup drvEtherIP_define_PLC(“plc1”, “192.168.1.200”, 0) drvEtherIP_define_PLC(“plc1”, “192.168.1.201”, 0) ## UDP connection to EPSC (comment out for sim mode) drvAsynIPPortConfigure("PS1conn","192.168.1.98:2000 UDP*",0,0,1) drvAsynIPPortConfigure("PS2conn","192.168.1.99:2000 UDP*",0,0,1) ## Initialise drivers for EPSC echoDriverInit("PS1",1,0,0,"PS1conn") echoDriverInit("PS2",1,0,0,"PS2conn") ## Load EPSC database dbLoadRecords("db/ps.vdb","PS=1,PSconn=PS1conn,SIM_MODE=${PS_SIM_MODE},PLC=plc1,PLC_PS=1") dbLoadRecords("db/ps.vdb","PS=2,PSconn=PS2conn,SIM_MODE=${PS_SIM_MODE},PLC=plc1,PLC_PS=2")

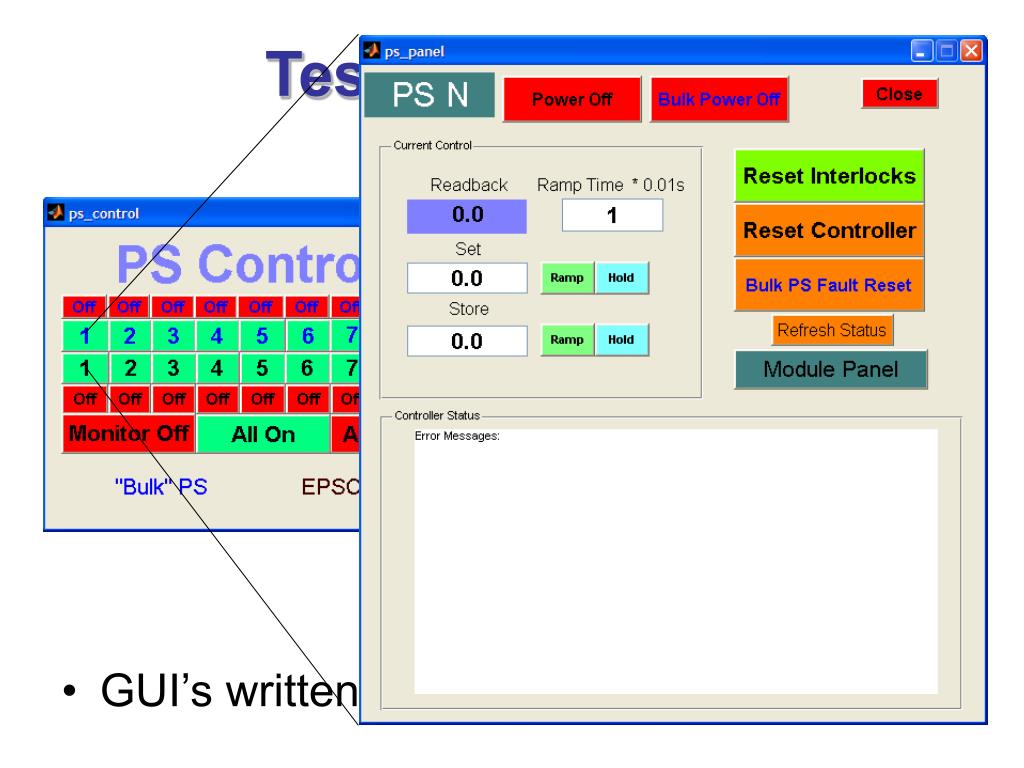

  6. Test Client Displays • GUI’s written for testing and setup of PS’s.

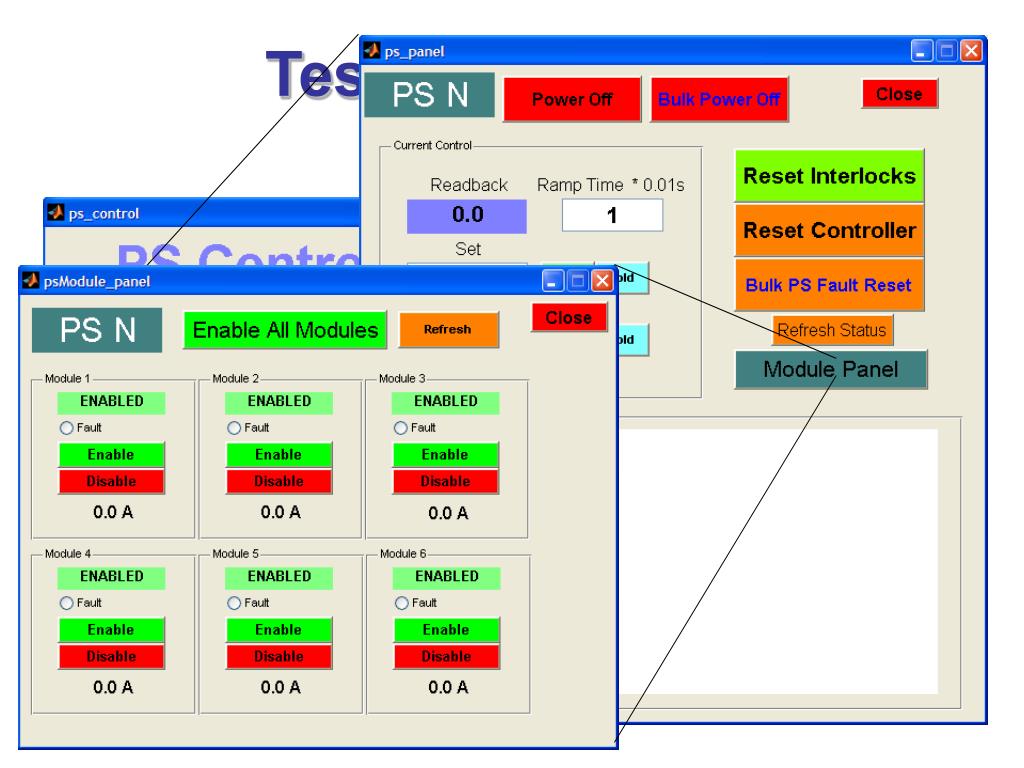

  7. Test Client GUI’s • GUI’s written for testing and setup of PS’s.

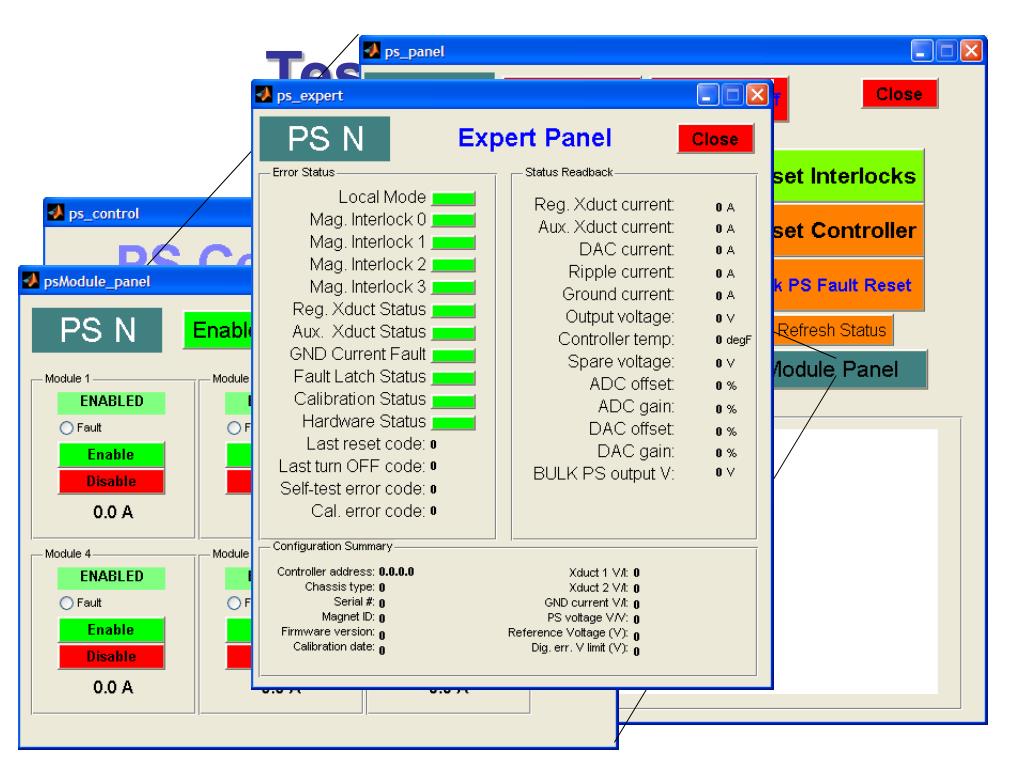

  8. Test Client GUI’s • GUI’s written for testing and setup of PS’s.

  9. Test Client GUI’s • GUI’s written for testing and setup of PS’s.

  10. Test Client GUI’s • GUI’s written for testing and setup of PS’s.

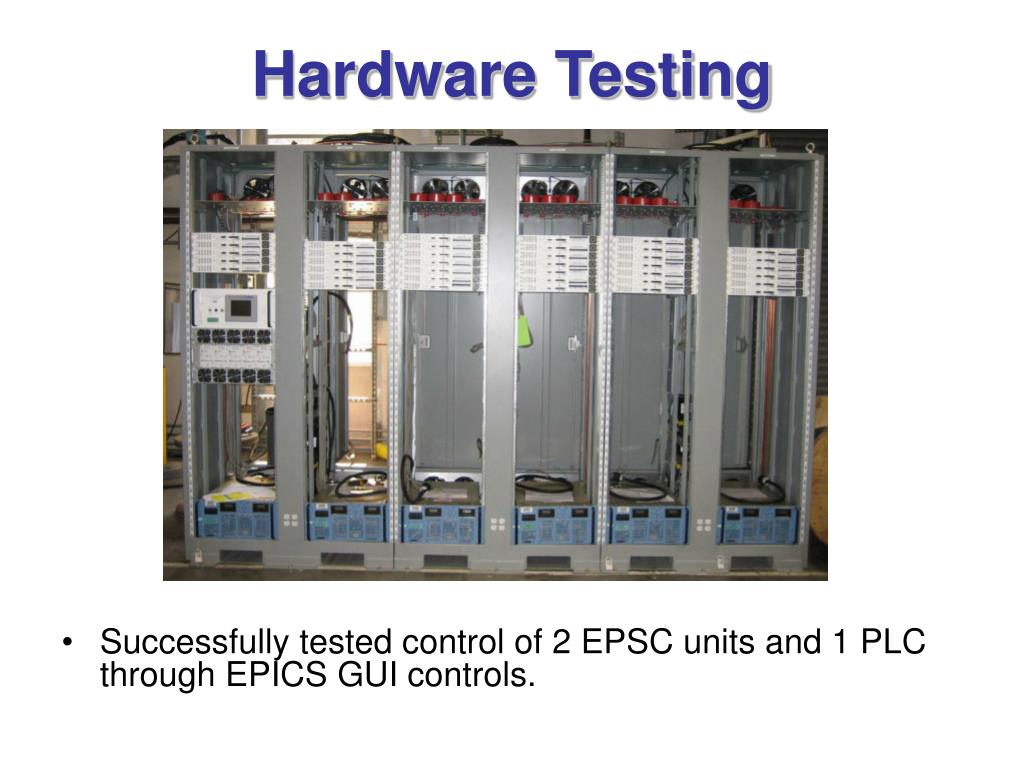

  11. Hardware Testing • Successfully tested control of 2 EPSC units and 1 PLC through EPICS GUI controls.

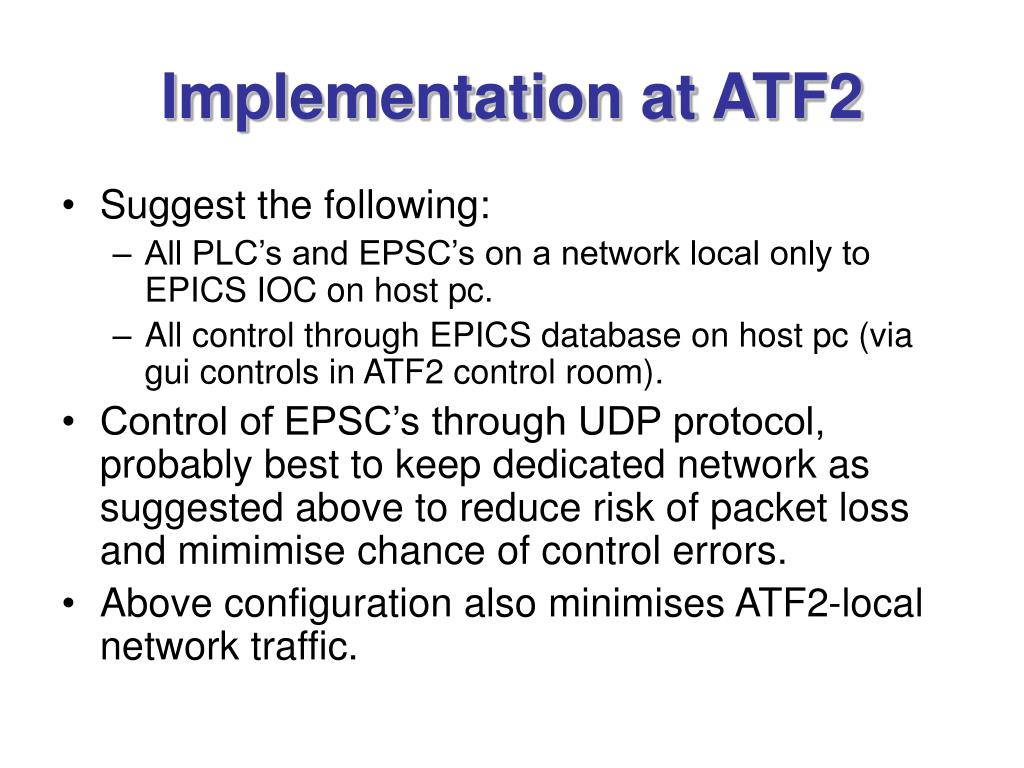

  12. Implementation at ATF2 • Suggest the following: • All PLC’s and EPSC’s on a network local only to EPICS IOC on host pc. • All control through EPICS database on host pc (via gui controls in ATF2 control room). • Control of EPSC’s through UDP protocol, probably best to keep dedicated network as suggested above to reduce risk of packet loss and mimimise chance of control errors. • Above configuration also minimises ATF2-local network traffic.
