  1. What Every MCT Needs to Know about Clustering and High Availability Rodney R. Fournier Microsoft MVP - Windows Server - Clustering Net Working America, Inc.

  2. Agenda • Terms you need to know • Four Types of Clustering • What is Clustering? • Overview of Exchange Clustering • Overview of SQL Server Failover Clustering • MSDTC • Resources

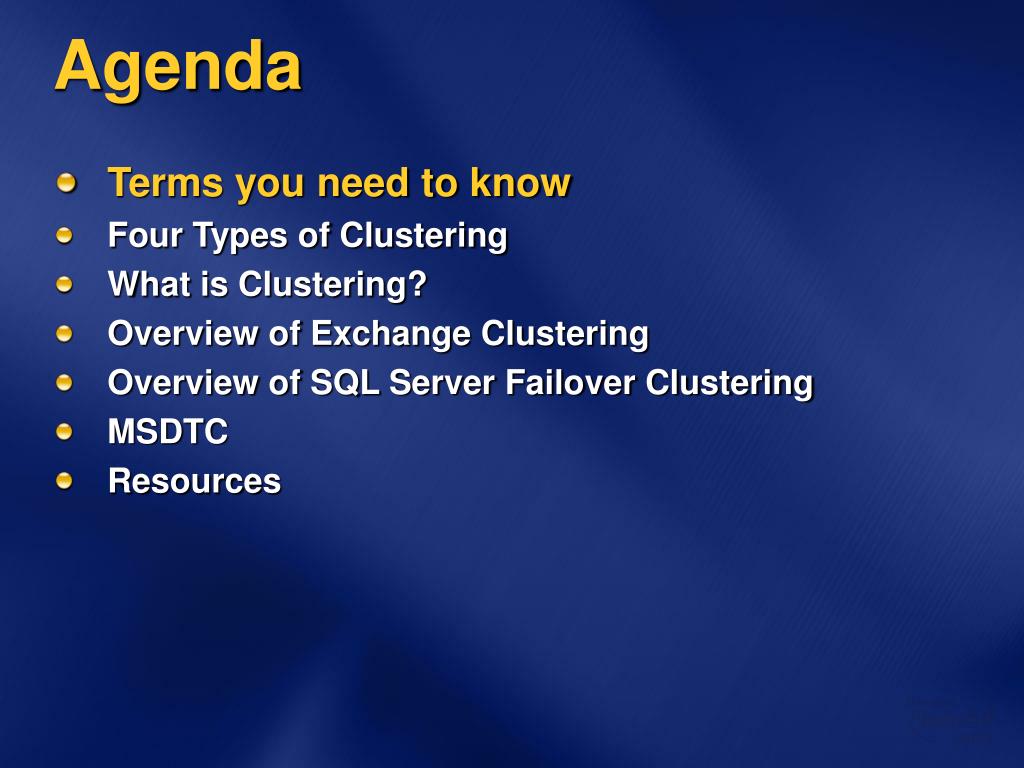

  3. Agenda • Terms you need to know • Four Types of Clustering • What is Clustering? • Overview of Exchange Clustering • Overview of SQL Server Failover Clustering • MSDTC • Resources

  4. Terms you need to know • Active/Passive vs. Active/Active vs. Instance • Failover & Failback • Heartbeat • Quorum vs. Majority Node Set • Shared Storage • Resources vs. Resource Groups • High-availability vs. Fault Tolerance • Scalability vs. Availability • Mean Time To Failure • Mean Time To Recover • Node, Virtual Server, IP, Name, etc. • Cluster aware

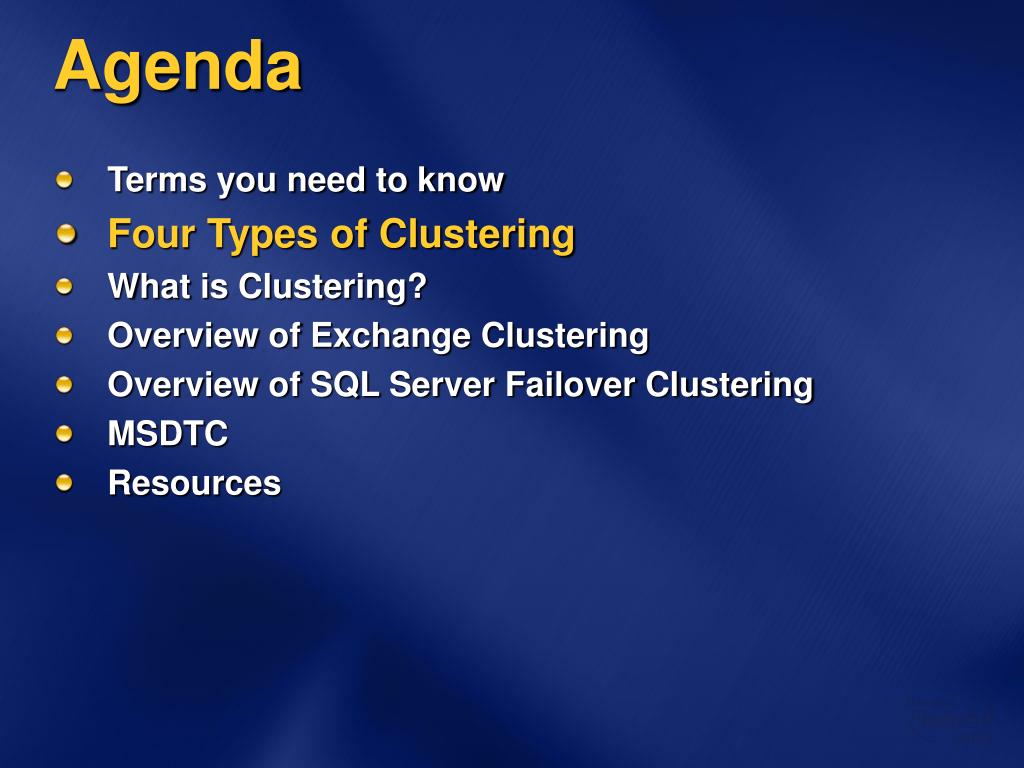

  5. Agenda • Terms you need to know • Four Types of Clustering • What is Clustering? • Overview of Exchange Clustering • Overview of SQL Server Failover Clustering • MSDTC • Resources

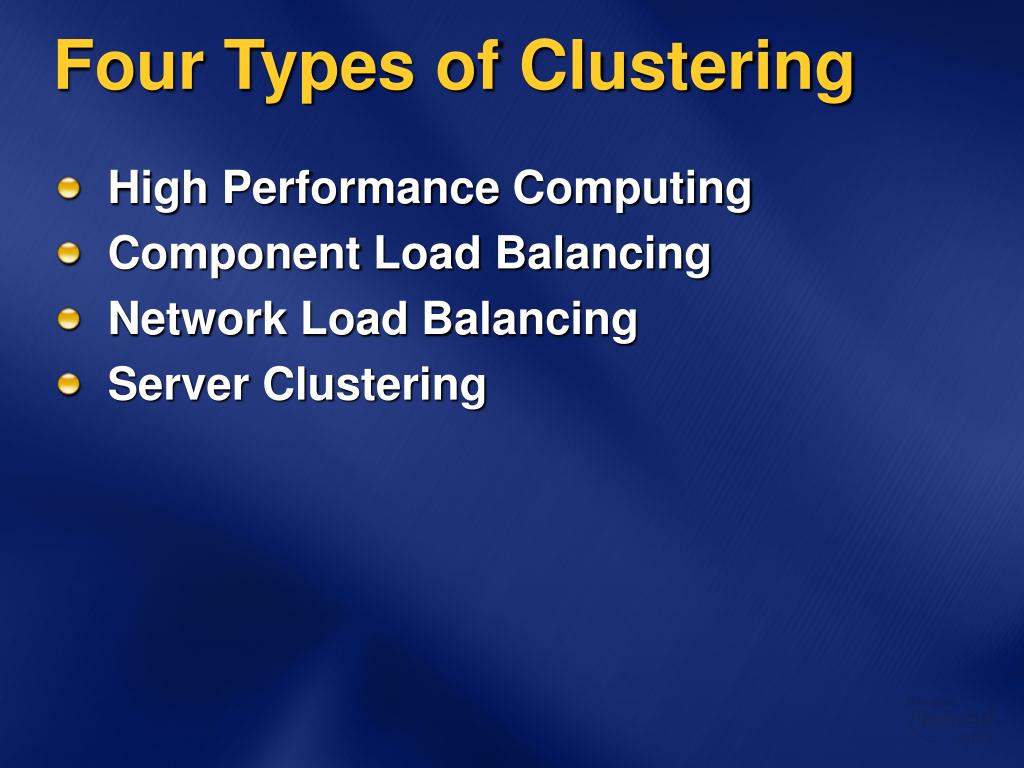

  6. Four Types of Clustering • High Performance Computing • Component Load Balancing • Network Load Balancing • Server Clustering

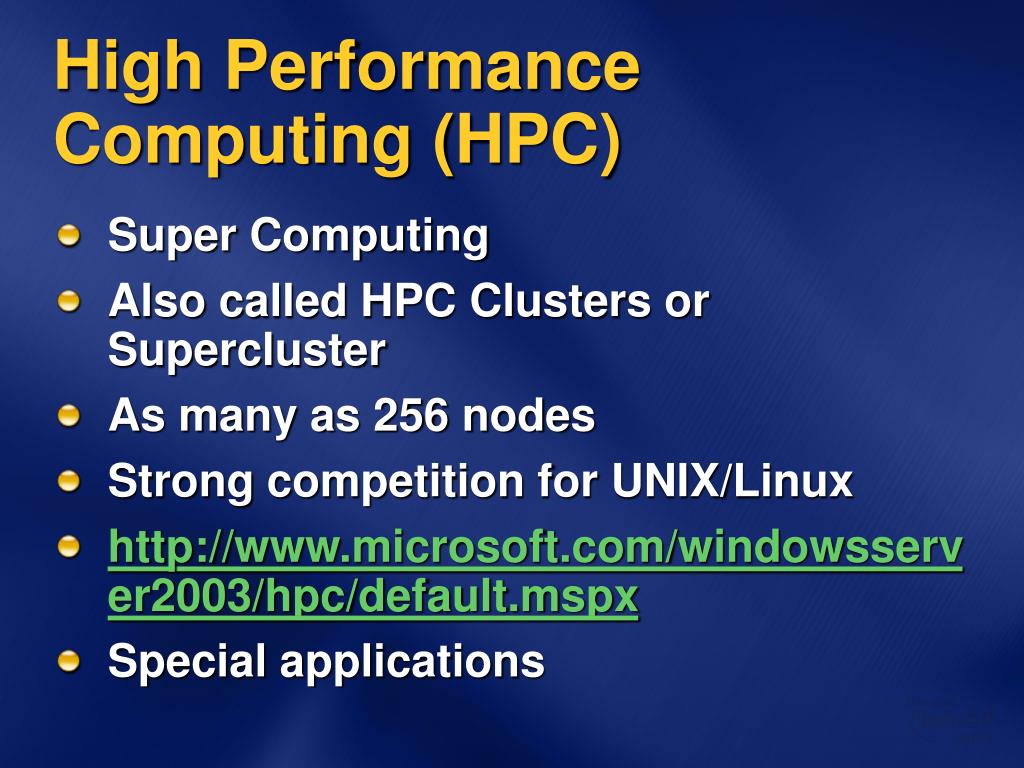

  7. High Performance Computing (HPC) • Super Computing • Also called HPC Clusters or Supercluster • As many as 256 nodes • Strong competition for UNIX/Linux • http://www.microsoft.com/windowsserver2003/hpc/default.mspx • Special applications

  8. Component Load Balancing (CLB) • Component Object Model (COM+) components load balancing • Calls to activate COM+ components are load balanced to different servers within the COM+ cluster • http://www.microsoft.com/applicationcenter/techinfo/deployment/2000/AppCenterCLBTechOver.doc • Application Center 2000

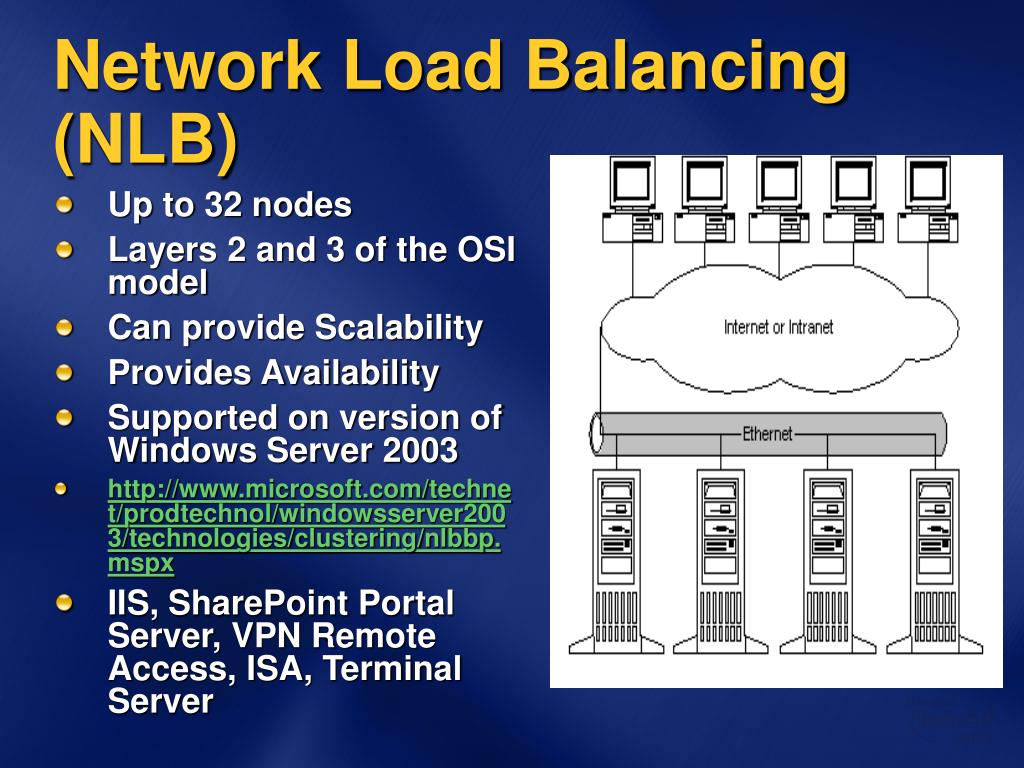

  9. Network Load Balancing (NLB) • Up to 32 nodes • Layers 2 and 3 of the OSI model • Can provide Scalability • Provides Availability • Supported on version of Windows Server 2003 • http://www.microsoft.com/technet/prodtechnol/windowsserver2003/technologies/clustering/nlbbp.mspx • IIS, SharePoint Portal Server, VPN Remote Access, ISA, Terminal Server

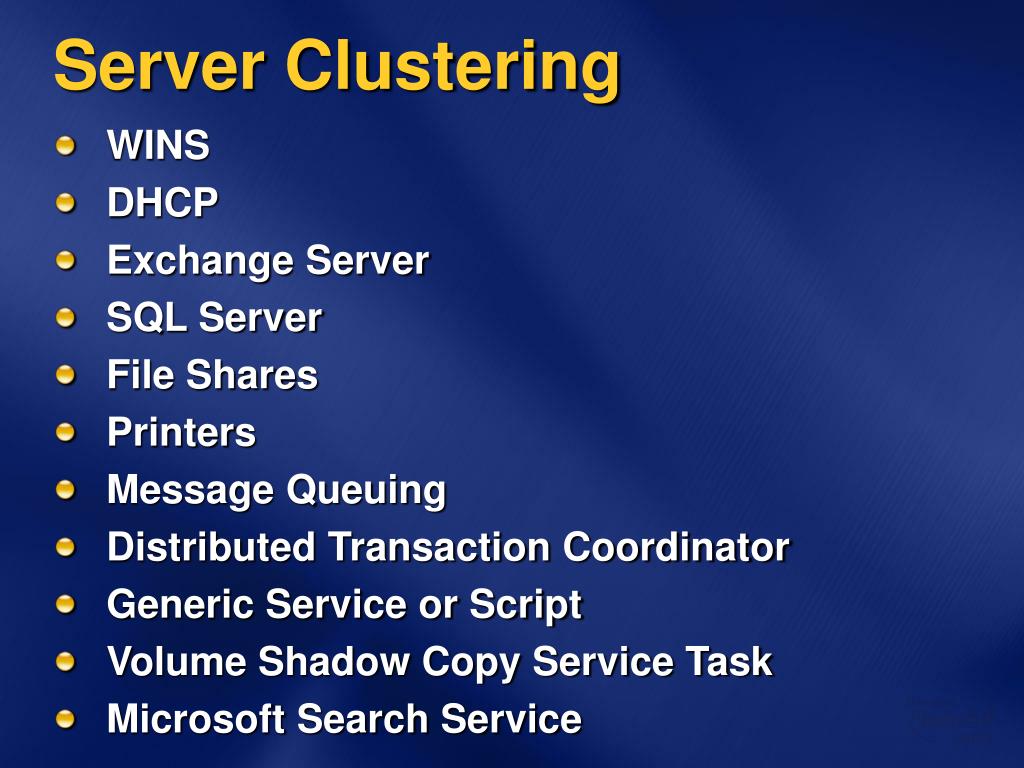

  10. Server Clustering • WINS • DHCP • Exchange Server • SQL Server • File Shares • Printers • Message Queuing • Distributed Transaction Coordinator • Generic Service or Script • Volume Shadow Copy Service Task • Microsoft Search Service

  11. Agenda • Terms you need to know • Types of Clustering • What is Clustering? • Overview of Exchange Clustering • Overview of SQL Server Failover Clustering • MSDTC • Resources

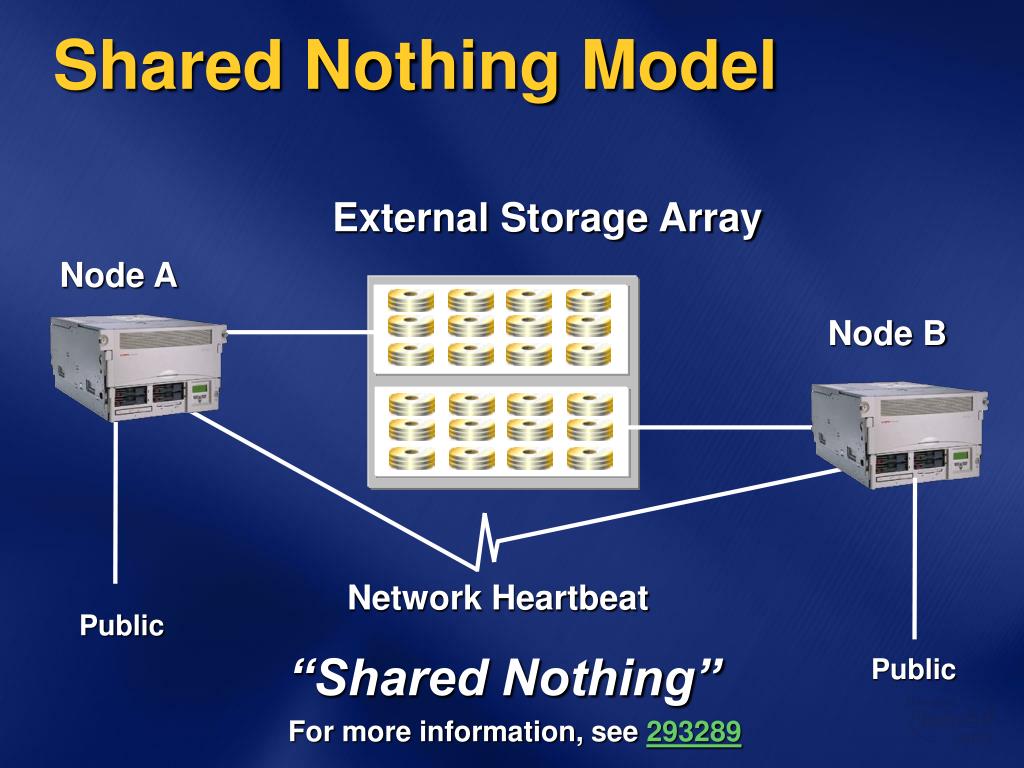

  12. Shared Nothing Model External Storage Array Node A Node B Network Heartbeat Public • “Shared Nothing” For more information, see 293289 Public

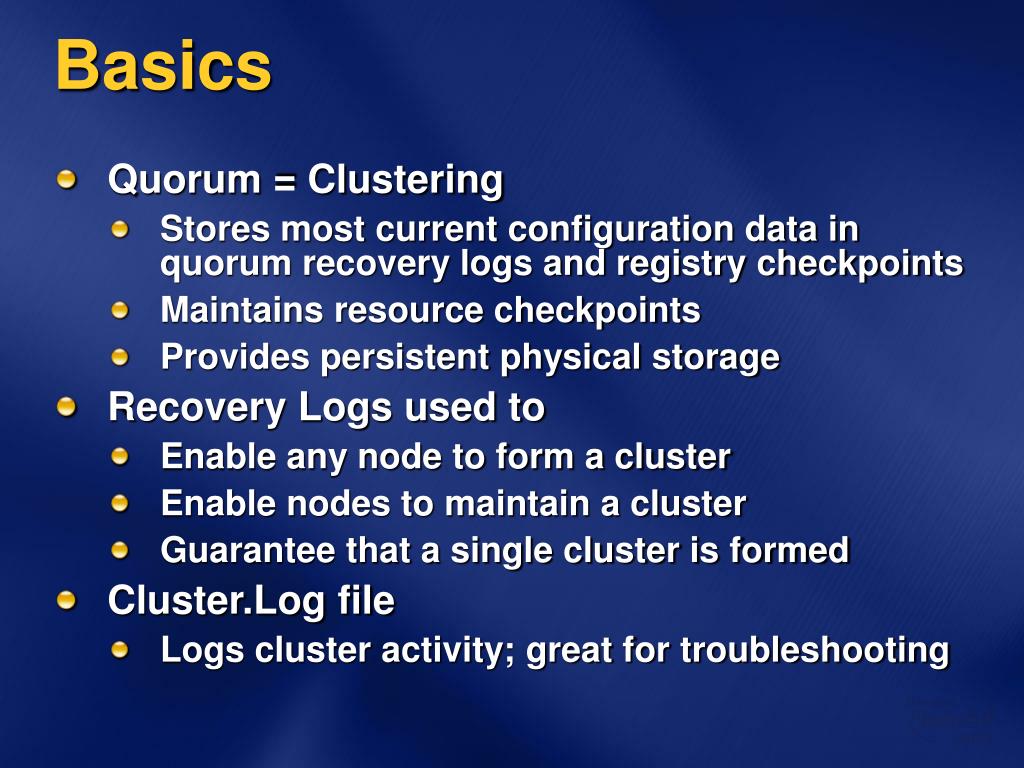

  13. Basics • Quorum = Clustering • Stores most current configuration data in quorum recovery logs and registry checkpoints • Maintains resource checkpoints • Provides persistent physical storage • Recovery Logs used to • Enable any node to form a cluster • Enable nodes to maintain a cluster • Guarantee that a single cluster is formed • Cluster.Log file • Logs cluster activity; great for troubleshooting

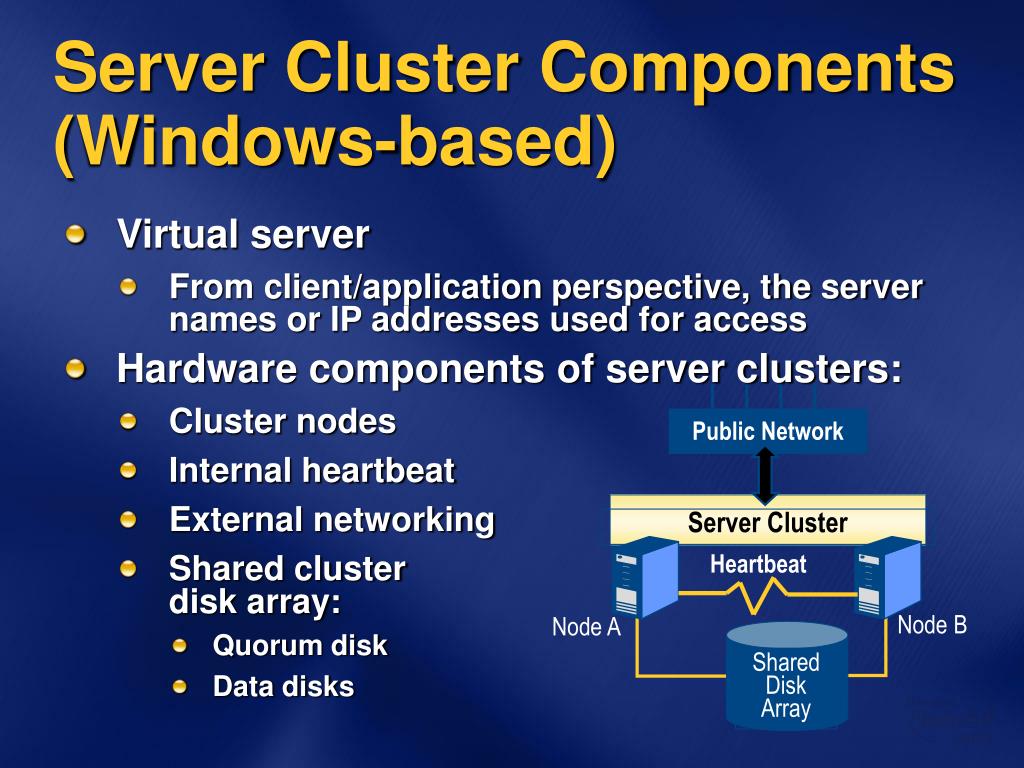

  14. Public Network Server Cluster Heartbeat Node B Node A Shared Disk Array Server Cluster Components (Windows-based) • Virtual server • From client/application perspective, the server names or IP addresses used for access • Hardware components of server clusters: • Cluster nodes • Internal heartbeat • External networking • Shared clusterdisk array: • Quorum disk • Data disks

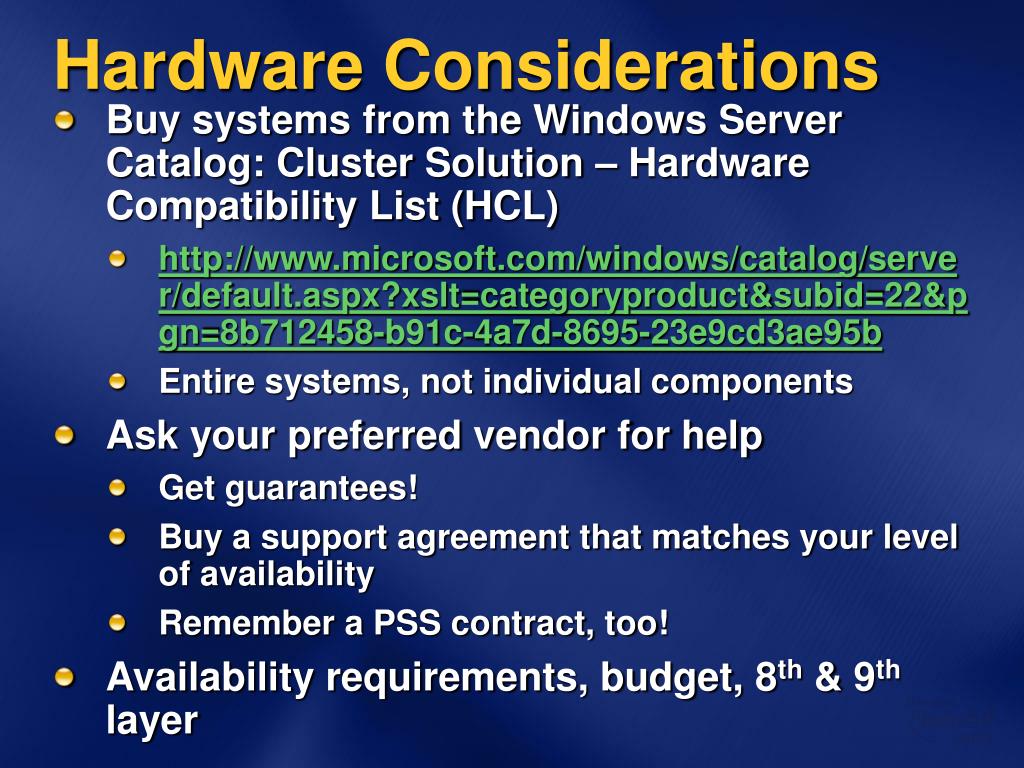

  15. Hardware Considerations • Buy systems from the Windows Server Catalog: Cluster Solution – Hardware Compatibility List (HCL) • http://www.microsoft.com/windows/catalog/server/default.aspx?xslt=categoryproduct&subid=22&pgn=8b712458-b91c-4a7d-8695-23e9cd3ae95b • Entire systems, not individual components • Ask your preferred vendor for help • Get guarantees! • Buy a support agreement that matches your level of availability • Remember a PSS contract, too! • Availability requirements, budget, 8th & 9th layer

  16. Shared Disk Configuration • Instance-to-disk ratio: Two resources cannot share a physical disk • Basic disks only; mount points and dynamic disks are not supported • File compression and encryption are not supported • Use Fibre Channel if you can; use SCSI if cost is a factor or iSCSI • Use hardware-based RAID only; Software-based RAID is not supported • Each RAID controller is different • Turn writeback caching off if controller in server nodes …continued

  17. Shared Disk Configuration • Be sure all disks are dependencies of the SQL Server/Exchange resource • Disk is single point of failure. Store spare drives and have a secondary form of high availability • Data • Recommended: RAID 10 array of mirrored sets that are then striped • RAID 5 okay • Logs • RAID 1 or possibly mirrored sets that are then striped; not RAID 5

  18. Shared Disk Configuration • Network-attached storage (NAS) • Not supported for clusters • Storage area networks (SANs) • Only those on the HCL Cluster list or the Cluster/Multi-Cluster Device list can be used • Get verification that it is set up properly Setup is usually done by the vendor • Do not accept the default configuration—it will probably be for a file system • iSCSI is now supported with 2003 SP1

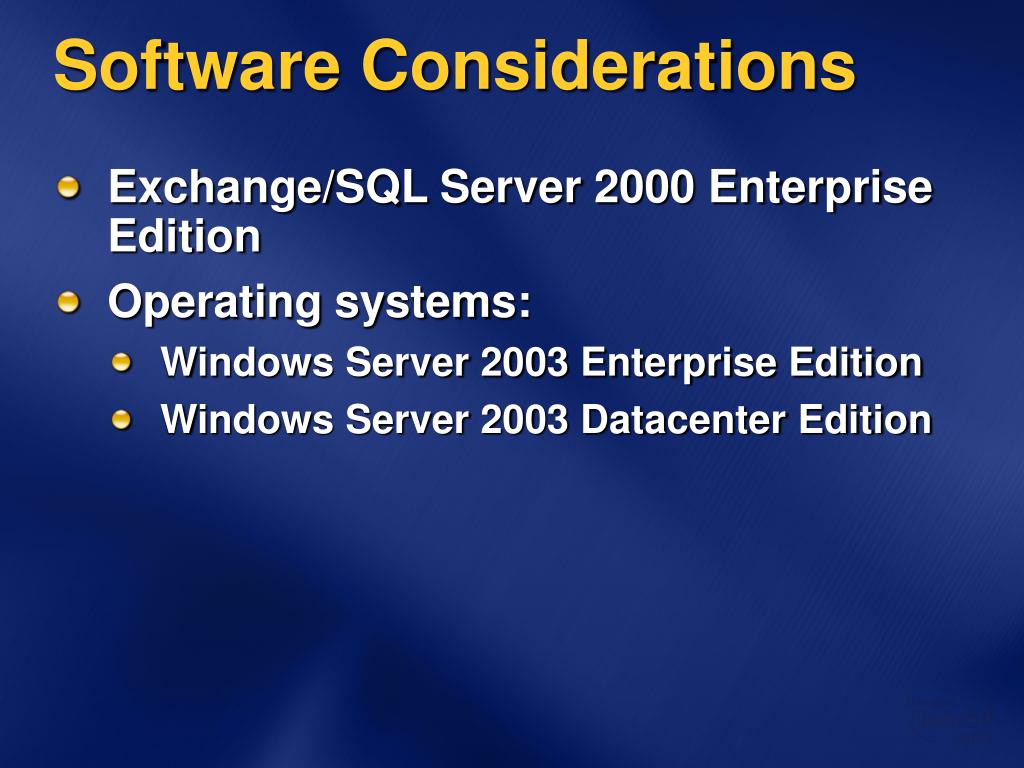

  19. Software Considerations • Exchange/SQL Server 2000 Enterprise Edition • Operating systems: • Windows Server 2003 Enterprise Edition • Windows Server 2003 Datacenter Edition

  20. Network Configurations • Cluster nodes with Windows domains, DNS, and WINS • You may still need WINS for NetBIOS resolution • Nodes and virtual server must be able to access the domain • All nodes have to be in the same domain • Network Card Settings • Do not set NICs to Autodetect • You need at least 4 static IP addresses: 1 for each node, 1 for the server cluster, 1 for Clustered Service/Application • Recommend 6 (additional dedicated heartbeat NICs) • Multiple IP Addresses • Use separate subnets for IP addresses • Bandwidth

  21. Public Network Server Cluster Heartbeat Node B Node A Shared Disk Array Network Configuration

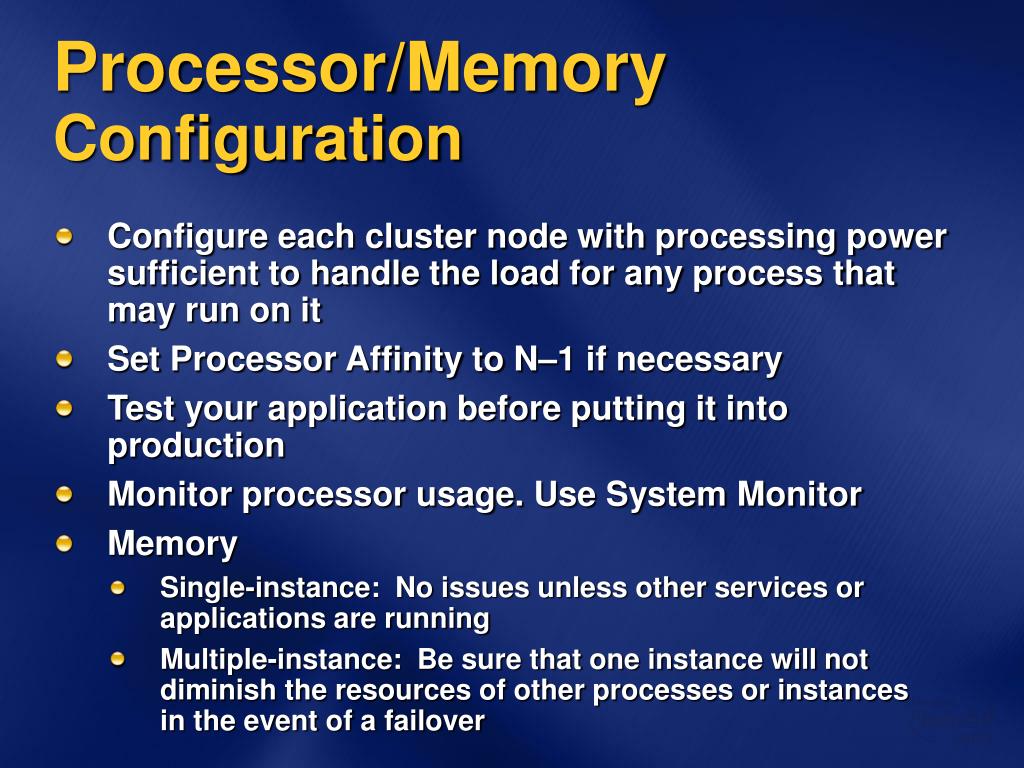

  22. Processor/Memory Configuration • Configure each cluster node with processing power sufficient to handle the load for any process that may run on it • Set Processor Affinity to N–1 if necessary • Test your application before putting it into production • Monitor processor usage. Use System Monitor • Memory • Single-instance: No issues unless other services or applications are running • Multiple-instance: Be sure that one instance will not diminish the resources of other processes or instances in the event of a failover

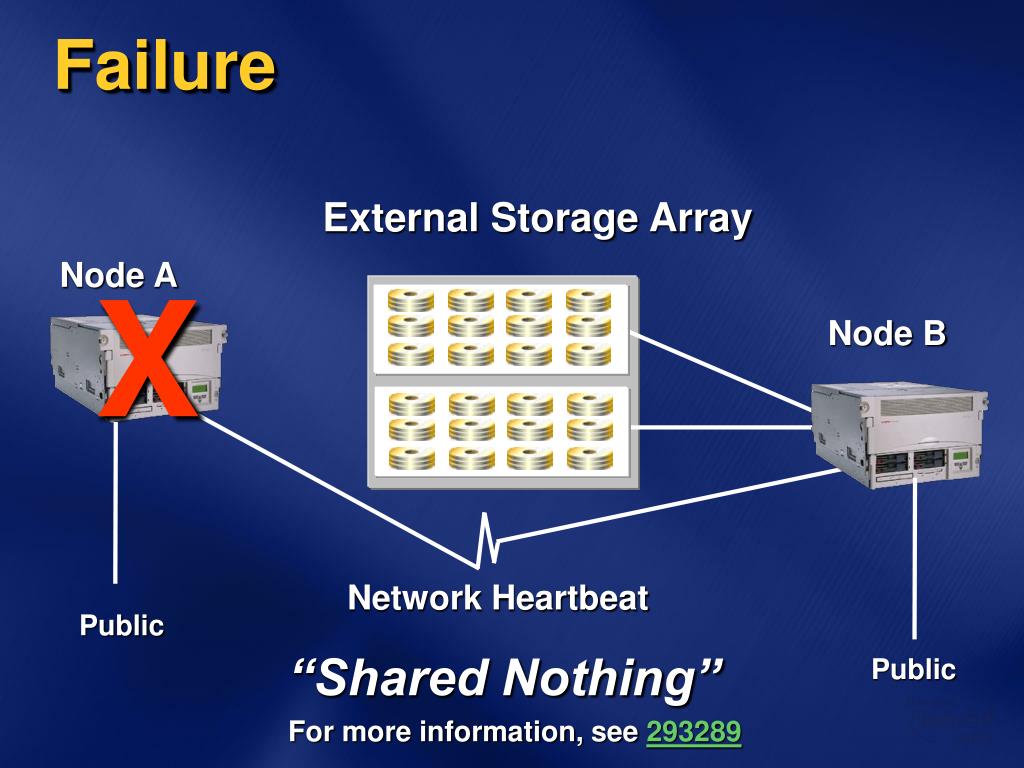

  23. Failure External Storage Array Node A X Node B Network Heartbeat Public • “Shared Nothing” For more information, see 293289 Public

  24. So Why Cluster? • Provide High-Availability • Failover mitigates outage when hardware failure occurs • Strengthened by fault tolerant design • Measured in 9s • Managed maintenance/upgrades • Rolling Upgrades

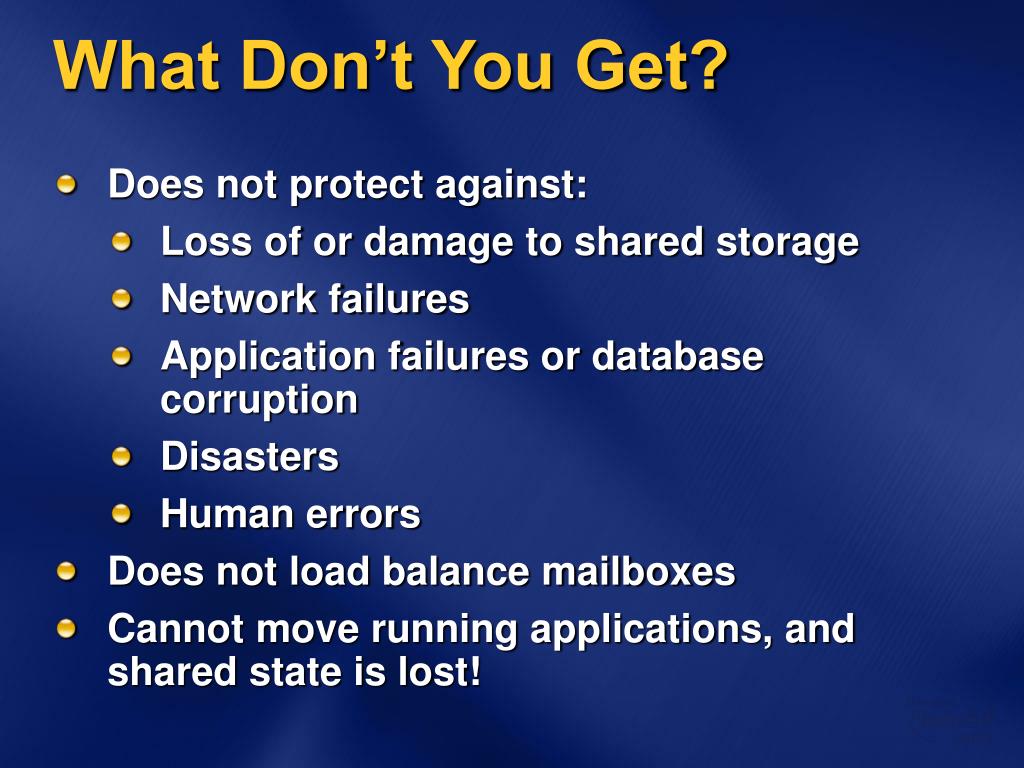

  25. What Don’t You Get? • Does not protect against: • Loss of or damage to shared storage • Network failures • Application failures or database corruption • Disasters • Human errors • Does not load balance mailboxes • Cannot move running applications, and shared state is lost!

  26. Agenda • Terms you need to know • Four Types of Clustering • What is Clustering? • Overview of Exchange Clustering • Overview of SQL Server Failover Clustering • MSDTC • Resources

  27. Overview Of Exchange Clustering • Exchange Virtual Server (EVS) • Physical Disk resource: SCSI, Fibre Channel (FC), or Internet SCSI (iSCSI) • IP Address resource • Network Name resource • System Attendant resource and resources created by System Attendant • Resources created by an administrator (for example, protocol virtual servers)

  28. Clustering Exchange EVS fails overand is available to clients Client PCs Failure Occurs! Node A Node B EVS Heartbeat Passive Node EVS Disk cabinet A Disk cabinet B SCSIReserveBroken New Reservation Established

  29. Overview Of Exchange Clustering 1+1 Active/Passive 7+1 Active/Passive 2+0 Active/Active – Not Recommended

  30. Requirements For Clustering Exchange 2003 Windows Server 2003 • Enterprise Edition and Datacenter Edition • 2-node Active/Active • Up to 8-node Active/Passive

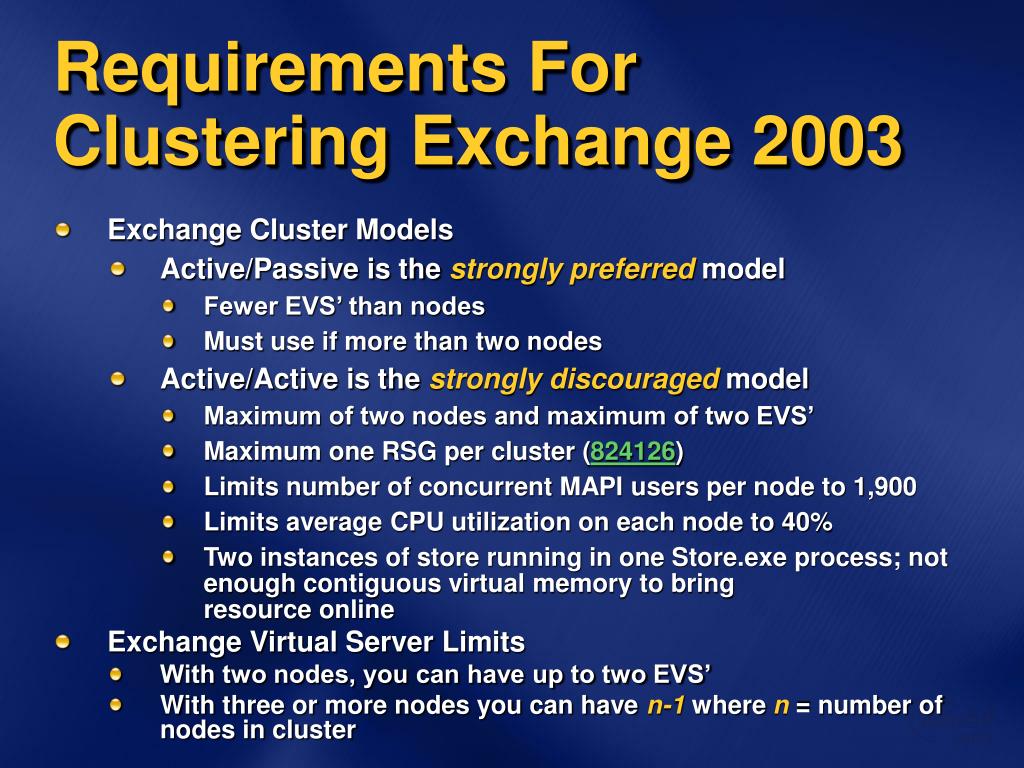

  31. Requirements For Clustering Exchange 2003 • Exchange Cluster Models • Active/Passive is the strongly preferredmodel • Fewer EVS’ than nodes • Must use if more than two nodes • Active/Active is the strongly discouraged model • Maximum of two nodes and maximum of two EVS’ • Maximum one RSG per cluster (824126) • Limits number of concurrent MAPI users per node to 1,900 • Limits average CPU utilization on each node to 40% • Two instances of store running in one Store.exe process; not enough contiguous virtual memory to bring resource online • Exchange Virtual Server Limits • With two nodes, you can have up to two EVS’ • With three or more nodes you can have n-1 where n = number of nodes in cluster

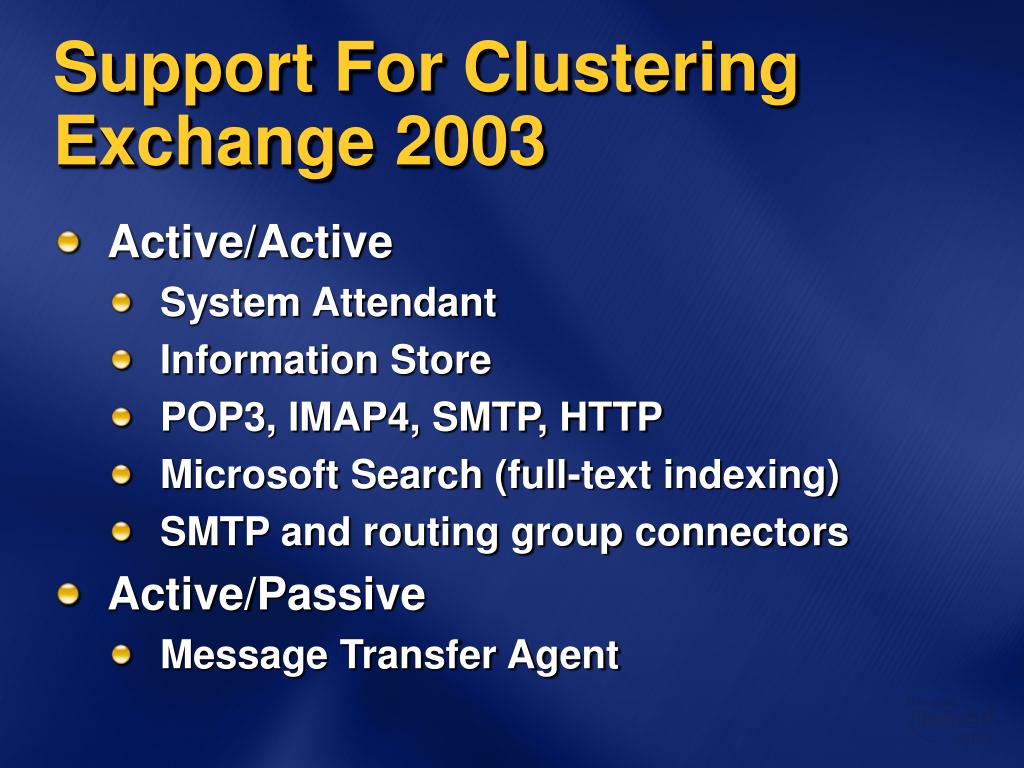

  32. Support For Clustering Exchange 2003 • Active/Active • System Attendant • Information Store • POP3, IMAP4, SMTP, HTTP • Microsoft Search (full-text indexing) • SMTP and routing group connectors • Active/Passive • Message Transfer Agent

  33. Requirements For Clustering Exchange 2003 • NOT Supported • Active Directory Connector (ADC) • Exchange Event Service • Foreign Mail System Connectors • Network News Transport Protocol (NNTP) • Site Replication Service (SRS)

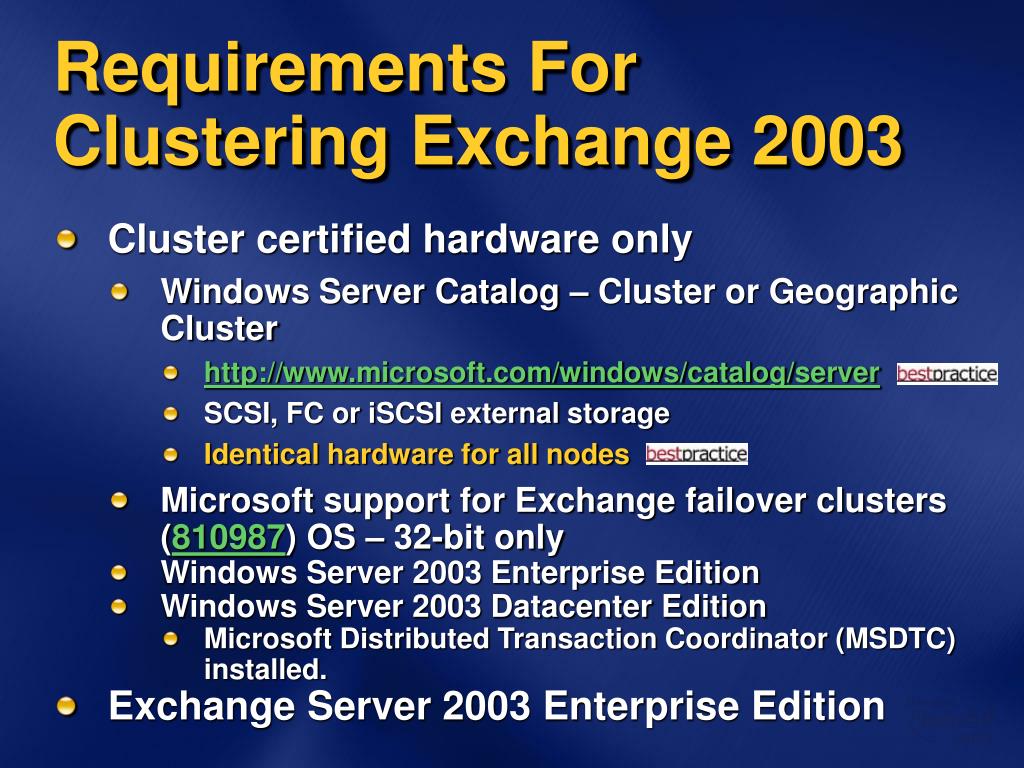

  34. Requirements For Clustering Exchange 2003 • Cluster certified hardware only • Windows Server Catalog – Cluster or Geographic Cluster • http://www.microsoft.com/windows/catalog/server • SCSI, FC or iSCSI external storage • Identical hardware for all nodes • Microsoft support for Exchange failover clusters (810987) OS – 32-bit only • Windows Server 2003 Enterprise Edition • Windows Server 2003 Datacenter Edition • Microsoft Distributed Transaction Coordinator (MSDTC) installed. • Exchange Server 2003 Enterprise Edition

  35. Building An Exchange Cluster • Design storage • Four storage group maximum on node • Shared disks must be NTFS/BASIC (237853) • Use Diskpart to align sectors at storage level • Use separate disk resources for logs/databases in EVS • Use separate resource group for quorum • Volume mount points supported on Windows 2003 (318458) • Some iSCSI (839686) and NAS (839687) devices are now supported for use with Exchange and Exchange clusters • You cannot use NAS for quorum resource (cluster FAQ) • Additional disk resources need to be added as dependency

  36. Building An Exchange Cluster • Design network • Use multiple networks with dedicated private networks (258750) • Do not use teaming or DHCP (254101) • Need an IP address and Network Name resource for • Each physical node • The cluster resource group • Each Exchange Virtual Server • Use consistent naming standards

  37. Building An Exchange Cluster • Step 1 - Prepare Hardware • Apply latest system BIOS • Apply latest device firmware • Gather latest software drivers • Disable unnecessary hardware Follow your hardware manufacturer recommendations to ensure you are using only drivers or firmware that have been tested for clusters

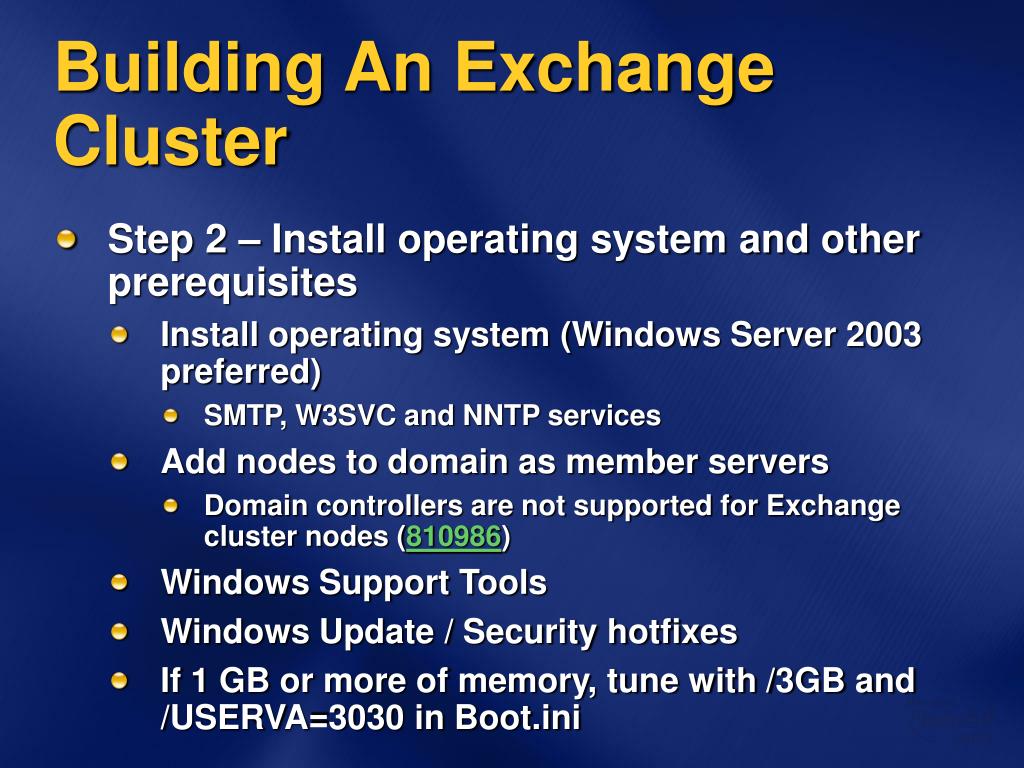

  38. Building An Exchange Cluster • Step 2 – Install operating system and other prerequisites • Install operating system (Windows Server 2003 preferred) • SMTP, W3SVC and NNTP services • Add nodes to domain as member servers • Domain controllers are not supported for Exchange cluster nodes (810986) • Windows Support Tools • Windows Update / Security hotfixes • If 1 GB or more of memory, tune with /3GB and /USERVA=3030 in Boot.ini

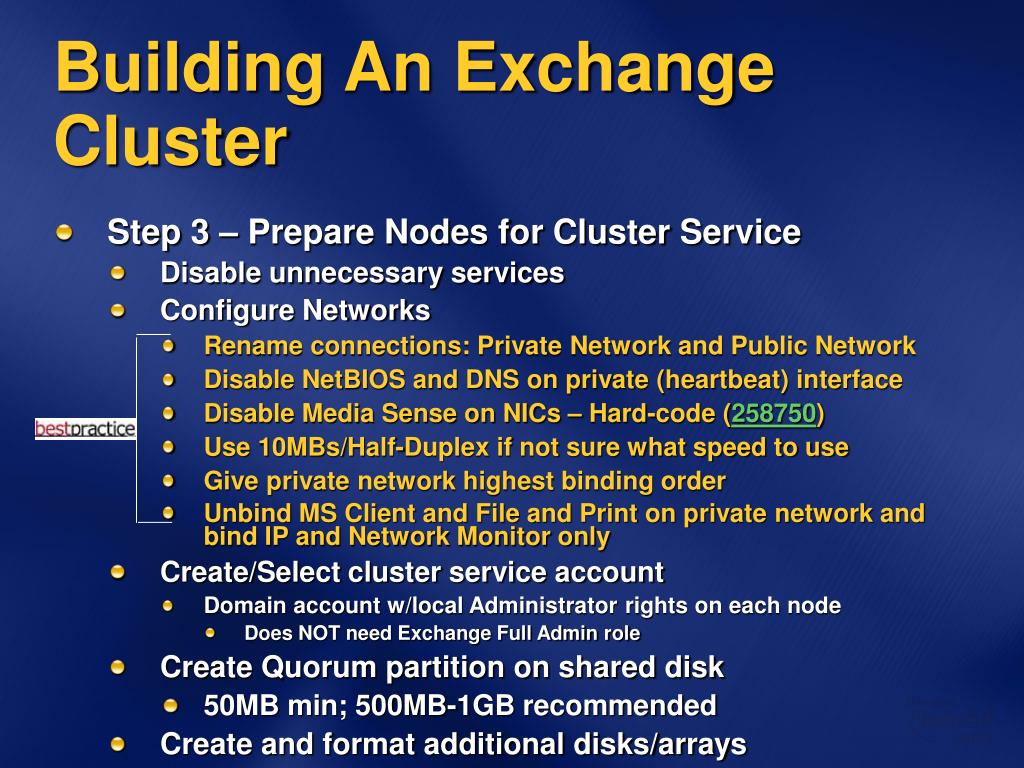

  39. Building An Exchange Cluster • Step 3 – Prepare Nodes for Cluster Service • Disable unnecessary services • Configure Networks • Rename connections: Private Network and Public Network • Disable NetBIOS and DNS on private (heartbeat) interface • Disable Media Sense on NICs – Hard-code (258750) • Use 10MBs/Half-Duplex if not sure what speed to use • Give private network highest binding order • Unbind MS Client and File and Print on private network and bind IP and Network Monitor only • Create/Select cluster service account • Domain account w/local Administrator rights on each node • Does NOT need Exchange Full Admin role • Create Quorum partition on shared disk • 50MB min; 500MB-1GB recommended • Create and format additional disks/arrays

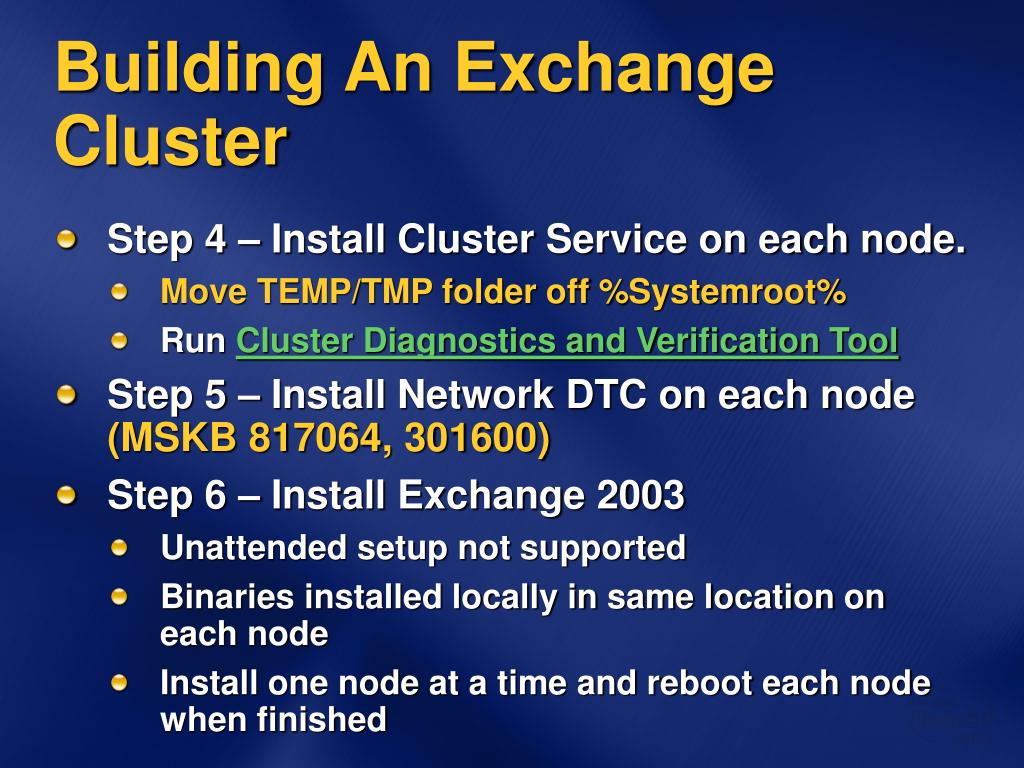

  40. Building An Exchange Cluster • Step 4 – Install Cluster Service on each node. • Move TEMP/TMP folder off %Systemroot% • Run Cluster Diagnostics and Verification Tool • Step 5 – Install Network DTC on each node (MSKB 817064, 301600) • Step 6 – Install Exchange 2003 • Unattended setup not supported • Binaries installed locally in same location on each node • Install one node at a time and reboot each node when finished

  41. Building An Exchange Cluster • Step 7 – Install Exchange 2003 Service Packs and Updates • Always update one node at a time, then the EVS via Cluster Administrator (for SP1) 867624 • Step 8 – Create Exchange Virtual Server • Create Resource Group • Disk Resource • IP Address Resource • Network Name Resource • Exchange System Attendant Resource

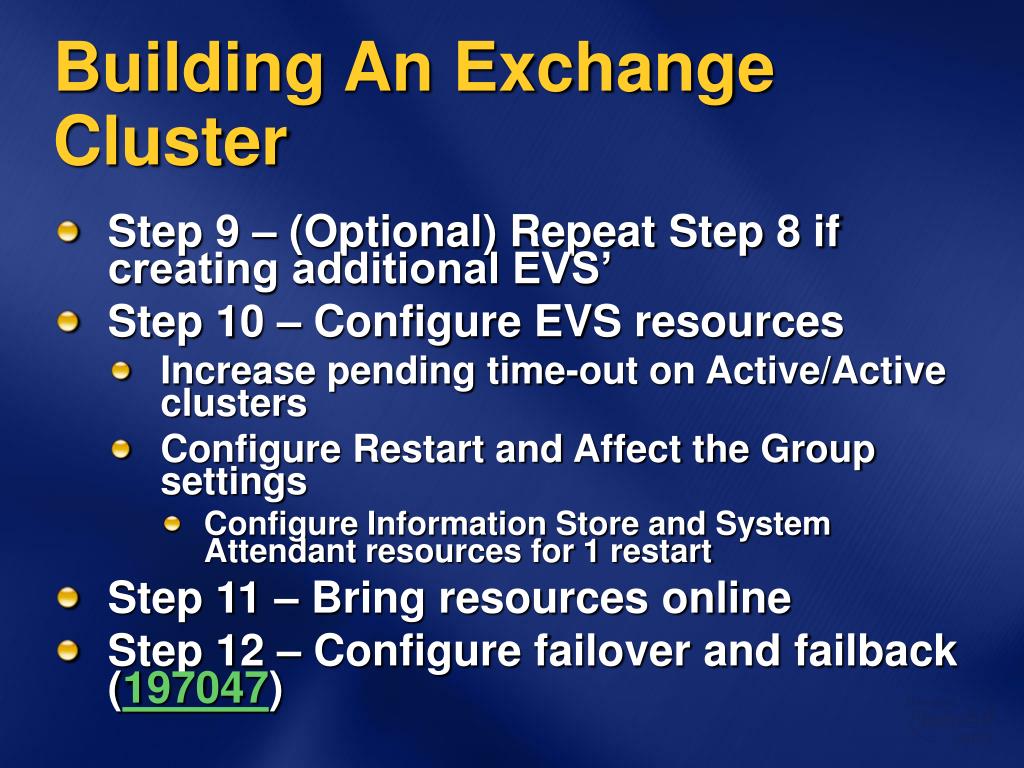

  42. Building An Exchange Cluster • Step 9 – (Optional) Repeat Step 8 if creating additional EVS’ • Step 10 – Configure EVS resources • Increase pending time-out on Active/Active clusters • Configure Restart and Affect the Group settings • Configure Information Store and System Attendant resources for 1 restart • Step 11 – Bring resources online • Step 12 – Configure failover and failback (197047)

  43. Building An Exchange Cluster • Prior to Putting into Production • Test failover policies • Test hardware (simulate failures) • Exchange Server Load Simulator 2003 (LoadSim) • Test under heavy network, disk I/O, and services loads • Test under large number of simultaneous logon attempts • Clean up after LoadSim • Manually remove everything or flatten cluster and rebuild • Exchange Server 2003 Jetstress 2004 Tool Microsoft Exchange Server Best Practices Analyzer Toolhttp://www.microsoft.com/exchange/exbpa

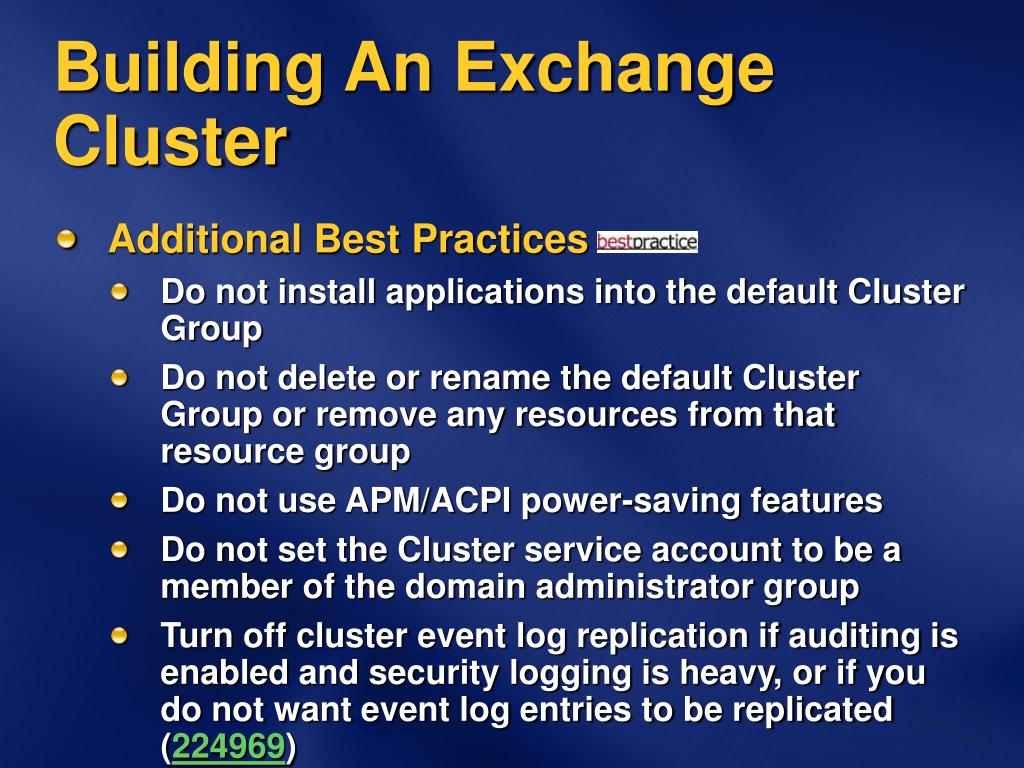

  44. Building An Exchange Cluster • Additional Best Practices • Do not install applications into the default Cluster Group • Do not delete or rename the default Cluster Group or remove any resources from that resource group • Do not use APM/ACPI power-saving features • Do not set the Cluster service account to be a member of the domain administrator group • Turn off cluster event log replication if auditing is enabled and security logging is heavy, or if you do not want event log entries to be replicated (224969)

  45. Agenda • Terms you need to know • Four Types of Clustering • What is Clustering? • Overview of Exchange Clustering • Overview of SQL Server Failover Clustering • MSDTC • Resources

  46. SQL Server Virtual Servers • Virtual servers: Instances of clustered SQL Server servers • From client/application perspective, the server names or IP addresses used for access • Cluster resources configured during install of a virtual server: • SQL Server IP Address • SQL Server Network Name • SQL Server (clustered instance of the SQL Server 2000 service) • SQL Server Agent • SQL Server Fulltext • SQL Server virtual server administrator account

  47. SQL Server Cluster Types • Single-Instance Cluster • Only one SQL Server virtual server running; Can be a default or named instance • Replaces term active/passive • Multiple-Instance Cluster • Up to 16 SQL Server virtual servers are supported per server cluster: • 1 default instance + up to 15 named instances OR • Up to 16 named instances only • Replaces term active/active

  48. The Failover Process • Operating-system checks • Heartbeat checks availability of nodes and virtual server • SQL Server checks • LooksAlive check runs every five seconds • IsAlive check runs SELECT @@SERVERNAME query • Failover to another node • Windows Clustering attempts restart on same node or fails over to another node • SQL Server service starts • Brings master online • Database recovery proceeds • End users and applications must reconnect

  49. SQL Server SQL Server Illustration Of Failover Client PCs Node A Node B Heartbeat Shared Disk Array
