  1. Optimizing Join Statements To choose an execution plan for a join statement, the optimizer must choose: • Access Paths • Join Operation • Join Order These Choices are related. Lets examine the different possible join operations.

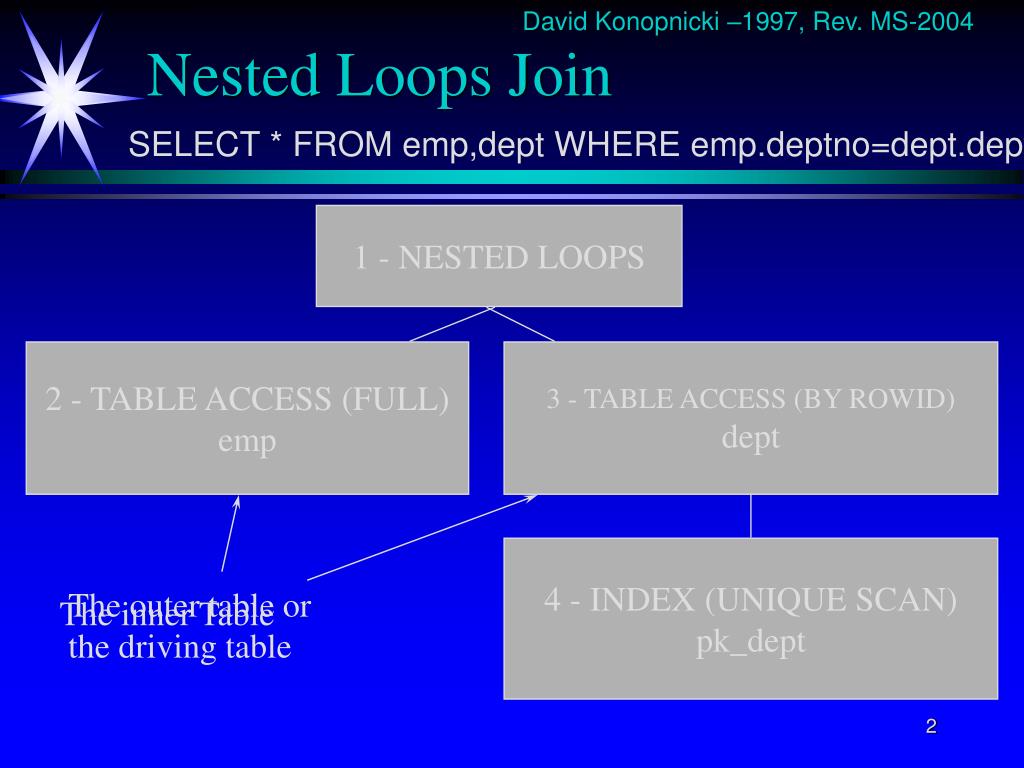

  2. The outer table or the driving table The inner Table Nested Loops Join SELECT * FROM emp,dept WHERE emp.deptno=dept.deptno 1 - NESTED LOOPS 2 - TABLE ACCESS (FULL) emp 3 - TABLE ACCESS (BY ROWID) dept 4 - INDEX (UNIQUE SCAN) pk_dept

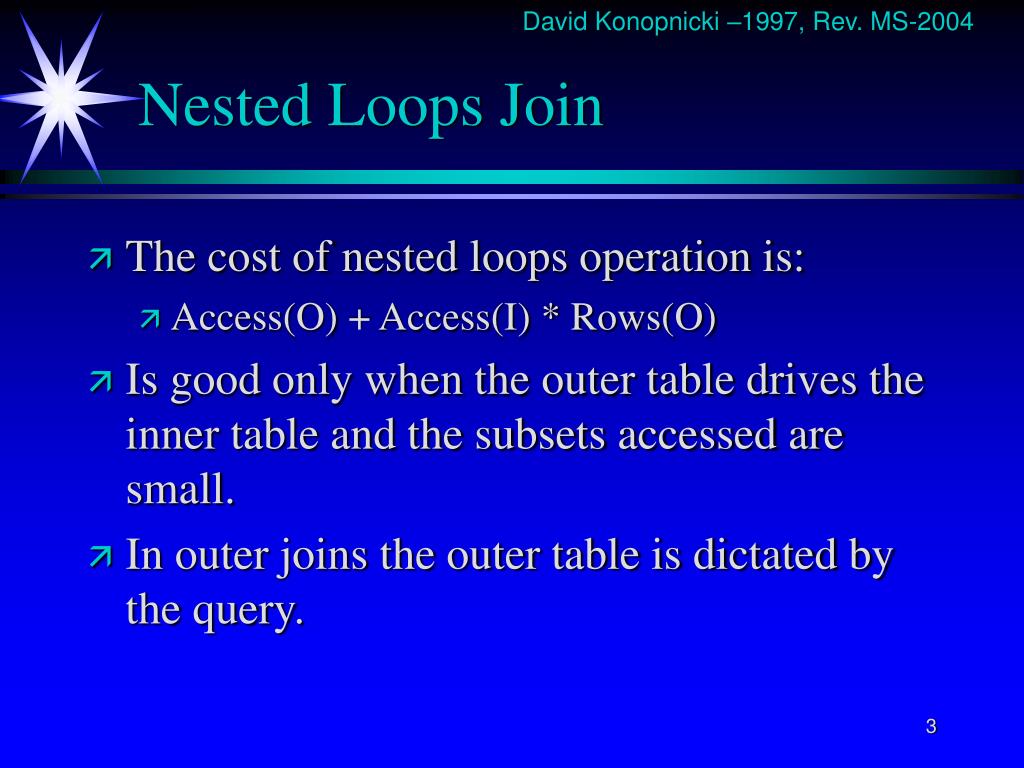

  3. Nested Loops Join • The cost of nested loops operation is: • Access(O) + Access(I) * Rows(O) • Is good only when the outer table drives the inner table and the subsets accessed are small. • In outer joins the outer table is dictated by the query.

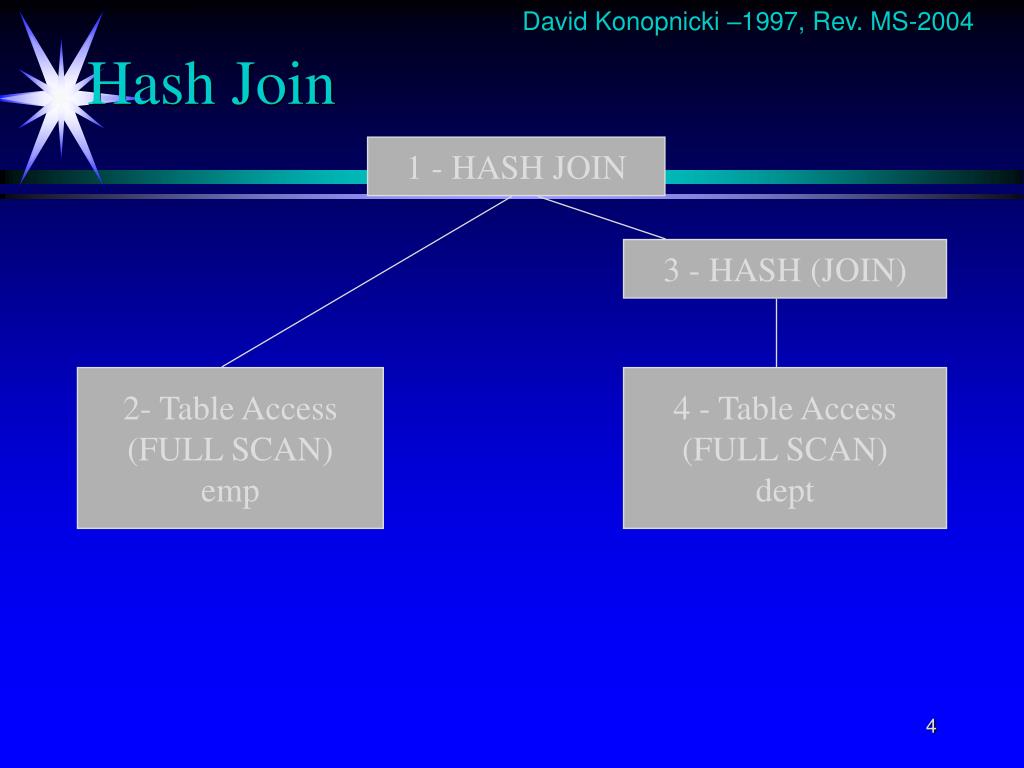

  4. Hash Join 1 - HASH JOIN 3 - HASH (JOIN) 2- Table Access (FULL SCAN) emp 4 - Table Access (FULL SCAN) dept

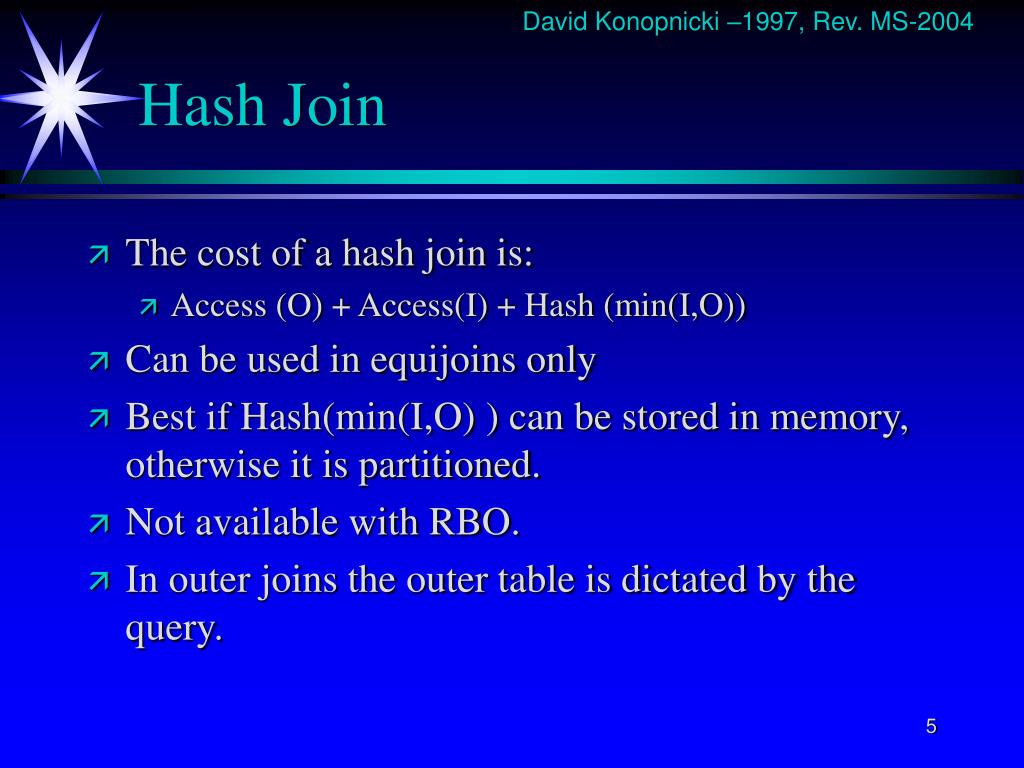

  5. Hash Join • The cost of a hash join is: • Access (O) + Access(I) + Hash (min(I,O)) • Can be used in equijoins only • Best if Hash(min(I,O) ) can be stored in memory, otherwise it is partitioned. • Not available with RBO. • In outer joins the outer table is dictated by the query.

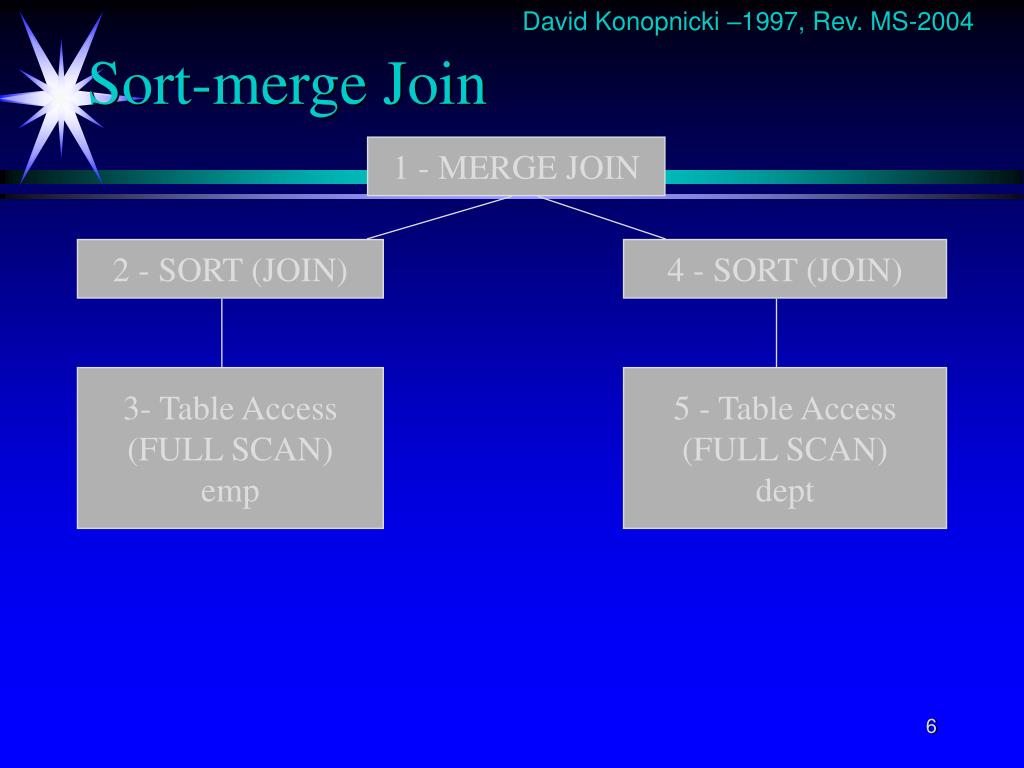

  6. 1 - MERGE JOIN 2 - SORT (JOIN) 4 - SORT (JOIN) 3- Table Access (FULL SCAN) emp 5 - Table Access (FULL SCAN) dept Sort-merge Join

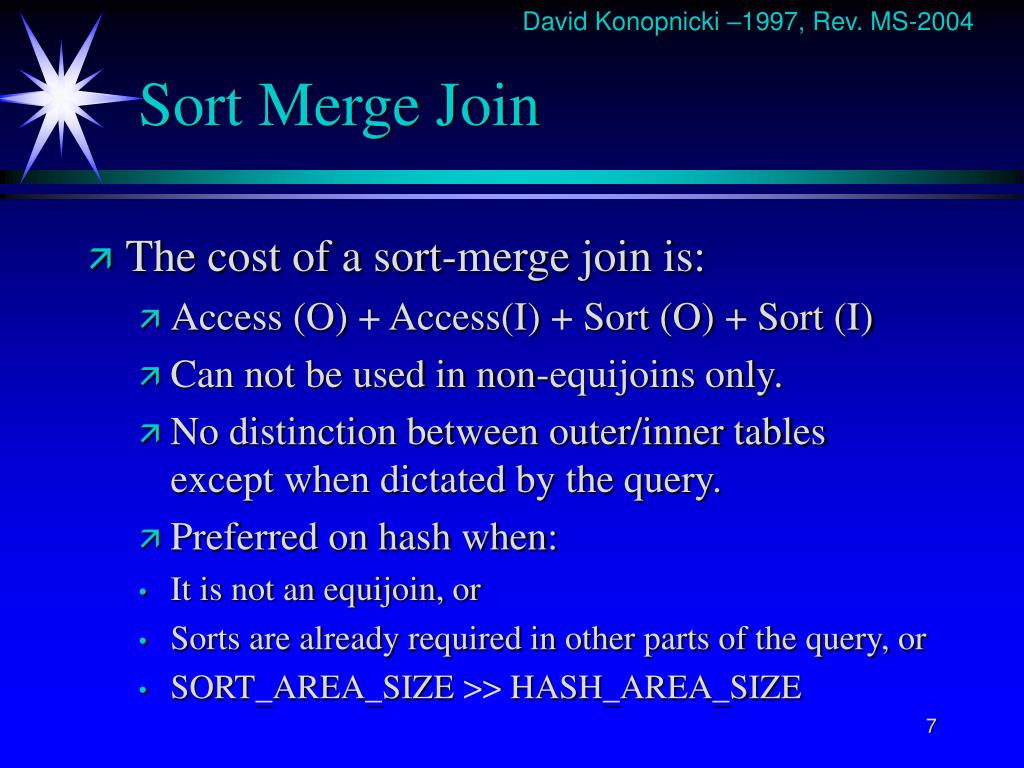

  7. Sort Merge Join • The cost of a sort-merge join is: • Access (O) + Access(I) + Sort (O) + Sort (I) • Can not be used in non-equijoins only. • No distinction between outer/inner tables except when dictated by the query. • Preferred on hash when: • It is not an equijoin, or • Sorts are already required in other parts of the query, or • SORT_AREA_SIZE >> HASH_AREA_SIZE

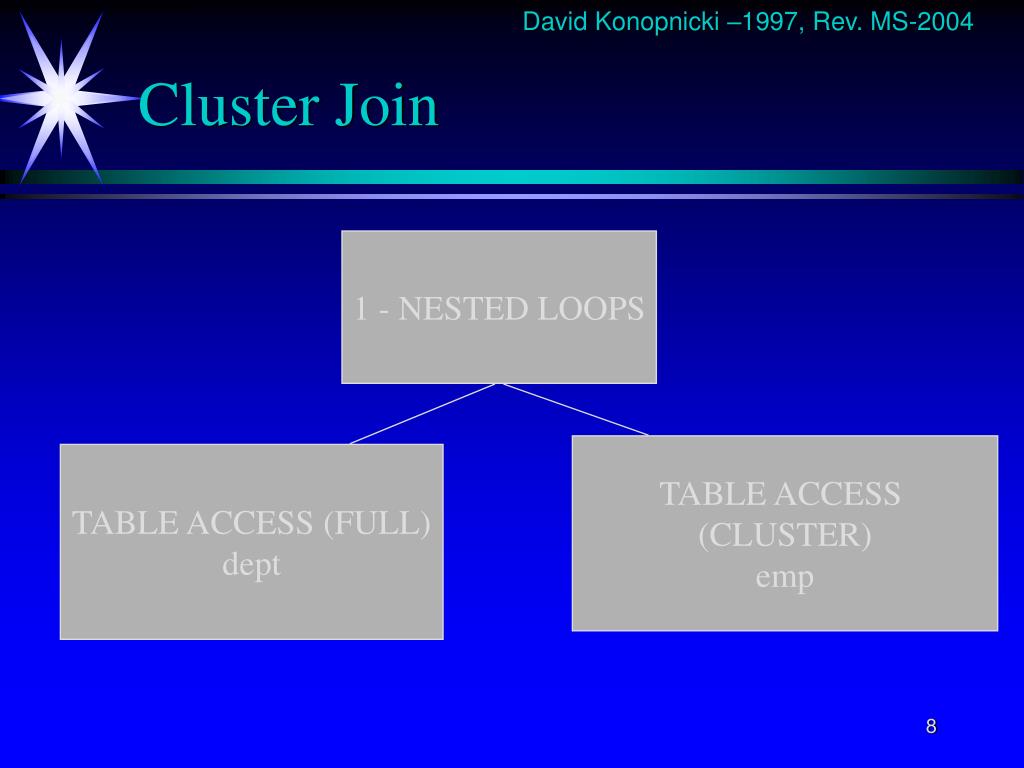

  8. Cluster Join 1 - NESTED LOOPS TABLE ACCESS (CLUSTER) emp TABLE ACCESS (FULL) dept

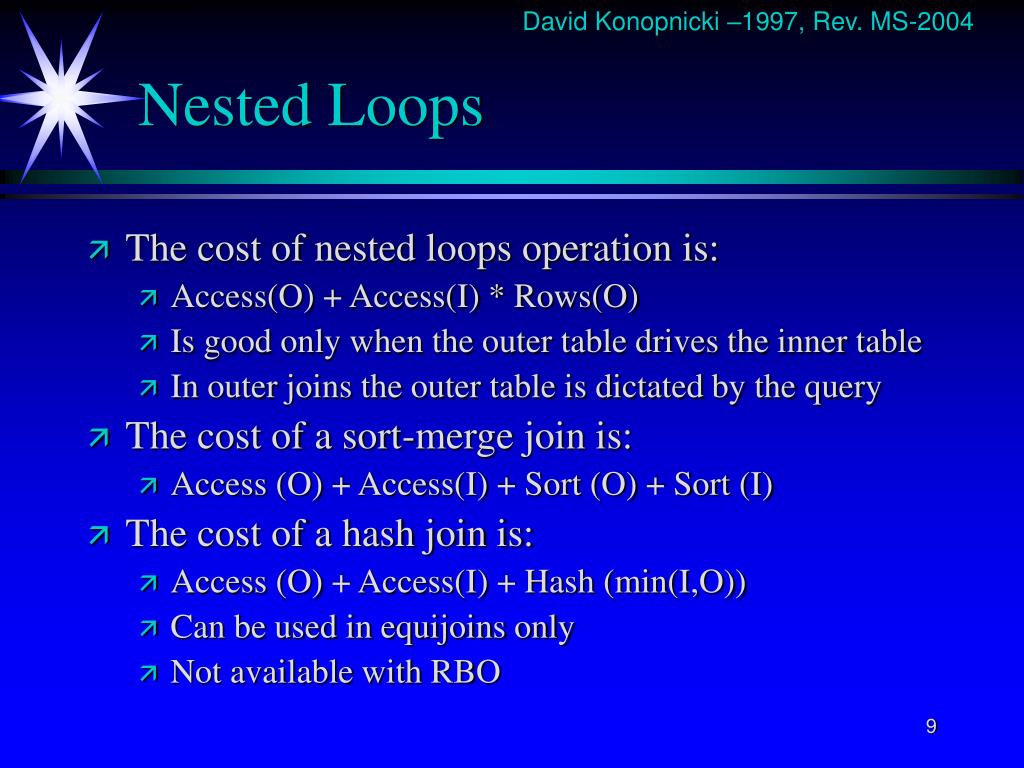

  9. Nested Loops • The cost of nested loops operation is: • Access(O) + Access(I) * Rows(O) • Is good only when the outer table drives the inner table • In outer joins the outer table is dictated by the query • The cost of a sort-merge join is: • Access (O) + Access(I) + Sort (O) + Sort (I) • The cost of a hash join is: • Access (O) + Access(I) + Hash (min(I,O)) • Can be used in equijoins only • Not available with RBO

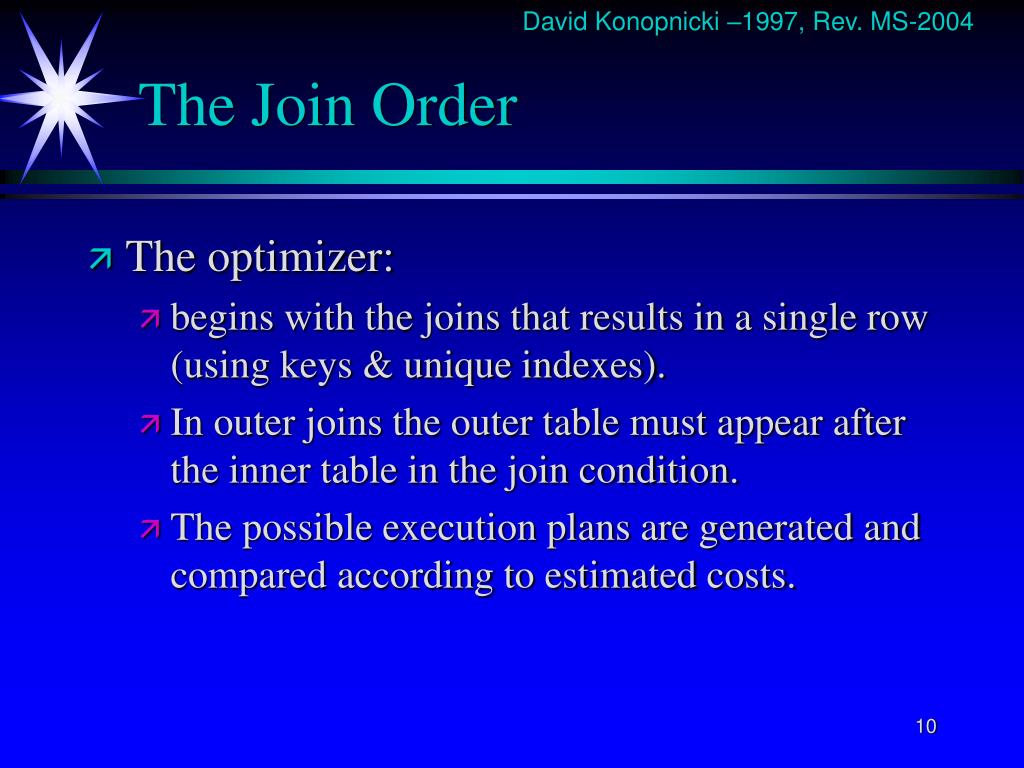

  10. The Join Order • The optimizer: • begins with the joins that results in a single row (using keys & unique indexes). • In outer joins the outer table must appear after the inner table in the join condition. • The possible execution plans are generated and compared according to estimated costs.
