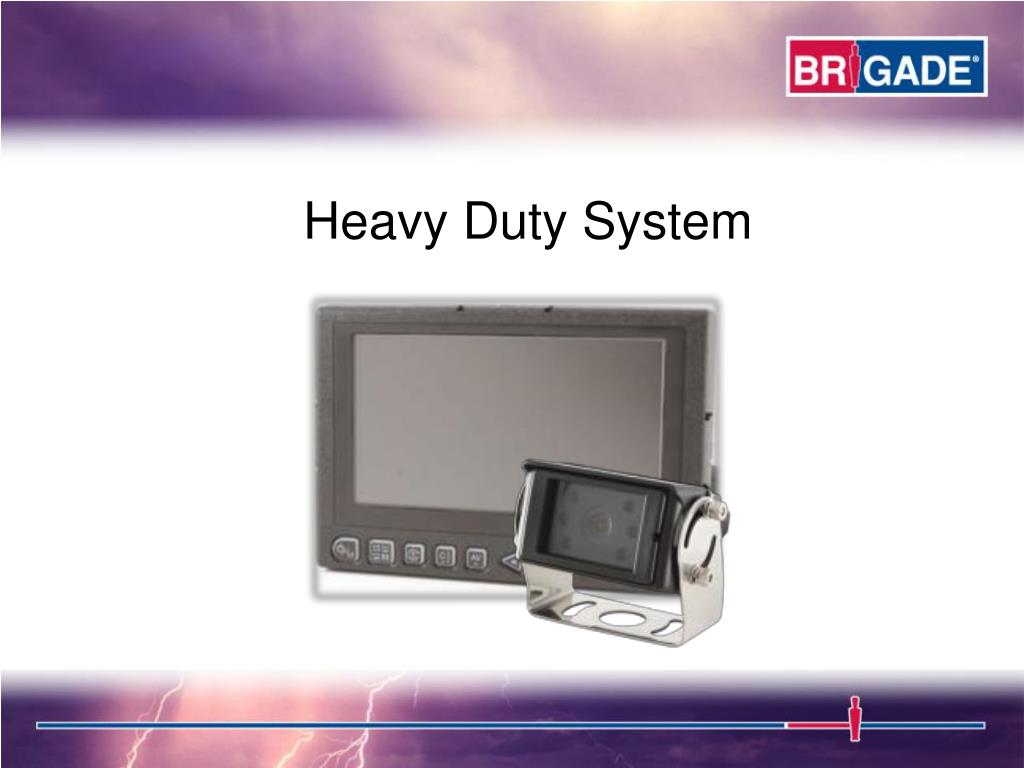

Heavy Duty System. BE-970FM. HEAVY DUTY MONITOR. BE-970FM Features. HEAVY DUTY MONITOR. Single/Split/Tri/Quad Mode Scan Feature High Resolution TFT LCD Adjust up/down and Mirror/Normal per channel for overhead or Left/Right mounting Adjust the volume per channel 4 camera input.

kevyn-maxwell
Télécharger la présentation

Heavy Duty System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Heavy Duty System

  2. BE-970FM HEAVY DUTY MONITOR

  3. BE-970FM Features HEAVY DUTY MONITOR • Single/Split/Tri/Quad Mode • Scan Feature • High Resolution TFT LCD • Adjust up/down and Mirror/Normal per channel for overhead or Left/Right mounting • Adjust the volume per channel • 4 camera input

  4. BE-970FM Features HEAVY DUTY MONITOR • Built in LCD screen protector • A/V in/out port for other accessories (Nav., DVD, & Recording) • Day/Night Mode (Auto Dimmer) • Blinking red light alerts on the screen when the vehicle is reverse • On screen distance markers • Tamperproof Function

  5. Picture Mode Display

  6. Display via Triggers CA2 or CA3 Trigger On

  7. BE-970FM Component MONITOR SYSTEM • 1 x Monitor • 1 x Control box and main power harness (one unit) • 1 x Heavy Duty Monitor Bracket • 1 x Rubberised Sunshield • 4x pcs of fixing screws for Monitor bracket

  8. Monitor Installation Sun visor Installation Monitor Installation

  9. Monitor Connection

  10. BE-970FM Specification • Operating Voltage: 10V~32 Vdc • TV System: PAL or NTSC • Panel Size: 7.0” • Resolution: 480(H) x (RGB) (V) x 234 (W) • Contrast Ratio: 300:1 • Brightness: 500 cd/m² • Viewing Angle: 40(T), 60(B), 60(L), 60(R) • Monitor/Connector: IP67 • Operating Temperature: -30° to +85°C • Storage Temperature: -40° to +95°C • Vibration Rating: 20 G

  11. BE-990C

  12. BE-990C Features HEAVY DUTY CAMERA • 1/3” Sony CCD and Sony DSP • Auto White Balance • Back Light Compensation • 6 IR-LED at 10m • Heater function at 0°C • Nor/Mir Switch

  13. BE-990C Component HEAVY DUTY CAMERA • 1 x Camera (Black) • 1 x Camera mounting bracket • 1 x Bracket gasket • 8 pcs of fitting screws • 4 pcs for Camera • 4 pcs for Bracket

  14. Camera Installation

  15. Camera Connection

  16. BE-990C Specification • Operating Voltage: 9V~12 Vdc • Imaging Devices: CCD - 1/3 ” Sony/DSP - Next • TV System: PAL • Picture Elements: 500 (H) x 582 (V) • Visual Resolution: 420 TV Lines • Required Illumination: 0.1 Lux • Illumination Distance: 10 Meters • Viewing Angle: 95° (H), 72° (V), 125° (D) • Camera/Monitor: IP69K • Operating Temperature: -30° to +80°C • Storage Temperature: -40° to +90°C • Vibration Rating: 20G

  17. BE-970FM-000 Application • Mine & Quarry • Waste Management • Construction • Warehousing & Distribution
