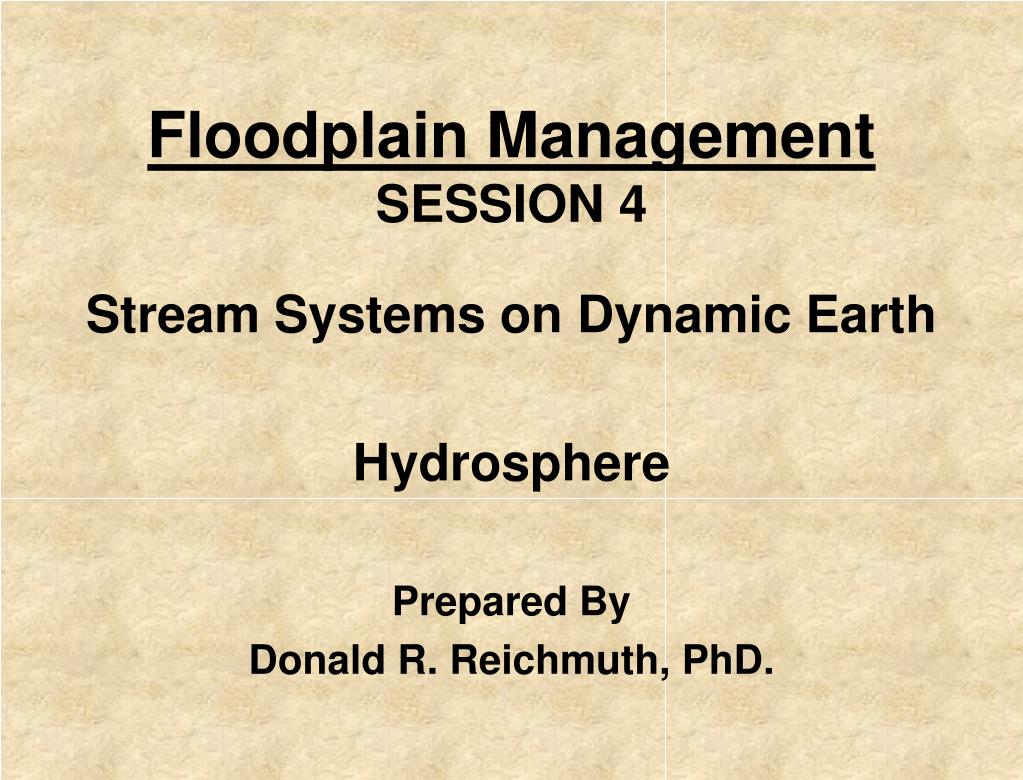

  1. Floodplain ManagementSESSION 4 Stream Systems on Dynamic Earth Hydrosphere Prepared By Donald R. Reichmuth, PhD.

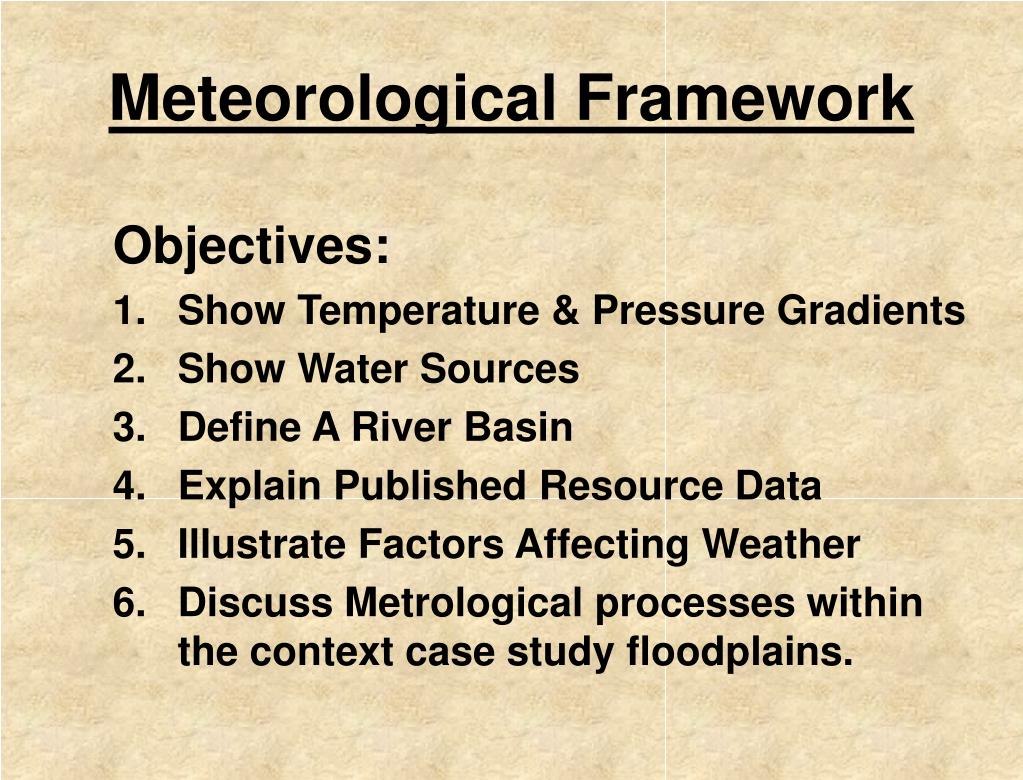

  2. Meteorological Framework Objectives: • Show Temperature & Pressure Gradients • Show Water Sources • Define A River Basin • Explain Published Resource Data • Illustrate Factors Affecting Weather • Discuss Metrological processes within the context case study floodplains.

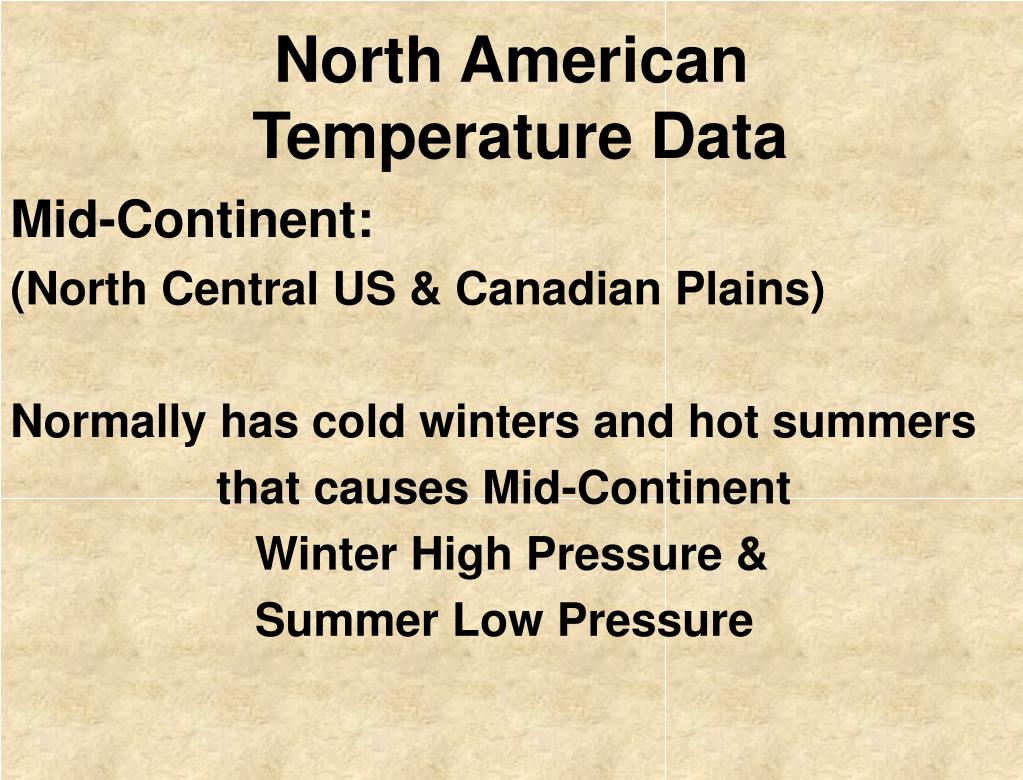

  3. North American Temperature Data Mid-Continent: (North Central US & Canadian Plains) Normally has cold winters and hot summers that causes Mid-Continent Winter High Pressure & Summer Low Pressure

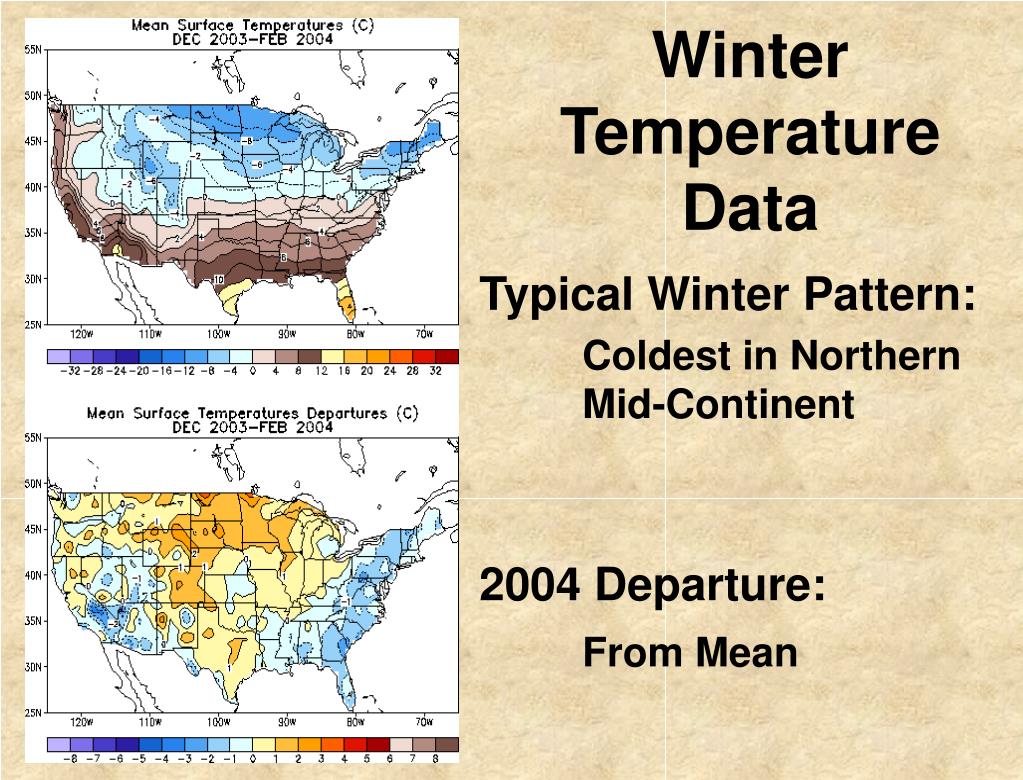

  4. WinterTemperature Data Typical Winter Pattern: Coldest in Northern Mid-Continent 2004 Departure: From Mean

  5. North American Air Flow Monsoon Pattern: Monsoon Defined: A wind system that reverses direction between summer and winter.

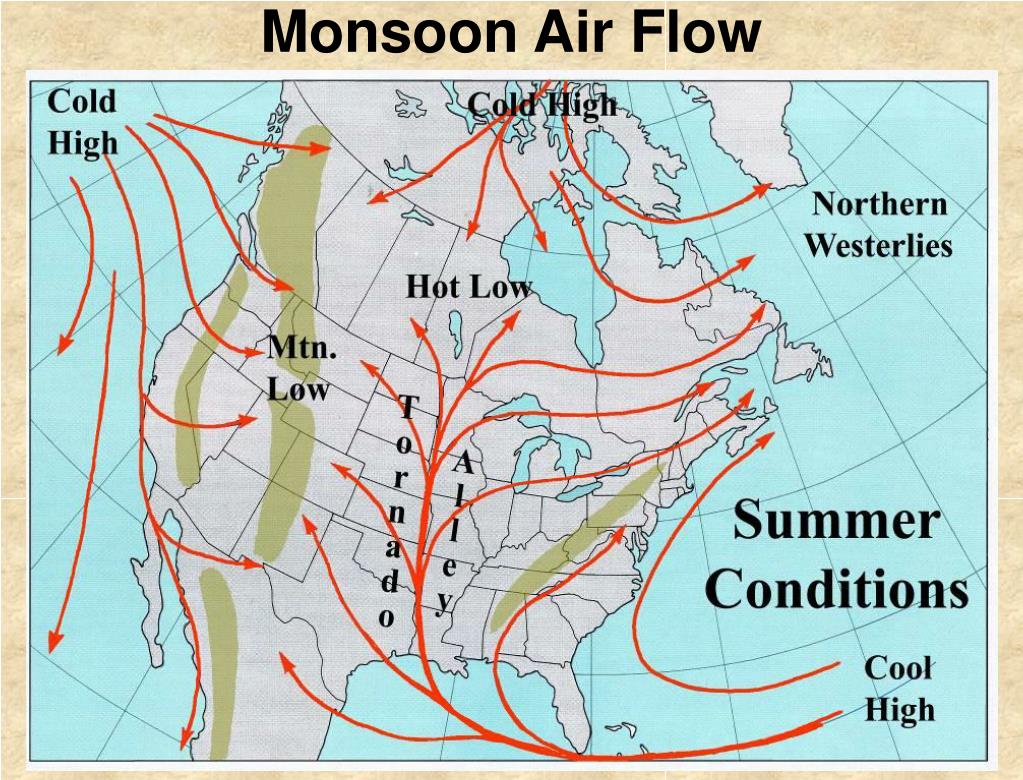

  6. Monsoon Air Flow

  7. Monsoon Air Flow

  8. Earth’s Water Sources: Outer Space Volcanoes Rock Disintegration Total Volume: 309,000 Units One Unit (1) = 4475 Cubic Km (1070 Cubic Miles) 100 Units = Yearly Evaporation From Oceans 300,000 Units = Present Volume All Oceans

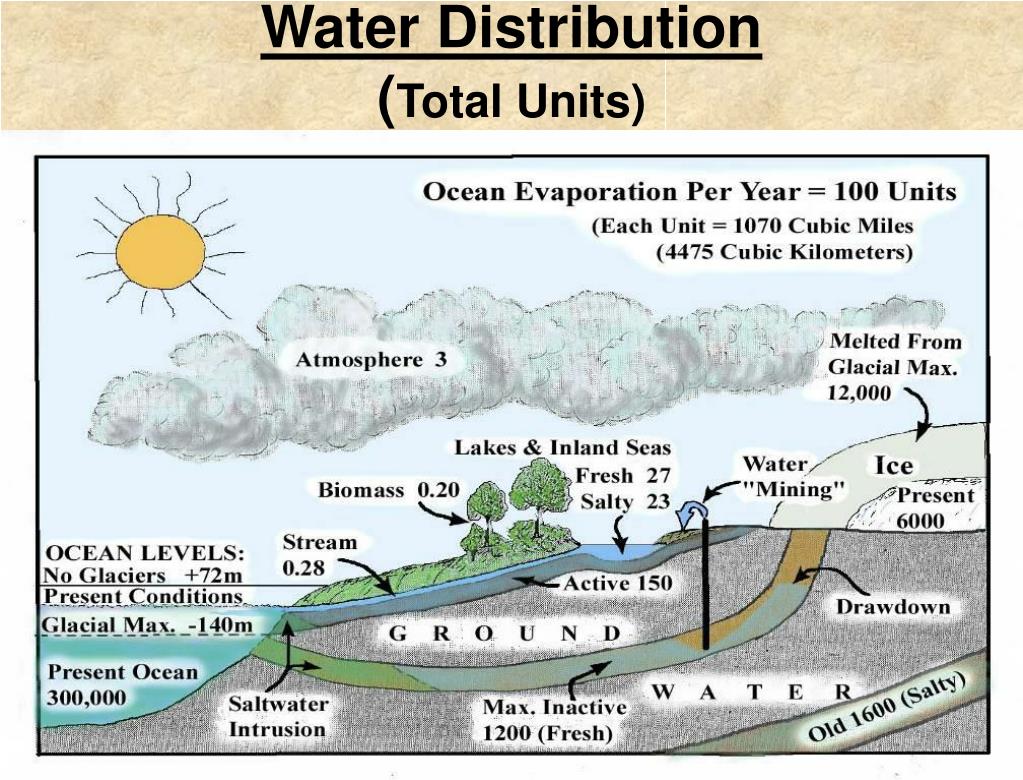

  9. Water Distribution(Total Units)

  10. Hydrologic Cycle Evaporation From Oceans Wind Moves Moisture Laden Clouds Moisture Condenses & Falls Precipitation Falls Back Into Oceans Produces Stream Flow On Land Enters Groundwater On Land Water Returns To Oceans

  11. Simplified Hydrologic Cycle

  12. Detailed Hydrologic Cycle(Units Per Year)

  13. Runoff Defined Runoff (Two Forms): Surface Stream Flow Controlled by Surface Topography Groundwater Flow Controlled by Subsurface Structure

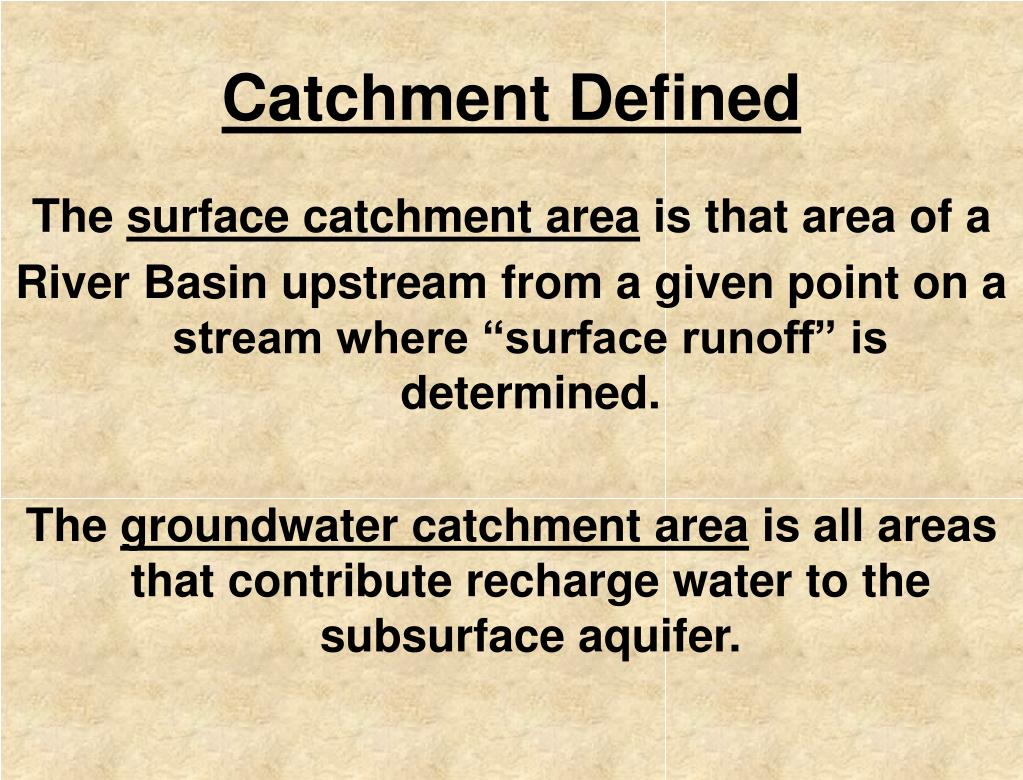

  14. Catchment Defined The surface catchment area is that area of a River Basin upstream from a given point on a stream where “surface runoff” is determined. The groundwater catchment area is all areas that contribute recharge water to the subsurface aquifer.

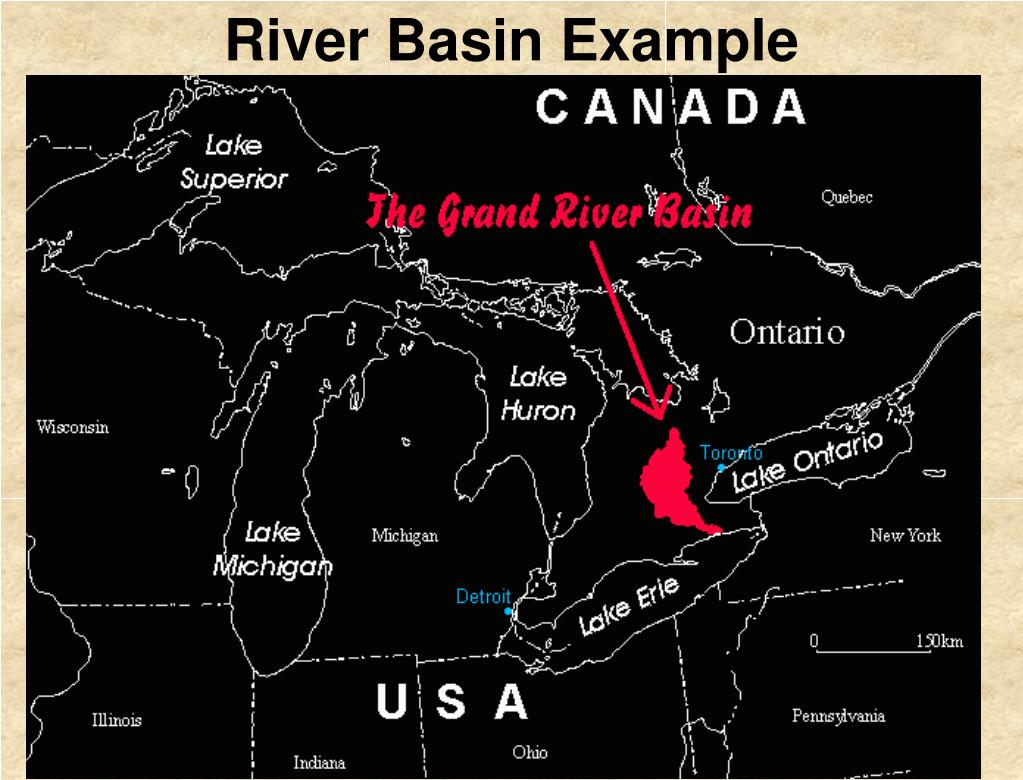

  15. River Basin Example

  16. Basin Topographic Map Grand River • NOTE: Subbasins Marked

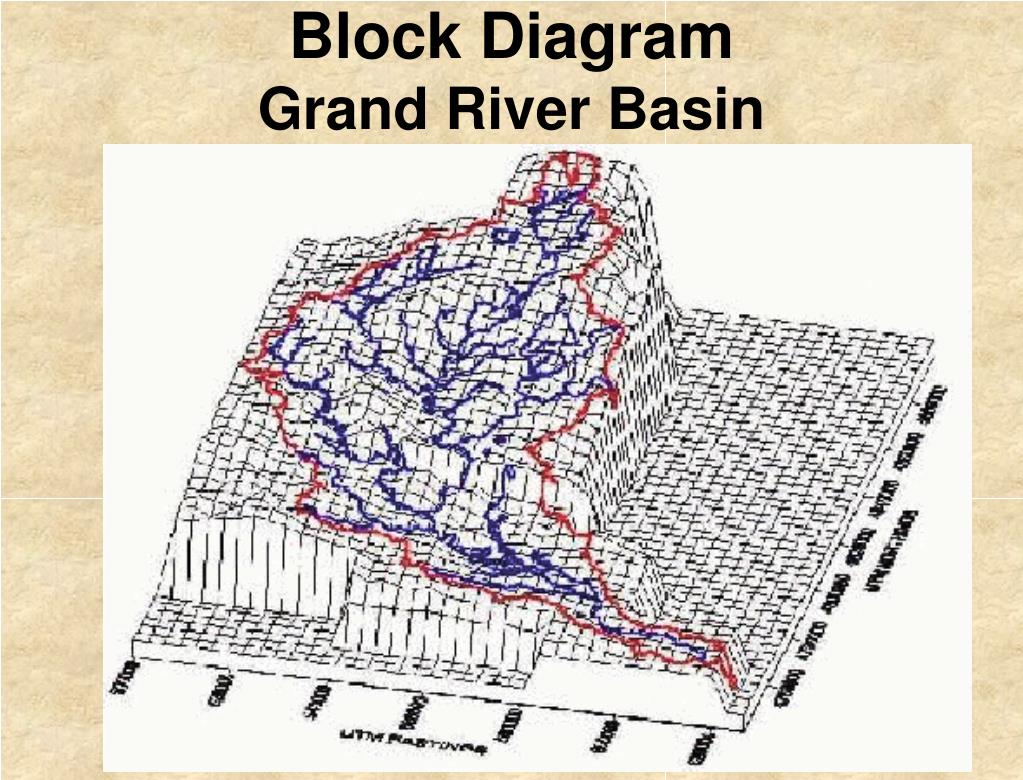

  17. Block DiagramGrand River Basin

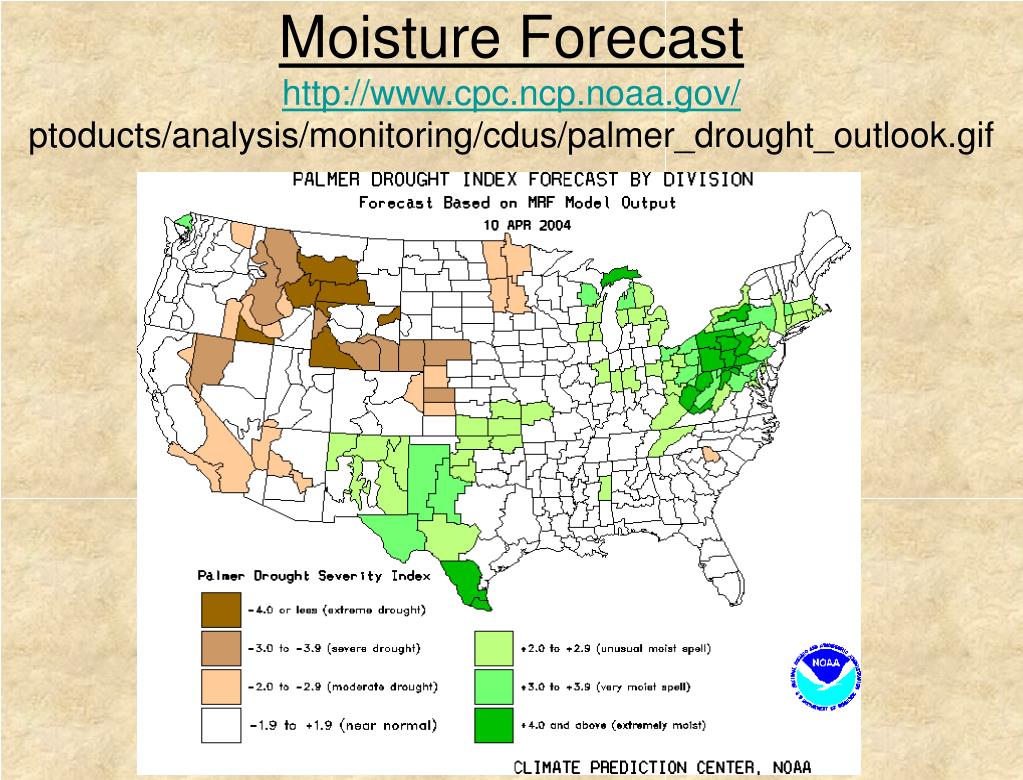

  18. Moisture Forecasthttp://www.cpc.ncp.noaa.gov/ptoducts/analysis/monitoring/cdus/palmer_drought_outlook.gif

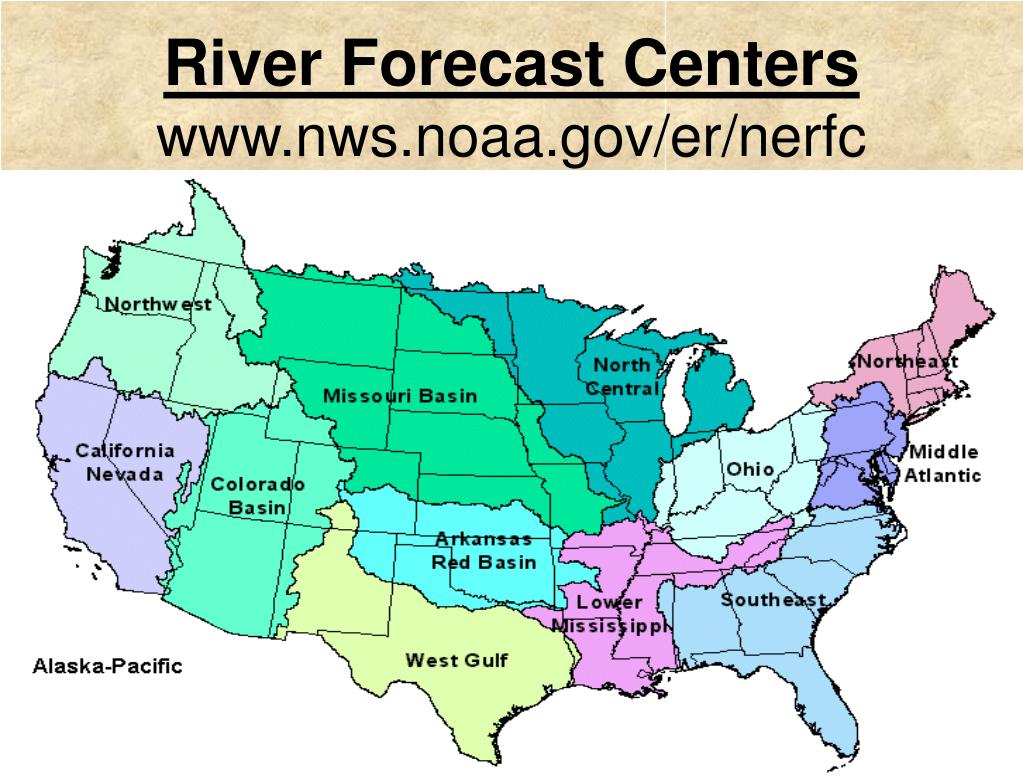

  19. River Forecast Centerswww.nws.noaa.gov/er/nerfc

  20. Hazards Assessment Briefinghttp://www.cpc.ncep.noaa.gov/products/predictions/threats

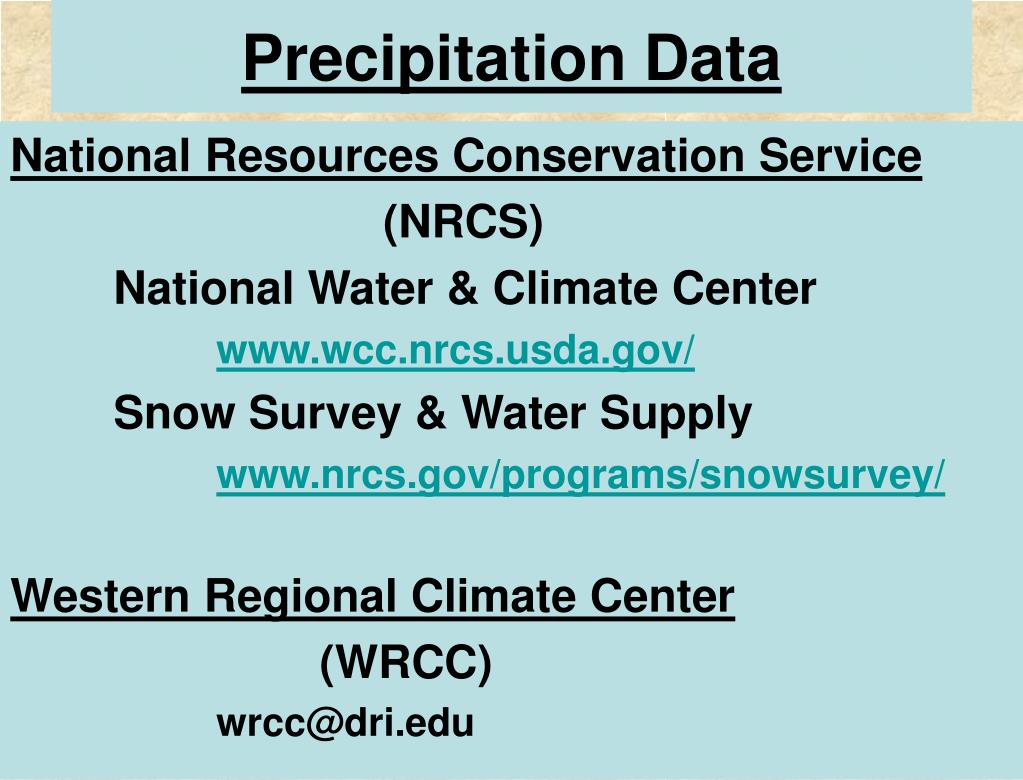

  21. Precipitation Data National Resources Conservation Service (NRCS) National Water & Climate Center www.wcc.nrcs.usda.gov/ Snow Survey & Water Supply www.nrcs.gov/programs/snowsurvey/ Western Regional Climate Center (WRCC) wrcc@dri.edu

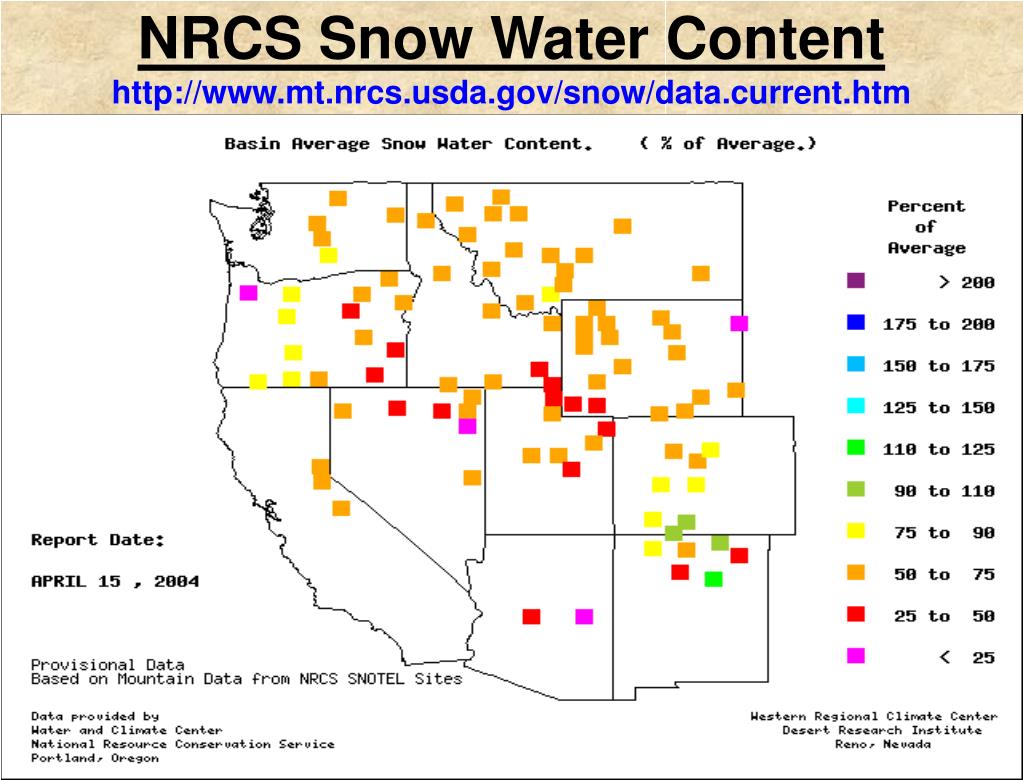

  22. NRCS Snow Water Contenthttp://www.mt.nrcs.usda.gov/snow/data.current.htm

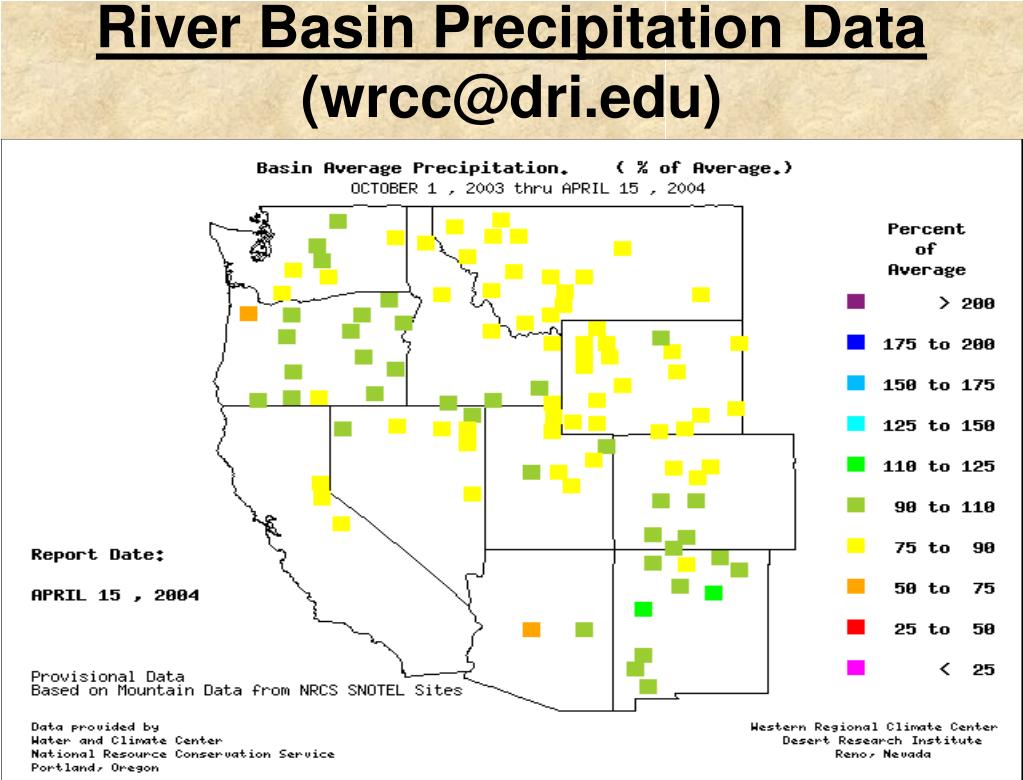

  23. River Basin Precipitation Data(wrcc@dri.edu)

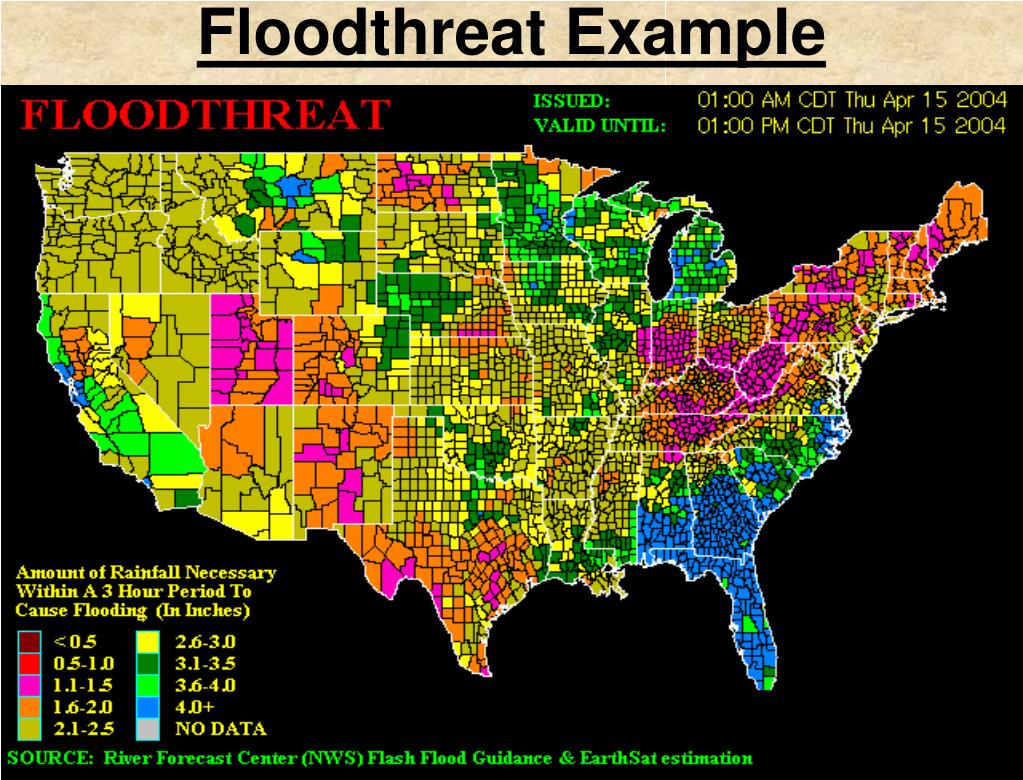

  24. Floodthreat Example

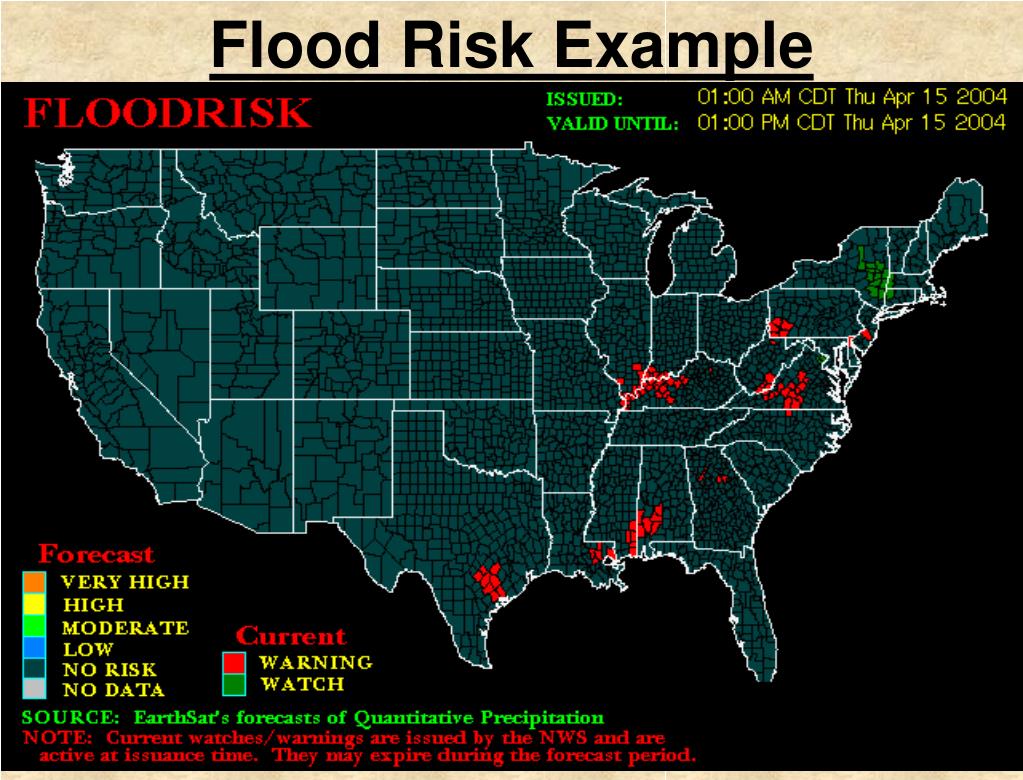

  25. Flood Risk Example

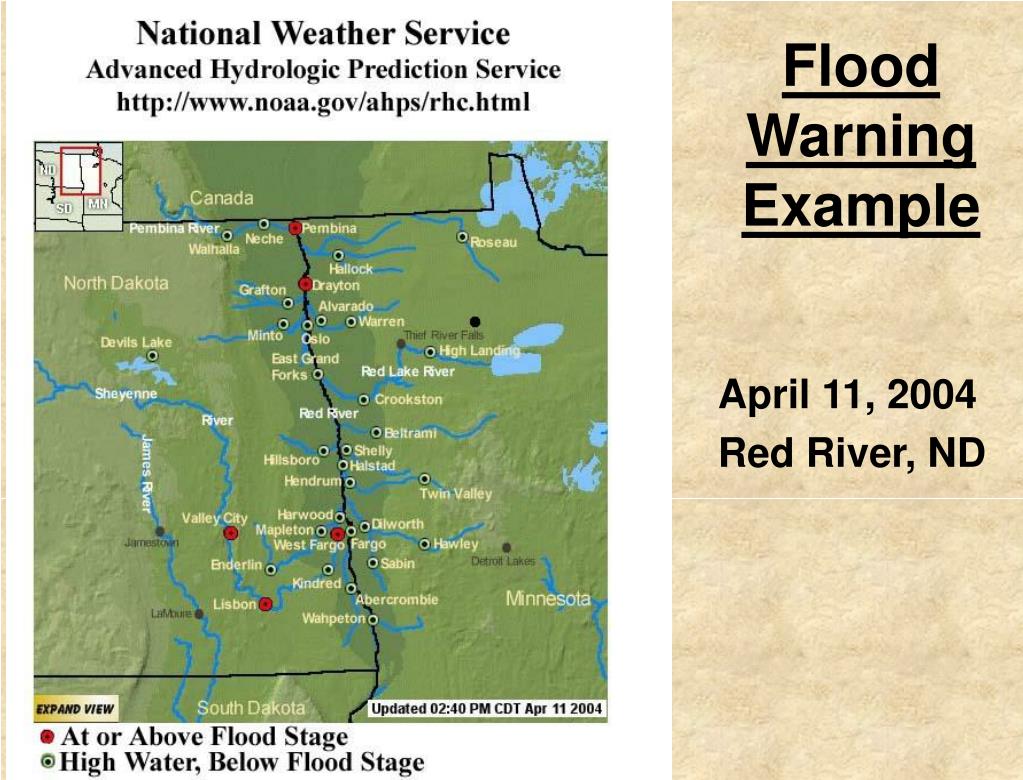

  26. Flood Warning Example April 11, 2004 Red River, ND

  27. Palmer Drought Severity Index • A “Meteorological” Drought Index • Widely Used In The USA • Measures Abnormality • Range +6 ---- Extremely Wet 0 ------ Near Normal -6 ----- Extremely Dry

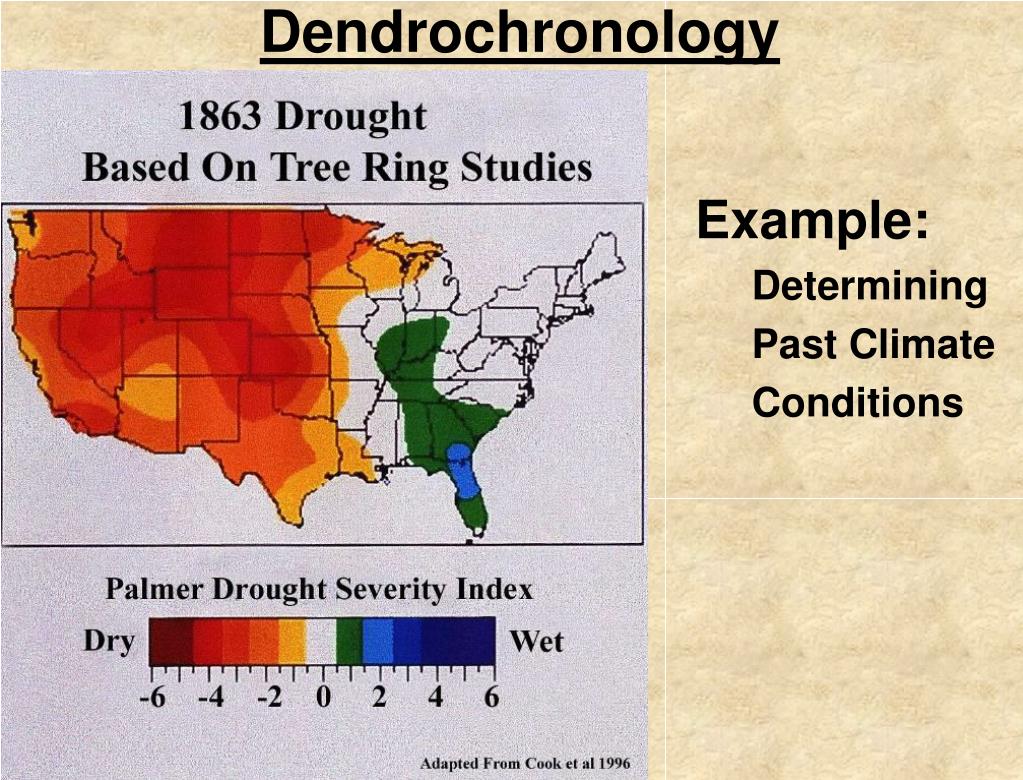

  28. Dendrochronology Example: Determining Past Climate Conditions

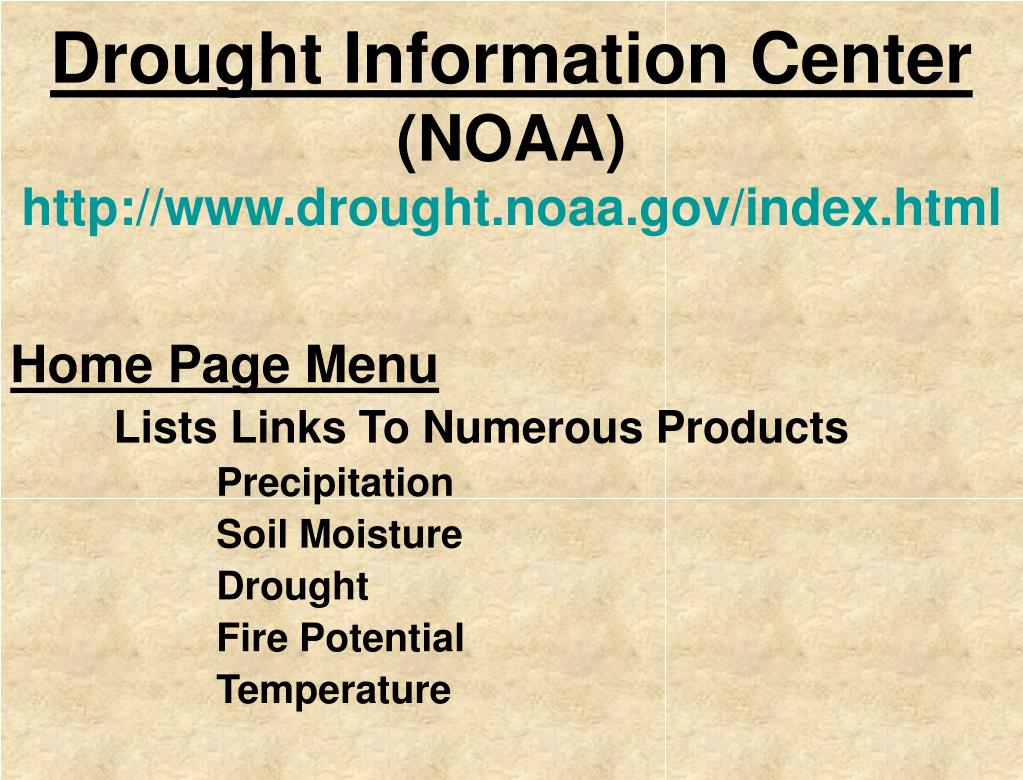

  29. Drought Information Center(NOAA)http://www.drought.noaa.gov/index.html Home Page Menu Lists Links To Numerous Products Precipitation Soil Moisture Drought Fire Potential Temperature

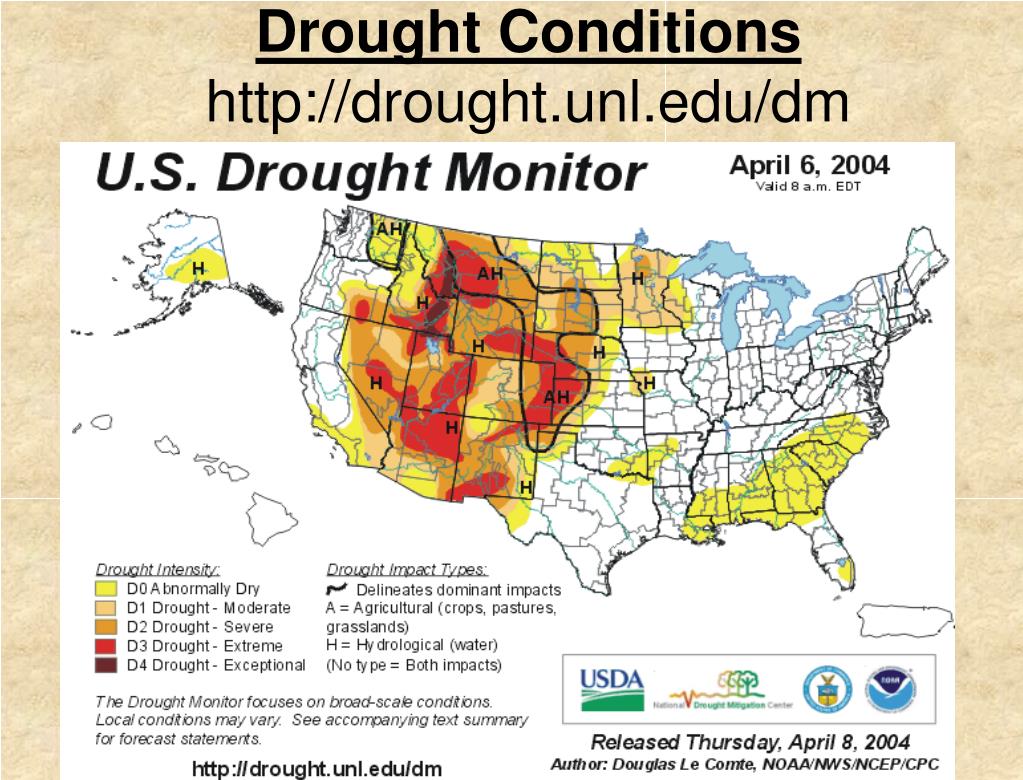

  30. Drought Conditionshttp://drought.unl.edu/dm

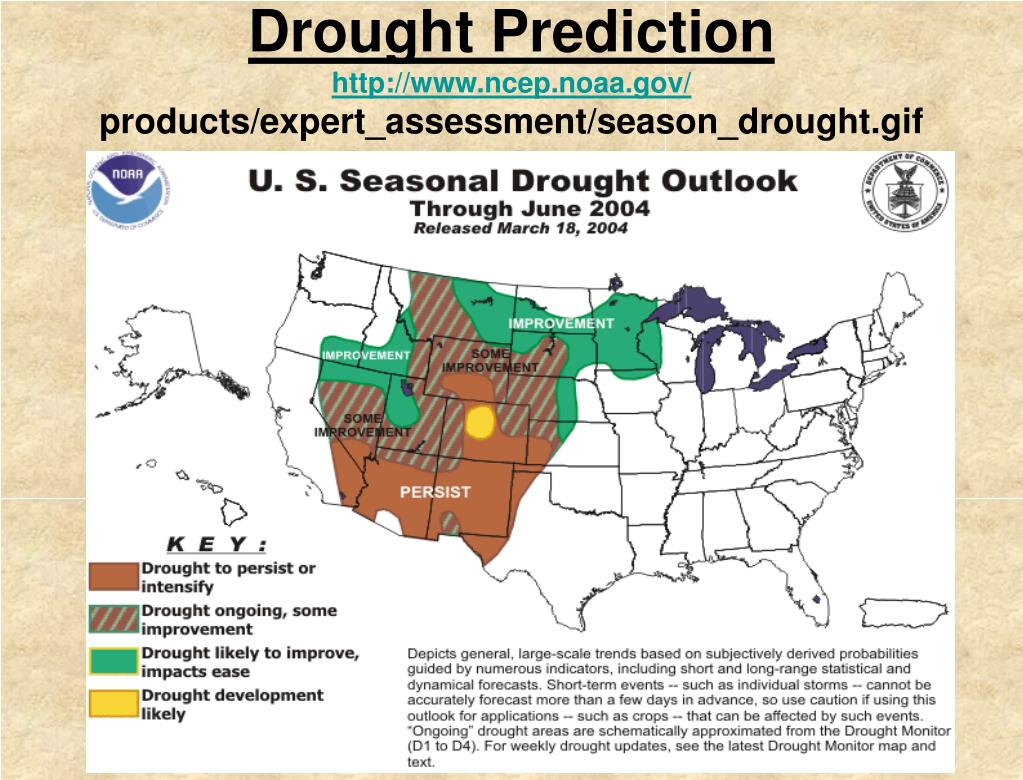

  31. Drought Predictionhttp://www.ncep.noaa.gov/products/expert_assessment/season_drought.gif

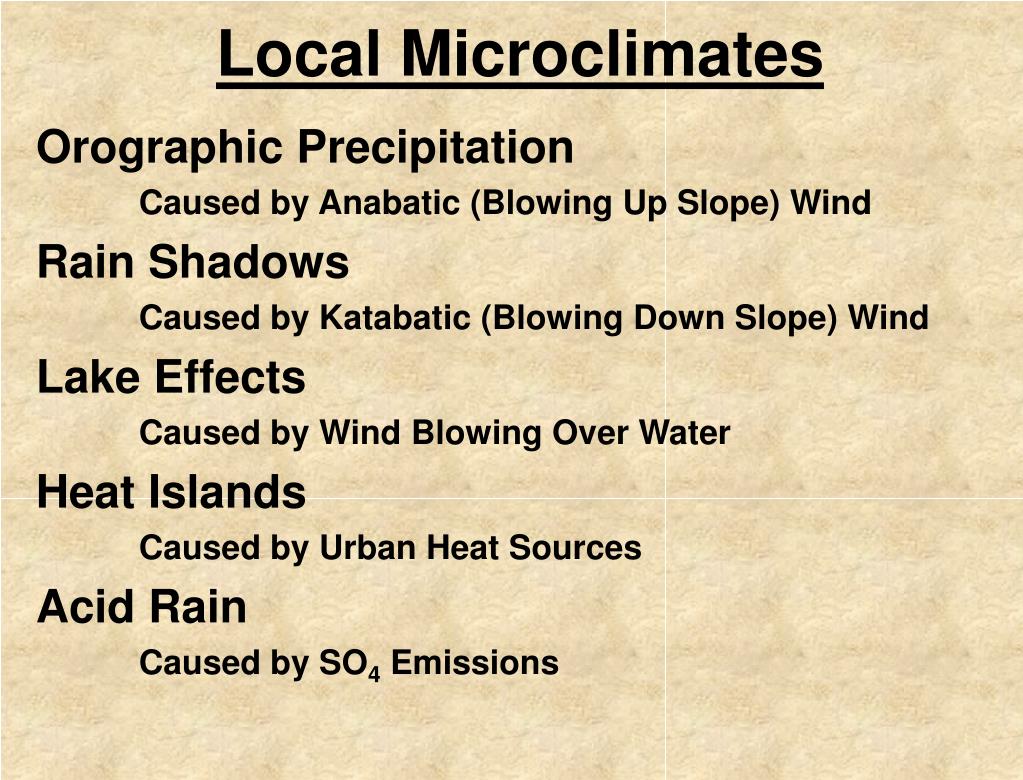

  32. Local Microclimates Orographic Precipitation Caused by Anabatic (Blowing Up Slope) Wind Rain Shadows Caused by Katabatic (Blowing Down Slope) Wind Lake Effects Caused by Wind Blowing Over Water Heat Islands Caused by Urban Heat Sources Acid Rain Caused by SO4 Emissions

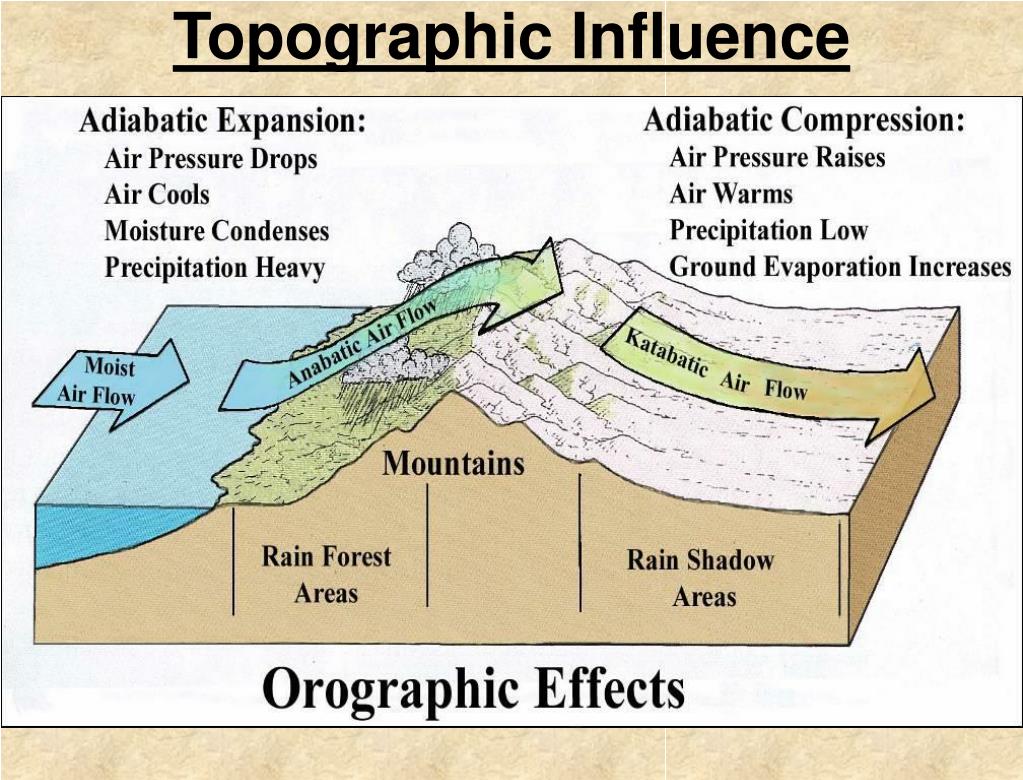

  33. Topographic Influence

  34. Effect of Smoke Stack Emissions

  35. Effect Of Urban Heat Islands

  36. Lake Effect On Snowfall

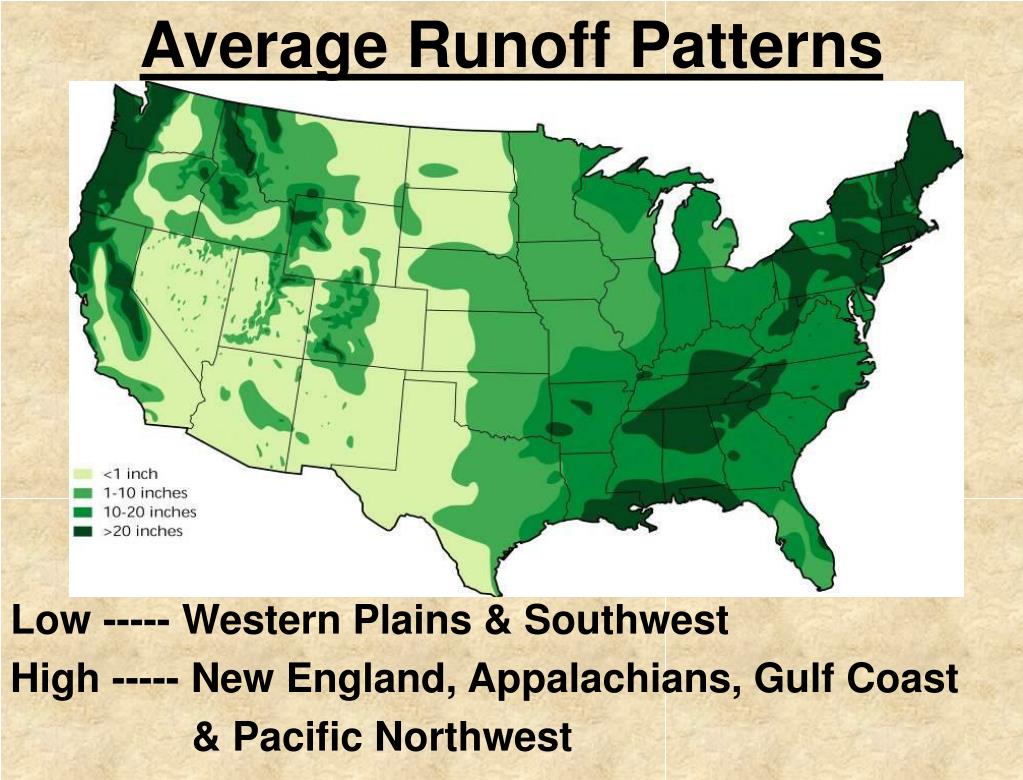

  37. Average Runoff Patterns Low ----- Western Plains & Southwest High ----- New England, Appalachians, Gulf Coast & Pacific Northwest

  38. Slide PresentationPrepared ByGeomax, P.C.Dr. Donald R. Reichmuth, President1023 W. 30th Ave.Spokane, WA 99203-1324Phone & FAX – 509-838-6390E-mail – geomax@comcast.net
