Luster : Environmental Monitoring Using Wireless Sensor Networks

Presented by Maha M. Dessokey. Luster : Environmental Monitoring Using Wireless Sensor Networks. The Main Idea. Shrub are replacing grasslands and taking over Hog Island (and the world). Where are grasslands, what happened to them? Will we still have grass in X years?

kieve
Télécharger la présentation

Luster : Environmental Monitoring Using Wireless Sensor Networks

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Presented by Maha M. Dessokey Luster: Environmental Monitoring Using Wireless Sensor Networks

  2. The Main Idea • Shrub are replacing grasslands and taking over Hog Island (and the world). • Where are grasslands, what happened to them? • Will we still have grass in X years? • LUSTER (Light Under Shrub Thickets for Environmental Research) system, a typical Environmental Wireless Sensor Network (EWSN), is to investigate the use of WSNs for monitoring the effects of sunlight on shrub thicket.

  3. The Main Achievements • The main contributions of this work are: • LiteTDMA, a cluster-based, low-power TDMA MAC protocol that supports reliable communication, dynamic reconfiguration and node addition. • An overlaid, non-intrusive reliable storage layer that provides distributed non-volatile storage of sensor data for online query, or for later manual collection. • Hardware designs for spatially dense and reconfigurable light sensing

  4. The Challenges • New hardware to resist harsh environment. • Deployment assurance. • Reliable collection of data. • Remote data uploading. • In-network data backup. • Robustness and self-healing.

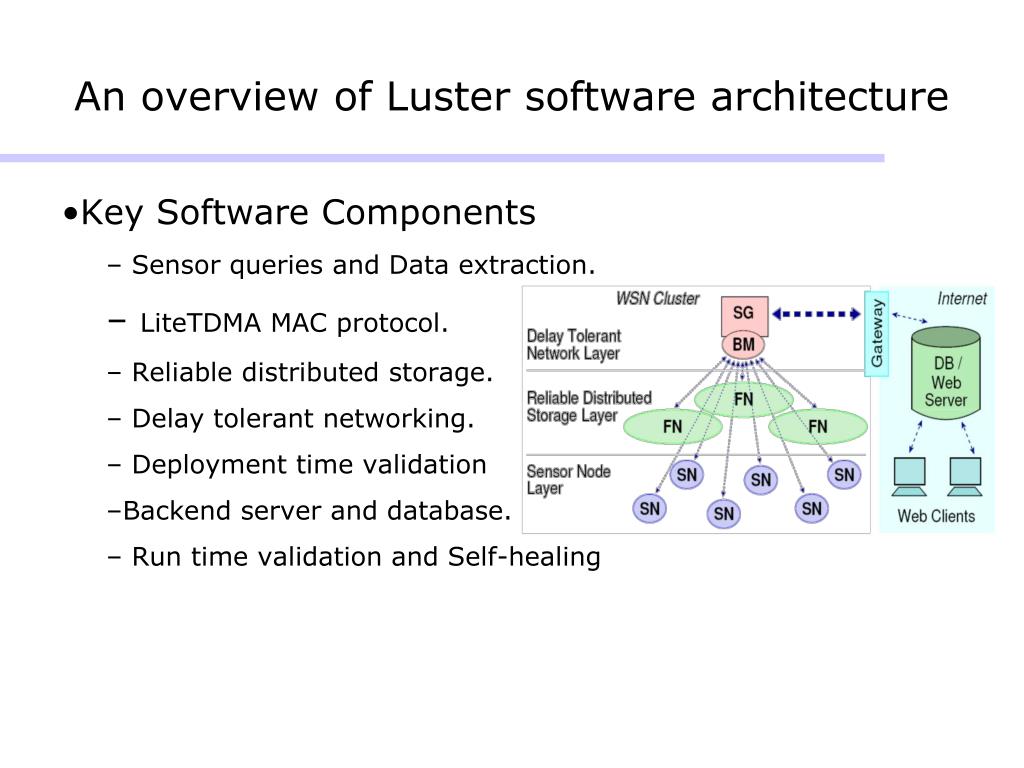

  5. An overview of Luster software architecture • Key Software Components • Sensor queries and Data extraction. • LiteTDMA MAC protocol. • Reliable distributed storage. • Delay tolerant networking. • Deployment time validation • Backend server and database. • Run time validation and Self-healing

  6. Deployment Experience • Sensor nodes deployed in a cross, on a grid and along a tree branch • Solar panel, Antenna and Stargate

  7. Reference • L. Selavo, A. Wood, Q. Cao, T. Sookoor, H. Liu, A. Srinivasan, Y. Wu, W. Kang,J. Stankovic, D. Young,J. Porter.” LUSTER: Wireless Sensor Network for Environmental Research”. In SenSys ’07: Proceedings of the 5th International Conference on Embedded Networked Sensor Systems, pages 103–116, New York, NY, USA, 2007.
