  1. The X170 protocol as a vehicle for 3D sound control Presented by Shane Haw Supervisor: Richard Foss Email: g08h4123@campus.ru.ac.za

  2. A brief overview of my research. • Further investigation into: • Audio Networking and the use of the X170 as a control protocol • Computer Graphics, Google Sketchup and the Ruby API • Human Computer Interaction and the use of the Microsoft Kinect • Questions

  3. Overall Structure

  4. Audio Networking • The AES-X170 Protocol is a control protocol • Allows the creation of X170 parameters, • And the accessing and settingof remote and local parameters • Access is provided through the X170 parameter heirarchy

  5. Audio Networking • The X170 Addressing hierarchy has the following sturcture: • Section Block (High level functional group) • Section Type (Subgroups) • Section Number (Channel/interface number) • Parameter Block (Cluster or group) • Parameter Block Index • Parameter Type (Describes actual parameter) • Parameter Index (Specific within parameter)

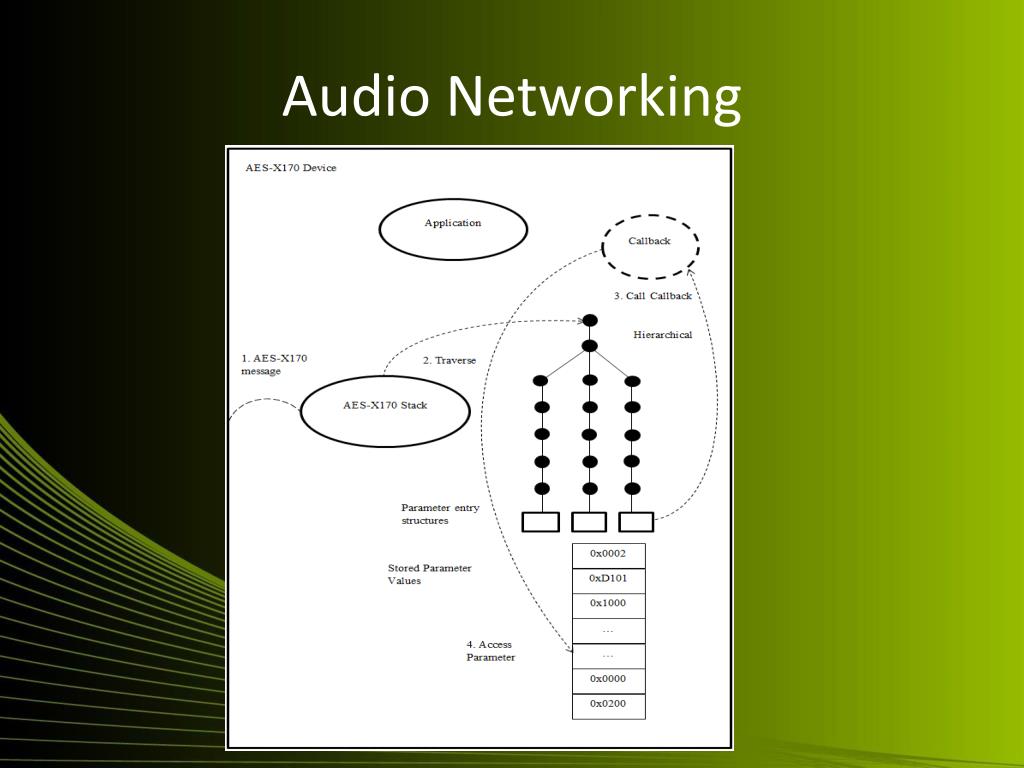

  6. Audio Networking

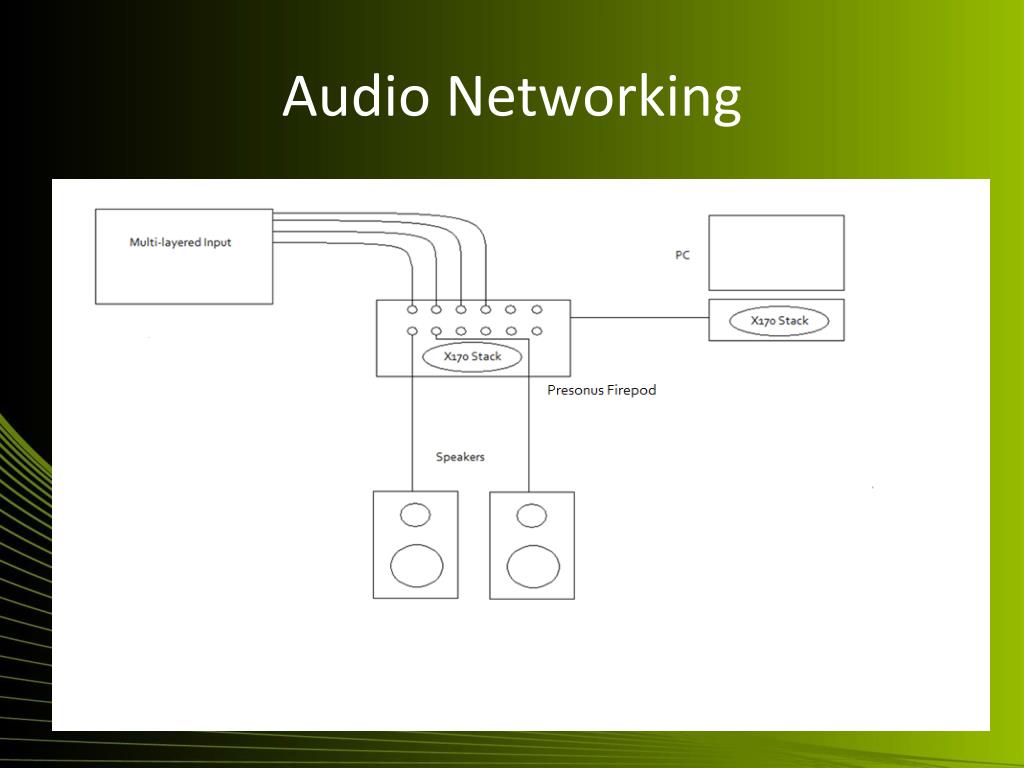

  7. Audio Networking

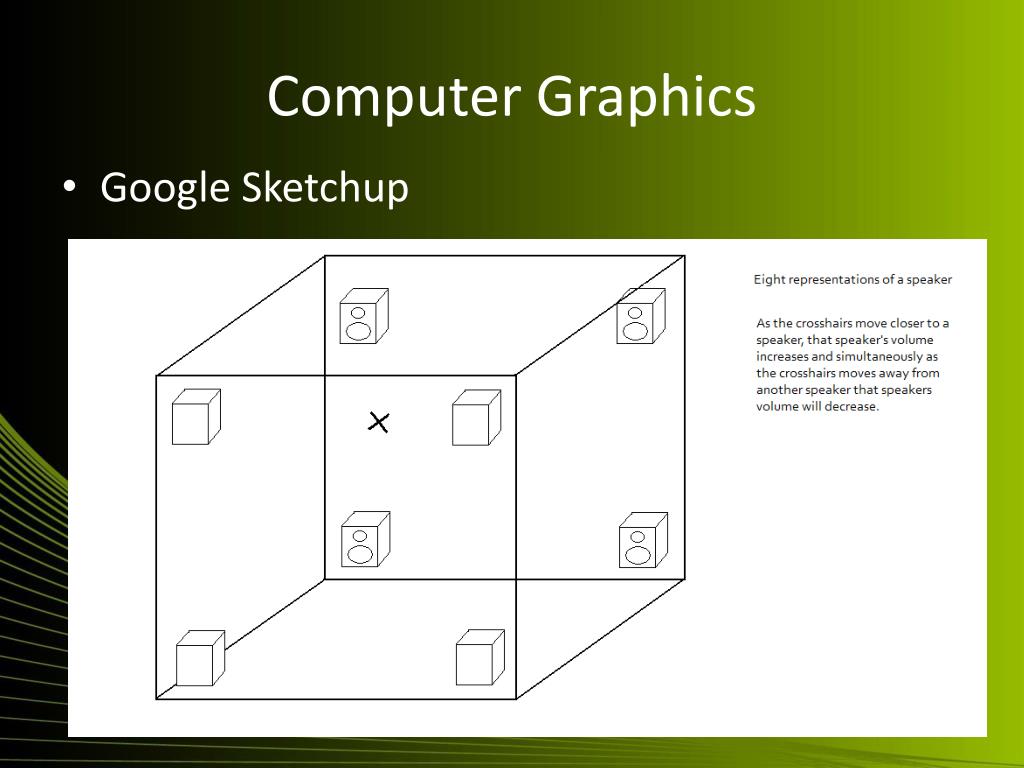

  8. Computer Graphics • Google Sketchup

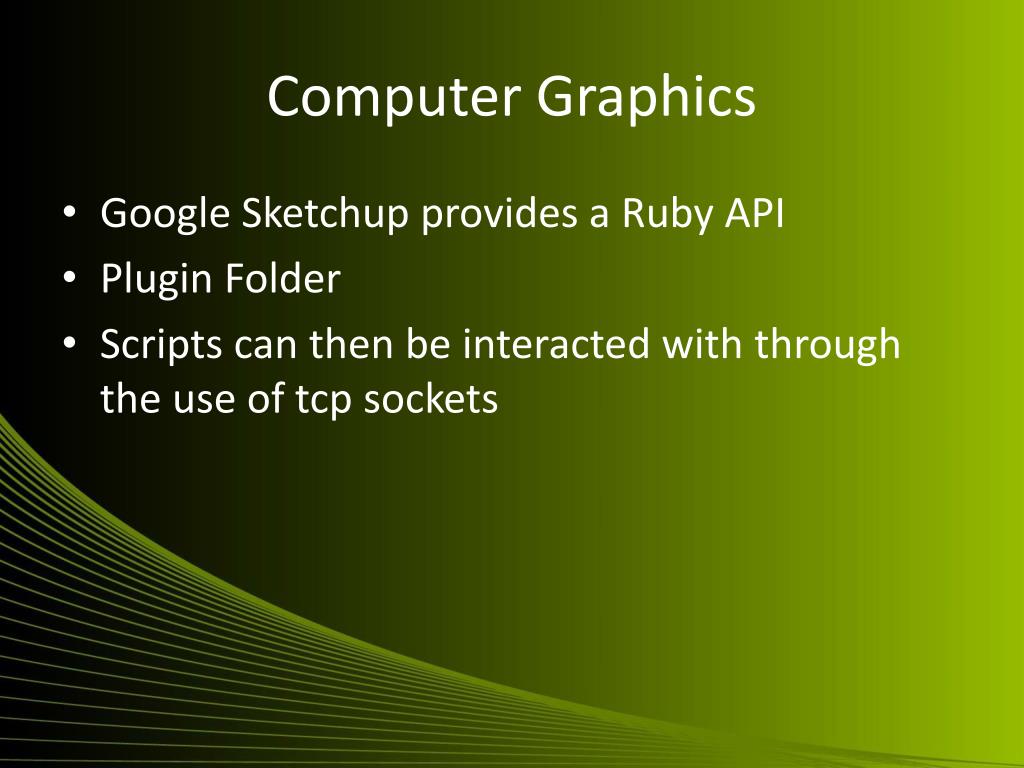

  9. Computer Graphics • Google Sketchup provides a Ruby API • Plugin Folder • Scripts can then be interacted with through the use of tcp sockets

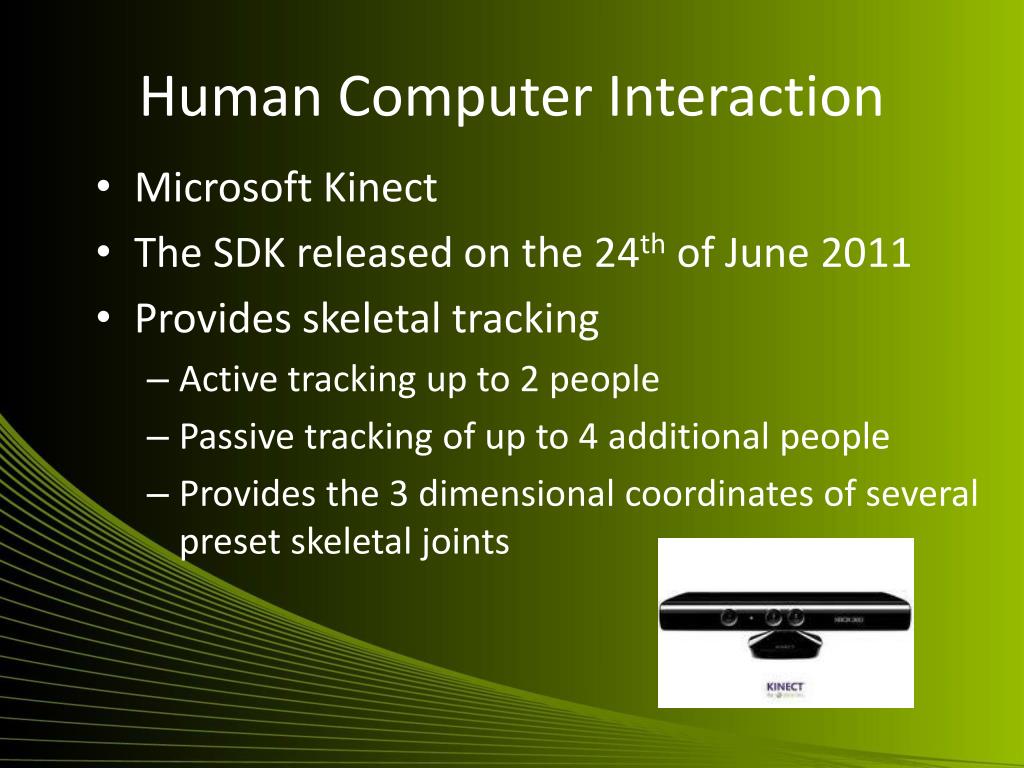

  10. Human Computer Interaction • MicrosoftKinect • The SDK released on the 24th of June 2011 • Provides skeletal tracking • Active tracking up to 2 people • Passive tracking of up to 4 additional people • Provides the 3 dimensional coordinates of several preset skeletal joints

  11. Questions ?
