  1. Chapter Eleven Partial Derivatives

  2. Section 11.1Functions of Several Variables • Goals • Study functions of two or more variables from four points of view • Discuss visual representations • Describe functions of three or more variables

  3. Four Points of View • We can study functions of two or more variables from four viewpoints: • Verbally • Numerically • Algebraically • Visually

  4. Example • The wind-chill index is often used to describe the apparent severity of the cold. • The index W depends on the actual temperature T and the wind speed v. • A table of values of W(T, v). • f(–5, 50) = –15.

  5. Domain and Range • Recall that for a function f(x, y) given by an algebraic formula, the domain consists of all pairs (x, y) for which the expression for f(x, y) is a well-defined real number. • As an example we find the domain and range of • Solution The domain of g is • This is the disk with center (0, 0) and radius 3.

  6. The range of g is • Since z is a positive square root, z ≥ 0. Also • So the range is

  7. Visual Representations • One way to visualize a function of two variables is through its graph. • For example, we sketch the graph of • Solution Squaring both sides of this equation gives x2 + y2 + z2 = 9, which is an equation of the sphere with center the origin and radius 3. • Since z ≥ 0, the graph of g is just the top half of this sphere.

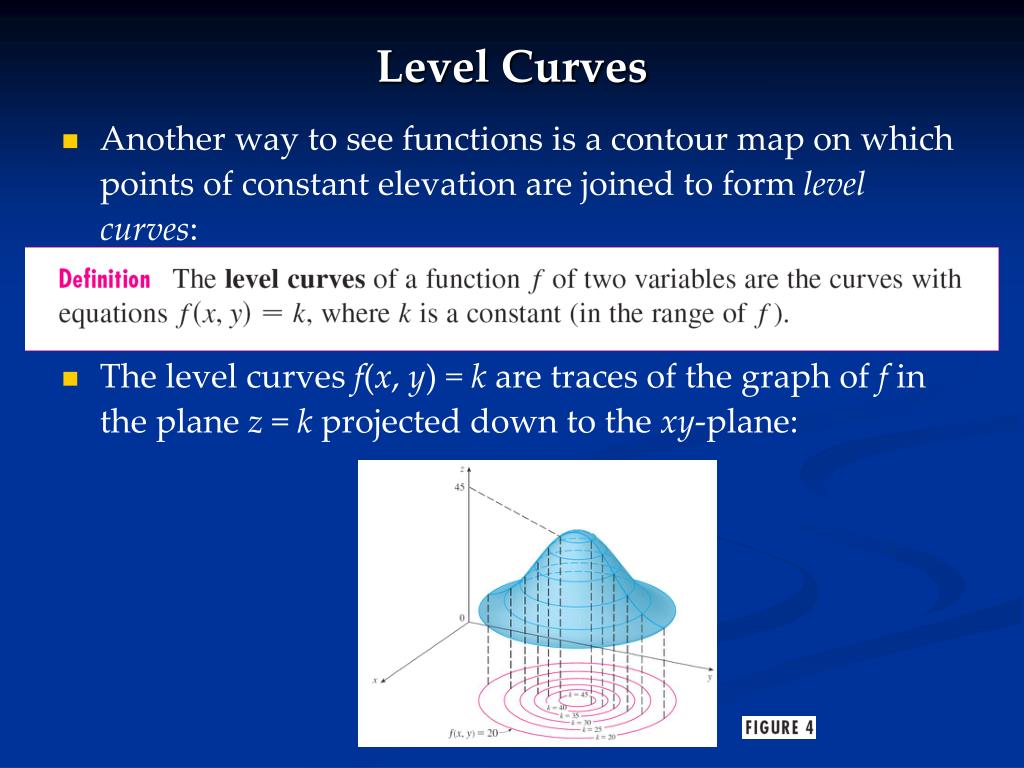

  8. Level Curves • Another way to see functions is a contour map on which points of constant elevation are joined to form level curves: • The level curves f(x, y) = k are traces of the graph of f in the plane z = k projected down to the xy-plane:

  9. A common example of level curves occurs in topographical maps of mountainous regions, as shown on the next slide. • The level curves are curves of constant elevation above sea level. • If we walk along one of these contour lines we neither ascend nor descend.

  10. Example • The figure shows a contour map for a function. • Use it to estimate f(1, 3) and f(4, 5). • The point (1, 3) lies part way between the level curves with z-values 70 and 80. • So we estimate that f (1, 3) ≈ 73. • Similarly, we estimate that f (4, 5) ≈ 56.

  11. Example • Sketch the level curves of the function • Solution The level curves are • This is a family of concentric circles with center (0, 0) and radius • The cases k = 0, 1, 2, 3 are shown:

  12. Example • Sketch some level curves of the function h(x, y) = 4x2 + y2. • Solution The level curves are which, for k > 0, describes a family of ellipses with semiaxes • Shown below are these level curves lifted up to the graph of h:

  13. Three or More Variables • A function of three variables, f, is a rule that assigns to each ordered triple (x, y, z) in a domain D in space a unique real number denoted by f(x, y, z). • For instance, the temperature T at a point on the surface of the Earth depends on the longitude x and latitude y of the point and on the time t, so T = f(x, y, t).

  14. Example • Find the domain of f if f(x, y, z) = ln (z – y) + xy sin z. • Solution The expression for f(x, y, z) is defined as long as z – y > 0, so the domain of f is the half-space

  15. Level Surfaces • To gain insight into a function f of three variables we can examine its level surfaces, which are the surfaces with equationsf(x, y, z) = k, where k is a constant. • If the point (x, y, z) moves along a level surface, the value of f(x, y, z) remains fixed.

  16. Example • Find the level surfaces of the function f(x, y, z) = x2 + y2 + z2 • Solution The level surfaces arex2 + y2 + z2 = k, where k ≥ 0. • These form a family of concentric spheres with radius

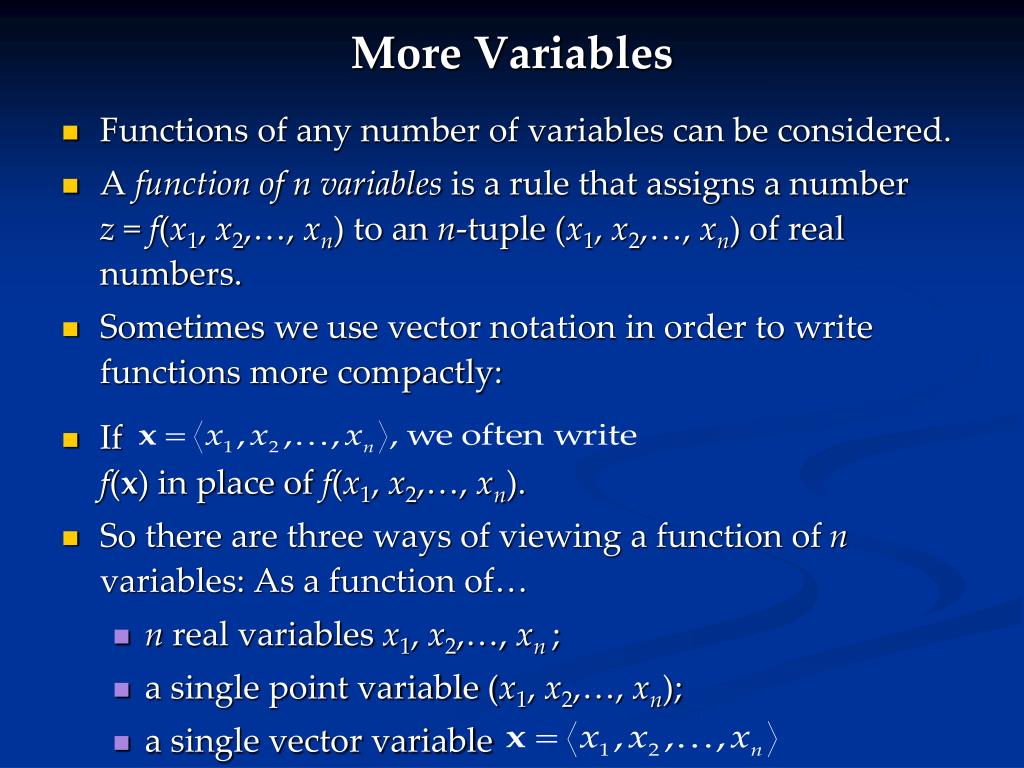

  17. More Variables • Functions of any number of variables can be considered. • A function of n variables is a rule that assigns a number z = f(x1, x2,…, xn) to an n-tuple (x1, x2,…, xn) of real numbers. • Sometimes we use vector notation in order to write functions more compactly: • Iff(x) in place of f(x1, x2,…, xn). • So there are three ways of viewing a function of n variables: As a function of… • n real variables x1, x2,…, xn; • a single point variable (x1, x2,…, xn); • a single vector variable

  18. Review • Four ways of viewing functions of two variables • Visual representations • Graphs • Level curves • Functions of three or more variables • Level surfaces
