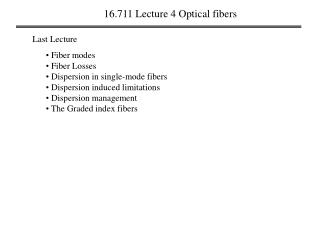

16.711 Lecture 4 Optical fibers. Last Lecture. Fiber modes Fiber Losses Dispersion in single-mode fibers Dispersion induced limitations Dispersion management The Graded index fibers. 16.711 Lecture 4 Mode-coupling. Today. Mode–coupling theory Directional coupler

kineks
Télécharger la présentation

16.711 Lecture 4 Optical fibers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 16.711 Lecture 4 Optical fibers Last Lecture • Fiber modes • Fiber Losses • Dispersion in single-mode fibers • Dispersion induced limitations • Dispersion management • The Graded index fibers

  2. 16.711 Lecture 4 Mode-coupling Today • Mode–coupling theory • Directional coupler • Coupling between guided and un-guided modes • Coupling from waveguide to free space • Mode coupling by scattering • Coupling to radiating modes at waveguide bands

  3. 16.711 Lecture 4 Mode-coupling Mode–coupling theory • Why knowledge of mode coupling is important? • DFB Lasers/DBR Lasers • VCSEL structure • March-Zehnder interferometer • Direction coupler • Optimized device structures

  4. 16.711 Lecture 4 Mode-coupling Mode–coupling theory • Recall mode equations TE Mode: Notice: • Mode profile E(x, y) doesn’t change with z if no index perturbation. • No coupling between different modes if no index perturbation.

  5. 16.711 Lecture 4 Mode-coupling Mode–coupling theory • index perturbations • Generalized propagation equation

  6. 16.711 Lecture 4 Mode-coupling • perturbation theory, TE mode Mode–coupling equation

  7. 16.711 Lecture 4 Mode-coupling • discussion of the mode-coupling equation • if no index perturbation, A(z) is an constant, goes back to the normal equation. • Cn measures how much the index perturbation changes the propagation constant n. • If index perturbation doesn’t vary with z, coupling between the mode depends on the .

  8. 16.711 Lecture 4 Mode-coupling • directional coupler

  9. 16.711 Lecture 4 Mode-coupling • directional coupler --- solution of the differential equation set (1) E2(z=0) =0: • Output field power is half of the exciting waves. • the field of the unexcited waveguide is delayed by /2 with respect to the exciting wave.

  10. 16.711 Lecture 4 Mode-coupling • directional coupler --- Applications (1) Signal switch (2) WDM coupler

  11. 16.711 Lecture 4 Mode-coupling (2) if • Application: Y modulator

  12. 16.711 Lecture 4 Mode-coupling • Phase-mismatched directional coupler • General solution E10 =1, E20=0:

  13. 16.711 Lecture 4 Mode-coupling • Distributed Bragg Reflective (DBR) Structure Mode–coupling equation

  14. 16.711 Lecture 4 Mode-coupling • Distributed Bragg Reflective (DBR) Structure Small variations Phase matching condition:

  15. 16.711 Lecture 4 Mode-coupling • General solution Phase matching condition:

  16. 16.711 Lecture 4 Mode-coupling • Example General Phase matching condition: Grating assistant coupling:

  17. 16.711 Lecture 4 Mode-coupling • Phase mismatched Bragg Mirror Phase mismatching is related to wavelength, wavelength sensitive mirror.

  18. 16.711 Lecture 4 Mode-coupling • Coupling between guided and unguided modes (a) prism coupling (b) grating assisted coupling (c) end-fired coupling

  19. 16.711 Lecture 4 Mode-coupling • end-fired coupling • Coupling efficiency: • fm(x) is the outgoing guided mode profile, and fg(x) is the incoming waveguide excited mode profile.

  20. 16.711 Lecture 4 Mode-coupling • Coupling form waveguide to Free-space • Model coupling by scattering:

  21. 16.711 Lecture 4 Mode-coupling • Coupling to radiating modes at waveguide bends • Example:
