IIPS-Fall 2006 Colleague, WebAdvisor, CampusCruiser & Blackboard Integration

1. Presenters:Cape Fear CCJoel Brubaker, Colleague AdminChristina Heikkila, WebMaster IIPS-Fall 2006 Colleague, WebAdvisor, CampusCruiser & Blackboard Integration

2. Things to Keep in Mind Integrating Colleague’s WebAdvisor, CampusCruiser interface and Blackboard interface into your campus workflow is no easy task. The following represents over two years of decision making, custom programming, some trial and error and some luck. Keep it simple, start small and slowly add to it.

3. Overview • Decision Making • Define Business Rules for Accounts • Colleague Setup in CORE • WebAdvisor User Accounts • CampusCruiser Integration • Blackboard Snapshot Generator • Blackboard Snapshot Tool • Envision Process Handler

4. Decision Making • Determine naming convention • Have a roll out plan • Consider timing of rollout if switching usernames; summer, between terms • Are there laws affecting use of SSN? • Standardization – reduces work load of IT by allowing full automation

5. Decision Making - CFCC CFCC changed from disparate names to a standard naming convention for all constituents This did away with the, “I want my name to be this, that, the other.” Rollout of the change occurred between Summer and Fall 2005.

6. Decision Making – CFCC FirstInitial+MiddleInitial+LastName+Last Two Digits of ID A CFCC USERNAME is generated on the following fields: Data Element Name – PERSON File FIRST.NAME......................: |Joseph| MIDDLE.NAME.....................: |Thomas| LAST.NAME.......................: |Smith| ID..............................: |0073891| Creating a CFCC username of: jtsmith91 When there is a duplicate Colleague will auto append a counter digit from CORE>PID8 NEXT.LOGINID.COUNTER (jtsmith911)

7. Decision Making – CFCC Problem – Initial Passwords • We didn’t like the choices for initial passwords • No effective/secure way to deliver random password option to the account holder Solution – Random Pin & LDAP

8. “Students” Term Based APPLICANTS APP.START.TERMS STUDENTS STU.TERMS Term ranges define the active/inactive status of the WebAdvisor Accounts Students with an application start term or students with registration activity in the term range have a Web account activated. Term rotation is one year in length. CFCC students have their accounts remain active until the end of the following term. Summer term is excluded. Define Business Rules For Account Creation

9. Faculty/Staff Position Based HRPER HRP.PERPOS.END.DATE Faculty/Staff have a WebAdvisor account anytime the POSS screen has a position without an end date. Due to the nature of information available on the web, Faculty/Staff do NOT have a grace period like students. Define Business Rules For Account Creation

10. Define Business Rules For Account Creation With this business model in place, SAVEDLISTS are generated with select statements going through the logic of above. 3 Sets of lists are created for each ‘group’ Full Sets New accounts to create Accounts to remove (Ascii File X2WL)

11. Define Business Rules For Account Creation

12. Define Business Rules For Account Creation The WebAdvisor account is what drives everything else!

13. Colleague Setup in CORE XS.CALC.LOGIN.ID.X810 (Mint Package X810.CALC.LOGIN.ID)

14. Colleague Setup in CORE Because the pin is a random number, the user must use our password reset Web page to set their initial password. https://reg.cfcc.edu/ResetPassword/

15. Colleague Setup in CORE • Note about the Random Pin Option • Is the Initial Password for WebAdvisor • The same random pin also populates the TREG (Telephone Registration PIN). • CFCC randomly generates new TREG pins prior to the start of each semesters registration. • Communications Management (CC) is used to email notification to students of their TREG/TRAC pin numbers. The student email address used is CampusCruiser. • It should be noted, the initial setup of the WebAdvisor account sets the TREG pin. From that point forward, TREG is not affected by any WebAdvisor information.

16. How It All Ties Together • Batch Updates occur on a schedule you set (Data updates from Colleague to Third Party) • EDX Updates occur in real-time (Data updates from Colleague to Third Party) • Portal communications occur in real-time (Reading or Writing Data to Colleague

17. Blackboard CampusCruiser Portal WebAdvisor Batch Update Batch Update EDX EDX Budget Transcripts Academic Info Address AR Balance COLLEAGUE DATA Total compensation Schedule Grades Communication Mgmt DMI Username Leave Balances How It All Ties Together UI PowerView SAValet

18. WebAdvisor User Accounts Adding/Removing Users with Savedlists • DMIS/DMRS – Students • DMIU/DDRU – Faculty/Staff & Applicants Use the appropriate screen for each group. This helps ensure accidents don’t happen. DMIS/DMRS will only work against ID numbers from STUDENTS. DMIU/DDRU will only work against ID numbers from PERSON.

19. CampusCruiser Integration • Use the same lists from the Web side for account creations in CC • Apply extra logic for the Faculty-Staff lists to break out faculty and staff into different groups • CFCC expires old accounts for 1 year • After 1 year, expired accounts deleted

20. CampusCruiser Integration Note: CFCC only integrates CC with batch mode. EDX integration caused data privacy issues. All examples that follow are batch integration, not EDX.

21. CampusCruiser Integration • Accounts expired one year: CC.TEMP.DELETE -- list • List created in X2WL

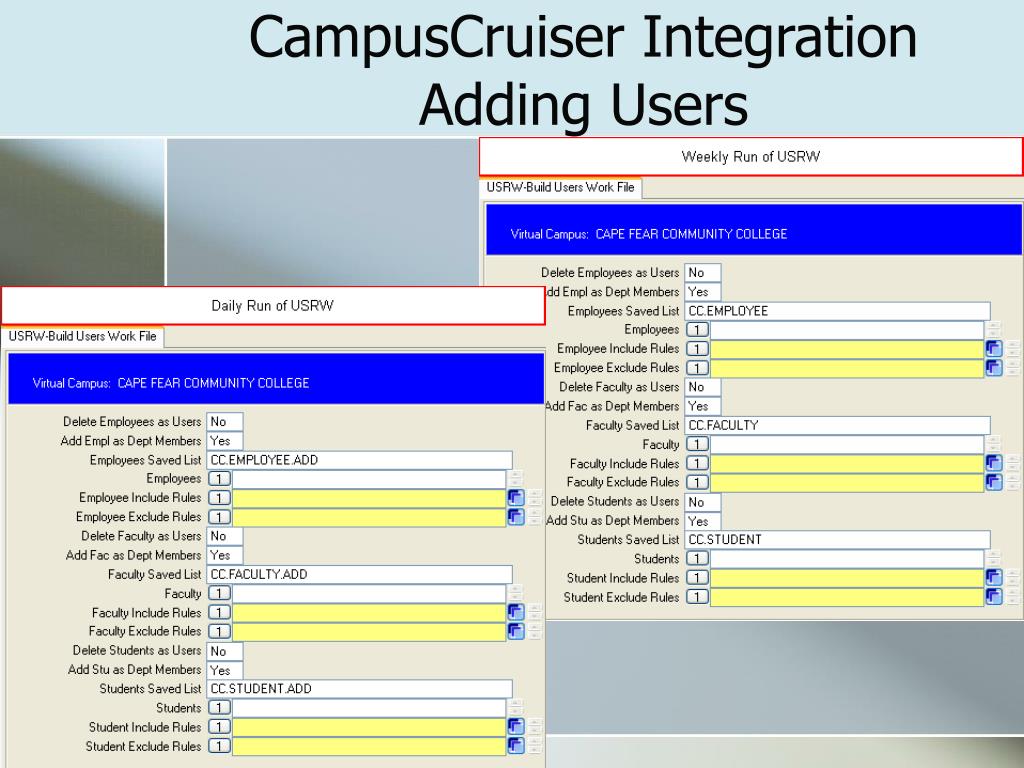

22. CampusCruiser IntegrationAdding Users

23. CampusCruiser IntegrationClasses Only Active Course Sections

24. CampusCruiser IntegrationCCFT USRW/CLSW update the IP… work files when run. Daily CCFT transfers the information populated in the IP… work files for users, classes etc. to CampusCruiser.

25. Blackboard Snapshot Generator Snapshot selection based on: Smart Coding of Section Numbers • IN…, DY…, NY…, LRNGLAB • Use of ASCI comments for non standard sections Subject Based Online Tutoring • Specific Subjects (ACC, ENG, MAT)

26. Blackboard Snapshot Generator (Mint Package X810.BBSECT)

27. Blackboard Snapshot Generator The Snapshot generator creates the above files and ftp’s them to your intermediate snapshot server.

28. Blackboard Snapshot Tool

29. Blackboard integration options Methods of integration with Colleague: • Batch uploads (Bb Basic method) • Simple to use, but not automated, no other choice with Bb Basic • Event-driven API (real-time) • Extra $$$$, lower adoption rate • Snapshot (like batch but more powerful) • Can be automated, community support, more functionality than batch uploads

30. Why snapshot?? • Command-line: can automate • Controller gives you logic: e.g. combining courses, dupl. enrollment • Mass operations: disable, purge • Great for ASP hosted, since no db: e.g. turn on/off courses • Change usernames – can’t do that with GUI or batch

31. What can snapshot do? • Users: create users, disable users, set/change username, email, roles • Courses: create shells, copy courses from templates, make (un)available, set course dates, remove courses • Enrollment: enroll/unenroll students, set availability • Faculty assignment: same as enrollment • Organizations: (Community System) same features as above for courses

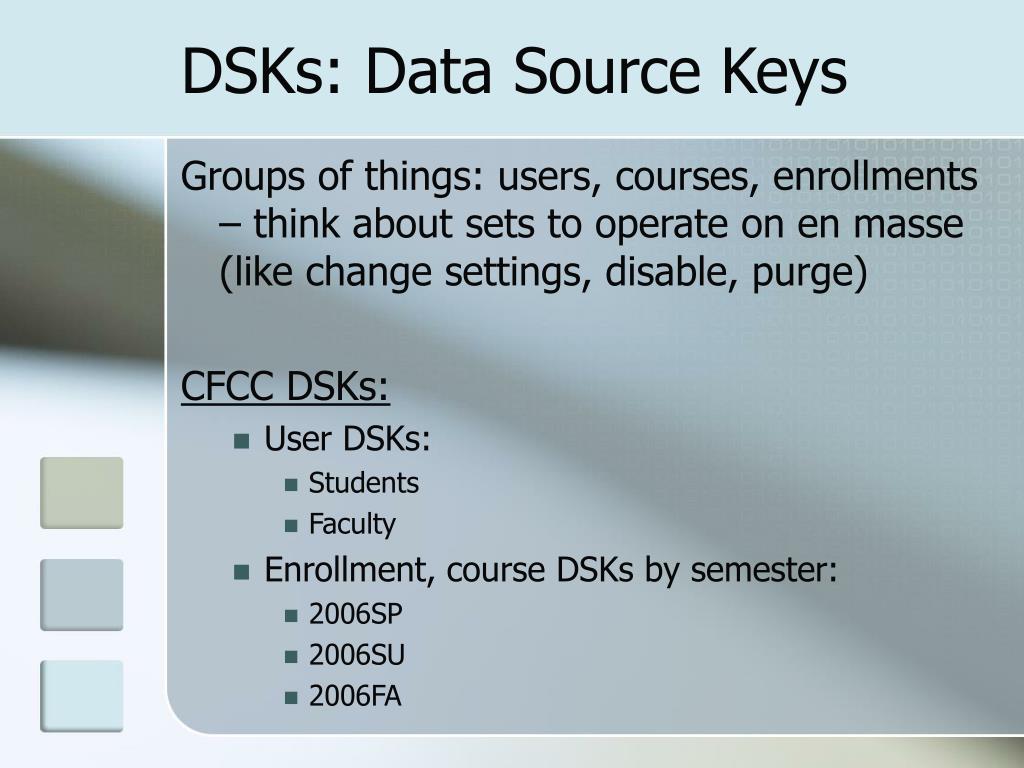

32. DSKs: Data Source Keys Groups of things: users, courses, enrollments – think about sets to operate on en masse (like change settings, disable, purge) CFCC DSKs: • User DSKs: • Students • Faculty • Enrollment, course DSKs by semester: • 2006SP • 2006SU • 2006FA

33. CFCC Daily Blackboard Snapshot • Colleague scripts create feed files, ftp to snapshot machine (Snapshot Generator) • User prep: create email if not already in feed • Enrollment prep: change format of course ID, handle alt course sites, combined courses, courses to skip, duplicate enrollment, dropped students, block no-shows • Snapshot runs and pushes db updates • History is kept of all feeds

34. Snapshot architecture

35. Envision Process Handler (EPH) • Everything we’ve covered up to this point, the EPH handles daily for CFCC* • Think of EPH as cron for Colleague • Allows jobs to finish in succession rather than basing a job on a start time • Can turn it off while doing maintenance *Except for CCFT EPH covered in Datatel’s “Runtime Administration 4.7.1” doc See presentation from SEDUG 2005 on EPH for code and procedures.

36. Envision Process Handler (EPH) Important!!! Review daily the jobs that EPH runs for problems. Any EPH procedure that produces a report, we send to a printer but “HOLD” for review. CFCC uses EasySpooler/ EasyClient GUI to review jobs each morning.

37. Envision Process Handler (EPH) DAILY WEEKLY

38. Q & A

39. Custom Software/Procedures Custom Login ID CORE>WUIP Word Doc - Web-CampusCruiser Login Specs.doc MINT Package - x810.calc.login.id.tar Account List Creation -- VOC PA Word Doc with PA for SAVEDLISTS - X2WL Blackboard Extract – X2BB screen Word Doc - BlackBoard Extract Specs.doc MINT Package - x810.bbsect.tar Envision Process Handler (EPH) PowerPoint - SEDUG Envision Process Handler.ppt

40. Custom Software/Procedures All Software Available at: www.cfcc.edu/share For use as-is. Login: seadevil Password: available at session

41. De-MINT’ing a tar package • This process extracts items in a MINT package and integrates them into your Envision software. • Transfer the tar file to your UNIX /tmp directory • X810.calc.login.id.tar • View tar file with tar tvf. Then expand the tar file tar xvf • tar xvf x810.calc.login.id.tar • Note the directory name and appl.VOC. You’ll use the ToolKit for application the mint package is delivering: TM CORE, TM ST, TM HR etc. ls /tmp • 800 Sep 25 10:36 x810.calc.login.id • 60416 Sep 25 10:37 x810.calc.login.id.tar • ls x810.calc.login.id • CORE.INSERTS CORE.VOC GEN_LOGIN.ID VOC • CORE.PRCS.DEF CREATE_LOGIN.ID LOAD_LOGIN.ID • CORE.SUBROUTINES DUMP_LOGIN.ID MOVEINFO

42. De-MINT’ing a tar package • 4. Go to the test17 release account and create a TMP VOC item that points to the directory created by the tar xvf command. • AE VOC TMP • 1: DIR • 2: /tmp/x810.calc.login.id • 3: D_VOC • LIST TMP -- You should get the same items as if you did a ls at the UNIX level. • LIST TMP • VOC • CORE.INSERTS • CORE.PRCS.DEF • CORE.SUBROUTINES • CORE.VOC • MOVEINFO • LOAD_LOGIN.ID • DUMP_LOGIN.ID • CREATE_LOGIN.ID • GEN_LOGIN.ID

43. De-MINT’ing a tar package 5. COPY The CREATE, LOAD & GEN recrods from TMP to VOC in the release account. (Will always start with CREATE/LOAD/GEN, however end part will vary with MINT package) COPY FROM TMP TO VOC CREATE_LOGIN.ID COPY FROM TMP TO VOC LOAD_LOGIN.ID COPY FROM TMP TO VOC GEN_LOGIN.ID 6. Run the PA’s just copied in the same order: CREATE, LOAD, GEN If prompted for a “Device Number to Load from” use the UNIX path to the /tmp directory for the mint package. /tmp/x810.calc.login.id SOFTWARE IS NOW INSTALLED IN THE RELEASE ACCOUNT!! It must be pushed down to the MAIN account
