Fluid Flow. conservation and continuity. § 12.4. Volume Flow Rate. Volume per time through an imaginary surface perpendicular to the velocity. dV / dt. units: m 3 /s. Volume Flow Rate. dV / dt = v · A if v is constant over A. = ∫ v · d A if it is not. dm. dm. =. dt. dt. 1.

Fluid Flow - slide 1
01 / 23Fluid Flow
1 / 17

Télécharger la présentation

Fluid Flow
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Fluid Flow conservation and continuity § 12.4

  2. Volume Flow Rate Volume per time through an imaginary surface perpendicular to the velocity • dV/dt • units: m3/s

  3. Volume Flow Rate dV/dt = v·Aif v is constant over A = ∫v·dAif it is not

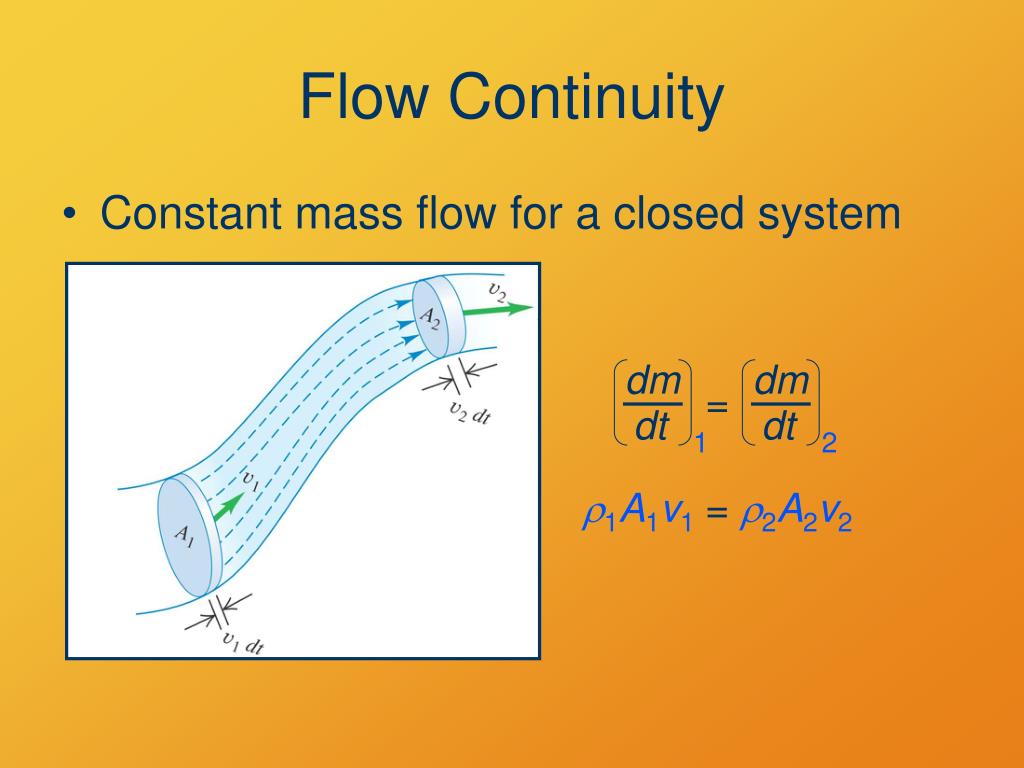

  4. dm dm = dt dt 1 2 Flow Continuity • Constant mass flow for a closed system r1A1v1=r2A2v2

  5. dm dm dV dV = = dt dt dt dt 1 1 2 2 Flow Continuity • For an incompressible fluid: constantr r1A1v1 = r2A2v2 A1v1 = A2v2

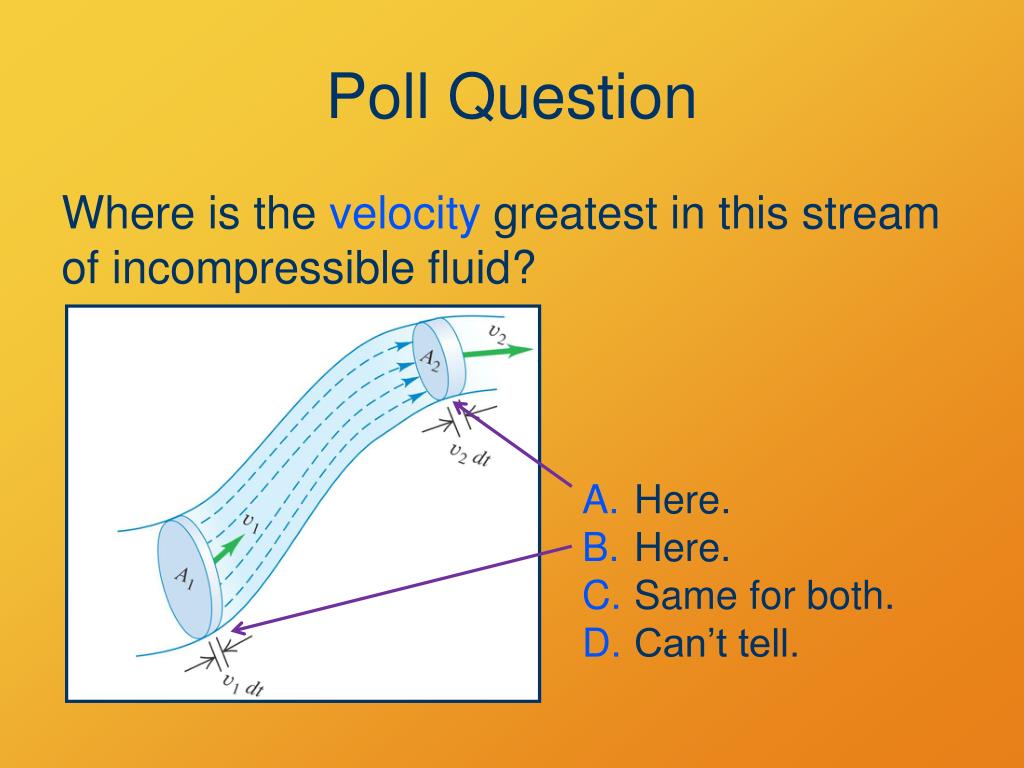

  6. Poll Question Where is the velocity greatest in this stream of incompressible fluid? Here. Here. Same for both. Can’t tell.

  7. Quick Question Where is the density greatest in this stream of incompressible fluid? Here. Here. Same for both. Can’t tell.

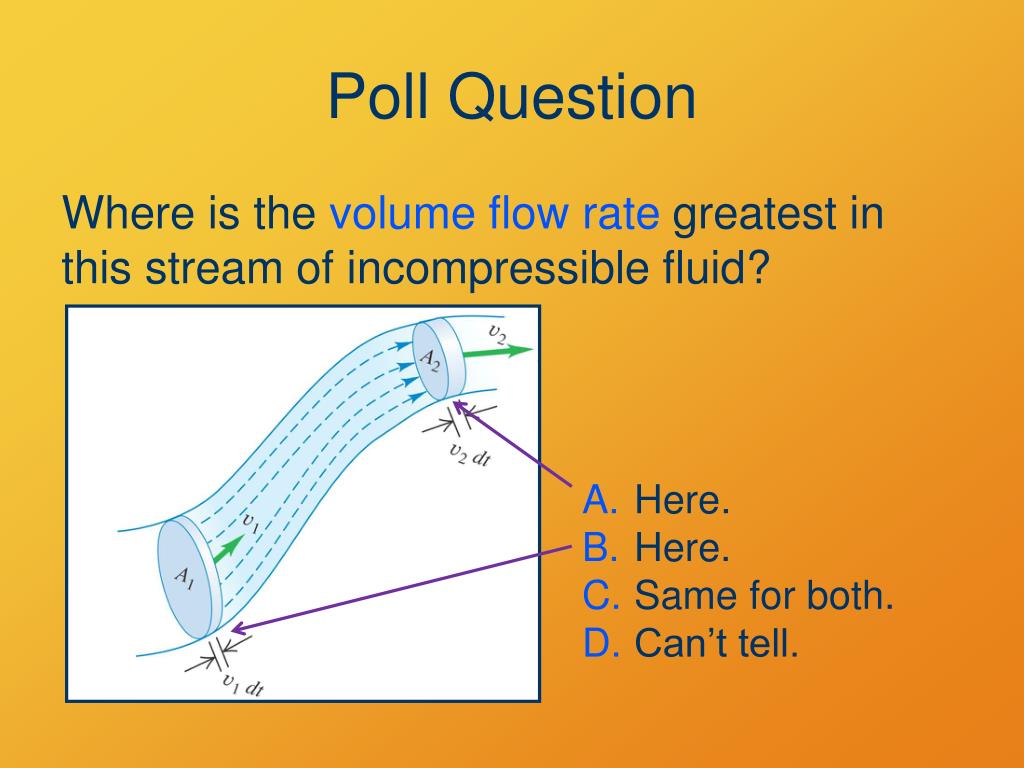

  8. Poll Question Where is the volume flow rate greatest in this stream of incompressible fluid? Here. Here. Same for both. Can’t tell.

  9. Bernoulli’s Equation Energy in fluid flow § 12.5

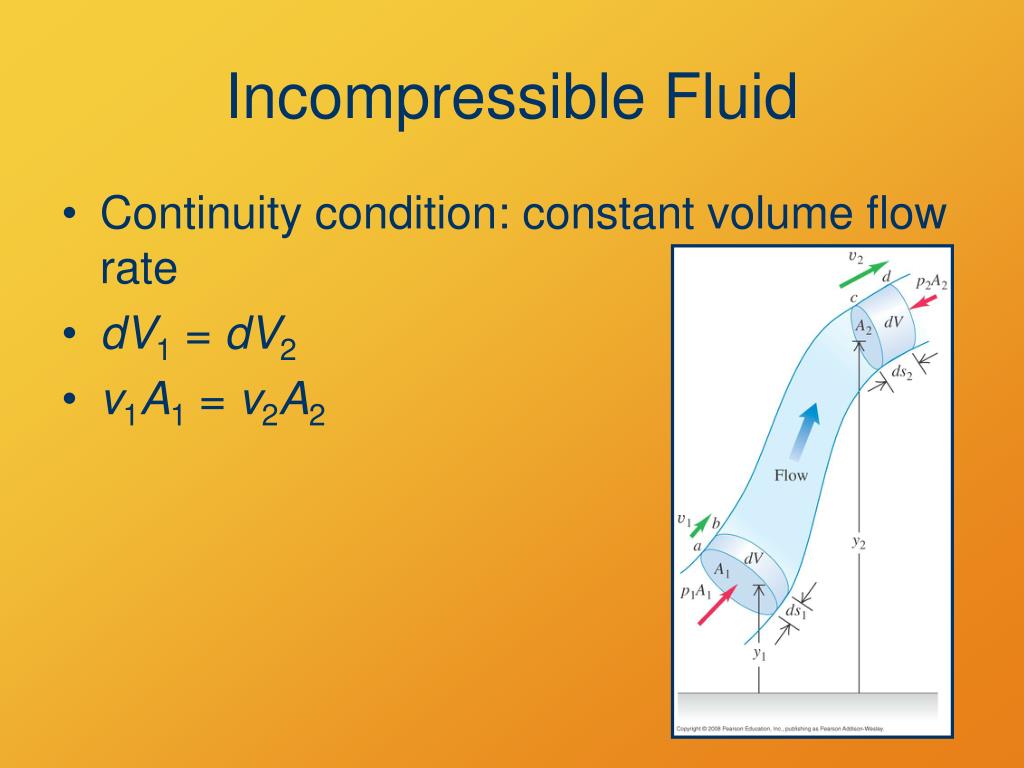

  10. Incompressible Fluid • Continuity condition: constant volume flow rate • dV1 = dV2 • v1A1 = v2A2

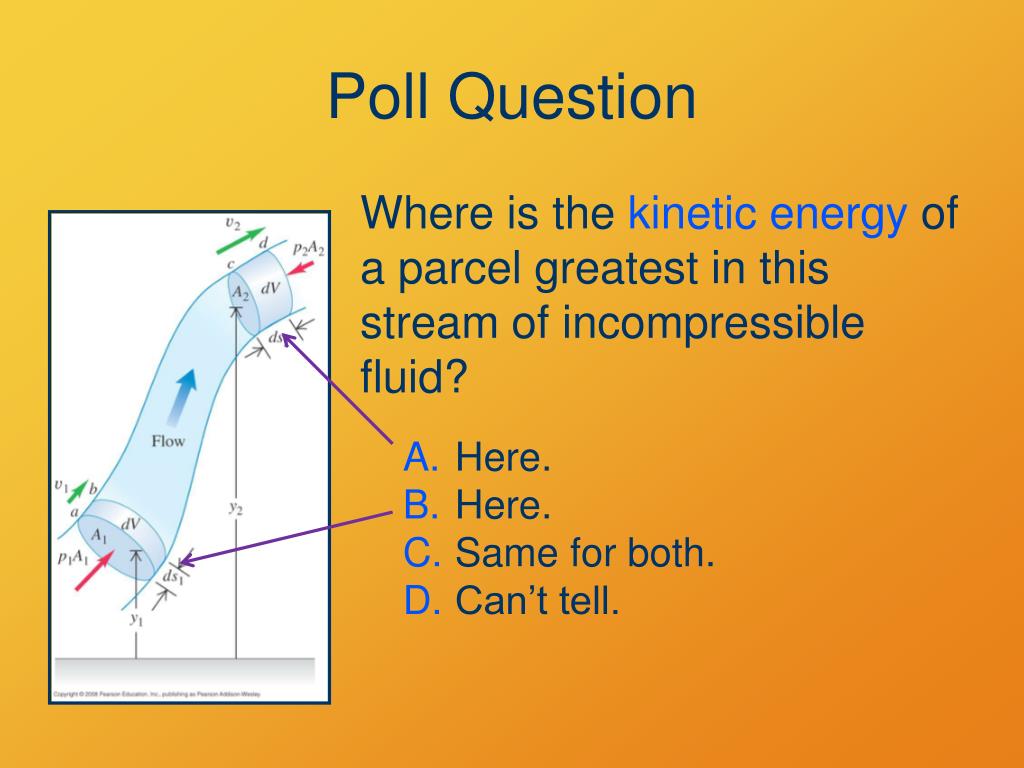

  11. Poll Question Where is the kinetic energy of a parcel greatest in this stream of incompressible fluid? Here. Here. Same for both. Can’t tell.

  12. Changing Cross-Section • Fluid speed varies • Faster where narrow, slower where wide • Kinetic energy changes • Work is done!

  13. Ideal Fluid • No internal friction (viscosity) • No non-conservative work!

  14. Poll Question Where would the pressure begreatest if the fluid were stationary? Here. Here. Same for both. Can’t tell.

  15. Work-Energy Theorem Wnet = DK K1 + Wnet = K2 K1 + U1 + Wother = K2 + U2 Wother = DK + DU dW = dK + dU

  16. Work done on fluid at bottom: dW1 = p1A1·ds1 • Work done on fluid at top: dW2 = –p2A2·ds2 • Total work done on fluid : dW = p1A1·ds1–p2A2·ds2 Work done by Pressure • dW = F·ds = (p1 – p2)dV

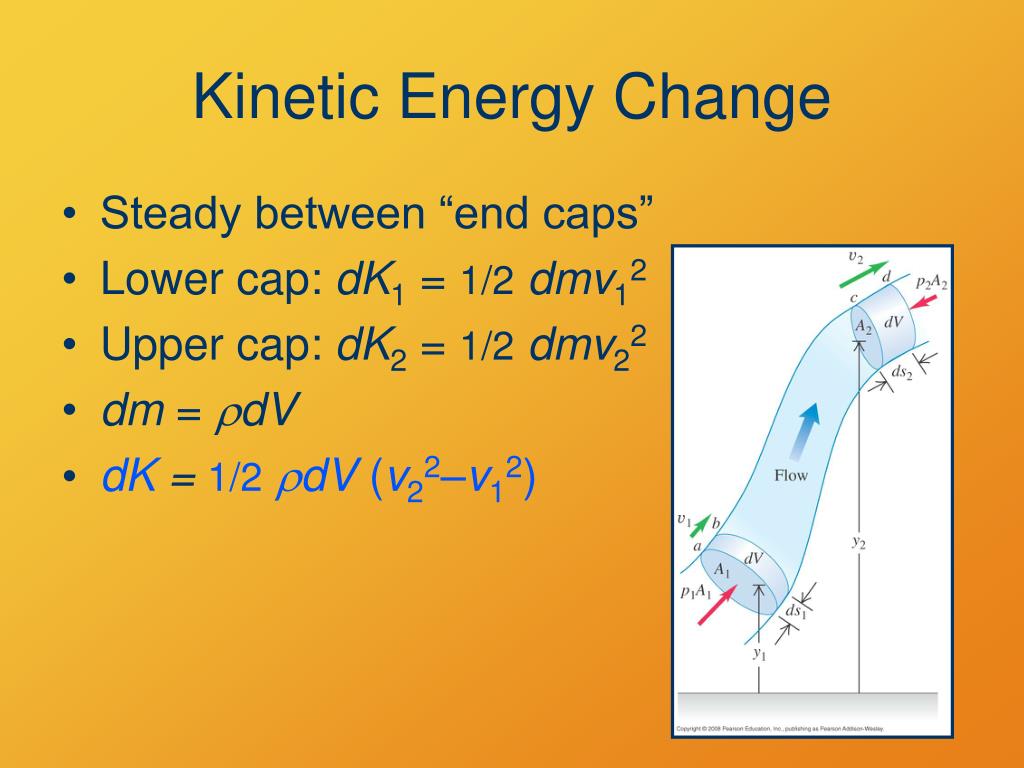

  17. Kinetic Energy Change • Steady between “end caps” • Lower cap: dK1 = 1/2dmv12 • Upper cap: dK2 = 1/2dmv22 • dm = rdV • dK = 1/2rdV (v22–v12)
