Fluid Flow: Unsteady Flow

lilac avatar
lilac
11 diapositives · 1.3K Views · Jul 24, 2014

Fluid Flow: Unsteady Flow. Objectives. Section 5 – Fluid Flow Module 5 : Unsteady Flow Page 2. Understand unsteady flow. Examine the unsteady form of the Navier–Stokes Equation. S tudy the Courant Number for unsteady flow. Learn from an example : Unsteady flow p ast a cylinder.

Fluid Flow: Unsteady Flow - slide 1
01 / 11Fluid Flow: Unsteady Flow
1 / 17

Télécharger la présentation

Fluid Flow: Unsteady Flow
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Fluid Flow: Unsteady Flow

  2. Objectives Section 5 – Fluid Flow Module 5: Unsteady Flow Page 2 • Understand unsteady flow. • Examine the unsteady form of the Navier–Stokes Equation. • Study the Courant Number for unsteady flow. • Learn from an example: Unsteady flow past a cylinder

  3. Unsteady Flow: Part I Section 5 – Fluid Flow Module 5: Unsteady Flow Page 3 • Flow conditions such as pressure, velocity or even domain boundaries change with time. • Relatively complex and time consuming to solve. • It is important to choose a reasonable “time step” size. • The rate of progress in time depends upon the steepness of the time gradient. • The smaller the time step, the higher the stability and accuracy. • However, more computational resources are required with smaller steps. Accuracy Stability Computational Resources

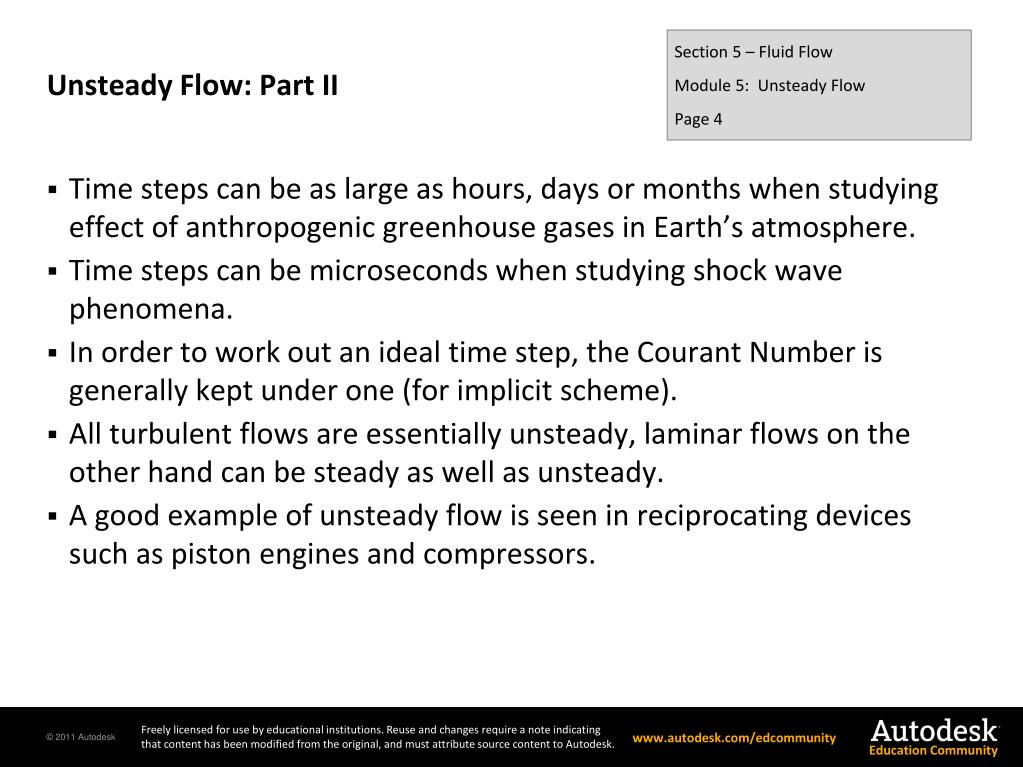

  4. Unsteady Flow: Part II Section 5 – Fluid Flow Module 5: Unsteady Flow Page 4 • Time steps can be as large as hours, days or months when studying effect of anthropogenic greenhouse gases in Earth’s atmosphere. • Time steps can be microseconds when studying shock wave phenomena. • In order to work out an ideal time step, the Courant Number is generally kept under one (for implicit scheme). • All turbulent flows are essentially unsteady, laminar flows on the other hand can be steady as well as unsteady. • A good example of unsteady flow is seen in reciprocating devices such as piston engines and compressors.

  5. Unsteady Flow: Part III Section 5 – Fluid Flow Module 5: Unsteady Flow Page 5 • Consider the example of a four stroke internal combustion engine, focusing on the exhaust cycle. • As the piston rises and the valve opens, the flow velocity at the outlet valve increases, approaches a maximum and then decreases. • This is one of the most common cases of unsteady flow that is solved by CFD. • It gives an insight into flow that is difficult to get through prototype testing. • This information is used to design the exhaust manifold. • Setting up the right time-step is crucial.

  6. Navier–Stokes Equation Section 5 – Fluid Flow Module 5: Unsteady Flow Page 6 • Time derivative takes prominence and the strength of the time derivative will dictate the size of the time step used for analysis. • The time step refers to the size of the leap in temporal domain when progressing in time. • The higher the time derivative, the smaller the time step for numerical analysis.

  7. Courant Number Section 5 – Fluid Flow Module 5: Unsteady Flow Page 7 • Also termed as the Courant–Friedrichs–Lewy condition (CFL condition), the Courant Number is a useful tool to evaluate the time step size for unsteady flow cases. • The Courant Number for a 1 dimensional case can be given as: • The Courant Number for a 2 dimensional case can be given as: • Where: • u is the flow speed, • Δt is the time step • Δx is the grid size For a solution to be stable, the Courant number should be less than or equal to 1

  8. Example:Flow Across a Cylinder: Part I Section 5 – Fluid Flow Module 5: Unsteady Flow Page 8 • Flow shows different behavioratdifferent flow speeds. • A Von Karman Vortex Street (a fascinating phenomenon for fluid flow enthusiasts) can be observed at 40 < Re < 200,000. • Re = Reynolds Number • A two-part video for this module on unsteady flow covers setting up, solving and viewing results for a Von Karman Vortex Street. y x

  9. Example:Flow Across a Cylinder: Part II Section 5 – Fluid Flow Module 5: Unsteady Flow Page 9 • Various patterns of flow across a cylinder are seen at different Reynolds numbers. • Creeping Flow Re<10 • Attached Vortices 10<Re<40 • Von Karman vortex trail 40<Re<200,000 • Fully turbulent wake Re>200,000

  10. Summary Section 5 – Fluid Flow Module 5: Unsteady Flow Page 10 • Unsteady fluid flows occur in a variety of real life situations. • From starting and stopping phases of engines and wind turbines to vehicles for transport, unsteady flow patterns are frequently encountered. • When analyzing flow variation with time, the analysis is conducted for a series of time steps, which progress in time. • The size of these time steps depends upon the time gradient. • The higher the time gradient, the lower the time step should be.

  11. Summary Section 5 – Fluid Flow Module 5: Unsteady Flow Page 11 • The Courant Number helps estimate the proper time step. • If the duration of the time step is very low, the amount of computation required becomes extremely high. • Thus a compromise must be sought which depends upon the available time and computer resources as well as required accuracy.
