  1. IGNEOUS ROCKS & VOLCANISM

  2. a rock is an aggregate of mineral(s) or mineral matter which occurs in massive deposits bedrock is a massive unbroken solid rock directly overlain by soil in many locations an outcrop is a massive unbroken solid rock exposed at the Earth’s surface

  3. IGNEOUS ROCK FAMILY • Definition of igneous rock • Origin of magma • convergent plate boundaries (subduction zones) • divergent plate boundaries (ridges or rifts) • isolated magma plumes (hot spots)

  4. IGNEOUS ROCK FAMILY • Assimilation • melting of other rock material incorporated into a magma causing original composition magma to change • an example is the mixing of magma originating in mantle with a different composition of continental crust as magma rises

  5. IGNEOUS ROCK FAMILY • Intrusive and extrusive as applied to magmas and igneous rocks • intrusive refers to any igneous activity below Earth’s surface • extrusive refers to any igneous activity at the Earth’s surface

  6. IGNEOUS ROCK FAMILY • Texture, mineral composition , and igneous rock names • texture • grain size of mineral fragments in rock and depends on the cooling rate of magma • smaller in rock if magma cools fast • larger in rock if magma cools slower

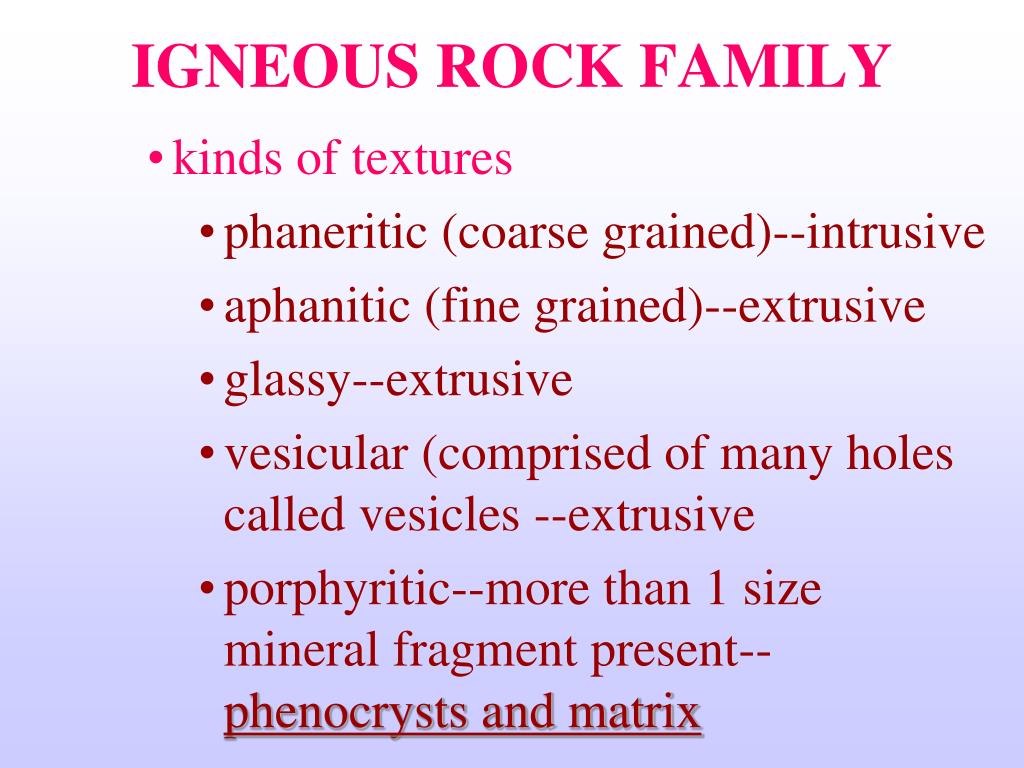

  7. IGNEOUS ROCK FAMILY • kinds of textures • phaneritic (coarse grained)--intrusive • aphanitic (fine grained)--extrusive • glassy--extrusive • vesicular (comprised of many holes called vesicles --extrusive • porphyritic--more than 1 size mineral fragment present--phenocrysts and matrix

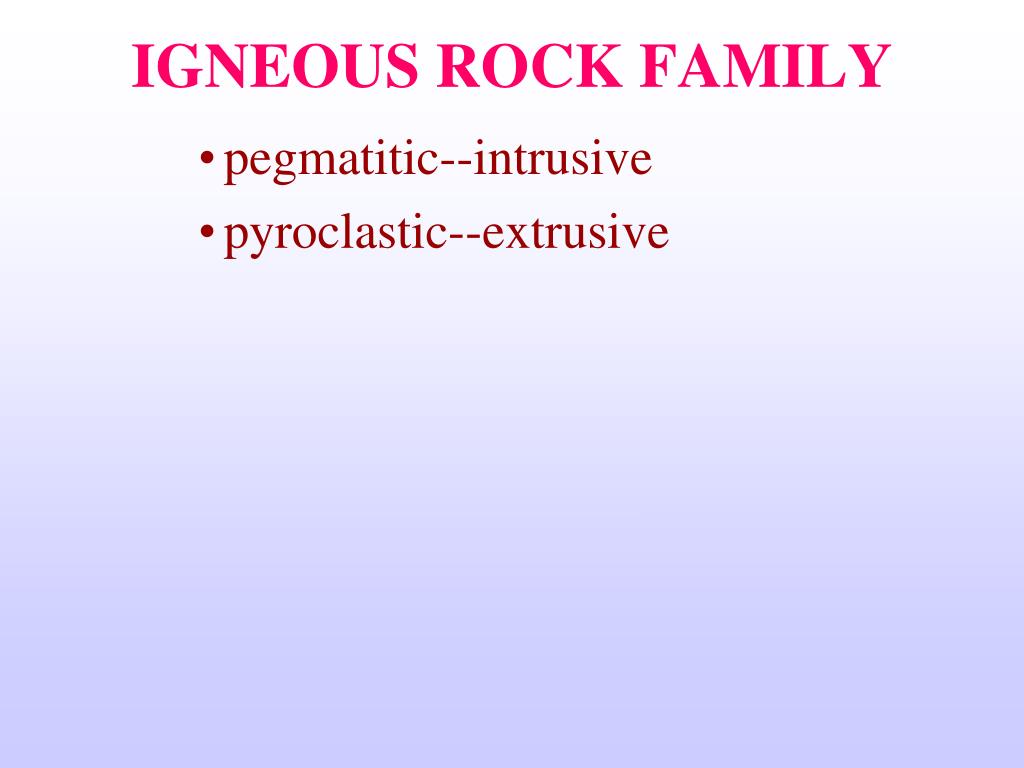

  8. IGNEOUS ROCK FAMILY • pegmatitic--intrusive • pyroclastic--extrusive

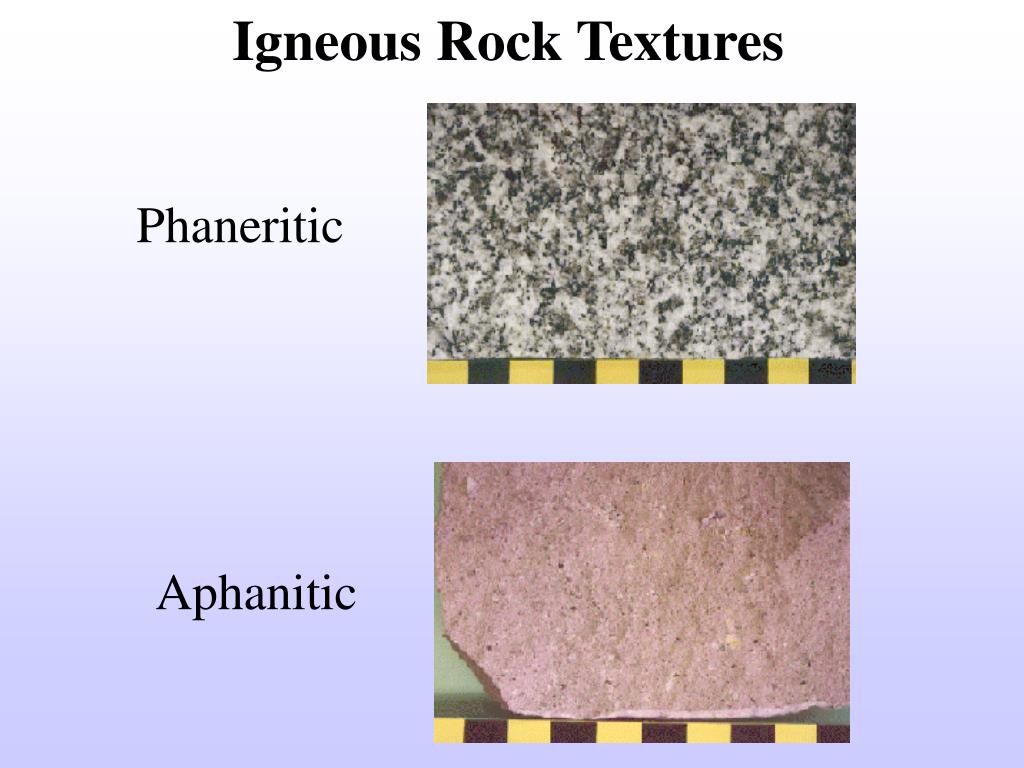

  9. Igneous Rock Textures Phaneritic Aphanitic

  10. Igneous Rock Textures Glassy Vesicular

  11. Porphyritic Pegmatitic

  12. IGNEOUS ROCK FAMILY • mineral composition • igneous rocks are comprised of a combination of silicate minerals • Bowen’s mineral series • describes an orderly sequence of mineral formation from a cooling magma and explains specific mineral combinations in the rock • discontinuous and continuous series • hydrothermal solutions

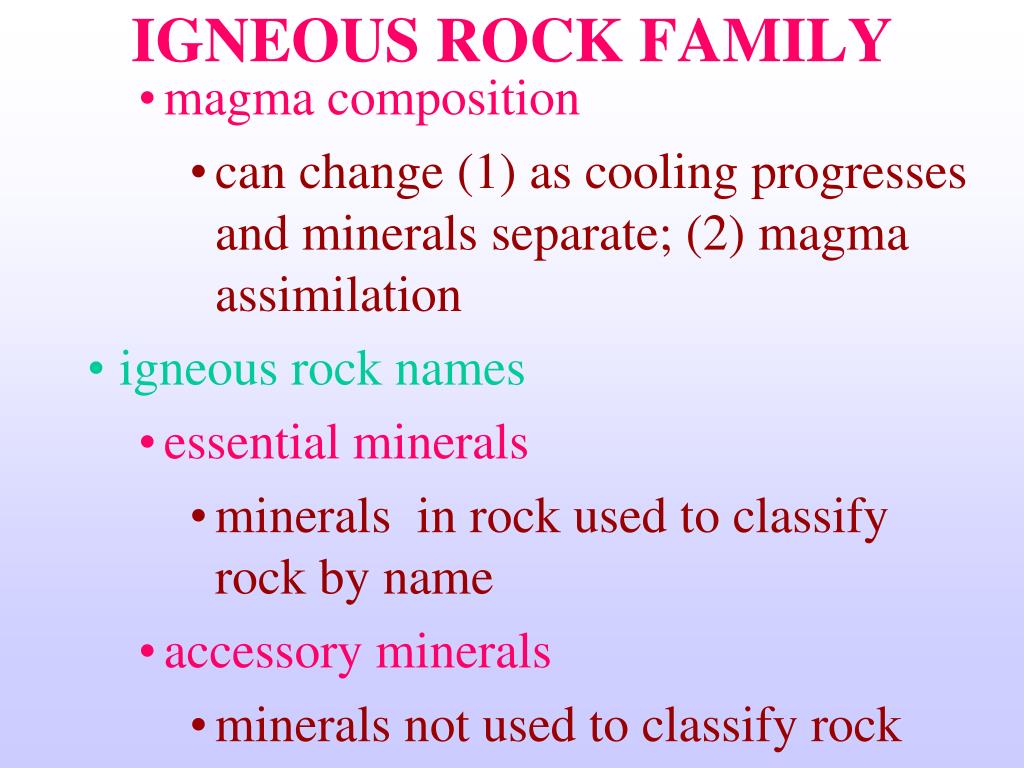

  13. IGNEOUS ROCK FAMILY • magma composition • can change (1) as cooling progresses and minerals separate; (2) magma assimilation • igneous rock names • essential minerals • minerals in rock used to classify rock by name • accessory minerals • minerals not used to classify rock

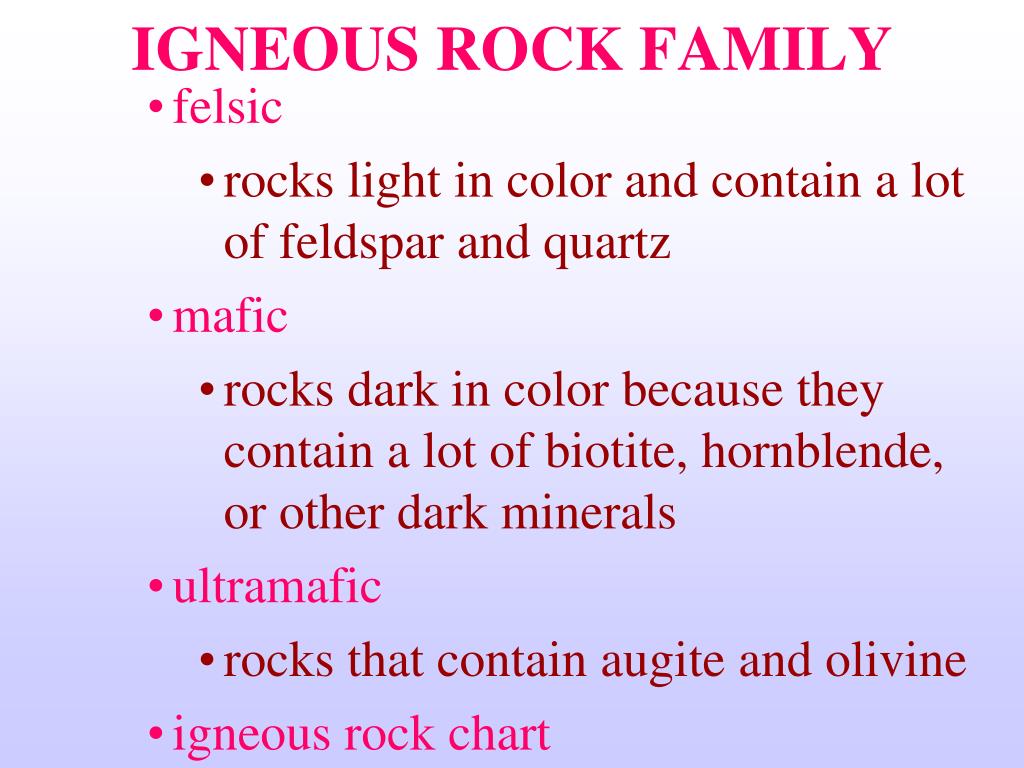

  14. IGNEOUS ROCK FAMILY • felsic • rocks light in color and contain a lot of feldspar and quartz • mafic • rocks dark in color because they contain a lot of biotite, hornblende, or other dark minerals • ultramafic • rocks that contain augite and olivine • igneous rock chart

  15. Igneous Rock Classification Table

  16. Phaneritic Textured Igneous Rocks Granites Diorite Gabbro Dunite

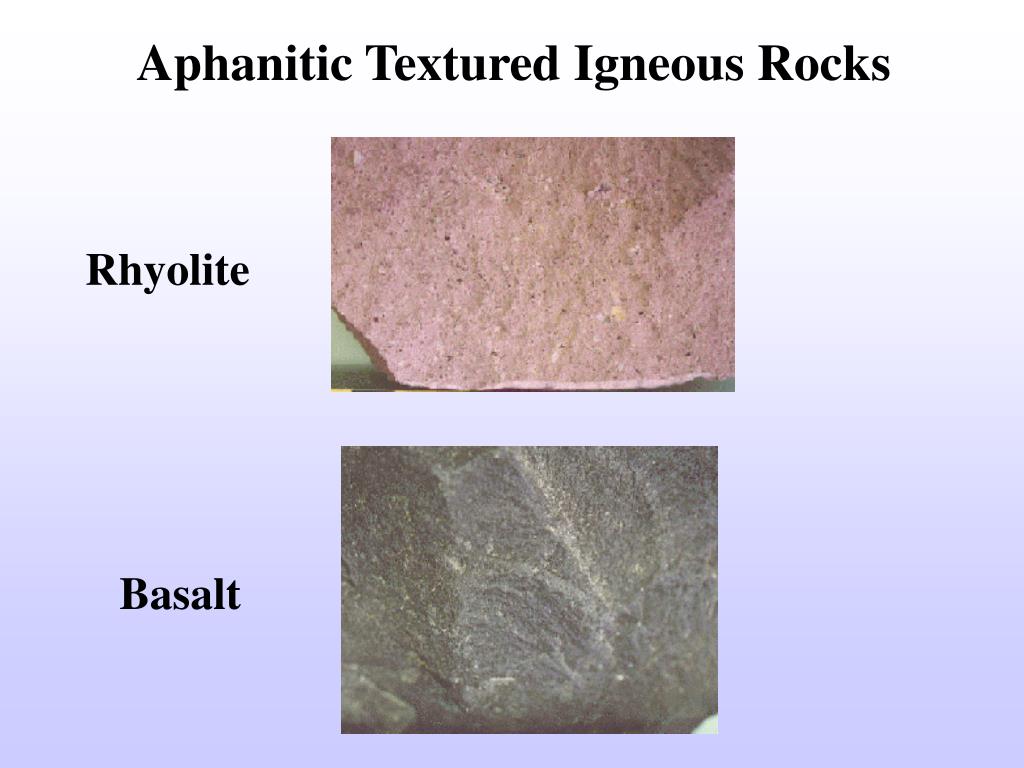

  17. Aphanitic Textured Igneous Rocks Rhyolite Basalt

  18. Porphyritic Textured Igneous Rocks Granite Porphyry Rhyolite Porphyry Andesite Porphyry

  19. Glassy and Vesicular Textured Igneous Rocks Obsidian Pumice (2) Scoria

  20. IGNEOUS ROCK FAMILY • Igneous rock bodies • intrusive (plutons) • discordant-- bodies which cut across sedimentary rock contacts or boundaries • batholith--largest pluton body and irregular in shape--ore deposits like gold, silver, copper etc. are often associated with these

  21. Batholiths in Western USA

  22. IGNEOUS ROCK FAMILY • stock--smaller irregular shaped body with possible associated ore bodies • dike--very small tabular shaped body • concordant--do not cut across sedimentary rock boundaries • laccolith--large lens shaped body • sill-- a small tabular shaped body

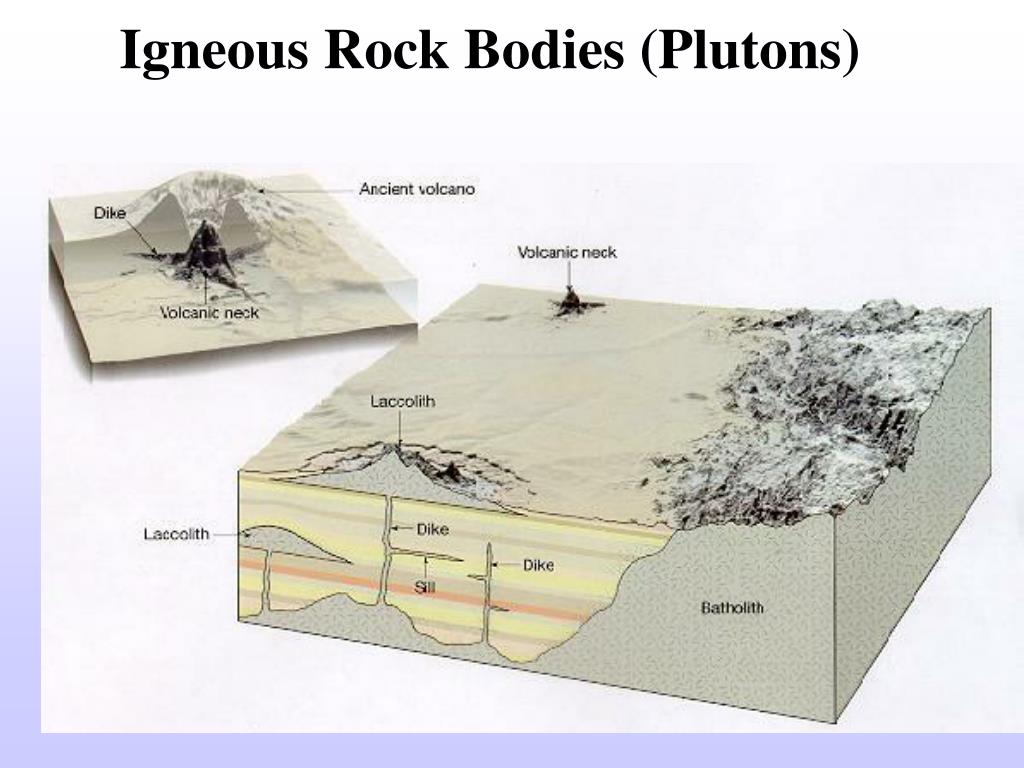

  23. Igneous Rock Bodies (Plutons)

  24. IGNEOUS ROCK FAMILY • Important uses of igneous rocks • used as building materials and tombstones--this use is the same for all 3 families of rocks • pumice is used an an abrasive material

  25. VOLCANISM

  26. VOLCANISM • Some common terms • volcanism • the processes by which magma and/or gases or volatiles are transferred to the Earth’s surface • volcano • an elevated area or mountain formed from accumulations of lava and/or pyroclastic materials

  27. VOLCANISM • active, dormant, and extinct volcanoes and volcanic areas • active--eruption can occur in the near future--Mt. St. Helens and other Cascade mountains are examples • dormant--presently inactive but believed capable of future eruptions • extinct--expected not to erupt again • Origin and global distribution of volcanism • origin of volcanic materials

  28. VOLCANISM • global distribution • “Ring of Fire” or circum-Pacific region is the greatest concentration of volcanic activity on Earth • Mediterranean Region---2nd largest region of volcanoes on Earth

  29. Concentration of Volcanic areas on Earth

  30. VOLCANISM • Volcanic rocks, volatiles (gases and vapors), and manner of eruption • volcanic rocks • include all extrusive textured rocks and include basalt, andesite, rhyolite, pumice, scoria, tuff, obsidian and volcanic breccia • volatile emissions • steam (water vapor)--most abundant

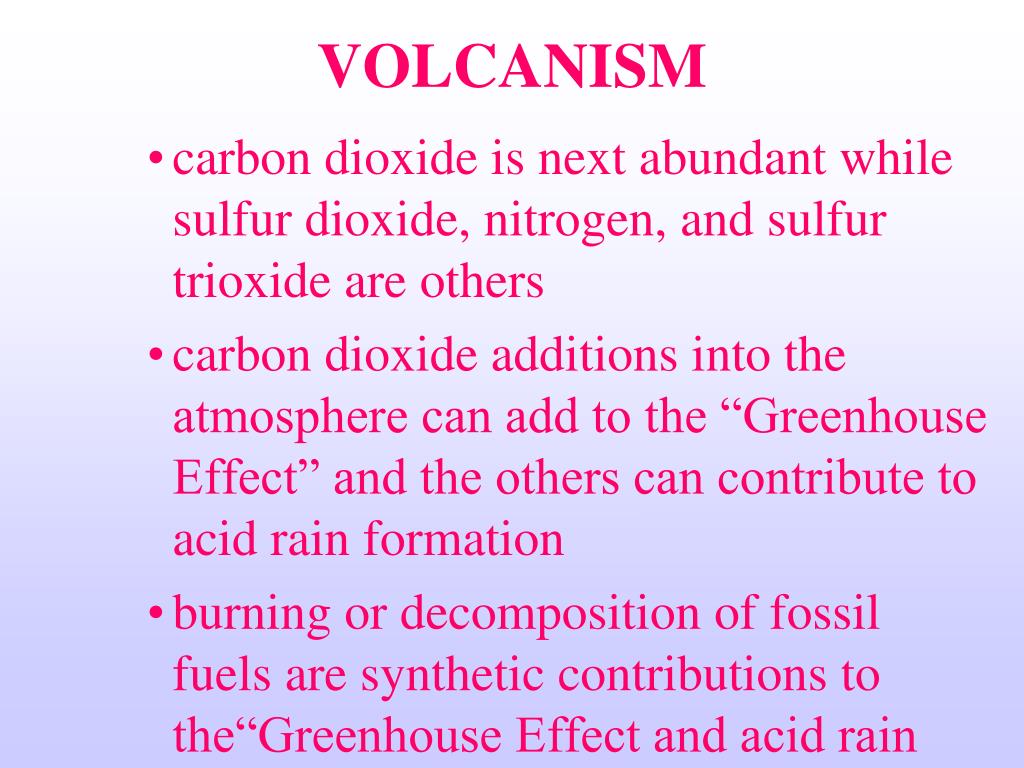

  31. VOLCANISM • carbon dioxide is next abundant while sulfur dioxide, nitrogen, and sulfur trioxide are others • carbon dioxide additions into the atmosphere can add to the “Greenhouse Effect” and the others can contribute to acid rain formation • burning or decomposition of fossil fuels are synthetic contributions to the“Greenhouse Effect and acid rain

  32. VOLCANISM • manner of eruption (passive or explosive) • depends largely on viscosity of magma • viscosity depends on composition and temperature of the magma associated with the eruption--the higher the silica content or the cooler the magma, the more explosive the eruption, and vice versa • most ocean basin eruptions are passive while most continental are explosive--why???

  33. Volcanic Eruptions on Continents

  34. VOLCANISM • Major categories of volcanic deposits (Classification of volcanoes) • deposits are comprised of lava flows and/or pyroclastics • shield type---broad with gentle slopes • thick deposit of basaltic lava flows with little or no pyroclastic materials • associated with ocean basin eruptions • Hawaiian shield is about 28,000 feet thick with pimple-like islands

  35. Shield Type of Volcanic Deposit

  36. Shield Type of Volcanic Deposit-- Hawaiian Islands Kilauea– Earth’s most active and Mauna Loa—Earth’s largest volcano

  37. Shield Type of Volcanic Deposit--Hawaiian Islands

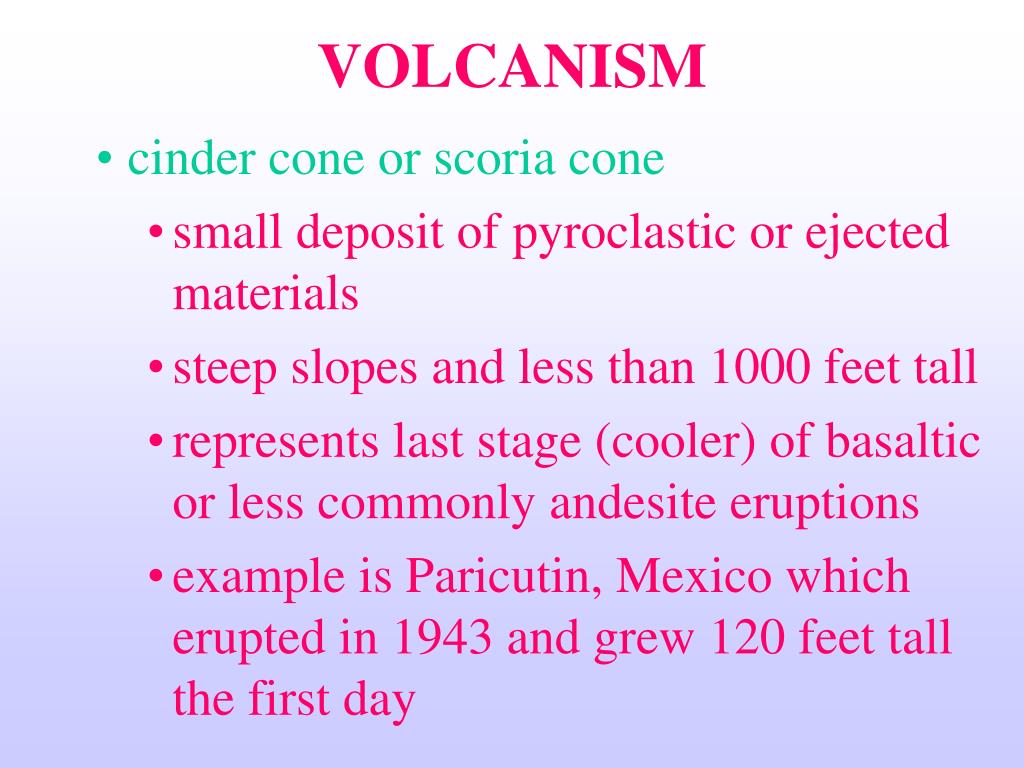

  38. VOLCANISM • cinder cone or scoria cone • small deposit of pyroclastic or ejected materials • steep slopes and less than 1000 feet tall • represents last stage (cooler) of basaltic or less commonly andesite eruptions • example is Paricutin, Mexico which erupted in 1943 and grew 120 feet tall the first day

  39. Cinder Cone Type of Volcanic Deposit

  40. Cinder Cones in Arizona

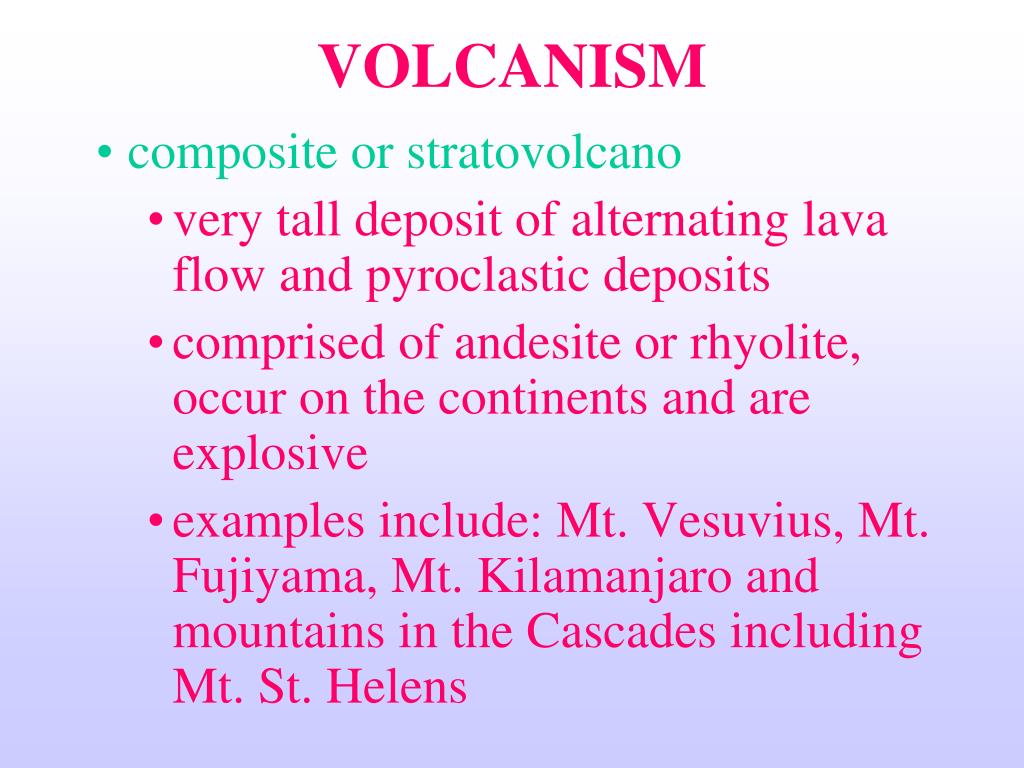

  41. VOLCANISM • composite or stratovolcano • very tall deposit of alternating lava flow and pyroclastic deposits • comprised of andesite or rhyolite, occur on the continents and are explosive • examples include: Mt. Vesuvius, Mt. Fujiyama, Mt. Kilamanjaro and mountains in the Cascades including Mt. St. Helens

  42. Stratovolcano Type of Volcanic Deposit

  43. VOLCANISM Famous Composite Volcanoes Mt. Fuji Mt. Kilimanjaro Mt. Shasta

  44. volcanic dome solidified lava, hundreds of meters high volcanic ash mixed with rock fragments viscous felsic or intermediate magma piled up around a vent found in composite volcanoes

  45. VOLCANISM • Eruptions with special volatile emissions • strombolian type • incandescent cloud is stable over vent and reflects light from magma • Mt.Stromboli is best example and called “Lighthouse of the Mediterranean”

  46. VOLCANISM Mount Stromboli

  47. VOLCANISM • Nuee Ardentes (fiery or glowing cloud) type---pyroclastic flow • a very hot cloud of volatiles and ash • Mt. Pelee on Martinique emitted a 700 degree (C) cloud and killed 30,000 people in a few minutes in St. Pierre
