Interaction of Cosmic Rays with Background Plasmas Across Multiple Scales

kipp avatar
kipp
21 diapositives · 378 Views · Jul 27, 2014

This study investigates the complex interaction between cosmic rays (CR) and background plasmas, analyzing various scales from historical supernovae (SN) events to modern observations. It explores how streaming energetic particles induce magnetic field instabilities, contributing to the dynamics of interstellar media. Using a combination of MHD calculations and observational data, the research highlights processes like filamentation and self-focusing in proton beams, the role of magnetic tensions, and the significance of CR efficiency in producing observable phenomena such as x-ray flashes during SN events.

#interaction of cosmic rays with background plasmas across multiple scales #interaction of cosmic rays with background plasmas across multiple scales ppt #powerpoint #presentation
Interaction of Cosmic Rays with Background Plasmas Across Multiple Scales - slide 1
01 / 21Interaction of Cosmic Rays with Background Plasmas Across Multiple Scales
1 / 17

Télécharger la présentation

Interaction of Cosmic Rays with Background Plasmas Across Multiple Scales
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Interaction between cosmic rays and background plasmason multiple scalesTony BellUniversity of OxfordRutherford Appleton Laboratory

  2. Tycho 1572AD Kepler 1604AD Magnetic field due to CR/MHD interaction SN1006 Cas A 1680AD Instabilities driven by streaming energetic particles Chandra observations

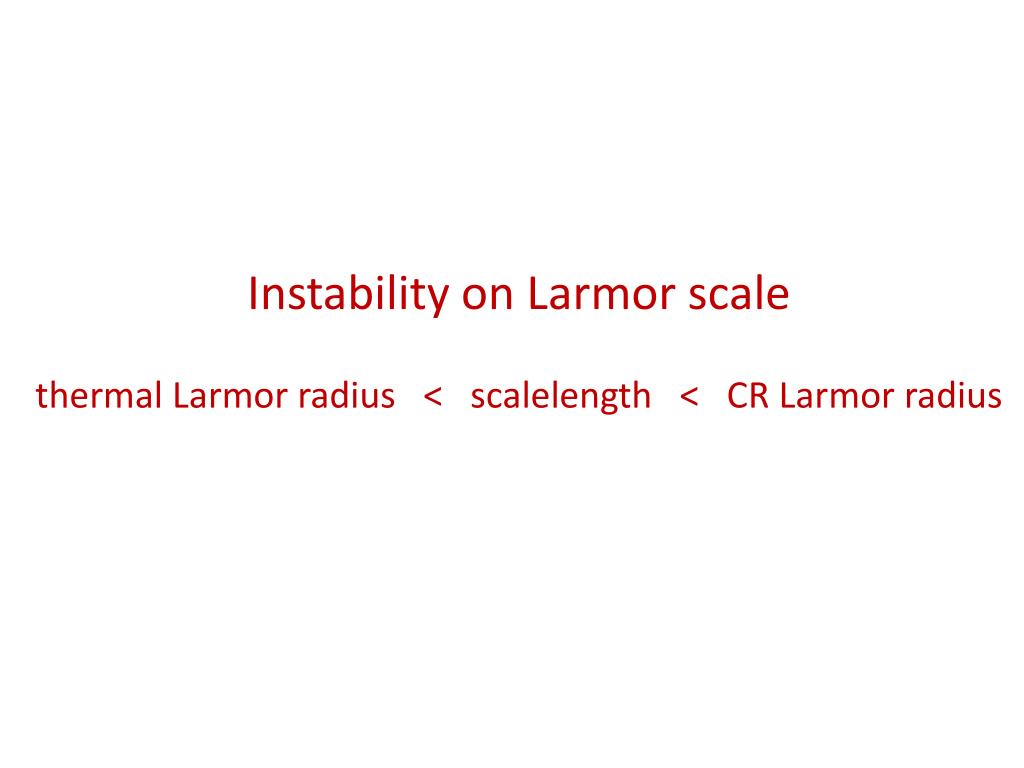

  3. Instability on Larmor scale thermal Larmor radius < scalelength < CR Larmor radius

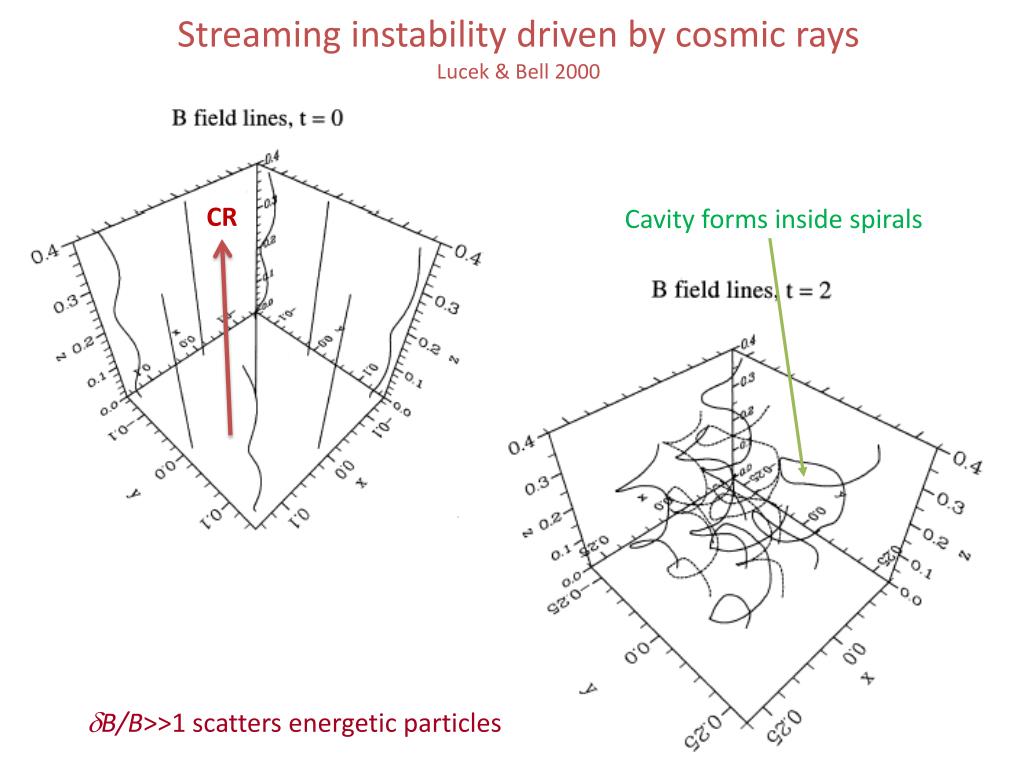

  4. Streaming instability driven by cosmic rays Lucek & Bell 2000 CR Cavity forms inside spirals dB/B>>1 scatters energetic particles

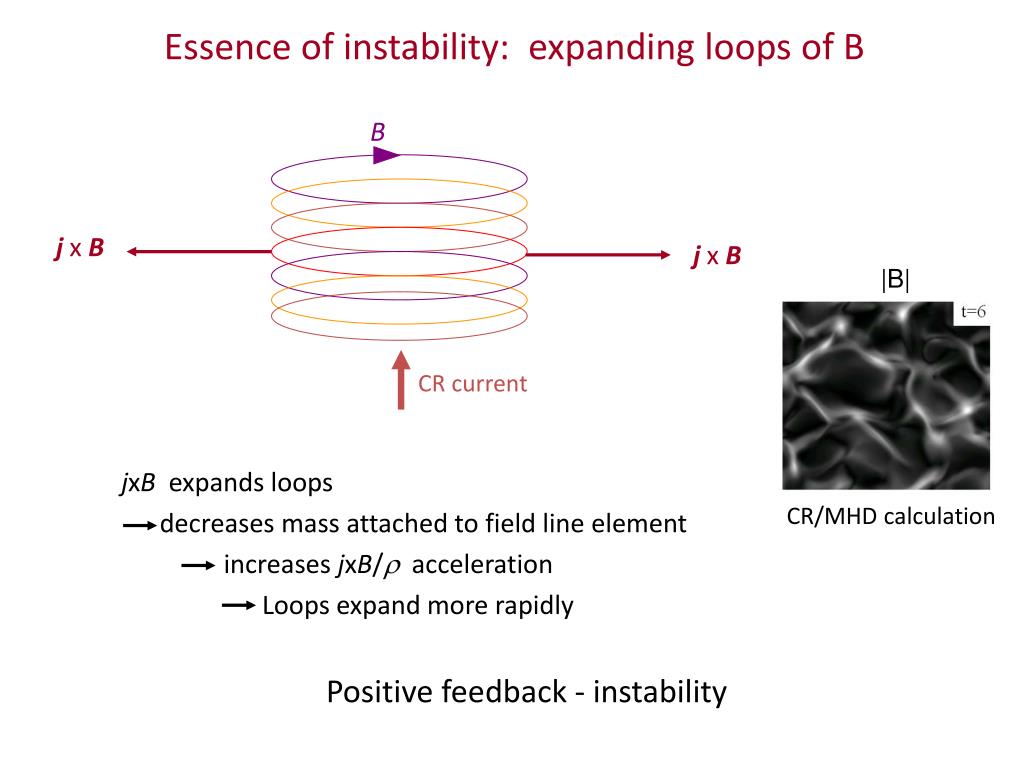

  5. Essence of instability: expanding loops of B B j x B j x B |B| CR current jxB expands loops decreases mass attached to field line element increases jxB/r acceleration Loops expand more rapidly Positive feedback - instability CR/MHD calculation

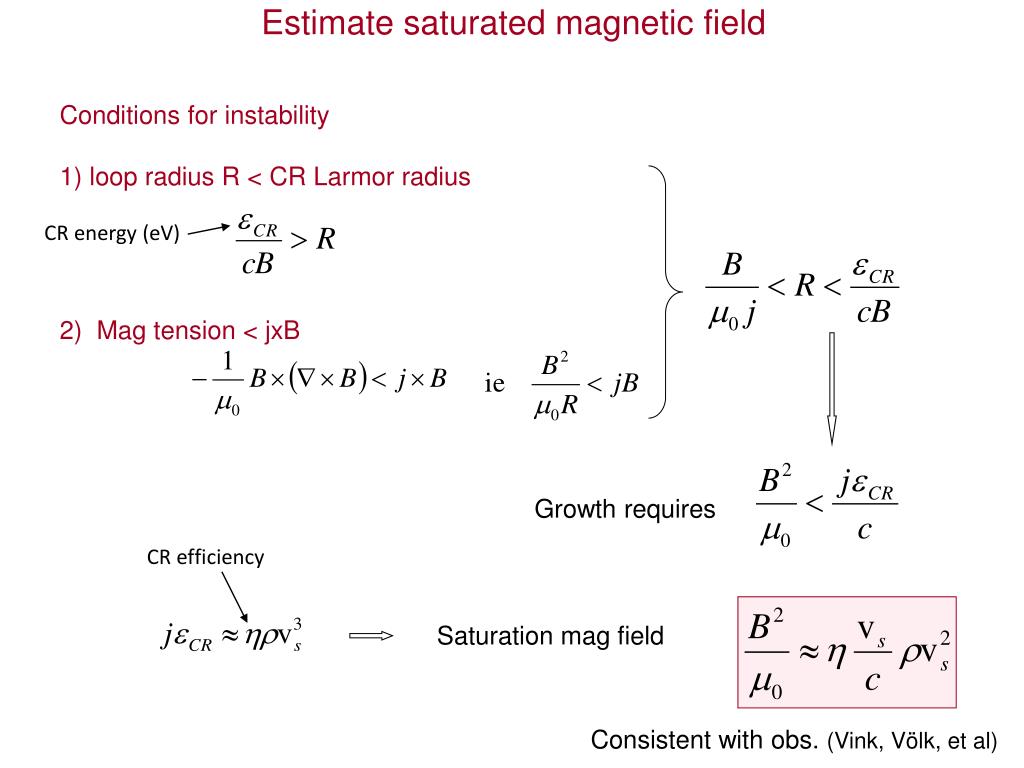

  6. Estimate saturated magnetic field Conditions for instability 1) loop radius R < CR Larmor radius 2) Mag tension < jxB CR energy (eV) Growth requires CR efficiency Saturation mag field Consistent with obs. (Vink, Völk, et al)

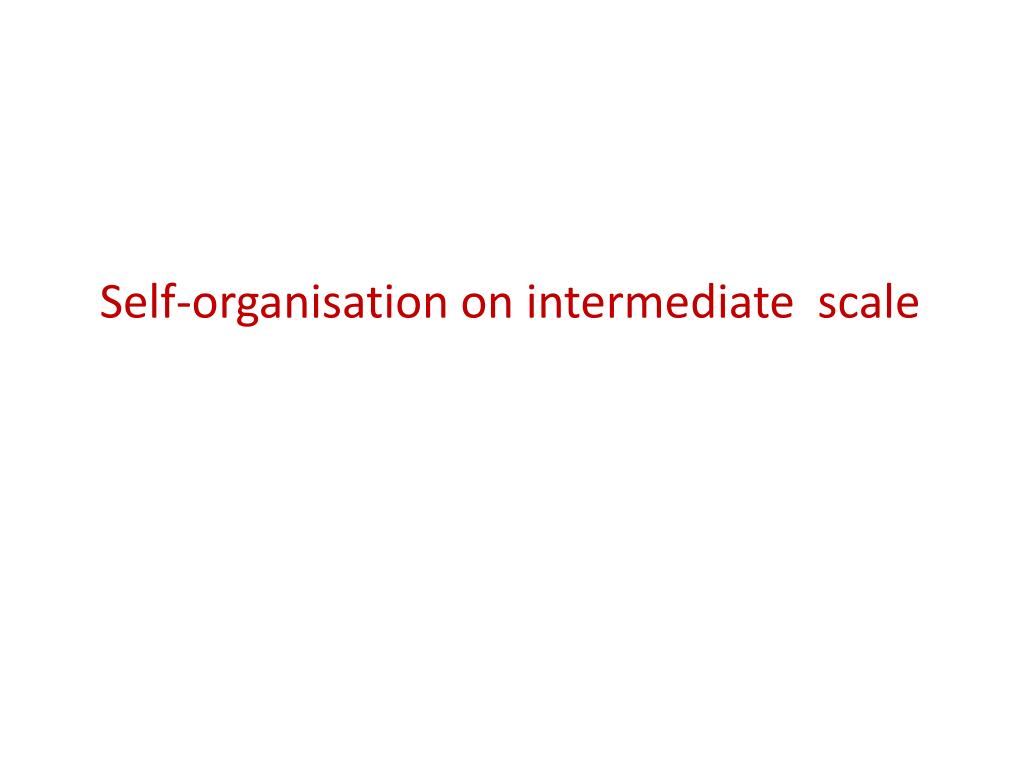

  7. Self-organisation on intermediate scale

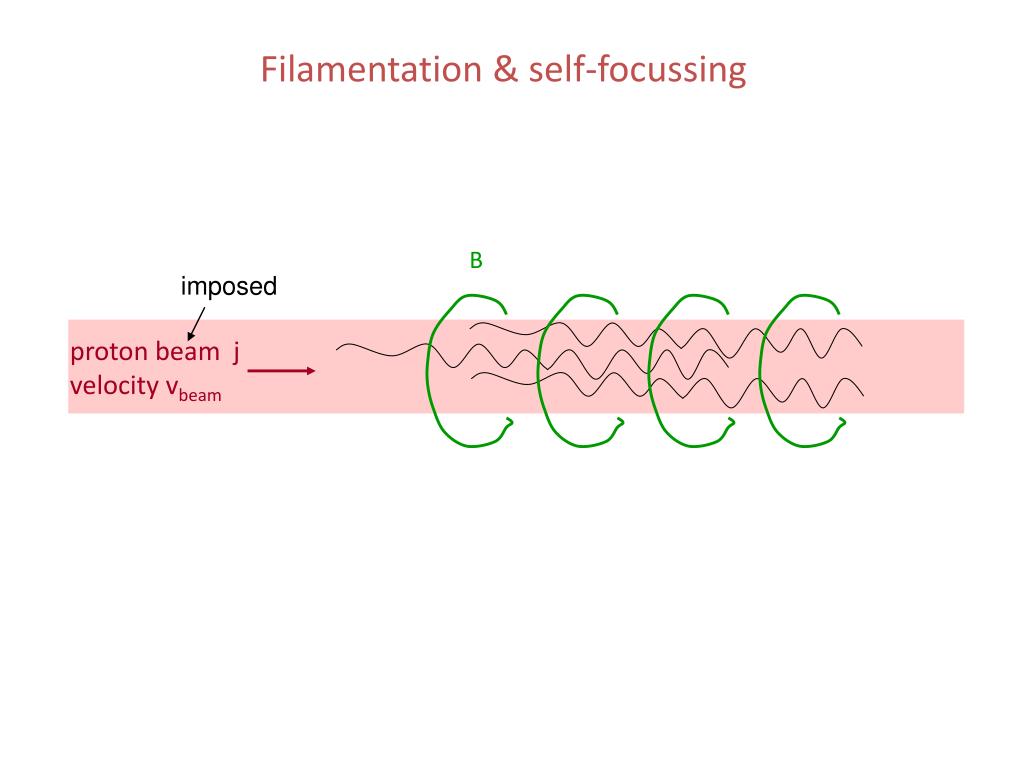

  8. Filamentation & self-focussing B proton beam j velocity vbeam imposed

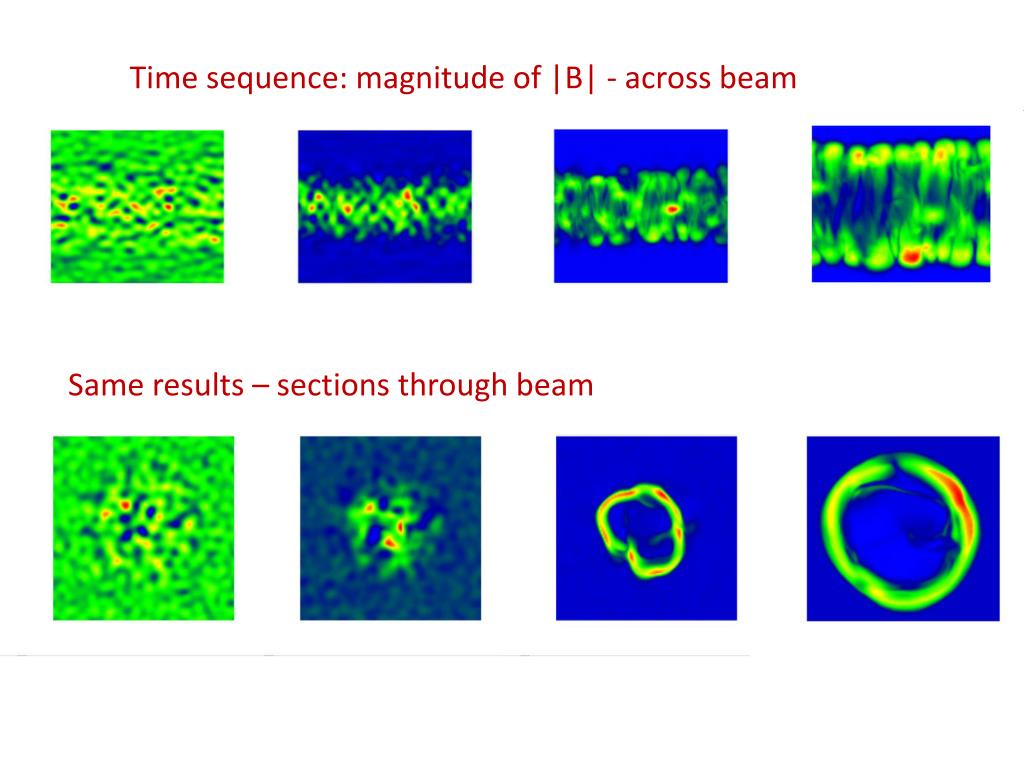

  9. Time sequence: magnitude of |B| - across beam Same results – sections through beam

  10. Filamentation & self-focussing B E=0 R proton beam j velocity vbeam E drives turbulence slows beam E=0 Maxwell equation Energy conservation Magnetic field growth Always focuses CR onto axis

  11. Saturation power carried by filament/beam 1.7x1028 W = 3x10-12 Moc2yr-1 =1015eV 1.7x1040 W = 3 Moc2yr-1 =1021eV • Apply saturation conditions • Beam radius = CR Larmor radius • Magnetic tension = jxB • Beam carries Alfven current CR energy Power in beam

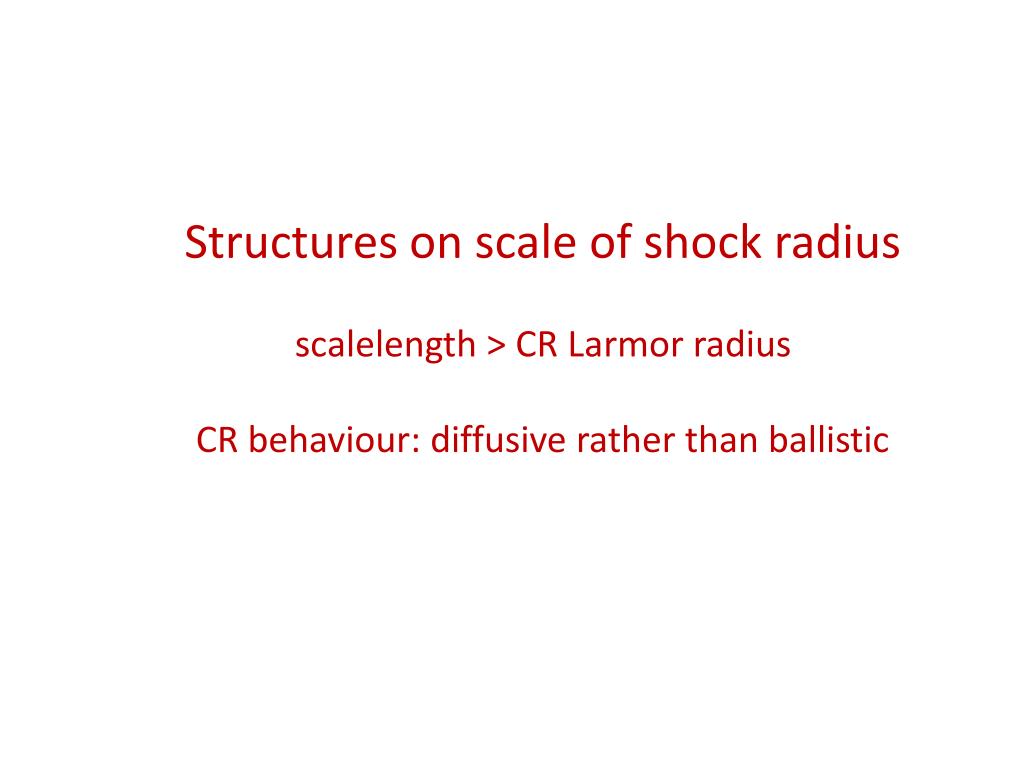

  12. Structures on scale of shock radius scalelength > CR Larmor radius CR behaviour: diffusive rather than ballistic

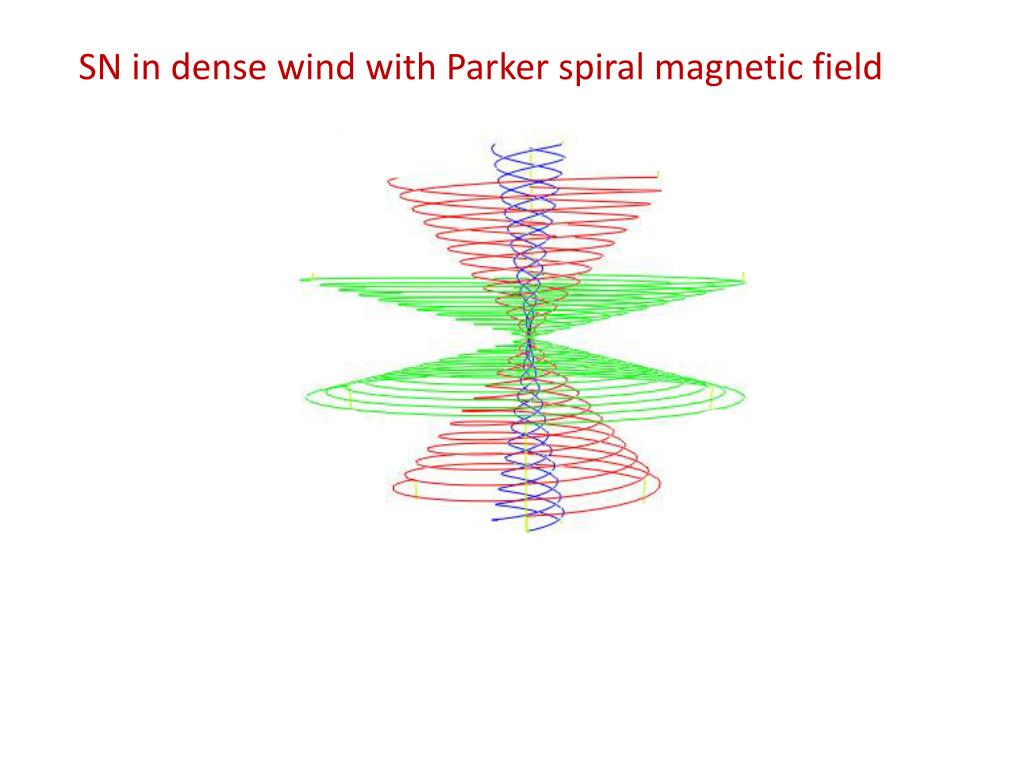

  13. SN in dense wind with Parker spiral magnetic field

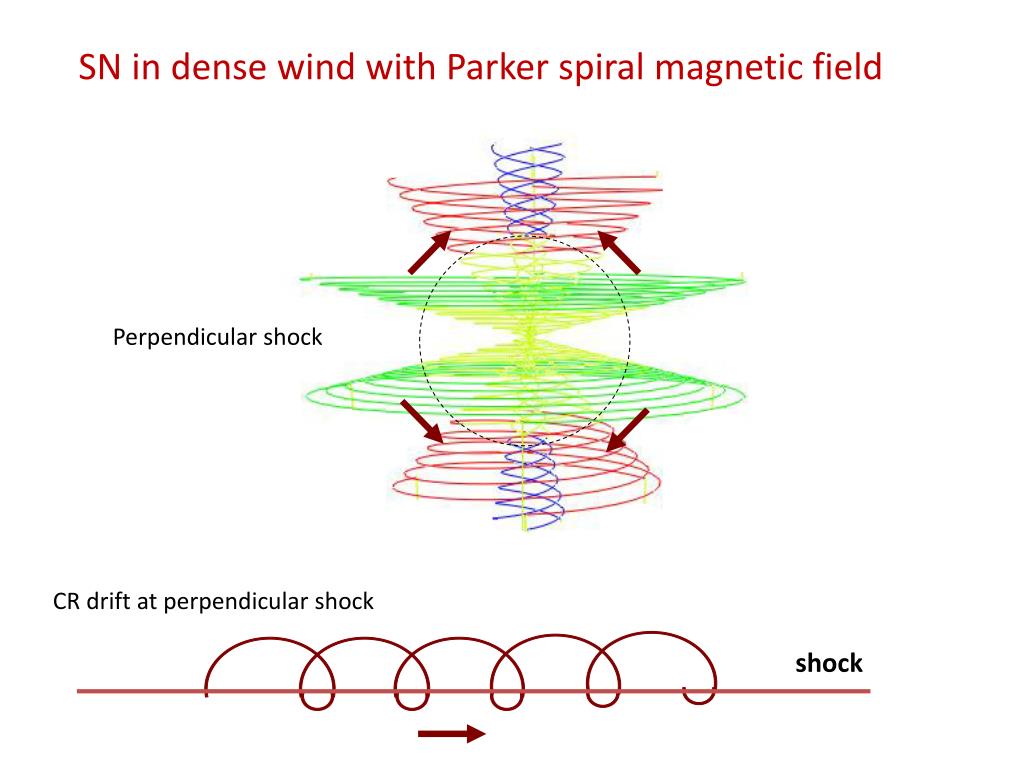

  14. SN in dense wind with Parker spiral magnetic field Perpendicular shock CR drift at perpendicular shock shock

  15. CR distribution f0 in a circumstellar wind Self-similar solution in (r,q) latitude Allows for density ~ r-2 Radius normalised to shock radius ust

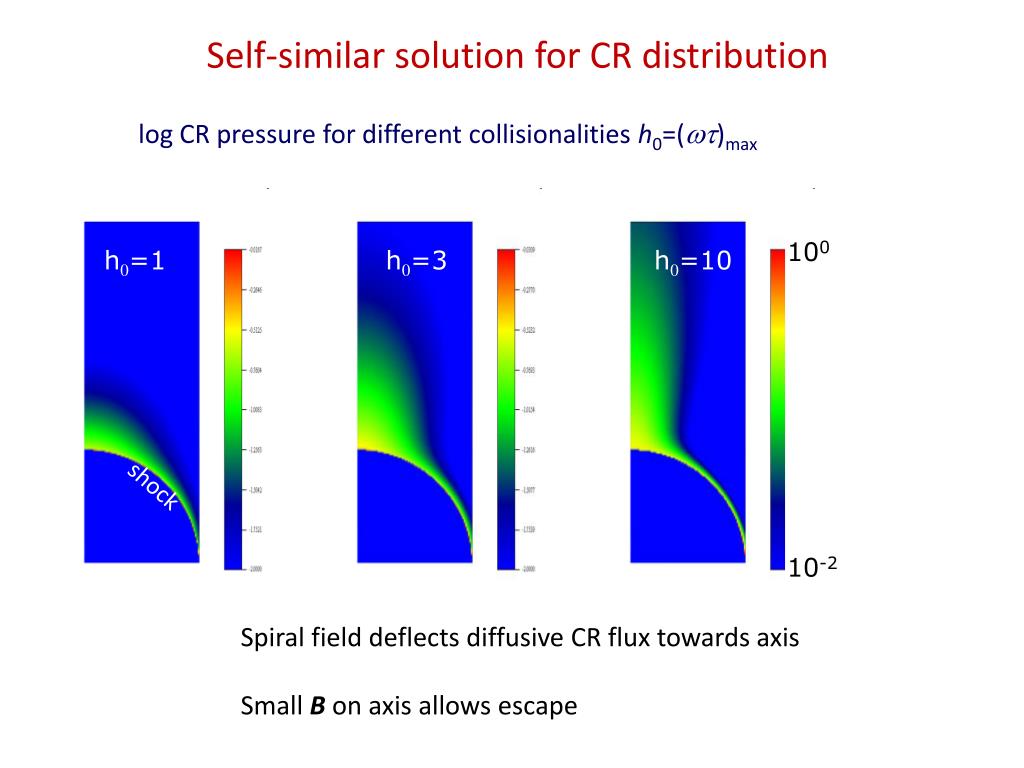

  16. Self-similar solution for CR distribution log CR pressure for different collisionalities h0=(wt)max 100 h0=1 h0=3 h0=10 shock 10-2 Spiral field deflects diffusive CR flux towards axis Small B on axis allows escape

  17. p pmax CR spectrum (p-4f) at the shock for different collisionalities h0=(wt)max Dominated by highest energy CR at pole 102 100.2 100.8 101 CR momentum h0=10 h0=1 h0=3 10-6 0 p/2 q 10-2 0 p/2 0 p/2 q q 10-2 10-2 latitude equator pole

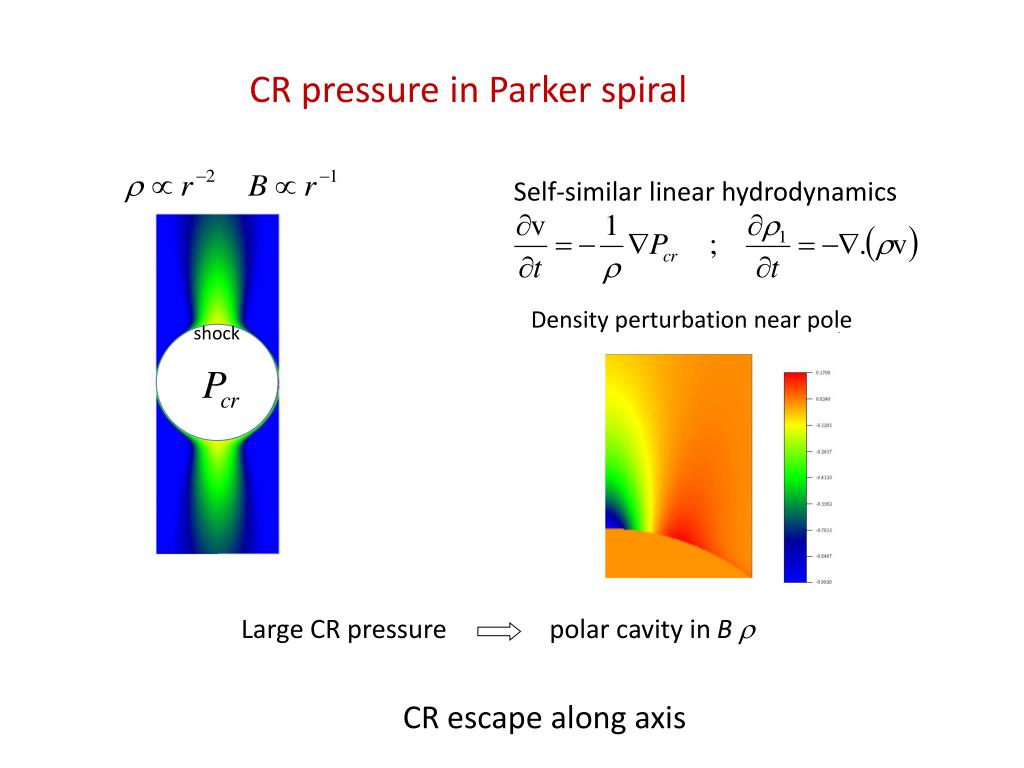

  18. CR pressure in Parker spiral Self-similar linear hydrodynamics Density perturbation near pole shock Large CR pressure polar cavity in B r CR escape along axis

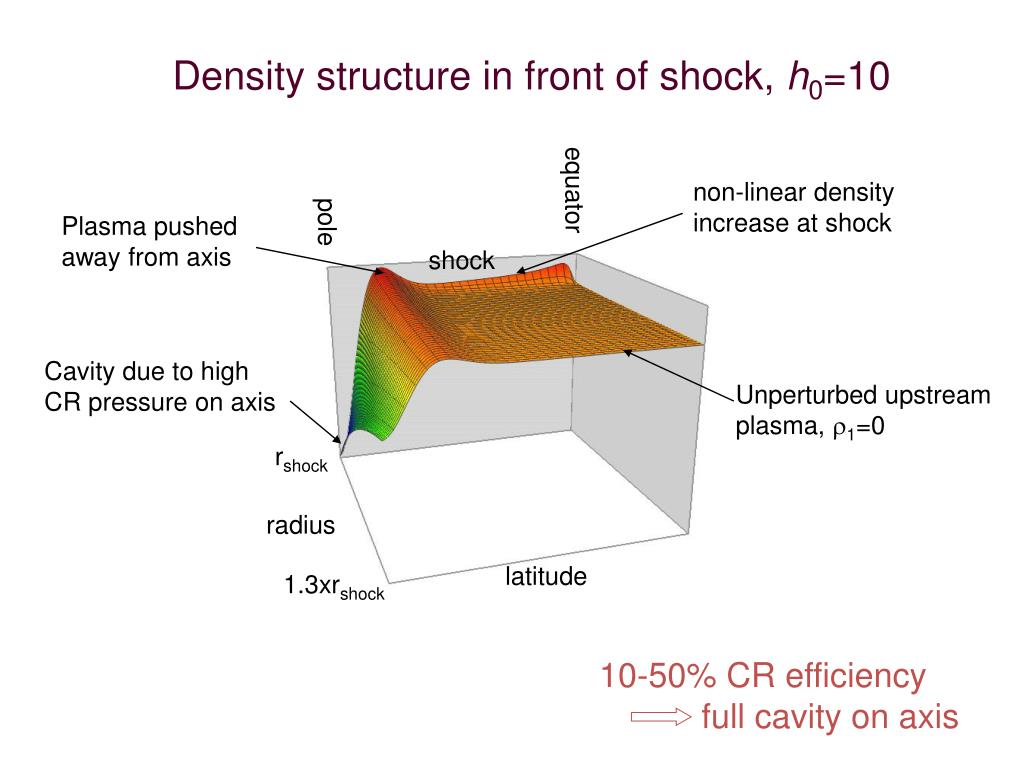

  19. Density structure in front of shock, h0=10 equator non-linear density increase at shock pole Plasma pushed away from axis shock Cavity due to high CR pressure on axis Unperturbed upstream plasma, r1=0 rshock radius latitude 1.3xrshock 10-50% CR efficiency full cavity on axis

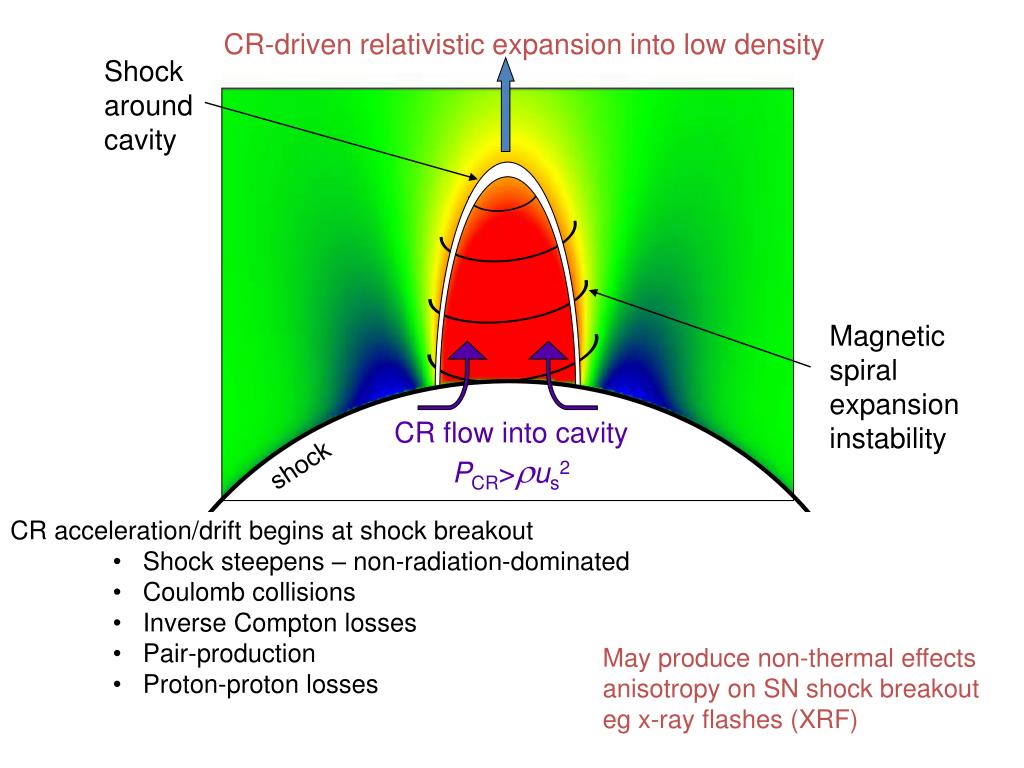

  20. CR-driven relativistic expansion into low density Shock around cavity Magnetic spiral expansion instability CR flow into cavity PCR>rus2 shock • CR acceleration/drift begins at shock breakout • Shock steepens – non-radiation-dominated • Coulomb collisions • Inverse Compton losses • Pair-production • Proton-proton losses May produce non-thermal effects anisotropy on SN shock breakout eg x-ray flashes (XRF)

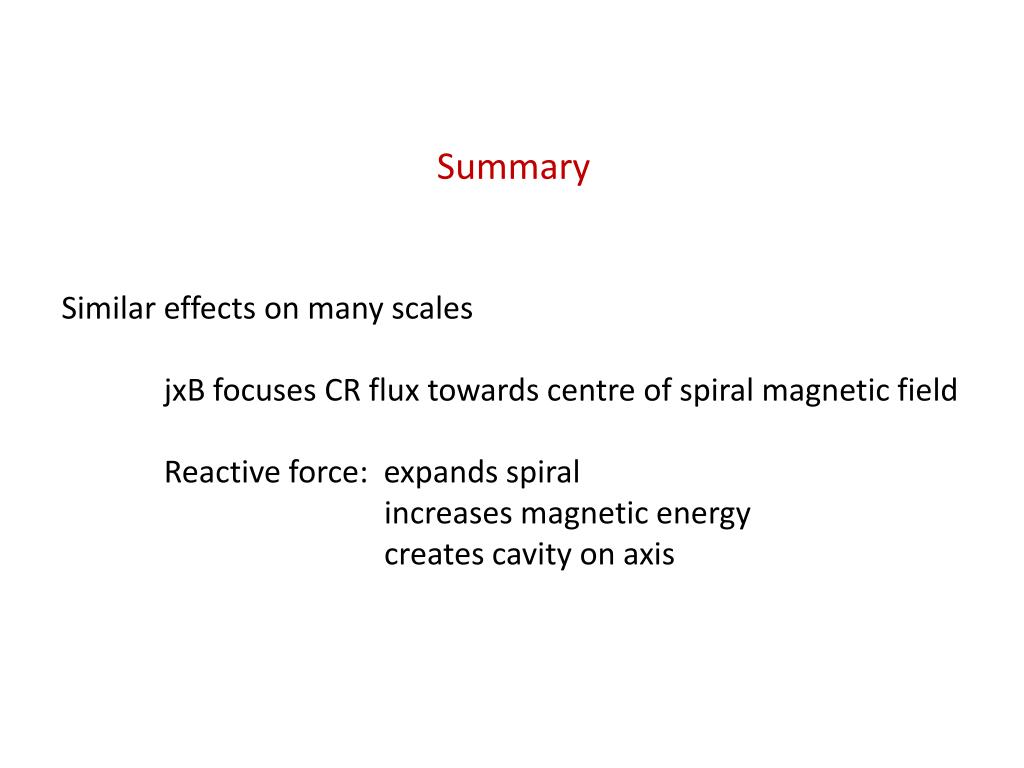

  21. Summary Similar effects on many scales jxB focuses CR flux towards centre of spiral magnetic field Reactive force: expands spiral increases magnetic energy creates cavity on axis
