Software Defined Networks for Dynamic Datacenter and Cloud Environments

kirra avatar
kirra
10 diapositives · 254 Views · Jul 26, 2014

In today’s dynamic datacenter and cloud environments, conventional networking approaches are too complex and costly, leading to underutilized topologies that raise CAPEX and OPEX. A solution is available: a flat network architecture leveraging Affinity Driven Networking. This modern model integrates packet and circuit switching with CALIENT S320 Optical Circuit Switch and Plexxi Switch Ring, enabling flexible Layer 1/2/3 designs that align with application workloads. By optimizing network connectivity and resources based on affinities, organizations can scale efficiently and meet the demands of their applications in real-time. ###

Software Defined Networks for Dynamic Datacenter and Cloud Environments - slide 1
01 / 10Software Defined Networks for Dynamic Datacenter and Cloud Environments
1 / 17

Télécharger la présentation

Software Defined Networks for Dynamic Datacenter and Cloud Environments
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Software Defined Networks forDynamic Datacenter and Cloud Environments

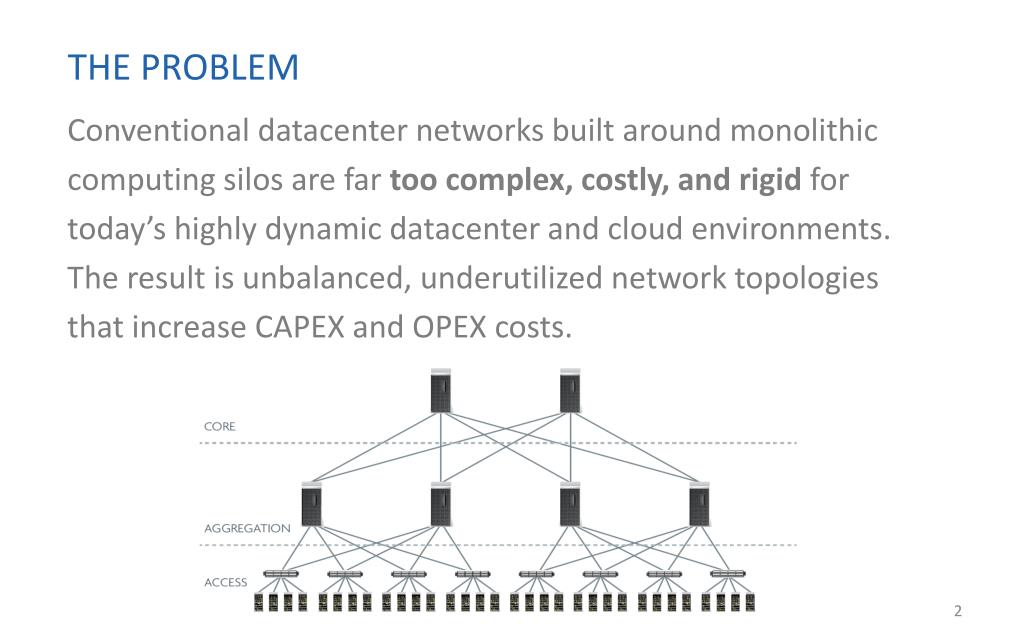

  2. THE PROBLEM Conventional datacenter networks built around monolithic computing silos are far toocomplex, costly, and rigid for today’s highly dynamic datacenter and cloud environments. The result is unbalanced, underutilized network topologies that increase CAPEX and OPEX costs.

  3. THE SOLUTION What the modern datacenter needs is a fundamentally new networking model. A flat network architecture that leverages Affinity Driven Networking to fit the physical and packet network to the growing needs of today’s virtual and highly dynamic datacenter and cloud environments.

  4. THE SOLUTION Affinity Driven - SDN Control- Reconfigurable Packet and Circuit Network • CALIENT S320 Optical Circuit Switch • Pure photonic-layer switching • Handles high-capacity, on demand traffic flows • Plexxi Switch Ring • Packet Switching and Optical Multiplexing • Form a flexible layer 1/2/3 network topology that matches application workloads CALIENT S320 Optical Circuit Switch Fabric Plexxi Ring Server Racks/Clusters

  5. THE SOLUTION Affinity Driven - SDN Control - Reconfigurable Packet and Circuit Network Cloud Management(e.g. OpenStack) Virtual Servers/Compute Virtual NetworkOverlays Network Analytics Network Services Security Policy Workload Affinities CALIENT S320 Optical Circuit Switch Fabric Network Orchestration Plexxi Ring Server Racks/Clusters

  6. HOW IT WORKS An Affinity describes relationships between datacenter resources based on well known tendencies and needs for network end points to communicate with each other Based on Affinities, Plexxi Control fits network connectivity and topology to optimize application workloads Driven by Affinity Networking, application workloads get the network they need when they need it For scaling out datacenters, small and large persistent traffic flows are routed through the hybrid Plexxi switch ring and CALIENT S320 Optical Circuit Switch fabric network

  7. USE CASE EXAMPLES Scheduled Events • Virtual Machines migration (Server Virtualization) • Storage application data migration (Network Storage) • MapReduce applications Real Time Events • Network monitoring request for additional bandwidth (Network Monitoring and Analytics)

  8. Software Defined Networking forDynamic Datacenter and Cloud Environments

  9. Cloud Management(e.g. OpenStack) Virtual Servers/Compute Virtual NetworkOverlays Network Analytics Network Services Security Policy Workload Affinities CALIENT S320 Optical Circuit Switch Fabric Network Orchestration Plexxi Ring Server Racks/Clusters

  10. Scaling Out Datacenter Networks for Big Data Cloud Management(e.g. OpenStack) Virtual Servers/Compute Virtual NetworkOverlays Network Analytics Network Services Security Policy Workload Affinities CALIENT S320 Optical Circuit Switch Fabric Network Orchestration Plexxi Ring Server Racks/Clusters
