  1. FORCES AND MOTION Intro #1

  2. FORCE, SYSTEM, ENVIRONMENT -Force: a push or pull exerted on an object -System: The object being acted on -Environment: The area around the object from which the force is exerted

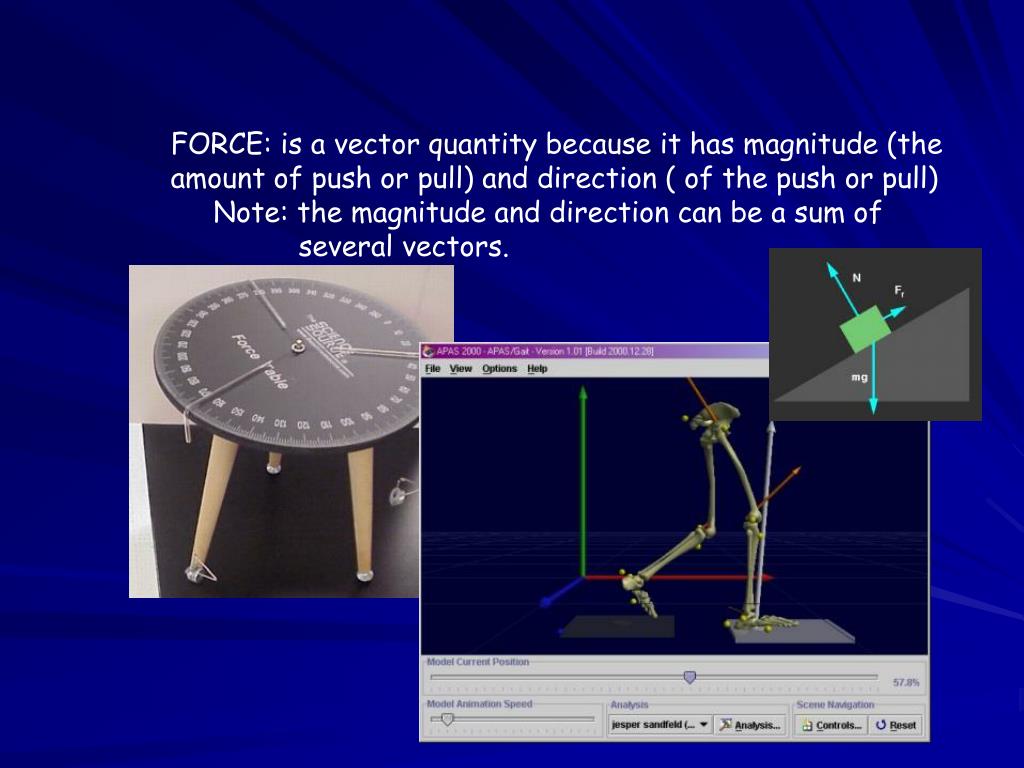

  3. FORCE: is a vector quantity because it has magnitude (the amount of push or pull) and direction ( of the push or pull) Note: the magnitude and direction can be a sum of several vectors.

  4. Color Conventions for vector arrows: • Blue – Force • Green – Position • Red – Velocity • Violet - Acceleration Force is a quantity which is measured using a standard metric unit known as the Newton. One Newton is the amount of force required to give a 1-kg mass an acceleration of 1 m/s2. A Newton is abbreviated by an "N." If you say "10.0 N," you mean 10.0 Newtons of force. Thus, the following unit equivalency can be stated:

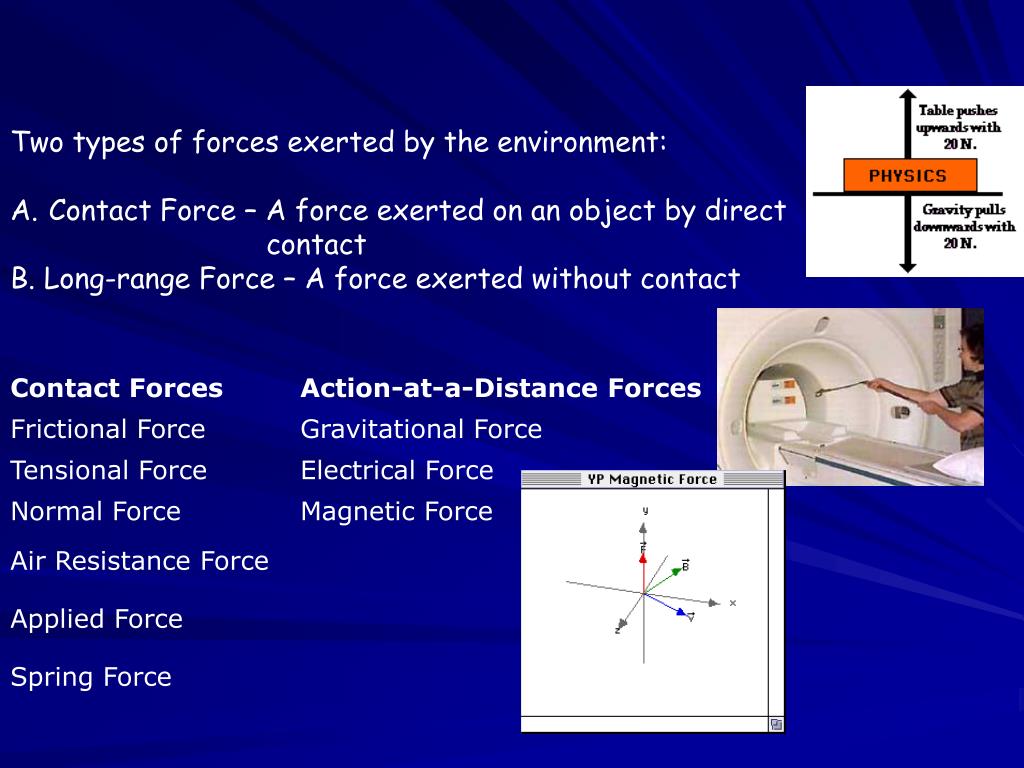

  5. Two types of forces exerted by the environment: • Contact Force – A force exerted on an object by direct • contact • B. Long-range Force – A force exerted without contact

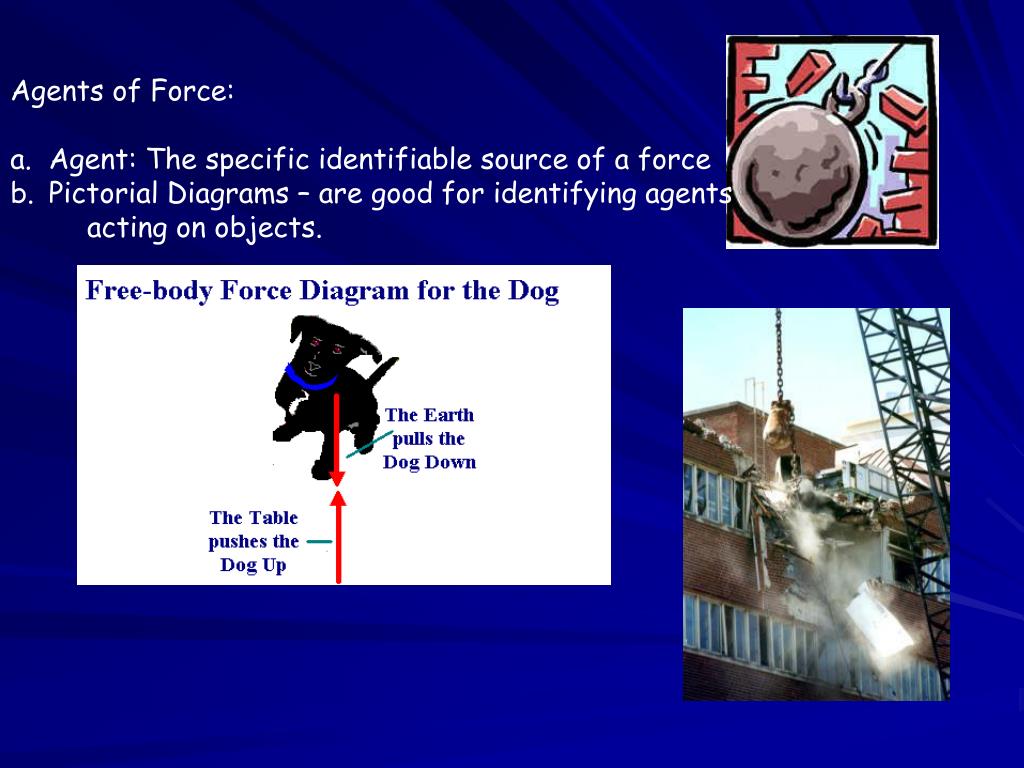

  6. Agents of Force: • Agent: The specific identifiable source of a force • Pictorial Diagrams – are good for identifying agents • acting on objects.

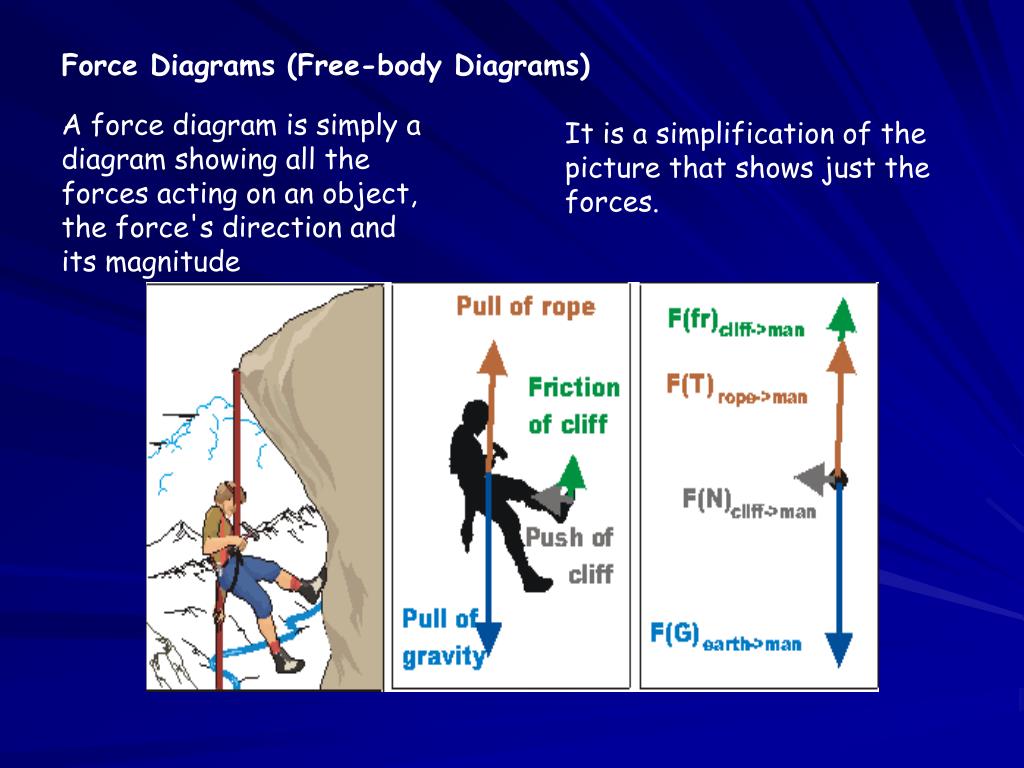

  7. Force Diagrams (Free-body Diagrams) A force diagram is simply a diagram showing all the forces acting on an object, the force's direction and its magnitude It is a simplification of the picture that shows just the forces.

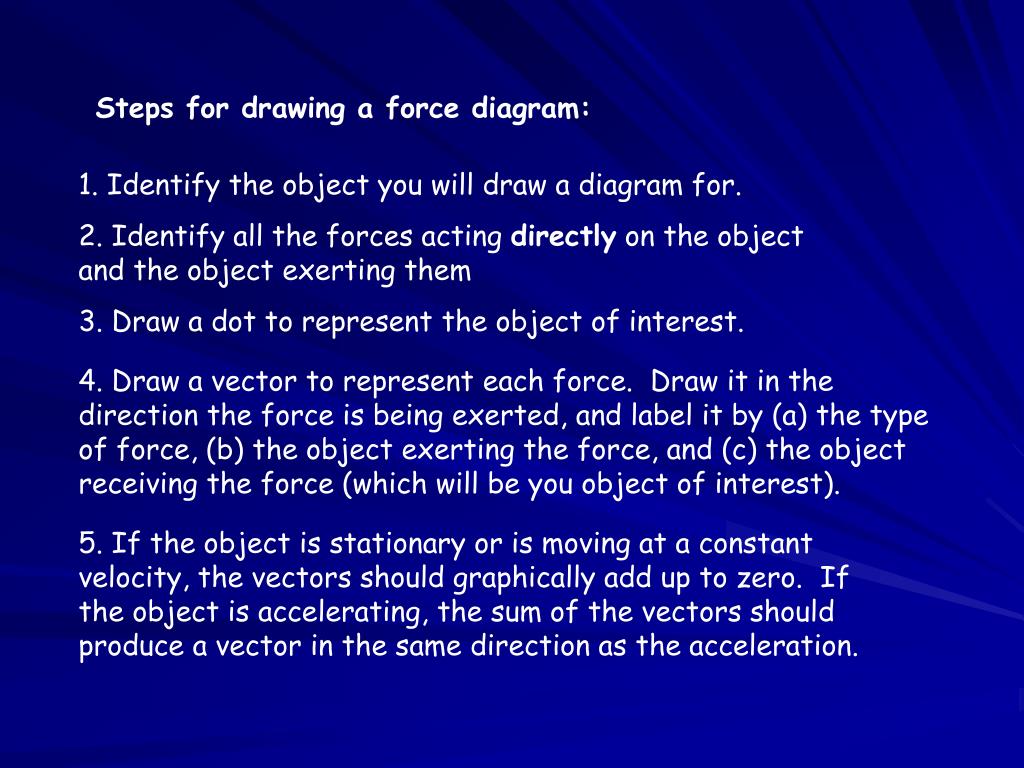

  8. Steps for drawing a force diagram: 1. Identify the object you will draw a diagram for. 2. Identify all the forces acting directly on the object and the object exerting them 3. Draw a dot to represent the object of interest. 4. Draw a vector to represent each force.  Draw it in the direction the force is being exerted, and label it by (a) the type of force, (b) the object exerting the force, and (c) the object receiving the force (which will be you object of interest).  5. If the object is stationary or is moving at a constant velocity, the vectors should graphically add up to zero.  If the object is accelerating, the sum of the vectors should produce a vector in the same direction as the acceleration.

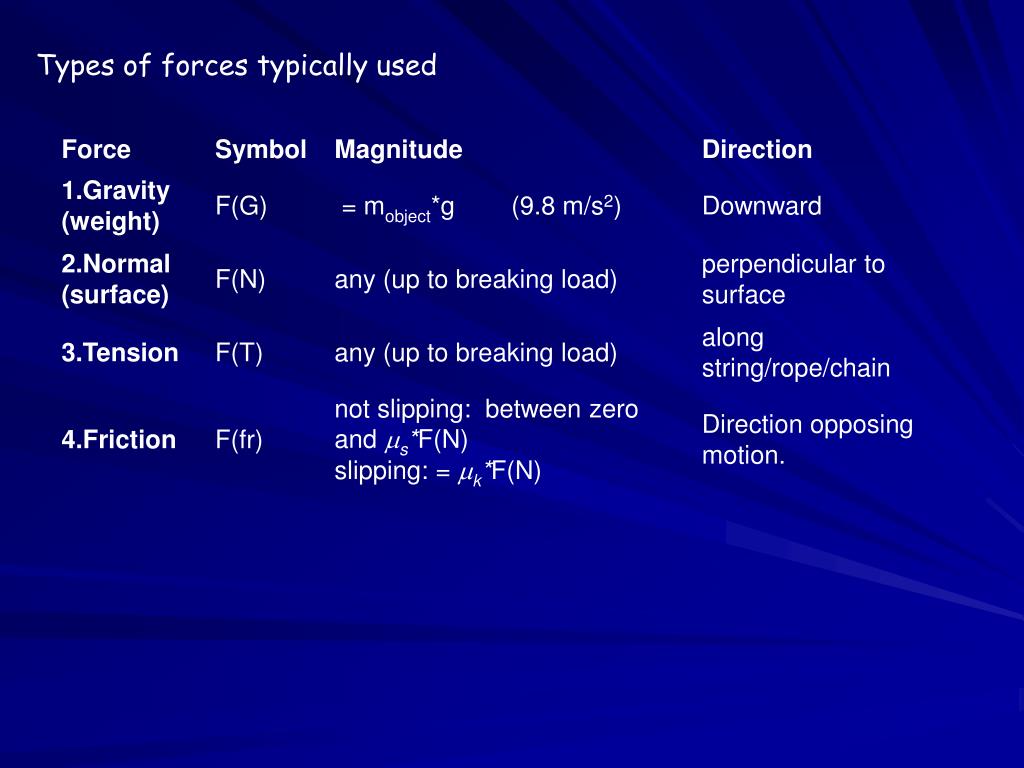

  9. Types of forces typically used

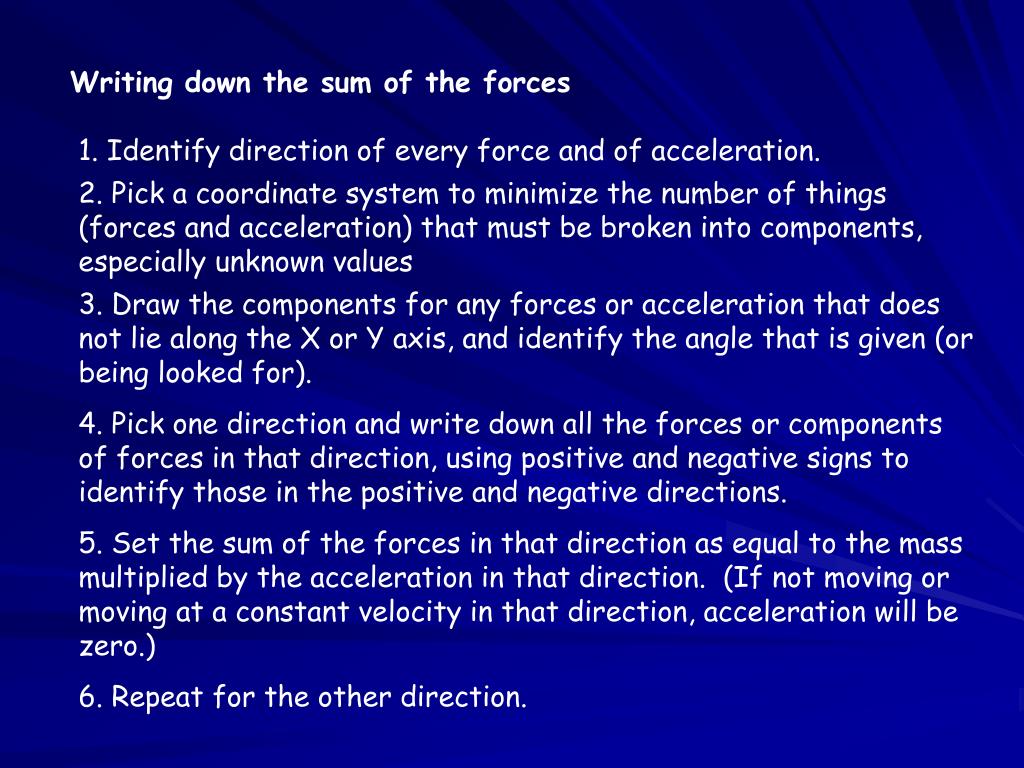

  10. Writing down the sum of the forces 1. Identify direction of every force and of acceleration. 2. Pick a coordinate system to minimize the number of things (forces and acceleration) that must be broken into components, especially unknown values 3. Draw the components for any forces or acceleration that does not lie along the X or Y axis, and identify the angle that is given (or being looked for). 4. Pick one direction and write down all the forces or components of forces in that direction, using positive and negative signs to identify those in the positive and negative directions. 5. Set the sum of the forces in that direction as equal to the mass multiplied by the acceleration in that direction.  (If not moving or moving at a constant velocity in that direction, acceleration will be zero.) 6. Repeat for the other direction.

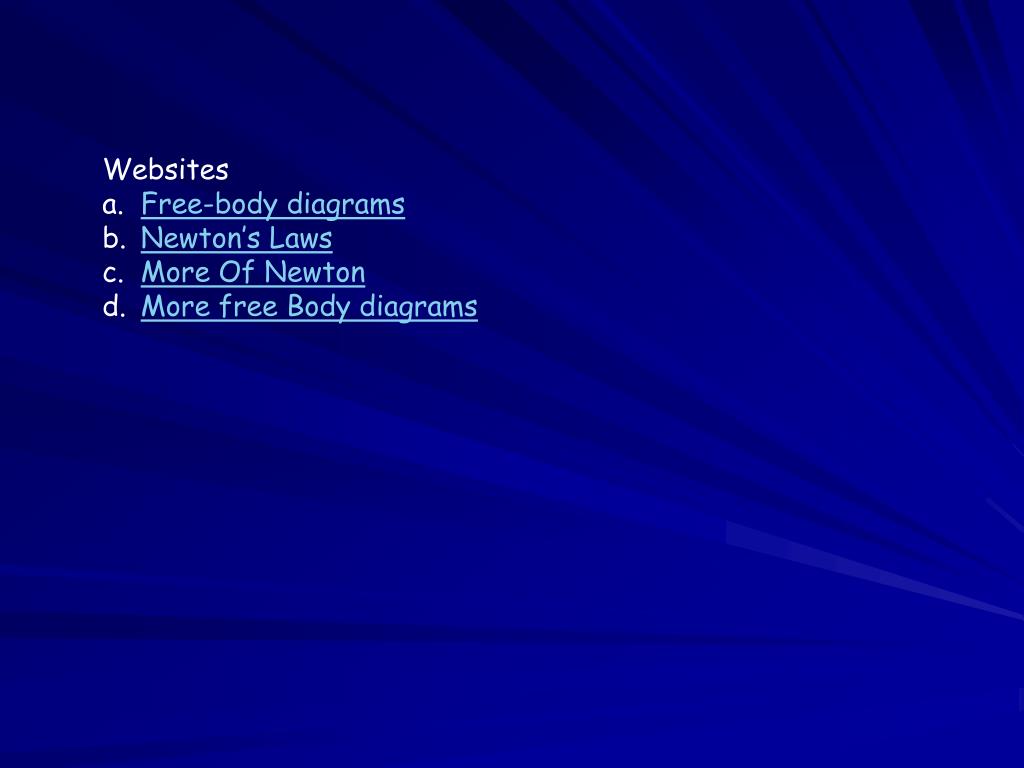

  11. Websites • Free-body diagrams • Newton’s Laws • More Of Newton • More free Body diagrams
