Chapter 6 Public Key Algorithms

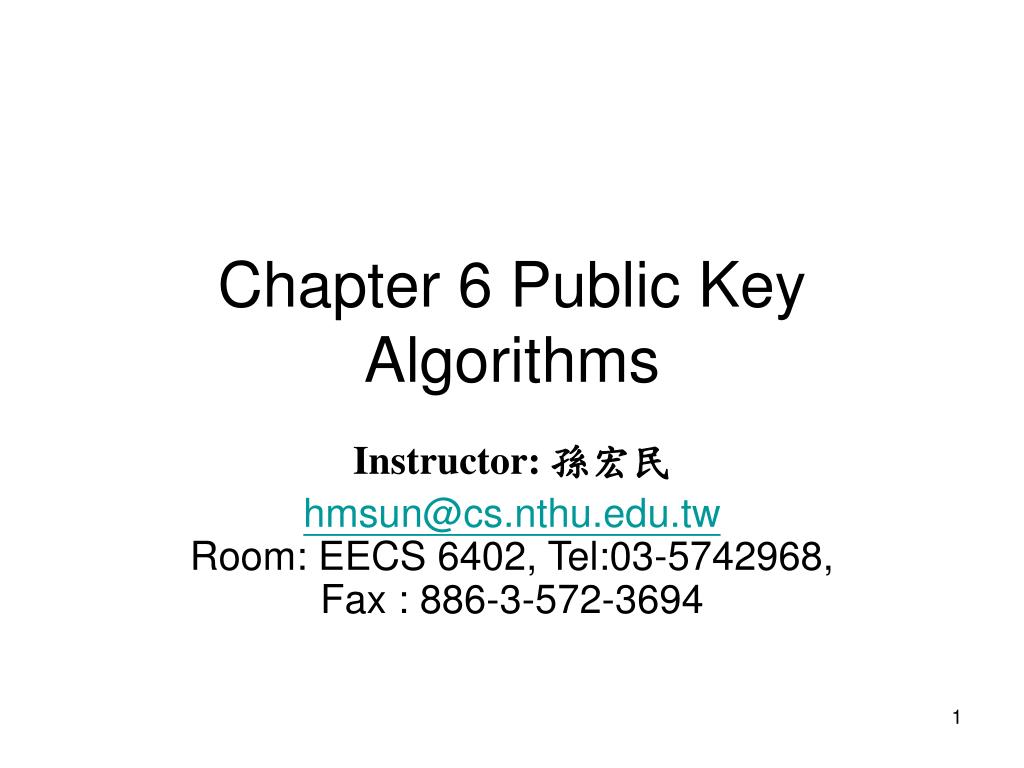

1. Chapter 6 Public Key Algorithms Instructor: 孫宏民 hmsun@cs.nthu.edu.twRoom: EECS 6402, Tel:03-5742968, Fax : 886-3-572-3694

2. Exponentiation Ciphers • We will consider two kinds of exponentiation ciphers developed by the following people: • Both schemes encipher a message block M [0, n – 1] by computing the exponential C = M e mod n,

3. where e and n are the key to the enciphering transformation. • M is restored by the same operation, but using a different exponent d for the key: M = C d mod n. • Enciphering and deciphering can be implemented using the fast exponentiation algorithm: C = fast_exp(M, e, n) M = fast_exp(C, d, n)

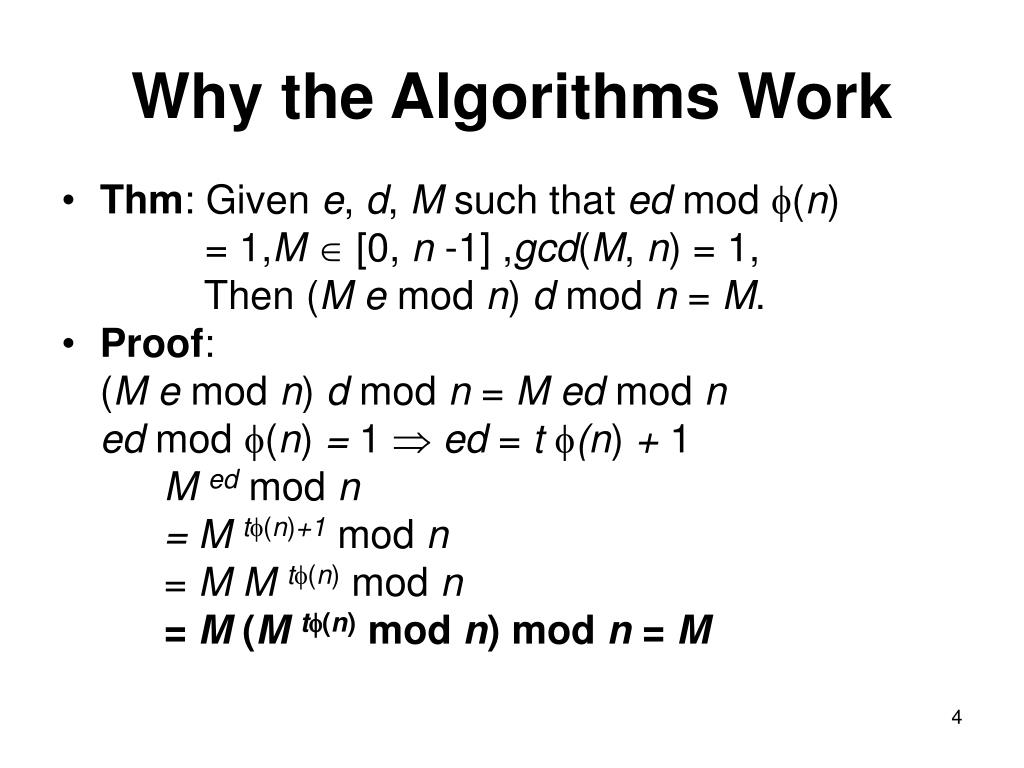

4. Why the Algorithms Work • Thm: Given e, d, M such that ed mod (n) = 1,M [0, n -1] ,gcd(M, n) = 1, Then (M e mod n) d mod n = M. • Proof: (M e mod n) d mod n = M ed mod n ed mod (n) = 1  ed = t (n) + 1 M ed mod n = M t(n)+1 mod n = M M t(n) mod n = M (M t(n) mod n) mod n = M

5. where = M t(n) mod n = (M (n) mod n) t mod n = 1t mod n = 1 .

6. A Few Words About the Theorem • Note that by symmetry, enciphering and deciphering are commutative and mutual inverses; thus, (M d mod n) e mod n = M de mod n = M • Given (n), it is easy to generate a pair (e, d) such that ed mod (n) = 1. This is done by first choosing d relatively prime to (n), and then computing e as • e = inv(d, (n))

7. Because e and d are symmetric, we could also pick e and compute d = inv(e, (n)). • Given e, it is easy to compute d (or vice versa) if (n) is known. But if e and n can be released without giving away (n) or d, then the deciphering transformation can be kept secret, while the enciphering transformation is made public.

8. It is the ability to hide (n) that distinguishes the two schemes.

9. Pohlig-Hellman Scheme • The modulus is chosen to be a large prime p. To encipher: C = M e mod p To decipher: M = C d mod p • Because p is prime, (p) = p – 1. • Thus the scheme can only be used for conventional encryption, where e and d are both kept secret.

10. Ex. Let p = 11, (p) = 10. Choose d = 7 and compute e = inv(7, 10) = 3. Suppose M = 5. Then M is enciphered as: C = M e mod p = 53 mod 11 = 4. Similarly, C is deciphered as: C d mod p = 47 mod 11 = 5 = M .

11. Security Concern • The security of the scheme rests on the complexity of computing discrete logarithms. • A cryptanalyst may deduce p by observing the sizes of plaintext and ciphertext blocks. • Under a known-plaintext attack, a cryptanalyst can compute e (and thereby d) given a pair (M, C): • e = log M C

12. Pohlig and Hellman show that if (p – 1) has only small prime factors, it is possible to compute the logarithm in O(log2p) time, which is unsatisfactory even for large values of p. • They recommend picking p = 2p + 1, where p is also a large prime.

13. Discrete Logarithm • The fastest known algorithm for computing the discrete logarithm takes about steps. • If p is a few hundred decimal digits long, it will take several billion years to compute.

14. RSA Scheme • The modulus is the product of two large primes p and q, i.e., n = pq. Thus (n) = (p – 1) (q – 1) To encipher: C = M e mod n To decipher: M = C d mod n

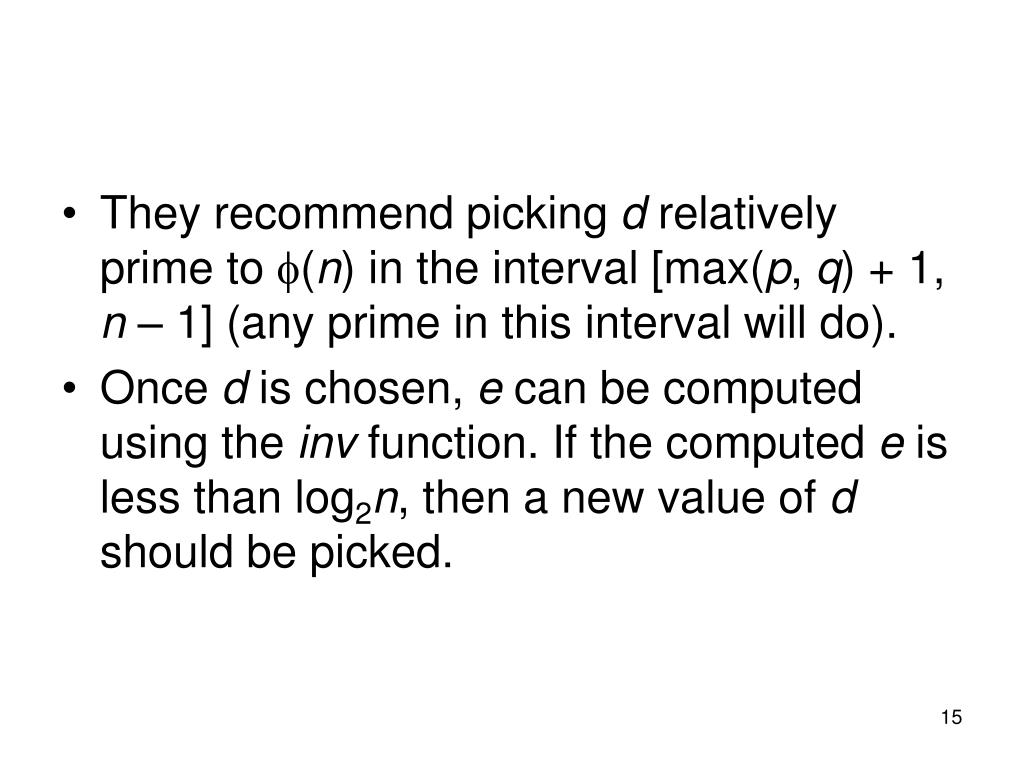

15. They recommend picking d relatively prime to (n) in the interval [max(p, q) + 1, n – 1] (any prime in this interval will do). • Once d is chosen, e can be computed using the inv function. If the computed e is less than log2n, then a new value of d should be picked.

16. Example • Ex. Let p = 5 and q = 7, so n = 57 = 35 and (n) = 46 = 24. Choose d = 11 and compute e = 11. Suppose M = 2. Then C = M e mod n = 211 mod 35 = 18 and C d mod n = 1811 mod 35 = 2 = M.

17. Ex. Let p = 53 and q = 61, so n = 53  61 = 3233 and (n) = 5260 = 3120. Choose d = 791 and compute e = 71. To encipher the message RENAISSANCE, we break it into blocks of 4 digits each, where A = 00, B = 01, ..., Z = 25, and blank = 26 (in practice, characters would be represented by their 8-bit ASCII codes). Thus we have

18. The first block is enciphered as 170471 = 3106. The entire message is enciphered as

19. Security Concern • Because (n) cannot be determined without knowing the prime factors p and q, it is possible to keep d secret even if e and n are made public. • Thus the RSA scheme can be used for public-key encryption, where the enciphering transformation is made public and the deciphering transformation is kept secret.

20. The security of the system depends on the difficulty of factoring n into p and q. The fastest known factoring algorithm takes about the same number of steps required for solving the discrete logarithm problem.

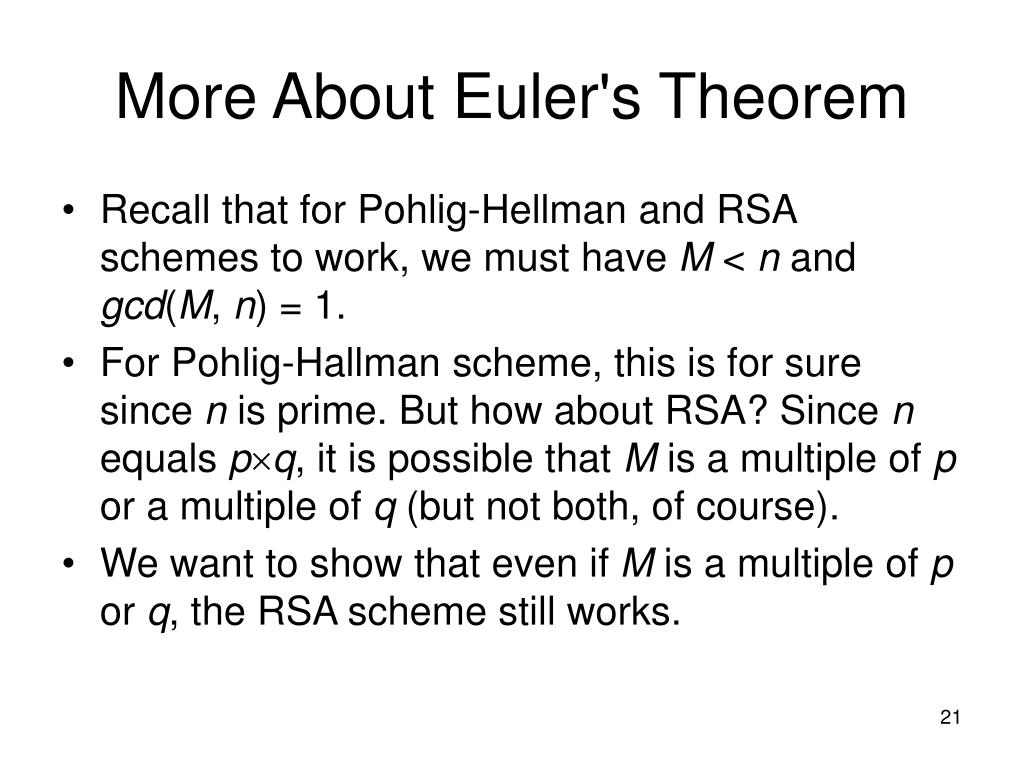

21. More About Euler's Theorem • Recall that for Pohlig-Hellman and RSA schemes to work, we must have M < n and gcd(M, n) = 1. • For Pohlig-Hallman scheme, this is for sure since n is prime. But how about RSA? Since n equals pq, it is possible that M is a multiple of p or a multiple of q (but not both, of course). • We want to show that even if M is a multiple of p or q, the RSA scheme still works.

22. What Happens When gcd(M, n)  1 • Suppose M is a multiple of p, so that M = cp for some c and gcd(M, q) = 1. M(q) mod q = 1  (M(q)) (p) mod q = 1 M(n) mod q = 1 • Therefore, there is some k such that M(n) = kq + 1

23. Multiply each side by M = cp, M(n)+1 = M + kqcp = M + ckn Thus M(n)+1 mod n = M . The case when M is a multiple of q is similar.

24. Summarization (RSA Scheme) • Key Generation

25. Encryption • Decryption • Plaintext : M • Ciphertext : C=Me mod n • Ciphertext : C • Plaintext : M=Cd mod n

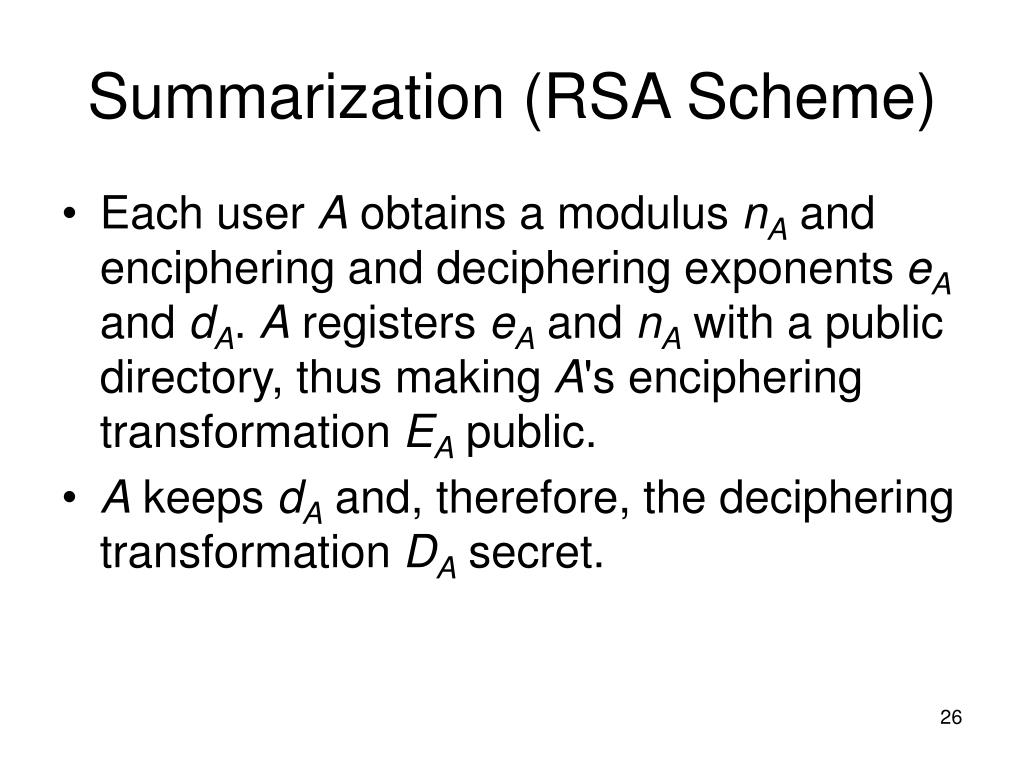

26. Summarization (RSA Scheme) • Each user A obtains a modulus nA and enciphering and deciphering exponents eA and dA. A registers eA and nA with a public directory, thus making A's enciphering transformation EA public. • A keeps dA and, therefore, the deciphering transformation DA secret.

27. Public-Key Systems • In a public-key system, each user has both a public and private key, and two users can communicate knowing only each other's public keys. • User A has a public enciphering transformationEA, which may be registered with a public directory, and a private deciphering transformationDA, which is known only to user A.

28. The private transformation DA is described by a private key, and the public transformation EA by a public key derived from the private key by a one-way transformation. • It must be computationally infeasible to determine DA from EA.

29. Secrecy And Authenticity • In a public-key system, secrecy and authenticity are both provided. • Secrecy

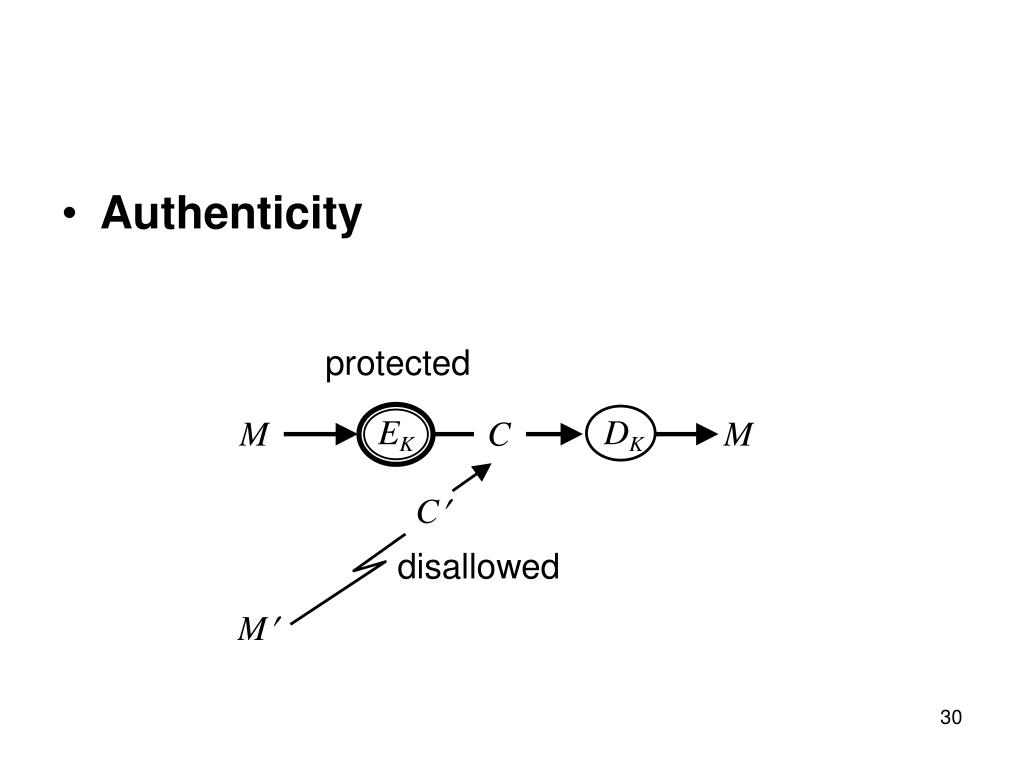

30. Authenticity

31. Secrecy • Suppose user A wishes to send a message M to another user B. If A knows B's public transformation EB, A can transmit M to B in secrecy by sending the ciphertext C = EB(M). • On receipt, B deciphers C using B's private transformation DB, getting • DB(C) = DB(EB(M)) = M .

32. The scheme does not provide authenticity because any user with access to B's public transformation could substitute another message M' for M by replacing C with C' = EB(M' ).

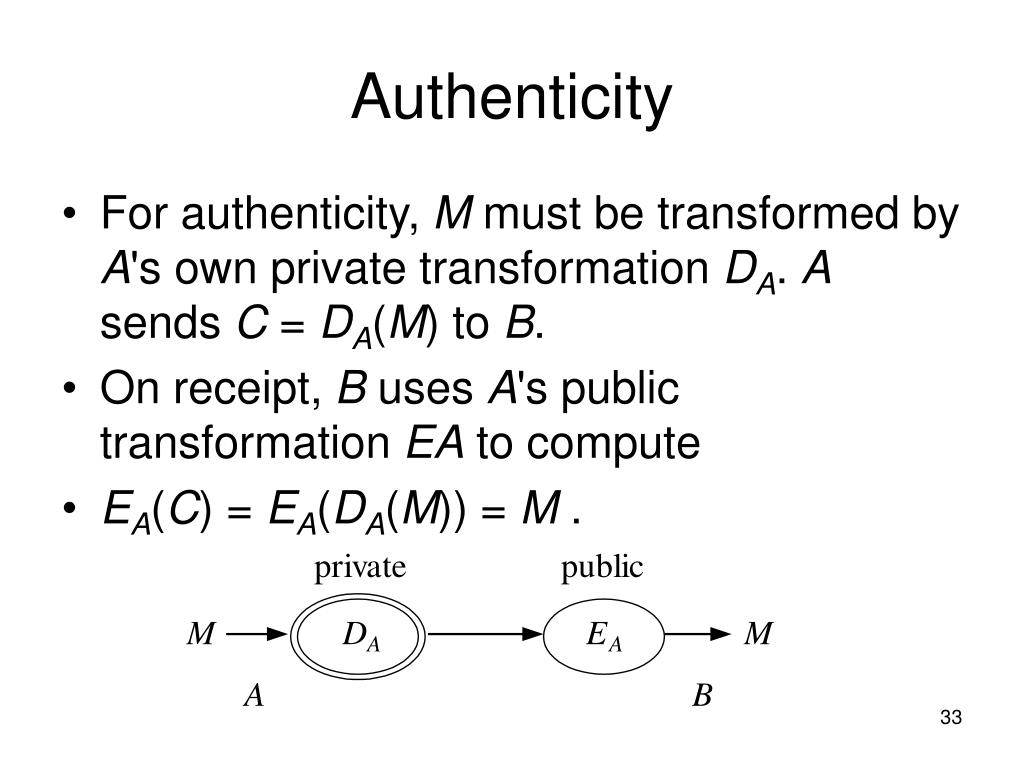

33. Authenticity • For authenticity, M must be transformed by A's own private transformation DA. A sends C = DA(M) to B. • On receipt, B uses A's public transformation EA to compute • EA(C) = EA(DA(M)) = M .

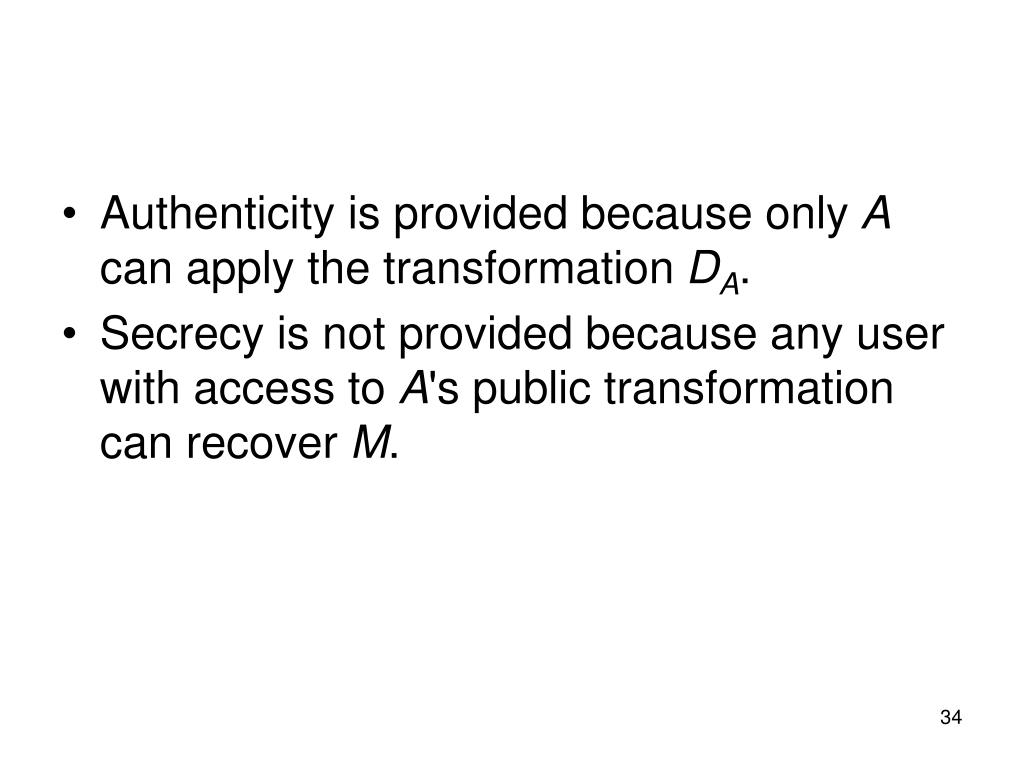

34. Authenticity is provided because only A can apply the transformation DA. • Secrecy is not provided because any user with access to A's public transformation can recover M.

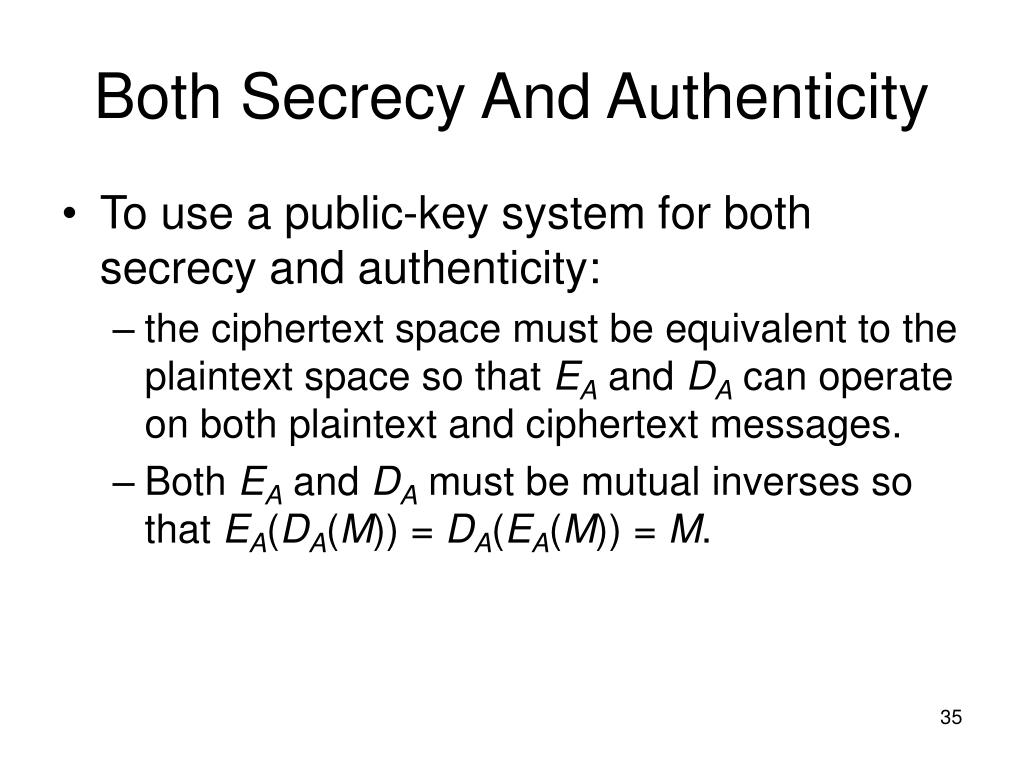

35. Both Secrecy And Authenticity • To use a public-key system for both secrecy and authenticity: • the ciphertext space must be equivalent to the plaintext space so that EA and DA can operate on both plaintext and ciphertext messages. • Both EA and DA must be mutual inverses so that EA(DA(M)) = DA(EA(M)) = M.

36. Suppose A wishes to send a message M to B. A sends to B the ciphertext C = EB(DA(M)) . • On receipt, B deciphers C by EA(DB(C)) = EA(DB(EB(DA(M)))) = EA(DA(M)) = M .

37. Both Secrecy And Authenticity • RSA scheme can be used for both secrecy and authenticity.

38. Secrecy And Authenticity (RSA) • User B can send a secret message M to A using which A deciphers using Only A can decipher C to get M.

39. Alternatively, A can send a signed message M to B using which B authenticates using • Because only A can apply DA, it cannot be forged, and a judge can settle any dispute arising between A and B.

40. Both Secrecy And Authenticity • A slight difficulty arises when both security and authenticity are desired. For A to send a message to B: C = EB(DA(M)) If nA > nB , the blocks comprising DA(M) might not be in the range [0, nB – 1]. • Reducing them modulo nB does not solve the problem, because it would then be impossible to recover the original message.

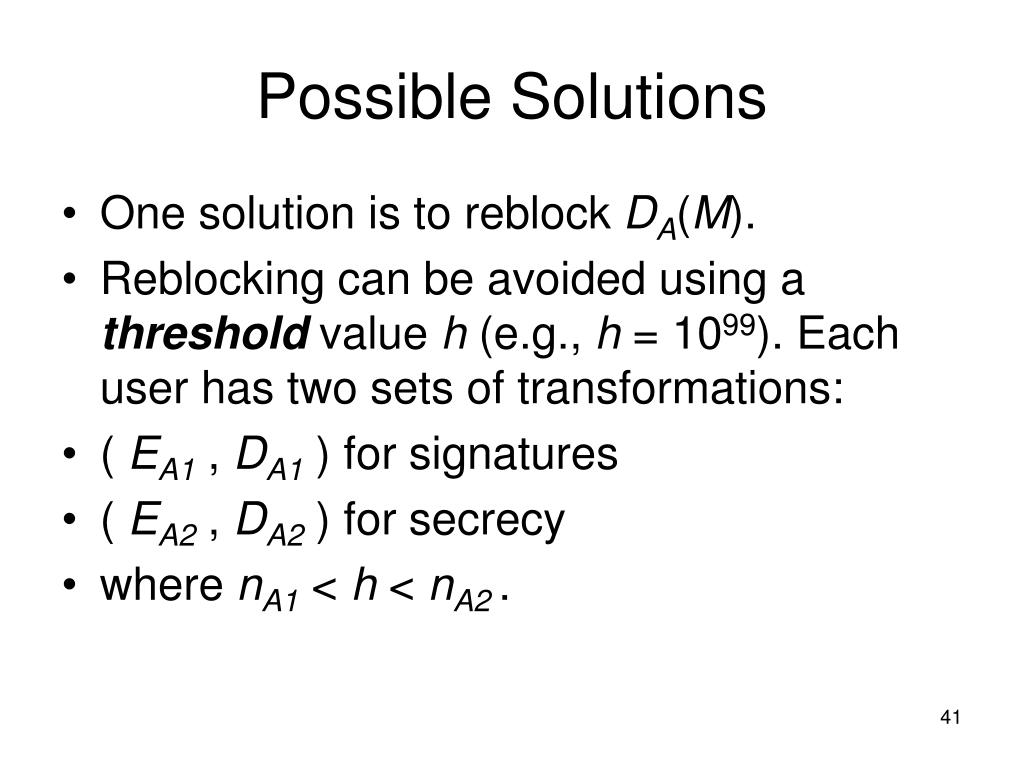

41. Possible Solutions • One solution is to reblock DA(M). • Reblocking can be avoided using a threshold value h (e.g., h = 1099). Each user has two sets of transformations: • ( EA1 , DA1) for signatures • ( EA2 , DA2) for secrecy • where nA1 < h < nA2.

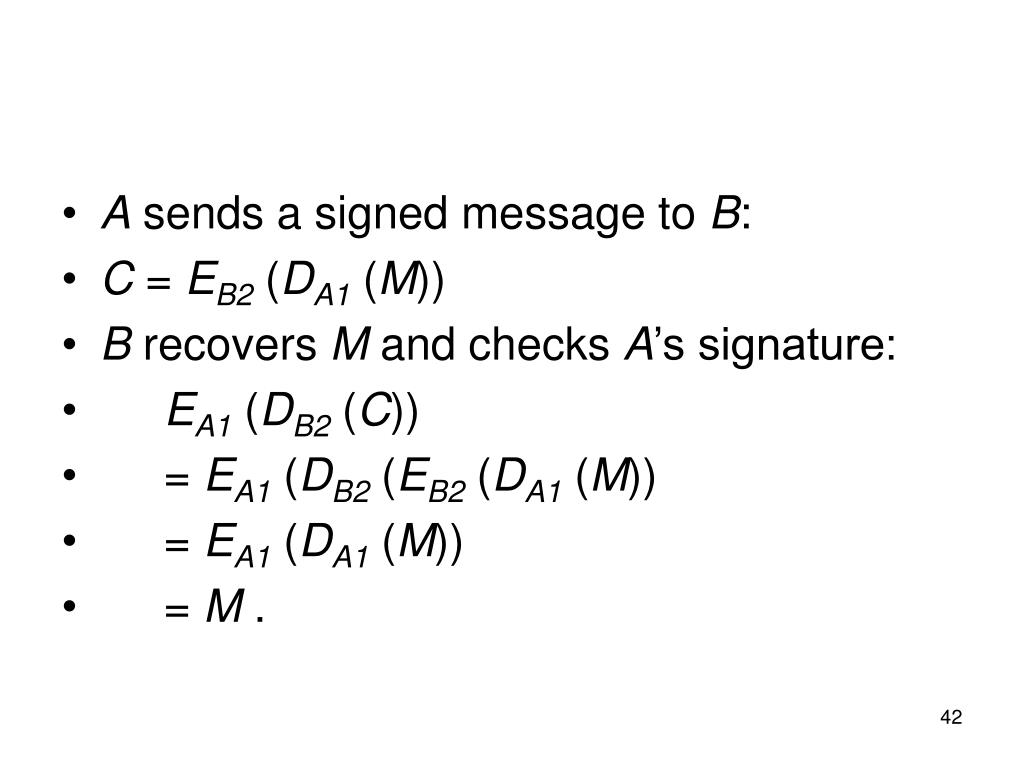

42. A sends a signed message to B: • C = EB2(DA1(M)) • B recovers M and checks A’s signature: • EA1(DB2(C)) • = EA1(DB2(EB2(DA1(M)) • = EA1(DA1(M)) • = M .

43. Another Solution • If C = EB (DA (M)) is not computable because nA > nB, then C' = DA(EB(M )) is computable. • User B, knowing both nA and nB (both are public), can recover M by computing either of the following: Case 1: nA < nB EA(DB(C))= EA(DB(EB(DA(M)))) = EA(DA(M)) = M .

44. Case 2: nA > nB DB(EA(C' ))= DB(EA(DA(EB(M)))) = DB(EB(M)) = M .

45. Dispute Resolution • If a dispute arises between A and B on the authenticity of A's signature, a judge must be able to ascertain that M originated with M. • If nA < nB, B applies B's private transformation to C and presents the judge with X = DB(C) and M. The judge compute M' = EA(X) using A's public transformation, and verifies that M' = M.

46. If nA > nB, another approach is needed because DB must be applied after EA, and B may not want to give DB to the judge. • The solution is for B to present the judge with C' and M. The judge computes X = EB(M) X' = EA(C' ) = EA(DA(EB(M))) and verifies that X = X'.

47. Summarization

48. Public-Key Cryptography Standard • The PKCS standards define the encoding for things such as an RSA public key, an RSA private key, RSA signature, a short RSA-encrypted message, a short RSA-signed message, and password-based encryption.

49. The threats that PKCS has been designed to deal with are: • Encrypting guessable message • Signing smooth numbers • Multiple recipients of a message when e=3 • Encrypting messages that are less than a third the length of n when e=3. • Signing messages where the information is in the high-order part and e=3.

50. Encryption • The recommended standard is • The top octet is 0. PKCS specifies that the high-octet of the modulus must non-zero. • The next octet is 2, which is the form type. The value 2 is used to be encrypted. The value 1 is used to be signed.
