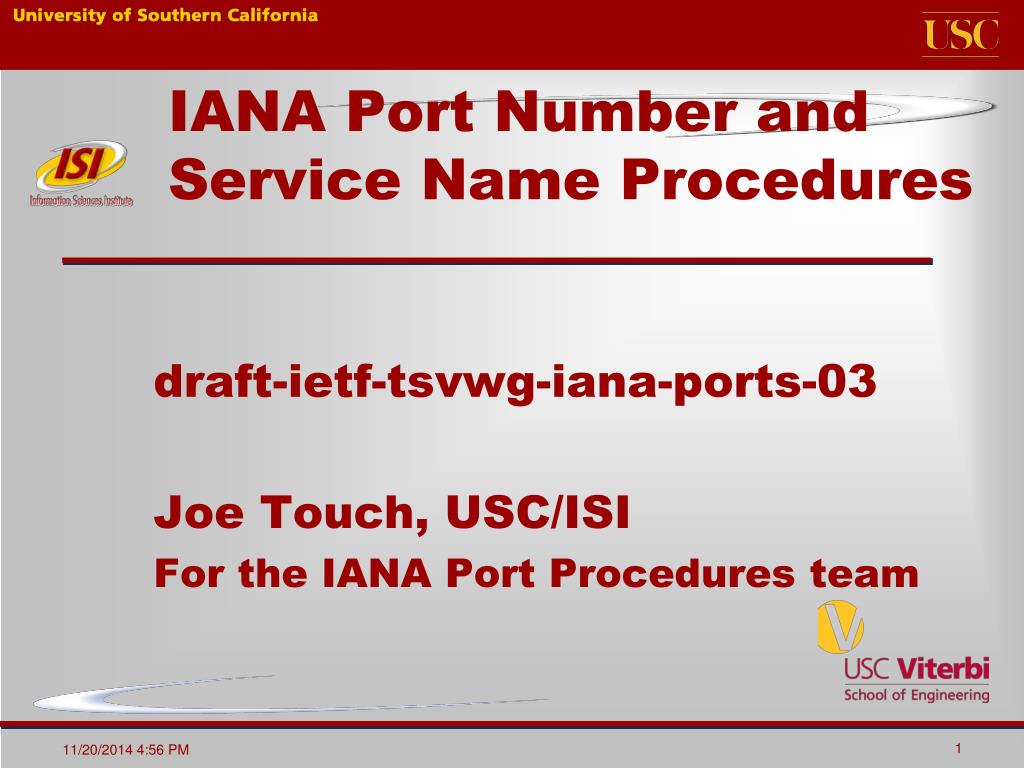

  1. IANA Port Number and Service Name Procedures draft-ietf-tsvwg-iana-ports-03 Joe Touch, USC/ISI For the IANA Port Procedures team

  2. Outline • Document Goals • Unifying Registries • Allocation Principles • Procedure Updates • Other Issues

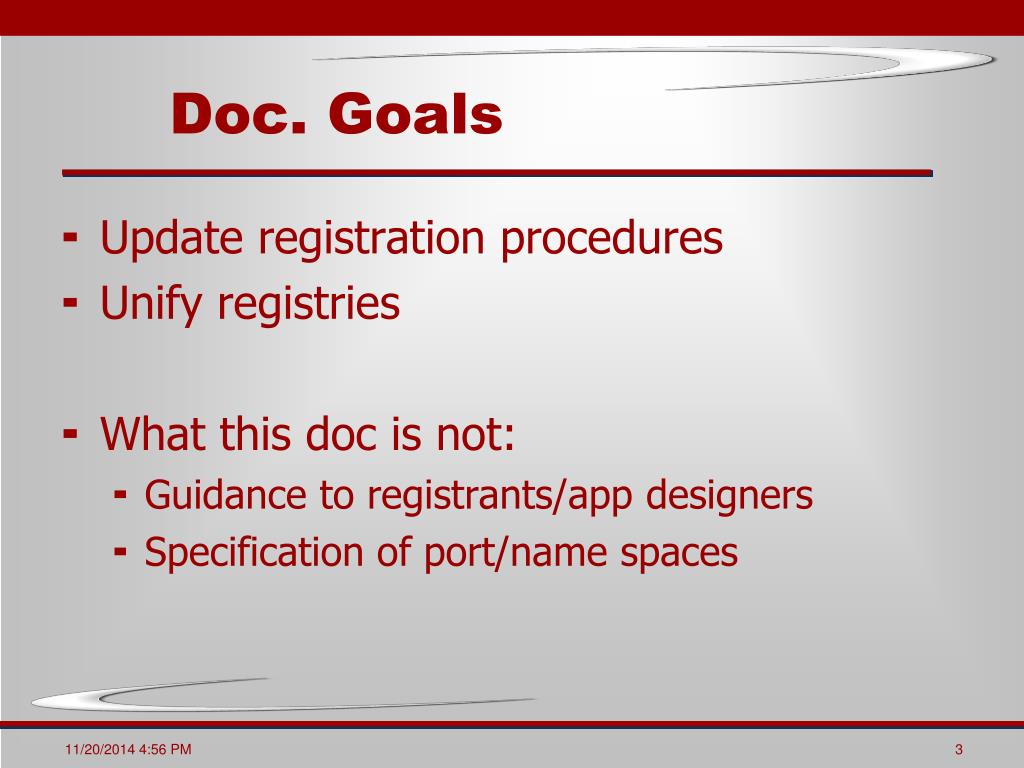

  3. Doc. Goals • Update registration procedures • Unify registries • What this doc is not: • Guidance to registrants/app designers • Specification of port/name spaces

  4. Current Registries • Port numbers (IANA; /etc/services) • TCP, UDP • Number and short name • Service names (DNS; SRV) • DNS SRV • Name only • Other transports (IANA) • SCTP, DCCP • Includes DCCP service codes

  5. Registry Concerns • Confusion over name-only registrations • Do port name owners (in /etc/services) need to register again with DNS SRV? • Lack of IANA coordination • Different managers • IANA, individuals • Lack of unified info. • Ports table, SRV table, DCCP service codes

  6. Unified Registry • One table for all • Transports – TCP, UDP, DCCP, SCTP, future • DNS SRV • Indexed by name • One name space across all registries • Info. can be used by any discovery mechanism • What this doc does not do: • Specify how IANA expresses the details

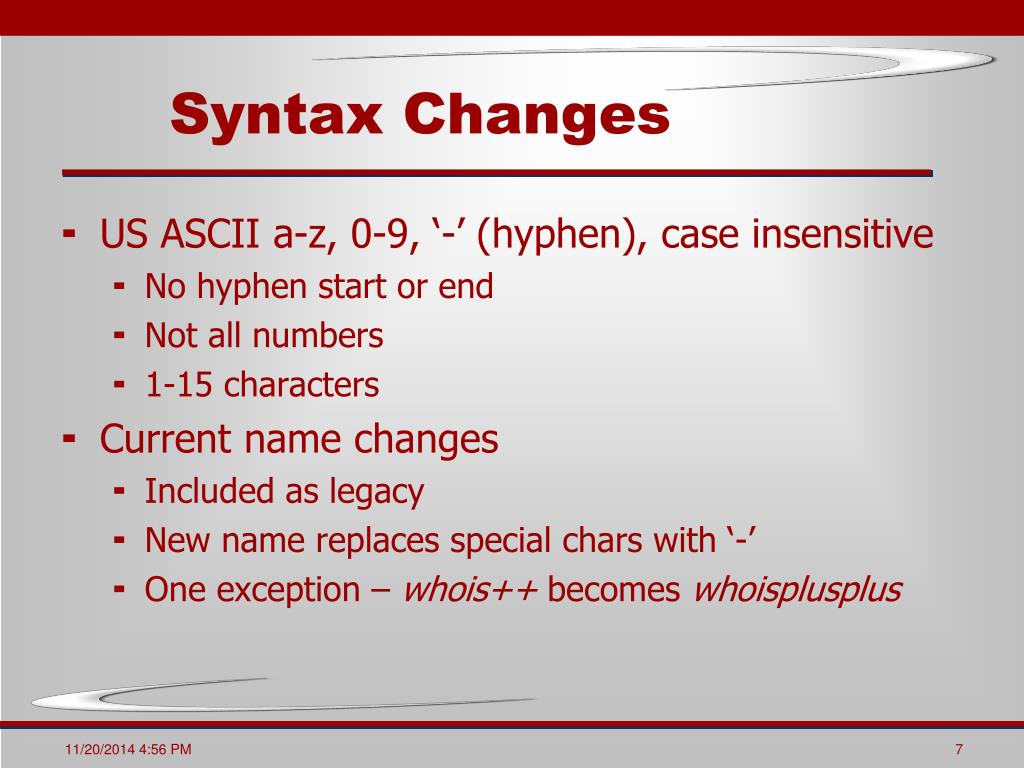

  7. Syntax Changes • US ASCII a-z, 0-9, ‘-’ (hyphen), case insensitive • No hyphen start or end • Not all numbers • 1-15 characters • Current name changes • Included as legacy • New name replaces special chars with ‘-’ • One exception – whois++ becomes whoisplusplus

  8. Prev. Allocation Princ. • TCP and UDP assigned together • Port numbers as primary • Service names informative only • No well-defined syntax • Informal/inconsistent conservation • SCTP, DCCP separate from TCP/UDP • Couldn’t assign name w/o number

  9. New Alloc. Princ. • One port per service • One port for all versions (incl. secure) • One port for all of device types w/in a svc. • Port only for transports requested • IANA may recover/reuse/transfer ports • IANA handles names • FCFS w/o numbers, expert review otherwise

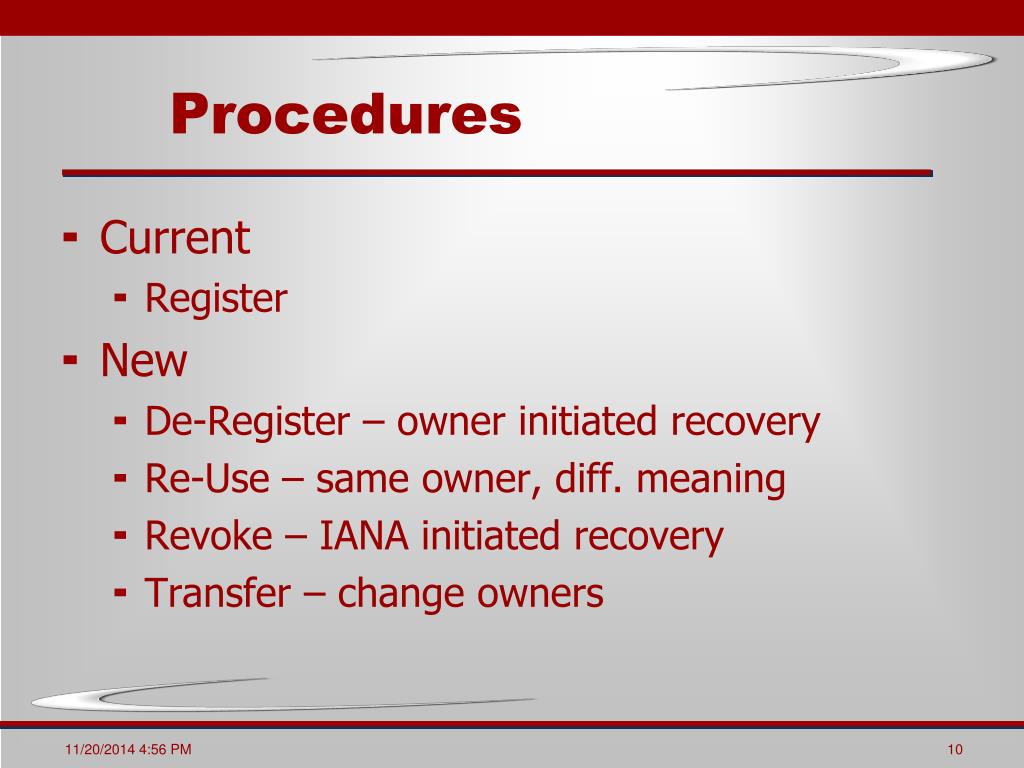

  10. Procedures • Current • Register • New • De-Register – owner initiated recovery • Re-Use – same owner, diff. meaning • Revoke – IANA initiated recovery • Transfer – change owners

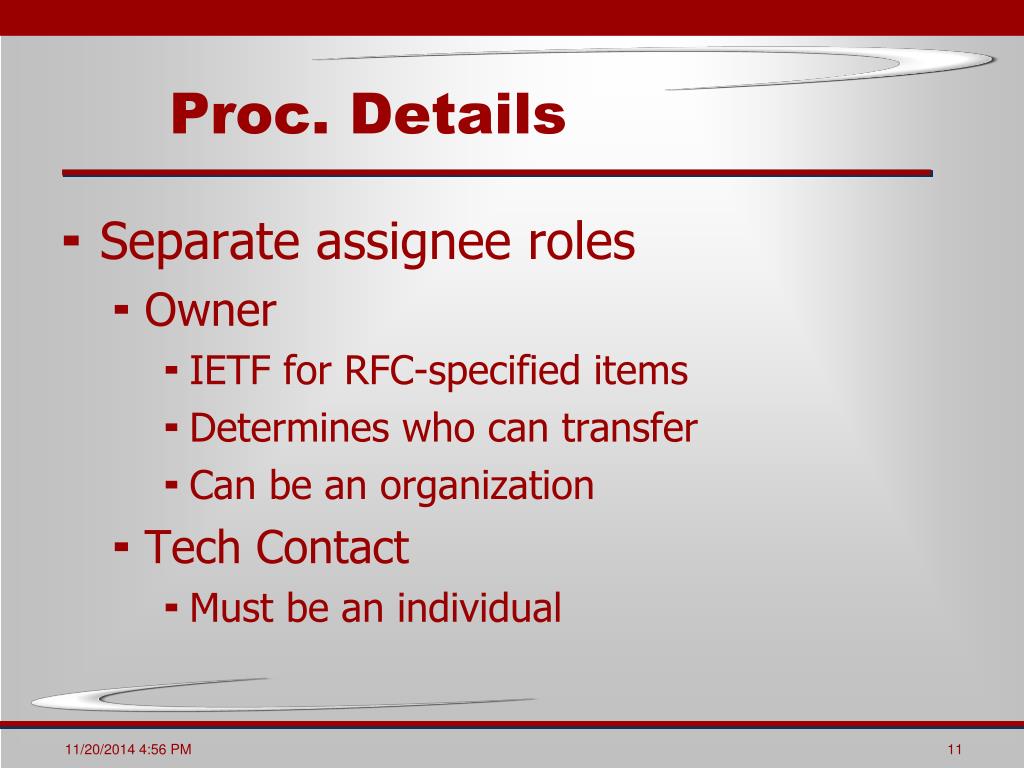

  11. Proc. Details • Separate assignee roles • Owner • IETF for RFC-specified items • Determines who can transfer • Can be an organization • Tech Contact • Must be an individual

  12. Other Issues • Extends experimental (1021, 1022) for DCCP and SCTP • All new transport registries will include these. • DCCP • Expert review for more than 5 service codes • Avoid 0-1024 range • Service code to at most one port

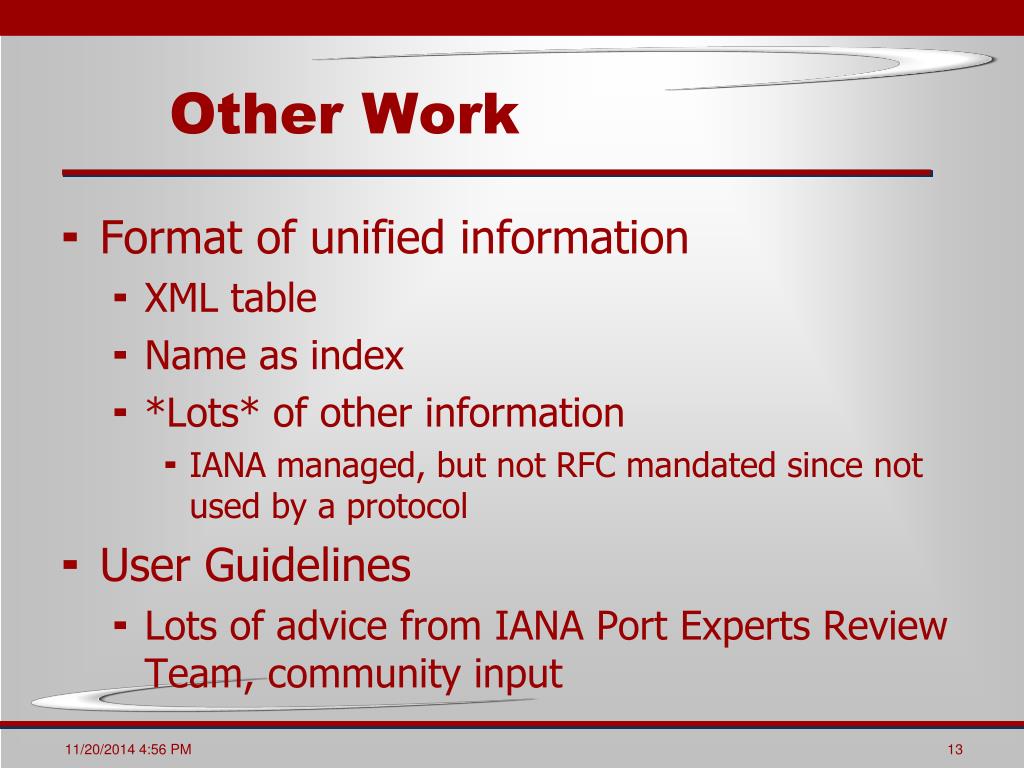

  13. Other Work • Format of unified information • XML table • Name as index • *Lots* of other information • IANA managed, but not RFC mandated since not used by a protocol • User Guidelines • Lots of advice from IANA Port Experts Review Team, community input
