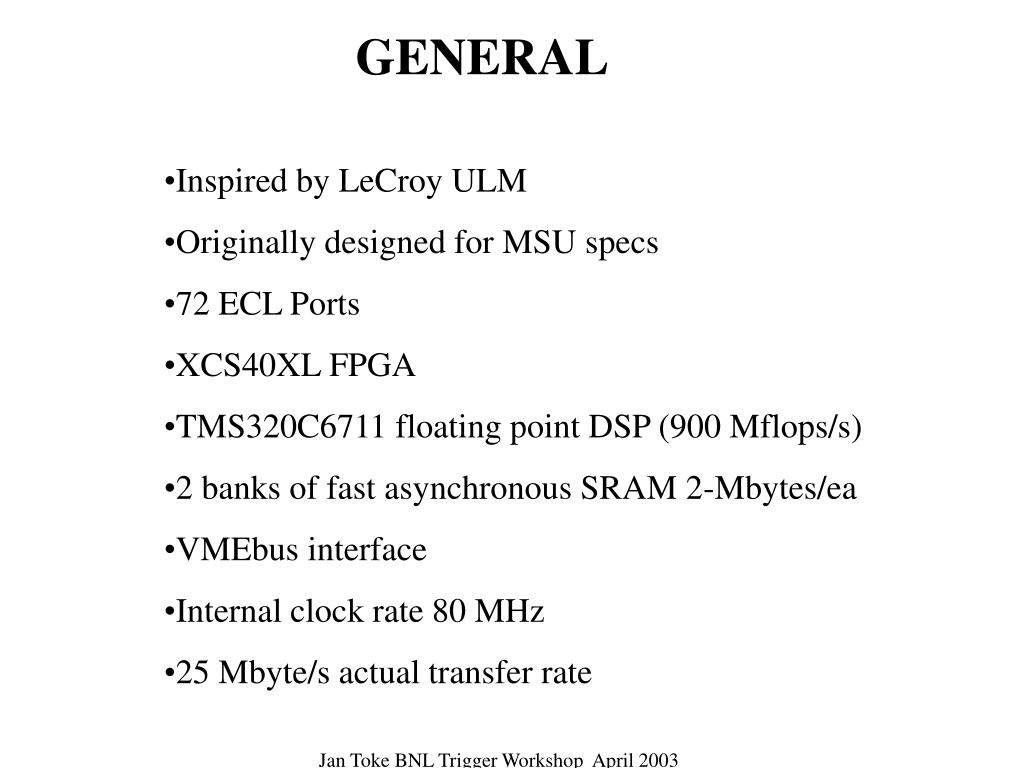

  1. GENERAL • Inspired by LeCroy ULM • Originally designed for MSU specs • 72 ECL Ports • XCS40XL FPGA • TMS320C6711 floating point DSP (900 Mflops/s) • 2 banks of fast asynchronous SRAM 2-Mbytes/ea • VMEbus interface • Internal clock rate 80 MHz • 25 Mbyte/s actual transfer rate Jan Toke BNL Trigger Workshop April 2003

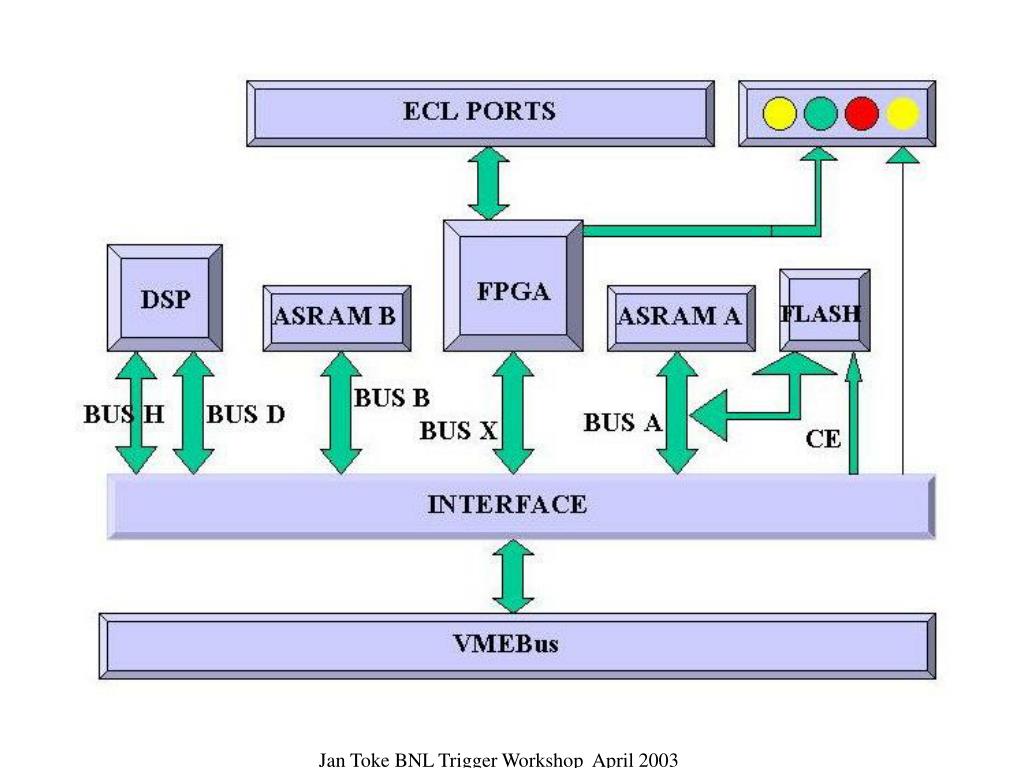

  2. Interface FPGA 2Mb SRAM DSP 2Mb SRAM ECL Ports Jan Toke BNL Trigger Workshop April 2003

  3. Jan Toke BNL Trigger Workshop April 2003

  4. PRESENT USES (i) MSU: Readout of TPC 16 control signals 40 data bits (5x8 bits) (ii) MSU: 32 28-bit scalers with control and readout (iii) MoNA Collaboration: Modular Neutron Array – 16 bars x 2 phototubes/module 10 modules (iv) HIRA Collaboration: Readout of the ASIC chips (LVDS adapter used) Jan Toke BNL Trigger Workshop April 2003

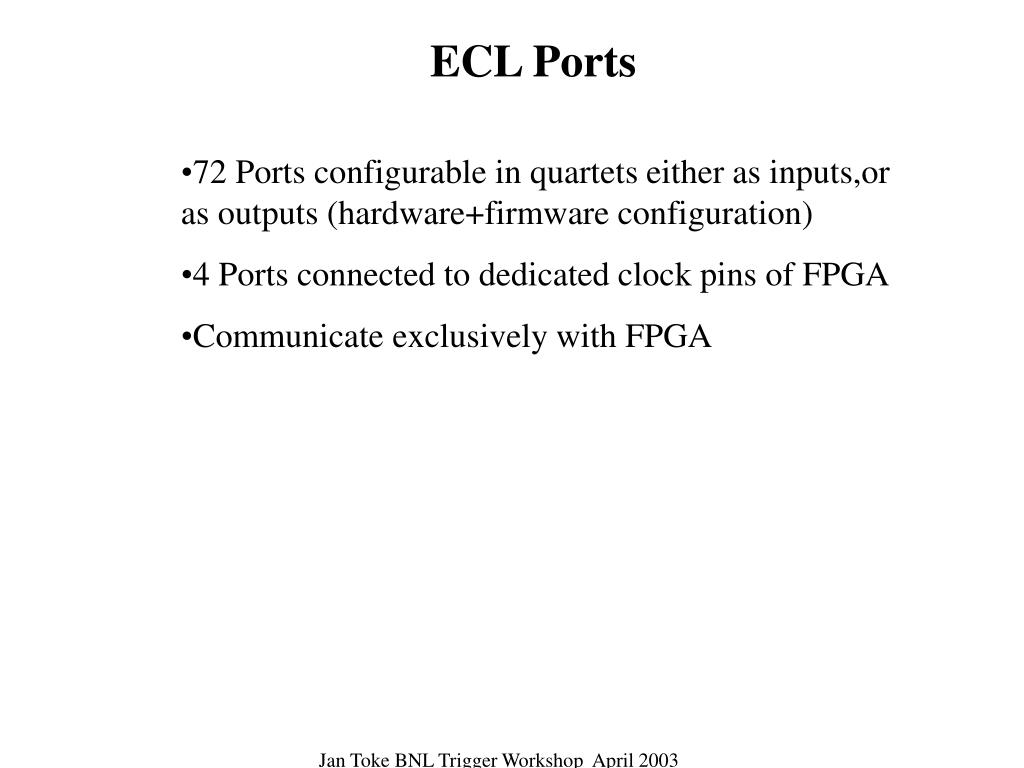

  5. ECL Ports • 72 Ports configurable in quartets either as inputs,or as outputs (hardware+firmware configuration) • 4 Ports connected to dedicated clock pins of FPGA • Communicate exclusively with FPGA Jan Toke BNL Trigger Workshop April 2003

  6. FPGA • Asynchronous (combinatorial) logic • Synchronous (registered) state machine logic • Mixed Asynchronous-synchronous logic – possible metastability • Configures via JTAG, VMEbus, or flash memory • Operations triggered via ECL ports, VMEBus, or DSP • Can interrupt VMEBus and DSP • Read/write to ASRAMS • The only internal XLM72 device communicating directly with ECL ports Jan Toke BNL Trigger Workshop April 2003

  7. DSP • TMS320C6711by Texas Instruments • 6 ALUs running at 150 MHz = 900 Mflops/s • Boots either from ASRAM or via HPI • Triggered by FPGA, ECL ports, and VMEBus • Host Processor Interface (HPI) available for debugging and setup • Read/write from/to both banks of ASRAMs – 32 Mbyte/s • Can interrupt FPGA and VMEBus Jan Toke BNL Trigger Workshop April 2003

  8. VMEBus Interface • 32-bit addressing mode • 32- and 16- bit data transfers • Block transfers (thus far achieved rate 25 Mbyte/s) • Read/write from/to both banks of ASRAMs • Read/write from/to FPGA • Can interrupt FPGA and DSP • Can access DSP via Host Processor Interface (HPI) Jan Toke BNL Trigger Workshop April 2003
