  1. The V2 Onion Box Group: 3-026 Members: Lim Ming Han ( Leader ) , Tan Wei Heng, Wang Yiwei, Noel Kwan

  2. Our rationale More Convenient Less Troublesome More Comfort Safer Focus on food products Analysis Conclusion Invention Introduction

  3. The V2 Onion Box A fast, efficient and intelligent box! Analysis Conclusion Invention Introduction

  4. The Magic Box A transparent plastic Tupperware Fit Fully grown Onions Waterproof Solutions to prevent tearing Cutting in water Sharp Blades Analysis Conclusion Invention Introduction

  5. The Double Lids & Blades Cover : A piece of plastic attached with blades • Safety Issues: • Removal of blades can be done by directly pulling it out with some force • Sides of the blades are made blunt Introduction Analysis Conclusion Invention

  6. Other Features • Dividers to aid in cutting smaller food productsas shown in the picture Analysis Conclusion Invention Introduction

  7. Target Group Housewives, chefs , hawkers Reasons : Cheap, efficient, user friendly and safe Can help to cut other food products in the fastest way ( eg. Apples, Oranges, Sushi ) Able to also ‘pound’ garlics / etc Analysis Conclusion Invention Introduction

  8. Other Competitors Vidalia Onion Slicer The V2 Onion Cutter -Used to slice many fruits and other food products . - Not as effective in the prevention of tearing when cutting onions Analysis Conclusion Invention Introduction

  9. Other Competitors Nemco Easy Onion Slicer The V2 Onion Cutter Another tool used to slice onions . - Cuts onion at an incredibly fast rate - Very costly to be used at home. Cost ranging from $250 - $300 Info from : Amazon.com Analysis Conclusion Invention Introduction

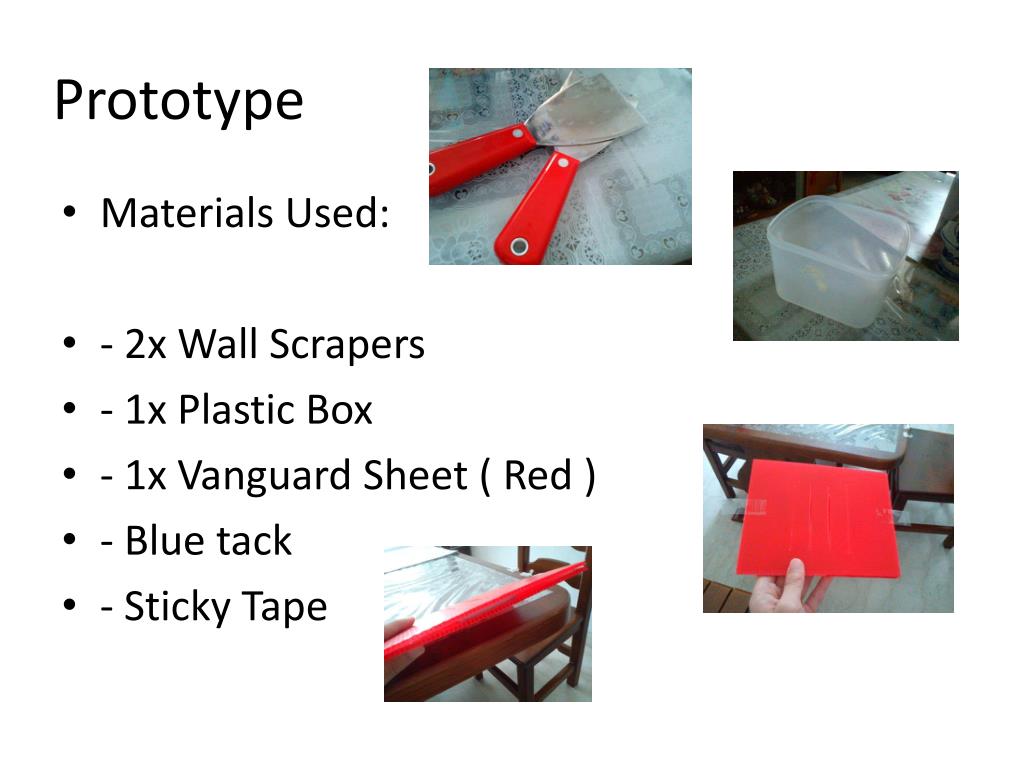

  10. Prototype • Materials Used: • - 2x Wall Scrapers • - 1x Plastic Box • - 1x Vanguard Sheet ( Red ) • - Blue tack • - Sticky Tape

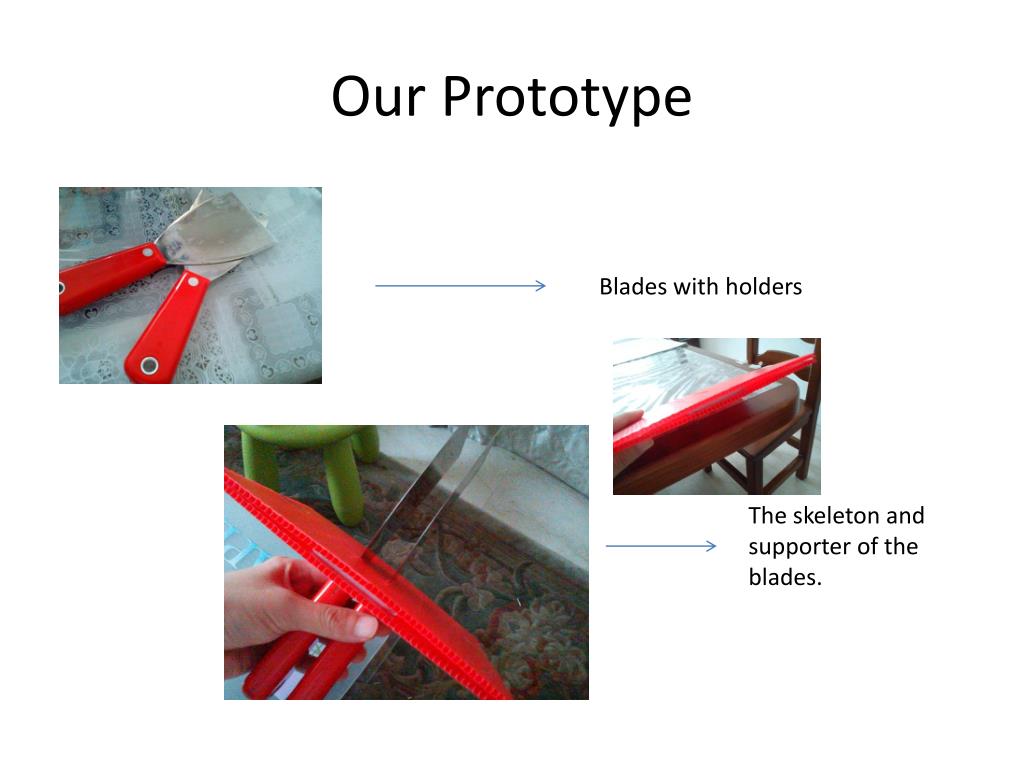

  11. Our Prototype Blades with holders The skeleton and supporter of the blades.

  12. Our Prototype The ‘Body’ of our invention The ‘meat’ of the body, securing small food products

  13. Progress ~ 27/3/2011 The 1st Meet up – Research and Discussion on Prelims 1/4/2011 3rd Meet up – Final preparation for prelims 7/5/2011 4th Meet up – Preparation for Prelims 2 31/3/2011 2nd Meet up after school – Final discussion on our website and Prelims. 12/5/2011 Prelims 2 5/4/2011 Prelims

  14. 22/6/2011 6th Meet Up – Discussion on prototype 4/7/2011 – 5/7/2011 8th Meet Up after school – Final preparation + rehearsal for Semi-finals 14/6/2011 5th Meet up – Preparation for Semi-finals 24/6/11 7th Meet Up – Creation of Prototype 7/7/2011 Semi-finals

  15. Reflections Wei Heng: Overall, I experienced high and lows during the whole project. Being a group member, I realized how important my group members and leader are to me as with them, we can successfully accomplish greater results. Noel : I feel that although initially some people in my group have been not very supportive of this idea, but they were willing to try it out and improve on the project. It was much easier because of that as we each got to voice out our views, so everyone participated. I also learnt that teamwork is vital for the success of a team as only by cooperating we can achieve greater heights. Analysis Conclusion Invention Introduction

  16. Reflections Ming Han : I feel that doing an invention is a very interesting project to do . We have a chance to present our idea of invention we thought of to solve problems in the modern world and increase convenience for others. Being a group leader, I had learnt that responsibility is very important in ensuring that the whole group can accomplish the various tasks on time and also to plan the process of the project efficiently. Wang Yiwei: I think that making an invention with my classmates is very interesting as we can express our ideas to each other. During the process of this project, I had learnt that it takes much effort to actually create something that we thought it was simple in the beginning. This process has also helped me to bond with my group members closer. Analysis Conclusion Invention Introduction

  17. Group : The V2 Onion Cutters [3-026] Members : Lim Ming Han ( Leader ) Tan Wei Heng Noel Kwan Wang Yiwei Info from : Google Images , Amazon .com Analysis Conclusion Invention Introduction
