SPECIFICATIONS

To covers 180 degrees of horizontal views while providing fisheye lens distortion correction for surveillance!. ST – 360DF. - Geometric distortion correction with perceptual filtering  - High quality pixel interpolation  - Back Light Compensation  - Digital Pan, Tilt, Zoom (x10)

kordell
Télécharger la présentation

SPECIFICATIONS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

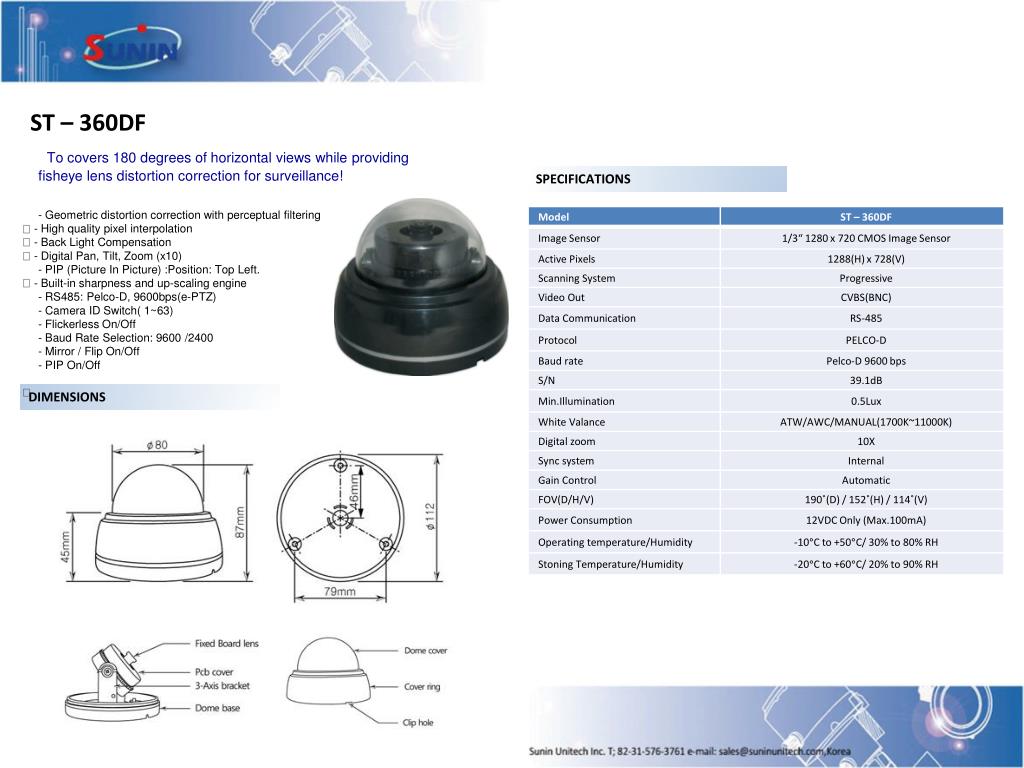

  1. To covers 180 degrees of horizontal views while providing fisheye lens distortion correction for surveillance! ST – 360DF - Geometric distortion correction with perceptual filtering  - High quality pixel interpolation  - Back Light Compensation  - Digital Pan, Tilt, Zoom (x10) - PIP (Picture In Picture) :Position: Top Left.  - Built-in sharpness and up-scaling engine - RS485: Pelco-D, 9600bps(e-PTZ) - Camera ID Switch( 1~63) - Flickerless On/Off - Baud Rate Selection: 9600 /2400 - Mirror / Flip On/Off - PIP On/Off  SPECIFICATIONS DIMENSIONS

  2. ePTZ Camera Module (ST-360DF) : DIP Control 2013.08.09 Image Format Set DIP Switch Module Number Set & 2-Function DIP Switch 1 2 3 4 5 6 7 8 1 2 3 4 5 6 Baud-Rate Preview mode (PIP On/Off) Mirror Flip NTSC / PAL CVBS / Digital www.suninctv.com
