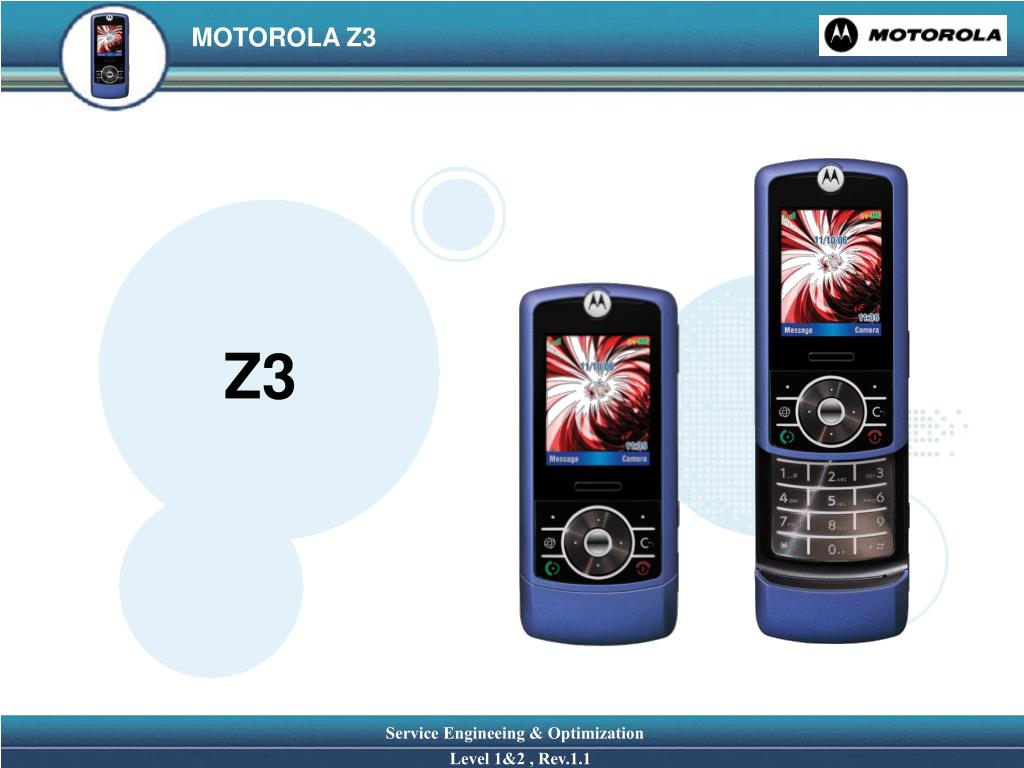

  1. Z3

  2. Specifications SA Dates: Form Factor: Devices Dimensions: Display: Antenna: Battery: Talk Time/ Stand-By Time: GSM Bands: Q4 2006 Slider 69cc & 42x104x16mm, 115g Internal: 176x220 1.9” 262K colors TFT, External: 96x80, 64K color CSTN Internal 780 mAh Est. Talk Time 200-400 mins Est. Standby Time 200-300 hrs Quad Band EGSM/EDGE 850/900/1800/1900

  3. Enablers Audio CODECs: AAC, AAC+, AMR NB, AAC+ Enhanced, MP3 DRM: OMA v1 Forward lock Browser: WAP 2.0 Messaging: MMS, EMS, SMS IM: Embedded – WVIM Bluetooth: Class 2 w/A2DP support J2METM: MIDP 2.0 Connectivity: Enhanced mini-USB, MotoSync, PC Sync, Mobile PhoneTools Video: H.263, MPEG4, streaming/capture/playback, progressive download

  4. Key Features 2MP camera with 8x zoom and LED flash 20MB on-board user memory (plus slot for removable microSD™ memory card) Bluetooth stereo headset compatible Push to view * and push to talk capability Video capture and playback (15-20fps) Video and picture capture in both horizontal and landscape mode EDGE for high speed data access (class 12) Rich, pre-loaded J2ME™ games, screen savers Downloadable themes, ringer tones, images, animations PIM functionality with Picture Caller ID Voice memo & enhanced predictive text Video capture, playback, and 3GPP Streaming; Progressive downloading Fashionable tattoo on back of slider

  5. *PTV Push-To-View (PTV) enables picture sharing in a real-time voice conversation across mobile phones. PTV lays the foundation for Motorola Push-To-experience (PTX) architecture that enables sharing of any content such as music, videos, location, etc. Previous Push-To-Talk over Cellular (PoC) technologies provide an opportunity to integrate content with a real-time conversation. However, Push-To-View enables an advanced real-time communication experience capable of assisting users in task-based communication, as a means of self-expression, or as a way to foster closeness by allowing users to share a media object such as photo, video, music during a conversation. Push-To-View enables sharing of similar digital content in the context of an active conversation

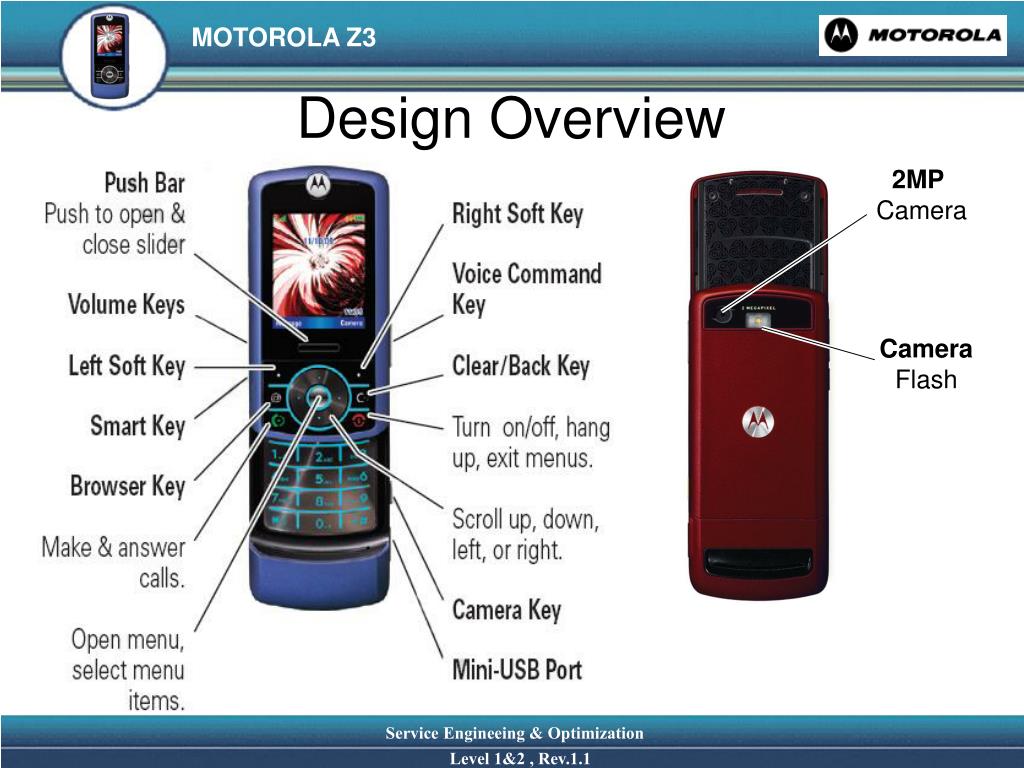

  6. Design Overview 2MP Camera Camera Flash

  7. Colors

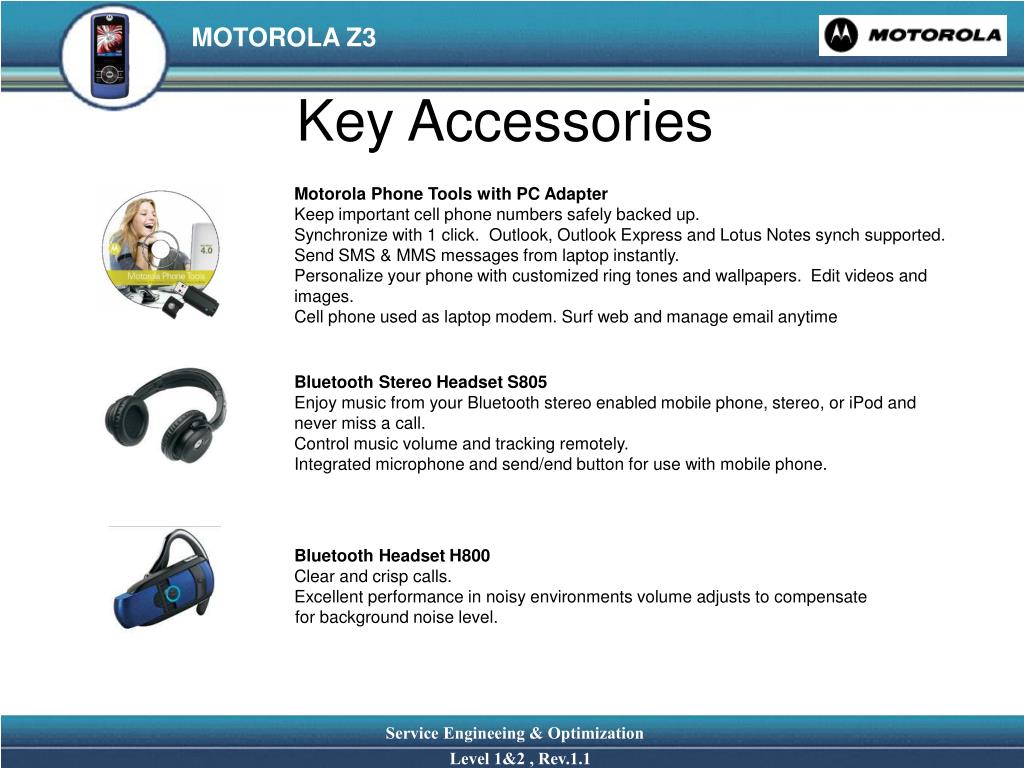

  8. Key Accessories Motorola Phone Tools with PC Adapter Keep important cell phone numbers safely backed up. Synchronize with 1 click. Outlook, Outlook Express and Lotus Notes synch supported. Send SMS & MMS messages from laptop instantly. Personalize your phone with customized ring tones and wallpapers. Edit videos and images. Cell phone used as laptop modem. Surf web and manage email anytime Bluetooth Stereo Headset S805 Enjoy music from your Bluetooth stereo enabled mobile phone, stereo, or iPod and never miss a call. Control music volume and tracking remotely. Integrated microphone and send/end button for use with mobile phone. Bluetooth Headset H800 Clear and crisp calls. Excellent performance in noisy environments volume adjusts to compensate for background noise level.

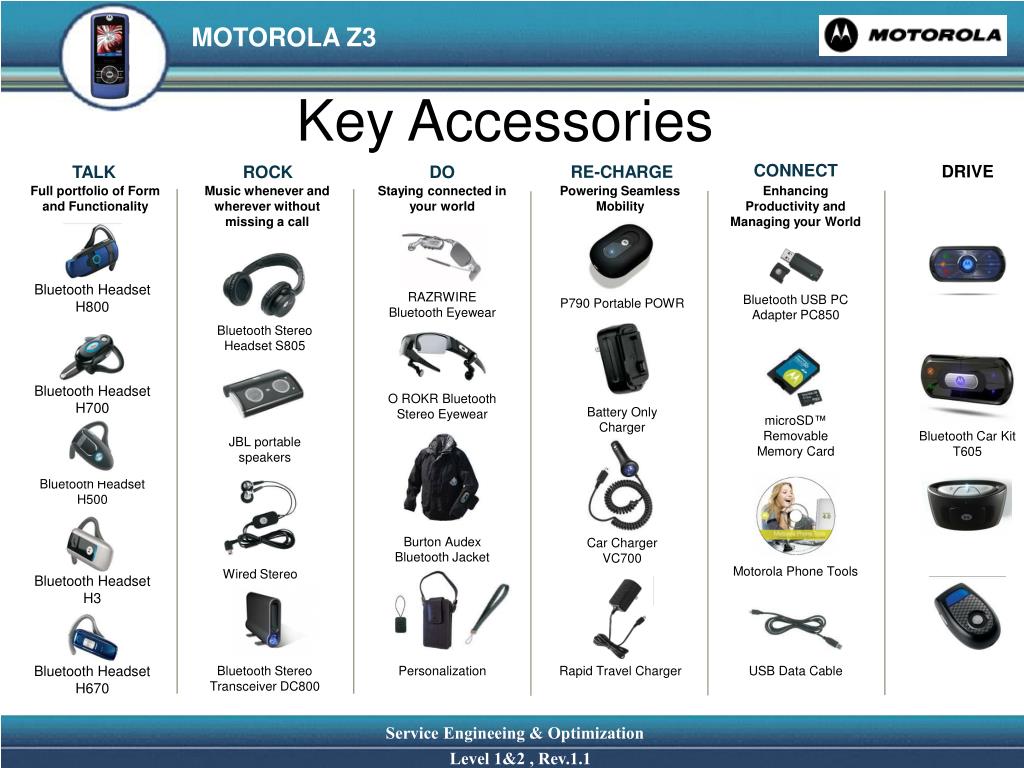

  9. Key Accessories CONNECT DRIVE RE-CHARGE TALK ROCK DO Full portfolio of Form and Functionality Music whenever and wherever without missing a call Staying connected in your world Powering Seamless Mobility Enhancing Productivity and Managing your World Bluetooth Headset H800 RAZRWIRE Bluetooth Eyewear Bluetooth USB PC Adapter PC850 P790 Portable POWR Bluetooth Stereo Headset S805 Bluetooth Headset H700 O ROKR Bluetooth Stereo Eyewear Battery Only Charger microSD™Removable Memory Card Bluetooth Car Kit T605 JBL portable speakers Bluetooth Headset H500 Burton Audex Bluetooth Jacket Car Charger VC700 Motorola Phone Tools Wired Stereo Bluetooth Headset H3 Bluetooth Headset H670 Bluetooth Stereo Transceiver DC800 Personalization Rapid Travel Charger USB Data Cable

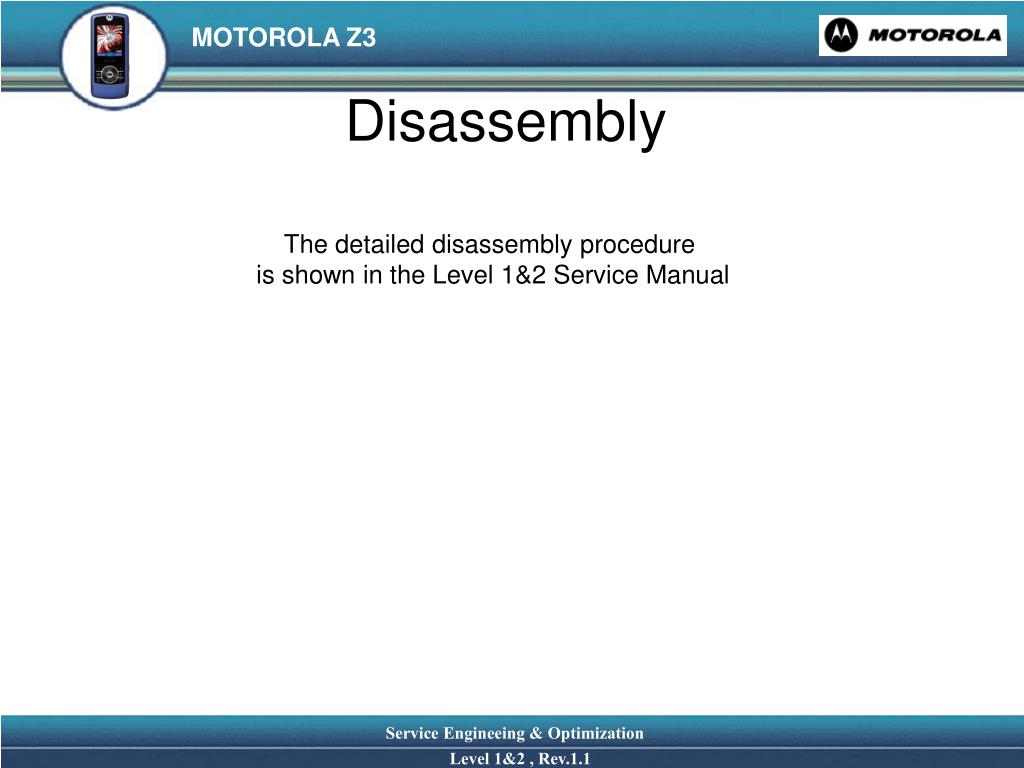

  10. Disassembly The detailed disassembly procedure is shown in the Level 1&2 Service Manual
