  1. Fusion-io Product Introduction January 2013

  2. 퓨전IO란? : 병목현상이 없는 획기적인 제품 FUSION-IO SSD

  3. Fusion-io연혁

  4. Fusion-io구성요소 The Performance of a SAN… …in the Palm of Your Hand 200 Flash Memory Die 192 Hard Disk Drives Switching Controller Embedded Switching Controller Node Optimized for Disks Optimized for Flash

  5. 데이터를 CPU속도와 가깝게, 더 가까운 곳에 1000배 이상 차이 Storage Area Network DRAM Fusion-io ioDrive L1, L2 & L3 CPU Cache Nanoseconds - Microseconds ACCESS DELAY Milliseconds

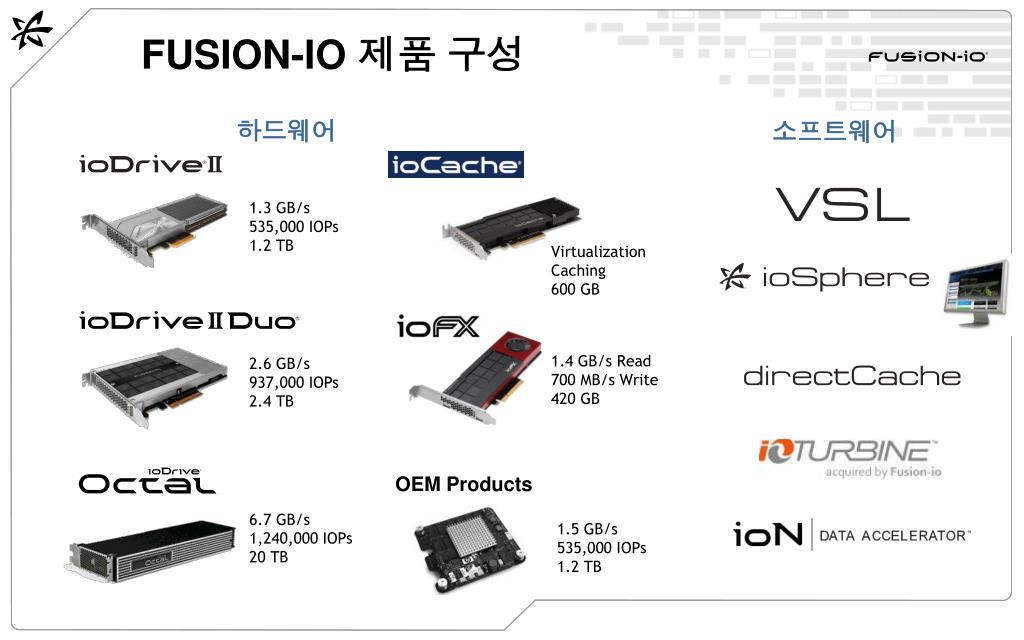

  6. Fusion-io제품 구성 하드웨어 소프트웨어 1.3 GB/s 535,000 IOPs 1.2 TB Virtualization Caching 600 GB 1.4 GB/s Read 700 MB/s Write 420 GB 2.6 GB/s 937,000 IOPs 2.4 TB OEM Products 6.7 GB/s 1,240,000 IOPs 20 TB 1.5 GB/s 535,000 IOPs 1.2 TB

  7. Fusion-io적용분야 Virtualization Big Data Databases Analytics Messaging Collaboration Caching Search Workstation Web Development HPC KVM INFORMIX ORACLE Text Security/Logging MQ LAMP Lotus GPFS

  8. Fusion-io구성방법 Direct Caching Shared x2 FLASH OPTIMIZATION x2 x2 x2 x2

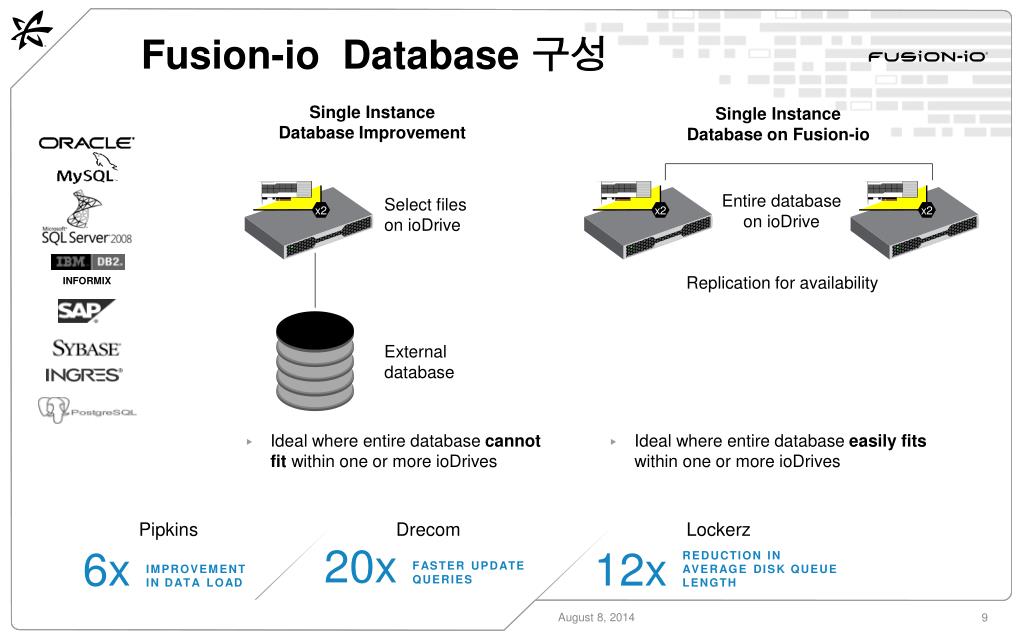

  9. Fusion-io Database 구성 Single Instance Database Improvement Single Instance Database on Fusion-io Entire database on ioDrive • Ideal where entire database cannot fit within one or more ioDrives • Ideal where entire database easily fits within one or more ioDrives Select files on ioDrive Replication for availability INFORMIX External database Pipkins Drecom Lockerz • 20x • 6x • 12x x2 x2 x2 • Faster update queries • Improvement in data load • Reduction in average disk queue length

  10. Fusion-io VDI 적용 구성 Existing Storage • User Shares • Profiles Fusion ioDrives • Golden Images • Clones Server Hypervisor andVDI Platform Connection Brokers Clients Desktop Laptop Thin Client Clydebank V3 Starkey Mortgage • 4x • 14.3x • 16.5x • More concurrent users • Performance density improvement • San workload reduction

  11. Fusion-io Caching Acceleration • Turbo Boost virtualization • Transform ioMemory into a powerful, easy-to-manage, intelligent cache • Unleash the potential of virtualized systems • Purpose-built performance for virtualized applications and databases • Unparalleled low latency performance • Increase VM density and consolidate servers • Transform ioMemory into a transparent, auto-tiering acceleration cache • Seamlessly improvenon-virtualized performance and efficiency

  12. Transforms Tier 1 servers into an open shared flash resource Up to 17x performance improvement Fusion-io공유 스토리지 방식 Software ioMemory Open Platforms • 40x • 25x • 35x • Index rebuild • Database performance • Xplore query times • Industry-leading performance, reliability and capacity • Hundreds of thousands deployed • Proven, tested, reliable and fast • Thousands of customers

  13. Fusion-io옵션기능 • Data Center ioMemory Management from a single interface • Real-time monitoring and management • Run applications nativelyon ioMemory • Harness native ioMemory characteristics • Use Application Programming Interfaces and primitives • Virtualizes flash memory • Direct ioMemory access • Remove bottlenecks ofdisk-era RAID controllers and storage protocols

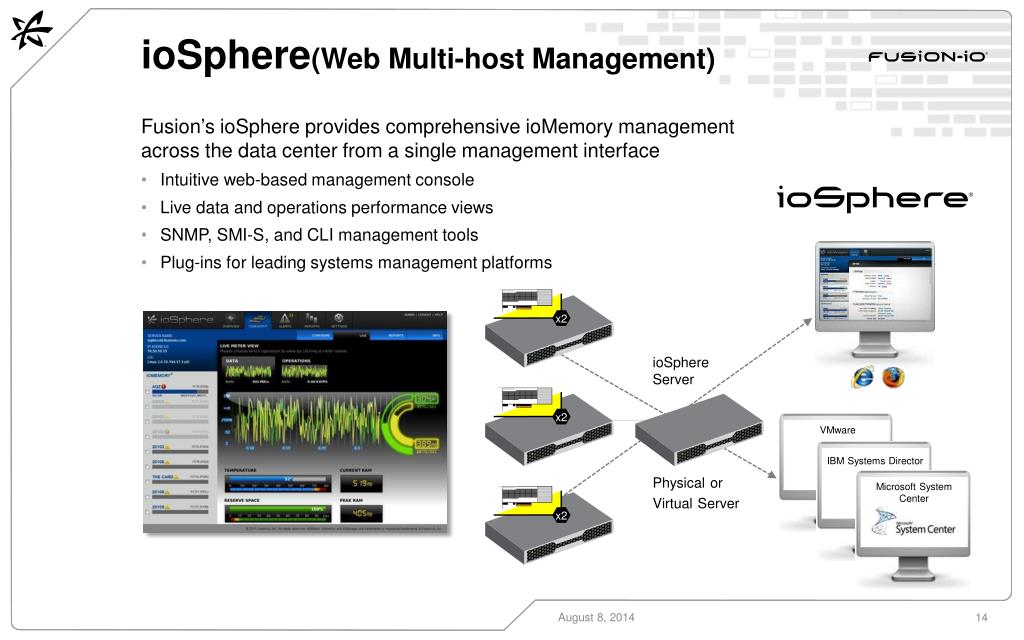

  14. ioSphere(Web Multi-host Management) Fusion’s ioSphere provides comprehensive ioMemory management across the data center from a single management interface • Intuitive web-based management console • Live data and operations performance views • SNMP, SMI-S, and CLI management tools • Plug-ins for leading systems management platforms ioSphere Server VMware IBM Systems Director PhysicalorVirtualServer Microsoft System Center x2 x2 x2

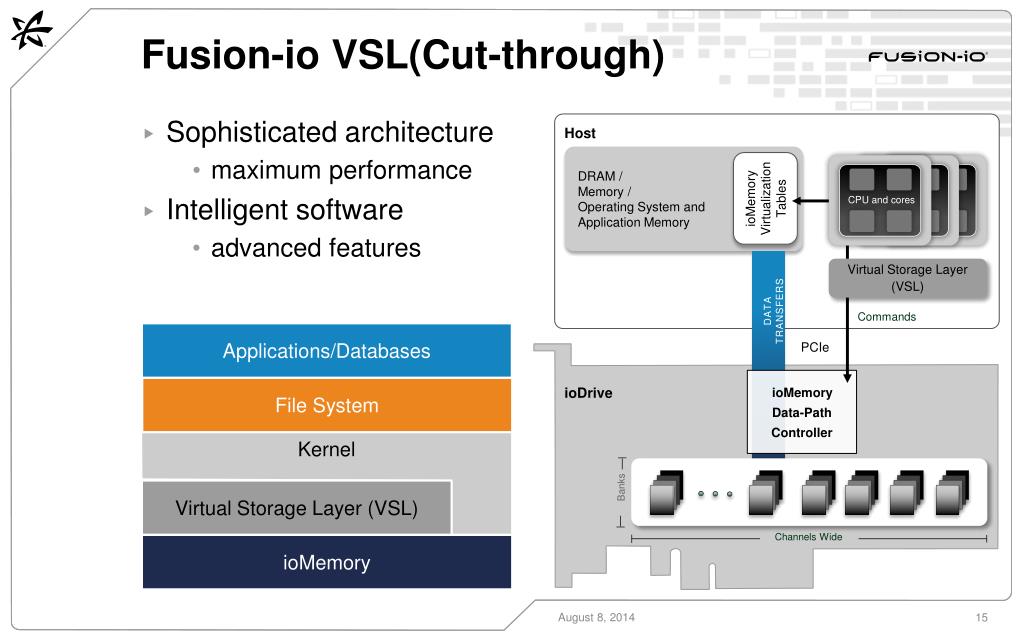

  15. Fusion-io VSL(Cut-through) • Sophisticated architecture • maximum performance • Intelligent software • advanced features Host DRAM / Memory / Operating System and Application Memory ioMemory Virtualization Tables • CPU and cores Virtual Storage Layer (VSL) DATATRANSFERS Commands PCIe Applications/Databases ioMemory Data-Path Controller ioDrive File System Kernel Virtual Storage Layer (VSL) • Banks ioMemory • Channels Wide

  16. Fusion-io SDK(Software Development Kit Advantages) Enhanced I/O Memory access Conventional access Proprietary Storage OS Native Flash Translation Layer Storage Media Storage Media Traditional Storage Software Defined Storage

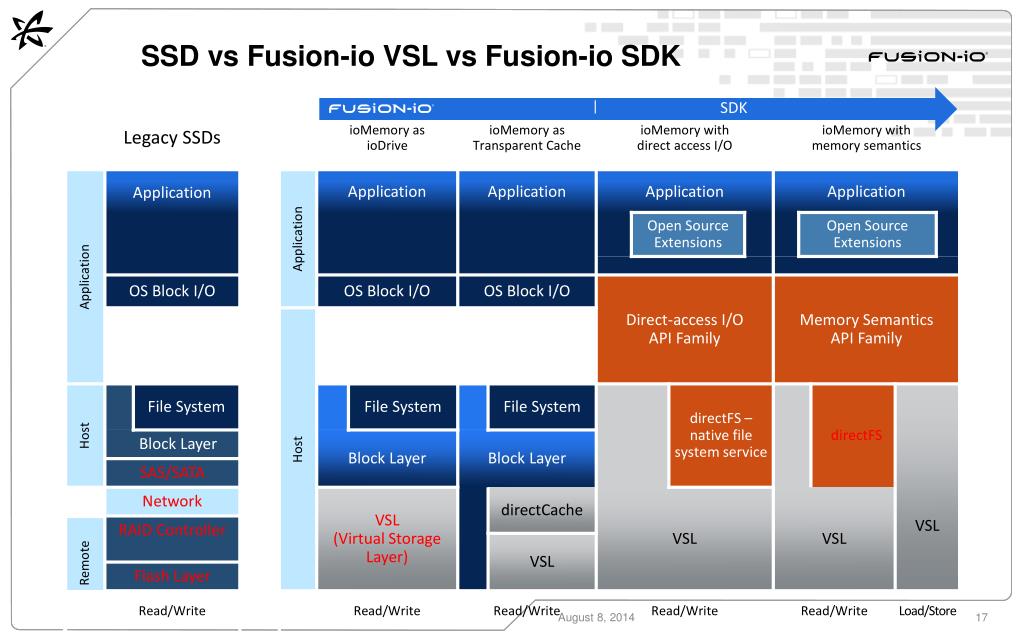

  17. SSD vs Fusion-io VSL vs Fusion-io SDK | SDK

  18. 해외 성공 사례고객Fortune 100 기업의 50%, 1000 기업의 75%, 전체 3500+ 이상의 고객 Web/ Online/ Media Technology Financials Fusion-io Confidential

  19. 국내 고객 사례 – 2012년 12월 현재 제조/산업 금융/통신/미디어 Web 2.0 / Online Technology 정부/공공/학교

  20. 사례 : 위메프 위메이크프라이스, 퓨전아이오로IO 병목현상 해소

  21. 사례 :위메프(계속)

  22. Thank you
