Presentation Transcript

  1. PRODUCT INTRODUCTION

  2. Unleashing the Power of Sustainable TechnologyHeating and Cooling with Natural Gas

  3. IntelliChoice Energy A leader in the development and distribution of advanced HVAC technology; Develops technology that takes advantage of energy-efficient properties offered by gaseous fuels; Instrumental in the commercialization of cutting-edge heating and cooling products; Distributor of the AISIN Gas Heat Pump (GHP) product line for North America; Pioneering Comfort, Clean Energy Technology Committed to smart, sustainable technology.

  4. Gas Heat PumpTechnology

  5. Multi-zone Cooling & Heating GHP Comfort, Green, from Clean Energy Source

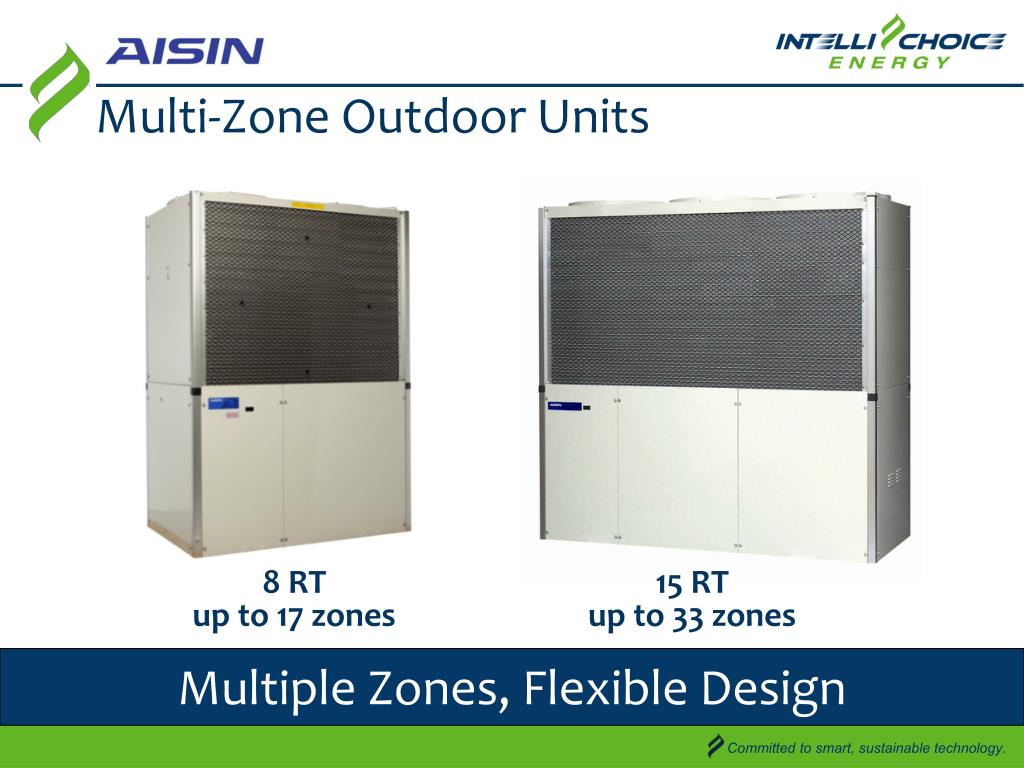

  6. Multi-Zone Outdoor Units 8 RT up to 17 zones 15 RT up to 33 zones Multiple Zones, Flexible Design

  7. Provides heating and cooling with heat pump cycle Main difference is the compressors are driven by a gas engine instead of an electric motor This difference realizes comfortable cooling and heating in a GHP and is the major feature of a GHP system that offers numerous advantages Gas Heat Pump (GHP) Description and Advantages of the GHP (Gas Heat Pump) Committed to smart, sustainable technology.

  8. When a liquid evaporates, heat is absorbed by it from the surroundings. Conversely, when a vapor condenses to liquid state, the heat is evolved. Using this characteristic, a compressor is used to circulate a refrigerant, running it repeatedly through evaporation and condensation cycles, which is called a heat pump cycle. Gas Heat Pump (GHP) Heat Pump Cycle – Proven Reliability Committed to smart, sustainable technology.

  9. Compared with the EHP (electric heat pump air conditioner), the gas engine driven GHP can reduce the electricity consumption significantly Which accounts more than 30% of the total electricity in the summer The GHP contributes to cutting the peak electricity load and plays a major role in leveling out the electricity demand. Gas Heat Pump (GHP) GHP helps to level out the peak demand of electricity Committed to smart, sustainable technology.

  10. Low running cost Because relatively inexpensive gas is used, the running cost is 70 to 80% of electric system Electricity demand charges are reduced Because the electricity consumption is low, the demand for electricity can be reduced Gas Heat Pump (GHP) Because it uses gas, it is economical Committed to smart, sustainable technology.

  11. Speedy Heating Even if the outside temperature falls, the GHP keeps the room temperature comfortable by using the waste heat from engine exhaust Powerful Heating Utilizing the waste heat from engine exhaust, the GHP speedily brings the room temperature up to the preset temperature Gas Heat Pump (GHP) Superior comfort created by the engine Committed to smart, sustainable technology.

  12. Built – for – Purpose components Designed for High RH & Ambient Scroll multi - port technology Compressor Section – High Efficient Scroll R410A

  13. Built – for – Purpose components Long Maintenance interval Recuperator & H/E Engine Section – High Efficient – 6K Interval

  14. Mechanical Overview Engine Electronic Ignition Air Filter Starter Compressors Oil Reservoir Starter Transformer VRF Controls

  15. INDOOR AIR HANDLERS Ducted Type T Bar Type Ducted – Ductless – Wall - Floor

  16. Controls Intelligent touch controller Network Solutions

  17. Packaged Roof-top PGHP What is the PGHP? Comfort, Green, from Clean Energy Source

  18. Rooftop Package Gas Heat Pump (PGHP) Roof curb or Ground mount

  19. 11-ton R-410A Rooftop package Built in the U.S. Made for harsh temperatures of the desert Southwest Economizer Electrical requirement 208-230 30 Amp 1 or 3 phase Packaged Gas Heat Pump (PGHP) PGHP helps to level out the peak demand of electricity Committed to smart, sustainable technology.

  20. Commercial Retrofit New construction Mounted on rooftop curb, similar to conventional rooftop units All-in-one heating and cooling unit Highly efficient, Coefficient of Performance (COP) 1.2 COP cooling 1.5 COP heating Equivalent 18+ SEER Packaged Gas Heat Pump (PGHP) Features and Advantages of the Gas Heat Pump Committed to smart, sustainable technology.

  21. Avoid high demand and time-of-use electric charges Highly efficient in both heating and cooling modes Captures and utilizes waste heat from the engine in heat mode Capture waste heat from the engine for water heating Saves water compared to electric units Maintenance for the life of the equipment Packaged Gas Heat Pump (PGHP) Features and Advantages of the Gas Heat Pump Committed to smart, sustainable technology.

  22. One NextAire system will save on average: Functional – Economical - Environmental Merits Committed to smart, sustainable technology.

  23. Conventional GHP GHP PGHP Whisper Quiet – Personalized Comfort

  24. LEED

  25. LEED Certification • Energy and Atmosphere • Uses 80% less electricity • Reduces noise pollution • Indoor Environmental Quality • Water Efficiency • Innovation in Design • Greatly improves buildings’ carbon footprint Version 3 will aid in achieving four (4) LEED prerequisites Committed to smart, sustainable technology.

  26. Certifications

  27. Product Description Title: HEATING & COOLING EQUIPMENT Company: AISIN WORLD CORP. OF AMERICA - Lombard, IL USA Product Description: Gas Heat Pump, Model Nos. AXGP096D1NHS, AXGP180D1NHS. Also tested to: ANSI Z21.40.2, CAN/CGA 2.92 Evaluated to the following: A representative sample of the listed devices have been tested, investigated and found to comply with the requirements of the Standard(s) for Heating and Cooling Equipment (UL-1995) and are identified with the ETL Listed Mark http://etlwhidirectory.etlsemko.com/WebClients/ITS/DLP/products.nsf/4c8700f3b75987a08525777700583333/6a1bac58f638a91085257578004b7c23?OpenDocument NextAire MZGHP

  28. Product Description Title: HEATING & COOLING EQUIPMENT Company: INTELLICHOICE ENERGY - Phoenix, AZ USA Product Description: Trade Name(s): NextAire Heat Pump/Gas/Packaged/Rooftop, Model No. 132.6.0.P.HA. Evaluated to the following: A representative sample of the listed devices have been tested, investigated and found to comply with the requirements of the Standard(s) for Heating and Cooling Equipment (UL-1995) and are identified with the ETL Listed Mark. http://etlwhidirectory.etlsemko.com/WebClients/ITS/DLP/products.nsf/4c8700f3b75987a08525777700583333/6a1bac58f638a91085257578004b7c23?OpenDocument NextAire PGHP

  29. Manufacture: IntelliChoice Energy Engine Family: AICES.9532N1 PHASE: 2 CLASS: II CCERTIFICATE #: ICE-NRSI-10-01 EQUIPMENT: Gas Heat Pump Manufacture: Aisin Seiki Co. Ltd Engine Family: AAWAS.9532N1, AAWAS22372N1 PHASE: 2 CLASS: II CCERTIFICATE #: AWA-NRSI-10-02, AWA-NRSI-10-01 EQUIPMENT: Gas Heat Pump Environmental Protection Agency PGHP & MZGHP

  30. Multi-zone Cooling & Heating GHP Packaged Roof-top GHP Providing HVAC solutions TODAY

  31. Questions IntelliChoice Energy 2355 West Utopia RD Phoenix, AZ 85027 (623)-879-4664 www.NextAire.com www.ICEGHP.com
