  1. AP720 Product Introduction Instrument BU

  2. AP720 Automation Programming System3rd Generation Quad-Site Gantry

  3. AP720 Handler Configuration

  4. Product Features • Adjustable airflow, vacuum and pickup settings at each nozzle ensures reliable handling for the latest small and ultra-thin package types • New ball screws and servo motors speed up the travel time of the gantry • Matching four I/O peripherals to the quad-site gantry increases system throughput • All device media types and I/O peripherals are supported for one-piece-flow operation • The new location of socket actuation eliminates the associated overhead and prolongs the insertion life of the sockets • Up to four sites of 9800 programmers + N-type socket boards supports simultaneous programming of 4 NAND Flash at each cycle • The new “Fast-Teach” mechanism self-aligns the gantry quickly, with minimal human intervention

  5. Upward CCD and Precisor Positioning

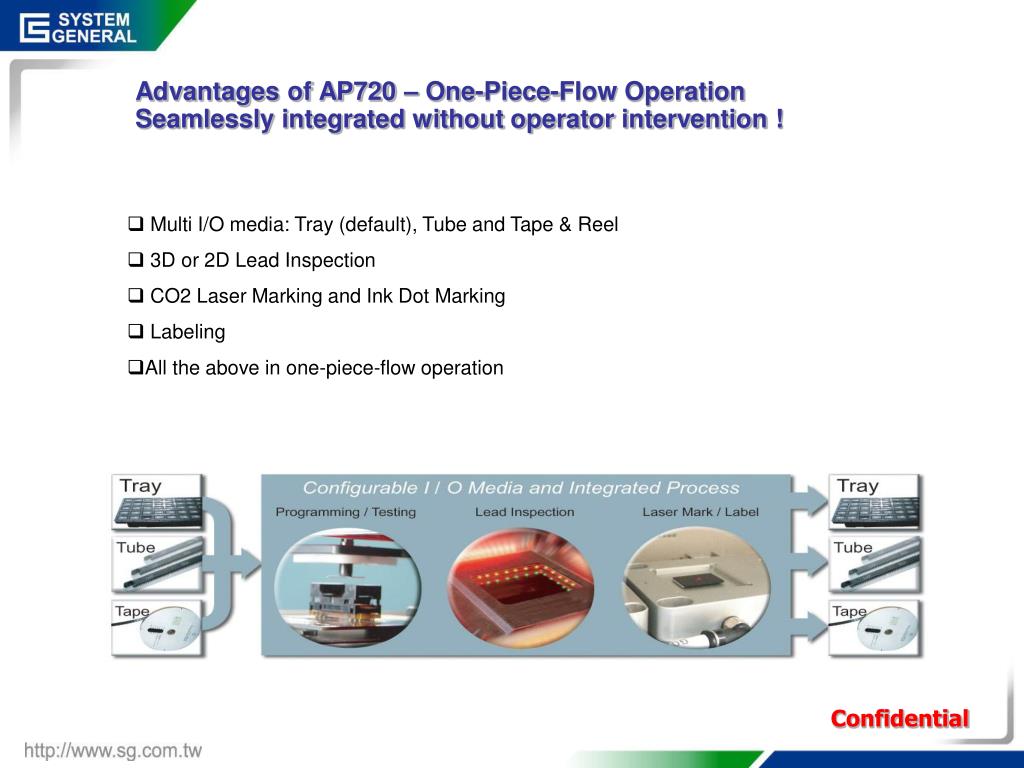

  6. Advantages of AP720 – One-Piece-Flow OperationSeamlessly integrated without operator intervention ! • Multi I/O media: Tray (default), Tube and Tape & Reel • 3D or 2D Lead Inspection • CO2 Laser Marking and Ink Dot Marking • Labeling • All the above in one-piece-flow operation

  7. AP720 Multi I/O Media

  8. AP720 Auto Tray Stackerup to 20 tray allowed

  9. Tape & Reel Input / Output unit

  10. US Vibra Tube Input / Output unit

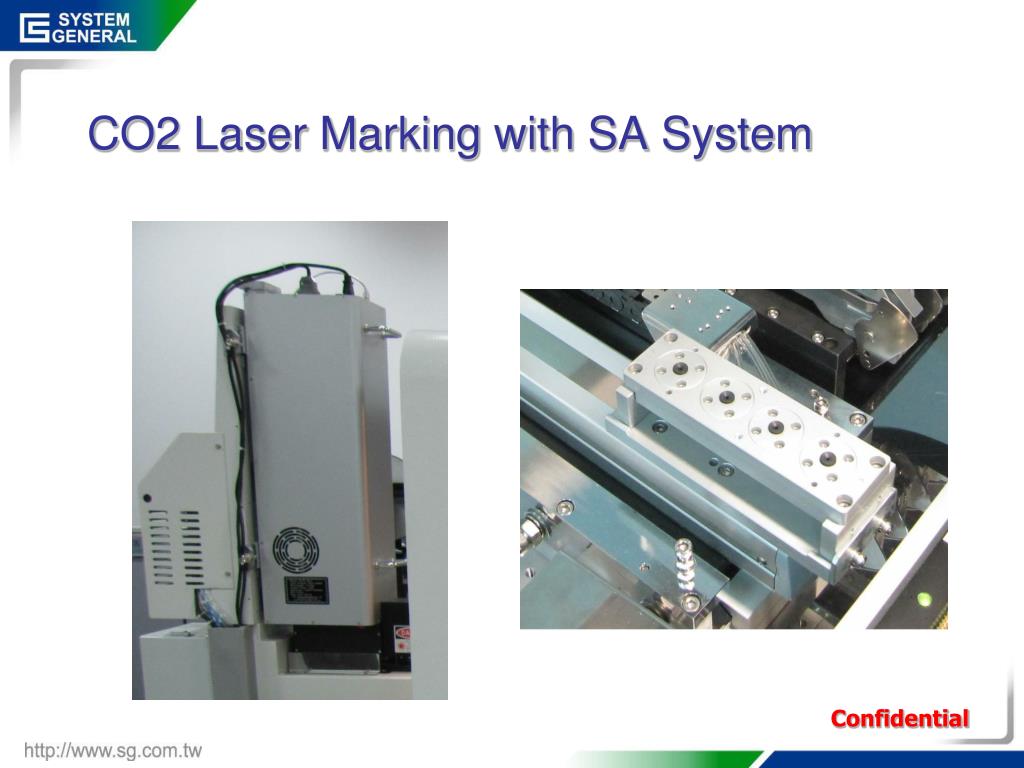

  11. CO2 Laser Marking with SA System

  12. Fast-Teach with minimal human intervention

  13. Real-time Statistical Display and Session Report

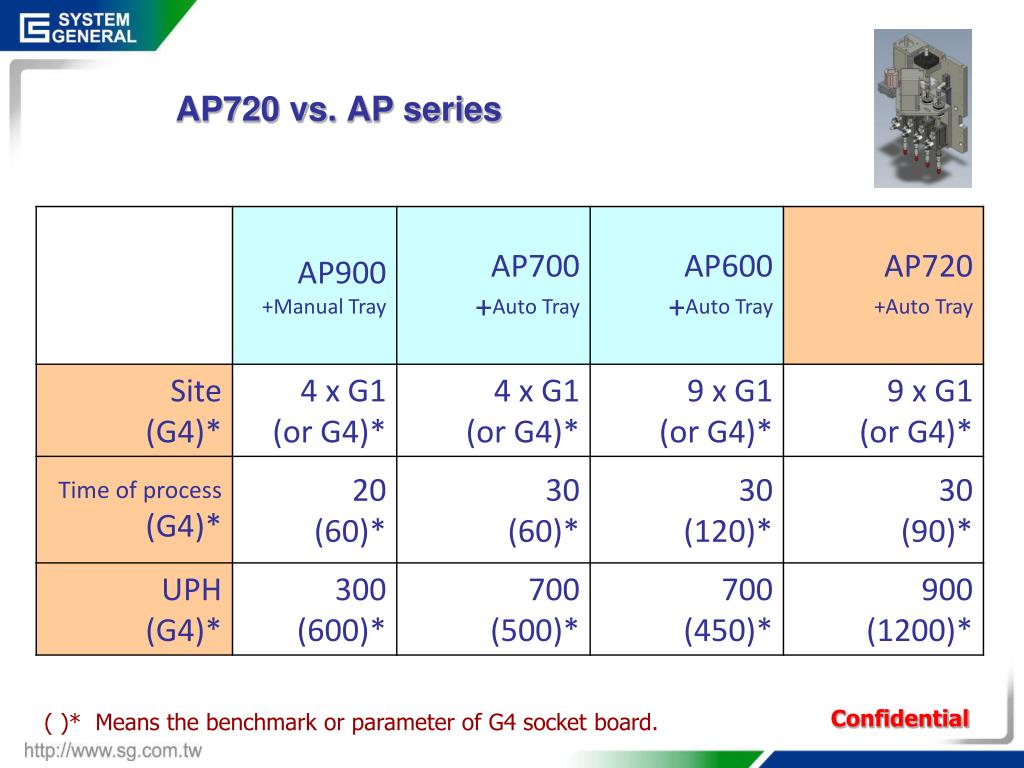

  14. AP720 vs. AP series ( )* Means the benchmark or parameter of G4 socket board.

  15. AP720 Throughput chart

  16. Programmer inside – Model H9800 – Key Features • 112 powerful universal pin drivers programmer, • Over 20,000 drivers include EEPROM, Flash, MCU, PLD, CPLD, Anti-Fuse, FPGA and more, • Packages supported: PLCC, TSOP, TSSOP, TQFP, PQFP, SOIC, SSOP, µBGA, CSP, QFN and more. • Supports 1.2v Vcc Green devices, • Strongly graphical real-time statistical display and failure-cause analyses, • USB 2.0 port for high-speed data transmission, • Gang 4-socket adaptor available, • Support eMMC duplication

  17. The End. Thanks!!!
