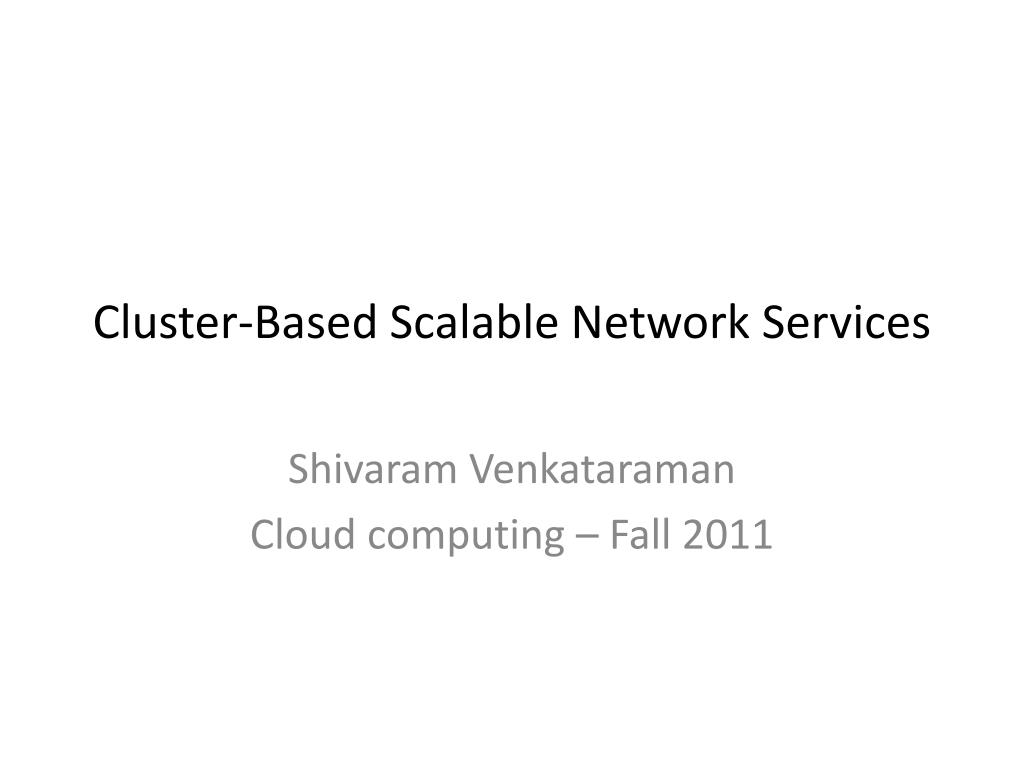

  1. Cluster-Based Scalable Network Services ShivaramVenkataraman Cloud computing – Fall 2011

  2. Paper Summary • Requirements for an Internet service • Scalable • Available • Cost-Effective • Insight: Use commodity building blocks • Challenges • Fault tolerance • Maintaining shared state • Load balancing, scheduling

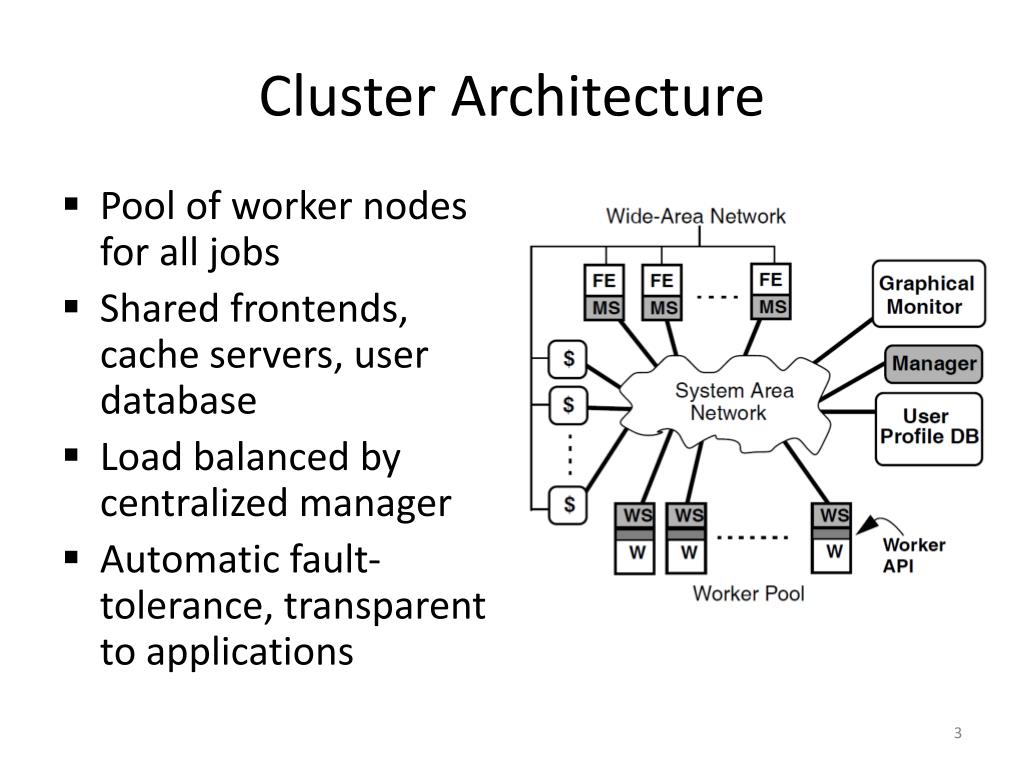

  3. Cluster Architecture • Pool of worker nodes for all jobs • Shared frontends, cache servers, user database • Load balanced by centralized manager • Automatic fault-tolerance, transparent to applications

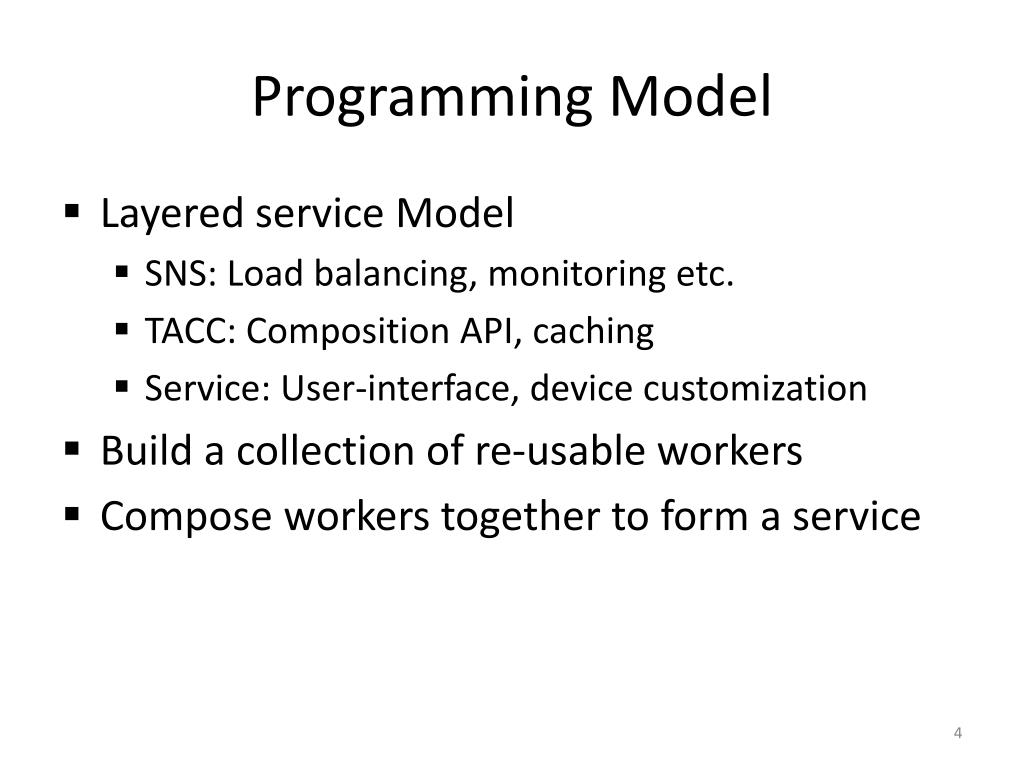

  4. Programming Model • Layered service Model • SNS: Load balancing, monitoring etc. • TACC: Composition API, caching • Service: User-interface, device customization • Build a collection of re-usable workers • Compose workers together to form a service

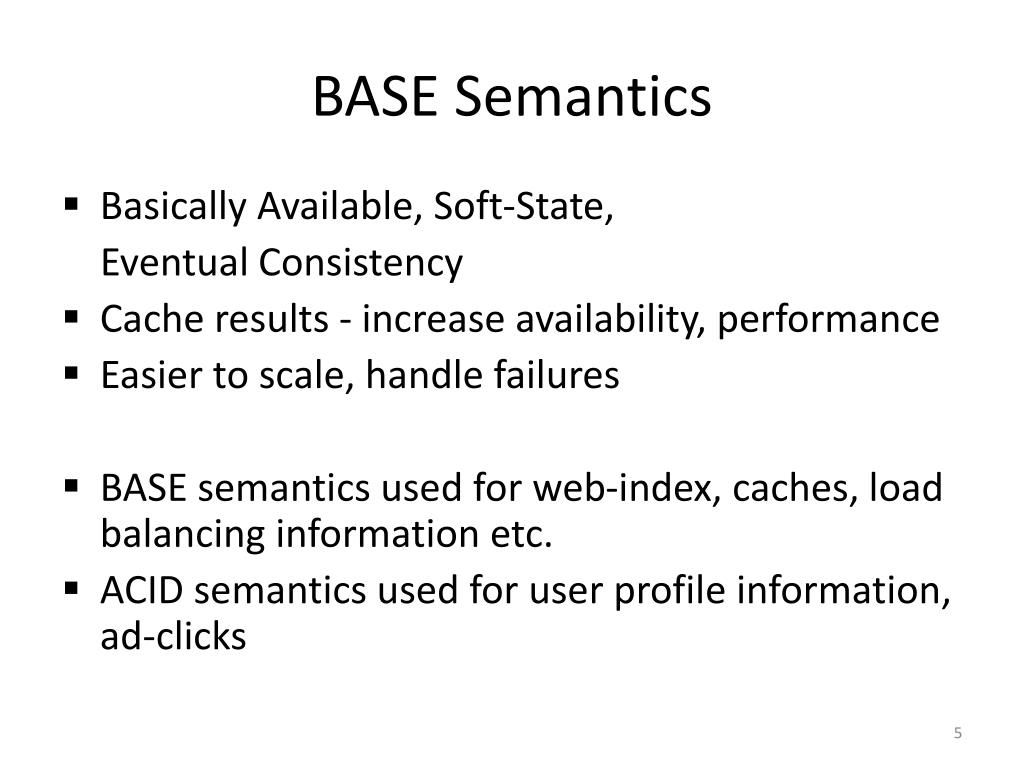

  5. BASE Semantics • Basically Available, Soft-State, Eventual Consistency • Cache results - increase availability, performance • Easier to scale, handle failures • BASE semantics used for web-index, caches, load balancing information etc. • ACID semantics used for user profile information, ad-clicks

  6. Opinions and Comments • Influence on Internet services • How relevant is this paper today ? • ACID vs BASE • Datacenter OS ? • Future Work Applications

  7. Web Search for a planet: The Google Cluster Architecture (2003) Frontend Workers Workers

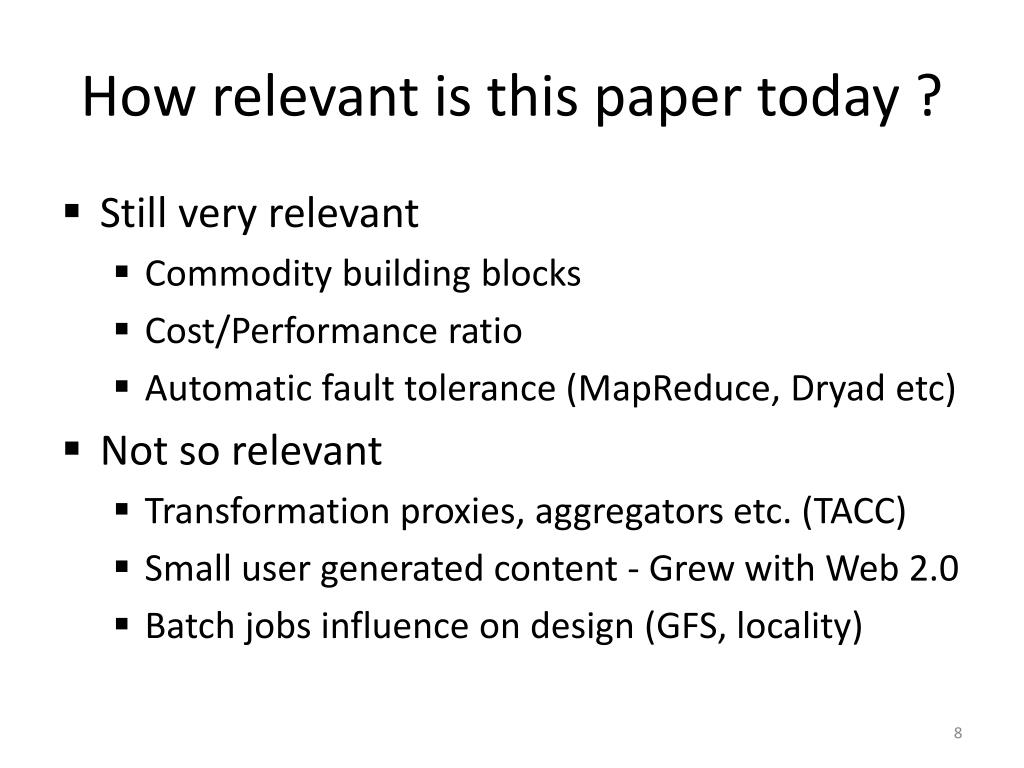

  8. How relevant is this paper today ? • Still very relevant • Commodity building blocks • Cost/Performance ratio • Automatic fault tolerance (MapReduce, Dryad etc) • Not so relevant • Transformation proxies, aggregators etc. (TACC) • Small user generated content - Grew with Web 2.0 • Batch jobs influence on design (GFS, locality)

  9. ACID vs BASE • BASE definition leads to CAP theorem • Services not just ACID or BASE, but a combination of both • Workload dependent • Read heavy – Web search, Maps - suited for BASE • Update heavy – Facebook, Gmail – ACID or BASE ? • Approximate answers to queries, provenance-based storage are also BASE

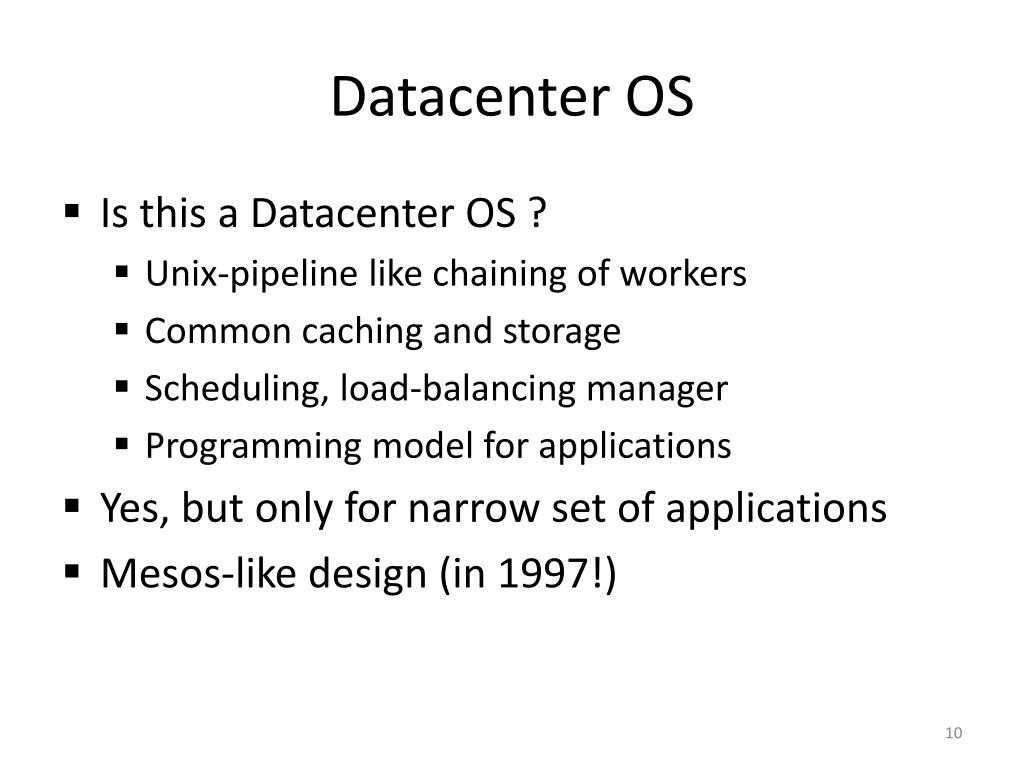

  10. Datacenter OS • Is this a Datacenter OS ? • Unix-pipeline like chaining of workers • Common caching and storage • Scheduling, load-balancing manager • Programming model for applications • Yes, but only for narrow set of applications • Mesos-like design (in 1997!)

  11. Future Work, Applications • Personalized search • Automatic event-aggregation service, e.g., Google News for events ? • Web access for PDAs • Opera Mini: Rendering HTML on server-side • Cloud-backed smartphone apps ?

  12. Google: A Behind-the-Scenes Tour
