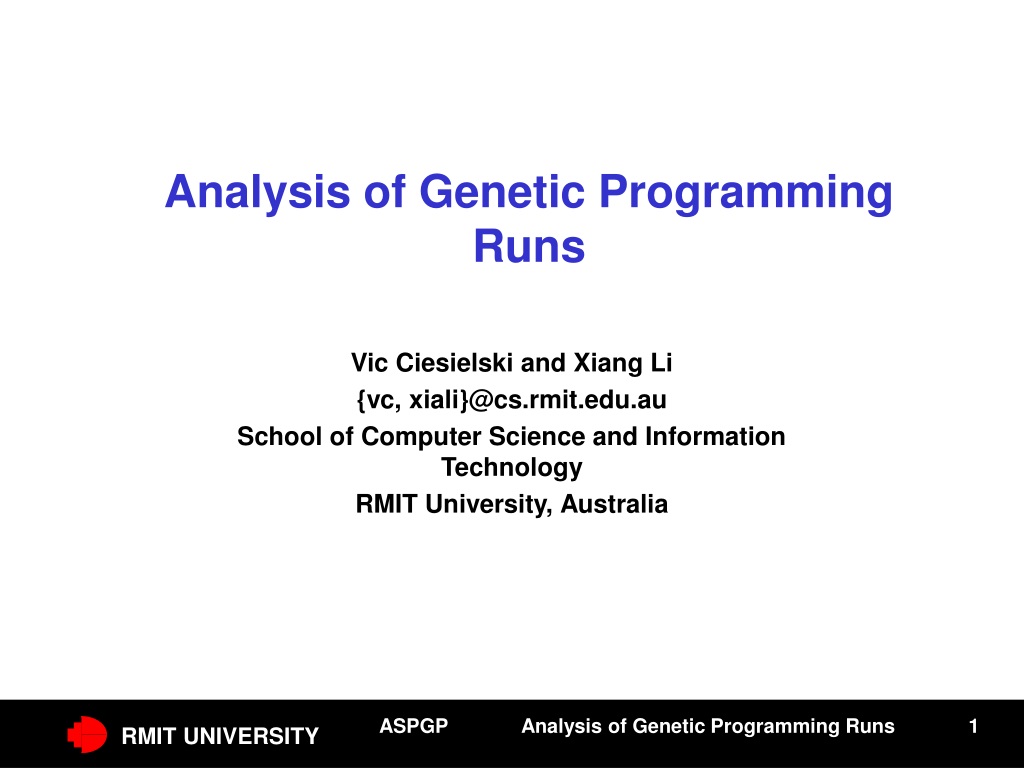

1. Analysis of Genetic Programming Runs Vic Ciesielski and Xiang Li {vc, xiali}@cs.rmit.edu.au School of Computer Science and Information Technology RMIT University, Australia Analysis of Genetic Programming Runs

2. Overview • Introduction • Brief explain why we analyze runs • Our research questions • Problems and their backgrounds • Methodology • What information we looked into in detail. • How we measure them. • Results • Duplicate evaluations, Tree shapes, Program sizes and depth changes along with generations. • Conclusion • What we have learned from the runs, what their implications are and what we can do to improve the genetic programming process. Analysis of Genetic Programming Runs

3. Introduction • Analyzing GP runs is important • Help to understand the problem in depth; Find important patterns; Improve the search techniques • Eg . MAX by Gathorcole and Ross, 1996 ; Langdon and Poli, 1997 • Eg . Fitness Landscape by Kinnear, Jr. 1994; Ant by Langdon and Poli, 1998 • Previous works have limitations • Only one or two problems • Only limited aspects of the problems, eg. convergence, bloat, fitness landscape, tree shapes (limited) • Research questions • How many duplicate individuals are evaluated in a run? • What percentage of possible tree shapes are evaluated? • Are there any patterns in the size and depth of the trees examined? • Are there any differences between the toy and the real world problems? • Are any improvements to the GP process suggested by the discovered patterns? Analysis of Genetic Programming Runs

4. Problems & Backgrounds & Genetic Variables Settings • ‘Toy’ Problems ( 9) • Santa Fe Ant (Langdon and Poli, 1998) , Pop. Size : 500, Max. Depth 5 • Modified Santa Fe Ant (Ciesielski and Li, 2004), Pop. Size : 100, Max. Depth 5 • Lawnmower (Koza, 1992), Pop Size : 100, Max. Depth 7 • MAX(Gathercole and Ross, 1996; Langdon and Poli, 1997), Pop. Size 100, Max. Depth 5 • Symbolic Regression (Koza, 1992), Pop. Size : 100, Max. Depth 7 • 5 Even Parity (Koza, 1992), Pop. Size : 500, Max. Depth 8 • Binary Image Classification 1 (Li and Ciesielski, 2004) • Binary Image Classification 2, Pop. Size : 100, Max. Depth 7 • Soccer Goal Scoring (Bajurnow and Ciesielski, 2004), Pop. Size : 100, Max. Depth 5 • Real world problems (3) • Cephalometric Landmarks (Ciesielski et al., 2003), Pop. Size : 100, Max Depth 9 • Texture Classification (Song and Ciesielski, 2004), Pop. Size : 500, Max. Depth 14, Elitism 10%, Crossover 85%, Mutation 5%, Max. Gen. 50 • Evolution of Texture Features (Lam Ciesielski, 2004), Pop. Size : 100, Max. Depth 7 • Common Genetic Variables Settings unless specified • Elitism Rate : 2% Crossover Rate : 70% Mutation Rate : 28% Max. Gen. 100 Analysis of Genetic Programming Runs

5. Methodology • GP Environments • RMIT-GP (http://www.cs.rmit.edu.au/~vc) • Strong typed • Ramped half and half method for initialization • Duplications are found, but hard to determine, because • Exactly identical • Logically equivalent, eg (+ A 1) vs. (+ A (/ B B)) • Commutative equivalent, eg (+ A B) vs. (+ B A) Analysis of Genetic Programming Runs

6. Measures (a) (b) (c) (d) Possible Tree Shapes Invalid Tree Shapes • Number of fitness evaluations • Number of tree shapes • Converting programs into shapes • (* (+ (/ 24 X) (+ Y 81)) (+ (* X 34) (+ 86 44)) Translated into  (((##)(##))((##)(##)) • Determine Total number of possible trees • Most of GP problem examined use binary trees • Depth= { 1, 2, 3, 4, 5, 6, 7, …} • No.of.Possible.Shapes ={ 1, 3, 21, 651, 457653, 2.10E+11, 4.4E22, …} • More shapes for ternary and grows exponentially with tree depth • Number of commutative-distinct individuals evaluated • Number of string-distinct individuals evaluated Analysis of Genetic Programming Runs

7. Results - 1 Run Analysis of Genetic Programming Runs

8. Results - 5 Runs Comments : We understand 5 runs are still not enough, but at least they repeatedly demonstrate the same pattern. Duplications exist and they are not in a small amount. Analysis of Genetic Programming Runs

9. Tree Shapes - 5 Runs Comments : Even 5 runs, the number of distinct of shapes is still trivial compared with possible shapes besides 1 runs. Analysis of Genetic Programming Runs

10. Visualizations A “Toy”Problem - MAX Analysis of Genetic Programming Runs

11. A Real World Problem Texture Features Analysis of Genetic Programming Runs

12. Conclusion • Number of duplicate individuals • There are a lot than expected. Some are understandable like MAX problem, some need more analysis • Percentage of possible tree shapes • Only a very tiny percentage of the possible shapes were examined • Patterns in size and depth • Fitness vs. generation vs. size follows a roughly triangular pattern • Toy vs. Real World Problems • There are no clear differences. There are many duplications in real world and many single node trees were evaluated. • Suggested Improvements Caching the string representation of the programs and reuse the fitness values when evaluations are expensive. Analysis of Genetic Programming Runs
