  1. ACTIVITY 3-1

  2. START LOG FILE NAMED ACT3-1 • CREATE A DATABASE NAME ACT3_1 3. CREATE A TABLE NAMED EMPLOYEE_DATA +-----------+--------------+------+-----+---------+----------------+ | Field | Type | Null | Key | Default | Extra | +-----------+--------------+------+-----+---------+----------------+ | emp_id | int(9) | NO | PRI | NULL | auto_increment | | firstname | varchar(20) | YES | | NULL | | | lastname | varchar(20) | YES | | NULL | | | title | varchar(30) | YES | | NULL | | | age | int(2) | YES | | NULL | | | y_o_s | int(2) | YES | | NULL | | | salary | decimal(8,2) | YES | | NULL | | | perks | decimal(8,2) | YES | | NULL | | | email | varchar(60) | YES | | NULL | | +-----------+--------------+------+-----+---------+----------------+

  3. INSERT A ROW OF DATA (RECORD) INTO TABLE JOHN SMITH, CEO 42 YRS OLD 25 YEARS OF SERVICE SALARY = $300000 PERKS = 25000 EMAIL = JSMITH@MURDOCHINC.COM

  4. insert into employee_data (firstname, lastname, title, age, y_o_s, salary, perks, email) values ("John", "Smith", "CEO", 46, 25, 300000, 25000, "jsmith@murdochinc.com");

  5. DOWNLOAD EMPLOYEE.TXT FILE TO BIN DIRECTORY • AT COMMAND PROMPT TYPE: mysql employees <employee.txt OR 3. OPEN FILE, COPY TEXT, PASTE INTO MYSQL WINDOW

  6. SHOW EVERYTHING FROM EMPLOYEE_DATA • +--------+-----------+------------+----------------------------+------+-------+--------+-------+-----------------------+ • | emp_id | firstname | lastname | title | age | y_o_s | salary | perks | email | • +--------+-----------+------------+----------------------------+------+-------+--------+-------+-----------------------+ • | 1 | John | Smith | CEO | 46 | 25 | 300000 | 25000 | jsmith@murdochinc.com | • | 2 | John | Hagan | Senior Programmer | 32 | 4 | 120000 | 25000 | john_hagan@bignet.com | • | 3 | Ganesh | Pillai | Senior Programmer | 32 | 4 | 110000 | 20000 | g_pillai@bignet.com | • | 4 | Anamika | Pandit | Web Designer | 27 | 3 | 90000 | 15000 | ana@bignet.com | • | 5 | Mary | Anchor | Web Designer | 26 | 2 | 85000 | 15000 | mary@bignet.com | • | 6 | Fred | Kruger | Programmer | 31 | 3 | 75000 | 15000 | fk@bignet.com | • | 7 | John | MacFarland | Programmer | 34 | 4 | 80000 | 16000 | john@bignet.com | • | 8 | Edward | Sakamuro | Programmer | 25 | 2 | 75000 | 14000 | eddie@bignet.com | • | 9 | Alok | Nanda | Programmer | 32 | 3 | 70000 | 10000 | alok@bignet.com | • | 10 | Hassan | Rajabi | Multimedia Programmer | 33 | 3 | 90000 | 15000 | hasan@bignet.com | • | 11 | Paul | Simon | Multimedia Programmer | 43 | 2 | 85000 | 12000 | ps@bignet.com | • | 12 | Arthur | Hoopla | Multimedia Programmer | 32 | 1 | 75000 | 15000 | arthur@bignet.com | • | 13 | Kim | Hunter | Senior Web Designer | 32 | 2 | 110000 | 20000 | kim@bignet.com | • | 14 | Roger | Lewis | System Administrator | 35 | 2 | 100000 | 13000 | roger@bignet.com | • | 15 | Danny | Gibson | System Administrator | 34 | 1 | 90000 | 12000 | danny@bignet.com | • | 16 | Mike | Harper | Senior Marketing Executive | 36 | 2 | 120000 | 28000 | mike@bignet.com | • | 17 | Monica | Sehgal | Marketing Executive | 30 | 3 | 90000 | 25000 | monica@bignet.com | • | 18 | Hal | Simlai | Marketing Executive | 27 | 2 | 70000 | 18000 | hal@bignet.com | • | 19 | Joseph | Irvine | Marketing Executive | 27 | 2 | 72000 | 18000 | joseph@bignet.com | • | 20 | Shahida | Ali | Customer Service Manager | 32 | 3 | 70000 | 9000 | shahida@bignet.com | • | 21 | Peter | Champion | Finance Manager | 36 | 4 | 120000 | 25000 | peter@bignet.com | • +--------+-----------+------------+----------------------------+------+-------+--------+-------+-----------------------+

  7. SHOW DATA FROM FIRSTNAME AND LASTNAME FIELDS ONLY

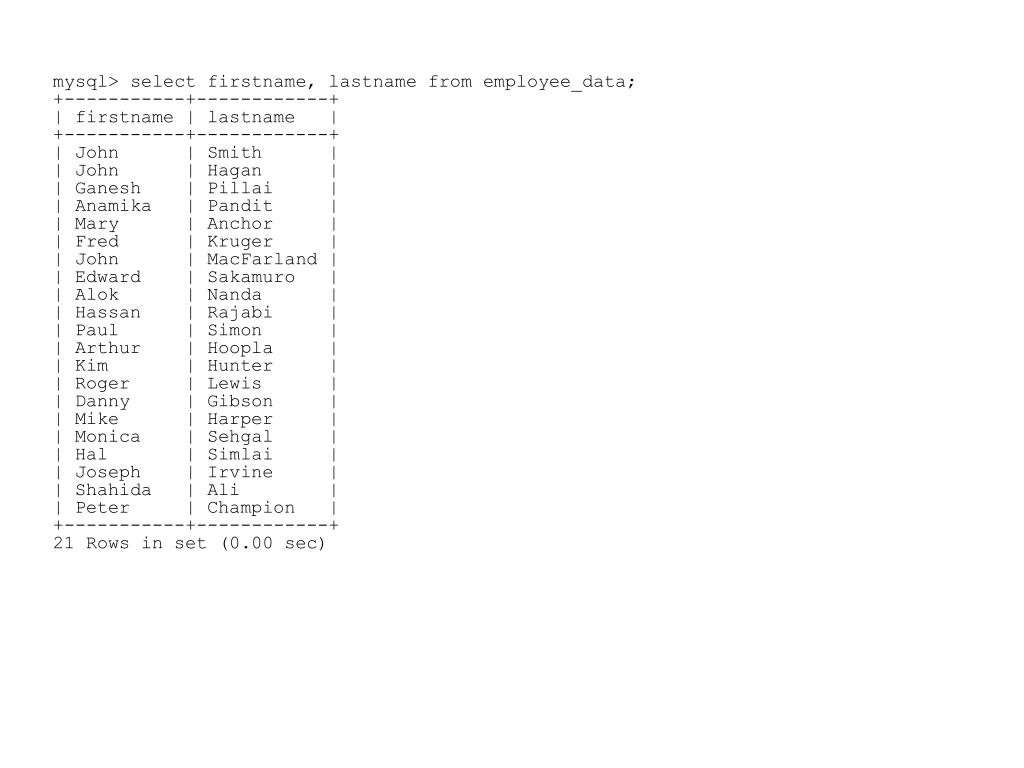

  8. mysql> select firstname, lastname from employee_data; +-----------+------------+ | firstname | lastname | +-----------+------------+ | John | Smith | | John | Hagan | | Ganesh | Pillai | | Anamika | Pandit | | Mary | Anchor | | Fred | Kruger | | John | MacFarland | | Edward | Sakamuro | | Alok | Nanda | | Hassan | Rajabi | | Paul | Simon | | Arthur | Hoopla | | Kim | Hunter | | Roger | Lewis | | Danny | Gibson | | Mike | Harper | | Monica | Sehgal | | Hal | Simlai | | Joseph | Irvine | | Shahida | Ali | | Peter | Champion | +-----------+------------+ 21 Rows in set (0.00 sec)

  9. INSERT A ROW OF DATA (RECORD) INTO TABLE • HARVEY RUDOLER, FINANCIAL ANALYST • AGE – 52 • YOS – 16 • SALARY - $52000 • PERKS - $21000 • EMAIL – HRUDOLER@MURDOCHINC.COM

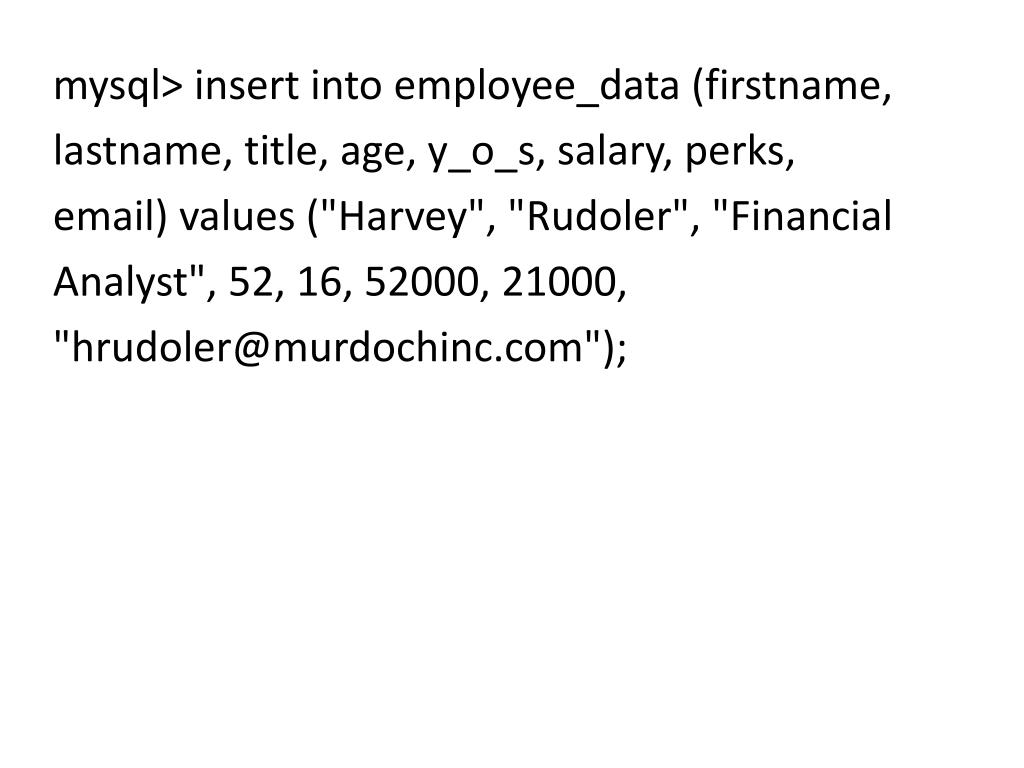

  10. mysql> insert into employee_data (firstname, lastname, title, age, y_o_s, salary, perks, email) values ("Harvey", "Rudoler", "Financial Analyst", 52, 16, 52000, 21000, "hrudoler@murdochinc.com");

  11. SELECT ONLY PEOPLE WITH THE FIRSTNAME “JOHN” AND SHOW FIRSTNAME AND LASTNAME FIELDS

  12. mysql> select firstname, lastname from employee_data where firstname = 'John'; +-----------+------------+ | firstname | lastname | +-----------+------------+ | John | Smith | | John | Hagan | | John | MacFarland | +-----------+------------+ 3 rows in set (0.00 sec)

  13. SELECT ONLY PEOPLE WHO ARE PROGRAMMERS, AND SHOW THEIR FIRSTNAME AND LASTNNAME

  14. mysql> select firstname, lastname from employee_data where title = "Programmer"; +-----------+------------+ | firstname | lastname | +-----------+------------+ | Fred | Kruger | | John | MacFarland | | Edward | Sakamuro | | Alok | Nanda | +-----------+------------+ 4 rows in set (0.00 sec)

  15. SHOW THE FIRSTNAME AND LASTNAME OF EMPLOYEES WHO ARE 32 YEARS OLD

  16. mysql> select firstname, lastname from employee_data where age = 32; +-----------+----------+ | firstname | lastname | +-----------+----------+ | John | Hagan | | Ganesh | Pillai | | Alok | Nanda | | Arthur | Hoopla | | Kim | Hunter | | Shahida | Ali | +-----------+----------+ 6 rows in set (0.00 sec)

  17. SHOW ALL EMPLOYEES WITH A SALARY GREATER THAN 120000

  18. mysql> select firstname, lastname from employee_data where salary > 120000; +-----------+----------+ | firstname | lastname | +-----------+----------+ | John | Smith | +-----------+----------+ 1 row in set (0.00 sec)

  19. SHOW ALL EMPLOYEES WITH LESS THAN 3 YEARS OF SERVICE

  20. mysql> select firstname, lastname from employee_data where y_o_s <3; +-----------+----------+ | firstname | lastname | +-----------+----------+ | Mary | Anchor | | Edward | Sakamuro | | Paul | Simon | | Arthur | Hoopla | | Kim | Hunter | | Roger | Lewis | | Danny | Gibson | | Mike | Harper | | Hal | Simlai | | Joseph | Irvine | +-----------+----------+ 10 rows in set (0.00 sec)

  21. SHOW ALL EMPLOYEES AND THEIR AGE AND SALARIES, WHO ARE 33 YEARS OLD OR OLDER

  22. mysql> select firstname, lastname, age, salary from employee_data where age >= 33; +-----------+------------+------+--------+ | firstname | lastname | age | salary | +-----------+------------+------+--------+ | John | Smith | 46 | 300000 | | John | MacFarland | 34 | 80000 | | Hassan | Rajabi | 33 | 90000 | | Paul | Simon | 43 | 85000 | | Roger | Lewis | 35 | 100000 | | Danny | Gibson | 34 | 90000 | | Mike | Harper | 36 | 120000 | | Peter | Champion | 36 | 120000 | | Harvey | Rudoler | 52 | 95000 | +-----------+------------+------+--------+ 9 rows in set (0.00 sec)

  23. SHOW ALL EMPLOYEES, THEIR AGE AND THEIR SALARIES, WHO HAVE 2 YEARS OF SERVICE OR LESS

  24. mysql> select firstname, lastname, age, salary from employee_data where y_o_s <=2; +-----------+----------+------+--------+ | firstname | lastname | age | salary | +-----------+----------+------+--------+ | Mary | Anchor | 26 | 85000 | | Edward | Sakamuro | 25 | 75000 | | Paul | Simon | 43 | 85000 | | Arthur | Hoopla | 32 | 75000 | | Kim | Hunter | 32 | 110000 | | Roger | Lewis | 35 | 100000 | | Danny | Gibson | 34 | 90000 | | Mike | Harper | 36 | 120000 | | Hal | Simlai | 27 | 70000 | | Joseph | Irvine | 27 | 72000 | +-----------+----------+------+--------+ 10 rows in set (0.00 sec)

  25. SHOW ALL EMPLOYEES WHOSE FIRST NAME STARTS WITH “M” HINT: %

  26. mysql> select firstname, lastname from employee_data where firstname like "M%"; +-----------+----------+ | firstname | lastname | +-----------+----------+ | Mary | Anchor | | Mike | Harper | | Monica | Sehgal | +-----------+----------+ 3 rows in set (0.00 sec)

  27. SHOW ALL EMPLOYEES AND THEIR TITLE, WHOSE TITLE STARTS WITH “SENIOR”

  28. mysql> select firstname, lastname, title from employee_data where title like "senior%"; +-----------+----------+----------------------------+ | firstname | lastname | title | +-----------+----------+----------------------------+ | John | Hagan | Senior Programmer | | Ganesh | Pillai | Senior Programmer | | Kim | Hunter | Senior Web Designer | | Mike | Harper | Senior Marketing Executive | +-----------+----------+----------------------------+ 4 rows in set (0.00 sec)
