Investigation of Space-Time Block Codes for Multipath Powerline Communication Channels

kumiko avatar
kumiko
13 diapositives · 300 Views · Jul 24, 2014

This research explores the implementation of Space-Time Block Codes (STBC) in multipath modeled powerline communications (PLC) channels. Utilizing the Alamouti scheme as a foundational framework, the study introduces PSTBC with Linear Combine techniques enhanced by PAM repetition coding. Results indicate that with independent correlation, matrix repetition codes facilitate reduced receiver combining time. The impact of channel dynamics, including AWGN and flat fading, on Bit Error Rate (BER) and signal-to-noise ratios (SNR) is also analyzed. The research concludes with future development recommendations for STBC combined with Forward Error Correction (FEC) methods.

Investigation of Space-Time Block Codes for Multipath Powerline Communication Channels - slide 1
01 / 13Investigation of Space-Time Block Codes for Multipath Powerline Communication Channels
1 / 17

Télécharger la présentation

Investigation of Space-Time Block Codes for Multipath Powerline Communication Channels
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Investigation of Space Time Block Codes for the Multipath Modeled Powerline Communications Channel Ariadi Sulistyo Research Advisor by Mr. Anil Mengi, M.Sc. Chair: Prof. Dr.-ir. A.J. Han Vinck Implementations and Results

  2. Alamouti Scheme As a fundamental of STBC system, the Alamouti scheme should be considered. PSTBC = PSISO

  3. Linear Combiner with PAM

  4. Repetition Codes in Matrix Block Code

  5. Repetition Coding using Single Phase Detector

  6. Result : Adaptive Decoding

  7. Multipath Fading : Philipps Model With Guard Interval

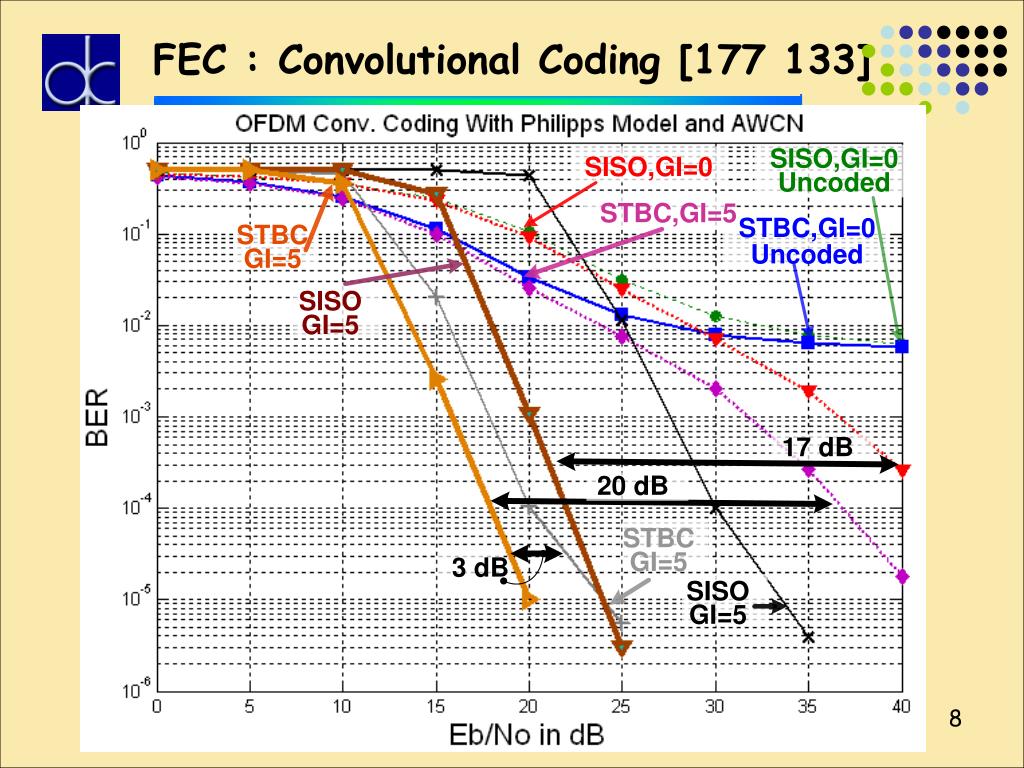

  8. FEC : Convolutional Coding [177 133]

  9. Conclusion Because of independent correlation between channel in PLC, the orthogonality of matrix block codes are not needed. This leads to the matrix of repetition codes. If matrix of repetition codes are used, then combining time at the receiver can be reduced. • With the same signal power, performance of STBC Linear Combiner in PLC with the AWGN channel is the same as SISO. Due to the AWCN and Flat Fading channels, the value of BER is depend on the signal to noise power ratio (SNR). • Repetition Coding with Single phase detector is better at low SNR (< 15 dB) than Linear combiner. Depending on Noise Margin and Received Signal Power, adaptive decoding is built. With the threshold = 10, best result is obtained

  10. Conclusion & Future Development On a Philipps model, GI reduces the error rate. As the channel have only diversity gain maximum of three, to preserve about diversity, coding gain would be an alternative.  combination between the STBC and FEC should be considered. Future Development in STBC Concatenated FEC- STBC in Powerline channel Blind Channel Estimation Coding side : Space Time Trellis Coding comparing to STBC Coding Gain and Diversity Gain

  11. References S.M. Alamouti, "A Simple Transmit Diversity Scheme for Wireless Communication", IEEE Journal on Selected Areas In Communications, Vol. 16, pp. 1451-1458, October 1998. V. Tarokh, H. Jafarkhani , and A.R. Calderbank, "Space Time Block Codes from Orthogonal Designs", IEEE Transactions on Information Theory, Vol. 45, No. 5, pp.1456-1467, July 1999. C.L. Giovaneli, J. Yazdani, P. Farrell, B. Honary, "Application of Space-Time Diversity/Coding for Power Line Channels", Proceeding of International Symposium on Power-Line Communications and Its Applications 2002 (ISPLC 2002), pp. 101-105, March 2002. C.L. Giovaneli, J. Yazdani, P. Farrell, B. Honary, "Improved Space-Time Coding Applications for Power Line Channels", Proceeding of International Symposium on Power-Line Communications and Its Applications 2003 (ISPLC 2003), pp. 50-55, March 2003. A. Papaioannou, D. Papadopoulos, F.N. Pavlidou, "Performance of Space-Time Block Coding in Powerline and Satellite Communications", Journal of Communication and Information Systems, Vol. 20, No. 3, pp. 174-181, 2005.

  12. References H. Philipps, "Modelling of Powerline Communication Channels", Proceeding of International Symposium on Power-Line Communications and Its Applications 1999 (ISPLC 1999), pp. 14-21, 1999. J. G. Proakis, "Digital Communications", McGraw-Hill Companies Inc., New York, 4th edition, 2001. S. Haykin, "Communication Systems", John Wiley & Sons, Inc., New Jersey, 4th edition, 2001. K. D. Kammeyer, V.Kühn, "Matlab in der Nachrichtentechnik", J. Schlembach Fachverlag, Bremen, 2001. L. Litwin, M. Pugel, "The Principles of OFDM", www.rfdesign.com, pp. 30-48, January 2001. H. Jafarkhani, "Space-Time Coding, Theory and Practice", Cambridge University Press, New York, 1st edition, 2005.

  13. Thank you for your attention !
