  1. Status Report ISO/TC 22/SC 3September 09, 2009 Presenters name/company, 2009-10-29

  2. Scope: ISO/TC 22/SC 3 is responsible for standardization work on electrical and electronic equipment of road vehicles, as delegated by ISO/TC 22. Excluded is the work being done by SC 1, SC 8 and SC 21 of ISO/TC 22. Secretariat : DIN / NA Automobil TP: +49-69-97 507-345 TF: +49-69-97 507-209 E-Mail: fritzsche@vda.de Chairman : Dr. Braeuninger TP: +49-711 811 47861 TF: +49-711-811-5111039 E-Mail: juergen.braeuninger@de.bosch.com Presenters name/company, 2009-10-29

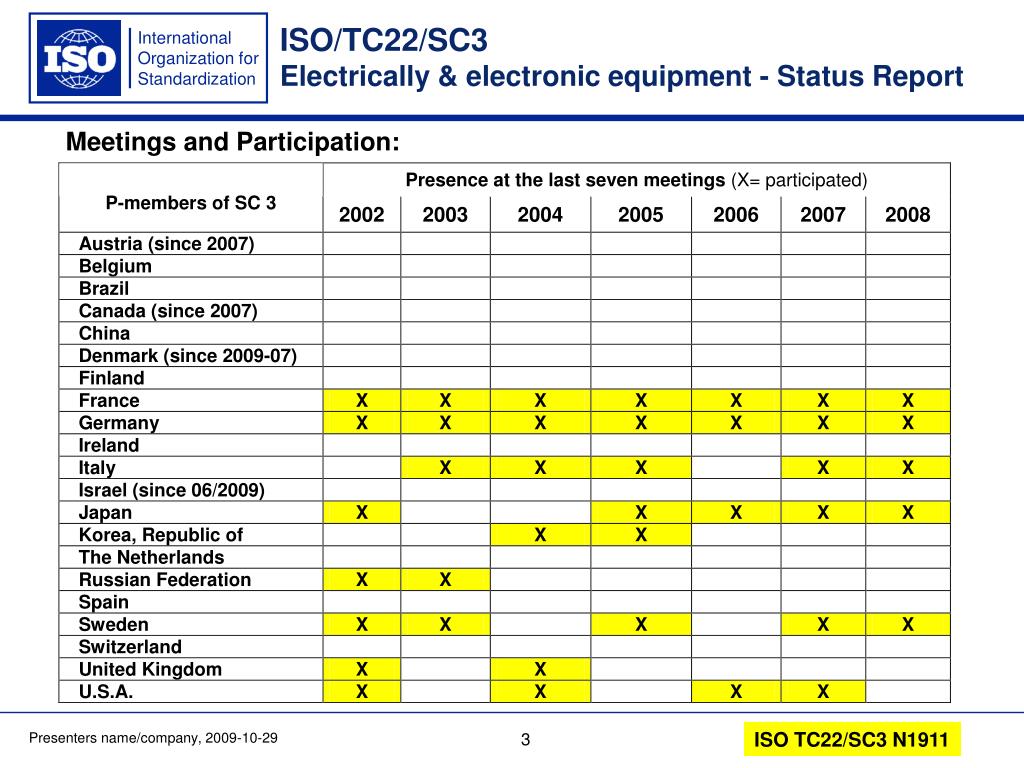

  3. Meetings and Participation: Presenters name/company, 2009-10-29

  4. Liaisons ISO internal ISO TC204 Intelligent Transport Systems ISO/TC 22/SC02 – Braking equipment ISO/TC 22/SC05 – Engine testing ISO/TC 22/SC08 – Lighting and signalling ISO/TC 22/SC21 – Electrically propelled road vehicles ISO/TC 22/SC15 – Interchangeability of components of commercial vehicle and buses Liaison between ISO and IEC IEC/SC 23F - Electrical Accessories – Connecting devices IEC/SC 32C - Fuses/miniature fuses IEC/SC 48B - Electro mechanical components and mechanical structures for electronic equipment/connectors IEC/TC 77 - Electromagnetic compatibility IEC/TC 104 - Environmental conditions, classification and method of test JTC 1 / SC7 - Joint ISO-IEC Technical Committee 1/SC7: Software and systems engineering Liaison with other organizations (category A) CISPR/D International special committee on radio interference – Interference related to motor vehicles and internal combustion engines CLEPA Comité de Liaison de la Construction d'Equipements et de Pièces d'Automobiles ITU International Telecommunication Union Presenters name/company, 2009-10-29

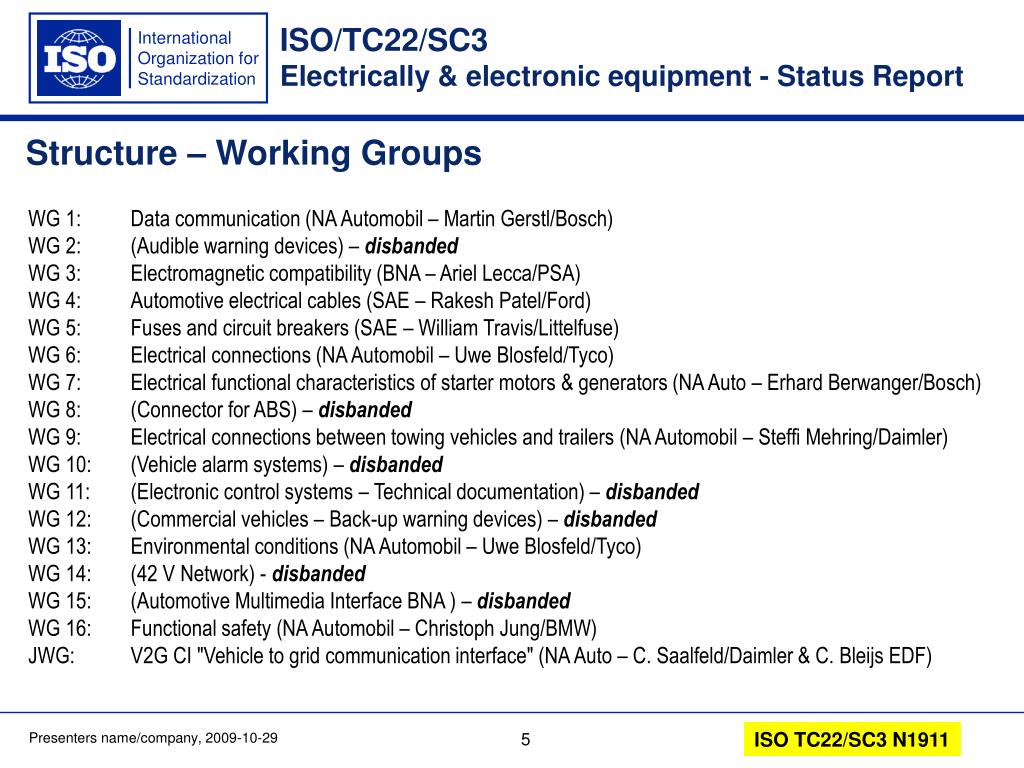

  5. Structure – Working Groups WG 1: Data communication (NA Automobil – Martin Gerstl/Bosch) WG 2: (Audible warning devices) – disbanded WG 3: Electromagnetic compatibility (BNA – Ariel Lecca/PSA) WG 4: Automotive electrical cables (SAE – Rakesh Patel/Ford) WG 5: Fuses and circuit breakers (SAE – William Travis/Littelfuse) WG 6: Electrical connections (NA Automobil – Uwe Blosfeld/Tyco) WG 7: Electrical functional characteristics of starter motors & generators (NA Auto – Erhard Berwanger/Bosch) WG 8: (Connector for ABS) – disbanded WG 9: Electrical connections between towing vehicles and trailers (NA Automobil – Steffi Mehring/Daimler) WG 10: (Vehicle alarm systems) – disbanded WG 11: (Electronic control systems – Technical documentation) – disbanded WG 12: (Commercial vehicles – Back-up warning devices) – disbanded WG 13: Environmental conditions (NA Automobil – Uwe Blosfeld/Tyco) WG 14: (42 V Network) - disbanded WG 15: (Automotive Multimedia Interface BNA ) – disbanded WG 16: Functional safety (NA Automobil – Christoph Jung/BMW) JWG: V2G CI "Vehicle to grid communication interface" (NA Auto – C. Saalfeld/Daimler & C. Bleijs EDF) Presenters name/company, 2009-10-29

  6. Preliminary Work Items ISO/PWI 14229-2 Road vehicles -- Unified diagnostic services (UDS) -- Part 2: Layer services ISO/PWI 27145-5 Road vehicles – Implementation of WWH-OBD communication – Part 5: Conformance test ISO/PWI 27145-6 Road vehicles – Implementation of WWH-OBD communication - Part 6: Test equipment ISO/PWI 8XXX-X Road vehicles – Communication protocol between electric vehicle and grid ISO/PWI XXXX-X Road vehicles – Vehicle data related to telematics ISO/PWI XXXX-X Road vehicles - Electrical performance of starter motors - Test methods and general requirements Presenters name/company, 2009-10-29

  7. New Work Items ISO/NP 8820-8 Road vehicles -- Fuse links -- Part 8: Fuse-links with bolt-in contacts (Type H and J) with rated voltage of 450V ISO NP 8820-9 Road vehicles -- Fuse-links -- Part 9: Fuse-links with shortened tabs (Type D) ISO/NP 10924-2 Road vehicles - Circuit breakers -- Part 2: User's Guide ISO/NP 18541-1 Road vehicles -- Access to automotive repair and maintenance information (RMI) – Part 1: General information and use case definition ISO/NP 18541-2 Road vehicles -- Access to automotive repair and maintenance information (RMI) -- Part 2: Technical requirements ISO/NP 18541-3 Road vehicles -- Access to automotive repair and maintenance information (RMI) – Part 3.: Functional user interface requirements ISO/NP 18542-1 Road vehicles -- Standardized RMI terminology -- Part 1: General information and use case definition Presenters name/company, 2009-10-29

  8. Active Projects SC3/WG1 WD 10681-3 Road vehicles — Communication on FlexRay — Part 3: Implementation of unified diagnostic services WD 13400 Road vehicles -- Diagnostic communication between test equipment and vehicle over internet protocol - Part 1: General information and use-case definition - Part 2: Network and transport layer requirements and services - Part 3: IEEE 802.3 based vehicle interface WD 15765 Road vehicles -- Diagnostics on Controller Area Networks (CAN) – - Part 1: General information - Part 2: Network layer services WD 16844-3 Road vehicles -- Tachograph systems -- Part 3: Motion sensor interface WD 27145-3 Road vehicles – Implementation of WWH-OBD communication – - Part 3: Common message dictionary - Part 4: Connection between vehicle and test equipment Presenters name/company, 2009-10-29

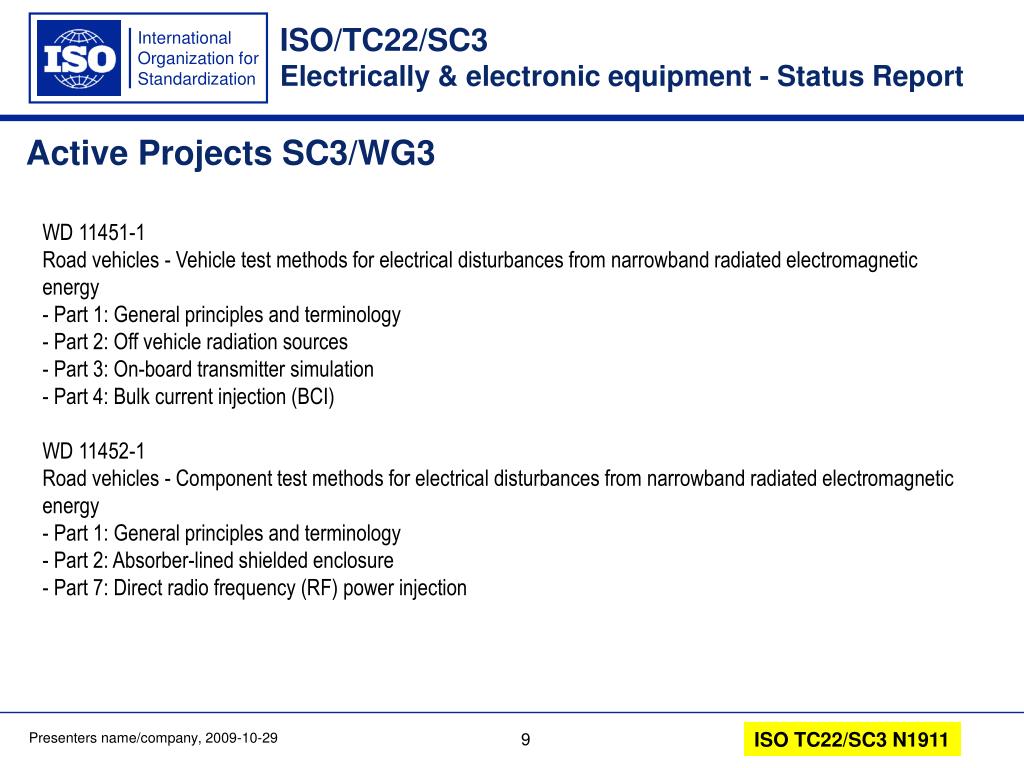

  9. Active Projects SC3/WG3 WD 11451-1 Road vehicles - Vehicle test methods for electrical disturbances from narrowband radiated electromagnetic energy - Part 1: General principles and terminology - Part 2: Off vehicle radiation sources - Part 3: On-board transmitter simulation - Part 4: Bulk current injection (BCI) WD 11452-1 Road vehicles - Component test methods for electrical disturbances from narrowband radiated electromagnetic energy - Part 1: General principles and terminology - Part 2: Absorber-lined shielded enclosure - Part 7: Direct radio frequency (RF) power injection Presenters name/company, 2009-10-29

  10. Active Projects SC3/WG3 WD 11451-1 Road vehicles - Vehicle test methods for electrical disturbances from narrowband radiated electromagnetic energy - Part 1: General principles and terminology - Part 2: Off vehicle radiation sources - Part 3: On-board transmitter simulation - Part 4: Bulk current injection (BCI) WD 11452-1 Road vehicles - Component test methods for electrical disturbances from narrowband radiated electromagnetic energy - Part 1: General principles and terminology - Part 2: Absorber-lined shielded enclosure - Part 7: Direct radio frequency (RF) power injection Presenters name/company, 2009-10-29

  11. Active Projects SC3 • WG 9: • WD 13207-1 Road vehicles – LED lamp characteristics for bulb compatible failure detection – • - Part 1: LED lamps used for direction indicator and stop lamps • Part 2: LED lamps used for all other functions • WG 16: • ISO 26262 Road vehicles – Functional Safety – • - Part 1: Glossary • – Part 2: Management of functional safety (40.00) • – Part 3: Concept phase (40.00) • – Part 4: Product development: system level (40.00) • – Part 5: Product development: hardware level (40.00) • – Part 6: Product development: software level (40.00) • – Part 7: Production and operation (40.00) • – Part 8: Supporting processes (40.00) • – Part 9: ASIL- and safety-oriented content (40.00) • – Part 10: Informative Guideline (40.00) Presenters name/company, 2009-10-29
