  1. CSE 636Data Integration Web Services

  2. What is a Web Service • A web service is a network accessible interface to application functionality • Application interoperability across different platforms • Built using standard Internet technologies • Clients of web services do NOTneed to know how they are implemented Network Web Service   Application Client Application Code

  3. Web Services Related Standards • Web Services Description Language (WSDL) 1.1 • http://www.w3.org/TR/wsdl (03/01) • Version 2.0 under development • Simple Object Access Protocol (SOAP) • http://www.w3.org/TR/soap/ • Universal Description, Discovery and Integration (UDDI) • http://www.uddi.org/

  4. Web Service Technology Stack Web Service Client Discovery Shopping web service? UDDI WSDL URIs Web Service Description WSDL WSDL SOAP/HTTP request Proxy Messaging SOAP/HTTP response Transport HyperText Transfer Protocol (HTTP)

  5. Part 1: Web Service Methods Web Service Client Discovery Shopping web service? UDDI WSDL URIs Web Service Description WSDL WSDL SOAP/HTTP request Proxy Messaging SOAP/HTTP response Transport HyperText Transfer Protocol (HTTP)

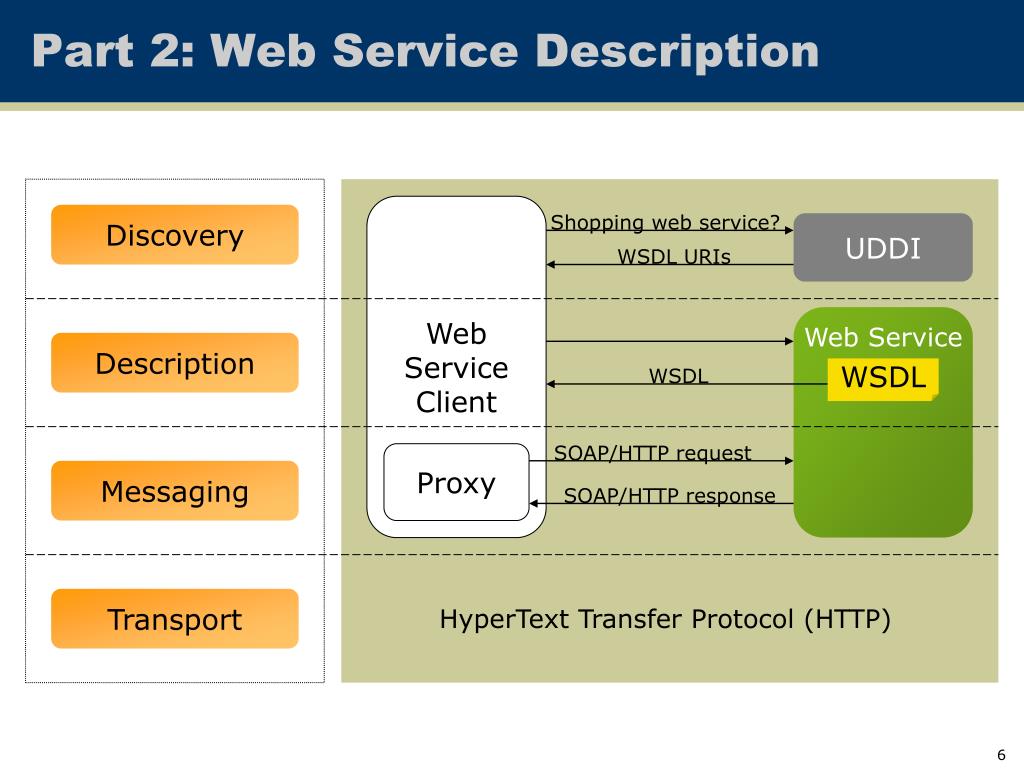

  6. Part 2: Web Service Description Web Service Client Discovery Shopping web service? UDDI WSDL URIs Web Service Description WSDL WSDL SOAP/HTTP request Proxy Messaging SOAP/HTTP response Transport HyperText Transfer Protocol (HTTP)

  7. Part 3: Proxy to Access Web Service Web Service Client Discovery Shopping web service? UDDI WSDL URIs Web Service Description WSDL WSDL SOAP/HTTP request Proxy Messaging SOAP/HTTP response Transport HyperText Transfer Protocol (HTTP)

  8. Part 4: Client to Invoke Proxy Web Service Client Discovery Shopping web service? UDDI WSDL URIs Web Service Description WSDL WSDL SOAP/HTTP request Proxy Messaging SOAP/HTTP response Transport HyperText Transfer Protocol (HTTP)

  9. Data Services Architecture Web Application Server Web Service Web Service Client WSDL WSDL Parameterized XQuery Expressions ParameterInstantiation SOAP/HTTP request SOAP/HTTP response QueryResult QueryExecution XML Database XML Schema XML File

  10. Web Services Definition Language (WSDL) • Defines services as collections of network endpoints • Consists of abstract definitions • Types • Messages • Port Types & Operations • and concrete implementations • Bindings • Services & Ports • Broken into pieces for reuse purposes

  11. Port Types & Operations Port Type: An abstract set of operations supported Operation: An abstract description of an action supported <portTypename="AddressBook"> <operationname="addEntry"> <inputmessage="tns:AddEntryRequest"/> <outputmessage="tns:empty"/> </operation> <operationname="getAddressFromName"> <inputmessage="tns:GetAddressFromNameRequest"/> <outputmessage="tns:GetAddressFromNameResponse"/> </operation> </portType> • Programming languages refer to a port type as a class, and to an operation as a method

  12. Messages • Abstract, typed definitions of the data being communicated <messagename="empty"/> <messagename="AddEntryRequest"> <partname="address" type="tns:address"/> </message> <messagename="GetAddressFromNameRequest"> <partname="name" element="tns:entryName"/> </message> <messagename="GetAddressFromNameResponse"> <partname="address" type="tns:address"/> </message>

  13. Types • Data type definitions using the XML Schema type system <types> <xs:schematargetNamespace="urn:AddressFetcher" xmlns:xs="http://www.w3.org/1999/XMLSchema"> <xs:elementname="entryName" type="xs:string"/> <xs:complexTypename="address"> <xs:all> <xs:elementname="streetNum" type="xs:int"/> <xs:elementname="streetName" type="xs:string"/> <xs:elementname="city" type="xs:string"/> <xs:elementname="state" type="xs:string"/> <xs:elementname="zip" type="xs:int"/> <xs:elementname="phoneNumber" type="xs:int"/> </xs:all> </xs:complexType> </xs:schema> </types>

  14. WSDL File Structure <definitionsname="urn:AddressFetcher" targetNamespace="urn:AddressFetcher" xmlns:tns="urn:AddressFetcher" xmlns:xs="http://www.w3.org/1999/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns="http://schemas.xmlsoap.org/wsdl/"> <types>…</types> <messagename="AddEntryRequest">…</message> … <portTypename="AddressBook">…</portType> <binding>…</binding> <service>…</service> </definitions> Type Definitions Message Declarations Port Type Declarations Binding Declarations Service Declaration

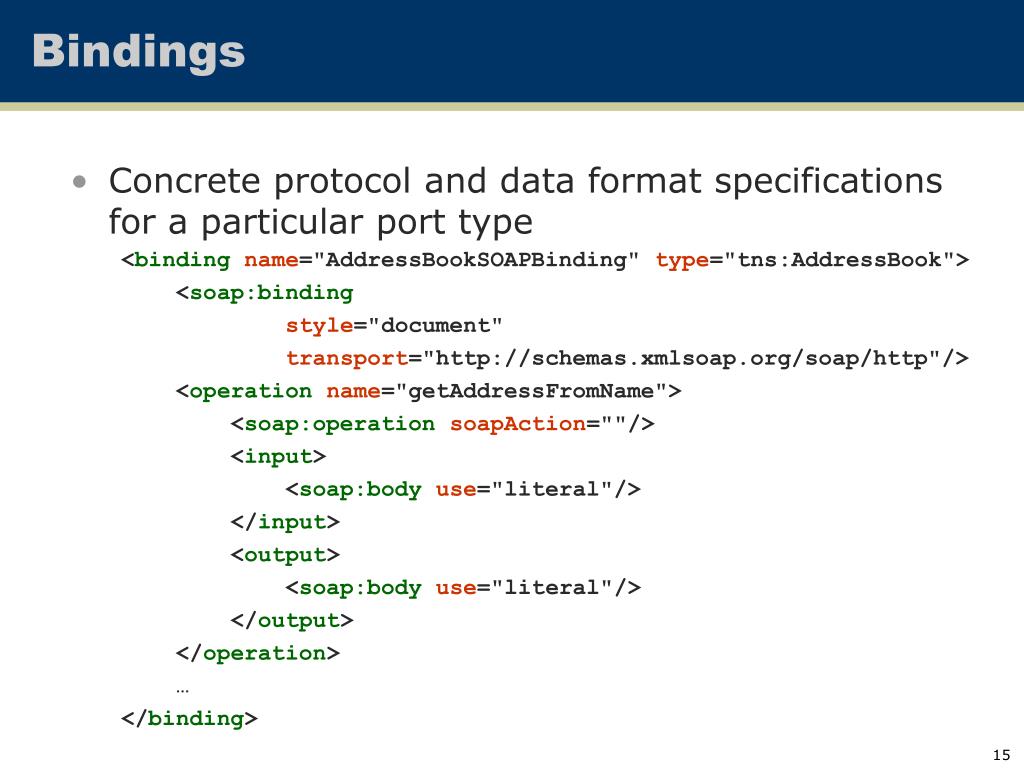

  15. Bindings • Concrete protocol and data format specifications for a particular port type <bindingname="AddressBookSOAPBinding" type="tns:AddressBook"> <soap:binding style="document" transport="http://schemas.xmlsoap.org/soap/http"/> <operationname="getAddressFromName"> <soap:operationsoapAction=""/> <input> <soap:bodyuse="literal"/> </input> <output> <soap:bodyuse="literal"/> </output> </operation> … </binding>

  16. Services & Ports • Port: a single endpoint defined as a combination of a binding and a network address • Service: a collection of related endpoints <service name="AddressBookService"> <portname="AddressBook" binding="tns:AddressBookSOAPBinding"> <soap:addresslocation="http://localhost:8080/axis/services/AddressBook"/> </port> </service>

  17. Not Discussed • Types of operations: • One-way: The endpoint receives a message • Request-response: The endpoint receives a message, and sends a correlated message • Solicit-response: The endpoint sends a message, and receives a correlated message • Notification: The endpoint sends a message • Alternative Bindings: • HTTP: Using GET and POST • MIME • SOAP • RPC-Style Web Services • UDDI
