  1. Frito-Lay Variety Sack Rotary Filling Module. Testing 24 Count Sacks in Houston O’Connor Packaging (OCP)

  2. Module Planning • Establish Loose Pack Bin Configuration and Capacity Requirements • Set Rotary Table Dimensions • Design Module Output Flow and Sack Sealing methods. • Build Mock-Up Module

  3. Design Plans

  4. Rotary Design • Completed Mock-Up Module

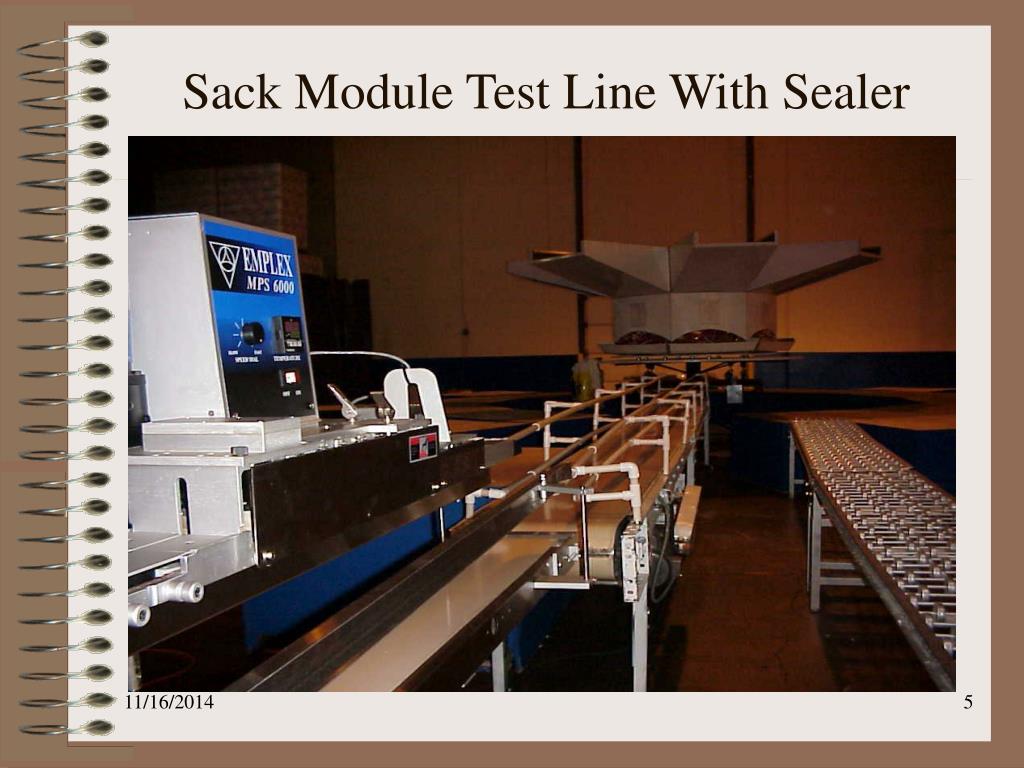

  5. Sack Module Test Line With Sealer

  6. 24 Sack Rotary Test Run

  7. Current 24 Count Tray Process

  8. Current and Future Testing • We have produced a limited quantity of 42 Count Test Sacks with good results • We have produced a small quantity of 8 Count Test Sacks with good results • We will produce 6 Count Test Sacks in the near future
